                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Wed Jun  1 15:45:21 EDT 2011
             Host Name: gcn5
   Current Working Dir: /local/data/raid16/prebascript_archive/trigger354221/SDC
======================================================================

  Trigger: 00354221      Segment: 000

  BAT Trigger Time: 265967344   [s; MET]
      Trigger Stop: 265967408   [s; MET]
               UTC: 2009-06-06T07:48:59.196440    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 268.538815288609   Dec: -26.3162332323889  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    8.15
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    8.15

  Flight Position:   [ source = BAT ]
    RA: 268.538815288609   Dec: -26.3162332323889  [deg; J2000]


  Partial Coding Fraction:     [ including projection effects ]


  Angular difference between Flight and Ground position is 0.000000 arcmin

  Partial Coding Fraction:     [ including projection effects ]

  Duration
     T90: 229.571999996901 +/- 151.833228184297
        Measured from: 186.631999999285
                   to: 416.203999996185     [s; relative to TRIGTIME]
     T50: 229.571999996901 +/- 153.210249547204
        Measured from: 186.631999999285
                   to: 416.203999996185     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 303.627999991179
                   to: 304.627999991179     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 186.631999999285
                   to: 416.203999996185     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.531327   0.070416   0.052443   0.042487
           0.090023   0.078577   0.066324   0.057020 [error]
 Peak      0.017110   0.009091   0.006763   0.000662
           0.006001   0.005246   0.004509   0.003675 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux Power-law 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s

Fluence   Cutoff-PL 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux Cutoff-PL 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s

Fluence        Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.000    0.000    -      -           0.00e+00 0.00e+00    0.000  0
CPL   0.000    0.000       0.0    0.0      0.00e+00 0.00e+00    0.000  0


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.000    0.000    -      -           0.00e+00 0.00e+00    0.000  0
CPL   0.000    0.000       0.0    0.0      0.00e+00 0.00e+00    0.000  0

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  229.572  186.632  416.204
T90   229.572  186.632  416.204
T50   229.572  186.632  416.204
Peak    1.000  303.628  304.628

Click here for the BAT GCN circular template


Pre-slew 15-350 keV image (Event data; bkg subtracted)


Foreground time interval of the image:
Background time interval of the image:

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

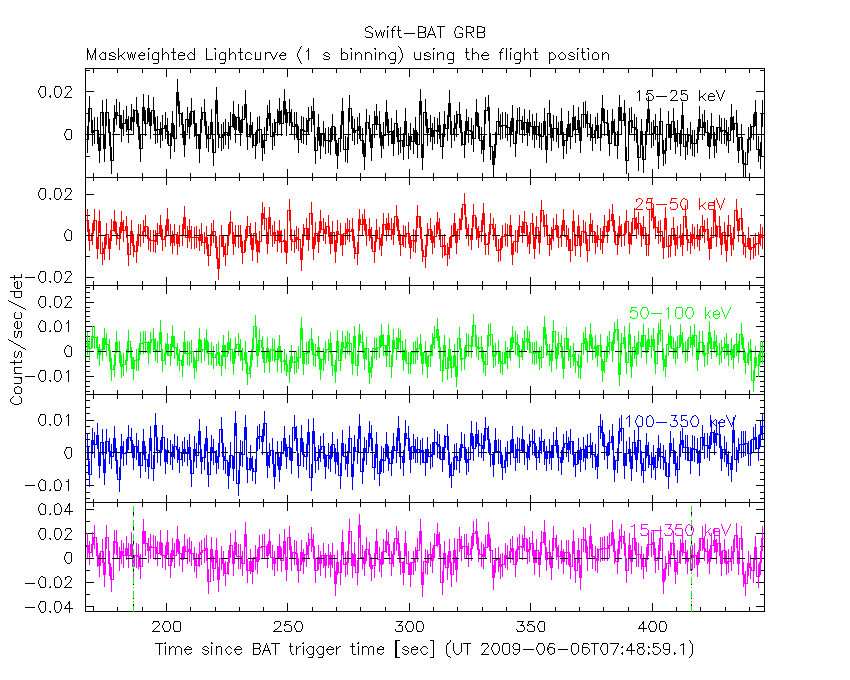

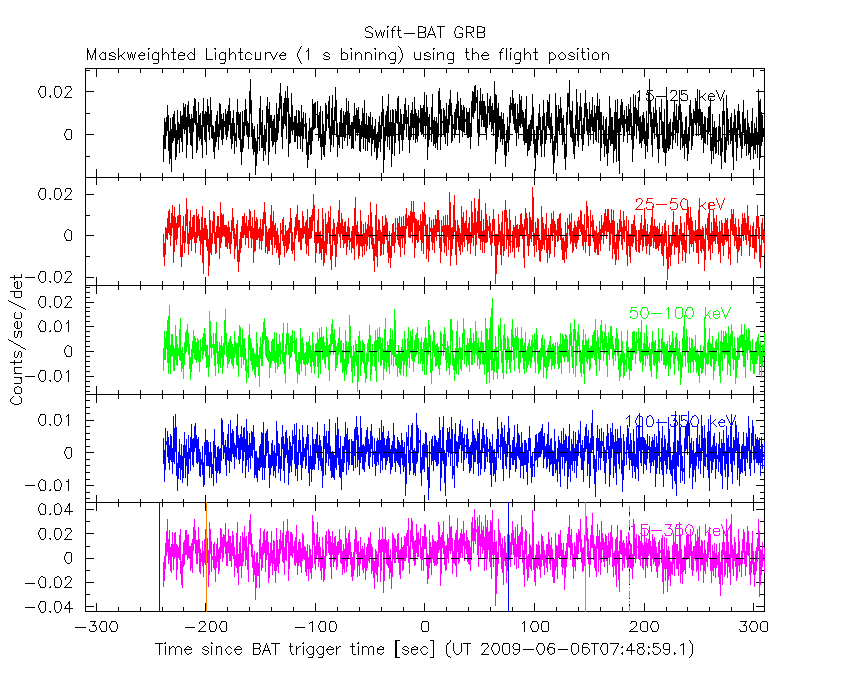

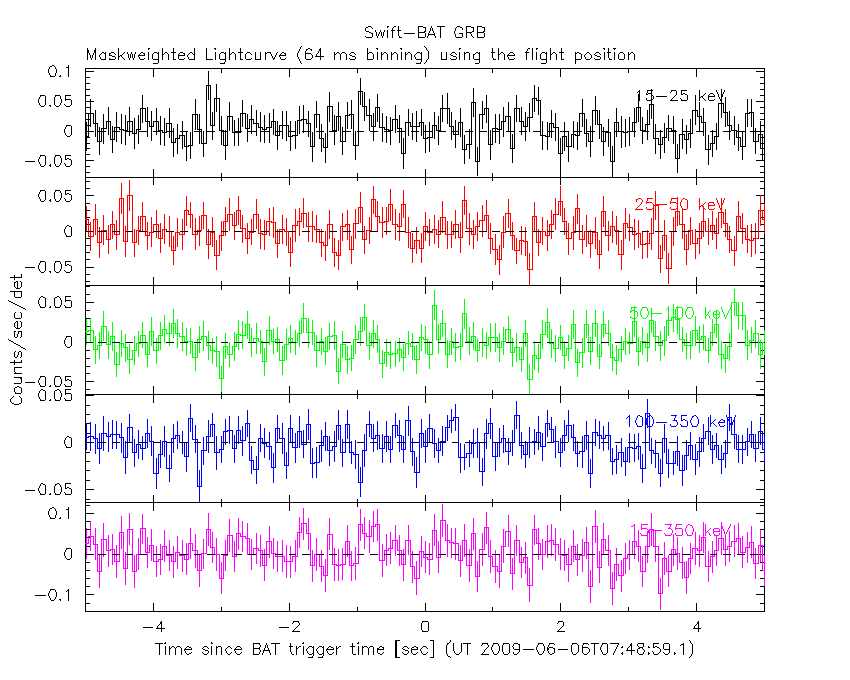

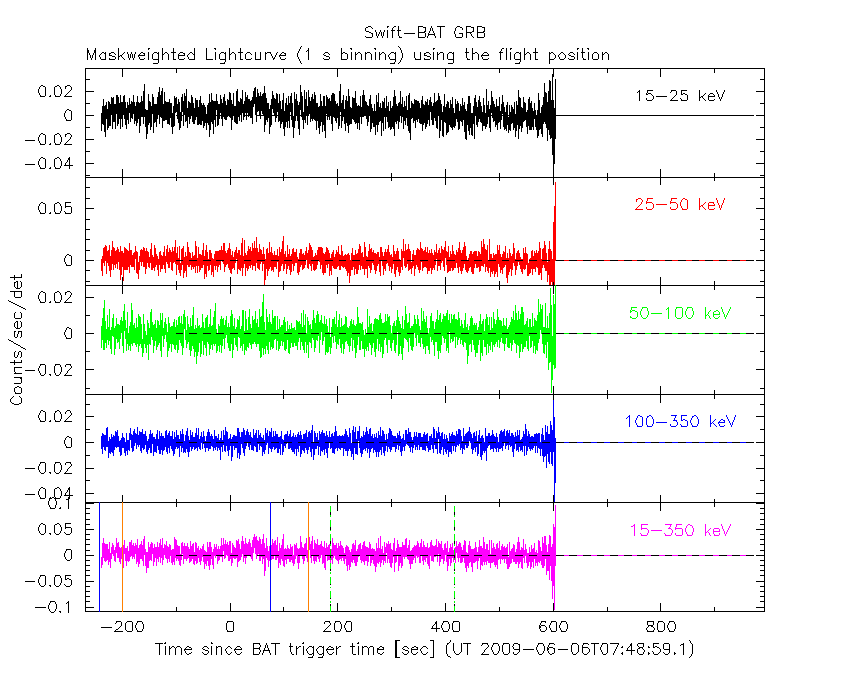

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

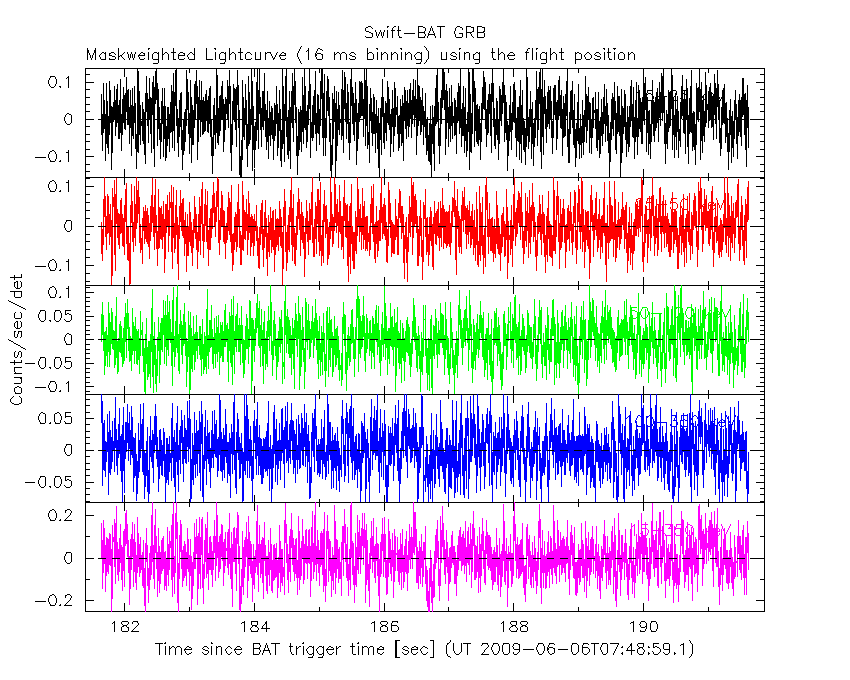

16 ms binning

From T100_start-5 s to T100_start+5 s

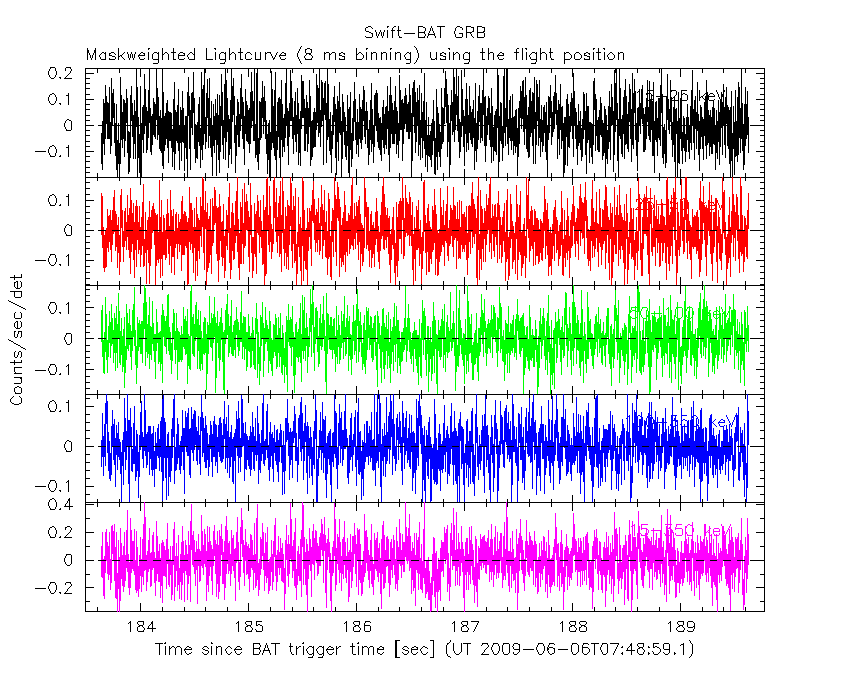

8 ms binning

From T100_start-3 s to T100_start+3 s

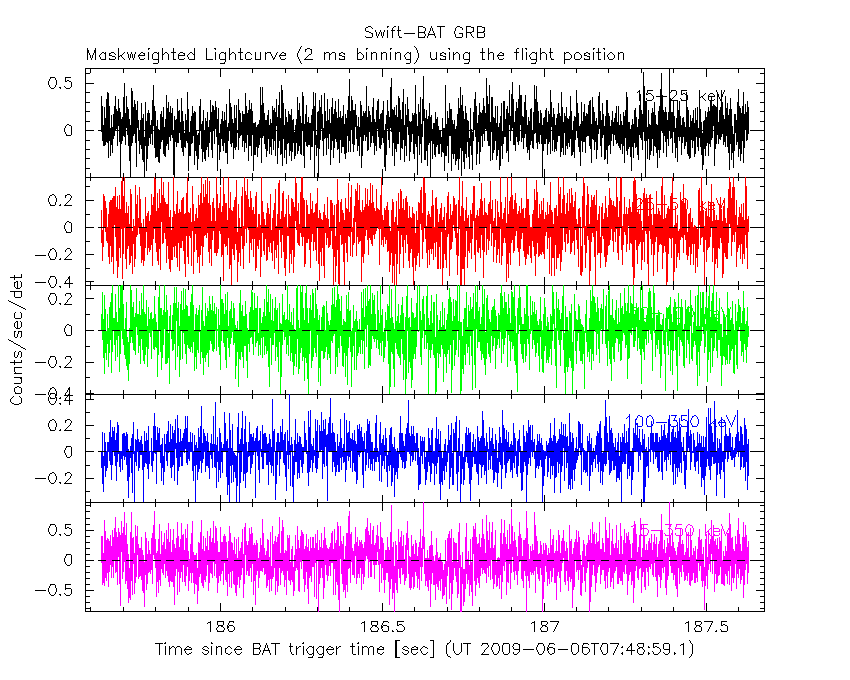

2 ms binning

From T100_start-1 s to T100_start+1 s

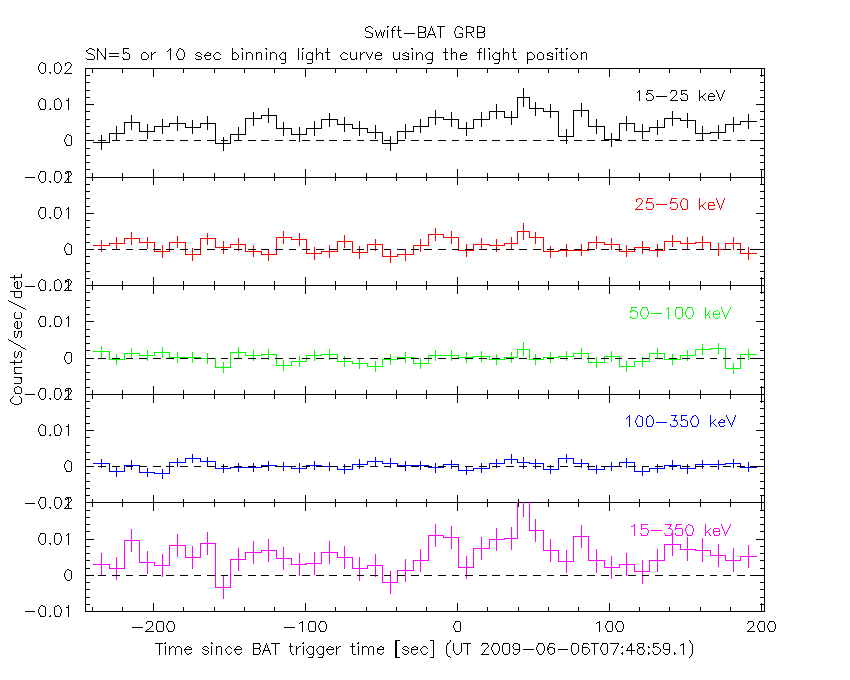

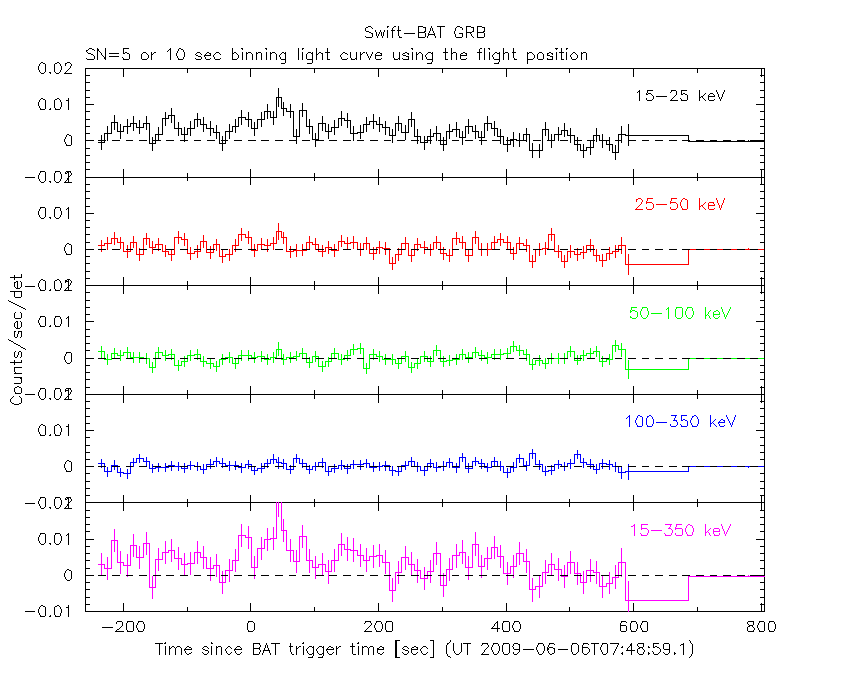

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from  186.632 sec. to  416.204 sec.
Usage: bat_spec_fit_sys_xspec12.sh (pha file) (response file)
       This script tries to add the systematic column to the PHA
       file before doing the fitting

Cutoff power-law model

Time interval is from  186.632 sec. to  416.204 sec.
Usage: bat_spec_fit_cutoff_sys_xspec12.sh (pha file) (response file)
       This script tries to add the systematic column to the PHA
       file before doing the fitting

Band function

Time interval is from  186.632 sec. to  416.204 sec.
Usage: bat_spec_fit_band_sys.sh (pha file) (response file)
       This script tries to add the systematic column to the PHA
       file before doing the fitting

Single BB

Usage: bat_spec_fit_bb_sys.sh (pha file) (response file)
       This script tries to add the systematic column to the PHA
       file before doing the fitting

Thermal bremsstrahlung (OTTB)

Usage: bat_spec_fit_brems_sys.sh (pha file) (response file)
       This script tries to add the systematic column to the PHA
       file before doing the fitting

Double BB

Usage: bat_spec_fit_2bb_sys.sh (pha file) (response file)
       This script tries to add the systematic column to the PHA
       file before doing the fitting

Peak spectrum fit

Power-law model

Time interval is from  303.628 sec. to  304.628 sec.
Usage: bat_spec_fit_sys_xspec12.sh (pha file) (response file)
       This script tries to add the systematic column to the PHA
       file before doing the fitting

Cutoff power-law model

Time interval is from  303.628 sec. to  304.628 sec.
Usage: bat_spec_fit_cutoff_sys_xspec12.sh (pha file) (response file)
       This script tries to add the systematic column to the PHA
       file before doing the fitting

Band function

Time interval is from  303.628 sec. to  304.628 sec.
Usage: bat_spec_fit_band_sys.sh (pha file) (response file)
       This script tries to add the systematic column to the PHA
       file before doing the fitting

Single BB

Usage: bat_spec_fit_bb_sys.sh (pha file) (response file)
       This script tries to add the systematic column to the PHA
       file before doing the fitting

Thermal bremsstrahlung (OTTB)

Usage: bat_spec_fit_brems_sys.sh (pha file) (response file)
       This script tries to add the systematic column to the PHA
       file before doing the fitting

Double BB

Usage: bat_spec_fit_2bb_sys.sh (pha file) (response file)
       This script tries to add the systematic column to the PHA
       file before doing the fitting

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model

Cutoff power-law model

Band function

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  =
S(50-100 keV) =

T90 vs. Hardness ratio plot

T90                                   = 229.571999996901 sec.
Hardness ratio (energy fluence ratio) =

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.132529
Count Ratio (50-100 keV) / (15-25 keV) = 0.0987019

Mask shadow pattern

IMX = 0, IMY = 0

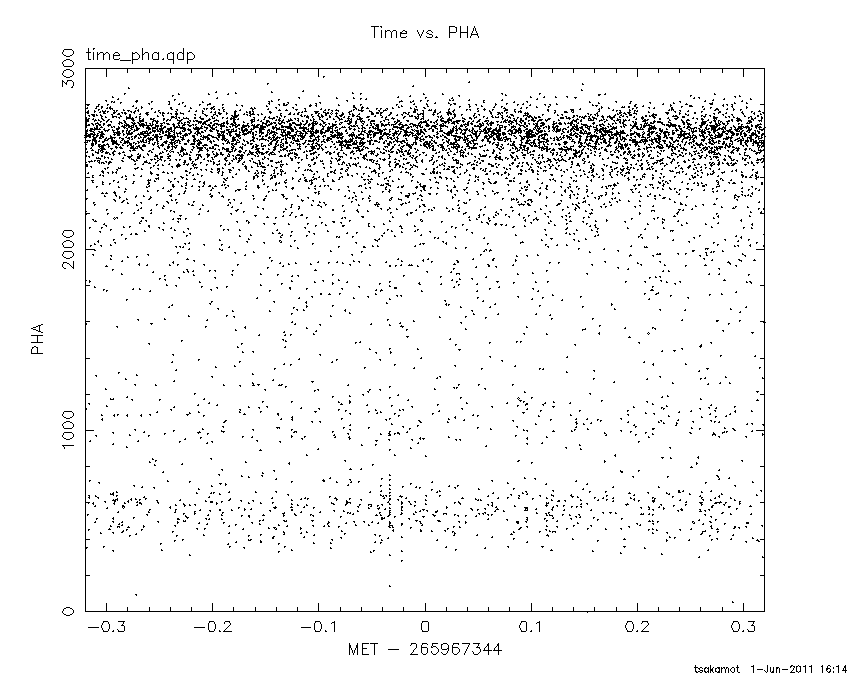

TIME vs. PHA plot around the trigger time

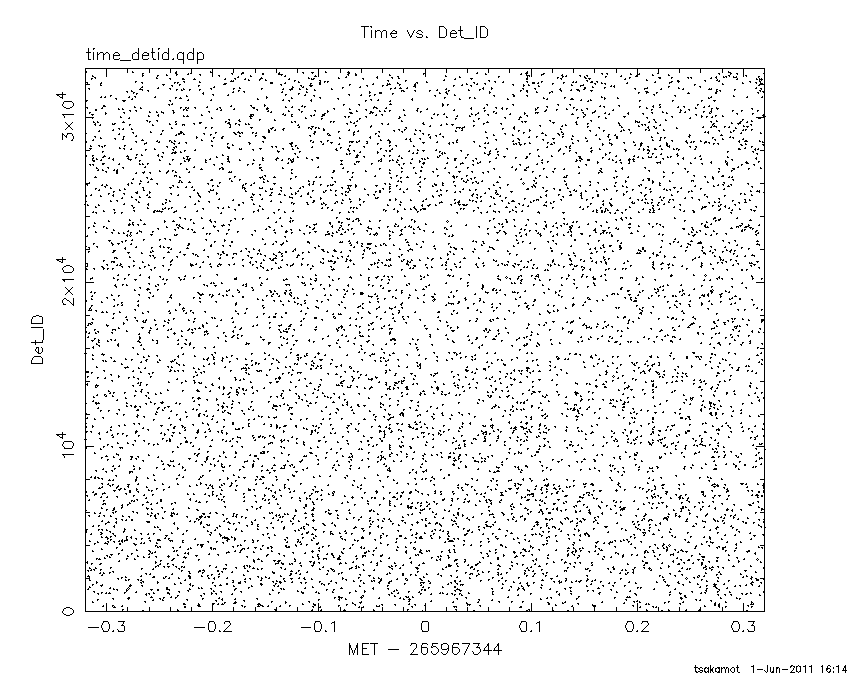

TIME vs. DetID plot around the trigger time

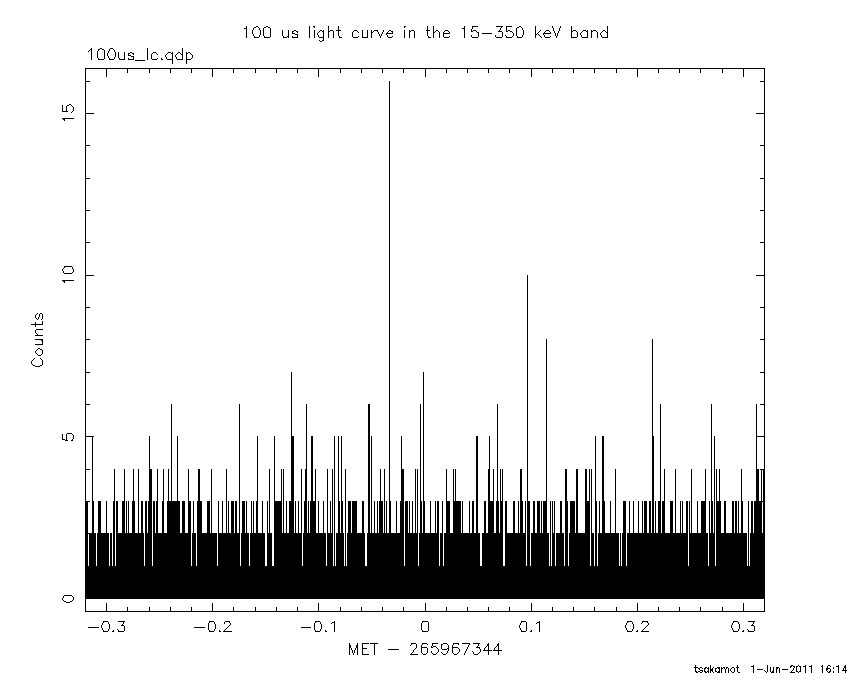

100 us light curve (15-350 keV)

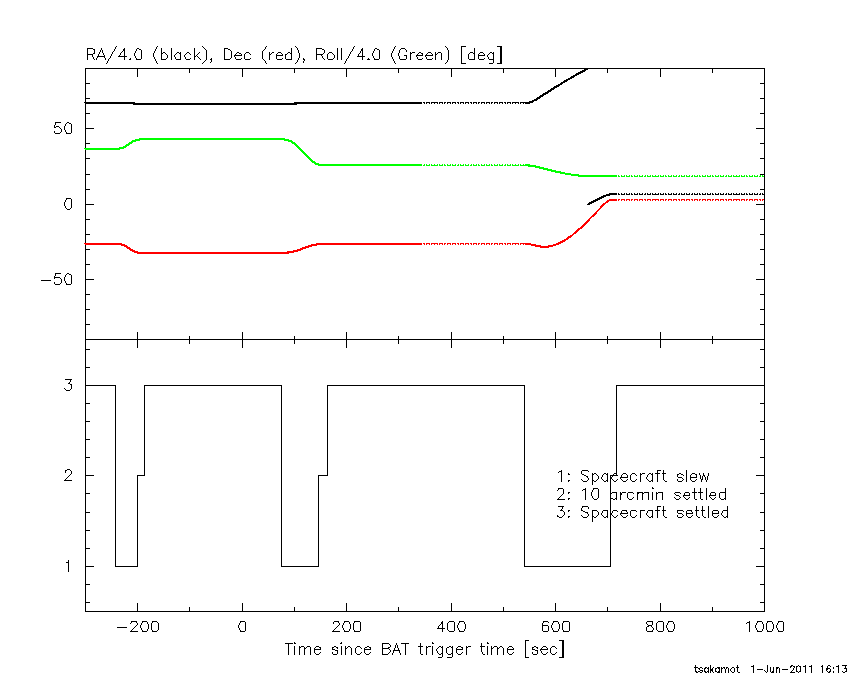

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-199.499410 75.900600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9928 -15.6297    0.2  25.6   43.6  16.5792  56.4    1.0	Sco X-1
255.9107 -37.8448    1.1  10.4  -27.5   2.3593  10.4    3.6	4U 1700-377
256.5480 -36.5596    4.3   9.3  -22.2   0.6153   2.7    9.8	GX 349+2
262.9189 -24.7758    4.1   8.1   74.3   0.6778   2.9    5.2	GX 1+4
264.5663 -44.6161    0.0  12.5  -75.1   0.2411   1.0   12.5	4U 1735-44
268.3835  -1.5321    2.9  30.7  102.0   1.6521   4.0    4.9	SW J1753.5-0127
270.1007 -24.9989   11.4   7.8  122.8  -0.2516  -1.0   11.1	GX 5-1
270.3424 -25.7002    2.9   7.3  126.5   0.9961   4.1    3.4	GRS 1758-258
274.0261 -14.0520    1.5  19.4  120.8   2.0588   7.6    1.5	GX 17+2
275.9433 -30.3612    2.0   8.2  178.0   1.4174   5.8    1.0	H1820-303
285.0341 -25.0706  370.0  17.7  169.4   0.0083   0.0    9.0	HT1900.1-2455
226.3254  -1.4172    2.7  48.8   39.3   4.6926   4.3 ------	UNKNOWN
268.5508 -26.3222    1.6   6.1  115.5   1.7196   7.3 ------	UNKNOWN
329.7192 -27.4087    2.8  54.2 -159.0   3.3861   4.1 ------	UNKNOWN
274.6519 -60.0321    3.2  28.4  -90.1   1.3458   3.6 ------	UNKNOWN
324.7351 -37.5222    3.1  47.3 -148.1   2.3108   3.7 ------	UNKNOWN
196.5786 -48.7484    3.0  53.7  -31.4   4.1713   3.9 ------	UNKNOWN
200.4992 -52.2197    3.4  50.8  -35.3   2.9991   3.4 ------	UNKNOWN
325.8071 -52.3513    2.5  46.7 -127.8   5.2814   4.6 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:

Post-slew image of 15-350 keV band

Time interval of the image:
146.500590 539.900580

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9743 -15.6411    0.2  24.4   98.6  22.7090  52.7    0.3	Sco X-1
255.9894 -37.8771    0.8  15.7   26.8   4.3332  14.5    2.0	4U 1700-377
256.5638 -36.3808    5.6  14.3   29.9   0.6583   2.1    6.7	GX 349+2
262.9873 -24.7271    4.8   5.3   94.1   0.6993   2.4    1.6	GX 1+4
264.8340 -44.3121    4.2  18.2   -4.1  -0.7790  -2.8    9.2	4U 1735-44
268.3386  -1.5073    4.0  24.9  166.8   0.9434   2.9    3.7	SW J1753.5-0127
270.4491 -25.0976    5.9   2.1 -138.7   0.6495   2.0    9.0	GX 5-1
270.3942 -25.6073    4.9   1.8 -126.6   0.7752   2.4    9.5	GRS 1758-258
273.9737 -13.9815    2.5  13.4 -169.3   1.4655   4.6    3.8	GX 17+2
275.9563 -30.3612    1.7   7.6  -69.4   2.1760   6.7    1.7	H1820-303
285.2140 -24.7914    0.0  15.1 -105.0  -0.5463  -1.5   12.4	HT1900.1-2455
288.8269  10.9520    2.1  42.2 -162.3   3.1193   5.5    1.7	GRS 1915+105
233.0174  -4.5543    3.0  40.4  103.8   4.6208   3.9 ------	UNKNOWN
260.9429 -69.7684    2.2  43.6   -8.9   2.5174   5.2 ------	UNKNOWN
296.4870 -14.2463    3.9  28.8 -122.1   1.1601   2.9 ------	UNKNOWN

Plot creation:
Wed Jun  1 16:15:08 EDT 2011
