batgrbproduct analysis for trigger=355981

batgrbproduct Analysis for Trigger=355981

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This page will be updated for up to 8 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.45
    Process Start Time (local time): Tue Jun 30 03:47:43 EDT 2009
             Host Name: gcn5
   Current Working Dir: /local/data/raid16/prebascript_archive/trigger355981/GCN5_download_cron
======================================================================

  Trigger: 00355981      Segment: 000

  BAT Trigger Time: 267985715.584   [s; MET]
      Trigger Stop: 267985715.84   [s; MET]
               UTC: 2009-06-29T16:28:30.715480    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 242.698293872996   Dec: 3.63263573013226  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    5.8
     Image Trigger?:     NO
     Rate S/N Ratio:     42.1307488658818  [ if not an image trigger ]
     Image S/N Ratio:    5.8

  Flight Position:   [ source = BAT ]
    RA: 242.698293872996   Dec: 3.63263573013226  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 242.6848723922   Dec: 3.58566757400932  [deg; J2000]
        { 16h 10m 44.4s , +03d 35' 08.4" }
         +/- 3.41222490273088 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.76487532299046 [arcmin] (formal 1-sigma fit error)
    SNR: 5.26788184488658

  Angular difference between Flight and Ground position is 2.930452 arcmin

  Partial Coding Fraction: 0.9296875    [ including projection effects ]

  Duration
     T90: 0.256000012159348 +/-
        Measured from: 0
                   to: 0.256000012159348     [s; relative to TRIGTIME]
     T50: 0.256000012159348 +/-
        Measured from: 0
                   to: 0.256000012159348     [s; relative to TRIGTIME]

    WARNING: battblocks failed.  Used TDRSS fore/background intervals

  Fluence
     Peak Flux  (peak 0.256000012159348 second)
        Measured from: 1.49011611938477e-08
                   to: 0.256000027060509     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0
                   to: 0.256000012159348     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.007370   0.014984  -0.000164   0.000573
           0.002897   0.002821   0.002477   0.002221 [error]
 Peak      0.007370   0.014984  -0.000164   0.000573
           0.002897   0.002821   0.002477   0.002221 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.44e-09 3.01e-09 2.70e-09 4.20e-09 9.61e-09 1.24e-08   erg/cm2
              Error 1.14e-09 1.19e-09 1.62e-09 5.16e-09 4.19e-09 7.06e-09   erg/cm2
Peak flux Power-law 3.17e-01 2.16e-01 9.63e-02 5.96e-02 6.58e-01 6.89e-01   ph/cm2/s
              Error 1.47e-01 8.28e-02 5.58e-02 6.85e-02 2.49e-01 2.62e-01   ph/cm2/s

Fluence   Cutoff-PL 2.04e-09 4.83e-09 1.55e-09 2.80e-11 9.20e-09 8.43e-09   erg/cm2
              Error 1.04e-09 1.67e-09 1.64e-09 2.62e-10 3.09e-09 3.06e-09   erg/cm2
Peak flux Cutoff-PL 2.49e-01 3.44e-01 6.42e-02 5.12e-04 6.58e-01 6.58e-01   ph/cm2/s
              Error 1.31e-01 1.16e-01 6.67e-02 6.17e-03 2.22e-01 2.21e-01   ph/cm2/s

Fluence        Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.155    0.624    -      -           4.02e-03 1.92e-03   89.480 57
CPL  -4.821    0.000      36.0    7.0      7.35e+01 5.03e+01   83.270 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.162    0.616    -      -           4.06e-03 1.92e-03   90.310 57
CPL  -4.801    0.000      35.9    6.9      7.37e+01 5.05e+01   84.140 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.256    0.000    0.256
T90     0.256    0.000    0.256
T50     0.256    0.000    0.256
Peak    0.256    0.000    0.256

Click here for the BAT GCN circular template


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  242.6849  +3.5857 0.0364   20.3   14.3       0.0278     5.3  TRIG_00355981
------------------------------------------

Foreground time interval of the image:
  0.000   0.256 (delta_t =   0.256 [sec])
Background time interval of the image:
-24.283  -3.584 (delta_t =  20.699 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Flight mask-tagged light curves

Caution: Mask-weight map is always using the same on-axis map

Quad-rate summed light curves (from T0-300 to T0+1000)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

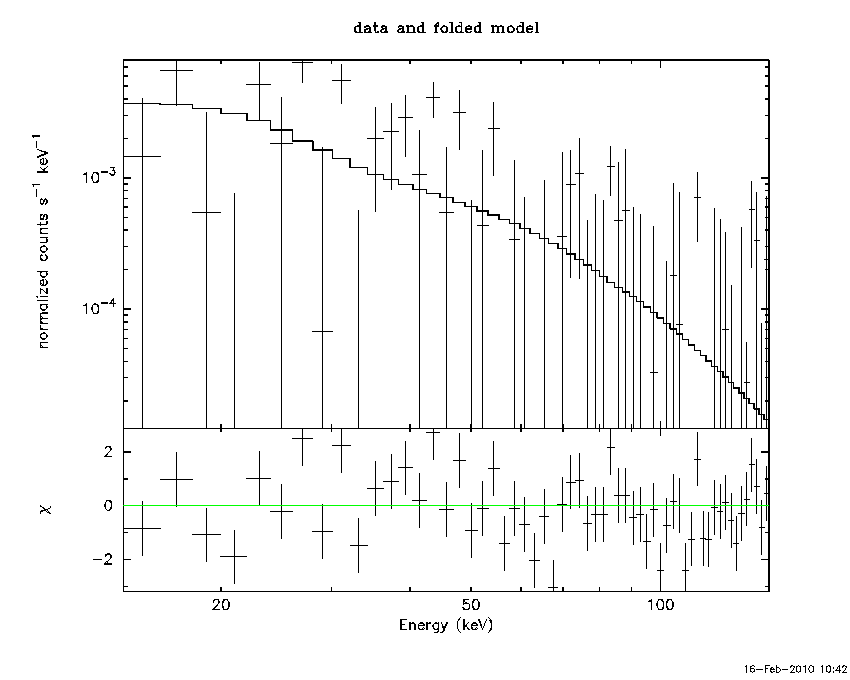

Power-law model

Time interval is from    0.000 sec. to    0.256 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.15525     ( -0.544493   0.704391 )
Norm@50keV  : 4.02304E-03    ( -0.00195456   0.00188021 )
------------------------------------------------------------
# Chi-Squared =          89.48 using 59 PHA bins.
# Reduced chi-squared =          1.570 for     57 degrees of freedom
# Null hypothesis probability =   3.874813e-03

Photon flux (15-150 keV)    in 0.256 sec: 0.650063 ( -0.251093  0.251221 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.61047e-09 ( -4.11098e-09  4.27827e-09 ) ergs/cm2

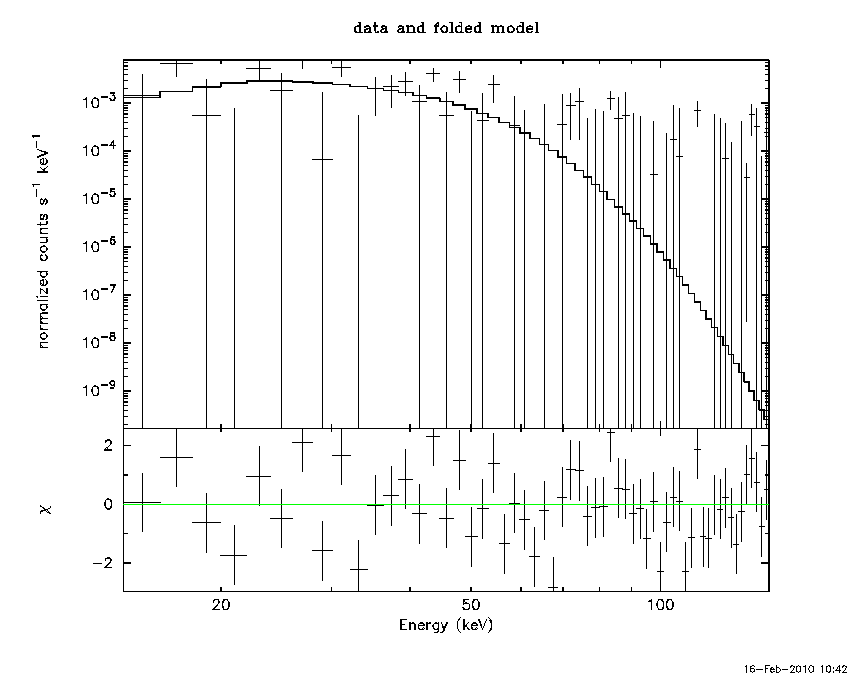

Cutoff power-law model

Time interval is from    0.000 sec. to    0.256 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -4.82131     (     )
Epeak [keV] : 35.9648      ( -6.49735 7.41734 )
Norm@50keV  : 73.5476    ( -73.5554   27.0153 )
------------------------------------------------------------
# Chi-Squared =          83.27 using 59 PHA bins.
# Reduced chi-squared =          1.487 for     56 degrees of freedom
# Null hypothesis probability =   1.049078e-02

Photon flux (15-150 keV)    in 0.256 sec: 0.650737 ( -0.220857  0.223514 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.19967e-09 ( -3.02228e-09  3.15548e-09 ) ergs/cm2

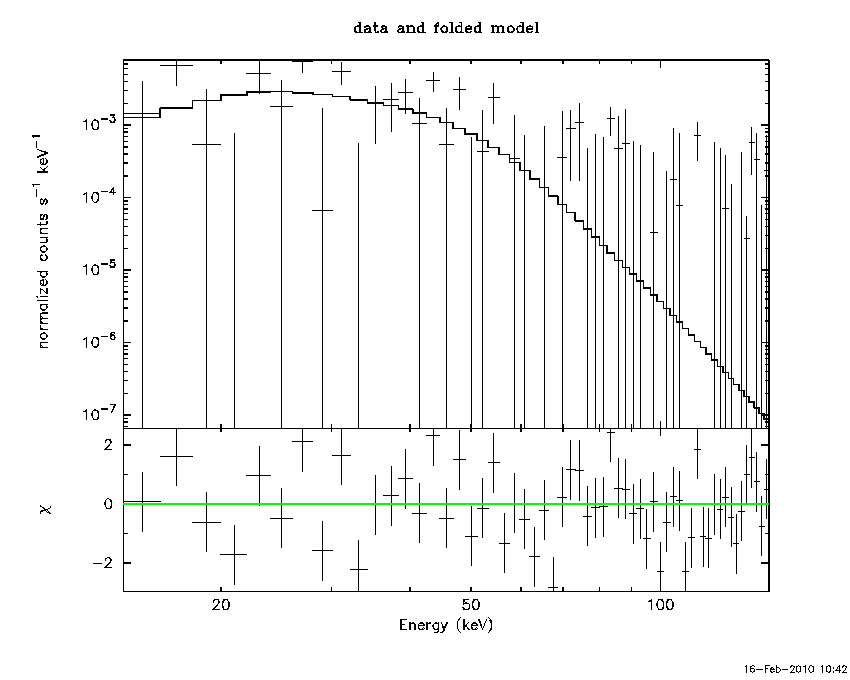

Band function

Time interval is from    0.000 sec. to    0.256 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.97340   ( -83.8058   -73.806 )
beta        : -7.20790    ( 5.8498   15.0399 )
Epeak [keV] : 35.8824      ( -6.31835 7.34999 )
Norm@50keV   : 91.9855    ( -50.0544   153.594 )
------------------------------------------------------------
# Chi-Squared =          83.21 using 59 PHA bins.
# Reduced chi-squared =          1.513 for     55 degrees of freedom
# Null hypothesis probability =   8.356770e-03

Photon flux (15-150 keV)    in 0.256 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Peak spectrum fit

Power-law model

Time interval is from    0.000 sec. to    0.256 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.16230     ( -0.536213   0.695392 )
Norm@50keV  : 4.05716E-03    ( -0.00195288   0.00187791 )
------------------------------------------------------------
# Chi-Squared =          90.31 using 59 PHA bins.
# Reduced chi-squared =          1.584 for     57 degrees of freedom
# Null hypothesis probability =   3.256426e-03

Photon flux (15-150 keV)    in 0.256 sec: 0.657996 ( -0.24936  0.249422 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.70171e-09 ( -4.09577e-09  4.26447e-09 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.000 sec. to    0.256 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -4.80148     (     )
Epeak [keV] : 35.8612      ( -6.45321 7.31844 )
Norm@50keV  : 73.6545    ( -73.6643   27.3739 )
------------------------------------------------------------
# Chi-Squared =          84.14 using 59 PHA bins.
# Reduced chi-squared =          1.502 for     56 degrees of freedom
# Null hypothesis probability =   8.854697e-03

Photon flux (15-150 keV)    in 0.256 sec: 0.658183 ( -0.220722  0.222579 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.19967e-09 ( -3.02228e-09  3.15548e-09 ) ergs/cm2

Band function

Time interval is from    0.000 sec. to    0.256 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.99994   ( -31286.6   -31283.5 )
beta        : -7.45901    ( 5.80408   15.4489 )
Epeak [keV] : 36.3144      ( -6.69989 6.84415 )
Norm@50keV   : 88.9159    ( -71.6678   245.599 )
------------------------------------------------------------
# Chi-Squared =          84.09 using 59 PHA bins.
# Reduced chi-squared =          1.529 for     55 degrees of freedom
# Null hypothesis probability =   7.005235e-03

Photon flux (15-150 keV)    in 0.256 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.15525     ( -0.544493   0.704391 )
Norm@50keV  : 4.02304E-03    ( -0.00195456   0.00188021 )
------------------------------------------------------------
# Chi-Squared =          89.48 using 59 PHA bins.
# Reduced chi-squared =          1.570 for     57 degrees of freedom
# Null hypothesis probability =   3.874813e-03

Photon flux (15-150 keV)    in 0.256 sec: 0.650063 ( -0.251093  0.251221 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.61047e-09 ( -4.11098e-09  4.27827e-09 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -4.82131     (     )
Epeak [keV] : 35.9648      ( -6.49735 7.41734 )
Norm@50keV  : 73.5476    ( -73.5554   27.0153 )
------------------------------------------------------------
# Chi-Squared =          83.27 using 59 PHA bins.
# Reduced chi-squared =          1.487 for     56 degrees of freedom
# Null hypothesis probability =   1.049078e-02

Photon flux (15-150 keV)    in 0.256 sec: 0.650737 ( -0.220857  0.223514 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.19967e-09 ( -3.02228e-09  3.15548e-09 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.97340   ( -83.8057   -73.806 )
beta        : -7.20790    ( 5.8498   15.0399 )
Epeak [keV] : 35.8824      ( -6.31835 7.34999 )
Norm@50keV   : 91.9855    ( -50.0544   118.425 )
------------------------------------------------------------
# Chi-Squared =          83.21 using 59 PHA bins.
# Reduced chi-squared =          1.513 for     55 degrees of freedom
# Null hypothesis probability =   8.356770e-03

Photon flux (15-150 keV)    in 0.256 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 3.0146e-09
S(50-100 keV) = 2.70405e-09

T90 vs. Hardness ratio plot

T90                                   = 0.256000012159348 sec.
Hardness ratio (energy fluence ratio) = 0.896985

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 2.03311
Count Ratio (50-100 keV) / (15-25 keV) = -0.0222524

Mask shadow pattern

IMX = 0, IMY = 0

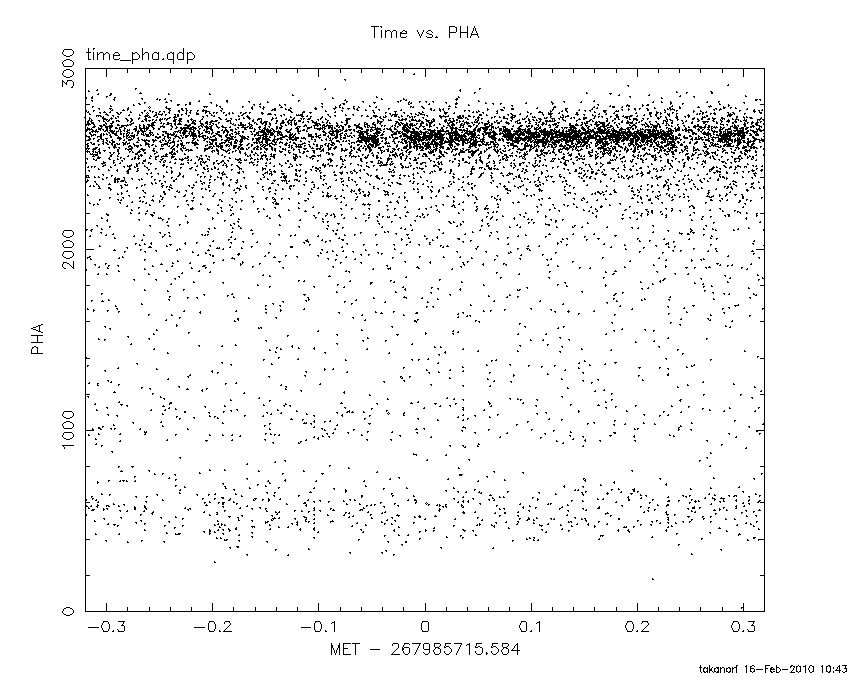

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

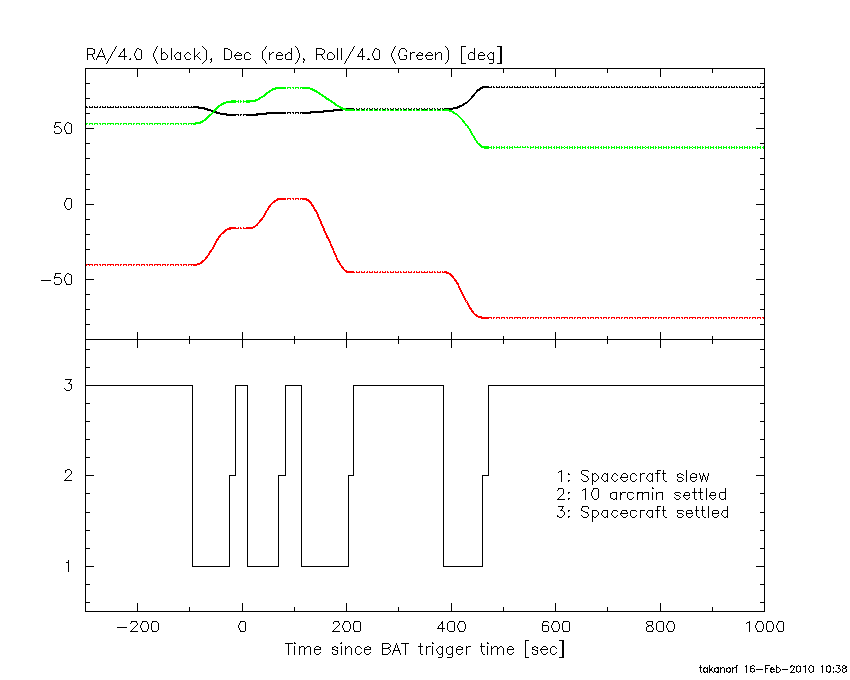

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-24.283400 -3.584000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
186.6737 -62.8066    6.0  58.3 -157.6  -0.5323  -1.9    2.2	GX 301-2
244.9597 -15.6170    0.6   7.6   86.4   0.8707  19.0    1.8	Sco X-1
254.5763  35.3120   14.4  53.9   15.7   0.2150   0.8    6.1	Her X-1
255.8849 -37.7648    5.4  27.4  144.3   0.1438   2.1    6.8	4U 1700-377
256.2675 -36.5133    8.8  26.7  142.0   0.0874   1.3    9.7	GX 349+2
263.1645 -24.6644    3.1  25.9  111.8   0.2673   3.7    9.8	GX 1+4
264.7151 -44.6048   14.6  36.9  144.6   0.0703   0.8    9.4	4U 1735-44
268.5307  -1.5852    0.0  34.2   66.3  -0.3399  -3.2   12.6	SW J1753.5-0127
270.2835 -25.2125   37.9  32.3  110.1  -0.0279  -0.3    8.0	GX 5-1
270.3006 -25.8771   33.1  32.5  111.3   0.0316   0.4    8.0	GRS 1758-258
274.1149 -14.1446    4.2  35.8   90.2   0.3276   2.7    9.1	GX 17+2
276.0396 -30.4642   10.7  38.4  117.2   0.1638   1.1    8.3	H1820-303
241.9658   0.4762    2.2  17.1   14.8   0.2509   5.4 ------	UNKNOWN
197.3168 -68.0418    2.4  57.9 -165.6   1.1553   4.8 ------	UNKNOWN
205.0465  -4.9658    2.4  33.3  -76.2   0.3859   4.7 ------	UNKNOWN
193.7897 -22.3308    3.1  41.2 -107.9   0.7291   3.8 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.000000 0.256000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
186.6430 -62.7560    5.9  58.3 -157.5   0.0616   2.0    0.9	GX 301-2
245.0202 -15.7888    5.2   7.6   87.7  -0.0111  -2.2    9.2	Sco X-1
254.4617  35.3563    8.8  53.9   15.5   0.0377   1.3    0.9	Her X-1
256.0604 -37.9302    5.2  27.6  144.4   0.0146   2.2    6.2	4U 1700-377
256.3561 -36.3128    5.2  26.6  141.5  -0.0146  -2.2    7.6	GX 349+2
262.8343 -24.6324    0.0  25.6  111.9   0.0175   2.5   11.7	GX 1+4
264.7954 -44.3285    6.0  36.8  144.2  -0.0185  -1.9    7.6	4U 1735-44
268.3808  -1.5818   10.0  34.0   66.1   0.0128   1.2    7.8	SW J1753.5-0127
270.3214 -25.2044    6.6  32.4  110.1  -0.0167  -1.7    7.8	GX 5-1
270.1605 -25.9078    0.0  32.4  111.4  -0.0098  -1.0   12.5	GRS 1758-258
273.9932 -14.1341    7.5  35.7   90.1   0.0203   1.5    5.9	GX 17+2
275.8199 -30.4881    5.5  38.2  117.3   0.0328   2.1    9.1	H1820-303
278.2907 -57.1545    2.4  51.4  150.8   0.1208   4.8 ------	UNKNOWN
257.8705 -69.6791    2.3  55.2  169.4   0.1454   5.0 ------	UNKNOWN
249.2629   9.7108    1.9  28.4   24.0   0.0385   6.2 ------	UNKNOWN
237.9885  30.2905    2.1  46.3   -0.9   0.0536   5.6 ------	UNKNOWN
212.6923  29.7920    2.5  51.4  -29.3   0.0688   4.7 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
70.416600 113.916600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9735 -15.6397    0.5  19.4  134.5   1.7334  23.6    0.3	Sco X-1
254.3507  35.2661    3.5  33.4  -21.5  -0.2650  -3.3    7.0	Her X-1
255.7697 -37.8268    7.2  43.2  126.0   0.4997   1.6   10.3	4U 1700-377
256.4331 -36.2822    9.4  41.9  124.5   0.3458   1.2    8.5	GX 349+2
263.0697 -24.8138    5.9  34.6  107.4   0.3131   2.0    5.3	GX 1+4
268.4146  -1.4190   21.2  26.2   61.8  -0.0517  -0.5    3.4	SW J1753.5-0127
270.4502 -25.0325   13.3  39.3   99.4   0.2497   0.9    9.4	GX 5-1
270.2747 -25.8635   31.0  39.8  100.5  -0.1110  -0.4    7.4	GRS 1758-258
274.0320 -13.9008   10.1  35.7   81.2  -0.2122  -1.1    8.3	GX 17+2
288.8032  11.1710    0.0  46.3   39.1   0.6523   2.7   13.5	GRS 1915+105
243.9361 -24.6590    2.5  28.3  138.8   0.4209   4.6 ------	UNKNOWN
205.4509 -38.2727    3.0  54.3  176.9   1.0669   3.8 ------	UNKNOWN
193.0928 -14.9426    2.5  52.5 -150.9   1.0763   4.6 ------	UNKNOWN
189.6937 -10.6229    3.4  54.7 -144.7   1.4972   3.4 ------	UNKNOWN

Plot creation:
Tue Feb 16 10:43:43 EST 2010
