batgrbproduct analysis for trigger=359711

batgrbproduct Analysis for Trigger=359711

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sun Jan 19 14:37:43 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger359711
======================================================================

  Trigger: 00359711      Segment: 000

  BAT Trigger Time: 271749733.888   [s; MET]
      Trigger Stop: 271749734.912   [s; MET]
               UTC: 2009-08-12T06:02:08.897520    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 353.194081792447   Dec: -10.5945573605417  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    10.25
     Image Trigger?:     NO
     Rate S/N Ratio:     23.388031127053  [ if not an image trigger ]
     Image S/N Ratio:    10.25

  Flight Position:   [ source = BAT ]
    RA: 353.194081792447   Dec: -10.5945573605417  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 353.200640692419   Dec: -10.6103031693898  [deg; J2000]
        { 23h 32m 48.2s , -10d 36' 37.1" }
         +/- 0.736804038461972 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.217492457408143 [arcmin] (formal 1-sigma fit error)
    SNR: 47.0560562478732

  Angular difference between Flight and Ground position is 1.020870 arcmin

  Partial Coding Fraction: 0.78125    [ including projection effects ]

  Duration
     T90: 74.4959999918938 +/- 15.2868744039961
        Measured from: -1.74800002574921
                   to: 72.7479999661446     [s; relative to TRIGTIME]
     T50: 24.2639999389648 +/- 1.34571912144514
        Measured from: 7.68400001525879
                   to: 31.9479999542236     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 26.8240000009537
                   to: 27.8240000009537     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -5.43999999761581
                   to: 113.884000003338     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     1.835128   2.946024   2.635923   0.899099
           0.062624   0.064592   0.059081   0.051420 [error]
 Peak      0.080606   0.136323   0.174052   0.075662
           0.007078   0.008251   0.008537   0.007089 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 5.57e-07 1.22e-06 2.09e-06 8.31e-06 5.73e-06 1.22e-05   erg/cm2
              Error 3.17e-08 3.95e-08 6.15e-08 5.94e-07 1.56e-07 6.17e-07   erg/cm2
Peak flux Power-law 6.93e-01 1.02e+00 1.12e+00 2.32e+00 3.55e+00 5.16e+00   ph/cm2/s
              Error 8.65e-02 7.59e-02 6.78e-02 3.19e-01 2.03e-01 3.45e-01   ph/cm2/s

Fluence   Cutoff-PL 5.57e-07 1.22e-06 2.09e-06 8.25e-06 5.72e-06 1.19e-05   erg/cm2
              Error 3.04e-08 3.92e-08 6.21e-08 6.05e-07 1.55e-07 9.43e-07   erg/cm2
Peak flux Cutoff-PL 6.95e-01 1.02e+00 1.12e+00 2.30e+00 3.55e+00 5.14e+00   ph/cm2/s
              Error 9.19e-02 7.60e-02 7.14e-02 4.79e-01 2.03e-01 4.99e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.218    0.050    -      -           4.76e-03 1.23e-04   51.520 57
CPL   1.216    0.051    9999.4    0.0      4.78e-03 3.13e-04   51.620 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.862    0.104    -      -           3.09e-02 1.77e-03   43.040 57
CPL   0.859    0.145    9999.4    0.0      3.11e-02 3.98e-03   43.070 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 55.744000 sec.
T50 in the 50-300 keV band: 20.672000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  119.324   -5.440  113.884
T90    74.496   -1.748   72.748
T50    24.264    7.684   31.948
Peak    1.000   26.824   27.824

Click here for the BAT GCN circular template


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  353.2006   -10.6103   0.0041    26.5164   -36.6891         2.8026076     47.056 TRIG_00359711

Foreground time interval of the image:
 -5.440  12.413 (delta_t =  17.853 [sec])
Background time interval of the image:
-239.888  -5.440 (delta_t = 234.448 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

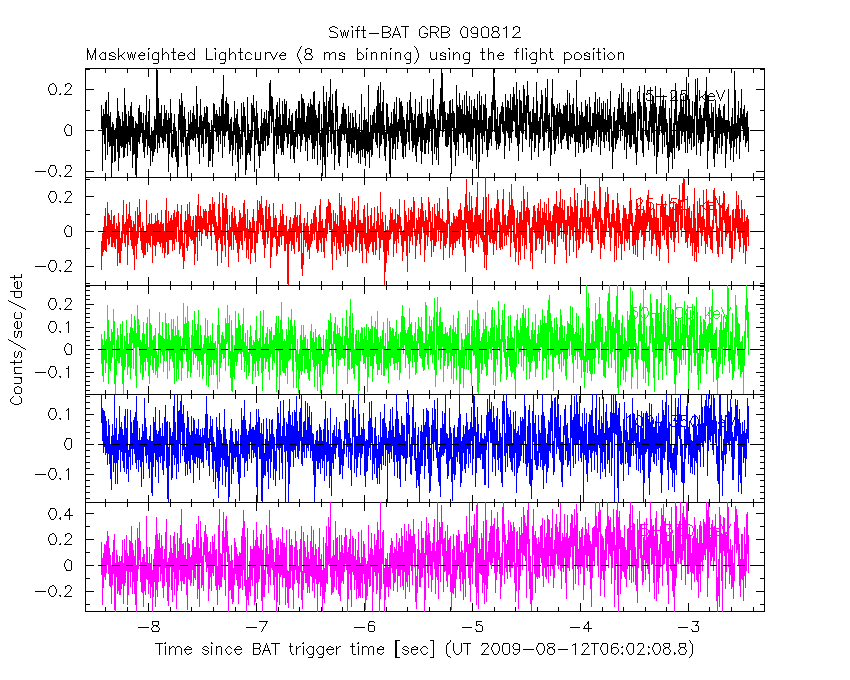

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -5.440 sec. to  113.884 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.21816     ( -0.0501944   0.0499509 )
Norm@50keV  : 4.75791E-03    ( -0.000123078   0.000122919 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.52 using 59 PHA bins.
# Reduced chi-squared =         0.9039 for     57 degrees of freedom
# Null hypothesis probability =   6.799890e-01

Photon flux (15-150 keV)    in 119.3 sec: 0.559952 ( -0.01569  0.0157477 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.72962e-06 ( -1.55739e-07  1.56081e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from   -5.440 sec. to  113.884 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.21638     ( -0.0527605   0.0482875 )
Epeak [keV] : 9999.36      ( -9999.36 -9999.36 )
Norm@50keV  : 4.77771E-03    ( -0.000122479   0.000503076 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.62 using 59 PHA bins.
# Reduced chi-squared =         0.9218 for     56 degrees of freedom
# Null hypothesis probability =   6.412852e-01

Photon flux (15-150 keV)    in 119.3 sec: 0.559673 ( -0.015682  0.01572 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.72314e-06 ( -1.49662e-07  1.596e-07 ) ergs/cm2

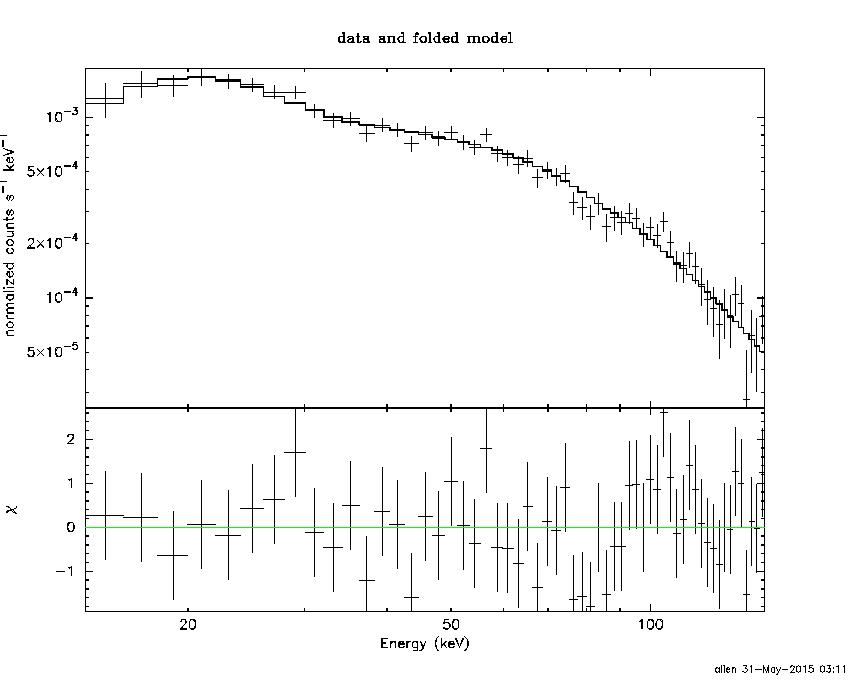

Band function

Time interval is from   -5.440 sec. to  113.884 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.92750   ( -4.9275   -4.9275 )
beta        : -1.23090    ( -0.051789   0.0517005 )
Epeak [keV] : 23.0480      ( -23.048 3.98498 )
Norm@50keV   : 549.193    ( -13.9961   989707 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.62 using 59 PHA bins.
# Reduced chi-squared =         0.9204 for     55 degrees of freedom
# Null hypothesis probability =   6.424167e-01

Photon flux (15-150 keV)    in 119.3 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

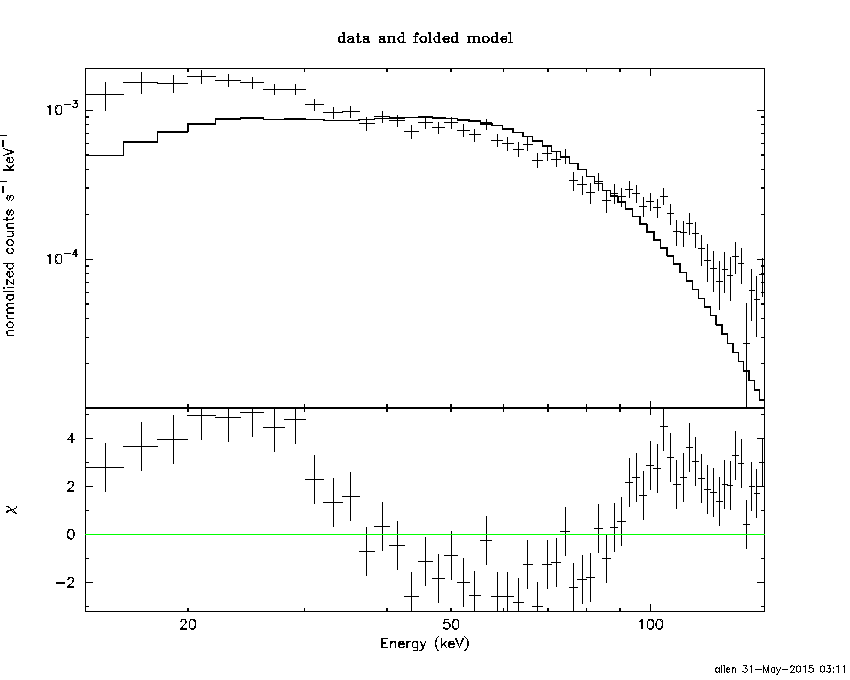

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 20.3316  (  )
R^2/D10^2   : 2.33538E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         384.51 using 59 PHA bins.
# Reduced chi-squared =         6.7458 for     57 degrees of freedom
# Null hypothesis probability =   4.165889e-50

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.205e-07   1.288e-08
25- 50  1.111e-06   4.647e-08
50-150  3.410e-06   1.420e-07
15-150  4.742e-06   1.491e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 2.38656       (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         203.55 using 59 PHA bins.
# Reduced chi-squared =         3.5711 for     57 degrees of freedom
# Null hypothesis probability =   2.430476e-18

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.090e-07   2.112e-08
25- 50  1.364e-06   4.116e-08
50-150  2.991e-06   8.590e-08
15-150  5.064e-06   1.455e-07

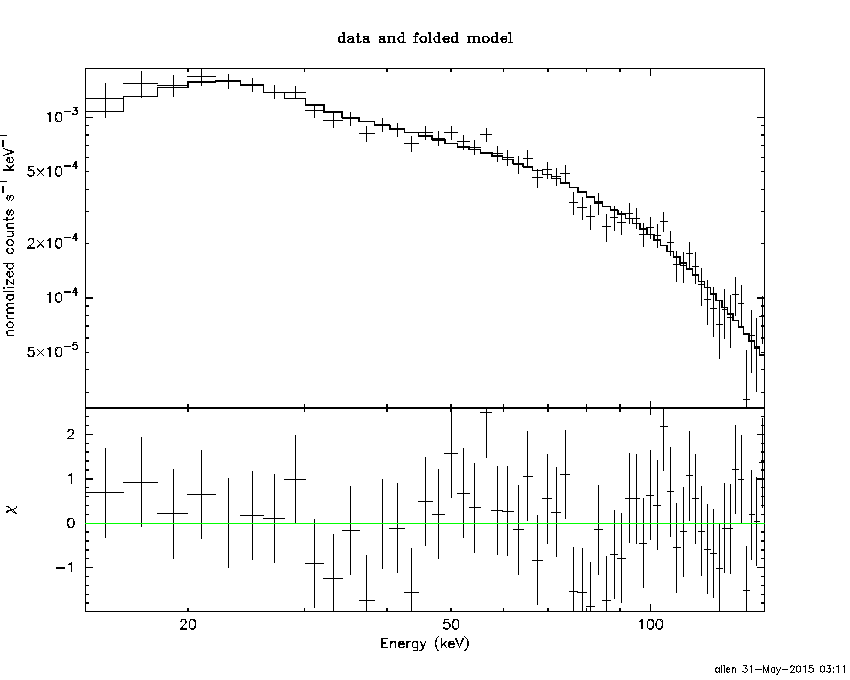

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.65220        (-0.831274      0.895605)
R1^2/D10^2  : 0.256161        (-0.0682705      0.100434)
kT2 [keV]   : 39.0562        (-4.61756      6.6234)
R2^2/D10^2  : 2.48906E-03    (-0.000907076   0.00117782)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.23 using 59 PHA bins.
# Reduced chi-squared =         0.9677 for     55 degrees of freedom
# Null hypothesis probability =   5.427103e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.953e-07   4.223e-08
25- 50  1.273e-06   7.152e-08
50-150  4.030e-06   3.066e-07
15-150  5.798e-06   3.358e-07

Peak spectrum fit

Power-law model

Time interval is from   26.824 sec. to   27.824 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.862179     ( -0.104912   0.103147 )
Norm@50keV  : 3.09051E-02    ( -0.00177817   0.00177152 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.04 using 59 PHA bins.
# Reduced chi-squared =         0.7551 for     57 degrees of freedom
# Null hypothesis probability =   9.144651e-01

Photon flux (15-150 keV)    in 1 sec: 3.54718 ( -0.202887  0.203138 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.52052e-07 ( -2.19207e-08  2.20251e-08 ) ergs/cm2

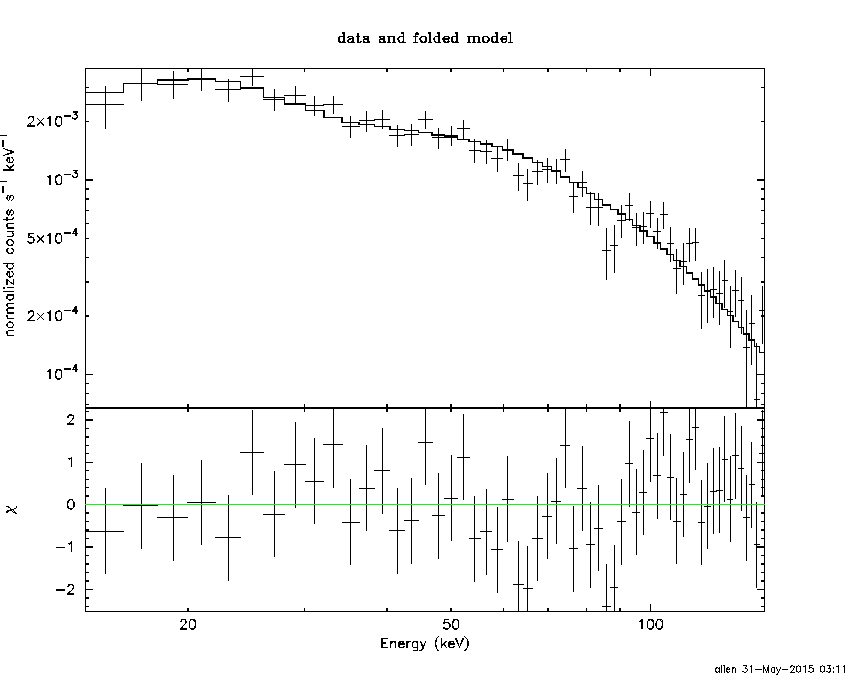

Cutoff power-law model

Time interval is from   26.824 sec. to   27.824 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.858924     ( -0.188478   0.101447 )
Epeak [keV] : 9999.36      ( -9999.36 -9999.36 )
Norm@50keV  : 3.11098E-02    ( -0.00176925   0.00619751 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.07 using 59 PHA bins.
# Reduced chi-squared =         0.7691 for     56 degrees of freedom
# Null hypothesis probability =   8.973409e-01

Photon flux (15-150 keV)    in 1 sec: 3.54796 ( -0.20477  0.20134 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.51805e-07 ( -2.1514e-08  2.2229e-08 ) ergs/cm2

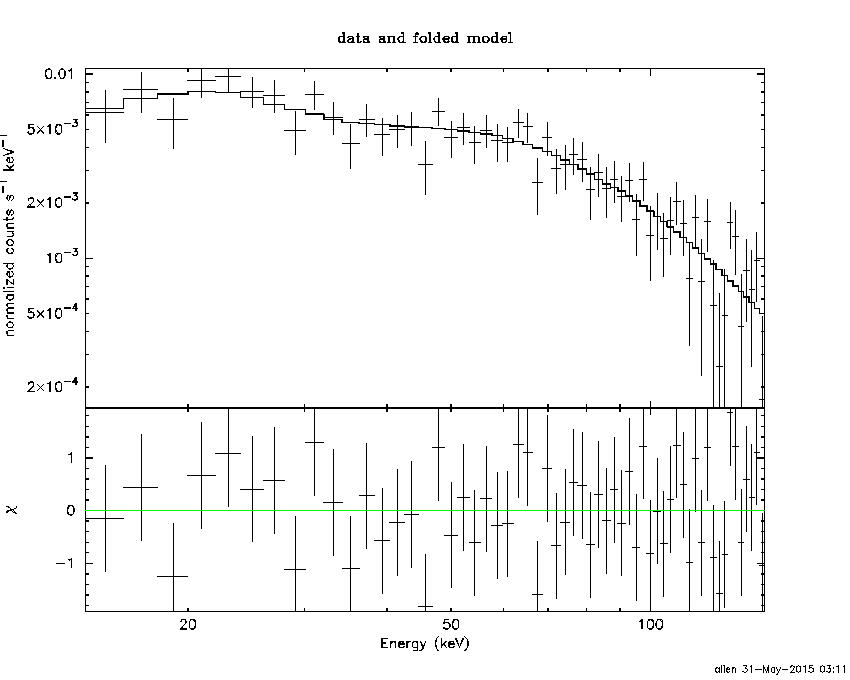

Band function

Time interval is from   26.824 sec. to   27.824 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.844424   ( 0.844424   0.844424 )
beta        : -0.862179    ( -0.103098   0.105037 )
Epeak [keV] : 16.0898      ( -16.0898 -16.0898 )
Norm@50keV   : 4.39786E-02    ( -0.0148335   852350 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.04 using 59 PHA bins.
# Reduced chi-squared =         0.7825 for     55 degrees of freedom
# Null hypothesis probability =   8.791036e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

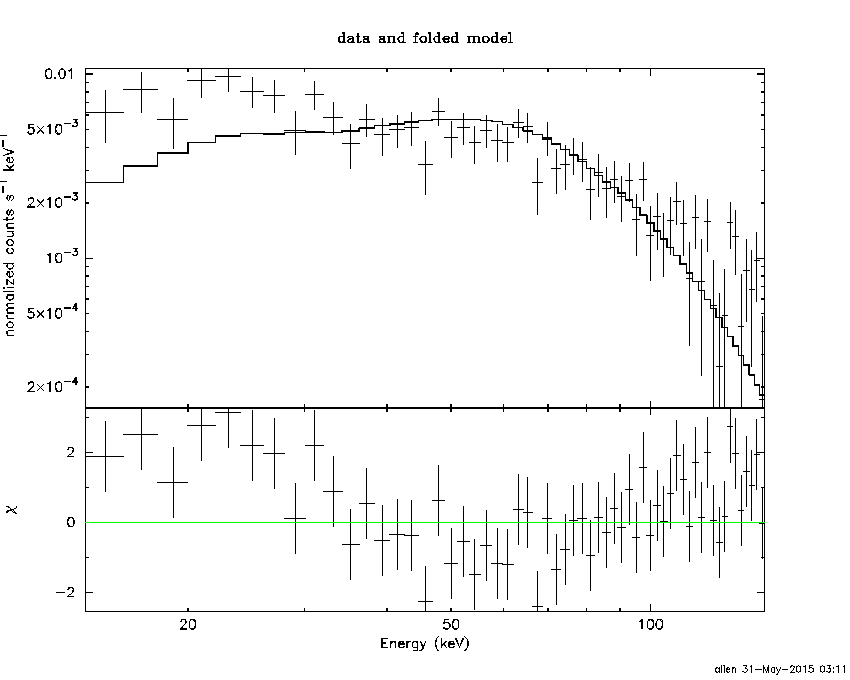

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 25.2774  (-2.12072  2.41501)
R^2/D10^2   : 8.50628E-02  (-0.0200151   0.0253866)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         101.82 using 59 PHA bins.
# Reduced chi-squared =         1.7863 for     57 degrees of freedom
# Null hypothesis probability =   2.441241e-04

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.386e-09   1.169e-09
25- 50  5.355e-08   4.825e-09
50-150  2.533e-07   2.400e-08
15-150  3.162e-07   2.330e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 13.8957       (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         161.40 using 59 PHA bins.
# Reduced chi-squared =         2.8316 for     57 degrees of freedom
# Null hypothesis probability =   6.450841e-12

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.460e-08   2.175e-09
25- 50  6.656e-08   7.845e-09
50-150  1.460e-07   3.830e-08
15-150  2.471e-07   4.030e-08

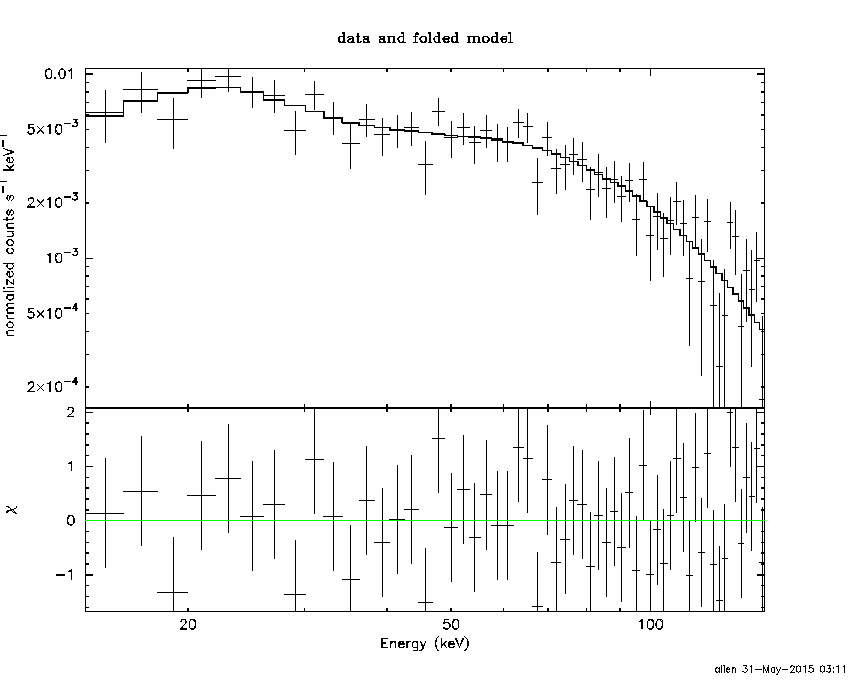

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.64276        (-1.71897      2.32884)
R1^2/D10^2  : 1.77050        (-0.982792      2.46077)
kT2 [keV]   : 38.8152        (-6.52971      12.6583)
R2^2/D10^2  : 2.19293E-02    (-0.0118513   0.0157953)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.99 using 59 PHA bins.
# Reduced chi-squared =         0.7816 for     55 degrees of freedom
# Null hypothesis probability =   8.803029e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.239e-08   7.529e-09
25- 50  5.856e-08   1.136e-08
50-150  2.776e-07   5.965e-08
15-150  3.586e-07   7.165e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.11445     ( -0.0650901   0.0645222 )
Norm@50keV  : 1.06225E-02    ( -0.000363156   0.000362313 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.38 using 59 PHA bins.
# Reduced chi-squared =         0.9891 for     57 degrees of freedom
# Null hypothesis probability =   4.982892e-01

Photon flux (15-150 keV)    in 17.85 sec: 1.23392 ( -0.0443147  0.0445001 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.97341e-06 ( -7.14627e-08  7.17343e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.10948     ( -0.101429   0.114753 )
Epeak [keV] : 9998.92      (   )
Norm@50keV  : 1.06779E-02    ( -0.000359006   0.00102001 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.52 using 59 PHA bins.
# Reduced chi-squared =          1.009 for     56 degrees of freedom
# Null hypothesis probability =   4.555003e-01

Photon flux (15-150 keV)    in 17.85 sec: 1.23497 ( -0.04528  0.04297 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.97098e-06 ( -6.92402e-08  7.06325e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.335677   ( 0.617302   0.617302 )
beta        : -1.13172    ( -0.0859925   0.074724 )
Epeak [keV] : 59.9460      ( -59.6907 168.009 )
Norm@50keV   : 3.68866E-02    ( -0.0375566   501469 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.85 using 59 PHA bins.
# Reduced chi-squared =          1.015 for     55 degrees of freedom
# Null hypothesis probability =   4.427487e-01

Photon flux (15-150 keV)    in 17.85 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.22e-06
S(50-100 keV) = 2.09e-06

T90 vs. Hardness ratio plot

T90                                   = 74.4959999918938 sec.
Hardness ratio (energy fluence ratio) = 1.71311

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.60535
Count Ratio (50-100 keV) / (15-25 keV) = 1.43637

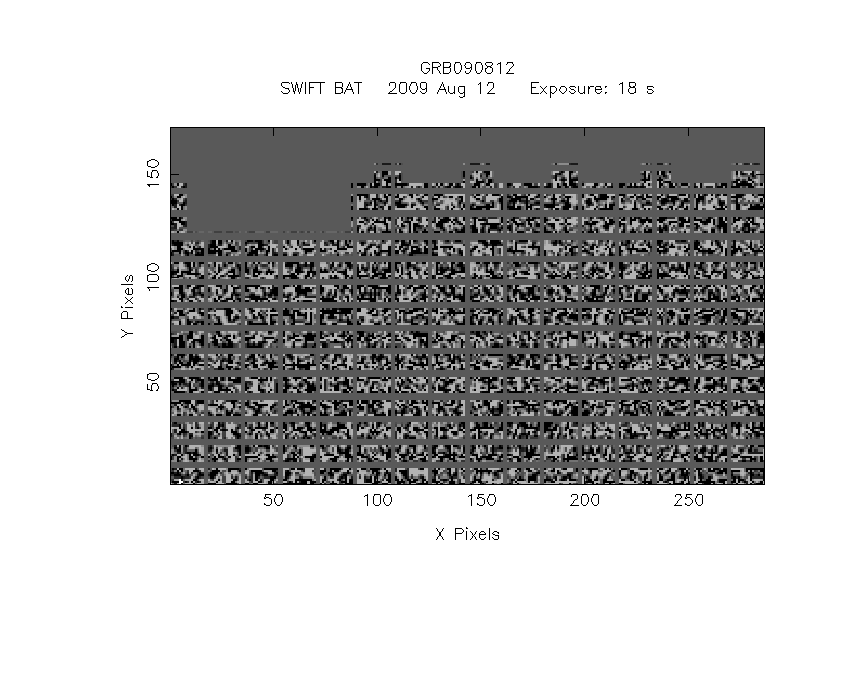

Mask shadow pattern

IMX = 4.000946854737244E-01, IMY = 2.981031347701597E-01

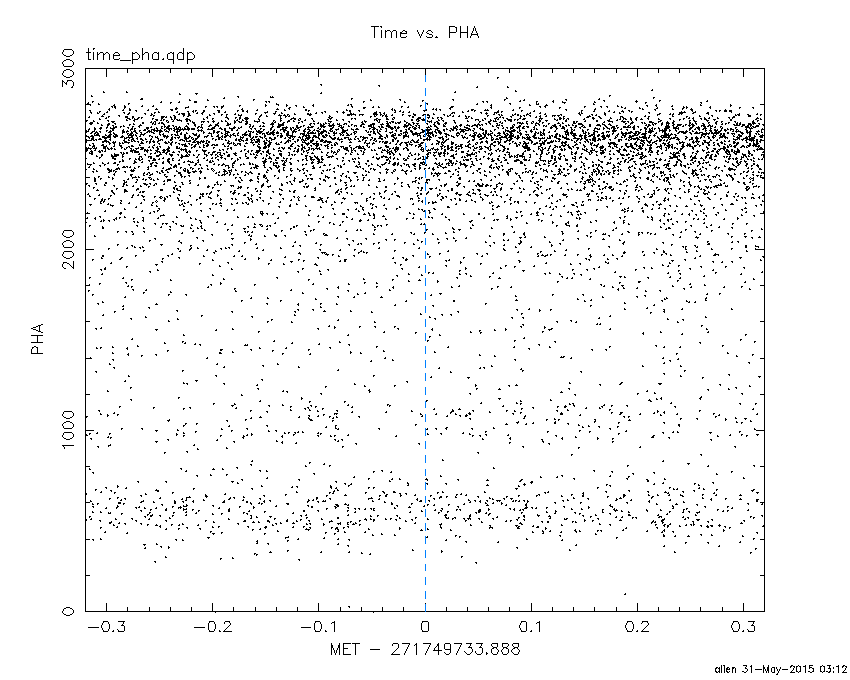

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

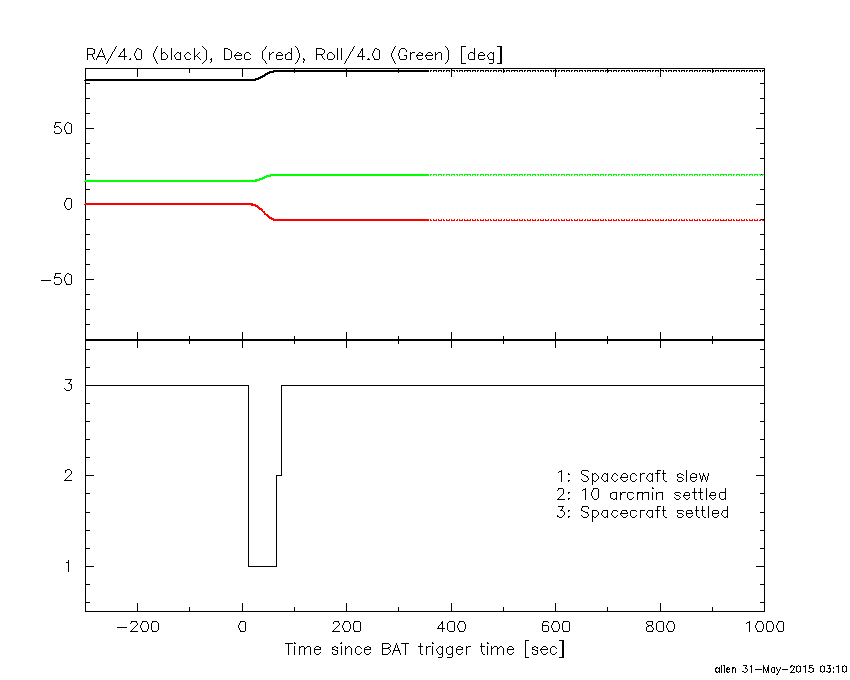

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.888000 -5.440000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
288.8472  11.0122    4.9  41.1  136.3   1.3139   2.4    4.9	GRS 1915+105
299.5852  35.1962    0.5  44.5  174.7   8.1539  21.2    0.4	Cyg X-1
308.1010  40.9352    3.4  45.1 -172.8   1.2289   3.4    1.1	Cyg X-3
326.1336  38.3503    4.8  38.5 -154.0   0.7256   2.4    2.5	Cyg X-2
326.7038 -14.0430    2.8  14.1   37.2   0.8042   4.1 ------	UNKNOWN
322.3076   7.4779    2.5   9.9  169.4   0.8512   4.6 ------	UNKNOWN
349.8392  16.1781    2.6  26.5  -99.8   1.1320   4.4 ------	UNKNOWN
321.3945  54.1162    2.3  54.6 -156.0   3.5816   5.0 ------	UNKNOWN
354.5164  37.2697    2.4  44.4 -121.1   4.7078   4.8 ------	UNKNOWN
  8.2062  11.0605    3.1  40.8  -78.0   3.0376   3.7 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-5.440000 12.412590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
288.8113  10.9378    4.2  41.2  136.1  -0.3742  -2.7    0.9	GRS 1915+105
299.5911  35.3807   23.7  44.7  174.9  -0.0485  -0.5   10.7	Cyg X-1
308.1139  40.9047    4.0  45.1 -172.8  -0.2719  -2.9    2.9	Cyg X-3
326.4283  38.2562    0.0  38.4 -153.6  -0.1371  -1.8   12.7	Cyg X-2
295.7883  32.1724    2.7  44.8  168.5   0.4371   4.2 ------	UNKNOWN
347.6830 -17.5540    2.3  25.5  -16.8   0.2845   5.0 ------	UNKNOWN
353.2006 -10.6103    0.2  26.5  -36.7   2.8027  47.1 ------	UNKNOWN
312.9077  47.2515    2.1  49.3 -164.9   0.6484   5.4 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
65.612600 962.222000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
326.1496  38.3443   41.2  55.1  165.8   0.8708   0.3    1.7	Cyg X-2
 26.2690  19.4009    4.4  44.3 -120.9   6.1408   2.6 ------	UNKNOWN
 23.7158  27.1608    3.4  48.0 -130.9   7.7839   3.4 ------	UNKNOWN

Plot creation:
Sun May 31 03:12:38 EDT 2015
