batgrbproduct analysis for trigger=412982

batgrbproduct Analysis for Trigger=412982

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Fri Jan 17 19:44:54 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger412982
======================================================================

  Trigger: 00412982      Segment: 000

  BAT Trigger Time: 288285352   [s; MET]
      Trigger Stop: 288285416   [s; MET]
               UTC: 2010-02-19T15:15:46.455360    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 154.220640694763   Dec: -12.559076333116  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.44
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    7.44

  Flight Position:   [ source = BAT ]
    RA: 154.220640694763   Dec: -12.559076333116  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 154.185828031436   Dec: -12.5637164236549  [deg; J2000]
        { 10h 16m 44.6s , -12d 33' 49.4" }
         +/- 2.23183072667931 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.20648166159209 [arcmin] (formal 1-sigma fit error)
    SNR: 9.66119563606363

  Angular difference between Flight and Ground position is 2.057683 arcmin

  Partial Coding Fraction: 0.7109375    [ including projection effects ]

  Duration
     T90: 27.5719999670982 +/- 8.64985226233539
        Measured from: 20.1159999966621
                   to: 47.6879999637604     [s; relative to TRIGTIME]
     T50: 13.2919999361038 +/- 6.21360185442746
        Measured from: 22.7919999957085
                   to: 36.0839999318123     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 31.8920000195503
                   to: 32.8920000195503     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 12.7879999876022
                   to: 51.8199999928474     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.146150   0.286497   0.216678   0.039743
           0.034302   0.035392   0.031521   0.027488 [error]
 Peak      0.010795   0.020475   0.014503   0.004640
           0.005442   0.005671   0.005044   0.004274 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 5.16e-08 1.05e-07 1.67e-07 5.92e-07 4.65e-07 9.16e-07   erg/cm2
              Error 1.33e-08 1.66e-08 3.05e-08 2.37e-07 7.59e-08 2.58e-07   erg/cm2
Peak flux Power-law 1.26e-01 1.32e-01 9.84e-02 1.18e-01 4.02e-01 4.75e-01   ph/cm2/s
              Error 7.17e-02 4.69e-02 4.16e-02 1.11e-01 1.33e-01 1.62e-01   ph/cm2/s

Fluence   Cutoff-PL 4.78e-08 1.10e-07 1.73e-07 3.13e-07 4.50e-07 6.44e-07   erg/cm2
              Error 1.50e-08 1.98e-08 3.36e-08 3.32e-07 8.26e-08 3.03e-07   erg/cm2
Peak flux Cutoff-PL 1.28e-01 1.33e-01 9.71e-02 1.14e-01 4.02e-01 4.74e-01   ph/cm2/s
              Error 7.40e-02 5.13e-02 4.19e-02 1.30e-01 1.33e-01 1.75e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.330    0.251    -      -           1.21e-03 1.77e-04   73.480 57
CPL   0.891    0.867     129.1    0.0      2.01e-03 0.00e+00   72.780 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.426    0.621    -      -           3.28e-03 1.11e-03   69.490 57
CPL   1.434    0.625    9999.4    0.0      3.27e-03 0.00e+00   69.490 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 18.240000 sec.
T50 in the 50-300 keV band: 8.640000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   39.032   12.788   51.820
T90    27.572   20.116   47.688
T50    13.292   22.792   36.084
Peak    1.000   31.892   32.892

Click here for the BAT GCN circular template

Special notes of this burst


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  154.1858   -12.5637   0.0199    25.4314    32.2792         0.6543365      9.661 TRIG_00412982

Foreground time interval of the image:
 12.788  51.820 (delta_t =  39.032 [sec])
Background time interval of the image:
-239.000  12.788 (delta_t = 251.788 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

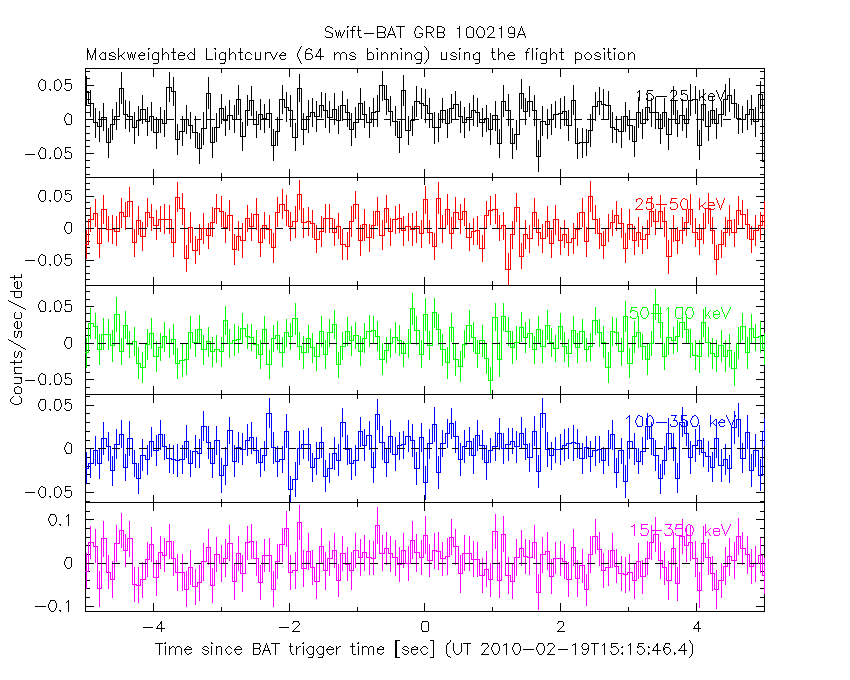

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   12.788 sec. to   51.820 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.33005     ( -0.252181   0.250274 )
Norm@50keV  : 1.21333E-03    ( -0.000177329   0.000176939 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          73.48 using 59 PHA bins.
# Reduced chi-squared =          1.289 for     57 degrees of freedom
# Null hypothesis probability =   6.986298e-02

Photon flux (15-150 keV)    in 39.03 sec: 0.145585 ( -0.0215425  0.0215881 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.64633e-07 ( -7.53416e-08  7.63844e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   12.788 sec. to   51.820 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.890502     ( -1.08997   0.64368 )
Epeak [keV] : 129.147      ( -129.146 -129.146 )
Norm@50keV  : 2.00696E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.78 using 59 PHA bins.
# Reduced chi-squared =          1.300 for     56 degrees of freedom
# Null hypothesis probability =   6.524765e-02

Photon flux (15-150 keV)    in 39.03 sec: 0.142925 ( -0.022229  0.022233 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.49821e-07 ( -8.28283e-08  8.23455e-08 ) ergs/cm2

Band function

Time interval is from   12.788 sec. to   51.820 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.808550   ( -0.513874   1.0039 )
beta        : -9.37110    ( 9.37155   19.3716 )
Epeak [keV] : 119.672      ( -49.449 435.986 )
Norm@50keV   : 2.17332E-03    ( -0.000904401   0.00290132 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.81 using 59 PHA bins.
# Reduced chi-squared =          1.324 for     55 degrees of freedom
# Null hypothesis probability =   5.425503e-02

Photon flux (15-150 keV)    in 39.03 sec: 0.143275 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 16.0533  (-3.09544  4.11679)
R^2/D10^2   : 1.34290E-02  (-0.00720284   0.0146748)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          82.40 using 59 PHA bins.
# Reduced chi-squared =          1.446 for     57 degrees of freedom
# Null hypothesis probability =   1.552367e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.791e-08   7.837e-09
25- 50  1.178e-07   2.957e-08
50-150  2.124e-07   6.200e-08
15-150  3.581e-07   8.099e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 0.602165       (-0.0877599     0.0877541)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          74.98 using 59 PHA bins.
# Reduced chi-squared =          1.315 for     57 degrees of freedom
# Null hypothesis probability =   5.542662e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.854e-08   3.323e-08
25- 50  1.126e-07   6.233e-08
50-150  2.470e-07   1.400e-07
15-150  4.181e-07   2.318e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.89418        (-2.632      3.10893)
R1^2/D10^2  : 6.79841E-02        (-0.04173      0.130126)
kT2 [keV]   : 35.0736        (-29.002      63.807)
R2^2/D10^2  : 7.50091E-04    (-0.000700024   0.00280317)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          70.74 using 59 PHA bins.
# Reduced chi-squared =          1.286 for     55 degrees of freedom
# Null hypothesis probability =   7.501499e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.571e-08   2.652e-08
25- 50  1.181e-07   6.454e-08
50-150  2.991e-07   1.677e-07
15-150  4.629e-07   2.394e-07

Peak spectrum fit

Power-law model

Time interval is from   31.892 sec. to   32.892 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.42603     ( -0.630705   0.611933 )
Norm@50keV  : 3.27851E-03    ( -0.00112355   0.00109226 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          69.49 using 59 PHA bins.
# Reduced chi-squared =          1.219 for     57 degrees of freedom
# Null hypothesis probability =   1.240238e-01

Photon flux (15-150 keV)    in 1 sec: 0.401685 ( -0.132535  0.132871 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.15157e-08 ( -1.16415e-08  1.213e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   31.892 sec. to   32.892 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.43421     ( -0.643798   0.605236 )
Epeak [keV] : 9999.36      ( -9999.36 -9999.36 )
Norm@50keV  : 3.26966E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          69.49 using 59 PHA bins.
# Reduced chi-squared =          1.241 for     56 degrees of freedom
# Null hypothesis probability =   1.062688e-01

Photon flux (15-150 keV)    in 1 sec: 0.402465 ( -0.133233  0.131983 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.15702e-08 ( -1.88684e-08  1.18376e-08 ) ergs/cm2

Band function

Time interval is from   31.892 sec. to   32.892 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.95603   ( -4.95603   -4.95603 )
beta        : -1.68602    ( -1.64891   0.784074 )
Epeak [keV] : 28.3388      ( -28.3388 32.7505 )
Norm@50keV   : 154.247    ( -49.6067   2.68913e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          68.90 using 59 PHA bins.
# Reduced chi-squared =          1.253 for     55 degrees of freedom
# Null hypothesis probability =   9.854241e-02

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 11.4836  (-3.89095  9.01753)
R^2/D10^2   : 0.114508  (-0.114035   0.40668)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.36 using 59 PHA bins.
# Reduced chi-squared =          1.269 for     57 degrees of freedom
# Null hypothesis probability =   8.259512e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.178e-09   1.999e-09
25- 50  9.487e-09   5.690e-09
50-150  7.297e-09   5.225e-09
15-150  1.996e-08   1.270e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.358       (-199.362      -199.362)
Norm        : 1.64422       (-0.537803     0.53831)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          69.78 using 59 PHA bins.
# Reduced chi-squared =          1.224 for     57 degrees of freedom
# Null hypothesis probability =   1.191506e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.094e-09   2.576e-09
25- 50  7.876e-09   4.903e-09
50-150  1.727e-08   1.031e-08
15-150  2.924e-08   1.791e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.74689        (-1.66981      4.03006)
R1^2/D10^2  : 0.267871        (-0.215319      1.02625)
kT2 [keV]   : 199.363        (-175.859      -199.363)
R2^2/D10^2  : 6.73135E-05    (-4.4738e-05   0.00668306)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.08 using 59 PHA bins.
# Reduced chi-squared =          1.220 for     55 degrees of freedom
# Null hypothesis probability =   1.273502e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.015e-09   2.383e-09
25- 50  8.714e-09   5.495e-09
50-150  2.061e-08   5.435e-09
15-150  3.334e-08   1.121e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.33005     ( -0.252181   0.250274 )
Norm@50keV  : 1.21333E-03    ( -0.000177329   0.000176939 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          73.48 using 59 PHA bins.
# Reduced chi-squared =          1.289 for     57 degrees of freedom
# Null hypothesis probability =   6.986298e-02

Photon flux (15-150 keV)    in 39.03 sec: 0.145585 ( -0.0215425  0.0215881 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.64633e-07 ( -7.53416e-08  7.63844e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.890502     ( -1.08997   0.64368 )
Epeak [keV] : 129.147      ( -129.146 -129.146 )
Norm@50keV  : 2.00696E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.78 using 59 PHA bins.
# Reduced chi-squared =          1.300 for     56 degrees of freedom
# Null hypothesis probability =   6.524765e-02

Photon flux (15-150 keV)    in 39.03 sec: 0.142925 ( -0.022229  0.022233 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.49821e-07 ( -8.28283e-08  8.23455e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.808550   ( -0.513874   1.0039 )
beta        : -9.37110    ( 9.37155   19.3716 )
Epeak [keV] : 119.672      ( -49.4489 435.988 )
Norm@50keV   : 2.17332E-03    ( -0.000904401   0.0029013 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.81 using 59 PHA bins.
# Reduced chi-squared =          1.324 for     55 degrees of freedom
# Null hypothesis probability =   5.425503e-02

Photon flux (15-150 keV)    in 39.03 sec: 0.143275 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.05e-07
S(50-100 keV) = 1.67e-07

T90 vs. Hardness ratio plot

T90                                   = 27.5719999670982 sec.
Hardness ratio (energy fluence ratio) = 1.59048

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.96029
Count Ratio (50-100 keV) / (15-25 keV) = 1.48257

Mask shadow pattern

IMX = 4.020194749823532E-01, IMY = -2.539418011358059E-01

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.000000 12.788000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
136.8581 -32.5822    2.6  51.0   31.1   3.6704   4.5 ------	UNKNOWN
150.2170  59.6362    2.5  53.9  163.2   3.9159   4.6 ------	UNKNOWN
177.6826  54.3326    2.3  47.0 -178.3   1.6127   5.1 ------	UNKNOWN
206.6066 -19.2657    2.8  45.4  -57.8   3.0501   4.1 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
12.788000 51.820000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
154.1858 -12.5637    1.2  25.4   32.3   0.6545   9.7 ------	UNKNOWN
198.8545  40.6955    2.5  42.0 -151.1   0.4300   4.7 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
159.700600 963.050000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5488 -40.5591    0.7  32.5  -59.7  11.0134  17.6    1.0	Vela X-1
 96.5481 -17.3416    2.7  55.7   -9.2   5.8147   4.3 ------	UNKNOWN
205.3646 -37.3810    3.9  51.8 -138.6   5.8675   3.0 ------	UNKNOWN
187.4622 -47.1794    3.0  44.5 -118.8   6.5366   3.9 ------	UNKNOWN

Plot creation:
Sun May 31 02:08:12 EDT 2015
