batgrbproduct analysis for trigger=416485

batgrbproduct Analysis for Trigger=416485

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This page will be updated for up to 8 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.45
    Process Start Time (local time): Sat Mar 20 11:52:56 EDT 2010
             Host Name: gcn5
   Current Working Dir: /local/data/raid16/prebascript_archive/trigger416485/GCN5_download_cron
======================================================================

  Trigger: 00416485      Segment: 000

  BAT Trigger Time: 290716496.408   [s; MET]
      Trigger Stop: 290716496.424   [s; MET]
               UTC: 2010-03-19T18:34:50.779180    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 278.442050322277   Dec: -8.53721915515869  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    10.91
     Image Trigger?:     NO
     Rate S/N Ratio:     34.3511280746353  [ if not an image trigger ]
     Image S/N Ratio:    10.91

  Flight Position:   [ source = BAT ]
    RA: 278.442050322277   Dec: -8.53721915515869  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 278.446305151115   Dec: -8.53342811649916  [deg; J2000]
        { 18h 33m 47.1s , -08d 32' 00.3" }
         +/- 1.94058776836545 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.721199776238366 [arcmin] (formal 1-sigma fit error)
    SNR: 11.79736751864

  Angular difference between Flight and Ground position is 0.339818 arcmin

  Partial Coding Fraction: 0.875    [ including projection effects ]

  Duration
     T90: 0.0119999647140503 +/- 0.00894429003608426
        Measured from: 1.19209289550781e-07
                   to: 0.0120000839233398     [s; relative to TRIGTIME]
     T50: 0.00399994850158691 +/- 0.00565686571343518
        Measured from: 0.00400012731552124
                   to: 0.00800007581710815     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.490000009536743
                   to: 0.509999990463257     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0
                   to: 0.0160000324249268     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.010403   0.014471   0.007164   0.000748
           0.001506   0.001726   0.001371   0.000660 [error]
 Peak      0.011108   0.014590   0.006593   0.000572
           0.001609   0.001772   0.001415   0.000736 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.62e-09 3.48e-09 2.33e-09 2.44e-09 1.04e-08 1.19e-08   erg/cm2
              Error 6.44e-10 5.89e-10 6.14e-10 1.09e-09 1.82e-09 2.37e-09   erg/cm2
Peak flux Power-law 8.96e-02 8.11e-02 5.07e-02 4.84e-02 2.42e-01 2.69e-01   ph/cm2/s
              Error 7.33e-02 4.81e-02 3.81e-02 7.70e-02 1.42e-01 1.60e-01   ph/cm2/s

Fluence   Cutoff-PL 2.88e-09 6.41e-09 3.41e-09 2.20e-10 1.29e-08 1.29e-08   erg/cm2
              Error 7.52e-10 1.09e-09 1.10e-09 2.78e-10 1.99e-09 2.00e-09   erg/cm2
Peak flux Cutoff-PL 6.07e-02 1.05e-01 5.61e-02 5.75e-03 2.27e-01 2.28e-01   ph/cm2/s
              Error 7.57e-02 6.75e-02 4.96e-02 5.49e-02 1.35e-01 1.38e-01   ph/cm2/s

Fluence        Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band 6.73e-02 9.64e-02 5.92e-02 5.68e-03 2.44e-01 0.00e+00   ph/cm2/s
              Error 7.89e-02 6.80e-02 3.65e-02 1.47e-01 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.576    0.228    -      -           6.38e-02 1.35e-02   74.230 57
CPL  -1.023    1.345      38.2    5.0      7.11e+00 2.62e+01   43.520 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.659    1.008    -      -           1.86e-03 1.49e-03   42.240 57
CPL  -0.776    1.088      52.3    0.0      3.69e-02 4.50e+00   40.790 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.016    0.000    0.016
T90     0.012    0.000    0.012
T50     0.004    0.004    0.008
Peak    1.000   -0.490    0.510

Click here for the BAT GCN circular template


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  278.4463  -8.5334 0.0164   17.0 -118.7       0.0320    11.8  TRIG_00416485
------------------------------------------

Foreground time interval of the image:
  0.000   0.016 (delta_t =   0.016 [sec])
Background time interval of the image:
-239.408 -149.058 (delta_t =  90.350 [sec])
-148.408   0.000 (delta_t = 148.408 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Flight mask-tagged light curves

Caution: Mask-weight map is always using the same on-axis map

Quad-rate summed light curves (from T0-300 to T0+1000)

The mask-weighted light curves based on cleaned DPHs

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

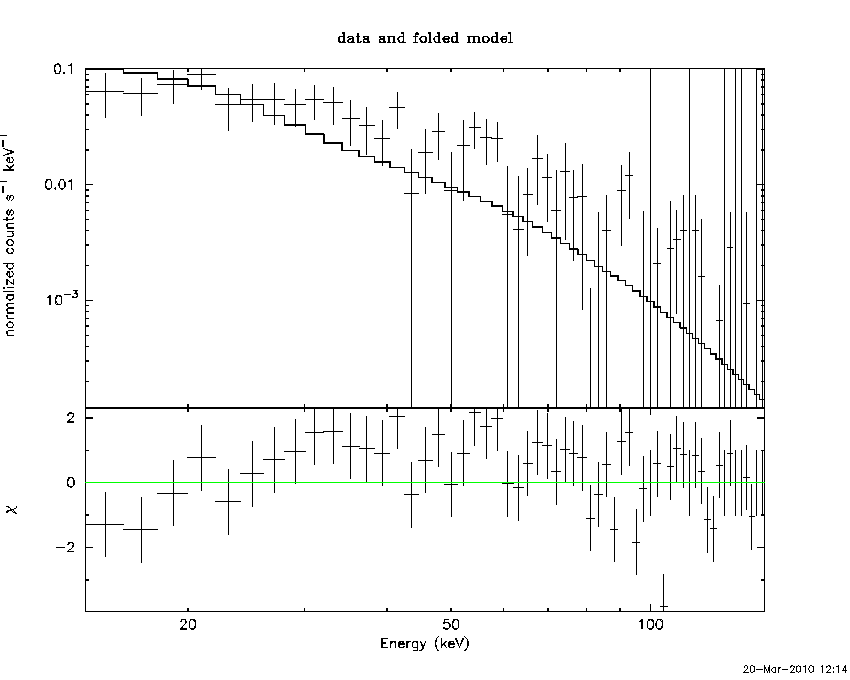

Power-law model

Time interval is from    0.000 sec. to    0.016 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.57591     ( -0.211611   0.244519 )
Norm@50keV  : 6.37841E-02    ( -0.0136462   0.0132885 )
------------------------------------------------------------
# Chi-Squared =          74.23 using 59 PHA bins.
# Reduced chi-squared =          1.302 for     57 degrees of freedom
# Null hypothesis probability =   6.223419e-02

Photon flux (15-150 keV)    in 0.016 sec: 13.1366 ( -2.10303  2.10311 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.04239e-08 ( -1.81578e-09  1.82498e-09 ) ergs/cm2

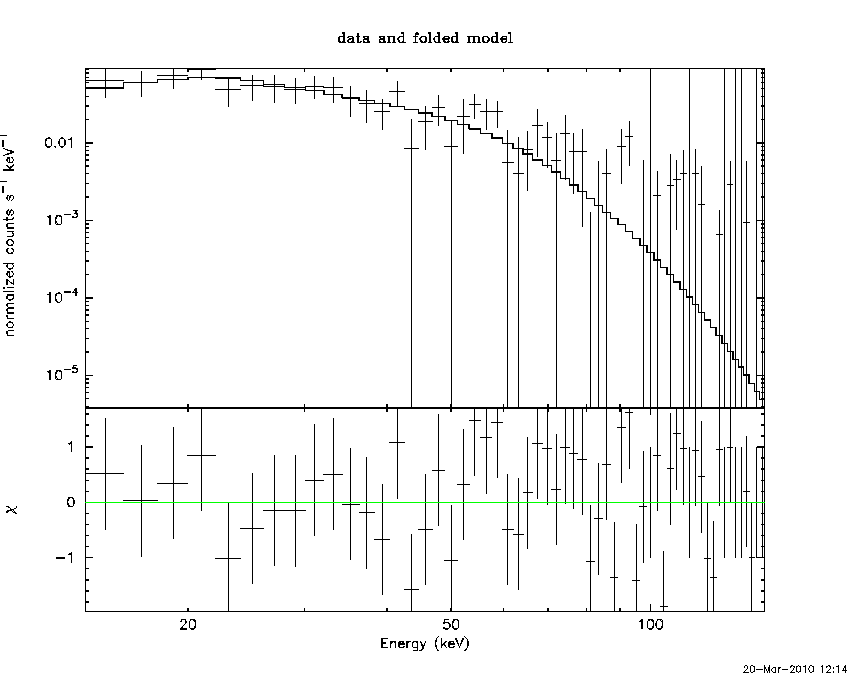

Cutoff power-law model

Time interval is from    0.000 sec. to    0.016 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -1.02269     ( -1.50243   1.18818 )
Epeak [keV] : 38.2229      ( -5.28171 4.78744 )
Norm@50keV  : 7.10775    ( -7.18418   45.3011 )
------------------------------------------------------------
# Chi-Squared =          43.52 using 59 PHA bins.
# Reduced chi-squared =         0.7771 for     56 degrees of freedom
# Null hypothesis probability =   8.880280e-01

Photon flux (15-150 keV)    in 0.016 sec: 14.9967 ( -2.1771  2.1808 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.291e-08 ( -1.98462e-09  2.00075e-09 ) ergs/cm2

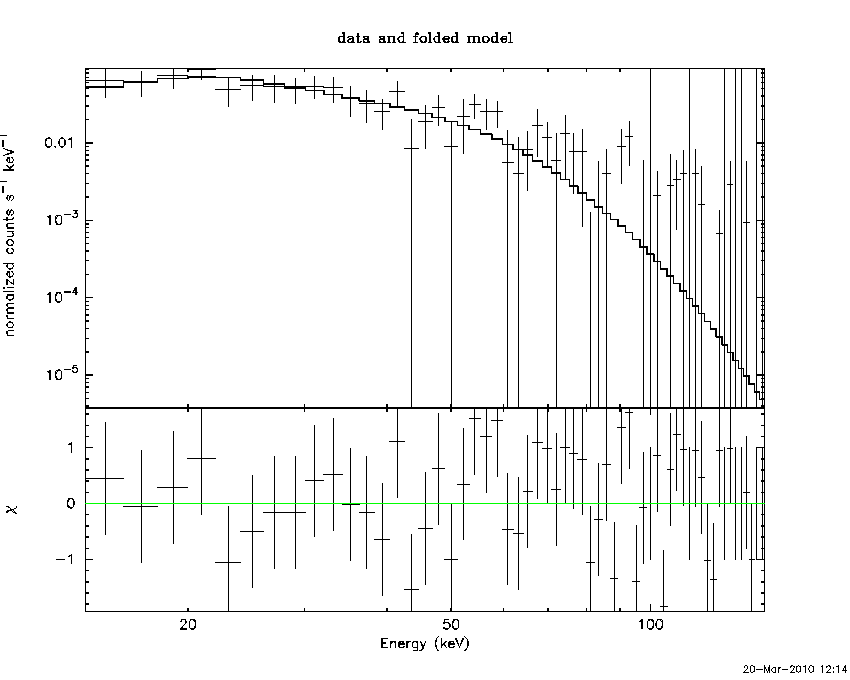

Band function

Time interval is from    0.000 sec. to    0.016 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.971315   ( -0.458484   2.01312 )
beta        : -9.99990    ( 31843.5   31853.5 )
Epeak [keV] : 37.6247      ( -4.73561 5.412 )
Norm@50keV   : 6.91839    ( -6.91839   45.9168 )
------------------------------------------------------------
# Chi-Squared =          43.56 using 59 PHA bins.
# Reduced chi-squared =         0.7920 for     55 degrees of freedom
# Null hypothesis probability =   8.669778e-01

Photon flux (15-150 keV)    in 0.016 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

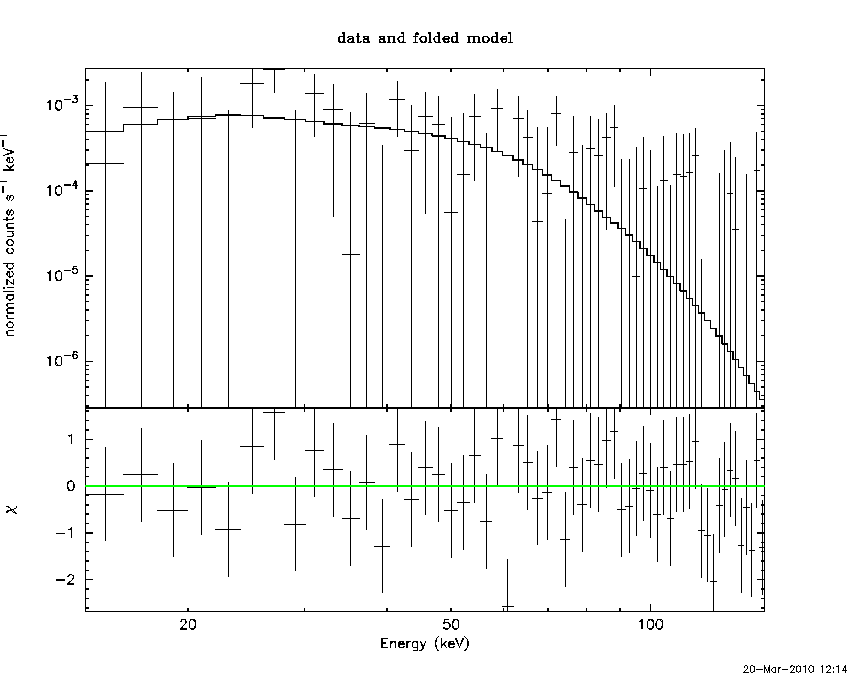

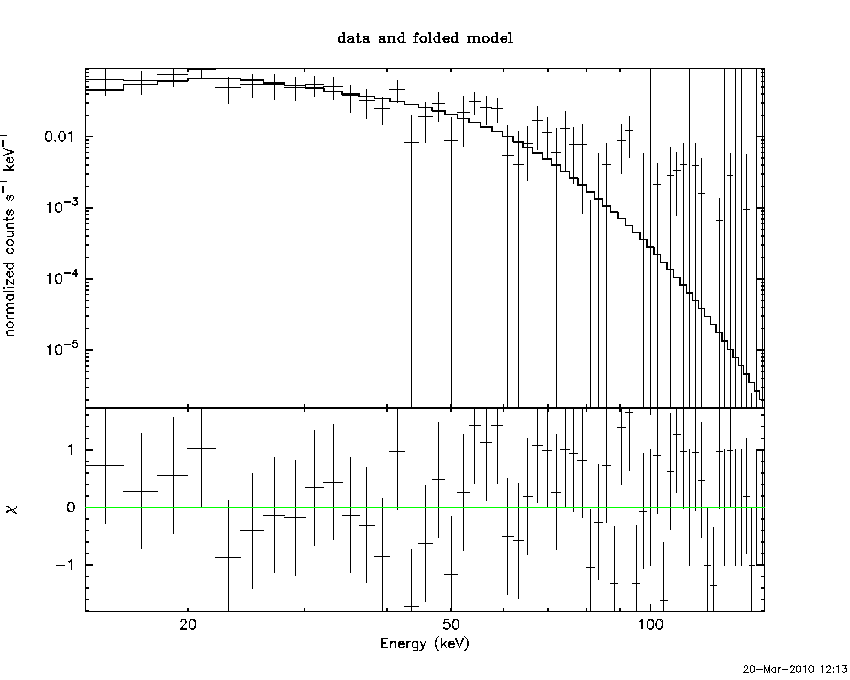

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 10.0481  (-1.18519  1.18748)
R^2/D10^2   : 8.06030  (-2.91689   4.90954)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          43.77 using 59 PHA bins.
# Reduced chi-squared =         0.7680 for     57 degrees of freedom
# Null hypothesis probability =   9.008227e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.656e-09   5.712e-10
25- 50  6.649e-09   1.087e-09
50-150  3.519e-09   1.160e-09
15-150  1.282e-08   2.474e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 37.3988       (-7.54328      8.91659)
Norm        : 102.932       (-20.5443     24.1369)
------------------------------------------------------------
# Chi-Squared =          55.75 using 59 PHA bins.
# Reduced chi-squared =         0.9781 for     57 degrees of freedom
# Null hypothesis probability =   5.219549e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.693e-09   5.832e-10
25- 50  4.715e-09   7.496e-10
50-150  3.383e-09   1.169e-09
15-150  1.179e-08   2.026e-09

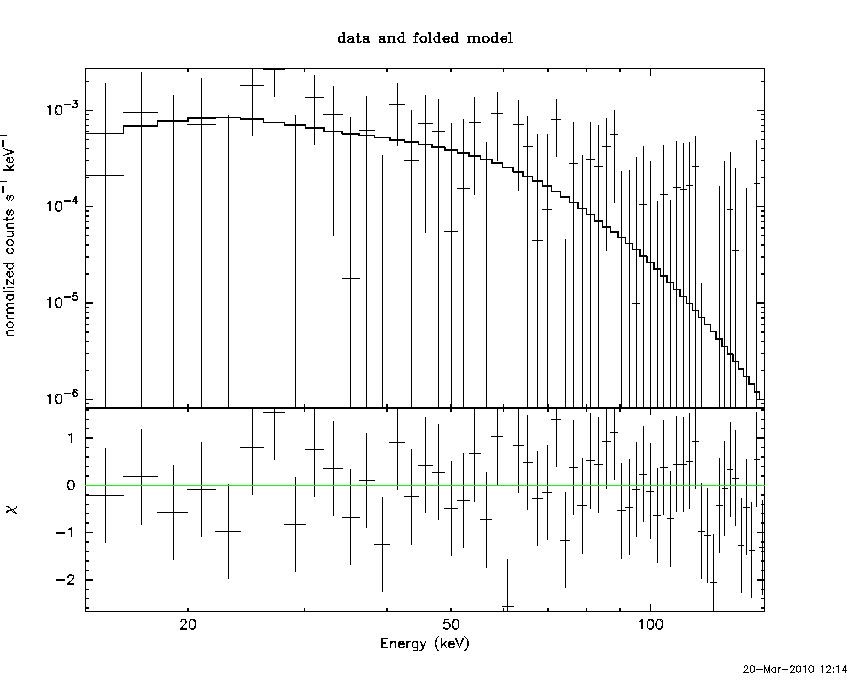

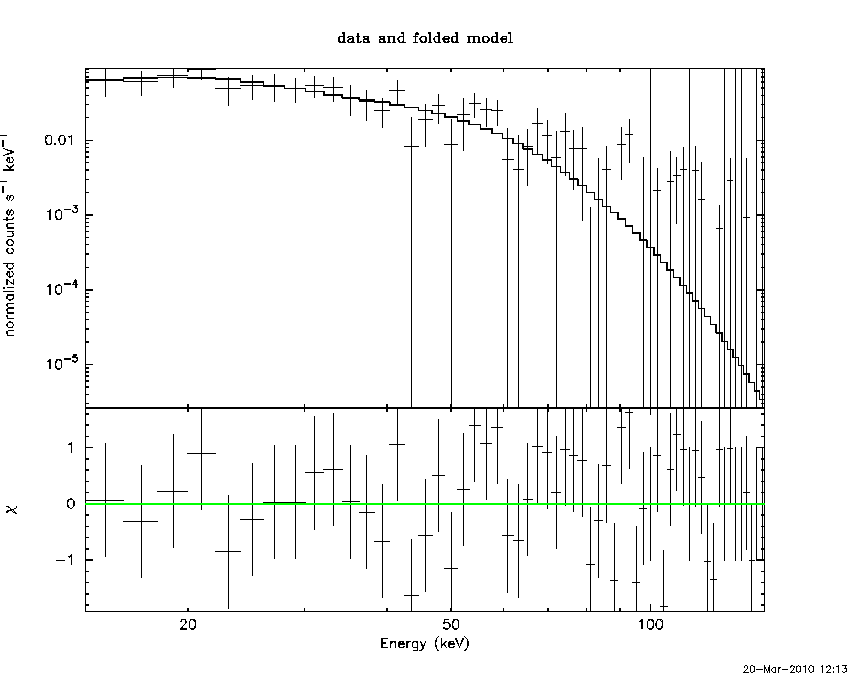

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 3.08376        (-3.08376      162.839)
R1^2/D10^2  : 201.580        (-201.581      -201.581)
kT2 [keV]   : 10.6323        (-1.42223      -10.6323)
R2^2/D10^2  : 6.04570    (-6.04573   5.15222)
------------------------------------------------------------
# Chi-Squared =          42.39 using 59 PHA bins.
# Reduced chi-squared =         0.7708 for     55 degrees of freedom
# Null hypothesis probability =   8.932051e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.981e-09   1.417e-09
25- 50  6.247e-09   2.948e-09
50-150  3.812e-09   2.103e-09
15-150  1.304e-08   6.204e-09

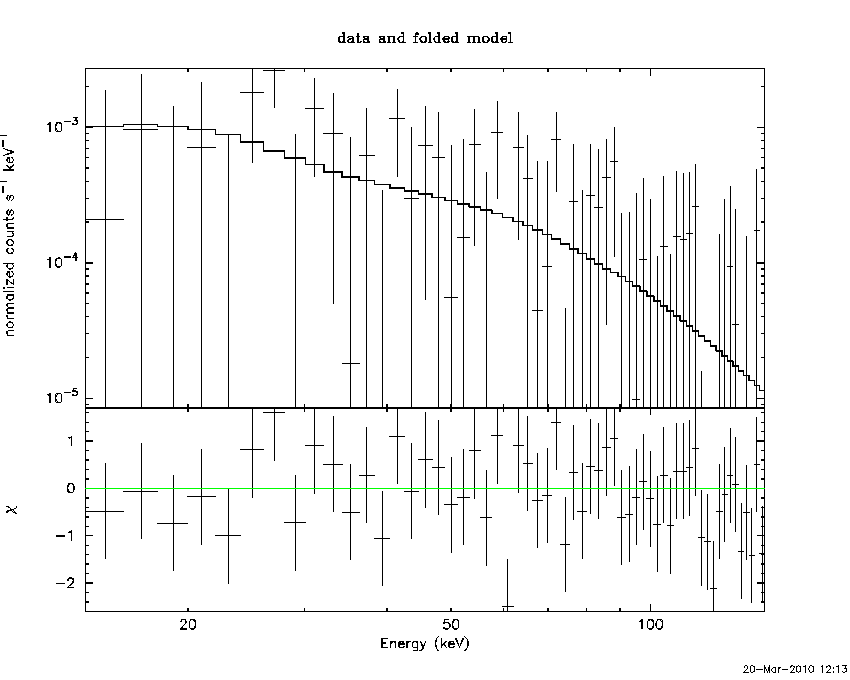

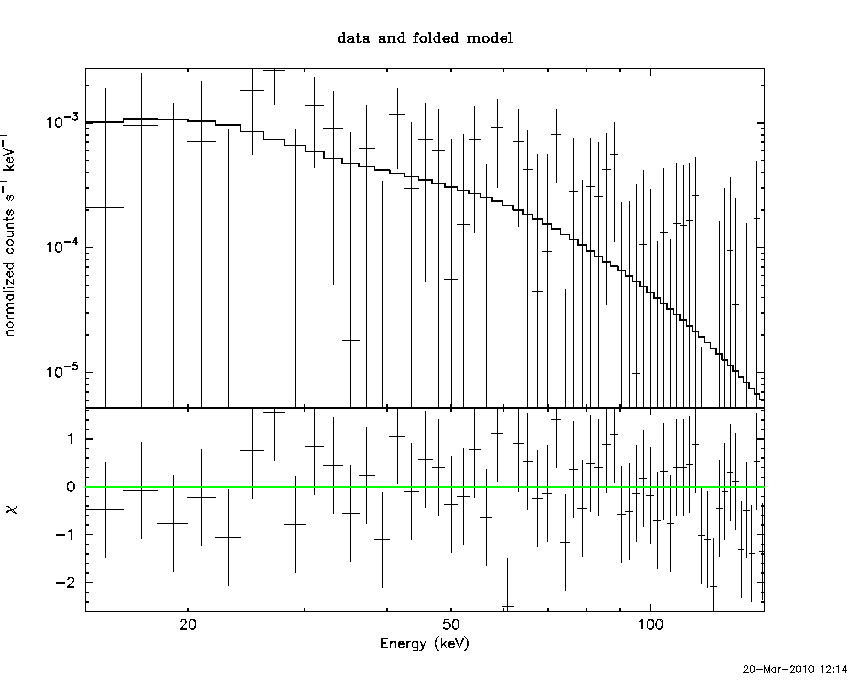

Peak spectrum fit

Power-law model

Time interval is from   -0.490 sec. to    0.510 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.65871     ( -0.941155   1.07435 )
Norm@50keV  : 1.86287E-03    ( -0.00184244   0.0011326 )
------------------------------------------------------------
# Chi-Squared =          42.24 using 59 PHA bins.
# Reduced chi-squared =         0.7411 for     57 degrees of freedom
# Null hypothesis probability =   9.278007e-01

Photon flux (15-150 keV)    in 1 sec: 0.241688 ( -0.141739  0.142384 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.70071e-08 ( -1.05817e-08  1.1561e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.490 sec. to    0.510 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.775779     ( 0.870451   3.04725 )
Epeak [keV] : 52.3234      ( -51.8041 -51.8041 )
Norm@50keV  : 3.68667E-02    ( -0.047248   8.95881 )
------------------------------------------------------------
# Chi-Squared =          40.79 using 59 PHA bins.
# Reduced chi-squared =         0.7283 for     56 degrees of freedom
# Null hypothesis probability =   9.368440e-01

Photon flux (15-150 keV)    in 1 sec: 0.227326 ( -0.129315  0.141198 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.48461e-08 ( -8.87544e-09  1.14984e-08 ) ergs/cm2

Band function

Time interval is from   -0.490 sec. to    0.510 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.938728   ( -1.71845   0.281547 )
beta        : -10.00000    ( 6.41112e+08   6.41112e+08 )
Epeak [keV] : 51.6016      ( -45.5621 -51.2567 )
Norm@50keV   : 4.59939E-02    ( -0.0525078   4.89372 )
------------------------------------------------------------
# Chi-Squared =          40.78 using 59 PHA bins.
# Reduced chi-squared =         0.7414 for     55 degrees of freedom
# Null hypothesis probability =   9.235894e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 12.9819  (-5.76917  11.1945)
R^2/D10^2   : 4.99169E-02  (-0.0499143   0.363921)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          40.82 using 59 PHA bins.
# Reduced chi-squared =         0.7161 for     57 degrees of freedom
# Null hypothesis probability =   9.478779e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.784e-09   1.274e-09
25- 50  6.136e-09   4.228e-09
50-150  6.532e-09   4.859e-09
15-150  1.445e-08   1.067e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 99.9715       (-100      -100)
Norm        : 1.11135       (-0.661986     0.913116)
------------------------------------------------------------
# Chi-Squared =          41.70 using 59 PHA bins.
# Reduced chi-squared =         0.7316 for     57 degrees of freedom
# Null hypothesis probability =   9.359664e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.905e-09   2.060e-09
25- 50  5.022e-09   3.494e-09
50-150  8.138e-09   6.935e-09
15-150  1.606e-08   1.257e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.66423        (-7.69976      -7.69976)
R1^2/D10^2  : 3.18252E-02        (-0.0724352      -0.0724352)
kT2 [keV]   : 13.5357        (-15.6566      -15.6566)
R2^2/D10^2  : 3.93710E-02    (-0.0177682   -0.0177682)
------------------------------------------------------------
# Chi-Squared =          40.79 using 59 PHA bins.
# Reduced chi-squared =         0.7416 for     55 degrees of freedom
# Null hypothesis probability =   9.233468e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.854e-09   3.758e-07
25- 50  6.021e-09   3.078e-06
50-150  6.628e-09   8.830e-05
15-150  1.450e-08   7.930e-05

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.57591     ( -0.211611   0.244519 )
Norm@50keV  : 6.37841E-02    ( -0.0136462   0.0132885 )
------------------------------------------------------------
# Chi-Squared =          74.23 using 59 PHA bins.
# Reduced chi-squared =          1.302 for     57 degrees of freedom
# Null hypothesis probability =   6.223419e-02

Photon flux (15-150 keV)    in 0.016 sec: 13.1366 ( -2.10303  2.10311 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.04239e-08 ( -1.81578e-09  1.82498e-09 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -1.02269     ( -1.50243   1.18818 )
Epeak [keV] : 38.2229      ( -5.28171 4.78744 )
Norm@50keV  : 7.10775    ( -7.18418   45.3011 )
------------------------------------------------------------
# Chi-Squared =          43.52 using 59 PHA bins.
# Reduced chi-squared =         0.7771 for     56 degrees of freedom
# Null hypothesis probability =   8.880280e-01

Photon flux (15-150 keV)    in 0.016 sec: 14.9967 ( -2.1771  2.1808 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.291e-08 ( -1.98462e-09  2.00075e-09 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.971315   ( -0.458484   2.01312 )
beta        : -9.99990    ( 31843.5   31853.5 )
Epeak [keV] : 37.6247      ( -4.73561 5.412 )
Norm@50keV   : 6.91839    ( -6.91839   45.9168 )
------------------------------------------------------------
# Chi-Squared =          43.56 using 59 PHA bins.
# Reduced chi-squared =         0.7920 for     55 degrees of freedom
# Null hypothesis probability =   8.669778e-01

Photon flux (15-150 keV)    in 0.016 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 3.48102e-09
S(50-100 keV) = 2.33354e-09

T90 vs. Hardness ratio plot

T90                                   = 0.0119999647140503 sec.
Hardness ratio (energy fluence ratio) = 0.670361

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.39104
Count Ratio (50-100 keV) / (15-25 keV) = 0.688648

Mask shadow pattern

IMX = -1.470749607790515E-01, IMY = 2.683740771290820E-01

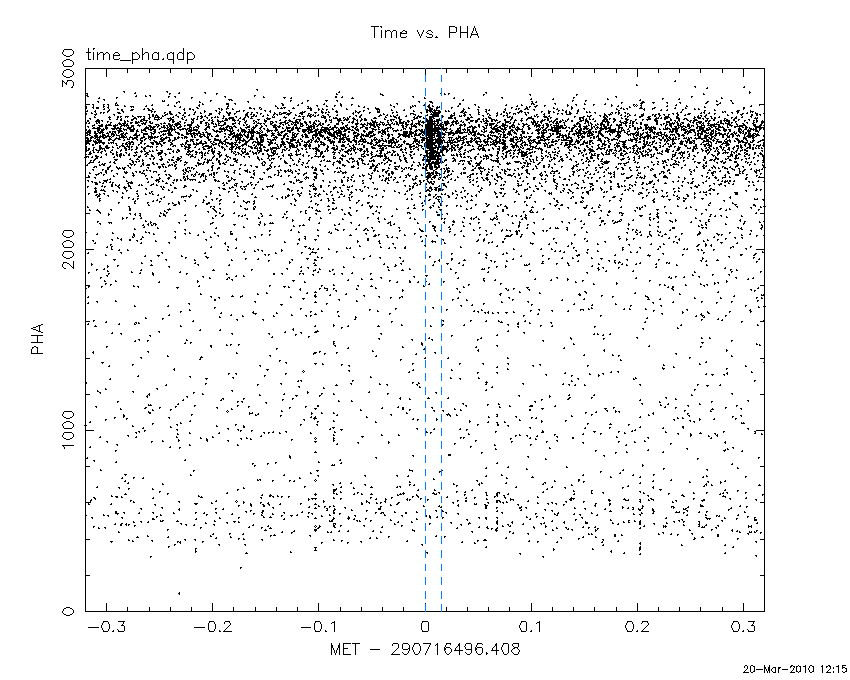

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

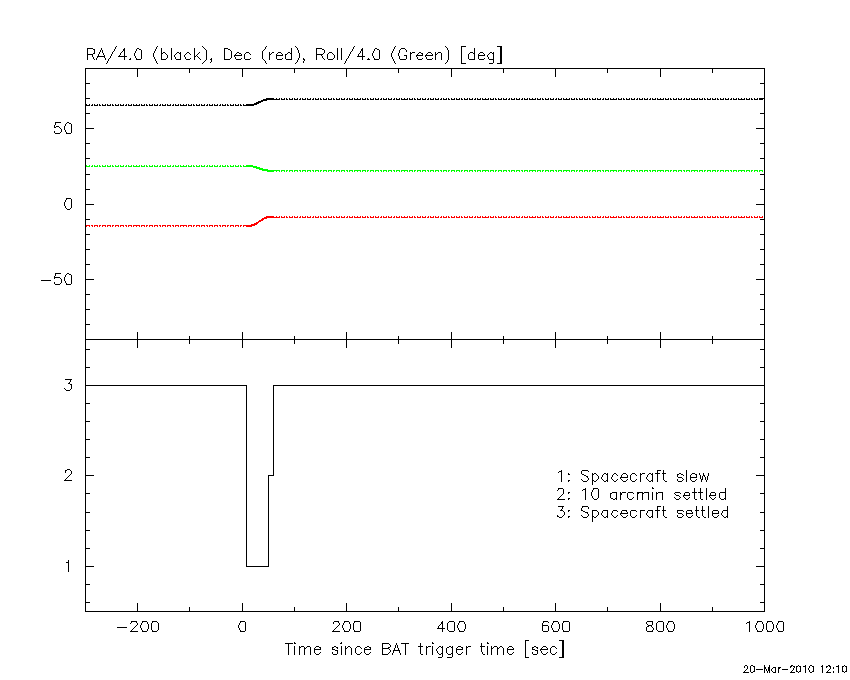

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.408000 -149.058000
-148.408000 0.000000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9744 -15.6377    0.3  16.6   72.3  10.1607  43.8    0.3	Sco X-1
254.3432  35.3888    3.9  50.2  161.0  -2.2025  -3.0    6.2	Her X-1
255.9892 -37.8262    0.6  24.2    1.0   4.7040  20.6    1.1	4U 1700-377
256.4229 -36.4483    5.8  22.8    1.1   0.4545   2.0    1.6	GX 349+2
263.1256 -24.9169    6.5  10.7  -15.8   0.4120   1.8   12.1	GX 1+4
264.5182 -44.5787    0.0  30.4  -14.2  -0.0820  -0.4   12.3	4U 1735-44
268.2980  -1.4129    4.5  14.2 -164.8   0.5681   2.6    4.8	SW J1753.5-0127
270.1741 -25.1882    2.4  13.3  -44.4   1.1629   4.9    8.9	GX 5-1
270.3975 -25.7724    3.2  13.9  -43.6   0.8858   3.7    5.4	GRS 1758-258
273.8724 -14.0489    5.4  11.4 -100.4   0.4748   2.1    7.8	GX 17+2
276.0686 -30.3242    5.3  20.6  -47.2   0.5313   2.2    7.9	H1820-303
284.9072 -25.0045    7.6  24.0  -70.7   0.4581   1.5    8.6	HT1900.1-2455
288.8064  10.9176    1.1  36.5 -143.0   3.2068  10.3    1.7	GRS 1915+105
220.6801 -14.8448    2.2  40.0   73.0   4.5375   5.3 ------	UNKNOWN
248.7131  15.2492    2.7  32.3  144.5   1.3360   4.3 ------	UNKNOWN
267.2101  37.2451    2.7  51.7  174.4   2.9159   4.2 ------	UNKNOWN
248.1431 -48.7656    2.5  36.4    4.7   1.3380   4.6 ------	UNKNOWN
255.7041 -48.7874    1.0  34.9   -3.4   3.4246  11.8 ------	UNKNOWN
251.9761 -71.0103    2.6  57.1   -6.9   4.6915   4.5 ------	UNKNOWN
288.0866 -49.6000    2.6  41.2  -36.3   1.5811   4.4 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.000000 0.016000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0420 -15.5073    5.6  16.5   72.7   0.0058   2.1    8.8	Sco X-1
254.4683  35.3808    3.2  50.2  161.1  -0.0307  -3.7    2.4	Her X-1
255.7891 -37.9078    7.9  24.3    1.4  -0.0042  -1.5   10.1	4U 1700-377
256.5602 -36.6009    0.0  22.9    0.7   0.0029   1.1   12.3	GX 349+2
262.8673 -24.6323    6.0  10.4  -14.7  -0.0049  -1.9   10.3	GX 1+4
264.9324 -44.3178    5.9  30.1  -14.8   0.0055   2.0   11.4	4U 1735-44
268.5336  -1.3454   13.9  14.4 -164.0   0.0020   0.8   11.8	SW J1753.5-0127
270.2704 -24.9284    9.9  13.1  -45.4  -0.0031  -1.2    9.1	GX 5-1
270.4599 -25.7524    4.5  13.9  -43.8   0.0067   2.6    8.5	GRS 1758-258
273.8325 -14.1610    0.0  11.4  -99.9   0.0011   0.4   12.6	GX 17+2
275.9244 -30.4267   27.2  20.6  -46.7   0.0012   0.4    3.6	H1820-303
284.9488 -24.8618   45.0  23.9  -71.1   0.0008   0.3    5.9	HT1900.1-2455
288.9388  11.0305  361.0  36.7 -143.0  -0.0001  -0.0    9.7	GRS 1915+105
274.7400  40.2180    2.1  55.7 -179.1   0.0604   5.6 ------	UNKNOWN
278.4463  -8.5334    1.0  17.0 -118.7   0.0320  11.8 ------	UNKNOWN
289.0639  34.2573    2.5  54.9 -163.5   0.0416   4.6 ------	UNKNOWN
305.3279 -49.5667    2.4  49.8  -46.4   0.0573   4.7 ------	UNKNOWN
304.9991 -38.0122    2.8  44.7  -60.5   0.0419   4.1 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
50.392600 182.652000
183.592000 621.572000
622.592000 962.702000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9746 -15.6486    0.5  33.4   75.7  30.4939  24.0    0.6	Sco X-1
254.4628  35.4431    5.5  49.5  155.4  -4.5276  -2.1    6.0	Her X-1
255.9905 -37.8524    0.8  35.6   32.4  12.4485  13.7    0.5	4U 1700-377
256.3818 -36.5486    3.6  34.4   33.5   2.9494   3.2    8.0	GX 349+2
263.0272 -24.8510   25.6  21.9   41.4   0.2973   0.5    6.4	GX 1+4
264.5743 -44.4322   25.9  37.8   17.4   0.3852   0.4    7.3	4U 1735-44
268.4444  -1.5032    4.4  12.2  126.0   1.5470   2.6    5.5	SW J1753.5-0127
270.2942 -25.1045    1.5  18.3   25.3   4.4198   7.5    1.6	GX 5-1
270.2830 -25.8438    4.1  19.0   24.4   1.6539   2.8    6.1	GRS 1758-258
274.0257 -14.0436    2.5   7.0   39.0   2.8207   4.6    1.2	GX 17+2
275.8645 -30.2681    8.3  21.9    7.2   0.8554   1.4    6.7	H1820-303
285.0020 -24.9272   19.9  17.5  -18.9  -0.3511  -0.6    1.9	HT1900.1-2455
288.8106  10.9481    0.6  22.1 -150.7  12.7356  19.5    0.7	GRS 1915+105
299.5732  35.2029    0.5  48.1 -155.4  35.6339  22.5    0.8	Cyg X-1
308.1295  40.9223    7.6  56.5 -152.1   6.4285   1.5    2.0	Cyg X-3
238.0489 -16.7701    2.3  40.2   75.3  10.9656   5.0 ------	UNKNOWN
240.7648   7.9477    3.3  41.0  113.9   8.3295   3.6 ------	UNKNOWN
255.6975 -48.8099    1.0  44.6   22.5  16.0657  12.0 ------	UNKNOWN
276.0721  48.3712    3.5  57.0  179.4  11.6533   3.3 ------	UNKNOWN
322.6361 -31.5275    5.4  47.0  -53.1   8.5243   2.1 ------	UNKNOWN

Plot creation:
Sat Mar 20 12:15:36 EDT 2010
