batgrbproduct analysis for trigger=421262

batgrbproduct Analysis for Trigger=421262

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This page will be updated for up to 8 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Thu May  6 16:51:33 EDT 2010
             Host Name: gcn5
   Current Working Dir: /local/data/raid16/prebascript_archive/trigger421262/GCN5_download_cron
======================================================================

  Trigger: 00421262      Segment: 000

  BAT Trigger Time: 294849470.672   [s; MET]
      Trigger Stop: 294849470.688   [s; MET]
               UTC: 2010-05-06T14:37:44.899080    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 280.33083121338   Dec: -4.92113449915016  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    6.79
     Image Trigger?:     NO
     Rate S/N Ratio:     14.142135623731  [ if not an image trigger ]
     Image S/N Ratio:    6.79

  Flight Position:   [ source = BAT ]
    RA: 280.33083121338   Dec: -4.92113449915016  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 280.341230236752   Dec: -4.91212843731314  [deg; J2000]
        { 18h 41m 21.9s , -04d 54' 43.7" }
         +/- 2.20649804823615 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.18064926584148 [arcmin] (formal 1-sigma fit error)
    SNR: 9.820041246897

  Angular difference between Flight and Ground position is 0.823672 arcmin

  Partial Coding Fraction: 0.6953125    [ including projection effects ]

  Duration
     T90: 0.0239999890327454 +/- 0.00894423672410898
        Measured from: -0.00799989700317383
                   to: 0.0160000920295715     [s; relative to TRIGTIME]
     T50: 0.015999972820282 +/- 0.00800001621246338
        Measured from: -0.00399988889694214
                   to: 0.0120000839233398     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.491999983787537
                   to: 0.508000016212463     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.00800001621246338
                   to: 0.0199999809265137     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.006867   0.014564   0.008769   0.001585
           0.001839   0.001992   0.001704   0.001009 [error]
 Peak      0.005477   0.015228   0.009392   0.001257
           0.001981   0.002078   0.001778   0.001072 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.22e-09 8.31e-10 1.80e-10 4.68e-11 3.26e-09 3.27e-09   erg/cm2
              Error 8.26e-10 4.16e-10 1.61e-10 6.99e-11 1.26e-09 1.27e-09   erg/cm2
Peak flux Power-law 1.82e-01 7.84e-02 2.01e-02 6.37e-03 2.84e-01 2.87e-01   ph/cm2/s
              Error 1.17e-01 6.38e-02 3.11e-02 2.45e-02 1.78e-01 1.81e-01   ph/cm2/s

Fluence   Cutoff-PL 2.22e-09 8.33e-10 1.81e-10 4.67e-11 3.27e-09 3.27e-09   erg/cm2
              Error 8.29e-10 4.17e-10 1.61e-10 6.95e-11 1.26e-09 1.27e-09   erg/cm2
Peak flux Cutoff-PL 1.98e-01 8.69e-02 1.87e-03 2.09e-07 2.88e-01 2.87e-01   ph/cm2/s
              Error 1.28e-01 8.13e-02 2.74e-02 5.79e-03 1.66e-01 1.66e-01   ph/cm2/s

Fluence        Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    4.206    0.749    -      -           4.54e-03 3.96e-03  111.020 57
CPL   1.000    0.000      50.0    0.0      3.46e-03 0.00e+00  130.230 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.958    1.795    -      -           1.06e-03 1.29e-03   66.860 57
CPL  -4.912    0.000      22.5    8.9      8.45e+02 7.03e+02   65.790 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.028   -0.008    0.020
T90     0.024   -0.008    0.016
T50     0.016   -0.004    0.012
Peak    1.000   -0.492    0.508

Click here for the BAT GCN circular template


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  280.3412  -4.9121 0.0195   33.4  -27.5       0.0338     9.8  TRIG_00421262
------------------------------------------

Foreground time interval of the image:
 -0.008   0.020 (delta_t =   0.028 [sec])
Background time interval of the image:
-239.672  -0.008 (delta_t = 239.664 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

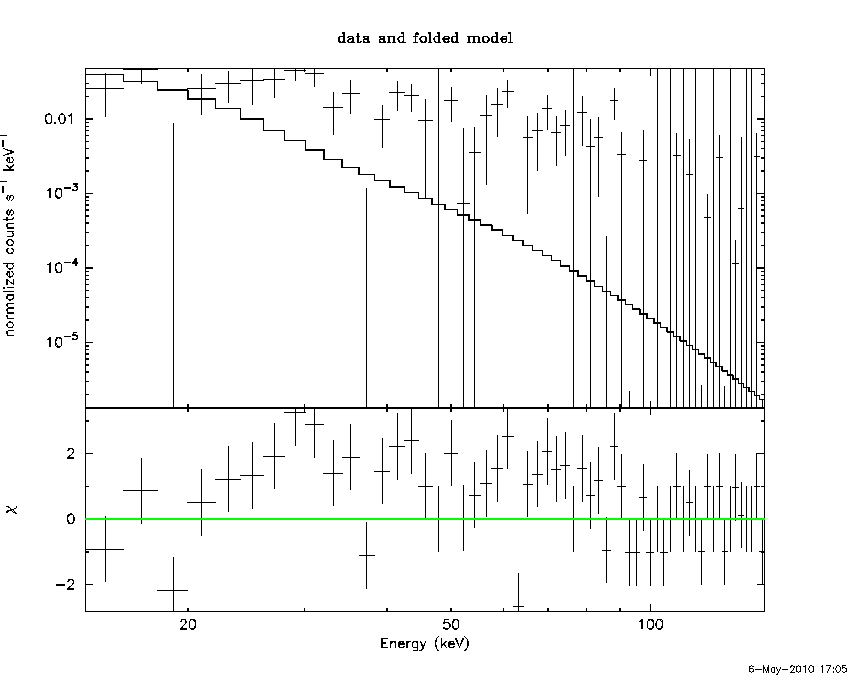

Power-law model

Time interval is from   -0.008 sec. to    0.020 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.20576     ( -0.576049   0.921598 )
Norm@50keV  : 4.53860E-03    ( -0.00453841   0.00337698 )
------------------------------------------------------------
# Chi-Squared =         111.02 using 59 PHA bins.
# Reduced chi-squared =         1.9478 for     57 degrees of freedom
# Null hypothesis probability =   2.438620e-05

Photon flux (15-150 keV)    in 0.028 sec: 3.35608 ( -1.24693  1.24738 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.26371e-09 ( -1.24742e-09  1.26534e-09 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.008 sec. to    0.020 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 3.46090E-03    (     )
------------------------------------------------------------
# Chi-Squared =         130.23 using 59 PHA bins.
# Reduced chi-squared =         2.3254 for     56 degrees of freedom
# Null hypothesis probability =   7.570894e-08

Photon flux (15-150 keV)    in 0.028 sec: 5.59550 ( -1.4671  1.46606 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.26525e-09 ( -1.25522e-09  1.26608e-09 ) ergs/cm2

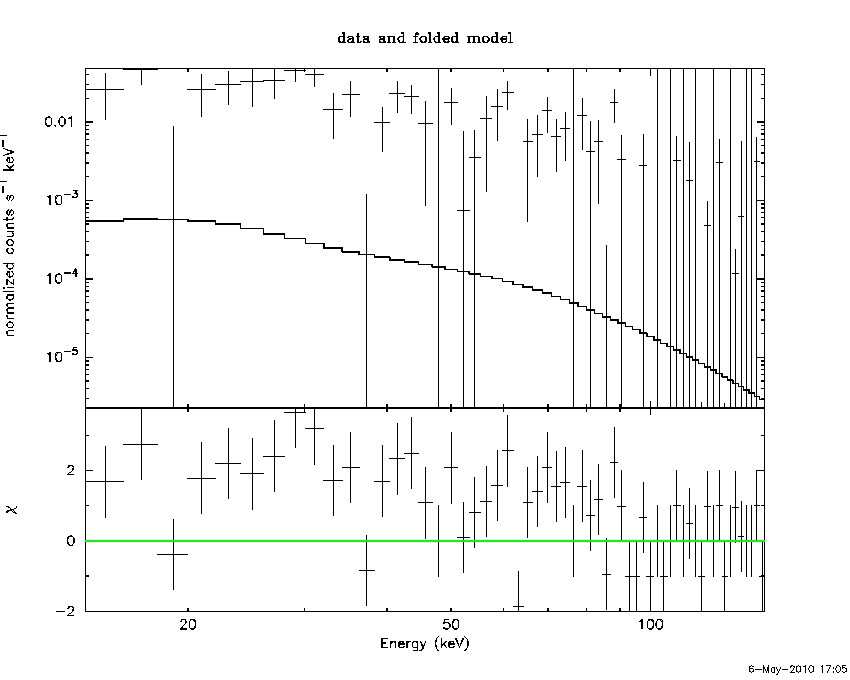

Band function

Time interval is from   -0.008 sec. to    0.020 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.66010   (     )
beta        : -2.48856    (     )
Epeak [keV] : 40.3208      (   )
Norm@50keV   : 1.42077E-03    (     )
------------------------------------------------------------
# Chi-Squared =         130.02 using 59 PHA bins.
# Reduced chi-squared =         2.3640 for     55 degrees of freedom
# Null hypothesis probability =   5.142648e-08

Photon flux (15-150 keV)    in 0.028 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

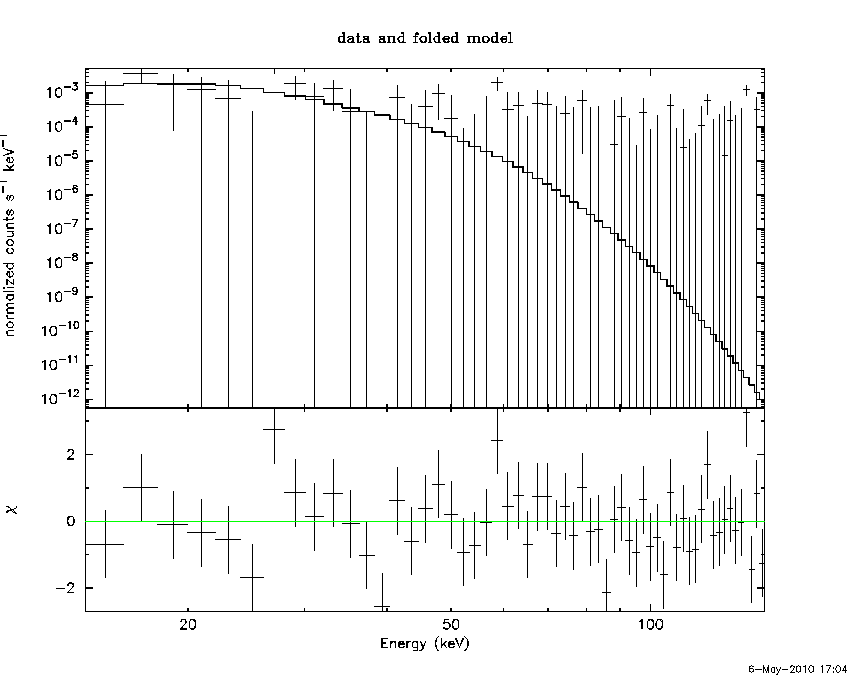

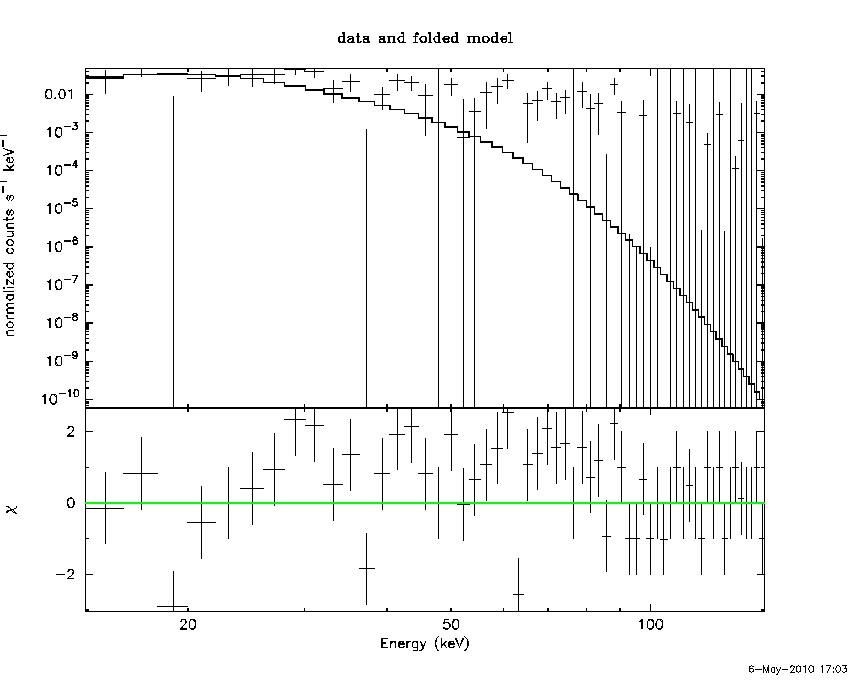

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 5.67628  (-0.757404  0.586846)
R^2/D10^2   : 27.6944  (-12.7869   22.0099)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          92.84 using 59 PHA bins.
# Reduced chi-squared =          1.629 for     57 degrees of freedom
# Null hypothesis probability =   1.899629e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.052e-09   1.023e-09
25- 50  2.691e-09   1.163e-09
50-150  1.952e-10   1.495e-10
15-150  5.938e-09   2.476e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 12.4744       (-2.73574      3.3959)
Norm        : 104.368       (-40.5662     82.1447)
------------------------------------------------------------
# Chi-Squared =         102.60 using 59 PHA bins.
# Reduced chi-squared =         1.8000 for     57 degrees of freedom
# Null hypothesis probability =   2.023134e-04

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.781e-09   1.359e-09
25- 50  1.572e-09   7.185e-10
50-150  1.876e-10   1.487e-10
15-150  4.541e-09   2.076e-09

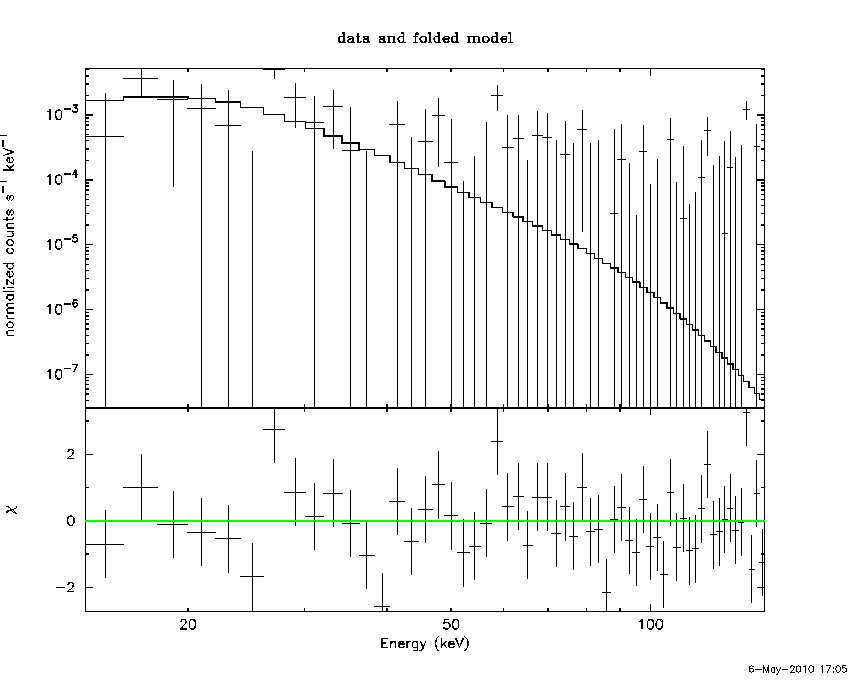

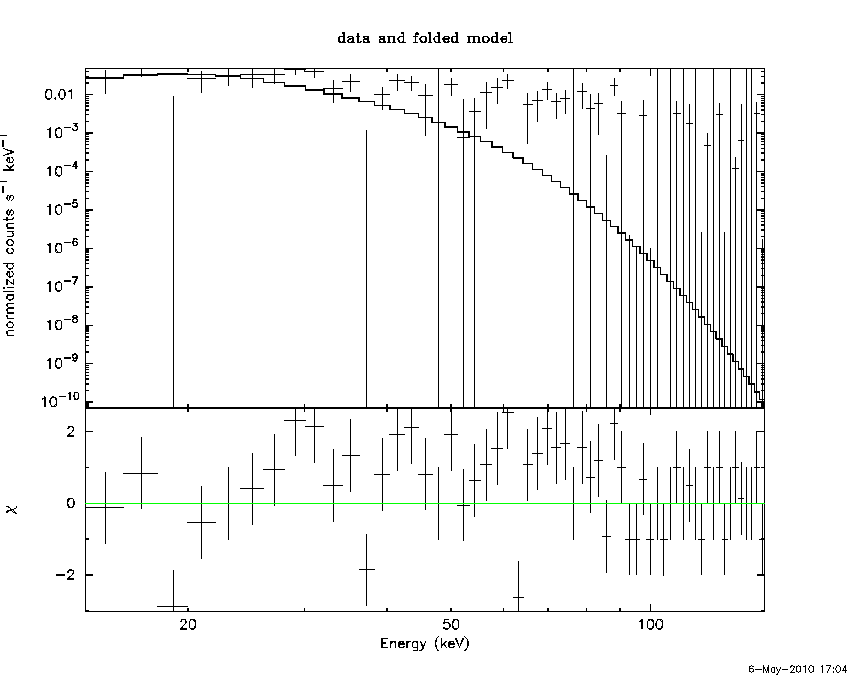

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.73101        (-0.726181      0.616684)
R1^2/D10^2  : 26.6066        (-11.8679      22.8604)
kT2 [keV]   : 0.118238        (13.1599      -0.118238)
R2^2/D10^2  : 0.105999    (-0.106055   -0.106055)
------------------------------------------------------------
# Chi-Squared =          92.83 using 59 PHA bins.
# Reduced chi-squared =          1.688 for     55 degrees of freedom
# Null hypothesis probability =   1.079017e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  0.000e+00   0.000e+00
25- 50  0.000e+00   0.000e+00
50-150  0.000e+00   0.000e+00
15-150  0.000e+00   0.000e+00

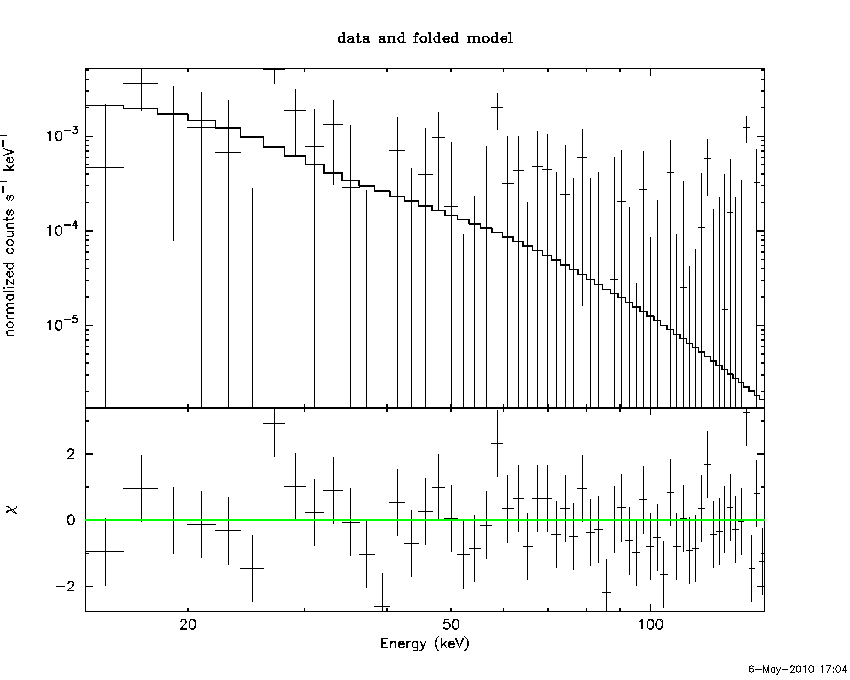

Peak spectrum fit

Power-law model

Time interval is from   -0.492 sec. to    0.508 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.95834     ( -1.21279   2.37746 )
Norm@50keV  : 1.06210E-03    ( -0.00106311   0.0015088 )
------------------------------------------------------------
# Chi-Squared =          66.86 using 59 PHA bins.
# Reduced chi-squared =          1.173 for     57 degrees of freedom
# Null hypothesis probability =   1.744674e-01

Photon flux (15-150 keV)    in 1 sec: 0.284173 ( -0.176498  0.180199 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.25489e-08 ( -8.54205e-09  1.15884e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.492 sec. to    0.508 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -4.91200     (     )
Epeak [keV] : 22.5325      ( -8.0293 9.74445 )
Norm@50keV  : 844.771    ( -844.707   560.609 )
------------------------------------------------------------
# Chi-Squared =          65.79 using 59 PHA bins.
# Reduced chi-squared =          1.175 for     56 degrees of freedom
# Null hypothesis probability =   1.740017e-01

Photon flux (15-150 keV)    in 1 sec: 0.287567 ( -0.165479  0.165849 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Band function

Time interval is from   -0.492 sec. to    0.508 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 3.96850   ( 1.57865   1.57865 )
beta        : -6.70725    ( 10   20 )
Epeak [keV] : 21.3596      ( -8.34008 -8.34008 )
Norm@50keV   : 209.282    ( -209.286   5059.99 )
------------------------------------------------------------
# Chi-Squared =          65.80 using 59 PHA bins.
# Reduced chi-squared =          1.196 for     55 degrees of freedom
# Null hypothesis probability =   1.510060e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 5.27131  (-2.3446  4.31747)
R^2/D10^2   : 2.02604  (-2.02619   32.264)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          66.02 using 59 PHA bins.
# Reduced chi-squared =          1.158 for     57 degrees of freedom
# Null hypothesis probability =   1.933374e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.059e-09   4.080e-09
25- 50  4.498e-09   3.259e-09
50-150  2.347e-10   2.684e-10
15-150  1.079e-08   7.910e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 18.2208       (-12.7764      71.3511)
Norm        : 4.01306       (-4.01719     29.1817)
------------------------------------------------------------
# Chi-Squared =          66.39 using 59 PHA bins.
# Reduced chi-squared =          1.165 for     57 degrees of freedom
# Null hypothesis probability =   1.849349e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.726e-09   3.786e-09
25- 50  4.654e-09   3.645e-09
50-150  1.186e-09   1.549e-09
15-150  1.157e-08   8.040e-09

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.08261        (-5.08269      -5.08269)
R1^2/D10^2  : 2.24922        (-2.25244      -2.25244)
kT2 [keV]   : 12.4616        (-12.9857      -12.9857)
R2^2/D10^2  : 5.73823E-03    (-0.0046908   -0.0046908)
------------------------------------------------------------
# Chi-Squared =          66.00 using 59 PHA bins.
# Reduced chi-squared =          1.200 for     55 degrees of freedom
# Null hypothesis probability =   1.470740e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.027e-09   5.510e-09
25- 50  4.590e-09   5.965e-09
50-150  7.687e-10   2.532e-09
15-150  1.139e-08   1.892e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.20576     ( -0.576049   0.921598 )
Norm@50keV  : 4.53860E-03    ( -0.00453841   0.00337698 )
------------------------------------------------------------
# Chi-Squared =         111.02 using 59 PHA bins.
# Reduced chi-squared =         1.9478 for     57 degrees of freedom
# Null hypothesis probability =   2.438620e-05

Photon flux (15-150 keV)    in 0.028 sec: 3.35608 ( -1.24693  1.24738 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.26371e-09 ( -1.24742e-09  1.26534e-09 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 3.46090E-03    (     )
------------------------------------------------------------
# Chi-Squared =         130.23 using 59 PHA bins.
# Reduced chi-squared =         2.3254 for     56 degrees of freedom
# Null hypothesis probability =   7.570894e-08

Photon flux (15-150 keV)    in 0.028 sec: 5.59550 ( -1.4671  1.46606 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.26525e-09 ( -1.25522e-09  1.26608e-09 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.66010   (     )
beta        : -2.48856    (     )
Epeak [keV] : 40.3208      (   )
Norm@50keV   : 1.42077E-03    (     )
------------------------------------------------------------
# Chi-Squared =         130.02 using 59 PHA bins.
# Reduced chi-squared =         2.3640 for     55 degrees of freedom
# Null hypothesis probability =   5.142648e-08

Photon flux (15-150 keV)    in 0.028 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 8.31068e-10
S(50-100 keV) = 1.80022e-10

T90 vs. Hardness ratio plot

T90                                   = 0.0239999890327454 sec.
Hardness ratio (energy fluence ratio) = 0.216615

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 2.12087
Count Ratio (50-100 keV) / (15-25 keV) = 1.27698

Mask shadow pattern

IMX = 5.860139337316449E-01, IMY = 3.049267773306944E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

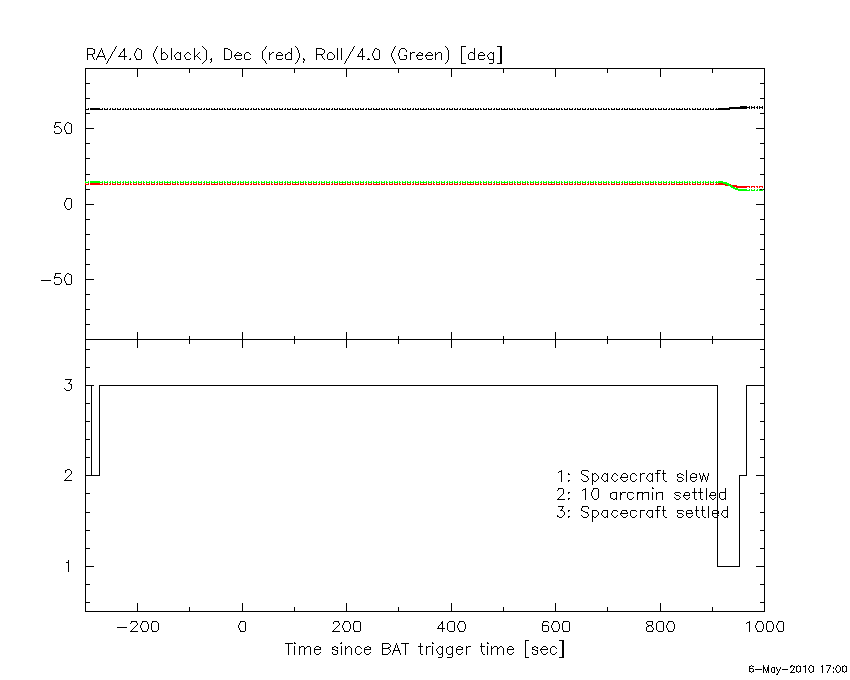

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.672000 -0.008000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9791 -15.6314    0.4  29.7   45.3   8.2738  25.7    0.5	Sco X-1
254.4570  35.3491    0.9  22.2 -143.3   2.7827  12.5    0.4	Her X-1
256.0114 -37.8623    1.1  51.2   27.5  11.4722  10.3    1.6	4U 1700-377
256.5411 -36.3533   29.9  49.8   26.7   0.3723   0.4    6.6	GX 349+2
263.0073 -24.7204    5.3  39.4   15.7   0.8064   2.2    1.5	GX 1+4
268.4575  -1.3657    3.2  21.9  -17.8   0.8091   3.6    7.5	SW J1753.5-0127
270.2436 -25.0670    3.6  42.2    6.6   1.1149   3.3    2.3	GX 5-1
270.3144 -25.7297    2.9  42.8    6.9   1.4009   4.0    1.0	GRS 1758-258
274.0162 -14.0302   88.0  34.9   -7.9   0.0373   0.1    0.7	GX 17+2
275.9753 -30.2622    6.5  49.2    3.9   0.9109   1.8    6.8	H1820-303
285.0009 -24.9875   52.4  49.9   -8.6  -0.1145  -0.2    4.5	HT1900.1-2455
288.7658  10.8449    3.3  36.0  -58.8   1.4219   3.4    6.3	GRS 1915+105
204.1775  51.5829    3.0  54.2  176.8   3.7123   3.9 ------	UNKNOWN
231.8292  62.5924    2.4  51.4 -160.3   2.6611   4.7 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.008000 0.020000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0487 -15.6284    7.5  29.7   45.2   0.0057   1.5    4.1	Sco X-1
254.2492  35.3430    7.5  22.2 -143.8  -0.0045  -1.5   10.2	Her X-1
255.9505 -37.9694    5.6  51.3   27.5  -0.0233  -2.1    7.7	4U 1700-377
256.2192 -36.3609    3.9  49.8   27.1  -0.0291  -3.0   11.1	GX 349+2
263.1965 -24.7750    9.6  39.5   15.5   0.0050   1.2   10.4	GX 1+4
268.1803  -1.3913    4.7  21.7  -17.3   0.0063   2.5   11.8	SW J1753.5-0127
270.3109 -25.1782    3.8  42.3    6.6   0.0136   3.0    6.1	GX 5-1
270.2770 -25.8992    4.7  43.0    7.1   0.0115   2.5    9.5	GRS 1758-258
274.1896 -14.0988    0.0  35.0   -8.1   0.0036   1.1   11.3	GX 17+2
275.9784 -30.2657    3.2  49.2    3.9   0.0224   3.6    6.7	H1820-303
285.0530 -24.8636    3.9  49.9   -8.8   0.0168   3.0    3.5	HT1900.1-2455
288.7115  10.7496    0.0  35.9  -58.6  -0.0068  -1.4   12.8	GRS 1915+105
280.3411  -4.9121    1.2  33.4  -27.5   0.0339   9.8 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:

Plot creation:
Thu May  6 17:06:23 EDT 2010
