Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This page will be updated for up to 8 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Wed May 12 05:39:58 EDT 2010
             Host Name: gcn5
   Current Working Dir: /local/data/raid16/prebascript_archive/trigger421695/GCN5_download_cron
======================================================================

  Trigger: 00421695      Segment: 000

  BAT Trigger Time: 295271444.8   [s; MET]
      Trigger Stop: 295271444.832   [s; MET]
               UTC: 2010-05-11T11:50:39.012300    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 280.611745486353   Dec: 18.3279540117136  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    6.65
     Image Trigger?:     NO
     Rate S/N Ratio:     6.557438524302  [ if not an image trigger ]
     Image S/N Ratio:    6.65

  Flight Position:   [ source = BAT ]
    RA: 280.611745486353   Dec: 18.3279540117136  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 280.62231202079   Dec: 18.3247553318699  [deg; J2000]
        { 18h 42m 29.4s , +18d 19' 29.1" }
         +/- 3.07426491159627 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.93703532427543 [arcmin] (formal 1-sigma fit error)
    SNR: 6.11427701469335

  Angular difference between Flight and Ground position is 0.631697 arcmin

  Partial Coding Fraction: 0.6171875    [ including projection effects ]

  Duration
     T90: 0.0320000052452087 +/-
        Measured from: 0
                   to: 0.0320000052452087     [s; relative to TRIGTIME]
     T50: 0.0320000052452087 +/-
        Measured from: 0
                   to: 0.0320000052452087     [s; relative to TRIGTIME]

    WARNING: battblocks failed.  Used TDRSS fore/background intervals

  Fluence
     Peak Flux  (peak 0.0320000052452087 second)
        Measured from: -2.98023223876953e-08
                   to: 0.0319999754428864     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0
                   to: 0.0320000052452087     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.006115   0.004892   0.001988   0.000599
           0.001574   0.001392   0.001160   0.001235 [error]
 Peak      0.006115   0.004892   0.001988   0.000599
           0.001574   0.001392   0.001160   0.001235 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.20e-09 4.74e-10 1.09e-10 3.02e-11 1.80e-09 1.82e-09   erg/cm2
              Error 5.85e-10 2.26e-10 7.40e-11 3.51e-11 8.21e-10 8.25e-10   erg/cm2
Peak flux Power-law 1.30e+00 2.92e-01 3.34e-02 4.22e-03 1.63e+00 1.63e+00   ph/cm2/s
              Error 6.20e-01 1.35e-01 2.21e-02 4.70e-03 7.43e-01 7.43e-01   ph/cm2/s

Fluence   Cutoff-PL 1.20e-09 4.74e-10 1.09e-10 3.00e-11 1.81e-09 1.82e-09   erg/cm2
              Error 5.85e-10 2.26e-10 7.40e-11 3.49e-11 8.22e-10 8.26e-10   erg/cm2
Peak flux Cutoff-PL 1.59e+00 1.25e+00 8.41e-02 9.29e-05 2.93e+00 2.93e+00   ph/cm2/s
              Error 6.23e-01 4.41e-01 5.01e-02 2.33e-04 9.54e-01 9.54e-01   ph/cm2/s

Fluence        Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    4.123    0.647    -      -           2.33e-03 1.85e-03   46.940 57
CPL   1.000    0.000      50.0    0.0      2.06e-03 0.00e+00   58.170 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    4.129    0.637    -      -           2.36e-03 1.86e-03   47.250 57
CPL   1.000    0.000      50.0    0.0      2.07e-03 0.00e+00   59.090 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.032    0.000    0.032
T90     0.032    0.000    0.032
T50     0.032    0.000    0.032
Peak    0.032   -0.000    0.032

Click here for the BAT GCN circular template


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  280.6223 +18.3248 0.0315   24.4  -76.4       0.0141     6.1  TRIG_00421695
------------------------------------------

Foreground time interval of the image:
  0.000   0.032 (delta_t =   0.032 [sec])
Background time interval of the image:
-60.800 -24.670 (delta_t =  36.130 [sec])
-23.800  -4.800 (delta_t =  19.000 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

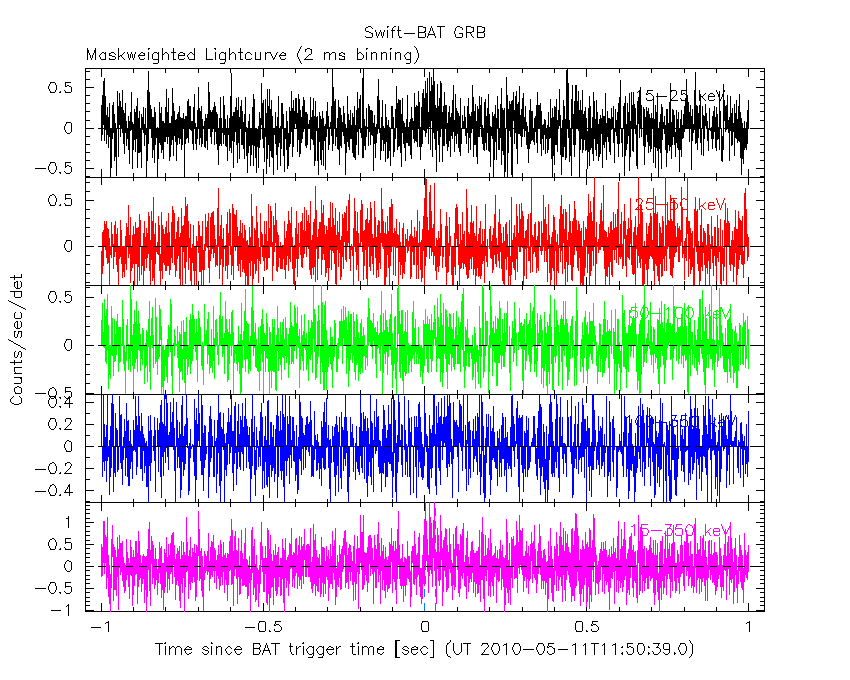

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Flight mask-tagged light curves

Caution: Mask-weight map is always using the same on-axis map

Quad-rate summed light curves (from T0-300 to T0+1000)

The mask-weighted light curves based on cleaned DPHs

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from    0.000 sec. to    0.032 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.12299     ( -0.541289   0.752409 )
Norm@50keV  : 2.33420E-03    ( -0.00233764   0.00135874 )
------------------------------------------------------------
# Chi-Squared =          46.94 using 59 PHA bins.
# Reduced chi-squared =         0.8235 for     57 degrees of freedom
# Null hypothesis probability =   8.265199e-01

Photon flux (15-150 keV)    in 0.032 sec: 1.60549 ( -0.751992  0.751401 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.80396e-09 ( -8.2153e-10  8.21184e-10 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.000 sec. to    0.032 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 2.05591E-03    (     )
------------------------------------------------------------
# Chi-Squared =          58.17 using 59 PHA bins.
# Reduced chi-squared =          1.039 for     56 degrees of freedom
# Null hypothesis probability =   3.955433e-01

Photon flux (15-150 keV)    in 0.032 sec: 2.90617 ( -0.9617  0.96176 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.80528e-09 ( -8.21869e-10  8.216e-10 ) ergs/cm2

Band function

Time interval is from    0.000 sec. to    0.032 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -9.95470   ( 91.4628   101.365 )
beta        : -4.12333    ( -0.751783   0.542599 )
Epeak [keV] : 71.5494      ( -71.5494 -71.5494 )
Norm@50keV   : 0.317568    ( -0.189782   0.184383 )
------------------------------------------------------------
# Chi-Squared =          46.94 using 59 PHA bins.
# Reduced chi-squared =         0.8535 for     55 degrees of freedom
# Null hypothesis probability =   7.718613e-01

Photon flux (15-150 keV)    in 0.032 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 6.48051  (-1.0791  0.744375)
R^2/D10^2   : 8.36183  (-4.28624   10.1187)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          34.81 using 59 PHA bins.
# Reduced chi-squared =         0.6108 for     57 degrees of freedom
# Null hypothesis probability =   9.910488e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.654e-09   7.242e-10
25- 50  1.942e-09   9.149e-10
50-150  2.415e-10   1.596e-10
15-150  3.838e-09   1.617e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 14.0808       (-3.5211      3.22984)
Norm        : 48.0650       (-23.2764     31.6059)
------------------------------------------------------------
# Chi-Squared =          40.12 using 59 PHA bins.
# Reduced chi-squared =         0.7039 for     57 degrees of freedom
# Null hypothesis probability =   9.560851e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.655e-09   6.870e-10
25- 50  1.059e-09   4.858e-10
50-150  1.637e-10   1.088e-10
15-150  2.878e-09   1.217e-09

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.50676        (-6.50126      3.46684)
R1^2/D10^2  : 8.10728        (-8.12623      -8.12623)
kT2 [keV]   : 6.29013        (-6.21986      -6.21986)
R2^2/D10^2  : 0.114338    (-0.127756   -0.127756)
------------------------------------------------------------
# Chi-Squared =          34.82 using 59 PHA bins.
# Reduced chi-squared =         0.6330 for     55 degrees of freedom
# Null hypothesis probability =   9.847031e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.646e-09   9.634e-04
25- 50  1.946e-09   8.758e-03
50-150  2.454e-10   1.989e-01
15-150  3.837e-09   2.082e-01

Peak spectrum fit

Power-law model

Time interval is from    0.000 sec. to    0.032 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.12931     ( -0.530065   0.742976 )
Norm@50keV  : 2.35569E-03    ( -0.00235789   0.00135505 )
------------------------------------------------------------
# Chi-Squared =          47.25 using 59 PHA bins.
# Reduced chi-squared =         0.8290 for     57 degrees of freedom
# Null hypothesis probability =   8.178921e-01

Photon flux (15-150 keV)    in 0.032 sec: 1.62877 ( -0.742921  0.742266 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.82848e-09 ( -8.12285e-10  8.12022e-10 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.000 sec. to    0.032 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 2.06856E-03    (     )
------------------------------------------------------------
# Chi-Squared =          59.09 using 59 PHA bins.
# Reduced chi-squared =          1.055 for     56 degrees of freedom
# Null hypothesis probability =   3.634662e-01

Photon flux (15-150 keV)    in 0.032 sec: 2.92744 ( -0.95462  0.95362 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.82979e-09 ( -8.12598e-10  8.124e-10 ) ergs/cm2

Band function

Time interval is from    0.000 sec. to    0.032 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -9.95392   ( 89.804   99.7029 )
beta        : -4.13015    ( -0.742159   0.531105 )
Epeak [keV] : 71.3850      ( -71.385 -71.385 )
Norm@50keV   : 0.320238    ( -0.189367   0.183907 )
------------------------------------------------------------
# Chi-Squared =          47.25 using 59 PHA bins.
# Reduced chi-squared =         0.8592 for     55 degrees of freedom
# Null hypothesis probability =   7.617853e-01

Photon flux (15-150 keV)    in 0.032 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 6.47202  (-1.07767  0.738986)
R^2/D10^2   : 8.46517  (-4.29477   10.1838)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          35.04 using 59 PHA bins.
# Reduced chi-squared =         0.6147 for     57 degrees of freedom
# Null hypothesis probability =   9.903130e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.668e-09   6.866e-10
25- 50  1.953e-09   8.224e-10
50-150  2.415e-10   1.510e-10
15-150  3.862e-09   1.721e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 13.5361       (-3.00738      3.74099)
Norm        : 50.0291       (-18.1007     30.3359)
------------------------------------------------------------
# Chi-Squared =          40.38 using 59 PHA bins.
# Reduced chi-squared =         0.7084 for     57 degrees of freedom
# Null hypothesis probability =   9.531691e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.700e-09   3.861e-09
25- 50  1.050e-09   3.650e-09
50-150  1.505e-10   1.345e-09
15-150  2.901e-09   9.006e-09

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.49716        (-6.49674      0.715592)
R1^2/D10^2  : 8.32385        (-8.31523      -8.31523)
kT2 [keV]   : 4.76324        (-5.95831      -5.95831)
R2^2/D10^2  : 3.89028E-02    (-0.000760387   -0.000760387)
------------------------------------------------------------
# Chi-Squared =          35.04 using 59 PHA bins.
# Reduced chi-squared =         0.6372 for     55 degrees of freedom
# Null hypothesis probability =   9.835356e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.663e-09   5.400e-05
25- 50  1.961e-09   4.710e-04
50-150  2.461e-10   1.197e-02
15-150  3.870e-09   1.167e-02

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.12299     ( -0.541289   0.752409 )
Norm@50keV  : 2.33420E-03    ( -0.00233764   0.00135874 )
------------------------------------------------------------
# Chi-Squared =          46.94 using 59 PHA bins.
# Reduced chi-squared =         0.8235 for     57 degrees of freedom
# Null hypothesis probability =   8.265199e-01

Photon flux (15-150 keV)    in 0.032 sec: 1.60549 ( -0.751992  0.751401 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.80396e-09 ( -8.2153e-10  8.21184e-10 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 2.05591E-03    (     )
------------------------------------------------------------
# Chi-Squared =          58.17 using 59 PHA bins.
# Reduced chi-squared =          1.039 for     56 degrees of freedom
# Null hypothesis probability =   3.955433e-01

Photon flux (15-150 keV)    in 0.032 sec: 2.90617 ( -0.9617  0.96176 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.80528e-09 ( -8.21869e-10  8.216e-10 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -9.95470   ( 91.4628   101.365 )
beta        : -4.12333    ( -0.751783   0.542599 )
Epeak [keV] : 71.5494      ( -71.5494 -71.5494 )
Norm@50keV   : 0.317568    ( -0.189782   0.184383 )
------------------------------------------------------------
# Chi-Squared =          46.94 using 59 PHA bins.
# Reduced chi-squared =         0.8535 for     55 degrees of freedom
# Null hypothesis probability =   7.718613e-01

Photon flux (15-150 keV)    in 0.032 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 4.73578e-10
S(50-100 keV) = 1.08789e-10

T90 vs. Hardness ratio plot

T90                                   = 0.0320000052452087 sec.
Hardness ratio (energy fluence ratio) = 0.229717

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.8
Count Ratio (50-100 keV) / (15-25 keV) = 0.325102

Mask shadow pattern

IMX = 1.070892413306814E-01, IMY = 4.409947594176273E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-60.800000 -24.670000
-23.800000 -4.800000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9933 -15.6487    0.9  29.3   55.8   1.6799  12.6    0.9	Sco X-1
254.4028  35.2843    3.4  23.9 -151.0   0.3096   3.4    4.4	Her X-1
255.8701 -37.7349    7.9  49.2   33.5   0.6428   1.5    8.6	4U 1700-377
256.4554 -36.4245   25.3  47.8   32.9   0.1603   0.5    1.0	GX 349+2
262.9991 -24.7503    3.7  36.7   22.9   0.4022   3.1    0.6	GX 1+4
268.4760  -1.3544    5.0  17.5  -11.1   0.1908   2.3    8.8	SW J1753.5-0127
270.3805 -25.0126   32.0  38.9   12.5   0.0498   0.4    6.6	GX 5-1
270.3959 -25.6599    9.0  39.5   12.9  -0.1800  -1.3    7.1	GRS 1758-258
273.8614 -14.0572    4.3  30.8   -1.7   0.2732   2.7    8.5	GX 17+2
275.7743 -30.3631    7.8  45.8    9.4   0.2680   1.5    7.8	H1820-303
284.8667 -24.8831    7.6  45.7   -4.2  -0.2592  -1.5    9.5	HT1900.1-2455
288.8660  10.9366    8.0  31.9  -59.4   0.1859   1.4    4.0	GRS 1915+105
255.9891  -2.6450    2.5  14.1   34.6   0.3538   4.6 ------	UNKNOWN
255.2494  61.6784    3.1  50.3 -147.7   0.9298   3.8 ------	UNKNOWN
303.6905   4.7743    2.9  47.3  -52.9   1.5295   3.9 ------	UNKNOWN
293.2969  35.4719    2.9  41.1  -99.0   1.7850   4.0 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.000000 0.032000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.1931 -15.6836   22.4  29.3   55.4  -0.0017  -0.5   12.6	Sco X-1
254.6773  35.2800  129.7  23.9 -150.4  -0.0002  -0.1   11.4	Her X-1
255.9028 -37.9008    4.3  49.3   33.5  -0.0382  -2.7    5.2	4U 1700-377
256.3111 -36.3397    6.2  47.8   33.1   0.0190   1.8    7.8	GX 349+2
263.1440 -24.6987   84.2  36.7   22.7   0.0005   0.1    7.9	GX 1+4
268.3252  -1.6571    0.0  17.7  -10.0  -0.0011  -0.5   12.5	SW J1753.5-0127
270.2705 -25.2547    3.1  39.1   12.8  -0.0123  -3.7   10.6	GX 5-1
270.4741 -25.7487   14.5  39.6   12.9   0.0028   0.8    9.3	GRS 1758-258
273.8493 -14.0393    5.2  30.8   -1.7   0.0053   2.2    9.1	GX 17+2
275.7204 -30.3229   63.7  45.7    9.4  -0.0009  -0.2   10.9	H1820-303
284.9904 -25.0446    6.0  45.9   -4.2   0.0078   1.9    7.8	HT1900.1-2455
288.6988  11.0430   14.3  31.7  -59.6   0.0023   0.8    8.3	GRS 1915+105
292.9970 -19.4342    2.5  47.5  -16.8   0.0201   4.6 ------	UNKNOWN
280.6223  18.3247    1.9  24.4  -76.4   0.0141   6.1 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
56.100600 302.290000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4604  35.1517    7.8  28.6  163.7   0.4042   1.5   11.4	Her X-1
268.2951  -1.4550   11.7  23.2   65.2   0.2795   1.0    4.4	SW J1753.5-0127
270.2425 -25.2345    0.0  44.7   45.8   0.8942   1.0    9.6	GX 5-1
270.1074 -25.7276   14.0  45.2   45.8   0.7715   0.8   10.6	GRS 1758-258
273.8792 -14.0542   12.6  33.0   44.4   0.3194   0.9    7.4	GX 17+2
275.9477 -30.4260    5.0  48.9   37.7  -2.5019  -2.3    3.7	H1820-303
285.2389 -24.9535   16.3  43.5   26.3   0.3212   0.7   11.2	HT1900.1-2455
288.8038  10.9449    1.3  10.8  -15.8   1.7667   8.8    0.3	GRS 1915+105
299.5866  35.1945    0.3  23.8 -106.4  10.1734  41.5    0.5	Cyg X-1
308.1306  40.9758    3.2  32.7 -107.3   1.3198   3.6    1.7	Cyg X-3
248.3018  12.3069    3.2  31.7  116.2   1.4201   3.6 ------	UNKNOWN
244.9453  21.9586    2.8  33.6  134.7   1.3870   4.1 ------	UNKNOWN
237.0738  69.7534    2.5  57.8 -164.0   5.4823   4.6 ------	UNKNOWN
327.5597  12.8239    2.7  45.4  -57.7   4.3049   4.3 ------	UNKNOWN

Plot creation:
Wed May 12 05:59:10 EDT 2010
