batgrbproduct analysis for trigger=423958

batgrbproduct Analysis for Trigger=423958

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This page will be updated for up to 8 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sun Jun  6 09:10:55 EDT 2010
             Host Name: gcn5
   Current Working Dir: /local/data/raid16/prebascript_archive/trigger423958/SDC
======================================================================

  Trigger: 00423958      Segment: 000

  BAT Trigger Time: 297451416   [s; MET]
      Trigger Stop: 297452760   [s; MET]
               UTC: 2010-06-05T17:23:30.135280    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 280.266527698273   Dec: -5.61501892311769  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    6.87
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    6.87

  Flight Position:   [ source = BAT ]
    RA: 280.266527698273   Dec: -5.61501892311769  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 280.248127190951   Dec: -5.59496745890764  [deg; J2000]
        { 18h 40m 59.6s , -05d 35' 41.9" }
         +/- 3.78488979107545 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.74020299223046 [arcmin] (formal 1-sigma fit error)
    SNR: 4.54284626168947

  Angular difference between Flight and Ground position is 1.629318 arcmin

  Partial Coding Fraction: 0.6015625    [ including projection effects ]

  Duration
     T90: 1344 +/-
        Measured from: 0
                   to: 1344     [s; relative to TRIGTIME]
     T50: 1344 +/-
        Measured from: 0
                   to: 1344     [s; relative to TRIGTIME]

    WARNING: battblocks failed.  Used TDRSS fore/background intervals

  Fluence
     Peak Flux  (peak 1344 second)
        Measured from: 0
                   to: 1344     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0
                   to: 1344     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     1.283679   1.291367   0.204290  -0.104136
           0.223654   0.216766   0.190126   0.166848 [error]
 Peak      1.283679   1.291367   0.204290  -0.104136
           0.223654   0.216766   0.190126   0.166848 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 4.82e-07 4.70e-07 3.20e-07 3.42e-07 1.41e-06 1.61e-06   erg/cm2
              Error 1.11e-07 1.12e-07 1.52e-07 3.07e-07 3.63e-07 5.43e-07   erg/cm2
Peak flux Power-law 1.70e-02 9.07e-03 3.02e-03 1.30e-03 2.98e-02 3.04e-02   ph/cm2/s
              Error 3.55e-03 2.06e-03 1.38e-03 1.32e-03 5.51e-03 5.75e-03   ph/cm2/s

Fluence   Cutoff-PL 4.54e-07 5.47e-07 2.59e-07 3.92e-08 1.29e-06 1.30e-06   erg/cm2
              Error 1.26e-07 1.55e-07 1.76e-07 2.81e-07 3.44e-07 4.94e-07   erg/cm2
Peak flux Cutoff-PL 1.64e-02 1.03e-02 2.60e-03 2.62e-04 2.95e-02 2.95e-02   ph/cm2/s
              Error 3.86e-03 2.80e-03 2.13e-03 1.10e-03 5.41e-03 5.46e-03   ph/cm2/s

Fluence        Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.554    0.451    -      -           1.44e-04 5.09e-05   63.060 57
CPL   1.141    1.781      22.0   13.6      1.12e-03 3.03e-02   61.410 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.584    0.431    -      -           1.44e-04 5.08e-05   64.500 57
CPL   1.359    1.375      18.4    0.0      8.85e-04 0.00e+00   63.240 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100 1344.000    0.000 1344.000
T90  1344.000    0.000 1344.000
T50  1344.000    0.000 1344.000
Peak 1344.000    0.000 1344.000

Click here for the BAT GCN circular template

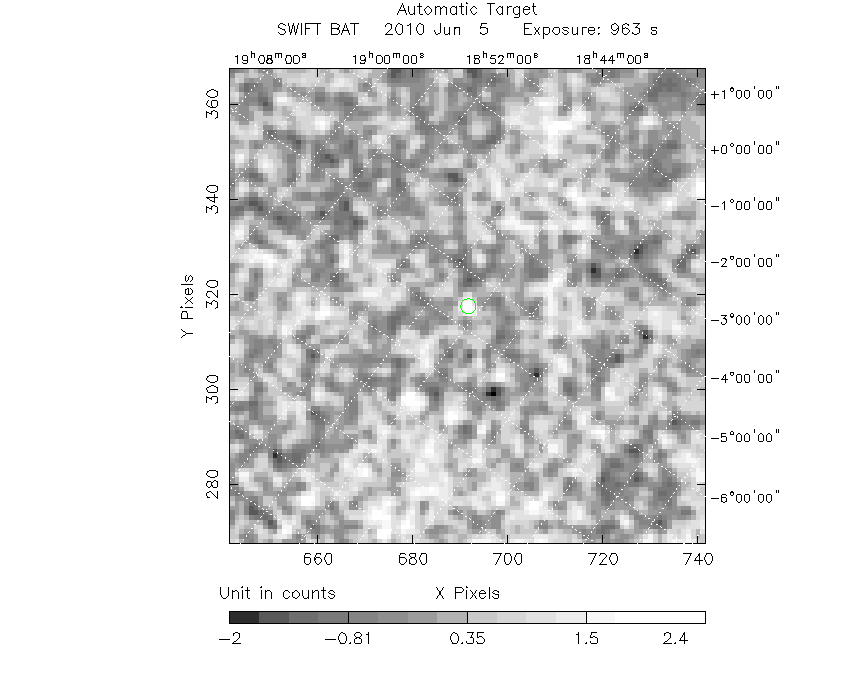

Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  280.2481  -5.5950 0.0424   27.4   40.3       2.9779     4.5  TRIG_00423958
------------------------------------------

Foreground time interval of the image:
  0.000 963.123 (delta_t = 963.123 [sec])
Background time interval of the image:

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

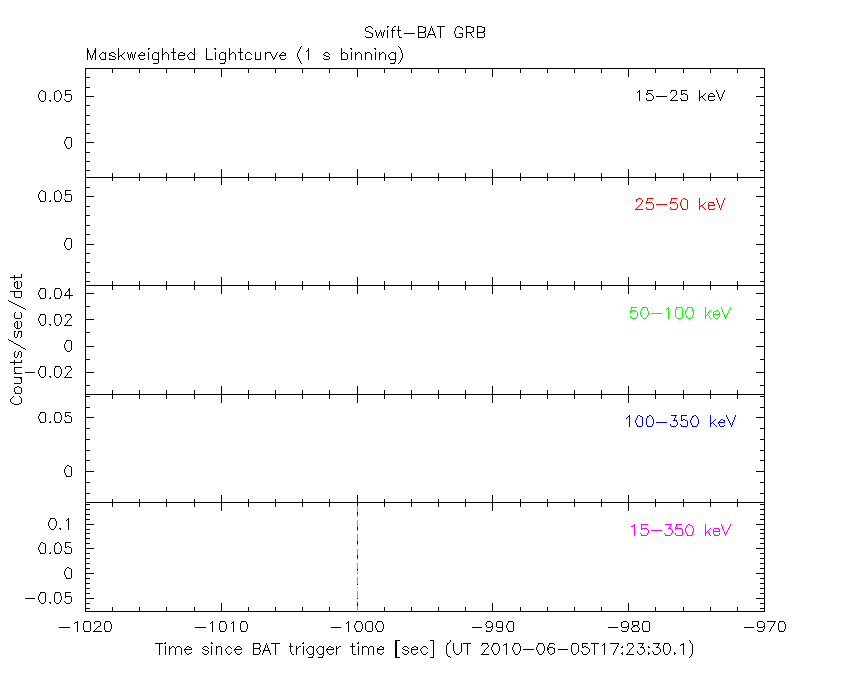

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

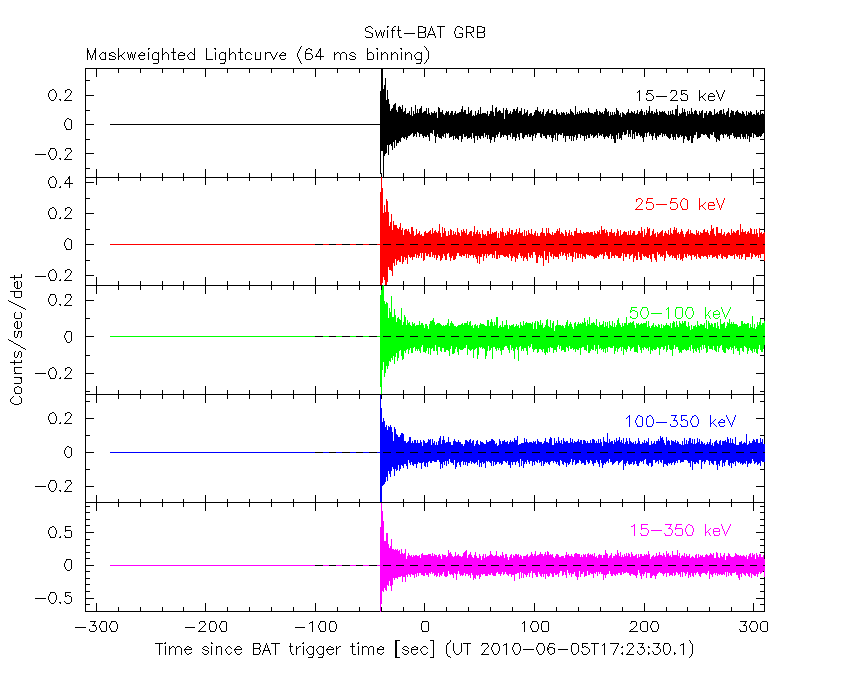

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

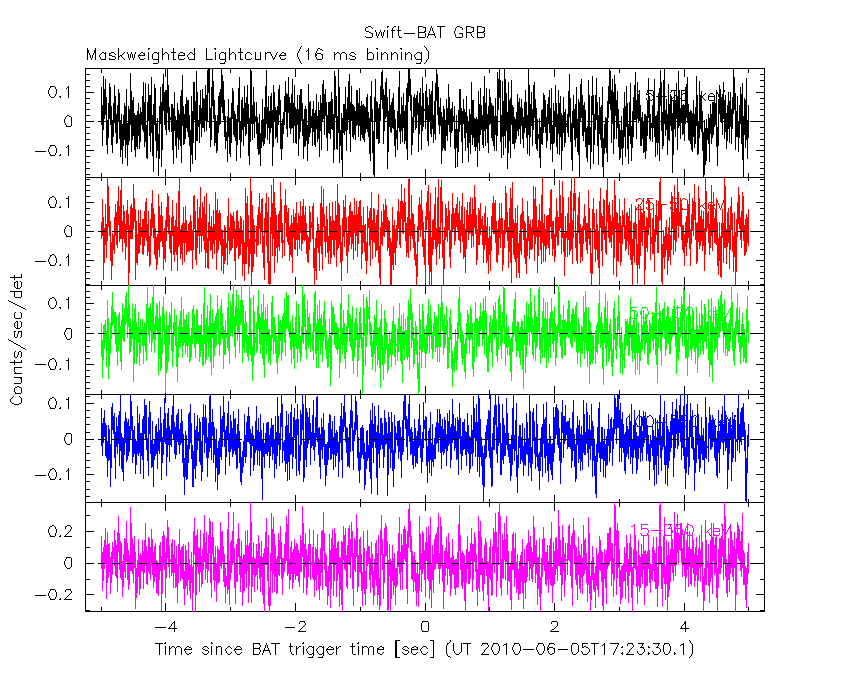

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

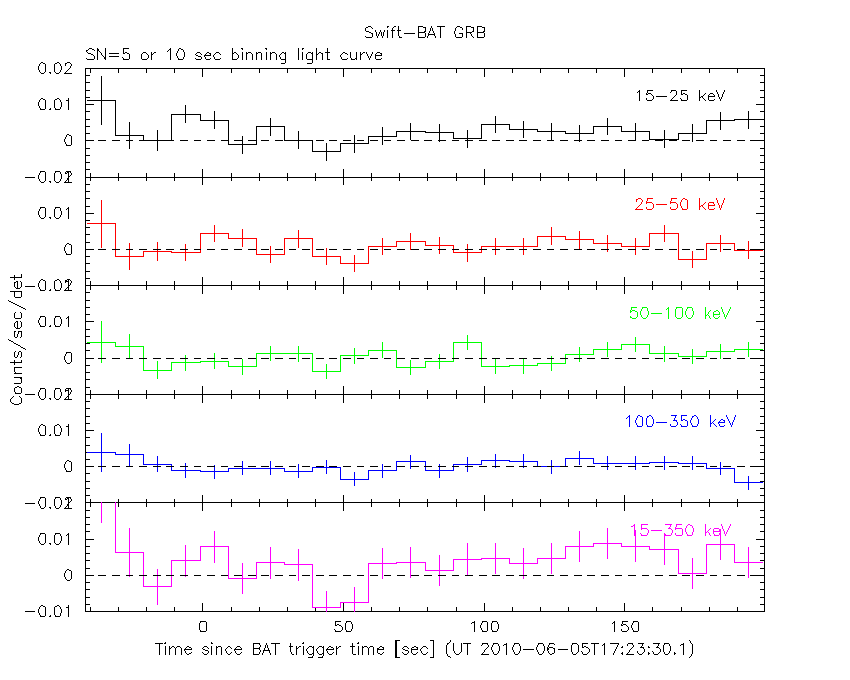

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

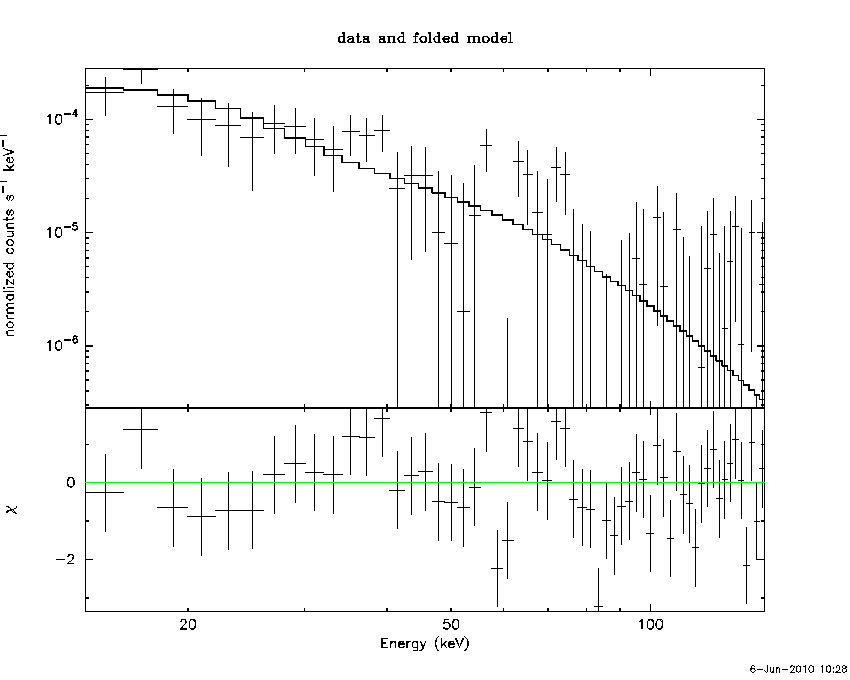

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from    0.000 sec. to  963.123 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.55362     ( -0.406477   0.495388 )
Norm@50keV  : 1.44093E-04    ( -5.07869e-05   5.09632e-05 )
------------------------------------------------------------
# Chi-Squared =          63.06 using 59 PHA bins.
# Reduced chi-squared =          1.106 for     57 degrees of freedom
# Null hypothesis probability =   2.708782e-01

Photon flux (15-150 keV)    in 963.1 sec: 2.92629E-02 ( -0.00574185  0.00574743 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.40881e-06 ( -3.50331e-07  3.76442e-07 ) ergs/cm2

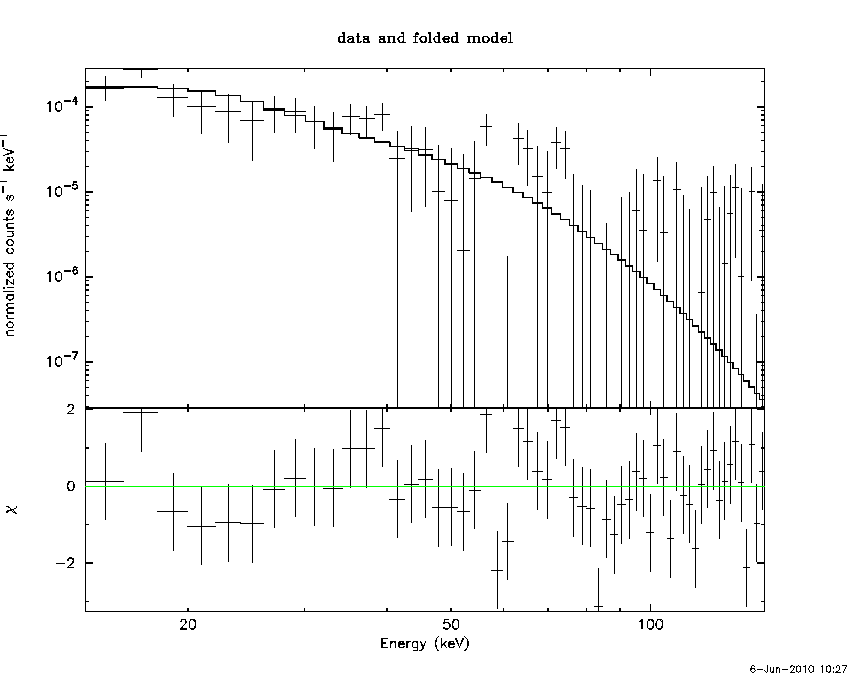

Cutoff power-law model

Time interval is from    0.000 sec. to  963.123 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.14080     ( -2.7063   0.856194 )
Epeak [keV] : 22.0250      ( -13.3685 13.7785 )
Norm@50keV  : 1.11758E-03    ( -0.00111761   0.0595515 )
------------------------------------------------------------
# Chi-Squared =          61.41 using 59 PHA bins.
# Reduced chi-squared =          1.097 for     56 degrees of freedom
# Null hypothesis probability =   2.885143e-01

Photon flux (15-150 keV)    in 963.1 sec: 2.85416E-02 ( -0.0056887  0.005732 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.29411e-06 ( -3.09184e-07  3.78075e-07 ) ergs/cm2

Band function

Time interval is from    0.000 sec. to  963.123 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.36884   ( 1.36875   5.34006 )
beta        : -9.37167    ( 9.99999   20 )
Epeak [keV] : 19.3783      ( -8.88497 16.4451 )
Norm@50keV   : 8.03511E-04    ( -0.000805207   187911 )
------------------------------------------------------------
# Chi-Squared =          61.44 using 59 PHA bins.
# Reduced chi-squared =          1.117 for     55 degrees of freedom
# Null hypothesis probability =   2.563844e-01

Photon flux (15-150 keV)    in 963.1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

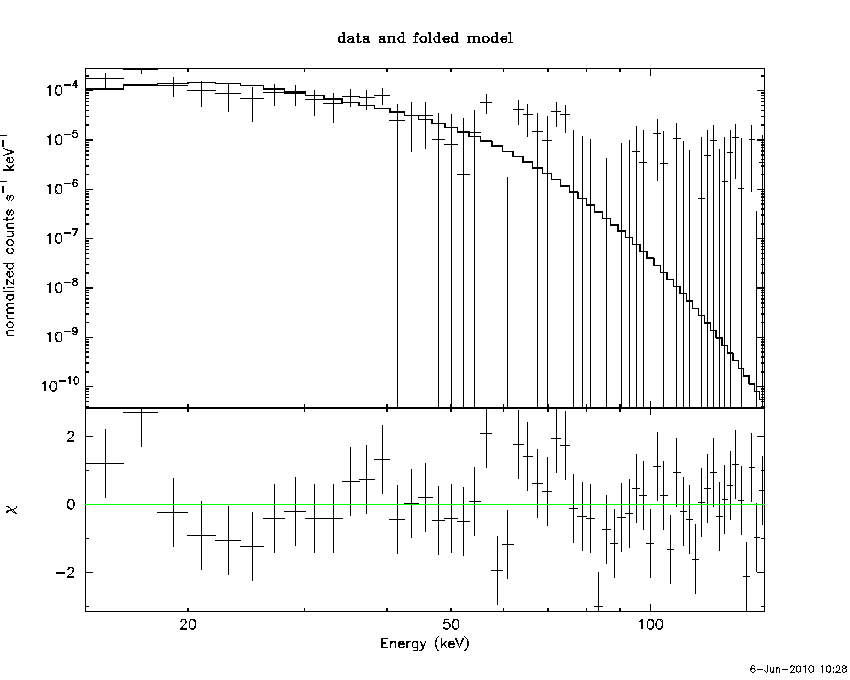

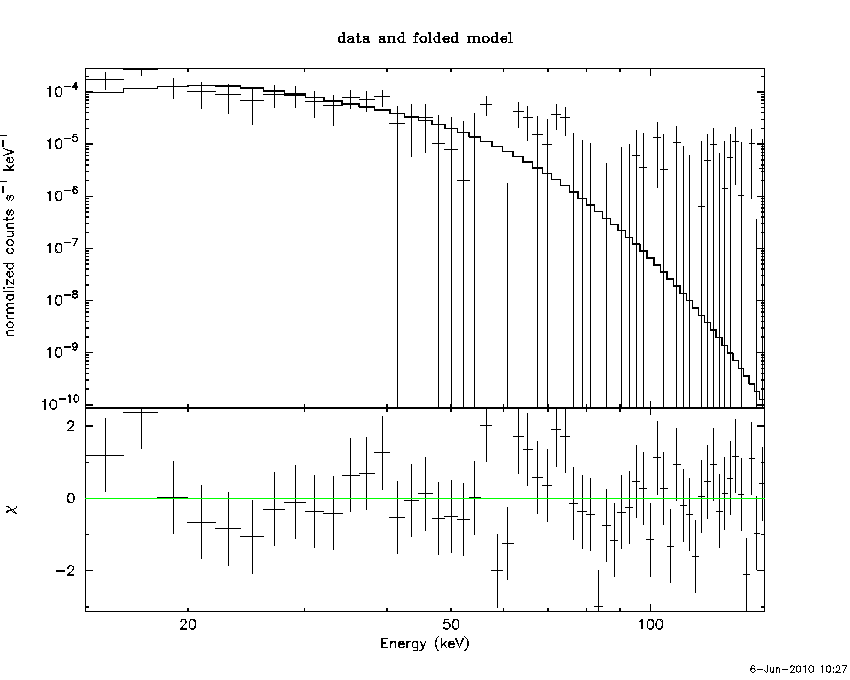

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 7.76608  (-1.54227  1.79299)
R^2/D10^2   : 3.67858E-02  (-0.0209529   0.0537139)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          64.13 using 59 PHA bins.
# Reduced chi-squared =          1.125 for     57 degrees of freedom
# Null hypothesis probability =   2.408127e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.776e-07   1.691e-07
25- 50  6.273e-07   2.315e-07
50-150  1.493e-07   9.139e-08
15-150  1.154e-06   3.866e-07

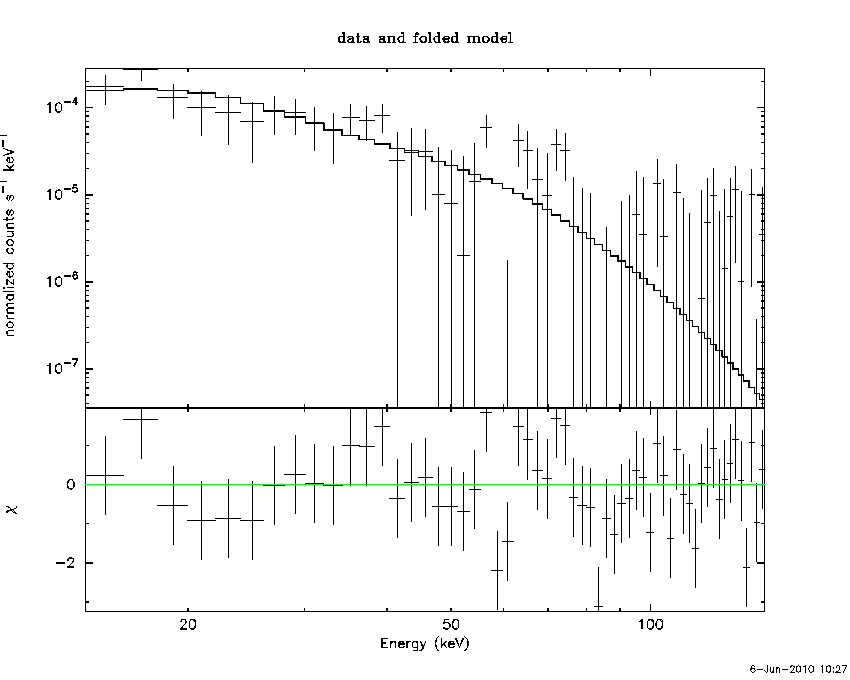

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 31.1612       (-11.3203      19.8891)
Norm        : 0.230267       (-0.0759052     0.128953)
------------------------------------------------------------
# Chi-Squared =          61.46 using 59 PHA bins.
# Reduced chi-squared =          1.078 for     57 degrees of freedom
# Null hypothesis probability =   3.192844e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.600e-07   1.227e-07
25- 50  5.366e-07   1.948e-07
50-150  3.087e-07   2.048e-07
15-150  1.305e-06   4.665e-07

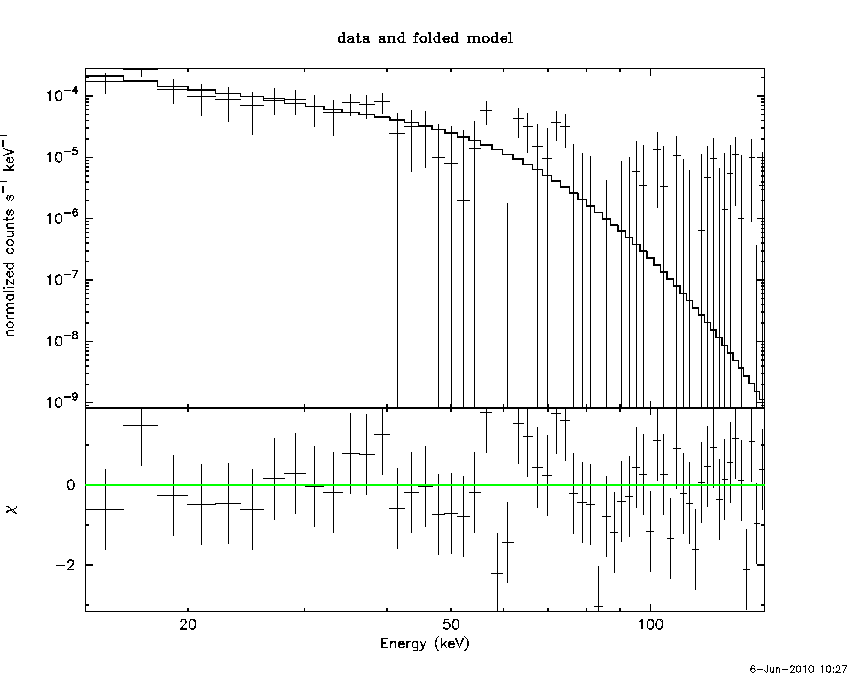

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.07345        (-1.1863      1.95369)
R1^2/D10^2  : 13.6372        (-19.2077      73691.3)
kT2 [keV]   : 9.29500        (-1.98723      2.91195)
R2^2/D10^2  : 1.56374E-02    (-0.0113541   0.0292931)
------------------------------------------------------------
# Chi-Squared =          58.51 using 59 PHA bins.
# Reduced chi-squared =          1.064 for     55 degrees of freedom
# Null hypothesis probability =   3.477452e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.223e-07   2.033e-07
25- 50  5.802e-07   3.343e-07
50-150  2.418e-07   1.798e-07
15-150  1.244e-06   6.939e-07

Peak spectrum fit

Power-law model

Time interval is from    0.000 sec. to  963.123 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.58450     ( -0.386524   0.475231 )
Norm@50keV  : 1.43738E-04    ( -5.04923e-05   5.10185e-05 )
------------------------------------------------------------
# Chi-Squared =          64.50 using 59 PHA bins.
# Reduced chi-squared =          1.132 for     57 degrees of freedom
# Null hypothesis probability =   2.309037e-01

Photon flux (15-150 keV)    in 963.1 sec: 2.97630E-02 ( -0.00550372  0.00551677 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.41813e-06 ( -3.46642e-07  3.73506e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.000 sec. to  963.123 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.35915     ( -2.10025   0.649382 )
Epeak [keV] : 18.3817      (   )
Norm@50keV  : 8.85048E-04    (     )
------------------------------------------------------------
# Chi-Squared =          63.24 using 59 PHA bins.
# Reduced chi-squared =          1.129 for     56 degrees of freedom
# Null hypothesis probability =   2.361724e-01

Photon flux (15-150 keV)    in 963.1 sec: 2.94777E-02 ( -0.0053794  0.0054331 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.32288e-06 ( -3.10966e-07  3.78084e-07 ) ergs/cm2

Band function

Time interval is from    0.000 sec. to  963.123 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.58370   ( 1.5837   1.5837 )
beta        : -9.37166    ( 9.99998   20 )
Epeak [keV] : 14.4138      ( -14.4138 17.0302 )
Norm@50keV   : 6.44386E-04    ( -0.000644386   1986.11 )
------------------------------------------------------------
# Chi-Squared =          63.23 using 59 PHA bins.
# Reduced chi-squared =          1.150 for     55 degrees of freedom
# Null hypothesis probability =   2.084529e-01

Photon flux (15-150 keV)    in 963.1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 7.33874  (-1.46017  1.6637)
R^2/D10^2   : 4.77824E-02  (-0.0268496   0.069912)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          67.77 using 59 PHA bins.
# Reduced chi-squared =          1.189 for     57 degrees of freedom
# Null hypothesis probability =   1.555489e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.171e-07   1.586e-07
25- 50  6.249e-07   1.963e-07
50-150  1.225e-07   7.809e-08
15-150  1.164e-06   3.478e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 29.5036       (-10.368      17.3632)
Norm        : 0.247272       (-0.0777526     0.131048)
------------------------------------------------------------
# Chi-Squared =          63.27 using 59 PHA bins.
# Reduced chi-squared =          1.110 for     57 degrees of freedom
# Null hypothesis probability =   2.645667e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.805e-07   1.211e-07
25- 50  5.440e-07   1.585e-07
50-150  2.914e-07   1.889e-07
15-150  1.316e-06   4.214e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.23299        (-1.04687      1.67005)
R1^2/D10^2  : 8.46468        (-12.9761      5183.92)
kT2 [keV]   : 9.39496        (-2.04935      2.97025)
R2^2/D10^2  : 1.47954E-02    (-0.0111885   0.0291624)
------------------------------------------------------------
# Chi-Squared =          60.18 using 59 PHA bins.
# Reduced chi-squared =          1.094 for     55 degrees of freedom
# Null hypothesis probability =   2.939450e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.389e-07   2.319e-07
25- 50  5.761e-07   3.384e-07
50-150  2.465e-07   1.847e-07
15-150  1.261e-06   6.775e-07

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.55362     ( -0.406477   0.495388 )
Norm@50keV  : 1.44093E-04    ( -5.07869e-05   5.09632e-05 )
------------------------------------------------------------
# Chi-Squared =          63.06 using 59 PHA bins.
# Reduced chi-squared =          1.106 for     57 degrees of freedom
# Null hypothesis probability =   2.708782e-01

Photon flux (15-150 keV)    in 963.1 sec: 2.92629E-02 ( -0.00574185  0.00574743 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.40881e-06 ( -3.50331e-07  3.76442e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.14080     ( -2.7063   0.856194 )
Epeak [keV] : 22.0250      ( -13.3685 13.7785 )
Norm@50keV  : 1.11758E-03    ( -0.00111761   0.0595515 )
------------------------------------------------------------
# Chi-Squared =          61.41 using 59 PHA bins.
# Reduced chi-squared =          1.097 for     56 degrees of freedom
# Null hypothesis probability =   2.885143e-01

Photon flux (15-150 keV)    in 963.1 sec: 2.85416E-02 ( -0.0056887  0.005732 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.29411e-06 ( -3.09184e-07  3.78075e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.36884   ( 1.36875   5.34006 )
beta        : -9.37167    ( 9.99999   20 )
Epeak [keV] : 19.3783      ( -8.88497 16.4451 )
Norm@50keV   : 8.03511E-04    ( -0.000805207   187911 )
------------------------------------------------------------
# Chi-Squared =          61.44 using 59 PHA bins.
# Reduced chi-squared =          1.117 for     55 degrees of freedom
# Null hypothesis probability =   2.563844e-01

Photon flux (15-150 keV)    in 963.1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 4.69638e-07
S(50-100 keV) = 3.2002e-07

T90 vs. Hardness ratio plot

T90                                   = 1344 sec.
Hardness ratio (energy fluence ratio) = 0.681418

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.00599
Count Ratio (50-100 keV) / (15-25 keV) = 0.159144

Mask shadow pattern

IMX = 3.949607548087716E-01, IMY = -3.344840364993879E-01

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.000000 963.123300

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4744  35.2997    1.5  22.1 -170.9   4.5009   7.9    2.7	Her X-1
268.3085  -1.5908    3.7  23.2   68.3   2.0079   3.1    9.0	SW J1753.5-0127
273.9330 -14.1165    7.7  35.1   54.2   1.5526   1.5    6.4	GX 17+2
285.0739 -25.0718    0.0  47.4   40.5  -0.9917  -0.4    9.3	HT1900.1-2455
288.7963  10.9462    1.0  17.7   -3.0   6.5212  11.6    0.1	GRS 1915+105
299.5884  35.2044    0.3  26.8  -72.9  31.6199  39.9    0.2	Cyg X-1
308.2688  40.9244    3.3  35.4  -77.5   5.7065   3.5    7.4	Cyg X-3
296.0579 -23.8882    4.4  49.9   27.5   6.0818   2.6 ------	UNKNOWN
213.3981  37.9621    4.3  54.2  177.0   6.4958   2.7 ------	UNKNOWN
219.6399  56.6249    3.9  53.1 -159.2   5.2466   3.0 ------	UNKNOWN
257.5314  69.5833    3.4  49.6 -132.7  10.8654   3.4 ------	UNKNOWN
298.0026  59.3677    2.9  42.1 -107.1  11.5882   4.0 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
1684.100620 1703.089400

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9418 -15.5920    1.4  36.1  107.5   0.9010   8.4    3.6	Sco X-1
254.5484  35.2373   11.3  47.5 -172.4  -0.0933  -1.0    7.7	Her X-1
256.1684 -37.7999   21.0  38.9   67.2   0.0885   0.5    9.0	4U 1700-377
256.3759 -36.3372   70.9  37.7   68.6  -0.0224  -0.2    5.9	GX 349+2
263.0793 -24.5703    8.6  25.1   75.6  -0.0825  -1.3   11.2	GX 1+4
264.5200 -44.4672    6.1  41.2   53.4   0.2854   1.9    9.6	4U 1735-44
268.4238  -1.5962    9.3  12.5  144.7   0.0520   1.2    9.2	SW J1753.5-0127
270.1106 -25.0099    6.1  21.7   62.0   0.1014   1.9   10.3	GX 5-1
270.5122 -25.7930    5.4  22.2   60.2   0.1163   2.2   11.7	GRS 1758-258
273.8329 -13.9735    8.0  10.5   73.2   0.0632   1.4   10.8	GX 17+2
275.8303 -30.3324    3.1  25.0   45.4   0.2096   3.7    5.3	H1820-303
285.0208 -25.1068   13.1  20.0   23.7  -0.0431  -0.9   11.2	HT1900.1-2455
288.7425  11.0331    2.8  18.7 -116.9   0.1949   4.1    6.2	GRS 1915+105
299.4380  35.2661    3.0  44.7 -121.3   0.7146   3.8    8.4	Cyg X-1
287.7056  -1.4587    2.2   8.5  -82.9   0.2282   5.2 ------	UNKNOWN
300.1629 -14.1592    2.0  21.3  -28.7   0.2623   5.8 ------	UNKNOWN
327.7354  -4.5369    2.7  47.3  -52.7   0.9526   4.2 ------	UNKNOWN

Plot creation:
Sun Jun  6 10:30:05 EDT 2010
