batgrbproduct Analysis for Trigger=424031

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sun Jun 14 23:49:41 EDT 2015
             Host Name: bat1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger424031
======================================================================

  Trigger: 00424031      Segment: 000

  BAT Trigger Time: 297544367.68   [s; MET]
      Trigger Stop: 297544368.704   [s; MET]
               UTC: 2010-06-06T19:12:41.811980    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 350.602673888059   Dec: -66.2356003010438  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    10.64
     Image Trigger?:     NO
     Rate S/N Ratio:     46.9361268108053  [ if not an image trigger ]
     Image S/N Ratio:    10.64

  Flight Position:   [ source = BAT ]
    RA: 350.602673888059   Dec: -66.2356003010438  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 350.607507123397   Dec: -66.231681564971  [deg; J2000]
        { 23h 22m 25.8s , -66d 13' 54.1" }
         +/- 1.08849276807616 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.427087203964259 [arcmin] (formal 1-sigma fit error)
    SNR: 26.9470019849876

  Angular difference between Flight and Ground position is 0.262568 arcmin

  Partial Coding Fraction: 0.25    [ including projection effects ]

  Duration
     T90: 67.3839999437332 +/- 6.31425182588449
        Measured from: 0.708000004291534
                   to: 68.0919999480247     [s; relative to TRIGTIME]
     T50: 33.0079999566078 +/- 2.46107695093719
        Measured from: 8.09999996423721
                   to: 41.107999920845     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 0.195999979972839
                   to: 1.19599997997284     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.259999990463257
                   to: 82.9279999732971     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     1.410015   2.546380   2.612737   1.106689
           0.093764   0.094790   0.086677   0.080970 [error]
 Peak      0.060247   0.142463   0.184252   0.076992
           0.015710   0.017462   0.017549   0.016198 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 5.09e-07 1.15e-06 2.06e-06 8.71e-06 5.62e-06 1.24e-05   erg/cm2
              Error 4.37e-08 5.75e-08 8.63e-08 8.79e-07 2.23e-07 9.07e-07   erg/cm2
Peak flux Power-law 7.79e-01 1.11e+00 1.17e+00 2.28e+00 3.77e+00 5.33e+00   ph/cm2/s
              Error 2.08e-01 1.81e-01 1.38e-01 5.90e-01 4.69e-01 6.57e-01   ph/cm2/s

Fluence   Cutoff-PL 5.07e-07 1.15e-06 2.06e-06 8.66e-06 5.62e-06 1.24e-05   erg/cm2
              Error 4.55e-08 4.33e-08 8.63e-08 1.29e-06 2.21e-07 1.38e-06   erg/cm2
Peak flux Cutoff-PL 7.00e-01 1.11e+00 1.22e+00 1.71e+00 3.71e+00 4.74e+00   ph/cm2/s
              Error 2.34e-01 1.89e-01 1.83e-01 9.39e-01 4.86e-01 9.98e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.160    0.072    -      -           6.58e-03 2.58e-04   40.870 57
CPL   1.155    0.104    9997.6    0.0      6.61e-03 7.82e-04   40.910 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.923    0.209    -      -           3.28e-02 4.04e-03   53.210 57
CPL   0.591    0.706     265.4    0.0      4.48e-02 3.87e-02   52.750 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 62.912000 sec.
T50 in the 50-300 keV band: 27.904000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   83.188   -0.260   82.928
T90    67.384    0.708   68.092
T50    33.008    8.100   41.108
Peak    1.000    0.196    1.196

Click here for the BAT GCN circular template

Special notes of this burst


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  350.6075   -66.2317   0.0071    48.8628  -154.3548         3.4436743     26.947 TRIG_00424031

Foreground time interval of the image:
 -0.260  15.221 (delta_t =  15.481 [sec])
Background time interval of the image:
-389.179 -346.667 (delta_t =  42.512 [sec])
-239.680  -0.260 (delta_t = 239.420 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

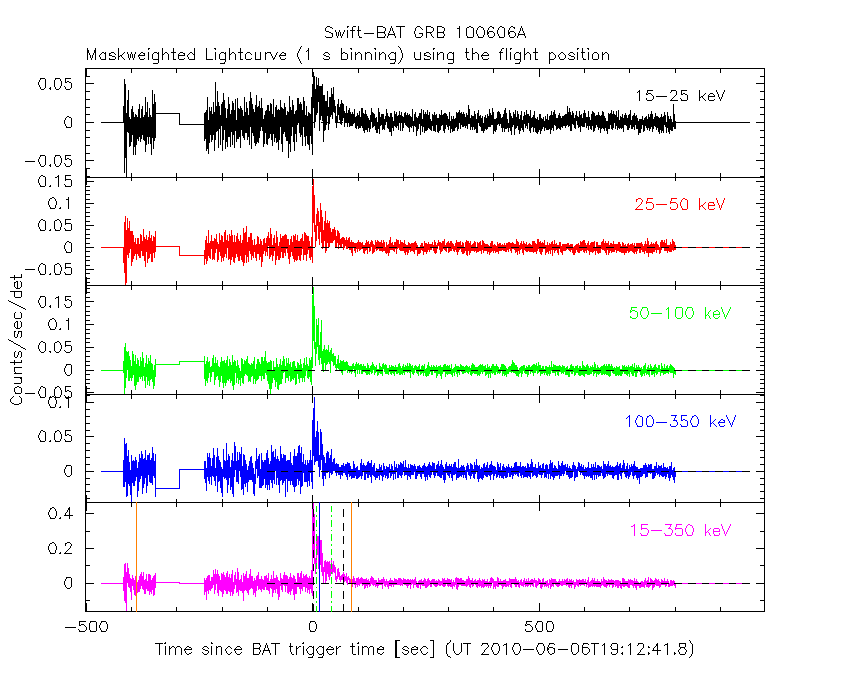

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

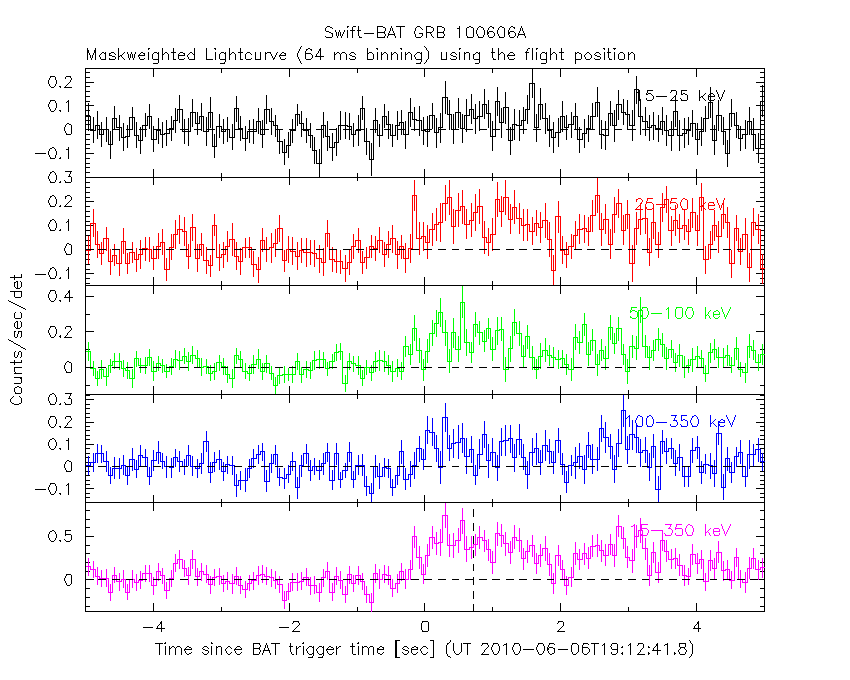

From T0-5 sec to T0+5 sec

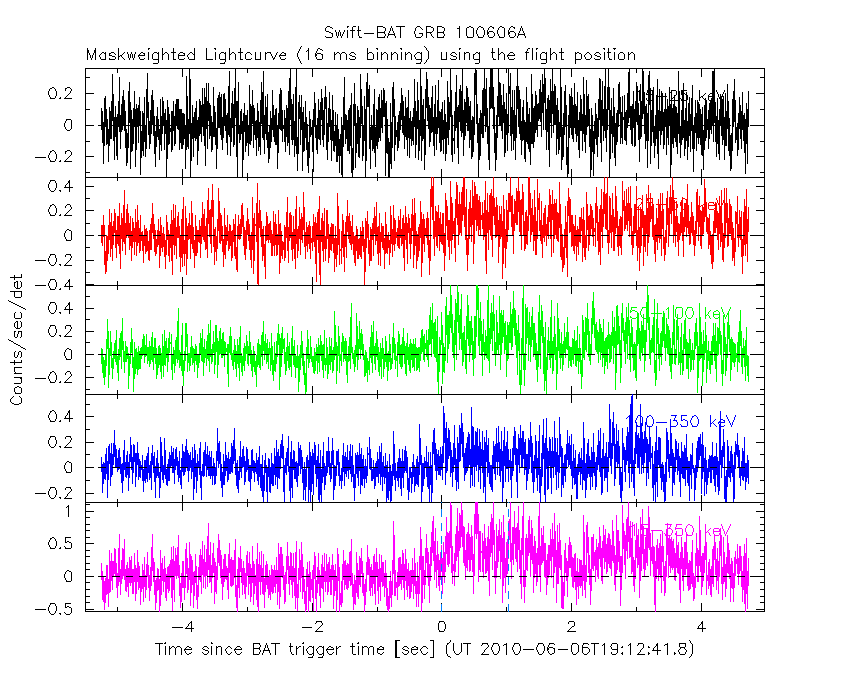

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

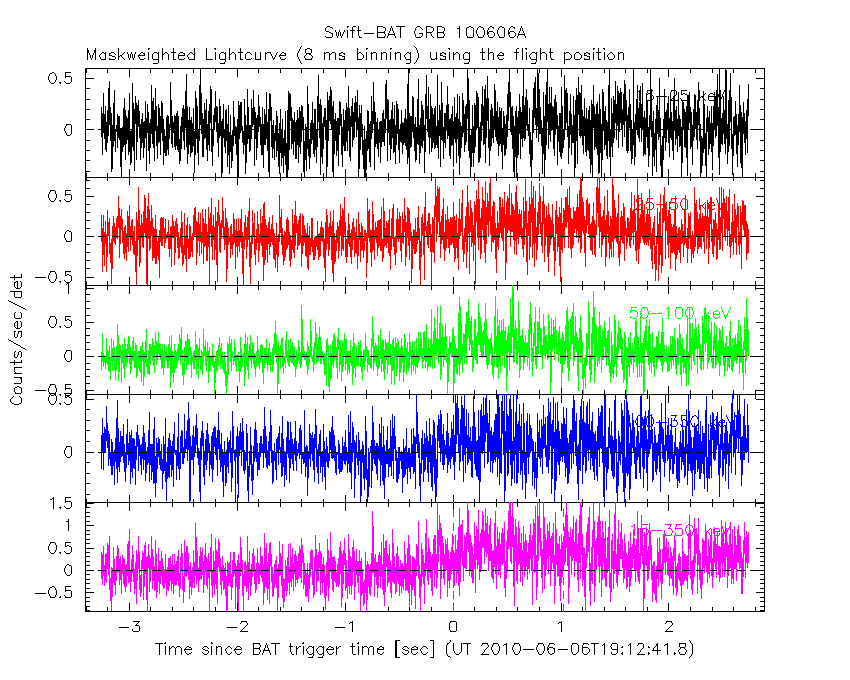

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

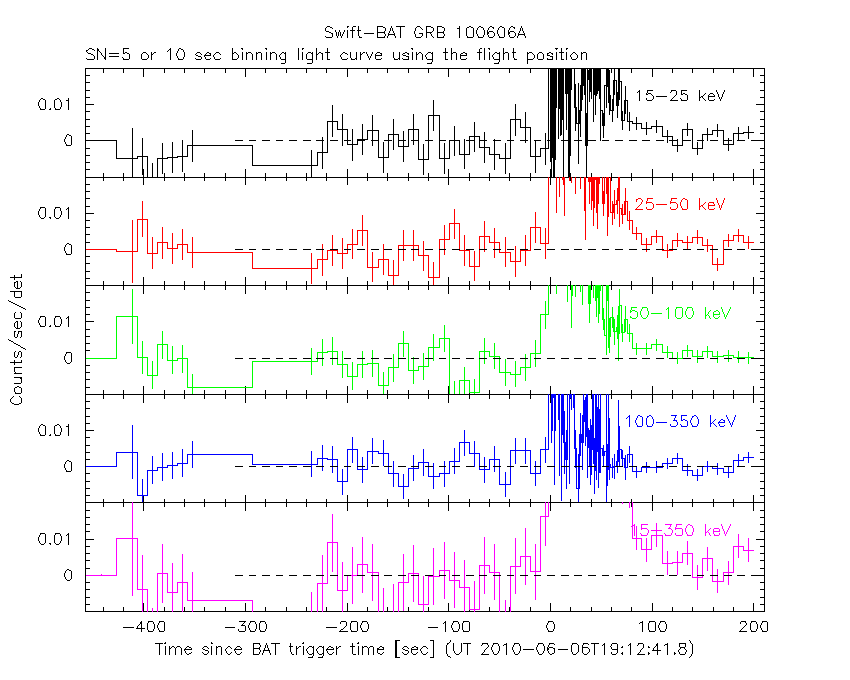

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

The mask-weighted light curves based on cleaned DPHs

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -0.260 sec. to   82.928 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.16005     ( -0.0728539   0.0720535 )
Norm@50keV  : 6.58150E-03    ( -0.000258326   0.000257186 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          40.87 using 59 PHA bins.
# Reduced chi-squared =         0.7170 for     57 degrees of freedom
# Null hypothesis probability =   9.472247e-01

Photon flux (15-150 keV)    in 83.19 sec: 0.768471 ( -0.0324109  0.0325793 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.61943e-06 ( -2.22687e-07  2.23066e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.260 sec. to   82.928 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.15450     ( -0.135104   0.073082 )
Epeak [keV] : 9997.57      ( -9998.25 -9998.25 )
Norm@50keV  : 6.61376E-03    ( -0.000254658   0.00130885 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          40.91 using 59 PHA bins.
# Reduced chi-squared =         0.7305 for     56 degrees of freedom
# Null hypothesis probability =   9.350262e-01

Photon flux (15-150 keV)    in 83.19 sec: 0.768818 ( -0.033101  0.031887 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.62021e-06 ( -2.22126e-07  2.20603e-07 ) ergs/cm2

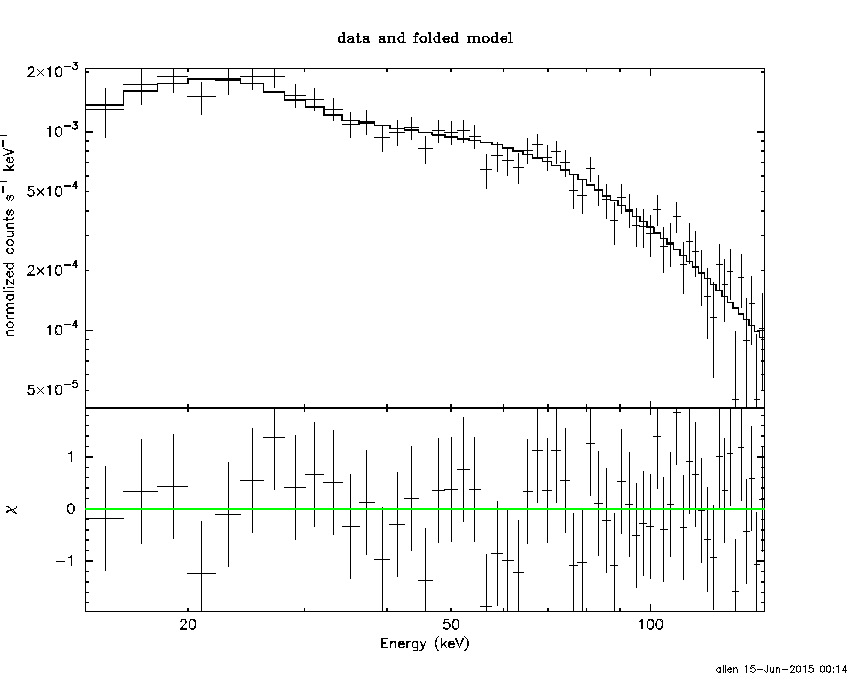

Band function

Time interval is from   -0.260 sec. to   82.928 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.542039   ( 0.77524   0.77524 )
beta        : -1.17286    ( -0.0461031   0.0807865 )
Epeak [keV] : 66.5097      ( -66.5699 227.537 )
Norm@50keV   : 1.76091E-02    ( -0.0180964   345478 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          40.58 using 59 PHA bins.
# Reduced chi-squared =         0.7378 for     55 degrees of freedom
# Null hypothesis probability =   9.268577e-01

Photon flux (15-150 keV)    in 83.19 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 22.0241  (  )
R^2/D10^2   : 2.53726E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         191.50 using 59 PHA bins.
# Reduced chi-squared =         3.3596 for     57 degrees of freedom
# Null hypothesis probability =   1.921873e-16

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.894e-07   1.581e-08
25- 50  1.002e-06   6.156e-08
50-150  3.632e-06   2.238e-07
15-150  4.823e-06   2.234e-07

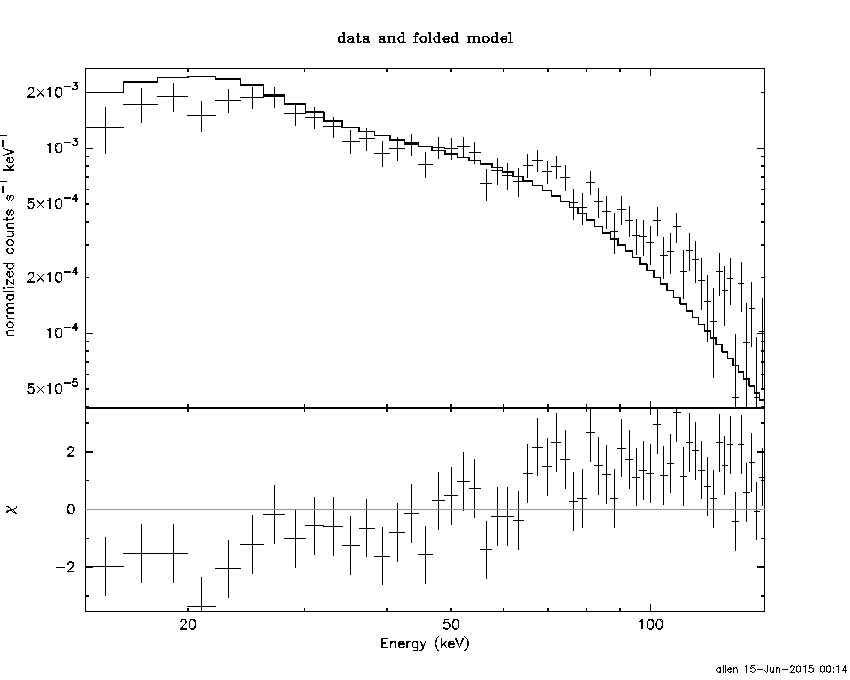

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 3.31645       (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         139.15 using 59 PHA bins.
# Reduced chi-squared =         2.4413 for     57 degrees of freedom
# Null hypothesis probability =   8.030326e-09

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.870e-07   3.011e-08
25- 50  1.322e-06   5.865e-08
50-150  2.898e-06   1.256e-07
15-150  4.907e-06   2.163e-07

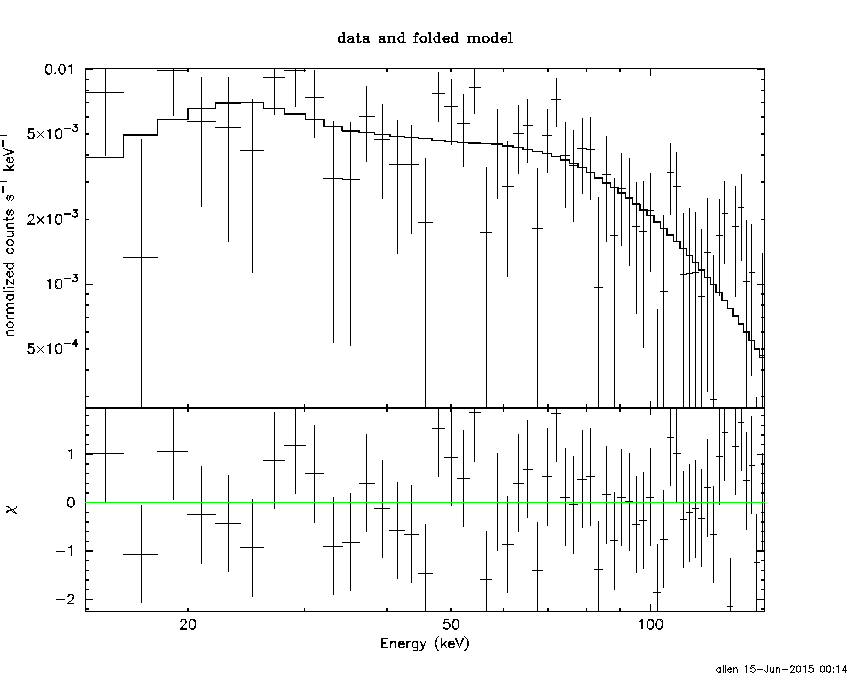

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.12117        (-1.08196      1.24627)
R1^2/D10^2  : 0.414813        (-0.154732      0.263945)
kT2 [keV]   : 37.0721        (-4.82719      7.36477)
R2^2/D10^2  : 4.25593E-03    (-0.00176871   0.00234492)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          39.69 using 59 PHA bins.
# Reduced chi-squared =         0.7217 for     55 degrees of freedom
# Null hypothesis probability =   9.402573e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.823e-07   6.755e-08
25- 50  1.189e-06   1.314e-07
50-150  4.035e-06   4.904e-07
15-150  5.706e-06   5.536e-07

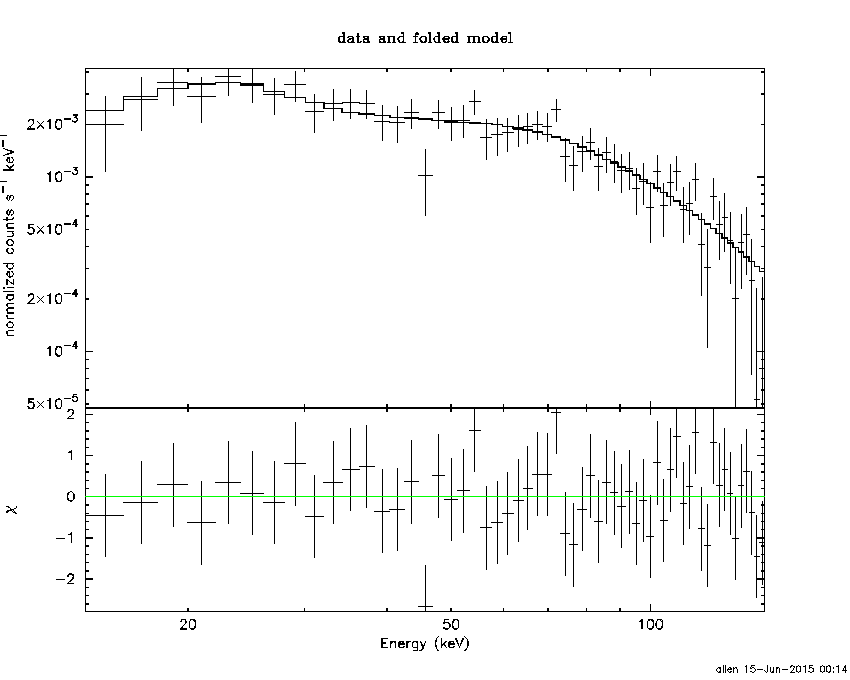

Peak spectrum fit

Power-law model

Time interval is from    0.196 sec. to    1.196 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.922682     ( -0.21325   0.204126 )
Norm@50keV  : 3.28031E-02    ( -0.00407432   0.00401251 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.21 using 59 PHA bins.
# Reduced chi-squared =         0.9335 for     57 degrees of freedom
# Null hypothesis probability =   6.180511e-01

Photon flux (15-150 keV)    in 1 sec: 3.76619 ( -0.467333  0.470335 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.64941e-07 ( -4.35747e-08  4.36668e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.196 sec. to    1.196 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.591071     ( -0.984122   0.428282 )
Epeak [keV] : 265.401      ( -265.4 -265.4 )
Norm@50keV  : 4.47793E-02    ( -0.0153211   0.0621508 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.75 using 59 PHA bins.
# Reduced chi-squared =         0.9420 for     56 degrees of freedom
# Null hypothesis probability =   5.985717e-01

Photon flux (15-150 keV)    in 1 sec: 3.71317 ( -0.48469  0.48785 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.62258e-07 ( -4.5054e-08  4.4572e-08 ) ergs/cm2

Band function

Time interval is from    0.196 sec. to    1.196 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.769101   ( 0.77313   0.77313 )
beta        : -9.37164    ( -0.20398   0.213887 )
Epeak [keV] : 523.277      ( -46.8072 -46.8072 )
Norm@50keV   : 3.76112E-02    ( -0.00431907   0.0188834 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.89 using 59 PHA bins.
# Reduced chi-squared =         0.9617 for     55 degrees of freedom
# Null hypothesis probability =   5.556325e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 24.9601  (-3.64648  4.70021)
R^2/D10^2   : 9.35220E-02  (-0.038423   0.0600668)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.22 using 59 PHA bins.
# Reduced chi-squared =          1.074 for     57 degrees of freedom
# Null hypothesis probability =   3.272036e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.013e-08   2.519e-09
25- 50  5.742e-08   1.293e-08
50-150  2.653e-07   4.835e-08
15-150  3.329e-07   5.630e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 15.8836       (-1.95078     1.95046)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          79.68 using 59 PHA bins.
# Reduced chi-squared =          1.398 for     57 degrees of freedom
# Null hypothesis probability =   2.531500e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.957e-08   2.234e-08
25- 50  7.611e-08   4.248e-08
50-150  1.669e-07   9.180e-08
15-150  2.826e-07   1.564e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.60321        (-4.85452      10.6658)
R1^2/D10^2  : 1.13623        (-0.973732      23.317)
kT2 [keV]   : 34.6306        (-9.52412      -34.6878)
R2^2/D10^2  : 3.03926E-02    (-0.0283582   0.0568217)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.27 using 59 PHA bins.
# Reduced chi-squared =         0.9686 for     55 degrees of freedom
# Null hypothesis probability =   5.408378e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.117e-08   1.246e-08
25- 50  6.544e-08   3.490e-08
50-150  2.780e-07   1.538e-07
15-150  3.646e-07   1.734e-07

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.965657     ( -0.10464   0.102179 )
Norm@50keV  : 1.50997E-02    ( -0.000900627   0.000892225 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          38.90 using 59 PHA bins.
# Reduced chi-squared =         0.6824 for     57 degrees of freedom
# Null hypothesis probability =   9.681219e-01

Photon flux (15-150 keV)    in 15.48 sec: 1.73577 ( -0.105664  0.106138 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.55903e-06 ( -1.43033e-07  1.43153e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.959030     ( -0.45213   0.154174 )
Epeak [keV] : 9999.99      (   )
Norm@50keV  : 1.51923E-02    ( -0.000902557   0.000823408 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          38.88 using 59 PHA bins.
# Reduced chi-squared =         0.6943 for     56 degrees of freedom
# Null hypothesis probability =   9.603673e-01

Photon flux (15-150 keV)    in 15.48 sec: 1.73824 ( -0.1205  0.10376 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.54686e-06 ( -1.4028e-07  1.59599e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 5.00000   ( -4.99997   -4.99997 )
beta        : -0.976600    ( -0.106103   0.107544 )
Epeak [keV] : 23.9594      ( -23.9594 8.51575 )
Norm@50keV   : 1248.93    ( -67.6835   2.39268e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          38.69 using 59 PHA bins.
# Reduced chi-squared =         0.7034 for     55 degrees of freedom
# Null hypothesis probability =   9.532791e-01

Photon flux (15-150 keV)    in 15.48 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.15e-06
S(50-100 keV) = 2.06e-06

T90 vs. Hardness ratio plot

T90                                   = 67.3839999437332 sec.
Hardness ratio (energy fluence ratio) = 1.7913

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.80592
Count Ratio (50-100 keV) / (15-25 keV) = 1.85299

Mask shadow pattern

IMX = -1.032044984119505E+00, IMY = 4.954754069573491E-01

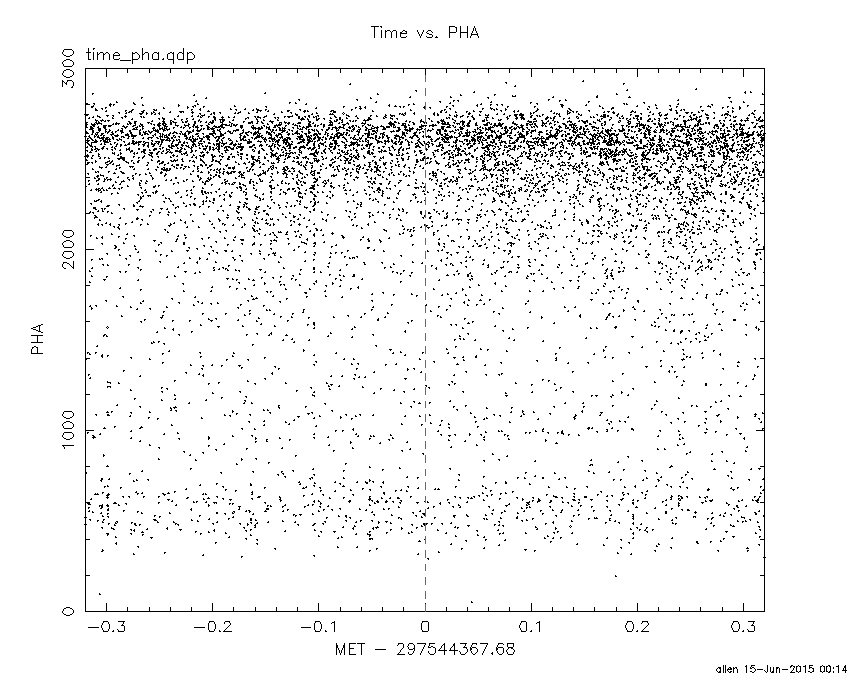

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

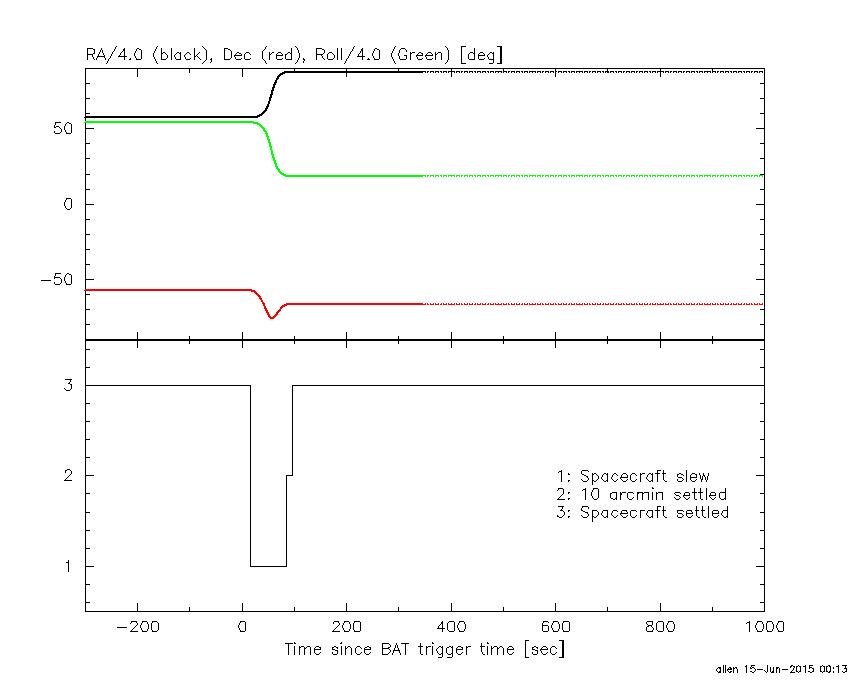

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-389.179400 -346.667400
-239.680000 -0.260000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.1151 -60.6945    3.1  30.1  -69.1   1.3945   3.8    7.3	Cen X-3
186.6569 -62.7754    0.4  22.0  -69.8   8.2644  25.8    0.3	GX 301-2
256.1796 -37.8048    5.7  25.8  105.9  -0.7265  -2.0    9.4	4U 1700-377
256.3917 -36.5685    5.2  27.0  104.7   0.8723   2.2    9.0	GX 349+2
263.0190 -24.7435  114.2  40.1  103.1   0.0944   0.1    0.6	GX 1+4
264.9561 -44.3652   56.2  25.1  127.6  -0.0643  -0.2   10.5	4U 1735-44
275.9975 -30.4305    4.3  41.3  122.8   2.5072   2.7    5.3	H1820-303
263.0451 -33.6948   60.5  32.3  110.8   0.0890   0.2    8.8	GX 354-0
210.6008 -21.3401    2.5  38.6   23.2   1.7728   4.7 ------	UNKNOWN
214.2049 -55.7542    2.7   8.9  -34.6   0.9730   4.3 ------	UNKNOWN
330.2403 -57.0141    2.2  49.3 -171.9   2.9368   5.4 ------	UNKNOWN
183.4576 -25.9253    2.7  45.4  -13.6   1.8649   4.3 ------	UNKNOWN
160.1124 -42.9210    3.2  44.9  -49.9   3.1376   3.6 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.260000 15.220620

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.1510 -60.4951    6.1  30.1  -68.8  -0.1422  -1.9    9.1	Cen X-3
186.7273 -62.7378    2.7  22.0  -69.7   0.2715   4.3    2.8	GX 301-2
256.0883 -38.0289    5.1  25.6  106.0   0.1534   2.2   12.1	4U 1700-377
256.3733 -36.3399  360.3  27.2  104.4   0.0023   0.0    5.8	GX 349+2
263.0475 -24.7807    9.9  40.1  103.2   0.2243   1.2    3.0	GX 1+4
264.5854 -44.2866    5.5  24.9  127.0  -0.1343  -2.1   11.9	4U 1735-44
275.8381 -30.2591    8.8  41.4  122.4   0.2397   1.3    7.9	H1820-303
263.1513 -33.8161   19.2  32.3  111.1   0.0562   0.6    8.2	GX 354-0
260.1869 -23.7230    2.6  39.8   98.8   0.8099   4.4 ------	UNKNOWN
248.8520 -25.4949    2.3  34.4   84.0   0.5085   5.1 ------	UNKNOWN
350.6075 -66.2317    0.4  48.9 -154.4   3.4431  26.9 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
84.820670 962.367600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.2902 -60.6720    7.9  53.1   14.8   2.9635   1.5    3.0	Cen X-3
186.6431 -62.7741    1.0  50.4   24.4  21.2712  11.4    0.4	GX 301-2
203.1134 -64.5153    2.4  47.1   33.3   7.4560   4.8 ------	UNKNOWN
295.9377 -74.3354    2.9  19.2   57.0   1.5717   4.0 ------	UNKNOWN
332.2730 -15.8962    3.1  51.8  172.3   4.9695   3.7 ------	UNKNOWN

Plot creation:
Mon Jun 15 00:15:04 EDT 2015
