batgrbproduct analysis for trigger=435520

batgrbproduct Analysis for Trigger=435520

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Mon Oct  4 03:42:42 EDT 2010
             Host Name: gcn5
   Current Working Dir: /local/data/raid16/prebascript_archive/trigger435520/GCN5_download_cron
======================================================================

  Trigger: 00435520      Segment: 000

  BAT Trigger Time: 307790288   [s; MET]
      Trigger Stop: 307790352   [s; MET]
               UTC: 2010-10-03T09:18:01.764400    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 300.937293331406   Dec: 32.3863283392225  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.05
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    7.05

  Flight Position:   [ source = BAT ]
    RA: 300.937293331406   Dec: 32.3863283392225  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 300.984605202389   Dec: 32.3287227028979  [deg; J2000]
        { 20h 03m 56.3s , +32d 19' 43.4" }
         +/- 8.75387178617382 [arcmin] (estimated 90% radius based on SNR)
         +/- 9.04255748504915 [arcmin] (formal 1-sigma fit error)
    SNR: 1.37125467373458

  Angular difference between Flight and Ground position is 4.206702 arcmin

  Partial Coding Fraction: 0.8515625    [ including projection effects ]

  Duration
     T90: 64 +/- 35.7770876399966
        Measured from: 1.00000011920929
                   to: 65.0000001192093     [s; relative to TRIGTIME]
     T50: 32 +/- 22.6274169979695
        Measured from: 17.0000001192093
                   to: 49.0000001192093     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 40.5
                   to: 41.5     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 1
                   to: 81     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.212989   0.211201   0.059124   0.115036
           0.052875   0.054507   0.050274   0.051593 [error]
 Peak      0.004058   0.013354  -0.000130   0.003533
           0.005981   0.006073   0.005556   0.005733 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 5.39e-08 7.90e-08 8.63e-08 1.77e-07 2.73e-07 3.96e-07   erg/cm2
              Error 2.32e-08 2.50e-08 4.83e-08 2.36e-07 1.11e-07 2.65e-07   erg/cm2
Peak flux Power-law 5.50e-02 5.00e-02 3.13e-02 3.00e-02 1.49e-01 1.67e-01   ph/cm2/s
              Error 6.70e-02 4.91e-02 3.75e-02 3.13e-01 1.44e-01 3.18e-01   ph/cm2/s

Fluence   Cutoff-PL 5.39e-08 7.90e-08 8.63e-08 1.75e-07 2.73e-07 3.23e-07   erg/cm2
              Error 2.32e-08 2.51e-08 4.83e-08 2.34e-07 1.11e-07 2.82e-07   erg/cm2
Peak flux Cutoff-PL 5.27e-02 9.03e-02 2.40e-03 9.88e-09 1.46e-01 1.46e-01   ph/cm2/s
              Error 6.95e-02 7.56e-02 3.24e-02 1.17e-01 0.00e+00 0.00e+00   ph/cm2/s

Fluence        Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band 1.24e-01 1.37e-01 3.55e-01 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 1.09e-01 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.872    0.641    -      -           3.72e-04 1.52e-04   61.380 57
CPL   1.483    0.000      47.7    0.0      6.59e-04 0.00e+00   61.560 56

The chi2 of BB fit is  which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.668    2.414    -      -           1.14e-03 1.16e-03   53.610 57
CPL  -1.350    0.000      36.6    0.0      1.25e-01 0.00e+00   52.850 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   80.000    1.000   81.000
T90    64.000    1.000   65.000
T50    32.000   17.000   49.000
Peak    1.000   40.500   41.500

Click here for the BAT GCN circular template

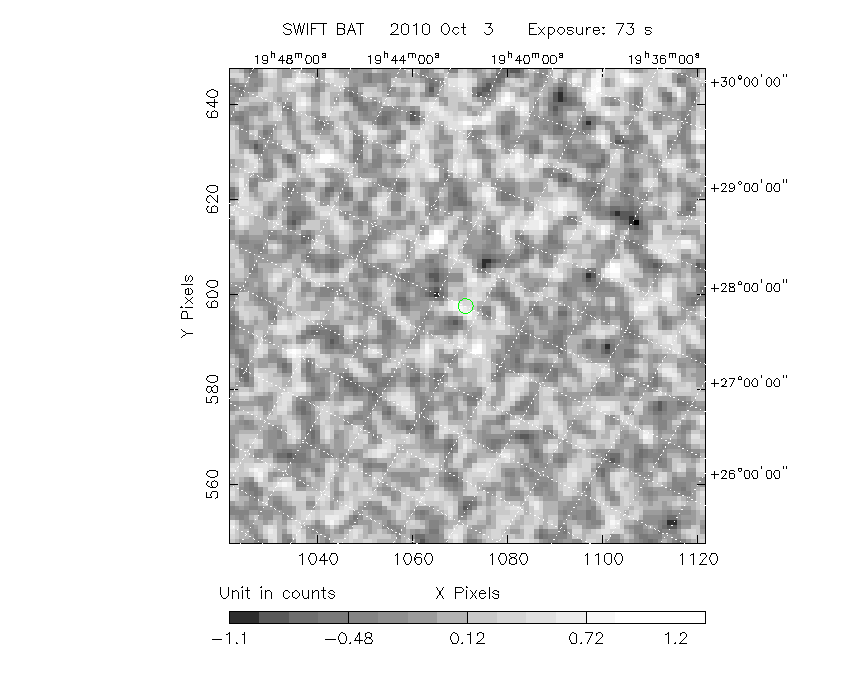

Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  300.9846 +32.3287 0.1397   25.4 -147.7       0.4283     1.4  TRIG_00435520
------------------------------------------

Foreground time interval of the image:
  1.000  74.101 (delta_t =  73.101 [sec])
Background time interval of the image:
 -7.599   1.000 (delta_t =   8.599 [sec])

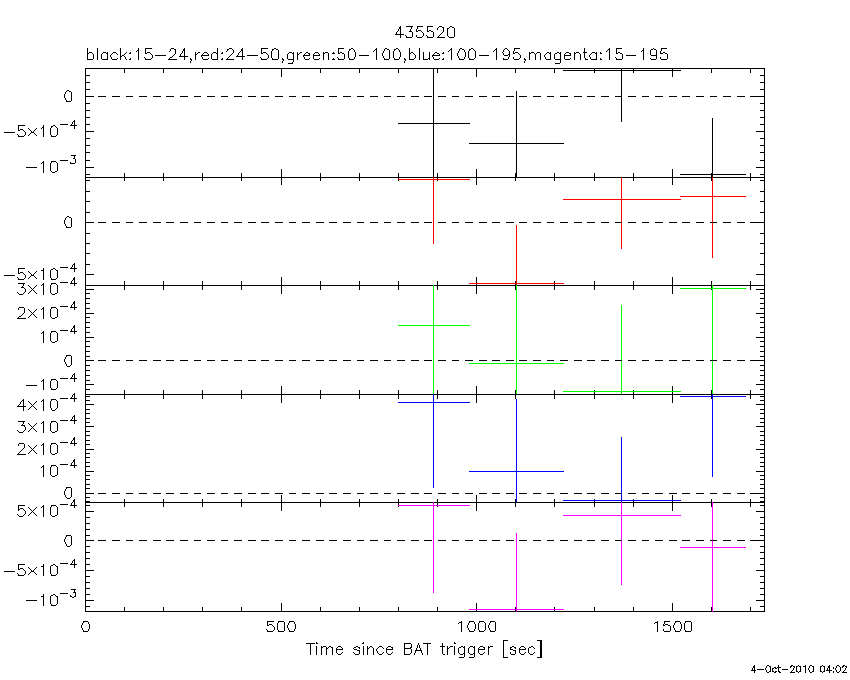

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

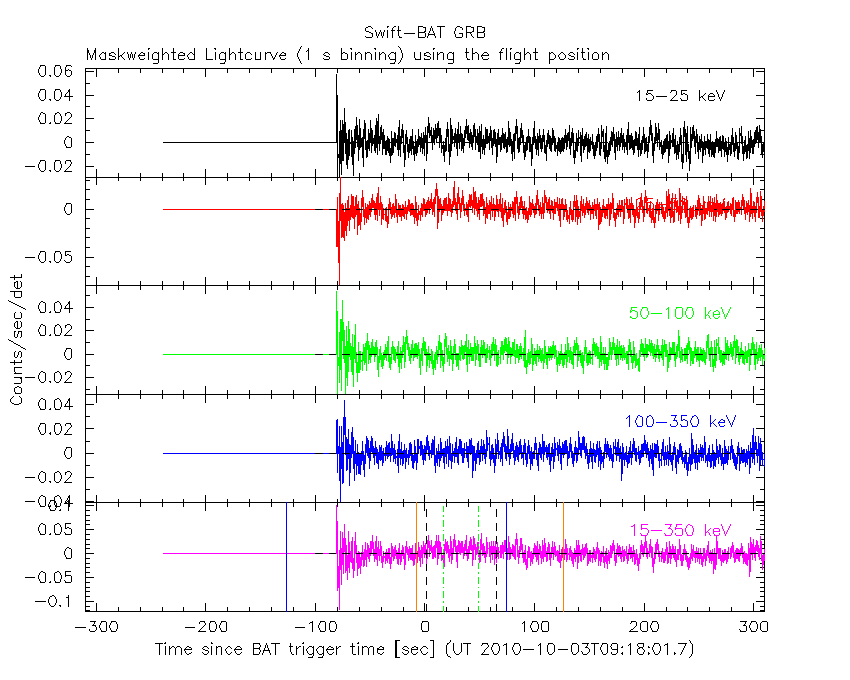

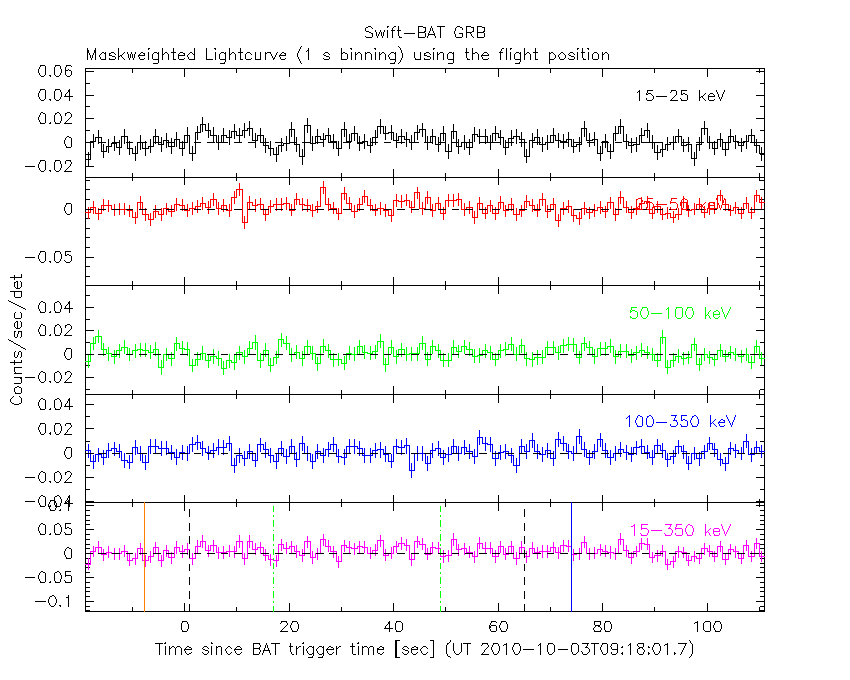

1 s binning

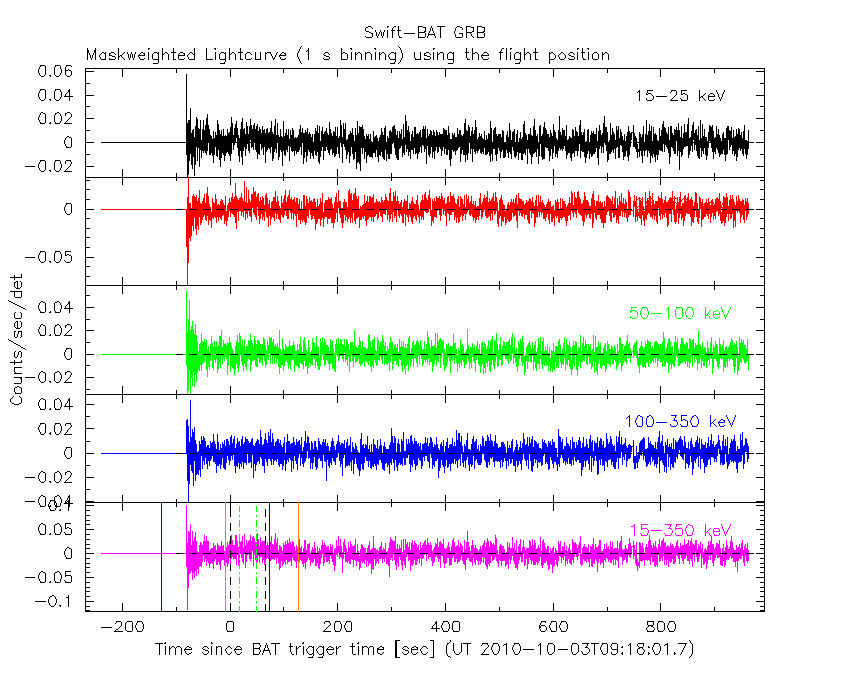

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

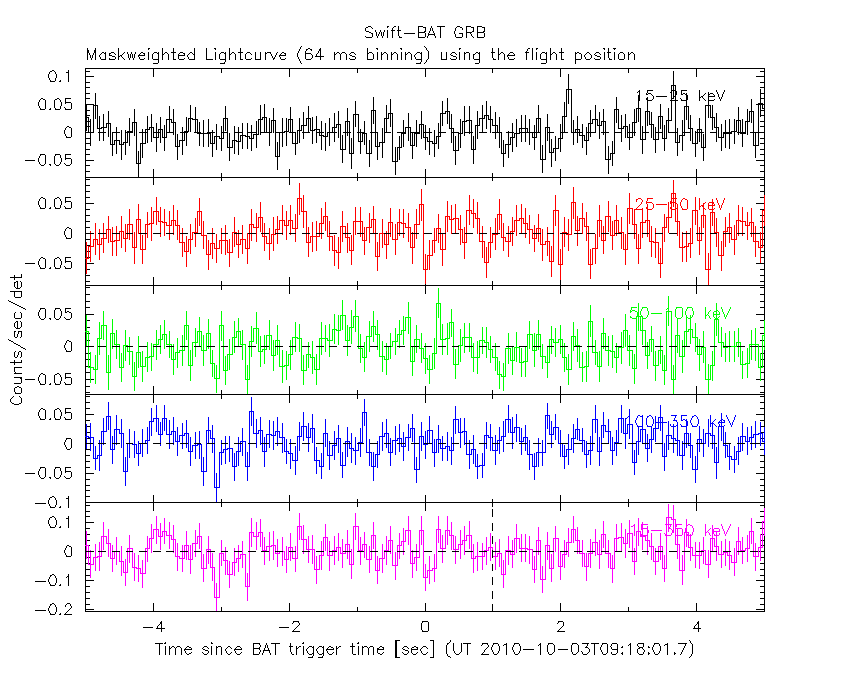

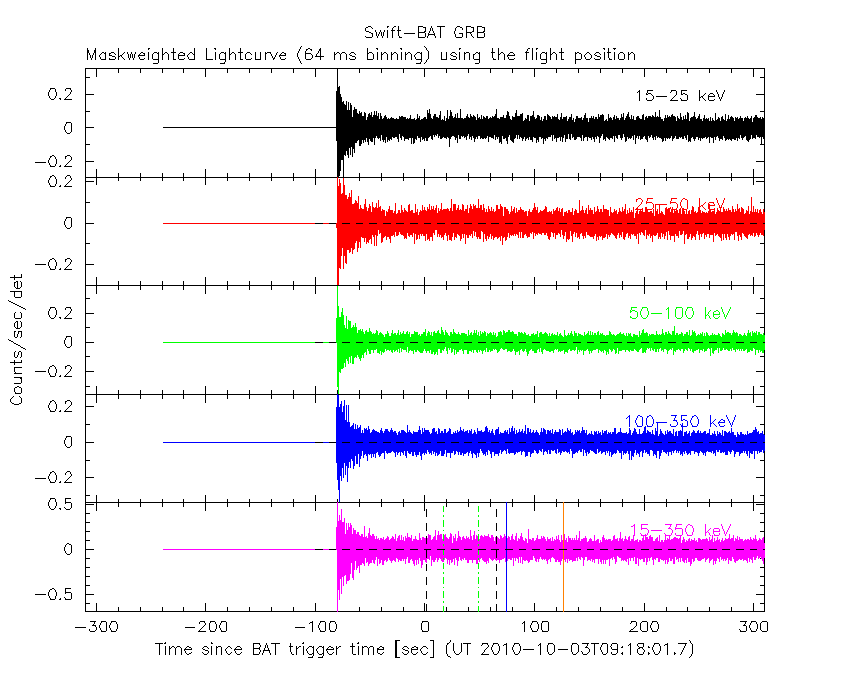

64 ms binning

Full time interval

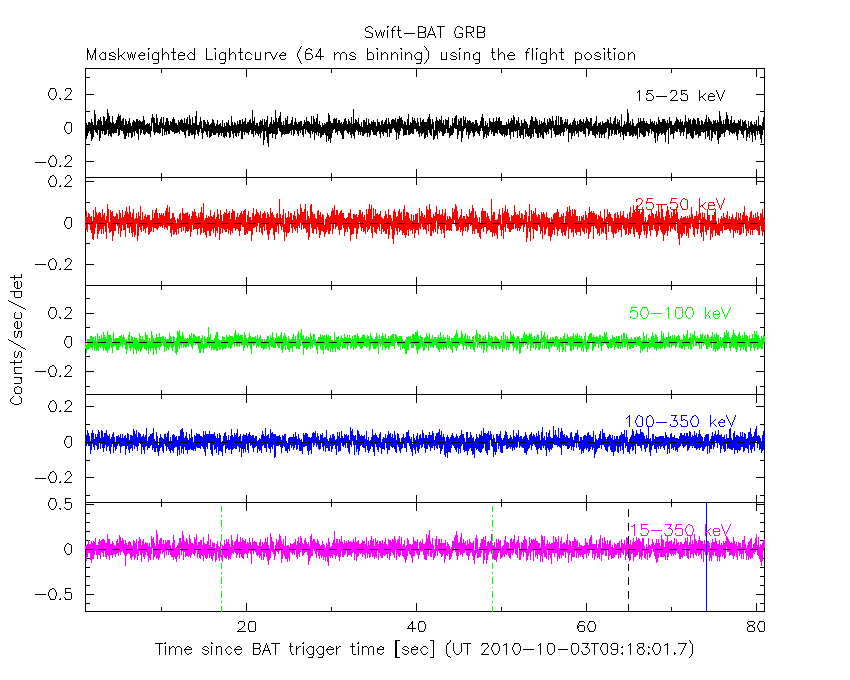

From T100_start to T100_end

From T0-5 sec to T0+5 sec

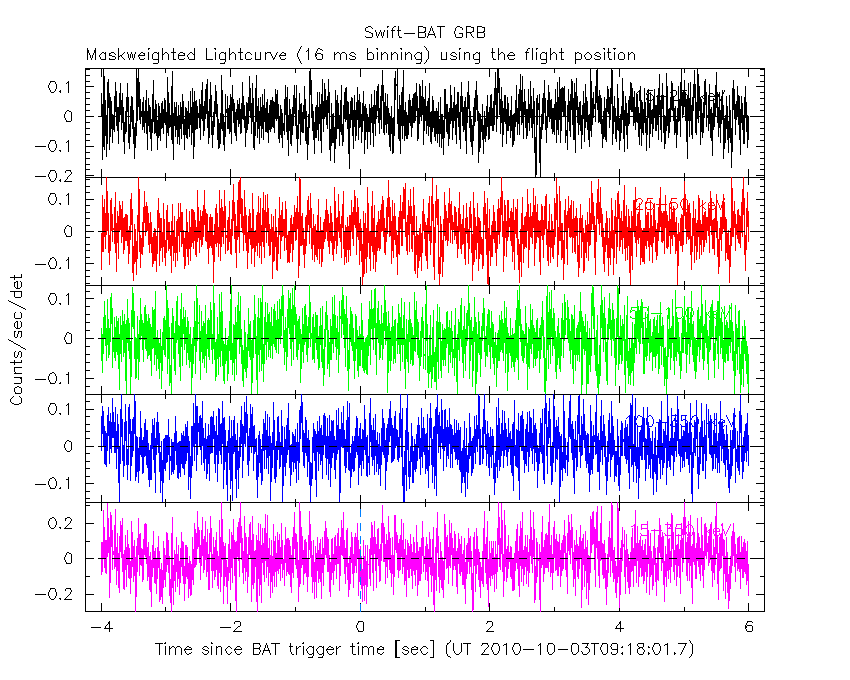

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

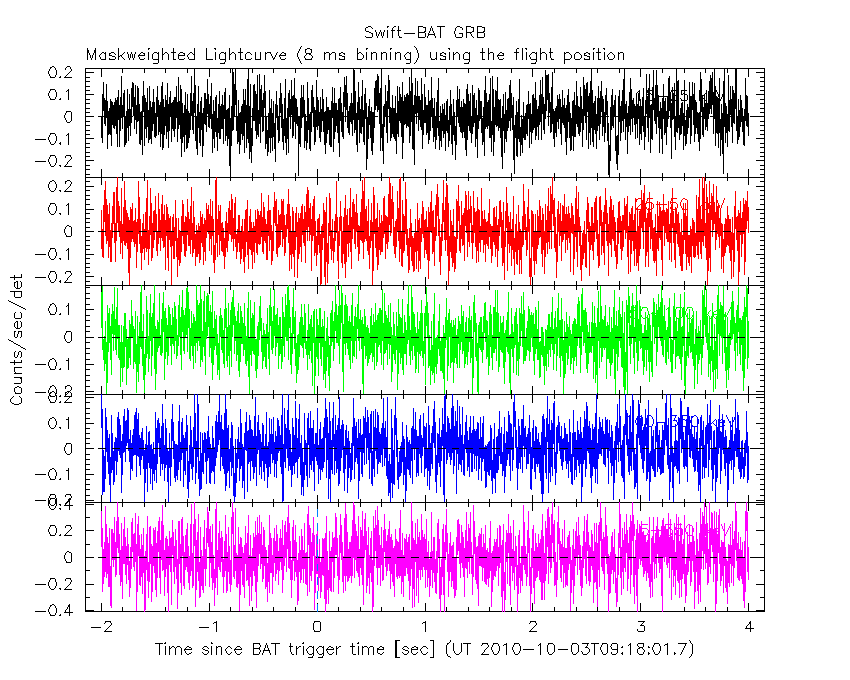

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

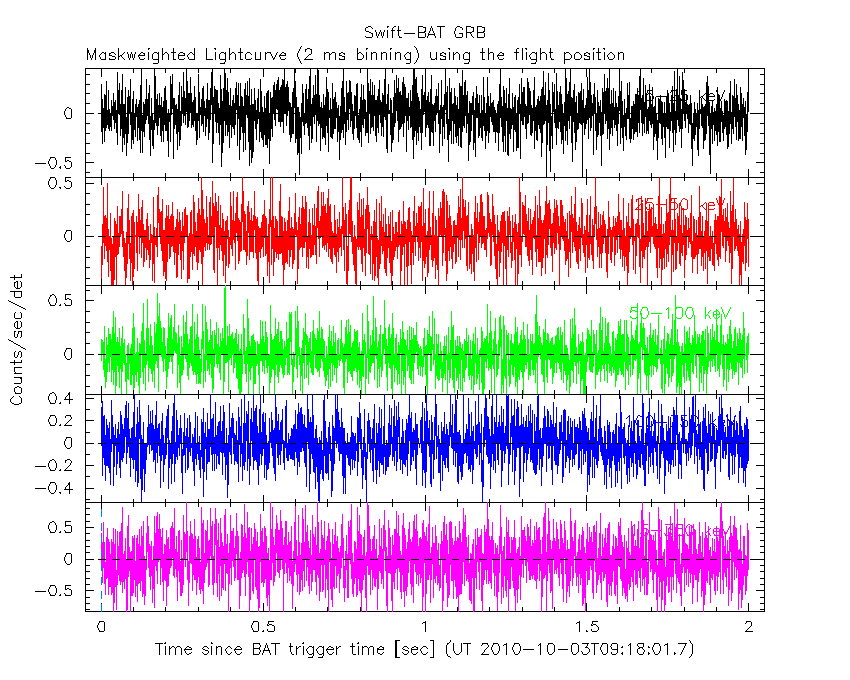

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

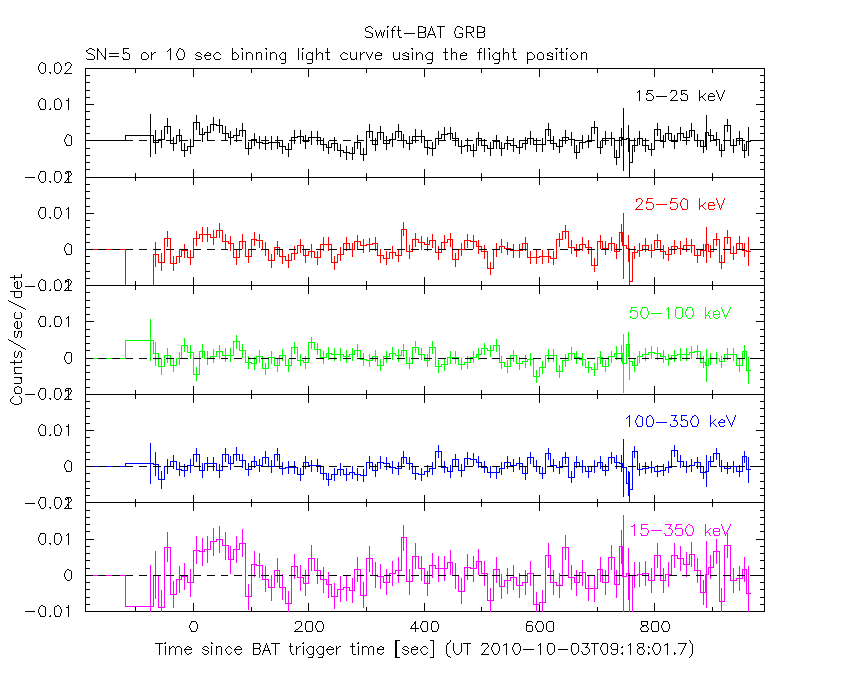

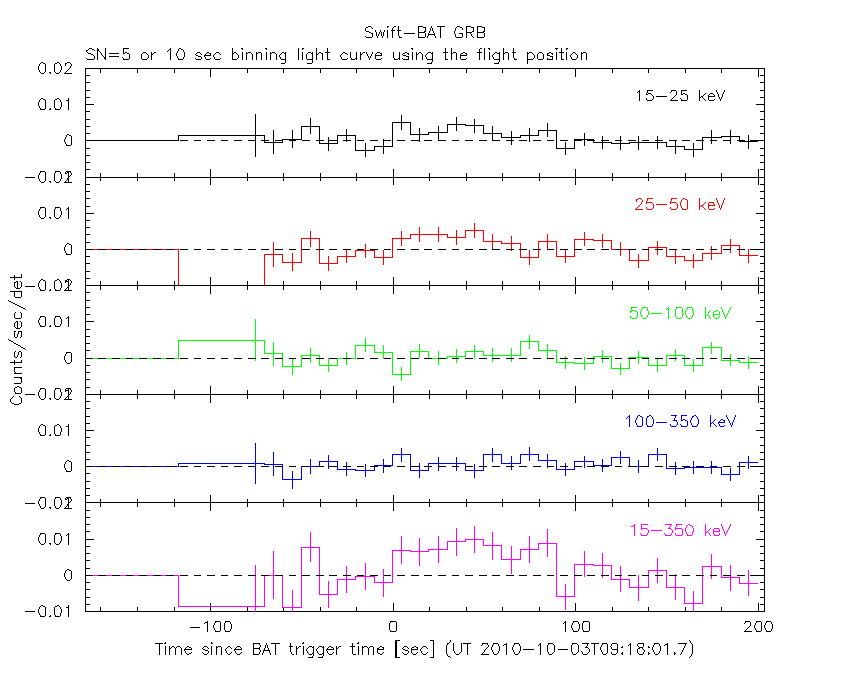

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

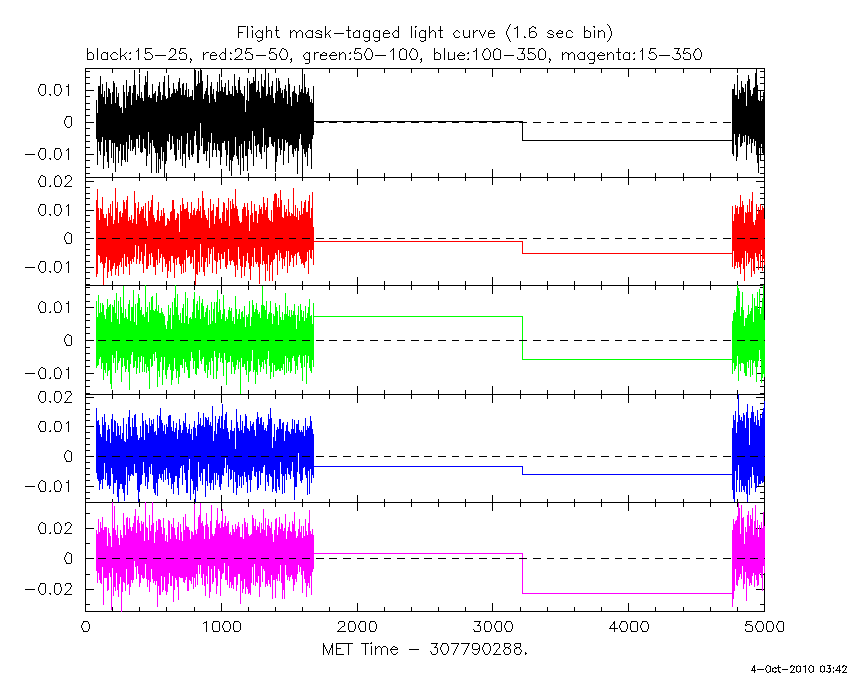

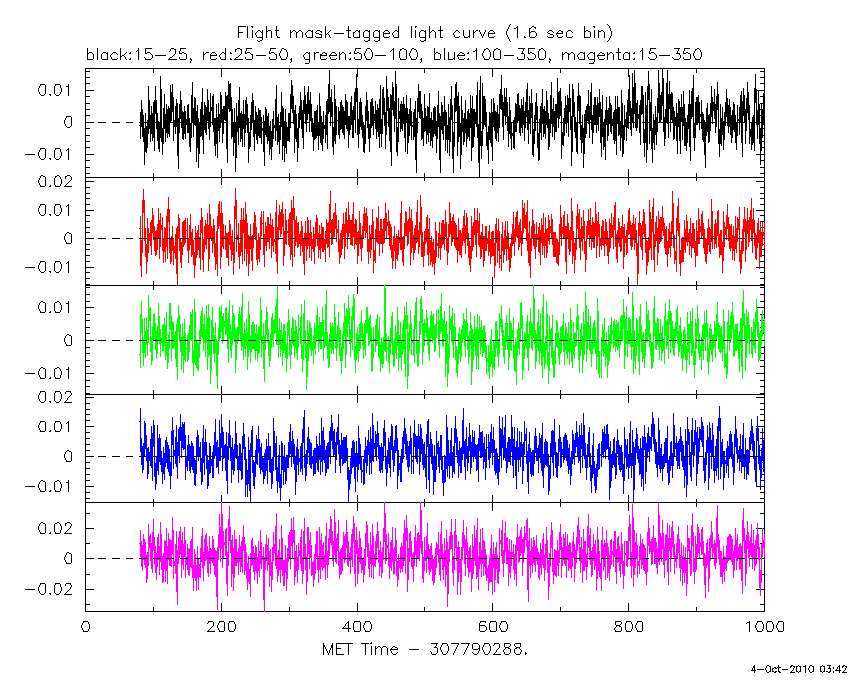

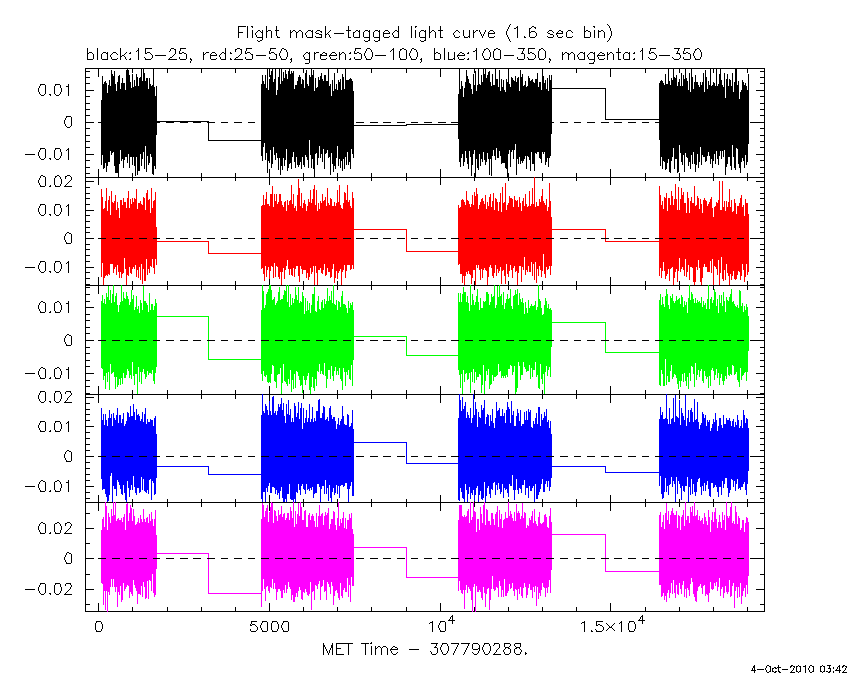

Flight mask-tagged light curves

Caution: Mask-weight map is always using the same on-axis map

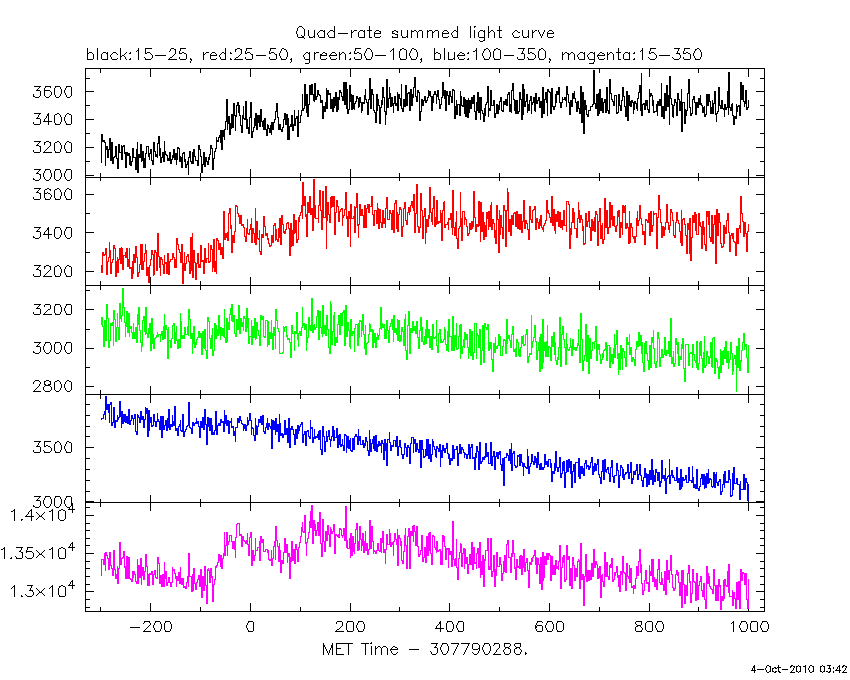

Quad-rate summed light curves (from T0-300 to T0+1000)

The mask-weighted light curves based on cleaned DPHs

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

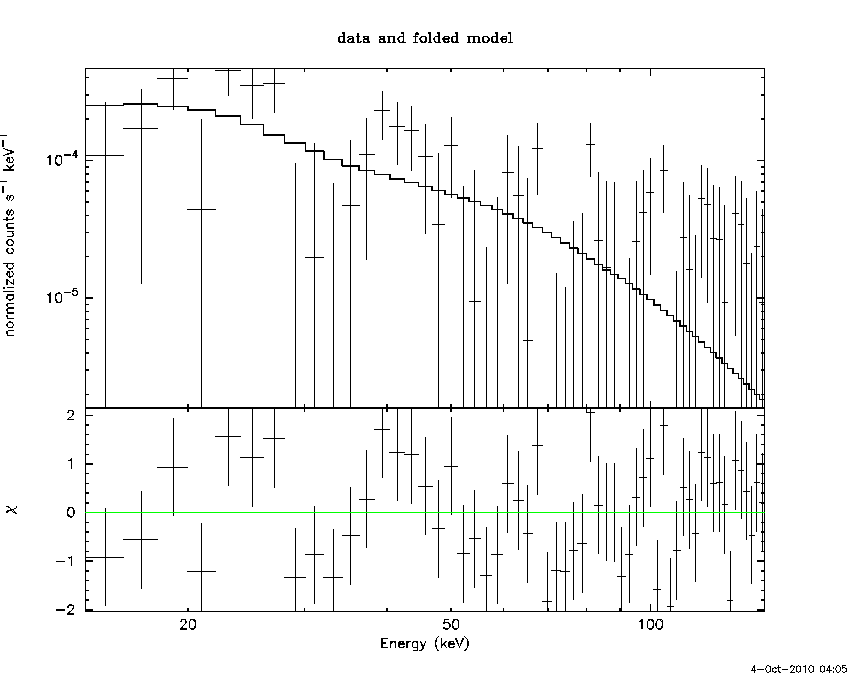

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from    1.000 sec. to   81.000 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.87215     ( -0.59713   0.685715 )
Norm@50keV  : 3.71522E-04    ( -0.000157617   0.000147143 )
------------------------------------------------------------
# Chi-Squared =          61.38 using 59 PHA bins.
# Reduced chi-squared =          1.077 for     57 degrees of freedom
# Null hypothesis probability =   3.220689e-01

Photon flux (15-150 keV)    in 80 sec: 5.26982E-02 ( -0.0163431  0.0163477 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.73234e-07 ( -1.06188e-07  1.16741e-07 ) ergs/cm2

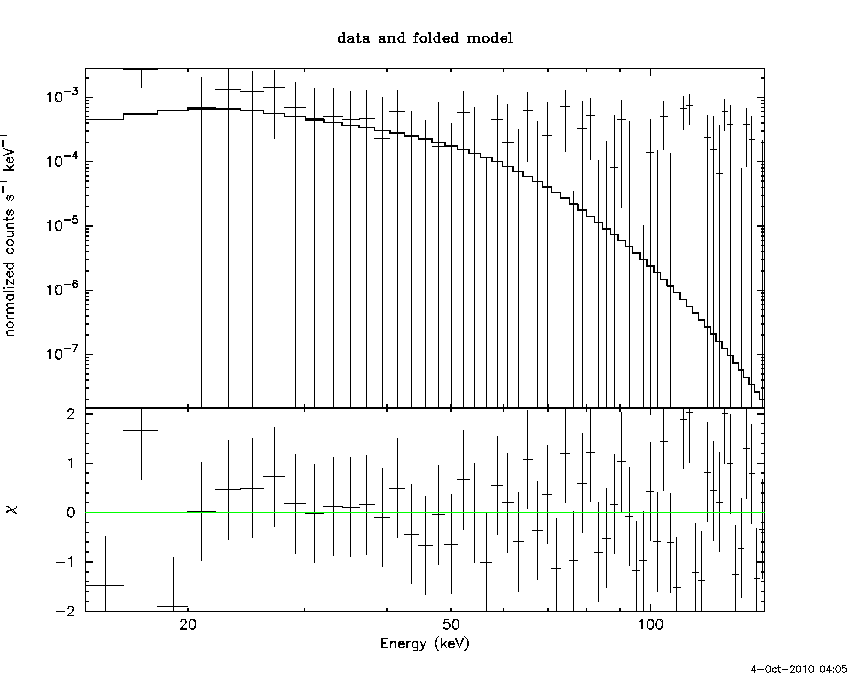

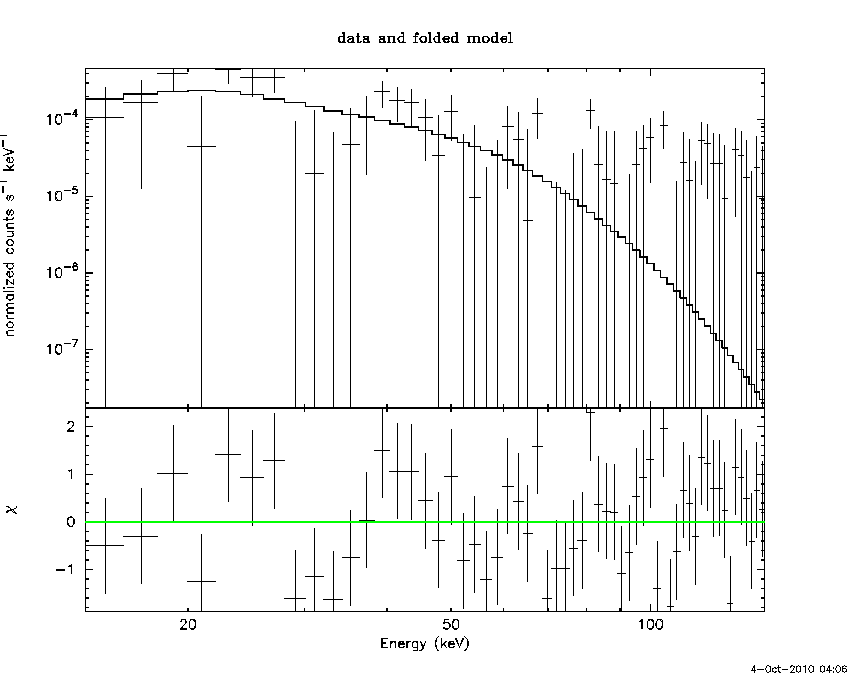

Cutoff power-law model

Time interval is from    1.000 sec. to   81.000 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.48275     (     )
Epeak [keV] : 47.6575      (   )
Norm@50keV  : 6.58805E-04    (     )
------------------------------------------------------------
# Chi-Squared =          61.56 using 59 PHA bins.
# Reduced chi-squared =          1.099 for     56 degrees of freedom
# Null hypothesis probability =   2.838823e-01

Photon flux (15-150 keV)    in 80 sec: 5.26787E-02 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.73146e-07 ( -1.06156e-07  1.16723e-07 ) ergs/cm2

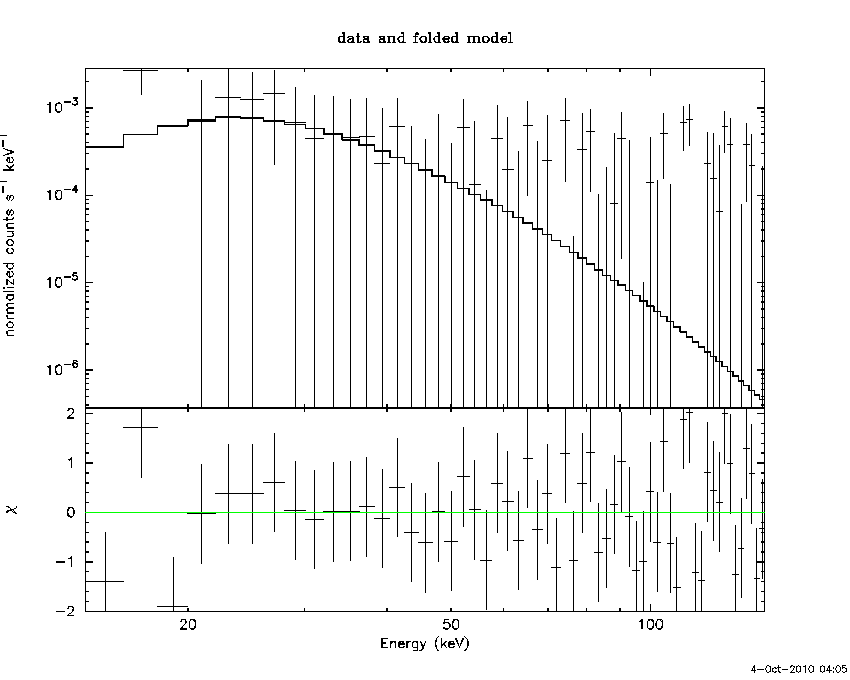

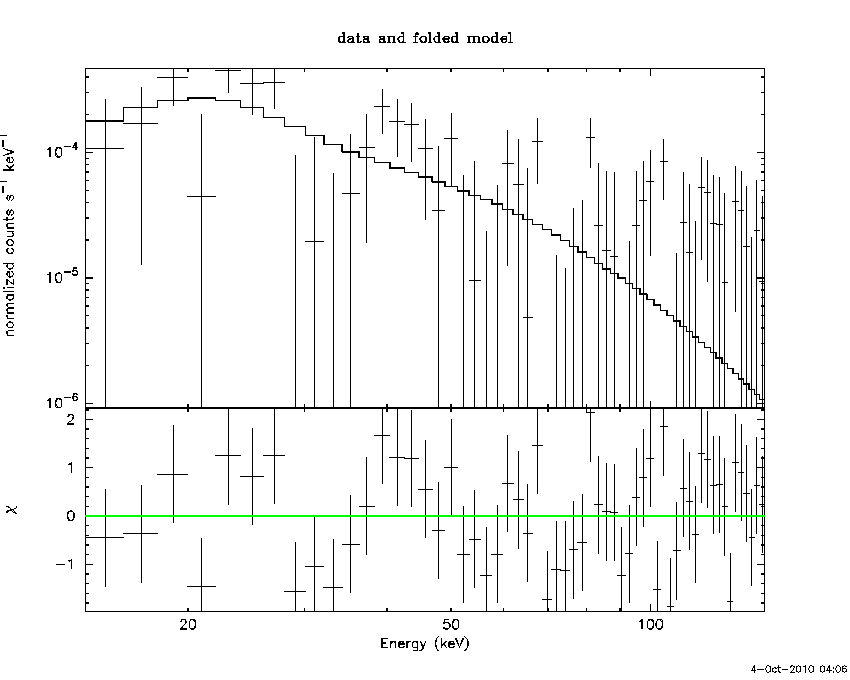

Band function

Time interval is from    1.000 sec. to   81.000 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 1.11568   ( 1.23803   1.23803 )
beta        : -1.97017    ( 1.92305   0.63845 )
Epeak [keV] : 22.4965      ( -31.1784 -31.1784 )
Norm@50keV   : 9.72048E-02    ( -0.0972049   85.6853 )
------------------------------------------------------------
# Chi-Squared =          61.22 using 59 PHA bins.
# Reduced chi-squared =          1.113 for     55 degrees of freedom
# Null hypothesis probability =   2.625501e-01

Photon flux (15-150 keV)    in 80 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB



Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    :   (  )
R^2/D10^2   :   (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25
25- 50
50-150
15-150

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    :        (      )
Norm        :        (     )
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25
25- 50
50-150
15-150

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   :         (      )
R1^2/D10^2  :         (      )
kT2 [keV]   :         (      )
R2^2/D10^2  :     (   )
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25
25- 50
50-150
15-150

Peak spectrum fit

Power-law model

Time interval is from   40.500 sec. to   41.500 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.66810     ( -1.67729   3.1516 )
Norm@50keV  : 1.13837E-03    ( -0.00113272   0.00119656 )
------------------------------------------------------------
# Chi-Squared =          53.61 using 59 PHA bins.
# Reduced chi-squared =         0.9406 for     57 degrees of freedom
# Null hypothesis probability =   6.029594e-01

Photon flux (15-150 keV)    in 1 sec: 0.148853 ( -0.143776  0.143837 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.04925e-08 ( -1.04925e-08  1.2876e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   40.500 sec. to   41.500 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -1.34952     (     )
Epeak [keV] : 36.5764      (   )
Norm@50keV  : 0.125246    (     )
------------------------------------------------------------
# Chi-Squared =          52.85 using 59 PHA bins.
# Reduced chi-squared =         0.9438 for     56 degrees of freedom
# Null hypothesis probability =   5.947573e-01

Photon flux (15-150 keV)    in 1 sec: 0.145936 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.73818e-09 ( -5.26931e-09  1.21199e-08 ) ergs/cm2

Band function

Time interval is from   40.500 sec. to   41.500 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.99607   ( -488.088   -488.088 )
beta        : -3.94944    ( 3.97969   3.97969 )
Epeak [keV] : 31.9400      ( -31.9182 34.9506 )
Norm@50keV   : 47.4892    ( -48.0333   1.51665e+06 )
------------------------------------------------------------
# Chi-Squared =          52.31 using 59 PHA bins.
# Reduced chi-squared =         0.9510 for     55 degrees of freedom
# Null hypothesis probability =   5.782289e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB



Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    :   (  )
R^2/D10^2   :   (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25
25- 50
50-150
15-150

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    :        (      )
Norm        :        (     )
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25
25- 50
50-150
15-150

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   :         (      )
R1^2/D10^2  :         (      )
kT2 [keV]   :         (      )
R2^2/D10^2  :     (   )
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25
25- 50
50-150
15-150

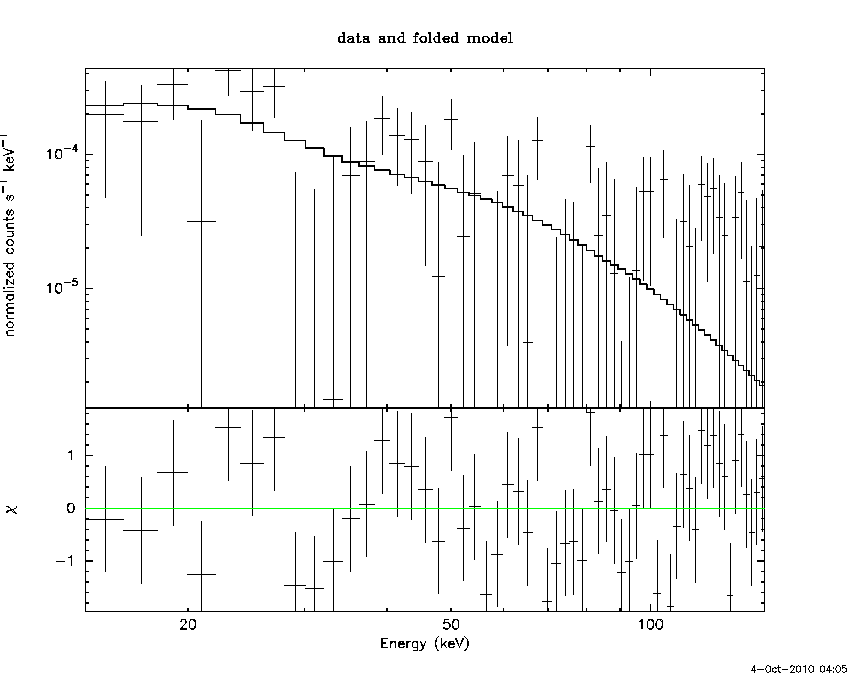

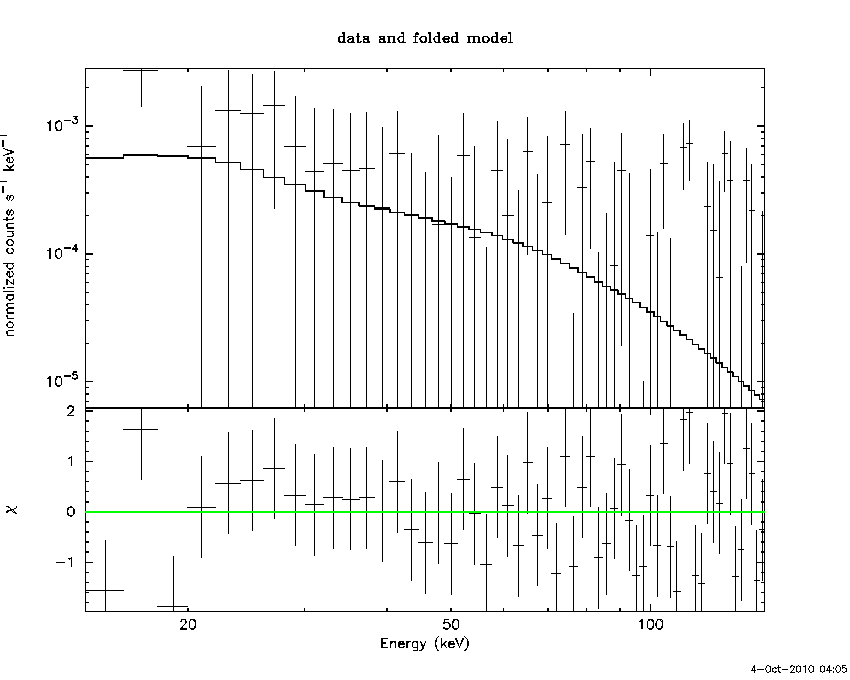

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.92204     ( -0.548345   0.625941 )
Norm@50keV  : 3.81648E-04    ( -0.000157205   0.000151615 )
------------------------------------------------------------
# Chi-Squared =          63.25 using 59 PHA bins.
# Reduced chi-squared =          1.110 for     57 degrees of freedom
# Null hypothesis probability =   2.653725e-01

Photon flux (15-150 keV)    in 73.1 sec: 5.52901E-02 ( -0.0170649  0.0170752 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.5657e-07 ( -9.68911e-08  1.06627e-07 ) ergs/cm2

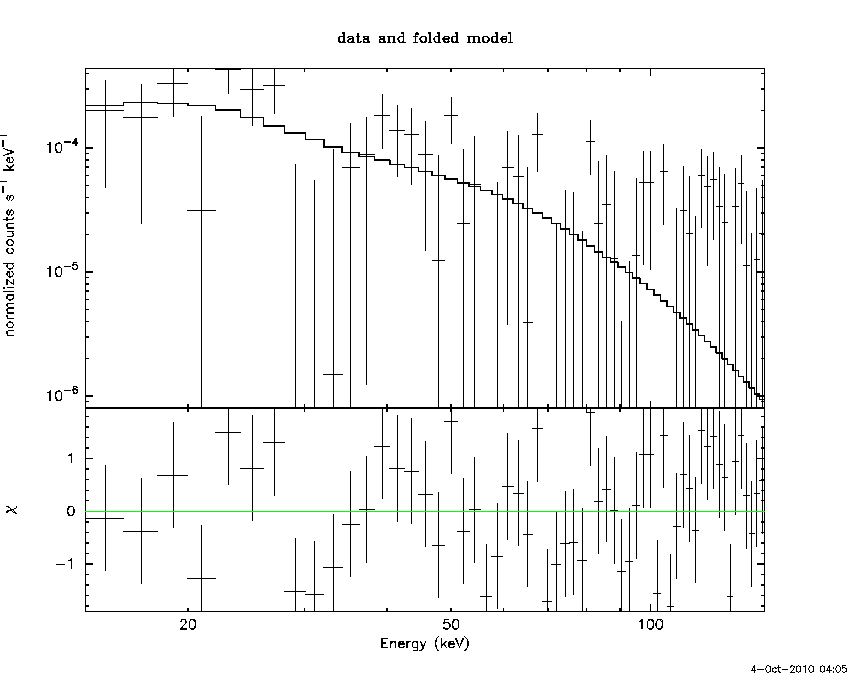

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.442572     ( -5.41809   2.58543 )
Epeak [keV] : 35.6424      (   )
Norm@50keV  : 1.28034E-02    (     )
------------------------------------------------------------
# Chi-Squared =          62.01 using 59 PHA bins.
# Reduced chi-squared =          1.107 for     56 degrees of freedom
# Null hypothesis probability =   2.703859e-01

Photon flux (15-150 keV)    in 73.1 sec: 5.14364E-02 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.93583e-07 ( -6.82388e-08  1.36855e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.15487   ( 1.06128   1.06128 )
beta        : -2.35134    ( 3.21205   12.6112 )
Epeak [keV] : 25.0966      ( -35.4978 164.861 )
Norm@50keV   : 15.1839    ( -15.1954   16.7371 )
------------------------------------------------------------
# Chi-Squared =          61.54 using 59 PHA bins.
# Reduced chi-squared =          1.119 for     55 degrees of freedom
# Null hypothesis probability =   2.534501e-01

Photon flux (15-150 keV)    in 73.1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 7.89592e-08
S(50-100 keV) = 8.62736e-08

T90 vs. Hardness ratio plot

T90                                   = 64 sec.
Hardness ratio (energy fluence ratio) = 1.09264

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.991605
Count Ratio (50-100 keV) / (15-25 keV) = 0.277592

Mask shadow pattern

IMX = -4.022638589339135E-01, IMY = 2.539343261908841E-01

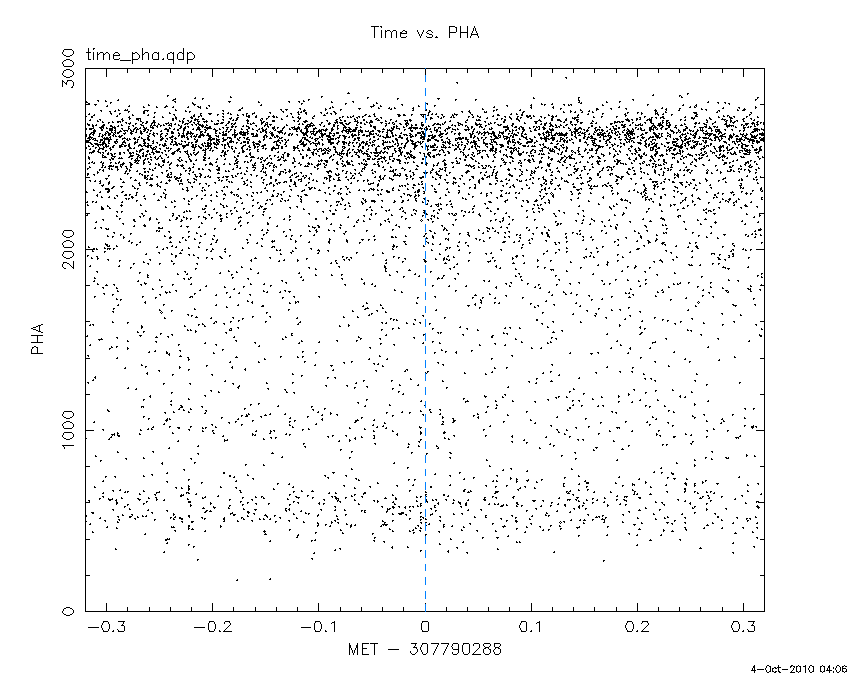

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

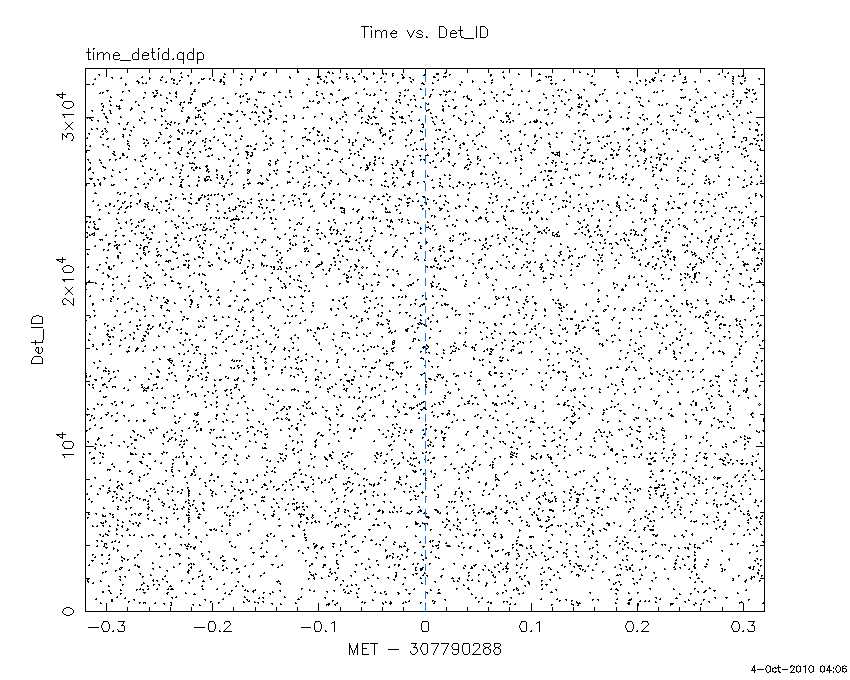

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

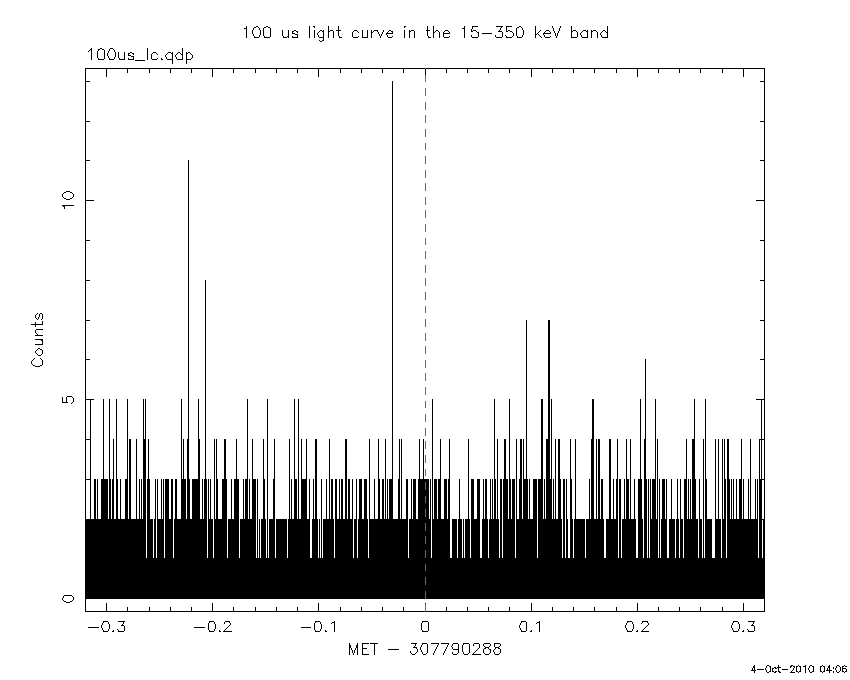

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

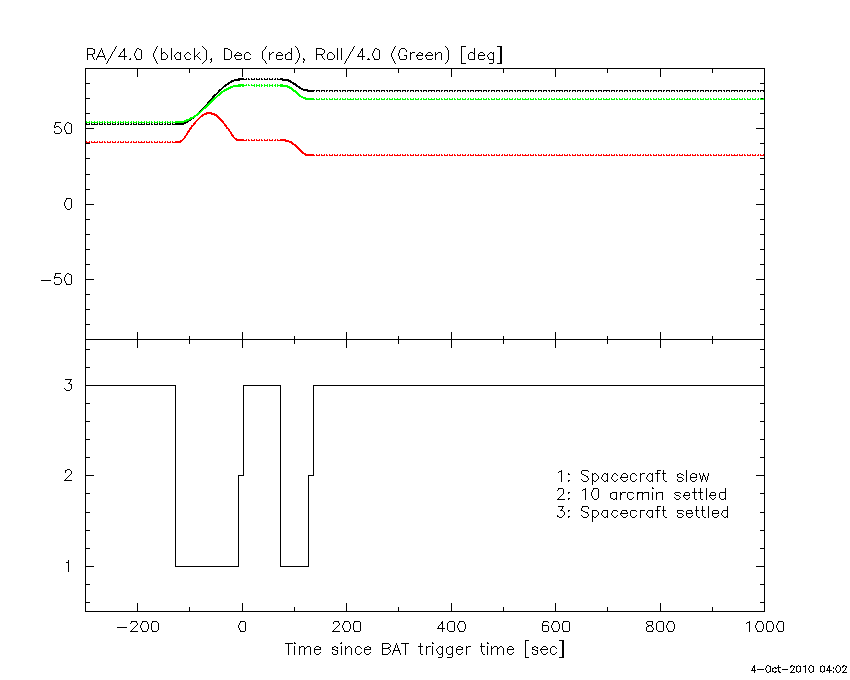

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-7.599400 1.000000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
288.8823  10.8531    5.0  48.0 -162.9   0.1508   2.3    7.4	GRS 1915+105
299.7653  35.2749    3.0  24.9 -140.5   0.1336   3.8    9.6	Cyg X-1
308.1745  40.9211    3.2  16.8 -131.5   0.1208   3.6    3.5	Cyg X-3
325.9982  38.2761    5.1   5.3  178.9  -0.0703  -2.3    8.6	Cyg X-2
 69.7606  60.0650    2.3  58.4   -9.2   0.9490   5.0 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
1.000000 74.100590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
288.8751  10.8299    5.1  48.1 -162.9  -1.2984  -2.3    8.3	GRS 1915+105
299.4600  35.0942    4.1  25.2 -140.6   0.8999   2.9    9.1	Cyg X-1
308.2878  40.8911    7.5  16.7 -131.7  -0.4608  -1.5    8.9	Cyg X-3
325.9773  38.2570    4.5   5.4  178.7   0.7096   2.6    9.9	Cyg X-2

Post-slew image of 15-350 keV band

Time interval of the image:
126.400600 738.160000
739.000000 744.340000
746.000000 746.390000
748.000000 750.940000
753.000000 755.260000
756.000000 757.160000
758.000000 758.010000
759.000000 890.340000
891.000000 963.059100

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.2670  35.3413   11.5  38.5  -80.7  -1.9016  -1.0    9.3	Her X-1
268.4028  -1.4448    2.8  45.7 -139.6   5.1969   4.1    2.1	SW J1753.5-0127
274.0075 -14.0532    4.7  53.1 -155.0   3.9529   2.4    1.0	GX 17+2
288.8071  10.9432    0.6  24.2 -158.1  10.8879  20.2    0.5	GRS 1915+105
299.6082  35.2087    0.6   3.0  -29.5   9.6889  19.2    1.0	Cyg X-1
308.1505  40.9381    1.1  10.3   23.7   4.8068  10.0    2.0	Cyg X-3
326.1508  38.3210  348.3  21.3   58.5  -0.0197  -0.0    1.0	Cyg X-2
356.5981  50.1958    3.8  44.2   40.9   4.6525   3.0 ------	UNKNOWN
314.0094  41.1459    2.9  13.6   38.0   1.7764   4.0 ------	UNKNOWN
294.5091 -22.8211    3.1  55.6  178.9   9.7319   3.7 ------	UNKNOWN
293.4556 -14.2858    2.6  47.2 -178.4   4.2506   4.4 ------	UNKNOWN
286.6760  61.2512    2.3  30.3  -21.9   2.7827   4.9 ------	UNKNOWN
274.8784  40.5663    2.7  22.4  -69.5   2.5526   4.2 ------	UNKNOWN
264.1555  13.1328    2.9  38.7 -119.5   4.1155   3.9 ------	UNKNOWN

Plot creation:
Mon Oct  4 04:06:53 EDT 2010
