batgrbproduct analysis for trigger=436241

batgrbproduct Analysis for Trigger=436241

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Thu Oct 14 13:37:38 EDT 2010
             Host Name: gcn5
   Current Working Dir: /local/data/raid16/prebascript_archive/trigger436241/GCN5_download_cron
======================================================================

  Trigger: 00436241      Segment: 000

  BAT Trigger Time: 308690848   [s; MET]
      Trigger Stop: 308692048   [s; MET]
               UTC: 2010-10-13T19:27:21.731620    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 267.030326569459   Dec: -24.8057853290476  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    8.09
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    8.09

  Flight Position:   [ source = BAT ]
    RA: 267.030326569459   Dec: -24.8057853290476  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 267.067110044361   Dec: -24.7511253201398  [deg; J2000]
        { 17h 48m 16.1s , -24d 45' 04.1" }
         +/- 3.79081312764799 [arcmin] (estimated 90% radius based on SNR)
         +/- 2.06808256837533 [arcmin] (formal 1-sigma fit error)
    SNR: 4.53270904917811

  Angular difference between Flight and Ground position is 3.843316 arcmin

  Partial Coding Fraction: 0.9296875    [ including projection effects ]

  Duration
     T90: 1200 +/-
        Measured from: 0
                   to: 1200     [s; relative to TRIGTIME]
     T50: 1200 +/-
        Measured from: 0
                   to: 1200     [s; relative to TRIGTIME]

    WARNING: battblocks failed.  Used TDRSS fore/background intervals

  Fluence
     Peak Flux  (peak 1200 second)
        Measured from: 0
                   to: 1200     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0
                   to: 1200     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.451097   0.182547   0.074701   0.111486
           0.089071   0.078750   0.067584   0.061736 [error]
 Peak      0.451097   0.182547   0.074701   0.111486
           0.089071   0.078750   0.067584   0.061736 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.24e-07 8.52e-08 3.84e-08 2.41e-08 2.59e-07 2.72e-07   erg/cm2
              Error 4.08e-08 6.35e-08 4.63e-08 6.00e-08 1.11e-07 1.41e-07   erg/cm2
Peak flux Power-law 1.82e-02 6.59e-03 1.36e-03 3.35e-04 2.64e-02 2.65e-02   ph/cm2/s
              Error 5.31e-03 3.26e-03 1.63e-03 7.59e-04 7.66e-03 7.78e-03   ph/cm2/s

Fluence   Cutoff-PL 1.24e-07 8.52e-08 3.84e-08 2.38e-08 2.59e-07 2.71e-07   erg/cm2
              Error 4.08e-08 6.36e-08 4.62e-08 5.94e-08 1.11e-07 1.41e-07   erg/cm2
Peak flux Cutoff-PL 1.82e-02 6.59e-03 1.36e-03 3.32e-04 2.64e-02 2.62e-02   ph/cm2/s
              Error 5.30e-03 3.26e-03 1.62e-03 7.82e-03 0.00e+00 0.00e+00   ph/cm2/s

Fluence        Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.149    1.029    -      -           8.36e-05 7.95e-05   56.740 57
CPL   1.620    0.000       6.3    0.0      1.19e-03 0.00e+00   57.130 56

The chi2 of BB fit is  which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.274    1.004    -      -           7.82e-05 7.63e-05   57.620 57
CPL   1.000    0.000      50.0    0.0      5.00e-04 0.00e+00   69.620 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100 1200.000    0.000 1200.000
T90  1200.000    0.000 1200.000
T50  1200.000    0.000 1200.000
Peak 1200.000    0.000 1200.000

Click here for the BAT GCN circular template


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  267.0671 -24.7511 0.0425   15.0  139.0       0.9037     4.5  TRIG_00436241
------------------------------------------

Foreground time interval of the image:
155.000 299.325 (delta_t = 144.325 [sec])
307.000 317.136 (delta_t =  10.135 [sec])
361.000 370.070 (delta_t =   9.070 [sec])
420.000 483.130 (delta_t =  63.130 [sec])
541.000 545.179 (delta_t =   4.179 [sec])
601.000 607.476 (delta_t =   6.476 [sec])
661.000 664.132 (delta_t =   3.132 [sec])
Background time interval of the image:

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

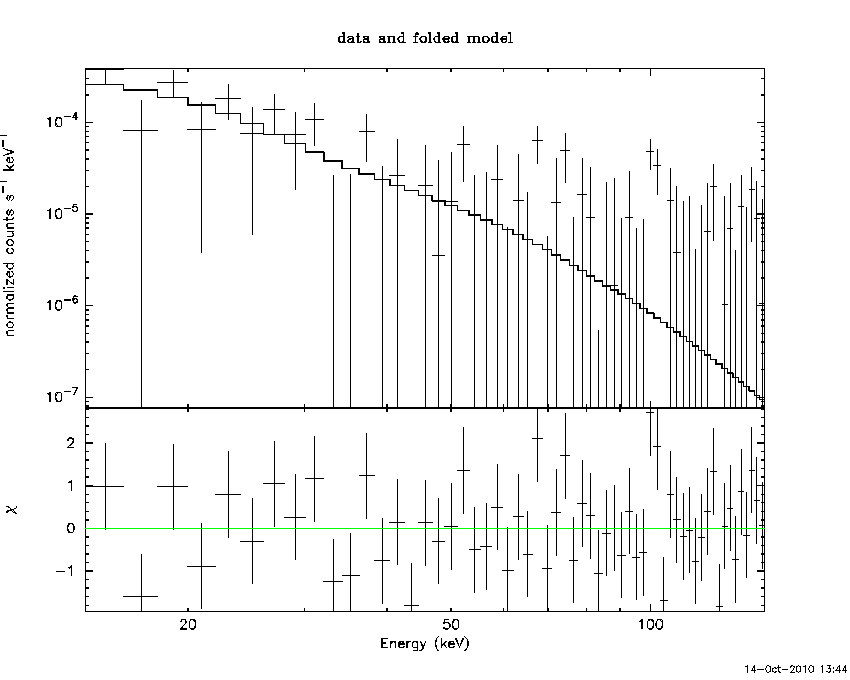

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Multiple GTIs in the spectrum
tstart tstop
155.000000 299.324700
307.000000 317.135500
361.000000 370.070000
420.000000 483.130100
541.000000 545.179000
601.000000 607.475900
661.000000 664.132100

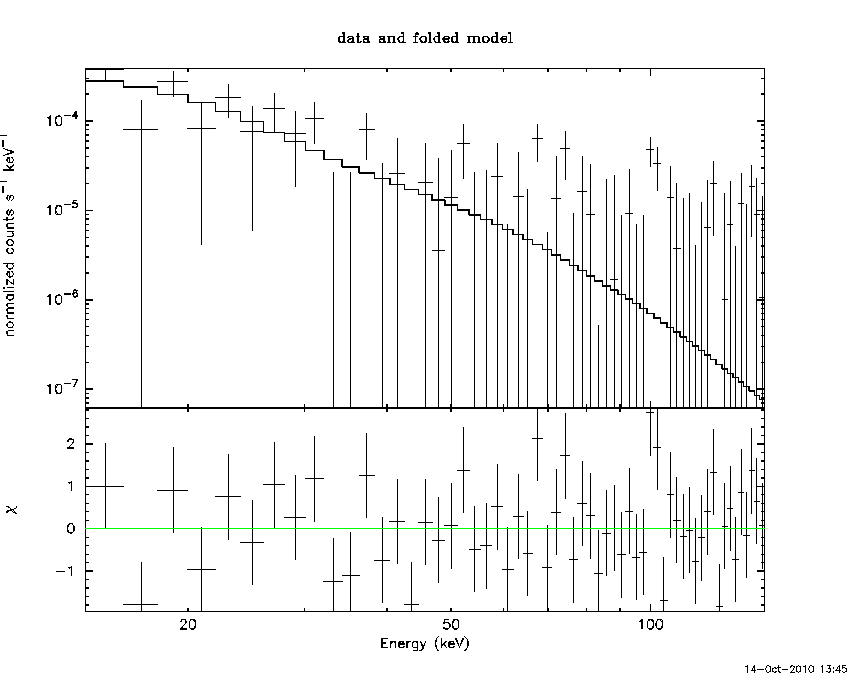

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.14861     ( -0.835159   1.22239 )
Norm@50keV  : 8.35740E-05    ( -8.35625e-05   7.54186e-05 )
------------------------------------------------------------
# Chi-Squared =          56.74 using 59 PHA bins.
# Reduced chi-squared =         0.9954 for     57 degrees of freedom
# Null hypothesis probability =   4.847832e-01

Photon flux (15-150 keV)    in 240.4 sec: 2.56575E-02 ( -0.00784247  0.00788434 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.59344e-07 ( -1.00547e-07  1.21168e-07 ) ergs/cm2

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
155.000000 299.324700
307.000000 317.135500
361.000000 370.070000
420.000000 483.130100
541.000000 545.179000
601.000000 607.475900
661.000000 664.132100

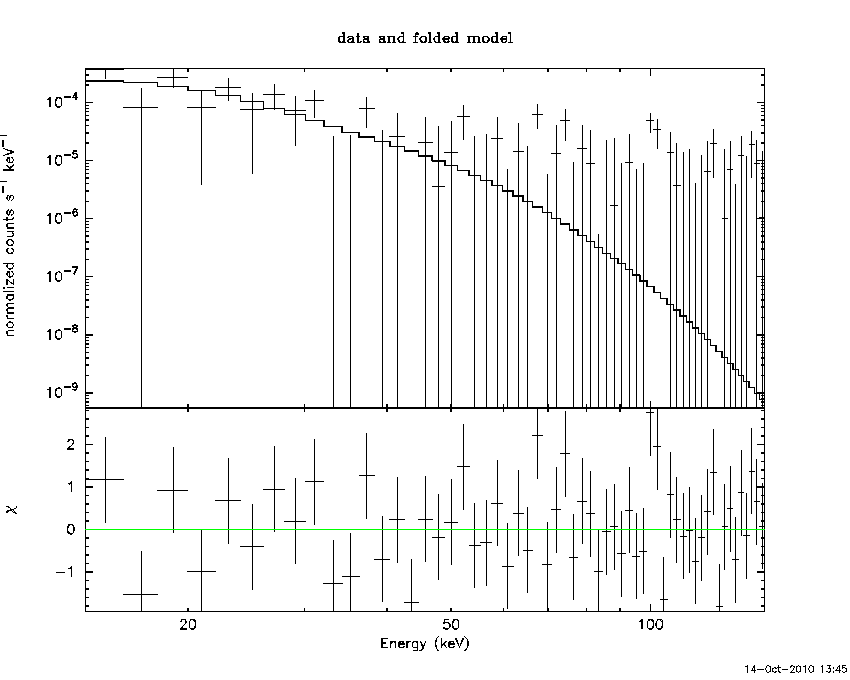

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.61966     (     )
Epeak [keV] : 6.32004      (   )
Norm@50keV  : 1.18516E-03    (     )
------------------------------------------------------------
# Chi-Squared =          57.13 using 59 PHA bins.
# Reduced chi-squared =          1.020 for     56 degrees of freedom
# Null hypothesis probability =   4.330610e-01

Photon flux (15-150 keV)    in 240.4 sec: 2.56446E-02 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.59276e-07 ( -1.0052e-07  1.21111e-07 ) ergs/cm2

Band function

Multiple GTIs in the spectrum
tstart tstop
155.000000 299.324700
307.000000 317.135500
361.000000 370.070000
420.000000 483.130100
541.000000 545.179000
601.000000 607.475900
661.000000 664.132100

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.65847   ( 6.22089   6.22089 )
beta        : -3.14971    ( -1.22216   0.83519 )
Epeak [keV] : 6.36519      ( -6.36519 -6.36519 )
Norm@50keV   : 1.13485E-02    ( -0.00798887   0.0102521 )
------------------------------------------------------------
# Chi-Squared =          56.74 using 59 PHA bins.
# Reduced chi-squared =          1.032 for     55 degrees of freedom
# Null hypothesis probability =   4.099539e-01

Photon flux (15-150 keV)    in 240.4 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB



Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    :   (  )
R^2/D10^2   :   (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25
25- 50
50-150
15-150

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    :        (      )
Norm        :        (     )
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25
25- 50
50-150
15-150

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   :         (      )
R1^2/D10^2  :         (      )
kT2 [keV]   :         (      )
R2^2/D10^2  :     (   )
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25
25- 50
50-150
15-150

Peak spectrum fit

Power-law model

Time interval is from  661.000 sec. to  664.132 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.27355     ( -0.808064   1.20046 )
Norm@50keV  : 7.81844E-05    ( -7.81798e-05   7.44506e-05 )
------------------------------------------------------------
# Chi-Squared =          57.62 using 59 PHA bins.
# Reduced chi-squared =          1.011 for     57 degrees of freedom
# Null hypothesis probability =   4.519890e-01

Photon flux (15-150 keV)    in 240.4 sec: 2.64138E-02 ( -0.007644  0.00767321 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.5924e-07 ( -9.80673e-08  1.18376e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from  661.000 sec. to  664.132 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 5.00284E-04    (     )
------------------------------------------------------------
# Chi-Squared =          69.62 using 59 PHA bins.
# Reduced chi-squared =          1.243 for     56 degrees of freedom
# Null hypothesis probability =   1.043261e-01

Photon flux (15-150 keV)    in 240.4 sec: 2.64001E-02 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.5917e-07 ( -9.80423e-08  1.18322e-07 ) ergs/cm2

Band function

Time interval is from  661.000 sec. to  664.132 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.57534   ( 6.02071   6.02071 )
beta        : -3.27414    ( -1.20056   0.807638 )
Epeak [keV] : 5.61250      ( -5.6125 -5.6125 )
Norm@50keV   : 1.06208E-02    ( -0.00753966   0.0101245 )
------------------------------------------------------------
# Chi-Squared =          57.62 using 59 PHA bins.
# Reduced chi-squared =          1.048 for     55 degrees of freedom
# Null hypothesis probability =   3.784096e-01

Photon flux (15-150 keV)    in 240.4 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB



Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    :   (  )
R^2/D10^2   :   (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25
25- 50
50-150
15-150

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    :        (      )
Norm        :        (     )
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25
25- 50
50-150
15-150

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   :         (      )
R1^2/D10^2  :         (      )
kT2 [keV]   :         (      )
R2^2/D10^2  :     (   )
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25
25- 50
50-150
15-150

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.14861     ( -0.835159   1.22239 )
Norm@50keV  : 8.35740E-05    ( -8.35625e-05   7.54186e-05 )
------------------------------------------------------------
# Chi-Squared =          56.74 using 59 PHA bins.
# Reduced chi-squared =         0.9954 for     57 degrees of freedom
# Null hypothesis probability =   4.847832e-01

Photon flux (15-150 keV)    in 240.4 sec: 2.56575E-02 ( -0.00784247  0.00788434 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.59344e-07 ( -1.00547e-07  1.21168e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.61966     (     )
Epeak [keV] : 6.32004      (   )
Norm@50keV  : 1.18516E-03    (     )
------------------------------------------------------------
# Chi-Squared =          57.13 using 59 PHA bins.
# Reduced chi-squared =          1.020 for     56 degrees of freedom
# Null hypothesis probability =   4.330610e-01

Photon flux (15-150 keV)    in 240.4 sec: 2.56446E-02 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.59276e-07 ( -1.0052e-07  1.21111e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.65847   ( 6.22089   6.22089 )
beta        : -3.14971    ( -1.22216   0.83519 )
Epeak [keV] : 6.36519      ( -6.36519 -6.36519 )
Norm@50keV   : 1.13485E-02    ( -0.00798887   0.0102521 )
------------------------------------------------------------
# Chi-Squared =          56.74 using 59 PHA bins.
# Reduced chi-squared =          1.032 for     55 degrees of freedom
# Null hypothesis probability =   4.099539e-01

Photon flux (15-150 keV)    in 240.4 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 8.52151e-08
S(50-100 keV) = 3.84082e-08

T90 vs. Hardness ratio plot

T90                                   = 1200 sec.
Hardness ratio (energy fluence ratio) = 0.450721

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.404673
Count Ratio (50-100 keV) / (15-25 keV) = 0.165599

Mask shadow pattern

IMX = -2.027107548877490E-01, IMY = -1.760722821391469E-01

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
155.000000 299.324700
307.000000 317.135500
361.000000 370.070000
420.000000 483.130100
541.000000 545.179000
601.000000 607.475900
661.000000 664.132100

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9824 -15.6359    0.3   9.4  -86.3   8.4160  43.6    0.3	Sco X-1
254.3447  35.3117    3.9  50.5    7.3  -1.6910  -2.9    5.8	Her X-1
256.0070 -37.8633    1.3  22.7 -175.0   1.6997   8.7    1.5	4U 1700-377
256.3168 -36.3801    3.1  21.2 -176.0   0.7202   3.8    6.3	GX 349+2
263.0582 -24.7156    3.3  12.3  149.4   0.6980   3.5    3.2	GX 1+4
264.8091 -44.4101    3.2  30.4  173.3   0.8289   3.6    3.7	4U 1735-44
268.2174  -1.3278    6.9  19.3   52.8   0.3544   1.7   11.7	SW J1753.5-0127
270.3097 -25.0332    1.9  17.6  134.0   1.2861   6.1    3.1	GX 5-1
270.2829 -25.7469    3.7  18.0  136.0   0.6511   3.1    1.1	GRS 1758-258
273.8918 -13.9159    5.8  18.6   96.2   0.4183   2.0    9.8	GX 17+2
275.8493 -30.3987    5.2  24.6  139.4   0.4966   2.2    4.4	H1820-303
285.1010 -25.0309    6.4  30.1  121.6   0.5750   1.8    7.5	HT1900.1-2455
275.9011  31.5663    3.3  51.0   31.0   3.5227   3.5 ------	UNKNOWN
216.2481  17.3410    3.9  50.0  -43.2   3.4863   3.0 ------	UNKNOWN
213.5061  -2.5836    3.3  42.5  -69.2   3.1067   3.5 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:

Plot creation:
Thu Oct 14 13:46:47 EDT 2010
