batgrbproduct Analysis for Trigger=437016

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Fri Jan 17 15:20:12 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger437016
======================================================================

  Trigger: 00437016      Segment: 000

  BAT Trigger Time: 309613176.128   [s; MET]
      Trigger Stop: 309613176.384   [s; MET]
               UTC: 2010-10-24T11:39:29.826060    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 66.4748790740036   Dec: -77.2476285132087  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    11.55
     Image Trigger?:     NO
     Rate S/N Ratio:     29.698484809835  [ if not an image trigger ]
     Image S/N Ratio:    11.55

  Flight Position:   [ source = BAT ]
    RA: 66.4748790740036   Dec: -77.2476285132087  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 66.4759508348627   Dec: -77.2567240509178  [deg; J2000]
        { 04h 25m 54.2s , -77d 15' 24.2" }
         +/- 0.822249953305904 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.234548864085115 [arcmin] (formal 1-sigma fit error)
    SNR: 40.2292041182374

  Angular difference between Flight and Ground position is 0.545917 arcmin

  Partial Coding Fraction: 0.765625    [ including projection effects ]

  Duration
     T90: 18.6919999718666 +/- 0.515379460158422
        Measured from: 0.131999969482422
                   to: 18.823999941349     [s; relative to TRIGTIME]
     T50: 8.83199995756149 +/- 4.80167675503301
        Measured from: 2.04399996995926
                   to: 10.8759999275208     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 9.39199995994568
                   to: 10.3919999599457     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.252000033855438
                   to: 20.1279999613762     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.831374   1.037085   0.653320   0.071882
           0.030759   0.032190   0.027689   0.022438 [error]
 Peak      0.162509   0.270582   0.200071   0.038624
           0.008779   0.010136   0.009212   0.006172 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.92e-07 4.37e-07 4.90e-07 1.04e-06 1.53e-06 2.26e-06   erg/cm2
              Error 1.91e-08 1.74e-08 2.72e-08 1.22e-07 6.42e-08 1.45e-07   erg/cm2
Peak flux Power-law 1.91e+00 1.89e+00 1.31e+00 1.43e+00 5.67e+00 6.53e+00   ph/cm2/s
              Error 1.43e-01 9.05e-02 7.25e-02 1.56e-01 2.61e-01 2.95e-01   ph/cm2/s

Fluence   Cutoff-PL 2.59e-07 4.64e-07 5.02e-07 4.24e-07 1.45e-06 1.65e-06   erg/cm2
              Error 2.32e-08 2.11e-08 3.00e-08 1.55e-07 7.21e-08 1.71e-07   erg/cm2
Peak flux Cutoff-PL 1.55e+00 2.08e+00 1.43e+00 5.36e-01 5.44e+00 5.60e+00   ph/cm2/s
              Error 1.71e-01 1.11e-01 8.79e-02 1.51e-01 2.69e-01 3.08e-01   ph/cm2/s

Fluence        Band 2.57e-07 4.62e-07 5.01e-07 4.36e-07 1.45e-06 1.67e-06   erg/cm2
              Error 1.86e-08 1.99e-08 2.44e-08 -------- -------- --------   erg/cm2
Peak flux      Band 1.57e+00 2.06e+00 1.43e+00 5.86e-01 5.47e+00 5.66e+00   ph/cm2/s
              Error 1.72e-01 1.13e-01 8.39e-02 -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.835    0.072    -      -           8.18e-03 3.38e-04   65.860 57
CPL   1.152    0.310      60.3    9.6      1.82e-02 6.71e-03   49.300 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.529    0.072    -      -           4.50e-02 2.06e-03   77.530 57
CPL   0.422    0.353      72.1    9.3      1.61e-01 6.66e-02   40.740 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 18.624000 sec.
T50 in the 50-300 keV band: 9.216000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   20.380   -0.252   20.128
T90    18.692    0.132   18.824
T50     8.832    2.044   10.876
Peak    1.000    9.392   10.392

Click here for the BAT GCN circular template


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
   66.4760   -77.2567   0.0048    30.9646   178.7838         1.8648005     40.229 TRIG_00437016

Foreground time interval of the image:
 -0.252  10.373 (delta_t =  10.625 [sec])
Background time interval of the image:
-239.128  -0.252 (delta_t = 238.876 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

The mask-weighted light curves based on cleaned DPHs

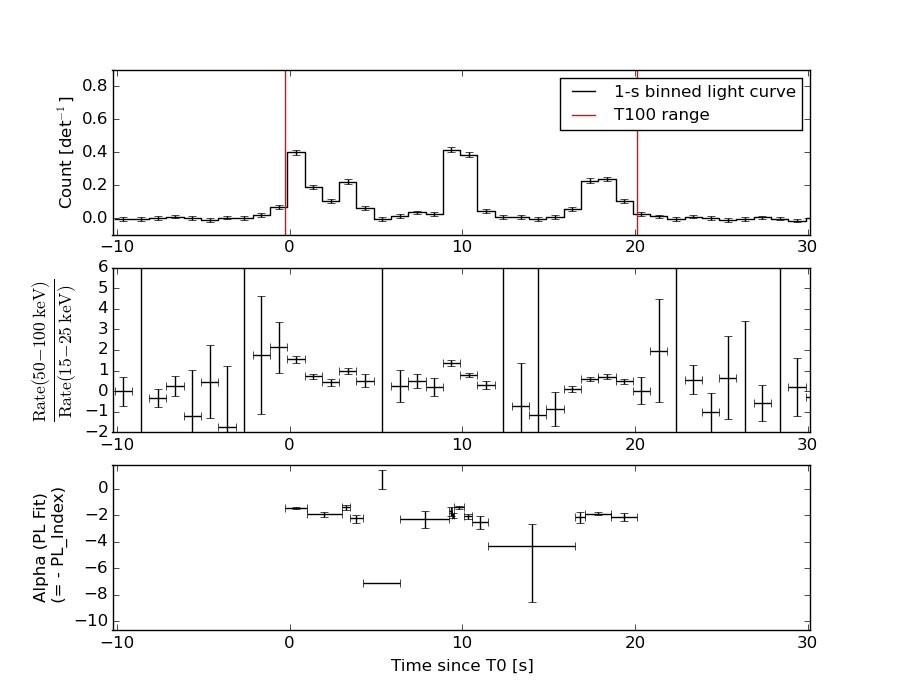

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -0.252 sec. to   20.128 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.83484     ( -0.071146   0.0719284 )
Norm@50keV  : 8.17967E-03    ( -0.000338913   0.000337552 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.86 using 59 PHA bins.
# Reduced chi-squared =          1.155 for     57 degrees of freedom
# Null hypothesis probability =   1.971461e-01

Photon flux (15-150 keV)    in 20.38 sec: 1.14273 ( -0.0469137  0.0470262 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.53318e-06 ( -6.40906e-08  6.43142e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.252 sec. to   20.128 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.15210     ( -0.320906   0.299258 )
Epeak [keV] : 60.3440      ( -6.94553 12.1691 )
Norm@50keV  : 1.82095E-02    ( -0.00527913   0.00814343 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.30 using 59 PHA bins.
# Reduced chi-squared =         0.8803 for     56 degrees of freedom
# Null hypothesis probability =   7.247078e-01

Photon flux (15-150 keV)    in 20.38 sec: 1.09429 ( -0.05072  0.05088 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.45408e-06 ( -7.19618e-08  7.22838e-08 ) ergs/cm2

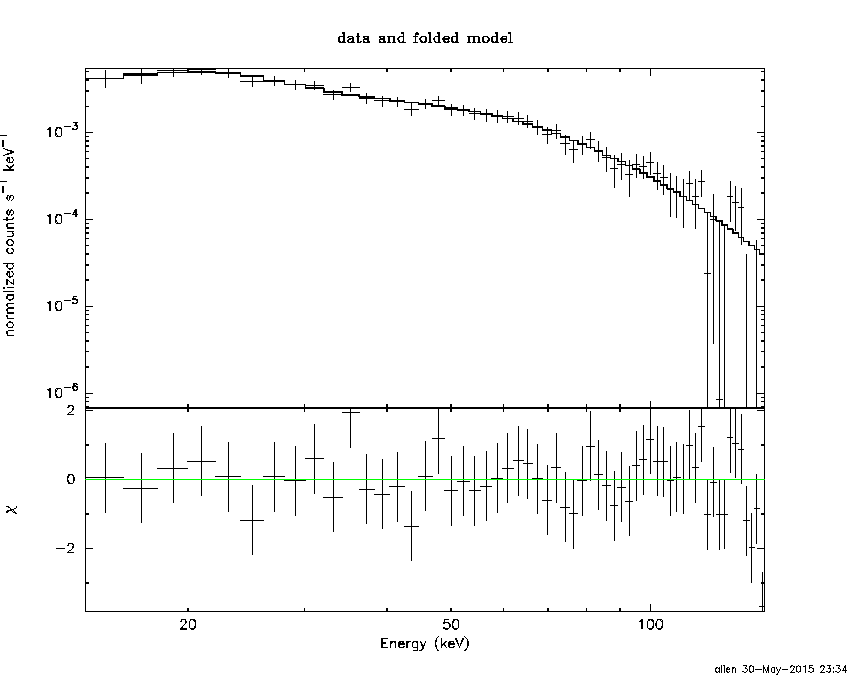

Band function

Time interval is from   -0.252 sec. to   20.128 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.15202   ( -0.318231   0.340546 )
beta        : -10.0000    ( 10   1.77636e-15 )
Epeak [keV] : 60.3312      ( -6.74443 12.1557 )
Norm@50keV   : 1.82095E-02    ( -0.00528393   0.00814259 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.30 using 59 PHA bins.
# Reduced chi-squared =         0.8963 for     55 degrees of freedom
# Null hypothesis probability =   6.913140e-01

Photon flux (15-150 keV)    in 20.38 sec: 1.10843 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.45413e-06 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 12.8067  (  )
R^2/D10^2   : 0.208257  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         163.40 using 59 PHA bins.
# Reduced chi-squared =         2.8666 for     57 degrees of freedom
# Null hypothesis probability =   3.313193e-12

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.476e-07   1.093e-08
25- 50  5.003e-07   2.283e-08
50-150  5.142e-07   4.280e-08
15-150  1.162e-06   5.187e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 99.1180       (-13.1221      16.6074)
Norm        : 5.00426       (-0.289297     0.312698)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.99 using 59 PHA bins.
# Reduced chi-squared =         0.8770 for     57 degrees of freedom
# Null hypothesis probability =   7.331728e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.666e-07   2.170e-08
25- 50  4.601e-07   2.405e-08
50-150  7.419e-07   1.900e-07
15-150  1.469e-06   1.991e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.16458        (-0.868814      0.945042)
R1^2/D10^2  : 1.92470        (-0.754836      1.47583)
kT2 [keV]   : 19.8835        (-2.08363      2.76011)
R2^2/D10^2  : 3.10480E-02    (-0.0129759   0.0183866)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.07 using 59 PHA bins.
# Reduced chi-squared =         0.8740 for     55 degrees of freedom
# Null hypothesis probability =   7.345139e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.540e-07   4.300e-08
25- 50  4.573e-07   4.504e-08
50-150  7.246e-07   1.051e-07
15-150  1.436e-06   1.886e-07

Peak spectrum fit

Power-law model

Time interval is from    9.392 sec. to   10.392 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.52880     ( -0.072084   0.0725307 )
Norm@50keV  : 4.50417E-02    ( -0.00206016   0.00205716 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          77.53 using 59 PHA bins.
# Reduced chi-squared =          1.360 for     57 degrees of freedom
# Null hypothesis probability =   3.658779e-02

Photon flux (15-150 keV)    in 1 sec: 5.66765 ( -0.261104  0.261336 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.25354e-07 ( -2.08546e-08  2.09167e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    9.392 sec. to   10.392 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.422248     ( -0.366725   0.338401 )
Epeak [keV] : 72.1259      ( -7.29079 11.2516 )
Norm@50keV  : 0.161036    ( -0.0509014   0.0822928 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          40.74 using 59 PHA bins.
# Reduced chi-squared =         0.7275 for     56 degrees of freedom
# Null hypothesis probability =   9.375225e-01

Photon flux (15-150 keV)    in 1 sec: 5.44164 ( -0.26915  0.26933 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.00476e-07 ( -2.2354e-08  2.2435e-08 ) ergs/cm2

Band function

Time interval is from    9.392 sec. to   10.392 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.422136   ( -0.224827   0.5305 )
beta        : -10.0000    ( 10   7.10543e-15 )
Epeak [keV] : 72.1116      ( -7.21833 11.2663 )
Norm@50keV   : 0.161062    ( -0.0509808   0.0823889 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          40.74 using 59 PHA bins.
# Reduced chi-squared =         0.7407 for     55 degrees of freedom
# Null hypothesis probability =   9.242147e-01

Photon flux (15-150 keV)    in 1 sec: 5.47107 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.01313e-07 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 14.9546  (-0.74932  0.790918)
R^2/D10^2   : 0.674652  (-0.113439   0.135357)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          93.38 using 59 PHA bins.
# Reduced chi-squared =          1.638 for     57 degrees of freedom
# Null hypothesis probability =   1.689831e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.160e-08   2.695e-09
25- 50  1.252e-07   6.400e-09
50-150  1.903e-07   1.580e-08
15-150  3.472e-07   1.745e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.018       (-39.7115      -199.036)
Norm        : 23.3654       (-1.03802     1.10464)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.21 using 59 PHA bins.
# Reduced chi-squared =          1.039 for     57 degrees of freedom
# Null hypothesis probability =   3.949751e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.819e-08   3.205e-09
25- 50  1.119e-07   6.700e-09
50-150  2.453e-07   4.265e-08
15-150  4.154e-07   4.470e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.78177        (-1.62675      1.80987)
R1^2/D10^2  : 3.36377        (-1.42975      3.37582)
kT2 [keV]   : 22.0144        (-2.98082      5.10317)
R2^2/D10^2  : 0.127044    (-0.0753604   0.110704)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          40.07 using 59 PHA bins.
# Reduced chi-squared =         0.7285 for     55 degrees of freedom
# Null hypothesis probability =   9.347885e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.745e-08   9.900e-09
25- 50  1.204e-07   1.771e-08
50-150  2.326e-07   6.100e-08
15-150  4.004e-07   8.670e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.66483     ( -0.0703158   0.0708362 )
Norm@50keV  : 1.14433E-02    ( -0.00047584   0.000474827 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          69.16 using 59 PHA bins.
# Reduced chi-squared =          1.213 for     57 degrees of freedom
# Null hypothesis probability =   1.296020e-01

Photon flux (15-150 keV)    in 10.62 sec: 1.50160 ( -0.063538  0.0636542 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.12863e-06 ( -4.92041e-08  4.93542e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.852986     ( -0.332983   0.309554 )
Epeak [keV] : 71.0206      ( -8.22344 14.6456 )
Norm@50keV  : 2.90118E-02    ( -0.00849146   0.0131635 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.76 using 59 PHA bins.
# Reduced chi-squared =         0.8349 for     56 degrees of freedom
# Null hypothesis probability =   8.058879e-01

Photon flux (15-150 keV)    in 10.62 sec: 1.43582 ( -0.0675  0.06765 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.06831e-06 ( -5.4128e-08  5.42682e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.852915   ( -0.253313   0.356887 )
beta        : -10.0000    ( 10   3.55271e-15 )
Epeak [keV] : 71.0065      ( -7.61139 14.6362 )
Norm@50keV   : 2.90130E-02    ( -0.00849899   0.0131635 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.76 using 59 PHA bins.
# Reduced chi-squared =         0.8501 for     55 degrees of freedom
# Null hypothesis probability =   7.777742e-01

Photon flux (15-150 keV)    in 10.62 sec: 1.44595 ( 5.55405  -0.06506 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 4.37e-07
S(50-100 keV) = 4.90e-07

T90 vs. Hardness ratio plot

T90                                   = 18.6919999718666 sec.
Hardness ratio (energy fluence ratio) = 1.12128

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.24743
Count Ratio (50-100 keV) / (15-25 keV) = 0.785832

Mask shadow pattern

IMX = -5.998838619391779E-01, IMY = -1.273589604537065E-02

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.256000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.128000 -0.252000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
186.6951 -62.6380   32.0  47.1 -129.1  -0.2919  -0.4    8.0	GX 301-2
255.9905 -37.8322    1.5  44.6  -60.5   6.1398   7.9    0.7	4U 1700-377
264.9612 -44.4593    7.4  35.3  -57.4   0.4827   1.6    9.4	4U 1735-44
270.1806 -25.0724   25.3  50.3  -37.9   0.2947   0.5    5.6	GX 5-1
270.4789 -25.6189    7.5  49.7  -37.9  -0.9017  -1.6   12.1	GRS 1758-258
275.7195 -30.4969  312.1  43.4  -34.8  -0.0116  -0.0   13.2	H1820-303
285.1626 -24.7680   22.4  45.7  -20.7   0.1727   0.5   11.5	HT1900.1-2455
263.0286 -33.8398    2.6  45.2  -50.7   2.3943   4.5    2.0	GX 354-0
 11.9400 -44.7592    2.9  35.5  104.2   1.6249   3.9 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.252000 10.372600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
186.6053 -62.7634   14.3  47.0 -129.2   0.1402   0.8    1.5	GX 301-2
256.0439 -37.7857    6.3  44.6  -60.5  -0.2986  -1.8    4.4	4U 1700-377
264.6898 -44.3055    3.1  35.6  -57.5   0.2286   3.7    9.0	4U 1735-44
270.3539 -25.0951    8.6  50.2  -37.7  -0.1797  -1.3    3.9	GX 5-1
270.4435 -25.7102    8.8  49.6  -38.0   0.1705   1.3    7.9	GRS 1758-258
276.1243 -30.2360    5.1  43.5  -34.2  -0.1629  -2.3   13.0	H1820-303
285.1042 -24.7713   51.9  45.7  -20.8  -0.0155  -0.2    9.7	HT1900.1-2455
262.8462 -33.7719    5.1  45.3  -50.8  -0.2637  -2.3    8.1	GX 354-0
 66.4759 -77.2567    0.3  31.0  178.8   1.8647  40.2 ------	UNKNOWN
288.7990 -41.1448    2.2  29.3  -25.8   0.2246   5.3 ------	UNKNOWN
280.0401 -19.8748    2.8  51.8  -24.6   0.4232   4.2 ------	UNKNOWN
189.0198 -61.7762    2.6  47.4 -127.2   0.8161   4.4 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
61.372600 713.272600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.6565 -40.5939   10.3  46.0 -152.6   0.9285   1.1    6.3	Vela X-1
170.2791 -60.6285    1.5  34.5 -110.3   5.2411   7.7    1.1	Cen X-3
186.6178 -62.7406    4.2  35.3  -96.4   2.5595   2.8    2.1	GX 301-2
 92.0062 -25.4511    3.1  53.2  156.0   7.1981   3.8 ------	UNKNOWN
  2.5478 -61.7493    2.5  25.2   38.1   2.0501   4.6 ------	UNKNOWN
150.2312 -51.6255    3.2  38.8 -133.2   2.3847   3.6 ------	UNKNOWN
194.6300 -58.1504    5.1  40.8  -92.5   4.6149   2.3 ------	UNKNOWN

Plot creation:
Sat May 30 23:35:23 EDT 2015
