Special notes of this burst
Pre-slew 15.0-50.0 keV image (Event data)
#RAcent DECcent POSerr Theta Phi Peak_Cts SNR Name
12.257 -34.532 0.000 44.421 131.368 3.585 9.900 TRIG_00440635
Image time interval: 0.000 to 64.000 [sec]
Lightcurves
Notes:
- 1) The mask-weighted light curves are using the flight position.
- 2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
- 3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
- 4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
- 5) Time of each bin is in the middle of the bin.

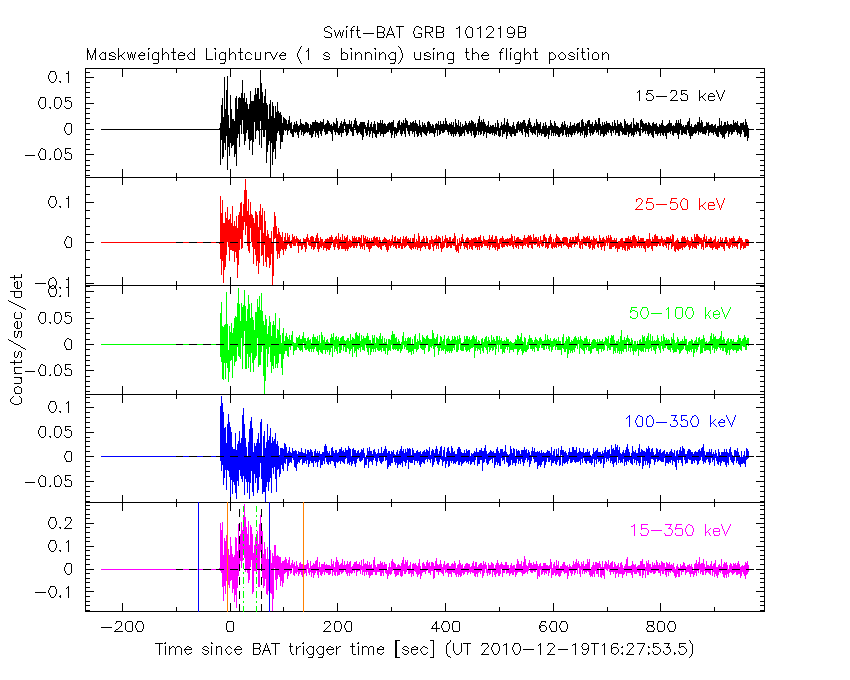

1 s binning
From T0-310 s to T0+310 s
From T100_start - 20 s to T100_end + 30 s
Full time interval
64 ms binning
Full time interval
From T100_start to T100_end
From T0-5 sec to T0+5 sec
16 ms binning
From T100_start-5 s to T100_start+5 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

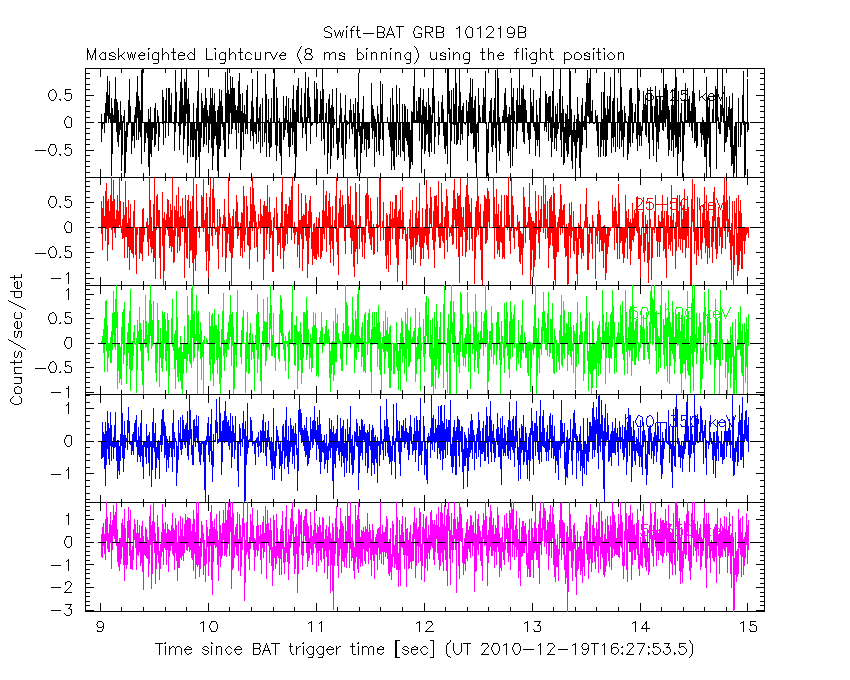

8 ms binning
From T100_start-3 s to T100_start+3 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000
2 ms binning
From T100_start-1 s to T100_start+1 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000
SN=5 or 10 sec. binning (whichever binning is satisfied first)
SN=5 or 10 sec. binning (T < 200 sec)
Quad-rate summed light curves (from T0-300s to T0+1000s)
The mask-weighted light curves based on cleaned DPHs
Spectral Evolution
Spectra
Notes:
- 1) The fitting includes the systematic errors.
- 2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
- 3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
Time averaged spectrum fit using the average DRM
Power-law model
Time interval is from 12.008 sec. to 61.160 sec.
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 1.76692 ( -0.24674 0.261683 )
Norm@50keV : 5.70431E-03 ( -0.000959538 0.000935433 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 52.33 using 59 PHA bins.
# Reduced chi-squared = 0.9180 for 57 degrees of freedom
# Null hypothesis probability = 6.508069e-01
Photon flux (15-150 keV) in 49.15 sec: 0.776188 ( -0.109252 0.109267 ) ph/cm2/s
Energy fluence (15-150 keV) : 2.5847e-06 ( -4.39517e-07 4.52542e-07 ) ergs/cm2

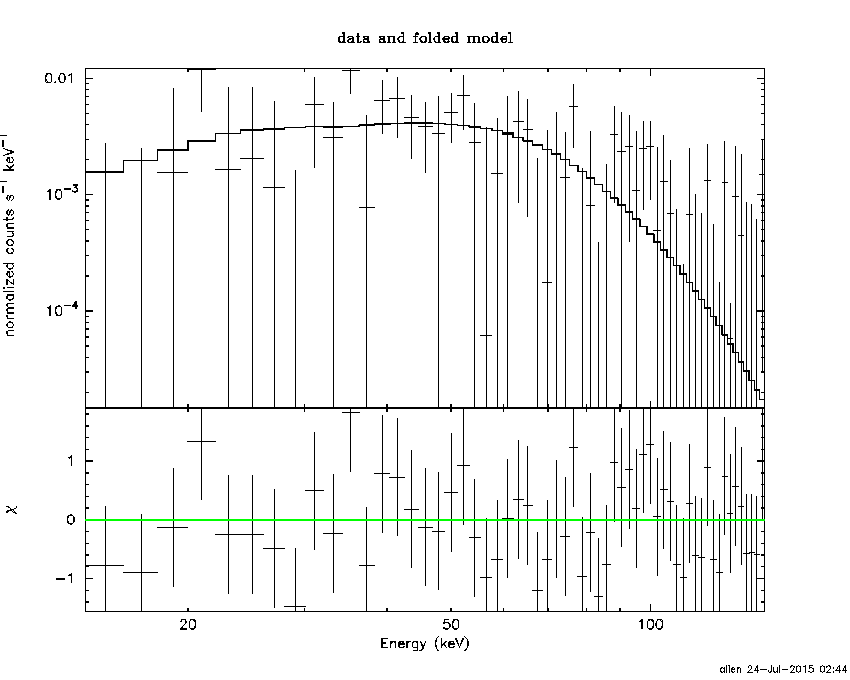

Cutoff power-law model
Time interval is from 12.008 sec. to 61.160 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 0.877752 ( -1.35218 0.991504 )
Epeak [keV] : 54.7666 ( -15.5493 -54.7667 )
Norm@50keV : 1.80176E-02 ( -0.0180174 0.0861455 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 50.27 using 59 PHA bins.
# Reduced chi-squared = 0.8978 for 56 degrees of freedom
# Null hypothesis probability = 6.904241e-01
Photon flux (15-150 keV) in 49.15 sec: 0.750231 ( -0.112905 0.113263 ) ph/cm2/s
Energy fluence (15-150 keV) : 2.36742e-06 ( -4.7098e-07 5.14414e-07 ) ergs/cm2

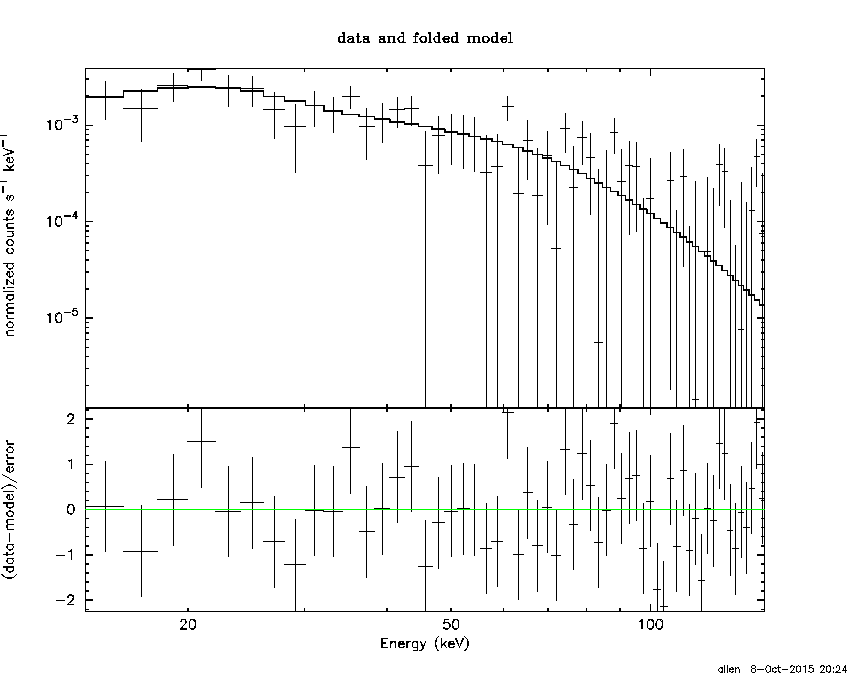

Band function
Time interval is from 12.008 sec. to 61.160 sec.
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : -0.877697 ( 1.09774 1.09774 )
beta : -9.72049 ( 9.72049 19.7205 )
Epeak [keV] : 54.7558 ( -42.2699 -54.7558 )
Norm@50keV : 1.80181E-02 ( -0.0180181 326.756 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 50.27 using 59 PHA bins.
# Reduced chi-squared = 0.9141 for 55 degrees of freedom
# Null hypothesis probability = 6.554521e-01
Photon flux (15-150 keV) in 49.15 sec: ( ) ph/cm2/s
Energy fluence (15-150 keV) : 0 ( 0 0 ) ergs/cm2

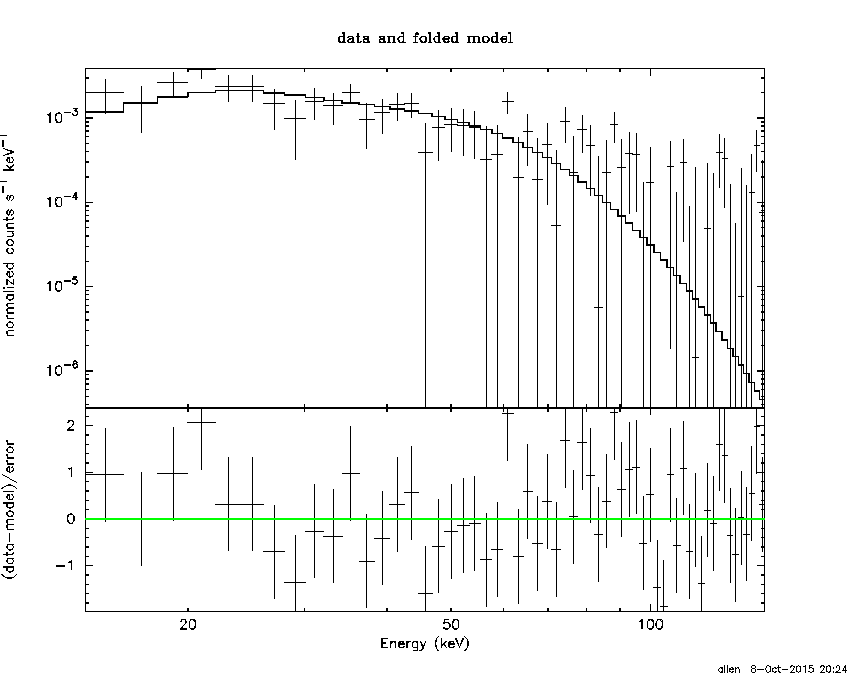

Single BB
Spectral model blackbody:
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 11.5117 (-1.82568 2.16506)
R^2/D10^2 : 0.221817 (-0.103682 0.194775)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 57.28 using 59 PHA bins.
# Reduced chi-squared = 1.005 for 57 degrees of freedom
# Null hypothesis probability = 4.646055e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 3.042e-07 7.655e-08
25- 50 9.107e-07 1.863e-07
50-150 7.051e-07 2.126e-07
15-150 1.920e-06 3.829e-07

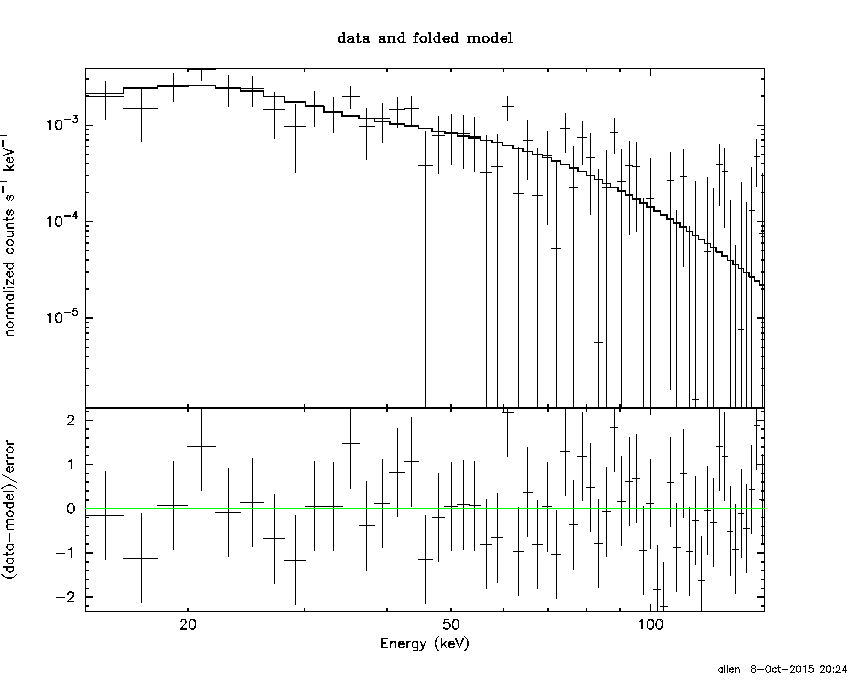

Thermal bremsstrahlung (OTTB)
Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 99.3177 (-39.1671 -99.3177)
Norm : 3.45670 (-0.604196 0.78083)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 50.64 using 59 PHA bins.
# Reduced chi-squared = 0.8885 for 57 degrees of freedom
# Null hypothesis probability = 7.108627e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 4.441e-07 8.358e-08
25- 50 7.668e-07 1.573e-07
50-150 1.238e-06 7.439e-07
15-150 2.449e-06 9.395e-07

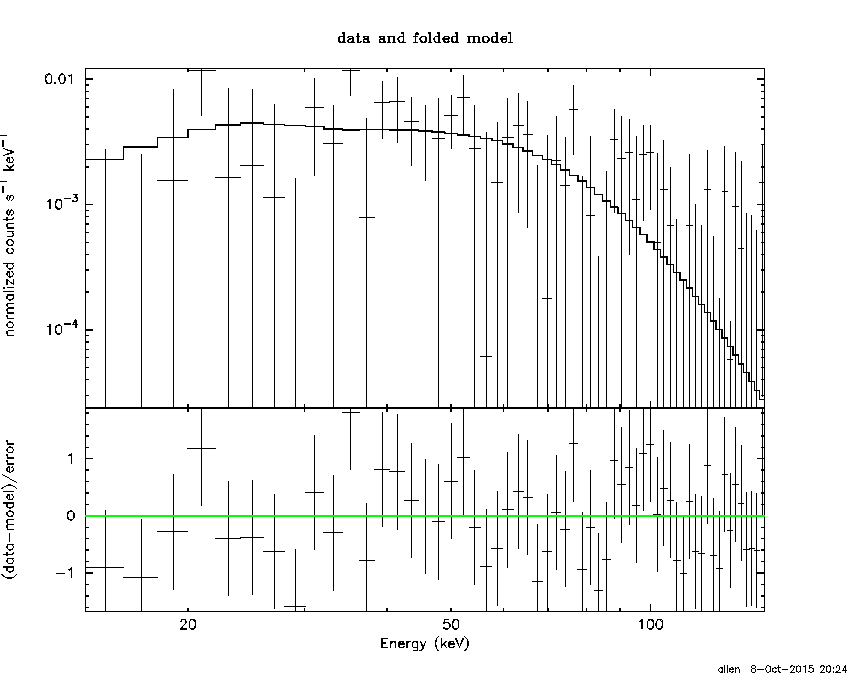

Double BB
Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT1 [keV] : 5.77819 (-3.03282 3.87591)
R1^2/D10^2 : 1.52825 (-1.15048 27.7032)
kT2 [keV] : 17.5778 (-5.52603 25.7785)
R2^2/D10^2 : 3.47196E-02 (-0.0318611 0.125289)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 50.18 using 59 PHA bins.
# Reduced chi-squared = 0.9123 for 55 degrees of freedom
# Null hypothesis probability = 6.590729e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 4.214e-07 2.332e-07
25- 50 7.721e-07 4.023e-07
50-150 1.099e-06 6.441e-07
15-150 2.293e-06 1.229e-06
Peak spectrum fit
Power-law model
Time interval is from 26.836 sec. to 27.836 sec.
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 1.71650 ( -0.411717 0.394995 )
Norm@50keV : 1.24509E-02 ( -0.00468114 0.00467152 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 46.90 using 59 PHA bins.
# Reduced chi-squared = 0.8229 for 57 degrees of freedom
# Null hypothesis probability = 8.275773e-01
Photon flux (15-150 keV) in 1 sec: 1.66843 ( -0.679108 0.698176 ) ph/cm2/s
Energy fluence (15-150 keV) : 1.15171e-07 ( -4.29286e-08 4.2975e-08 ) ergs/cm2
Cutoff power-law model
Time interval is from 26.836 sec. to 27.836 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: -2.69721 ( 2.69921 2.30786 )
Epeak [keV] : 65.2884 ( -17.5683 13.5185 )
Norm@50keV : 1.09481 ( -1.09597 5608.43 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 33.47 using 59 PHA bins.
# Reduced chi-squared = 0.5978 for 56 degrees of freedom
# Null hypothesis probability = 9.927075e-01
Photon flux (15-150 keV) in 1 sec: 1.91896 ( -0.684 0.64305 ) ph/cm2/s
Energy fluence (15-150 keV) : 1.6144e-07 ( -6.90421e-08 5.1372e-08 ) ergs/cm2
Band function
Time interval is from 26.836 sec. to 27.836 sec.
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : 5.00000 ( -4.32787 -5 )
beta : -3.61970 ( 3.61971 1.10389 )
Epeak [keV] : 54.6217 ( -11.8236 12.1656 )
Norm@50keV : 19.8327 ( -5.63073 68.2809 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 32.87 using 59 PHA bins.
# Reduced chi-squared = 0.5976 for 55 degrees of freedom
# Null hypothesis probability = 9.922596e-01
Photon flux (15-150 keV) in 1 sec: ( ) ph/cm2/s
Energy fluence (15-150 keV) : 0 ( 0 0 ) ergs/cm2
Single BB
Spectral model blackbody:
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 17.1606 (-3.62551 3.53302)
R^2/D10^2 : 0.184955 (-0.100386 0.233703)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 34.15 using 59 PHA bins.
# Reduced chi-squared = 0.5991 for 57 degrees of freedom
# Null hypothesis probability = 9.929590e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 1.106e-08 6.092e-09
25- 50 4.932e-08 2.323e-08
50-150 1.040e-07 5.236e-08
15-150 1.644e-07 6.886e-08
Thermal bremsstrahlung (OTTB)
Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 127.833 (-59.8263 -122.973)
Norm : 7.93276 (-3.22126 3.9663)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 43.69 using 59 PHA bins.
# Reduced chi-squared = 0.7665 for 57 degrees of freedom
# Null hypothesis probability = 9.024526e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 2.060e-08 1.302e-08
25- 50 3.725e-08 2.268e-08
50-150 6.853e-08 4.705e-08
15-150 1.264e-07 8.405e-08
Double BB
Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT1 [keV] : 3.59160E-02 (3.28998 -0.035916)
R1^2/D10^2 : 6.58535E+08 (-6.58535e+08 -6.58535e+08)
kT2 [keV] : 17.1599 (-3.62478 3.53379)
R2^2/D10^2 : 0.184984 (-0.100416 0.233675)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 34.15 using 59 PHA bins.
# Reduced chi-squared = 0.6209 for 55 degrees of freedom
# Null hypothesis probability = 9.877630e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 0.000e+00 0.000e+00
25- 50 0.000e+00 0.000e+00
50-150 0.000e+00 0.000e+00
15-150 0.000e+00 0.000e+00

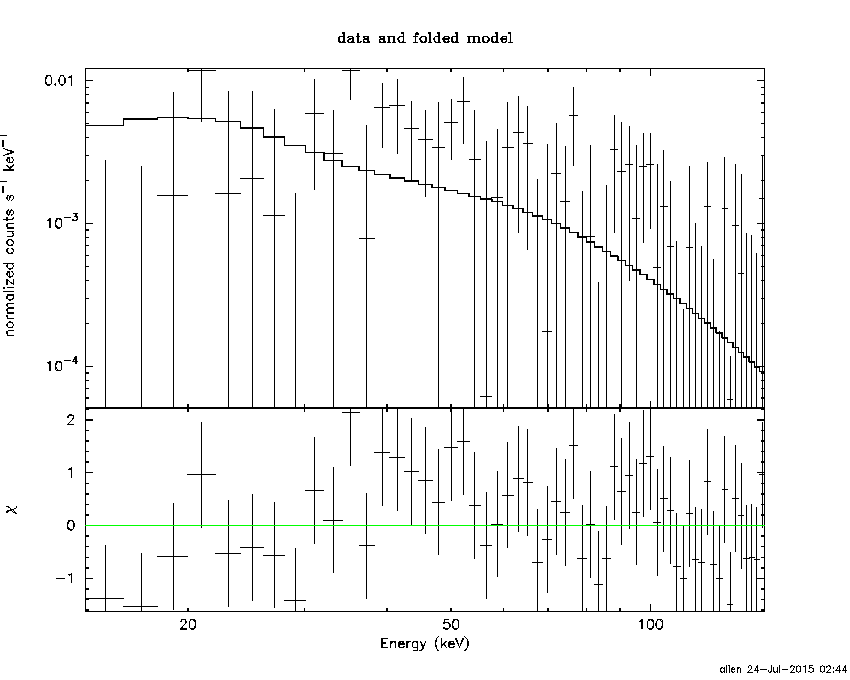

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)
Power-law model
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 1.76692 ( -0.24674 0.261683 )
Norm@50keV : 5.70431E-03 ( -0.000959538 0.000935433 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 52.33 using 59 PHA bins.
# Reduced chi-squared = 0.9180 for 57 degrees of freedom
# Null hypothesis probability = 6.508069e-01
Photon flux (15-150 keV) in 49.15 sec: 0.776188 ( -0.109252 0.109267 ) ph/cm2/s
Energy fluence (15-150 keV) : 2.5847e-06 ( -4.39517e-07 4.52542e-07 ) ergs/cm2
Cutoff power-law model
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 0.877752 ( -1.35218 0.991504 )
Epeak [keV] : 54.7666 ( -15.5493 -54.7667 )
Norm@50keV : 1.80176E-02 ( -0.0180174 0.0861455 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 50.27 using 59 PHA bins.
# Reduced chi-squared = 0.8978 for 56 degrees of freedom
# Null hypothesis probability = 6.904241e-01
Photon flux (15-150 keV) in 49.15 sec: 0.750231 ( -0.112905 0.113263 ) ph/cm2/s
Energy fluence (15-150 keV) : 2.36742e-06 ( -4.7098e-07 5.14414e-07 ) ergs/cm2
Band function
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : -0.877697 ( 1.09774 1.09774 )
beta : -9.72049 ( 9.72049 19.7205 )
Epeak [keV] : 54.7558 ( -34.9253 -54.7558 )
Norm@50keV : 1.80181E-02 ( -0.0180181 326.756 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 50.27 using 59 PHA bins.
# Reduced chi-squared = 0.9141 for 55 degrees of freedom
# Null hypothesis probability = 6.554521e-01
Photon flux (15-150 keV) in 49.15 sec: ( ) ph/cm2/s
Energy fluence (15-150 keV) : 0 ( 0 0 ) ergs/cm2
S(25-50 keV) vs. S(50-100 keV) plot
S(25-50 keV) = 7.19e-07
S(50-100 keV) = 8.45e-07
T90 vs. Hardness ratio plot
T90 = 41.8560000061989 sec.
Hardness ratio (energy fluence ratio) = 1.17524
Color vs. Color plot
Count Ratio (25-50 keV) / (15-25 keV) = 1.30083
Count Ratio (50-100 keV) / (15-25 keV) = 0.940057
Mask shadow pattern
IMX = -0.647677904434, IMY = -0.735470850714
TIME vs. PHA plot around the trigger time
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

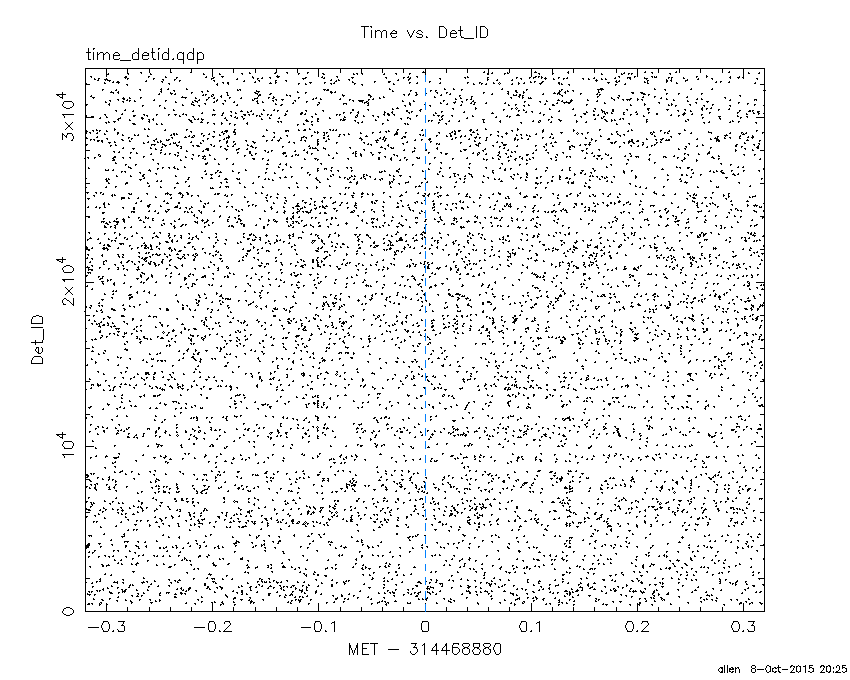

TIME vs. DetID plot around the trigger time
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000
100 us light curve (15-350 keV)
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000
Spacecraft aspect plot
Bright source in the pre-burst/pre-slew/post-slew images
Pre-burst image of 15-350 keV band
Time interval of the image:
-4.499400 12.008000
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
285.0623 -24.7992 5.9 35.5 -89.6 0.2372 2.0 7.4 HT1900.1-2455
288.8440 10.9759 2.5 47.1 -36.4 0.6050 4.6 3.3 GRS 1915+105
Pre-slew background subtracted image of 15-350 keV band
Time interval of the image:
12.008000 61.160000
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
285.1335 -24.8016 9.3 35.4 -89.6 -0.5033 -1.2 8.9 HT1900.1-2455
288.8685 10.9442 3.2 47.1 -36.5 -1.6012 -3.6 4.1 GRS 1915+105
344.6287 -5.2491 2.0 26.0 67.8 1.5233 5.6 ------ UNKNOWN
277.3681 -41.7394 2.5 43.6 -115.2 3.6041 4.7 ------ UNKNOWN
Post-slew image of 15-350 keV band
Time interval of the image:
135.500600 963.025200
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
43.0397 -16.3316 3.0 33.0 92.0 5.2354 3.9 ------ UNKNOWN
341.2819 -46.8404 3.7 26.3 -99.7 2.4165 3.1 ------ UNKNOWN
333.8764 12.6124 2.6 59.5 -17.0 16.9561 4.4 ------ UNKNOWN
333.7024 4.1373 3.2 53.0 -23.5 6.4485 3.6 ------ UNKNOWN
324.0159 -7.1215 4.0 52.0 -42.2 10.9503 2.9 ------ UNKNOWN
319.9409 -44.9437 2.8 40.8 -93.4 13.4002 4.1 ------ UNKNOWN
Plot creation:
Thu Oct 8 20:25:46 EDT 2015
