TDRSS scaled map for 441454
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Sun 02 Jan 11 18:53:44 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 441454, Seg_Num: 0
GRB_RA: 245.879d {+16h 23m 31s} (J2000),
246.013d {+16h 24m 03s} (current),
245.273d {+16h 21m 05s} (1950)
GRB_DEC: +7.619d {+07d 37' 09"} (J2000),
+7.594d {+07d 35' 39"} (current),
+7.734d {+07d 44' 04"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 0 [cnts] Image_Peak=1980 [image_cnts]
TRIGGER_DUR: 64.000 [sec]
TRIGGER_INDEX: 20000 E_range: 15-50 keV
BKG_INTEN: 0 [cnts]
BKG_TIME: 0.00 SOD {00:00:00.00} UT
BKG_DUR: 0 [sec]
GRB_DATE: 15563 TJD; 2 DOY; 11/01/02
GRB_TIME: 67945.47 SOD {18:52:25.47} UT
GRB_PHI: -14.93 [deg]
GRB_THETA: 36.90 [deg]
SOLN_STATUS: 0x13
RATE_SIGNIF: 0.00 [sigma]
IMAGE_SIGNIF: 11.29 [sigma]
MERIT_PARAMS: +1 +0 +0 +6 +1 +1 +0 +0 -67 +0
SUN_POSTN: 283.07d {+18h 52m 16s} -22.89d {-22d 53' 36"}
SUN_DIST: 47.36 [deg] Sun_angle= 2.5 [hr] (West of Sun)
MOON_POSTN: 262.34d {+17h 29m 23s} -24.06d {-24d 03' 39"}
MOON_DIST: 35.44 [deg]
MOON_ILLUM: 3 [%]
GAL_COORDS: 21.93, 36.23 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 242.47, 28.78 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is an image trigger. (The RATE_SIGNIF & BKG_{INTEN, TIME, DUR} are undefined.)
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 225.27,-10.65 [deg].
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Sun 02 Jan 11 19:04:31 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 441454, Seg_Num: 0
POINT_RA: 279.239d {+18h 36m 57s} (J2000)
POINT_DEC: +26.625d {+26d 37' 31"} (J2000)
MAP_DATE: 15563 TJD; 2 DOY; 11/01/02
MAP_TIME: 67945.47 SOD {18:52:25.47} UT
TRIGGER_DUR: 64.000 [sec]
SOLN_STATUS: 0x13
RATE_SIGNIF: 0.00 [sigma]
IMAGE_SIGNIF: 11.29 [sigma]
MAP_URL: sw00441454000msbsm.fits
SUN_POSTN: 283.08d {+18h 52m 18s} -22.89d {-22d 53' 33"}
MOON_POSTN: 262.45d {+17h 29m 49s} -24.06d {-24d 03' 25"}
MOON_ILLUM: 3 [%]
GAL_COORDS: 55.63, 14.75 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 282.81, 49.65 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS:
COMMENTS: The next comments were copied from the BAT_POS Notice:
Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (245.879, +7.619).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 245.879 +7.619 1.0
No source found
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
244.9795 -15.6402 0.0 53.8 -37.9 1.5630 3.3 0.0 Sco X-1
254.4576 35.3425 0.0 22.9 38.4 0.6542 6.6 0.0 Her X-1
262.9342 -16.9617 0.0 46.4 -58.3 -0.2375 -0.4 0.0 GX 9+9
273.8000 -12.0833 0.0 39.1 -71.6 -0.0993 -0.5 0.0 4U 1812-12
274.0058 -14.0364 0.0 41.0 -72.3 0.1203 0.4 0.0 GX 17+2
278.7590 32.6973 0.0 6.1 96.2 0.0125 0.2 0.0 3C 382
279.9896 5.0358 0.0 21.6 -82.1 0.1418 1.6 0.0 Ser X-1
283.8804 -2.6067 0.0 29.6 -89.5 0.0924 0.8 0.0 XTE J1855-026
287.4138 9.8292 0.0 18.5 -106.3 0.2297 2.8 0.0 4U 1907+09
287.7208 7.6667 0.0 20.6 -104.6 -0.1578 -1.9 0.0 4U 1909+07
287.9565 4.9827 0.0 23.2 -102.6 -0.2106 -2.3 0.0 SS 433
288.5083 9.8883 0.0 18.9 -109.5 0.0861 1.0 0.0 IGR J19140+0951
288.7983 10.9456 0.0 18.1 -111.8 0.3992 4.6 0.0 GRS 1915+105
297.3771 30.2067 0.0 16.3 173.0 0.0365 0.5 0.0 KS 1947+300
298.9292 32.1000 0.0 18.0 167.5 0.0830 1.0 0.0 4U 1954+31
299.5903 35.2016 0.0 19.4 158.8 0.7533 9.3 0.0 Cyg X-1
299.8682 40.7339 0.0 22.1 145.1 0.0109 0.1 0.0 Cyg A
308.0633 37.6375 0.0 26.6 158.3 0.1822 1.8 0.0 EXO 2030+375
308.1103 40.9526 0.0 27.8 151.5 0.2129 1.9 0.0 Cyg X-3
314.6979 41.7770 0.0 32.7 153.2 -0.1812 -1.3 0.0 GRO J2058+42
321.1638 50.9739 0.0 39.9 140.9 -0.3371 -1.5 0.0 IGR J21247+5058
322.4929 12.1674 0.0 43.0 -159.0 -0.0443 -0.3 0.0 4U 2129+12
323.4320 51.1236 0.0 41.3 141.5 0.1065 0.4 0.0 RX J2133.7+5107
326.1717 38.3217 0.0 40.8 161.2 -0.1799 -1.0 0.0 Cyg X-2
331.9808 54.5197 0.0 47.2 138.9 0.0726 0.2 0.0 4U 2206+54
267.4912 43.2312 3.3 19.1 73.1 0.3682 3.5 ------ UNKNOWN
245.8833 7.6195 1.2 36.9 -14.9 1.1203 9.9 ------ UNKNOWN
238.2127 1.4709 2.3 46.7 -15.7 0.8184 5.1 ------ UNKNOWN
340.5328 8.9594 2.1 60.4 -165.2 4.9291 5.5 ------ UNKNOWN
331.9675 5.0716 2.2 54.6 -156.5 1.4094 5.3 ------ UNKNOWN
315.7197 -8.6691 2.8 50.0 -130.2 2.7164 4.2 ------ UNKNOWN
318.4505 -8.0378 2.3 51.5 -133.2 3.5039 4.9 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
244.9795 -15.6402 0.0 53.8 -37.9 1.5630 3.3 0.0 Sco X-1
254.4576 35.3425 0.0 22.9 38.4 0.6542 6.6 0.0 Her X-1
268.3680 -1.4526 0.0 30.0 -57.9 0.2922 2.8 0.0 SW J1753.5-0127
274.0058 -14.0364 0.0 41.0 -72.3 0.1210 0.4 0.0 GX 17+2
288.7983 10.9456 0.0 18.1 -111.8 0.3998 4.5 0.0 GRS 1915+105
299.5903 35.2016 0.0 19.4 158.8 0.7531 9.3 0.0 Cyg X-1
308.1103 40.9526 0.0 27.8 151.5 0.2129 1.9 0.0 Cyg X-3
326.1717 38.3217 0.0 40.8 161.2 -0.1799 -1.0 0.0 Cyg X-2
267.4912 43.2312 3.3 19.1 73.1 0.3682 3.5 ------ UNKNOWN
245.8833 7.6195 1.2 36.9 -14.9 1.1203 9.9 ------ UNKNOWN
238.2127 1.4709 2.3 46.7 -15.7 0.8184 5.1 ------ UNKNOWN
340.5328 8.9594 2.1 60.4 -165.2 4.9291 5.5 ------ UNKNOWN
331.9675 5.0716 2.2 54.6 -156.5 1.4094 5.3 ------ UNKNOWN
315.7197 -8.6691 2.8 50.0 -130.2 2.7164 4.2 ------ UNKNOWN
318.4505 -8.0378 2.3 51.5 -133.2 3.5039 4.9 ------ UNKNOWN
Search for UNKNOWN source R.A. = 238.2127 Dec. = +1.4709 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 245.8833 Dec. = +7.6195 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 267.4912 Dec. = +43.2312 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 315.7197 Dec. = -8.6691 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 318.4505 Dec. = -8.0378 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 331.9675 Dec. = +5.0716 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 340.5328 Dec. = +8.9594 (search radius of 3 degrees)
No bright source found.
Result of batcelldetect cleaning the bright sources
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
244.9795 -15.6402 0.0 53.8 -37.9 13.7738 3.3 0.0 Sco X-1
254.4576 35.3425 0.0 22.9 38.4 5.7696 6.6 0.0 Her X-1
262.9342 -16.9617 0.0 46.4 -58.3 -2.0841 -0.4 0.0 GX 9+9
273.8000 -12.0833 0.0 39.1 -71.6 -0.8725 -0.5 0.0 4U 1812-12
274.0058 -14.0364 0.0 41.0 -72.3 1.0542 0.4 0.0 GX 17+2
278.7590 32.6973 0.0 6.1 96.2 0.1114 0.2 0.0 3C 382
279.9896 5.0358 0.0 21.6 -82.1 1.2508 1.6 0.0 Ser X-1
283.8804 -2.6067 0.0 29.6 -89.5 0.8210 0.8 0.0 XTE J1855-026
287.4138 9.8292 0.0 18.5 -106.3 2.0257 2.8 0.0 4U 1907+09
287.7208 7.6667 0.0 20.6 -104.6 -1.3928 -1.9 0.0 4U 1909+07
287.9565 4.9827 0.0 23.2 -102.6 -1.8572 -2.3 0.0 SS 433
288.5083 9.8883 0.0 18.9 -109.4 0.7587 1.0 0.0 IGR J19140+0951
288.7983 10.9456 0.0 18.1 -111.8 3.5243 4.6 0.0 GRS 1915+105
297.3771 30.2067 0.0 16.3 173.0 0.3229 0.5 0.0 KS 1947+300
298.9292 32.1000 0.0 18.0 167.5 0.7304 1.0 0.0 4U 1954+31
299.5903 35.2016 0.0 19.4 158.8 6.6478 9.3 0.0 Cyg X-1
299.8682 40.7339 0.0 22.1 145.1 0.0990 0.1 0.0 Cyg A
308.0633 37.6375 0.0 26.6 158.3 1.6105 1.8 0.0 EXO 2030+375
308.1103 40.9526 0.0 27.8 151.5 1.8758 1.9 0.0 Cyg X-3
314.6979 41.7770 0.0 32.7 153.2 -1.5954 -1.3 0.0 GRO J2058+42
321.1638 50.9739 0.0 39.9 140.9 -2.9840 -1.5 0.0 IGR J21247+5058
322.4929 12.1674 0.0 43.0 -159.0 -0.3878 -0.3 0.0 4U 2129+12
323.4320 51.1236 0.0 41.3 141.5 0.9260 0.4 0.0 RX J2133.7+5107
326.1717 38.3217 0.0 40.8 161.2 -1.5742 -1.0 0.0 Cyg X-2
331.9808 54.5197 0.0 47.2 138.9 0.6234 0.2 0.0 4U 2206+54
267.4916 43.2312 3.3 19.1 73.1 3.2503 3.5 ------ UNKNOWN
245.8837 7.6196 1.2 36.9 -14.9 9.8905 9.9 ------ UNKNOWN
238.2131 1.4709 2.3 46.7 -15.7 7.2264 5.1 ------ UNKNOWN
340.5331 8.9592 2.1 60.4 -165.2 43.5711 5.5 ------ UNKNOWN
331.9679 5.0715 2.2 54.6 -156.5 12.4445 5.3 ------ UNKNOWN
315.7200 -8.6692 2.8 50.0 -130.2 23.9778 4.2 ------ UNKNOWN
318.4507 -8.0379 2.3 51.5 -133.2 30.9358 4.9 ------ UNKNOWN
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)

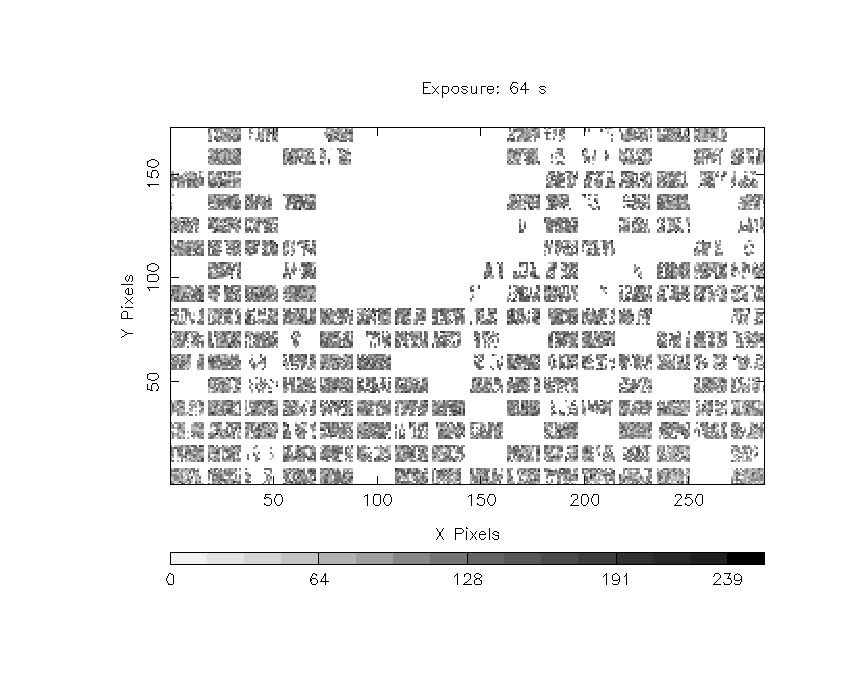

DPI of the scaled map

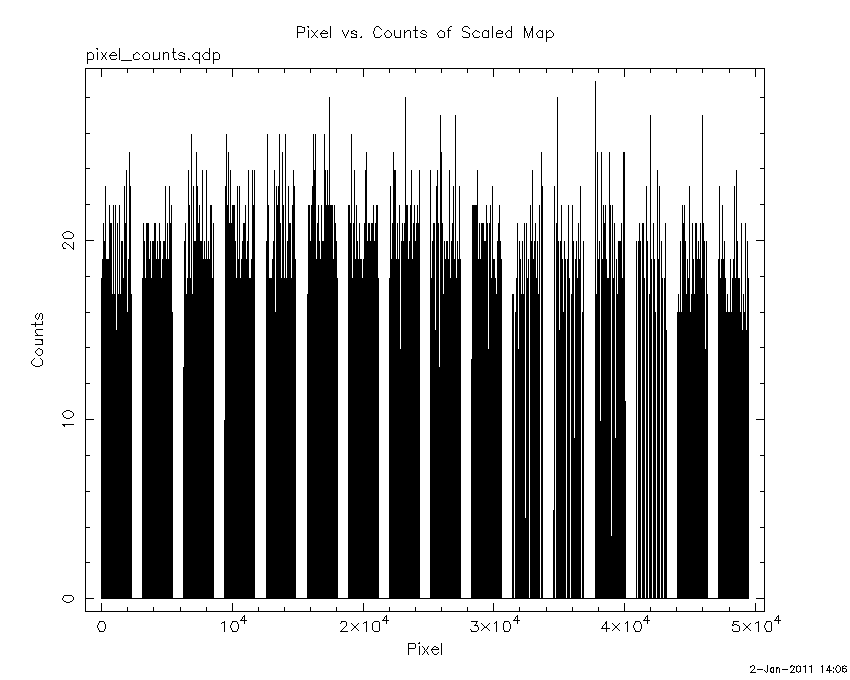

Pixel vs. Counts plot
The data/results are in /local/data/raid2/prebascript/trigger441454/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Sun Jan 2 14:06:06 EST 2011
