Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sat Feb 19 00:42:50 EST 2011
             Host Name: gcn5
   Current Working Dir: /local/data/raid16/prebascript_archive/trigger445776/GCN5_download_cron
======================================================================

  Trigger: 00445776      Segment: 000

  BAT Trigger Time: 319705907.128   [s; MET]
      Trigger Stop: 319705907.136   [s; MET]
               UTC: 2011-02-18T07:11:40.452720    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 280.306214267364   Dec: -4.8989572973428  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.13
     Image Trigger?:     NO
     Rate S/N Ratio:     18.9472953214964  [ if not an image trigger ]
     Image S/N Ratio:    7.13

  Flight Position:   [ source = BAT ]
    RA: 280.306214267364   Dec: -4.8989572973428  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 280.296077832392   Dec: -4.87386502861791  [deg; J2000]
        { 18h 41m 11.1s , -04d 52' 25.9" }
         +/- 2.77655301776487 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.63118888184175 [arcmin] (formal 1-sigma fit error)
    SNR: 7.07193763130521

  Angular difference between Flight and Ground position is 1.622913 arcmin

  Partial Coding Fraction: 1.015625    [ including projection effects ]

  Duration
     T90: 0.0079999566078186 +/- 0.00565686571343518
        Measured from: 0
                   to: 0.0079999566078186     [s; relative to TRIGTIME]
     T50: 0.0079999566078186 +/- 0.004
        Measured from: 0
                   to: 0.0079999566078186     [s; relative to TRIGTIME]

    WARNING: battblocks failed.  Used TDRSS fore/background intervals

  Fluence
     Peak Flux  (peak 0.0079999566078186 second)
        Measured from: -2.98023223876953e-08
                   to: 0.00799992680549622     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0
                   to: 0.0079999566078186     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.003831   0.005700   0.002350   0.000544
           0.000929   0.001034   0.000796   0.000486 [error]
 Peak      0.003831   0.005700   0.002350   0.000544
           0.000929   0.001034   0.000796   0.000486 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.13e-09 8.14e-10 3.88e-10 2.61e-10 2.46e-09 2.61e-09   erg/cm2
              Error 3.84e-10 2.98e-10 2.30e-10 2.97e-10 8.46e-10 9.48e-10   erg/cm2
Peak flux Power-law 4.70e+00 1.91e+00 4.55e-01 1.32e-01 7.15e+00 7.21e+00   ph/cm2/s
              Error 1.62e+00 6.84e-01 2.63e-01 1.43e-01 2.30e+00 2.32e+00   ph/cm2/s

Fluence   Cutoff-PL 6.53e-10 2.91e-09 3.61e-10 4.60e-14 3.92e-09 3.93e-09   erg/cm2
              Error 3.85e-10 8.03e-10 3.49e-10 1.18e-12 9.55e-10 9.58e-10   erg/cm2
Peak flux Cutoff-PL 2.43e+00 6.58e+00 5.01e-01 3.43e-05 9.50e+00 9.50e+00   ph/cm2/s
              Error 1.52e+00 1.75e+00 3.75e-01 2.35e+00 0.00e+00 0.00e+00   ph/cm2/s

Fluence        Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.063    0.523    -      -           2.48e-02 1.19e-02   56.570 57
CPL  -9.003    0.000      35.1    3.6      4.80e+05 0.00e+00   33.130 56

The chi2 of BB fit is  which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.063    0.523    -      -           2.48e-02 1.19e-02   56.570 57
CPL  -9.003    0.000      35.1    3.6      4.80e+05 0.00e+00   33.130 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.008    0.000    0.008
T90     0.008    0.000    0.008
T50     0.008    0.000    0.008
Peak    0.008   -0.000    0.008

Click here for the BAT GCN circular template


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  280.2961  -4.8739 0.0271   15.6 -161.1       0.0119     7.1  TRIG_00445776
------------------------------------------

Foreground time interval of the image:
  0.000   0.008 (delta_t =   0.008 [sec])
Background time interval of the image:
-239.128  -3.128 (delta_t = 236.000 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

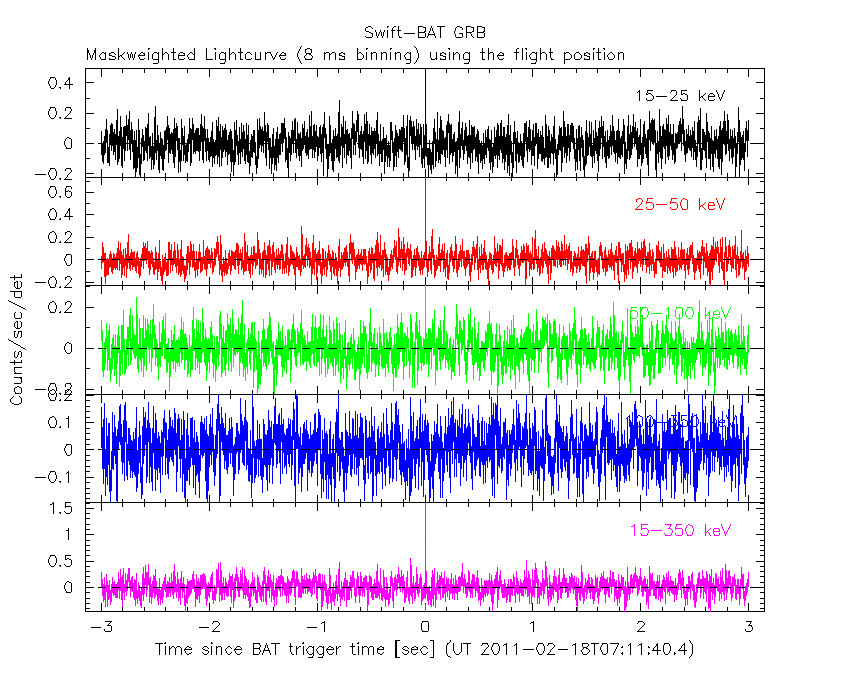

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Flight mask-tagged light curves

Caution: Mask-weight map is always using the same on-axis map

Quad-rate summed light curves (from T0-300 to T0+1000)

The mask-weighted light curves based on cleaned DPHs

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from    0.000 sec. to    0.008 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.06294     ( -0.446206   0.599848 )
Norm@50keV  : 2.48381E-02    ( -0.011891   0.0118925 )
------------------------------------------------------------
# Chi-Squared =          56.57 using 59 PHA bins.
# Reduced chi-squared =         0.9924 for     57 degrees of freedom
# Null hypothesis probability =   4.912674e-01

Photon flux (15-150 keV)    in 0.008 sec: 7.15325 ( -2.30061  2.30061 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.45569e-09 ( -8.3824e-10  8.53424e-10 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.000 sec. to    0.008 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -9.00325     (     )
Epeak [keV] : 35.0791      ( -3.65846 3.58473 )
Norm@50keV  : 4.80455E+05    (     )
------------------------------------------------------------
# Chi-Squared =          33.13 using 59 PHA bins.
# Reduced chi-squared =         0.5915 for     56 degrees of freedom
# Null hypothesis probability =   9.936039e-01

Photon flux (15-150 keV)    in 0.008 sec: 9.50277 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.92482e-09 ( -9.50056e-10  9.60192e-10 ) ergs/cm2

Band function

Time interval is from    0.000 sec. to    0.008 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.38550   ( -4.2676   2.20044 )
beta        : -9.37167    ( 10   20 )
Epeak [keV] : 33.2516      ( -3.4819 4.03741 )
Norm@50keV   : 1013.12    ( -1013.12   361.333 )
------------------------------------------------------------
# Chi-Squared =          35.03 using 59 PHA bins.
# Reduced chi-squared =         0.6370 for     55 degrees of freedom
# Null hypothesis probability =   9.835853e-01

Photon flux (15-150 keV)    in 0.008 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB



Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    :   (  )
R^2/D10^2   :   (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25
25- 50
50-150
15-150

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    :        (      )
Norm        :        (     )
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25
25- 50
50-150
15-150

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   :         (      )
R1^2/D10^2  :         (      )
kT2 [keV]   :         (      )
R2^2/D10^2  :     (   )
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25
25- 50
50-150
15-150

Peak spectrum fit

Power-law model

Time interval is from    0.000 sec. to    0.008 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.06294     ( -0.446206   0.599848 )
Norm@50keV  : 2.48381E-02    ( -0.011891   0.0118925 )
------------------------------------------------------------
# Chi-Squared =          56.57 using 59 PHA bins.
# Reduced chi-squared =         0.9924 for     57 degrees of freedom
# Null hypothesis probability =   4.912674e-01

Photon flux (15-150 keV)    in 0.008 sec: 7.15325 ( -2.30061  2.30061 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.45569e-09 ( -8.3824e-10  8.53424e-10 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.000 sec. to    0.008 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -9.00325     (     )
Epeak [keV] : 35.0791      ( -3.65846 3.58473 )
Norm@50keV  : 4.80455E+05    (     )
------------------------------------------------------------
# Chi-Squared =          33.13 using 59 PHA bins.
# Reduced chi-squared =         0.5915 for     56 degrees of freedom
# Null hypothesis probability =   9.936039e-01

Photon flux (15-150 keV)    in 0.008 sec: 9.50277 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.92482e-09 ( -9.50056e-10  9.60192e-10 ) ergs/cm2

Band function

Time interval is from    0.000 sec. to    0.008 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.38550   ( -4.2676   2.20044 )
beta        : -9.37167    ( 10   20 )
Epeak [keV] : 33.2516      ( -3.48191 4.03741 )
Norm@50keV   : 1013.12    ( -1013.12   361.332 )
------------------------------------------------------------
# Chi-Squared =          35.03 using 59 PHA bins.
# Reduced chi-squared =         0.6370 for     55 degrees of freedom
# Null hypothesis probability =   9.835853e-01

Photon flux (15-150 keV)    in 0.008 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB



Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    :   (  )
R^2/D10^2   :   (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25
25- 50
50-150
15-150

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    :        (      )
Norm        :        (     )
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25
25- 50
50-150
15-150

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   :         (      )
R1^2/D10^2  :         (      )
kT2 [keV]   :         (      )
R2^2/D10^2  :     (   )
------------------------------------------------------------

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25
25- 50
50-150
15-150

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.06294     ( -0.446206   0.599848 )
Norm@50keV  : 2.48381E-02    ( -0.011891   0.0118925 )
------------------------------------------------------------
# Chi-Squared =          56.57 using 59 PHA bins.
# Reduced chi-squared =         0.9924 for     57 degrees of freedom
# Null hypothesis probability =   4.912674e-01

Photon flux (15-150 keV)    in 0.008 sec: 7.15325 ( -2.30061  2.30061 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.45569e-09 ( -8.3824e-10  8.53424e-10 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -9.00325     (     )
Epeak [keV] : 35.0791      ( -3.65846 3.58473 )
Norm@50keV  : 4.80455E+05    (     )
------------------------------------------------------------
# Chi-Squared =          33.13 using 59 PHA bins.
# Reduced chi-squared =         0.5915 for     56 degrees of freedom
# Null hypothesis probability =   9.936039e-01

Photon flux (15-150 keV)    in 0.008 sec: 9.50277 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.92482e-09 ( -9.50056e-10  9.60192e-10 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.38521   ( -4.2676   2.20044 )
beta        : -9.37167    ( 10   20 )
Epeak [keV] : 33.2619      ( -3.50349 4.01101 )
Norm@50keV   : 1010.82    ( -1010.82   363.535 )
------------------------------------------------------------
# Chi-Squared =          35.03 using 59 PHA bins.
# Reduced chi-squared =         0.6370 for     55 degrees of freedom
# Null hypothesis probability =   9.835904e-01

Photon flux (15-150 keV)    in 0.008 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 8.14288e-10
S(50-100 keV) = 3.88162e-10

T90 vs. Hardness ratio plot

T90                                   = 0.0079999566078186 sec.
Hardness ratio (energy fluence ratio) = 0.476689

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.48786
Count Ratio (50-100 keV) / (15-25 keV) = 0.613417

Mask shadow pattern

IMX = -2.648231814037192E-01, IMY = 9.070722356830177E-02

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.128000 -3.128000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9915 -15.6461    0.4  27.5   86.3  12.0864  28.3    0.8	Sco X-1
255.9513 -37.8477    1.2  24.3   29.4   2.8273   9.3    1.7	4U 1700-377
256.5233 -36.4529    5.4  23.0   31.0   0.6222   2.2    4.6	GX 349+2
262.9943 -24.5921    7.0  11.3   52.7   0.4068   1.7    9.2	GX 1+4
264.5961 -44.2744    0.0  26.3    8.4  -0.9041  -3.0   12.3	4U 1735-44
268.3128  -1.4371    3.3  18.4  156.5   0.9622   3.5    3.4	SW J1753.5-0127
270.4609 -25.0053    4.7   6.6   19.7   0.6144   2.4   10.6	GX 5-1
270.1259 -25.8096    8.4   7.5   18.9   0.3467   1.4   10.3	GRS 1758-258
274.0217 -13.9508    3.4   5.2  177.5   0.9342   3.4    5.2	GX 17+2
275.9977 -30.3106    3.5  11.4  -16.7   0.8692   3.3    5.1	H1820-303
285.0950 -24.9871    4.1  12.1  -65.3   0.7637   2.8    5.1	HT1900.1-2455
288.7981  10.9503    1.1  33.6 -158.8   3.4843  10.8    0.3	GRS 1915+105
299.9411 -74.8260    2.6  57.5  -14.3   6.4337   4.4 ------	UNKNOWN
303.9008 -72.9862    2.8  56.5  -16.6   4.6741   4.1 ------	UNKNOWN
322.8589 -48.4811    3.2  49.1  -48.0   5.8097   3.7 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.000000 0.008000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9354 -15.4904    8.7  27.6   86.6  -0.0038  -1.3    9.3	Sco X-1
255.8216 -37.9575   16.0  24.4   29.4   0.0015   0.7   10.4	4U 1700-377
256.4307 -36.4070  217.0  23.0   31.2   0.0001   0.1    1.0	GX 349+2
263.1977 -24.6277    0.0  11.2   52.1  -0.0034  -2.0   12.5	GX 1+4
264.9647 -44.3306    0.0  26.2    7.8  -0.0036  -1.8   11.9	4U 1735-44
268.2499  -1.3075    4.1  18.6  156.4  -0.0050  -2.8   11.2	SW J1753.5-0127
270.0993 -25.2073    0.0   6.9   21.3  -0.0014  -0.8   12.6	GX 5-1
270.2589 -25.7592    5.6   7.4   18.2  -0.0039  -2.2    2.5	GRS 1758-258
274.0744 -13.9521   11.6   5.2  178.1   0.0017   1.0    6.4	GX 17+2
276.0252 -30.5182  315.0  11.6  -16.6   0.0001   0.0   10.5	H1820-303
285.1066 -25.0696    6.4  12.2  -65.0   0.0033   1.8    9.7	HT1900.1-2455
288.7347  11.1037    7.9  33.7 -159.0   0.0033   1.5   10.2	GRS 1915+105
256.4019  -4.6083    2.5  22.2  122.2   0.0101   4.7 ------	UNKNOWN
277.2028 -14.1616    2.4   6.0 -151.4   0.0081   4.9 ------	UNKNOWN
280.2961  -4.8739    1.6  15.6 -161.1   0.0119   7.1 ------	UNKNOWN
282.6759  21.2092    2.5  41.3 -173.6   0.0122   4.6 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
46.172590 335.022000
335.872000 962.986700

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9836 -15.6439    0.5  36.3   59.2  32.1828  24.1    0.3	Sco X-1
254.3523  35.3111   31.7  47.0  139.8   0.9997   0.4    5.5	Her X-1
256.0433 -37.8326    2.0  39.6   19.6   5.6768   5.7    2.8	4U 1700-377
256.3420 -36.2293    0.0  38.3   21.0   1.0913   1.1   12.5	GX 349+2
262.9501 -24.7381   62.8  25.9   27.4   0.1244   0.2    3.2	GX 1+4
264.7480 -44.4506  165.2  41.8    5.7   0.0711   0.1    0.2	4U 1735-44
268.4099  -1.4767    2.2  12.4   94.8   3.0682   5.3    2.9	SW J1753.5-0127
270.4357 -25.1041   11.4  22.3   13.2   0.6698   1.0    8.4	GX 5-1
270.4575 -25.7546    5.1  22.9   12.4   1.5107   2.3    8.4	GRS 1758-258
273.9026 -13.9290    3.1  11.0   23.6   2.1369   3.7    8.8	GX 17+2
276.1159 -30.2488    0.0  25.6   -2.6  -0.7863  -1.1   12.2	H1820-303
284.9598 -24.9050    3.0  20.5  -23.1   2.2610   3.8    4.2	HT1900.1-2455
288.7951  10.9338    0.6  18.0 -162.9  12.8580  18.9    0.7	GRS 1915+105
299.6145  35.2116    1.1  44.0 -168.1  12.2675  10.6    1.3	Cyg X-1
308.1229  40.9469   71.4  52.5 -164.5  -0.3111  -0.2    0.7	Cyg X-3
246.9755 -35.1646    2.9  43.1   30.1   5.5444   4.0 ------	UNKNOWN
257.2183 -36.3771    2.3  37.9   19.9   5.1652   5.0 ------	UNKNOWN
315.5360  31.1025    3.7  49.3 -150.3   5.0151   3.1 ------	UNKNOWN
313.2965  12.0311    4.1  36.9 -128.5   3.0533   2.8 ------	UNKNOWN

Plot creation:
Sat Feb 19 00:59:43 EST 2011
