batgrbproduct Analysis for Trigger=451901

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Mon Jan 13 22:36:57 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger451901
======================================================================

  Trigger: 00451901      Segment: 000

  BAT Trigger Time: 325179722.752   [s; MET]
      Trigger Stop: 325179722.88   [s; MET]
               UTC: 2011-04-22T15:41:55.870640    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 111.994986280231   Dec: 75.1057497440089  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.19
     Image Trigger?:     NO
     Rate S/N Ratio:     27.9463772249642  [ if not an image trigger ]
     Image S/N Ratio:    7.19

  Flight Position:   [ source = BAT ]
    RA: 111.994986280231   Dec: 75.1057497440089  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 112.054744672371   Dec: 75.1000434192061  [deg; J2000]
        { 07h 28m 13.1s , +75d 06' 00.2" }
         +/- 0.651622034702634 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.284183816267759 [arcmin] (formal 1-sigma fit error)
    SNR: 56.083966410047

  Angular difference between Flight and Ground position is 0.983307 arcmin

  Partial Coding Fraction: 0.2265625    [ including projection effects ]

  Duration
     T90: 25.7839999198914 +/- 0.595449441244896
        Measured from: -5.60399997234344
                   to: 20.1799999475479     [s; relative to TRIGTIME]
     T50: 10.9319999217987 +/- 0.199719778713348
        Measured from: 2.58000004291534
                   to: 13.5119999647141     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 6.90400004386902
                   to: 7.90400004386902     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -11.1559999585152
                   to: 36.7600000500679     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     9.998205  18.631905  18.505677   5.281088
           0.122846   0.151919   0.149099   0.100399 [error]
 Peak      0.499016   1.116053   1.337021   0.518001
           0.024935   0.033911   0.038030   0.027883 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 4.34e-06 8.80e-06 1.39e-05 4.87e-05 3.87e-05 7.57e-05   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux Power-law 6.23e+00 8.61e+00 8.80e+00 1.64e+01 2.89e+01 4.00e+01   ph/cm2/s
              Error 4.28e-01 3.63e-01 3.01e-01 1.20e+00 9.75e-01 1.41e+00   ph/cm2/s

Fluence   Cutoff-PL 3.66e-06 8.86e-06 1.49e-05 3.08e-05 3.83e-05 5.81e-05   erg/cm2
              Error 1.77e-07 1.71e-07 2.70e-07 2.71e-06 5.26e-07 2.70e-06   erg/cm2
Peak flux Cutoff-PL 5.73e+00 8.72e+00 9.16e+00 1.26e+01 2.86e+01 3.62e+01   ph/cm2/s
              Error 5.55e-01 3.82e-01 4.05e-01 2.56e+00 9.93e-01 2.72e+00   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.340    0.000    -      -           8.24e-02 0.00e+00  117.750 57
CPL   0.831    0.106     148.0   18.1      1.31e-01 1.22e-02   44.670 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.969    0.056    -      -           2.51e-01 8.34e-03   61.350 57
CPL   0.680    0.228     276.9  367.3      3.34e-01 7.37e-02   56.400 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 23.616000 sec.
T50 in the 50-300 keV band: 9.792000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   47.916  -11.156   36.760
T90    25.784   -5.604   20.180
T50    10.932    2.580   13.512
Peak    1.000    6.904    7.904

Click here for the BAT GCN circular template

Special notes of this burst


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  112.0547    75.1000   0.0034    44.6590  -135.7440        58.9031983     56.084 TRIG_00451901

Foreground time interval of the image:
-11.156  36.760 (delta_t =  47.916 [sec])
Background time interval of the image:
-357.051 -289.696 (delta_t =  67.356 [sec])
-239.752 -11.156 (delta_t = 228.596 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.128000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.128000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.128000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

The mask-weighted light curves based on cleaned DPHs

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from  -11.156 sec. to   36.760 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.34000     (     )
Norm@50keV  : 8.24251E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         117.75 using 59 PHA bins.
# Reduced chi-squared =         2.0659 for     57 degrees of freedom
# Null hypothesis probability =   4.050404e-06

Photon flux (15-150 keV)    in 47.92 sec: 9.90966 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.86643e-05 ( 0  0 ) ergs/cm2

Cutoff power-law model

Time interval is from  -11.156 sec. to   36.760 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.830896     ( -0.107116   0.104973 )
Epeak [keV] : 147.995      ( -14.6724 21.4632 )
Norm@50keV  : 0.130678    ( -0.0115538   0.0128828 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.67 using 59 PHA bins.
# Reduced chi-squared =         0.7977 for     56 degrees of freedom
# Null hypothesis probability =   8.618086e-01

Photon flux (15-150 keV)    in 47.92 sec: 9.54136 ( -0.17596  0.17701 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.83327e-05 ( -5.26018e-07  5.2573e-07 ) ergs/cm2

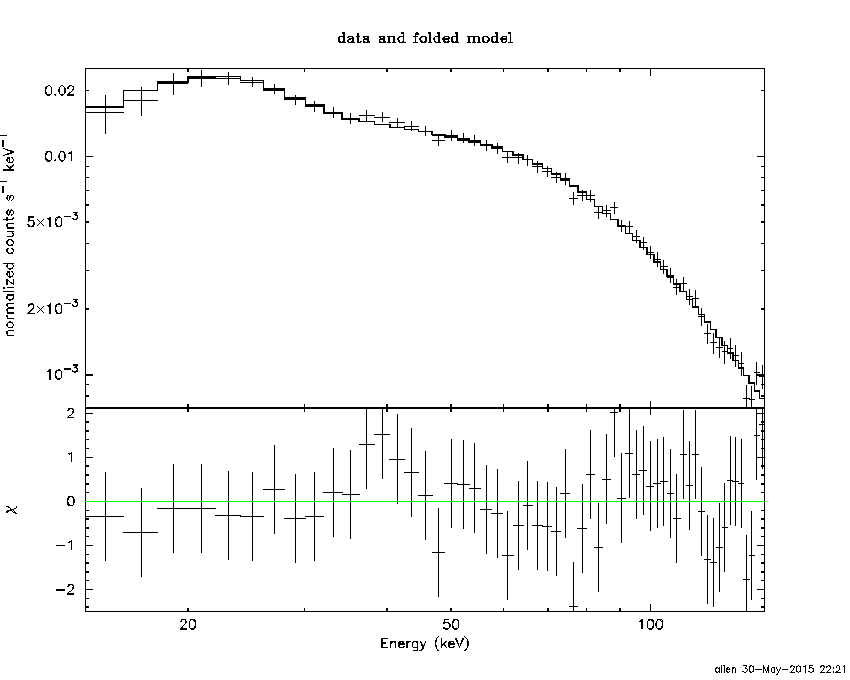

Band function

Time interval is from  -11.156 sec. to   36.760 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.805832   ( -0.113811   0.211238 )
beta        : -1.85637    ( 1.85336   0.270564 )
Epeak [keV] : 142.322      ( -35.6369 24.4951 )
Norm@50keV   : 0.134270    ( -0.013996   0.0394395 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.34 using 59 PHA bins.
# Reduced chi-squared =         0.8062 for     55 degrees of freedom
# Null hypothesis probability =   8.474574e-01

Photon flux (15-150 keV)    in 47.92 sec: 9.52157 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

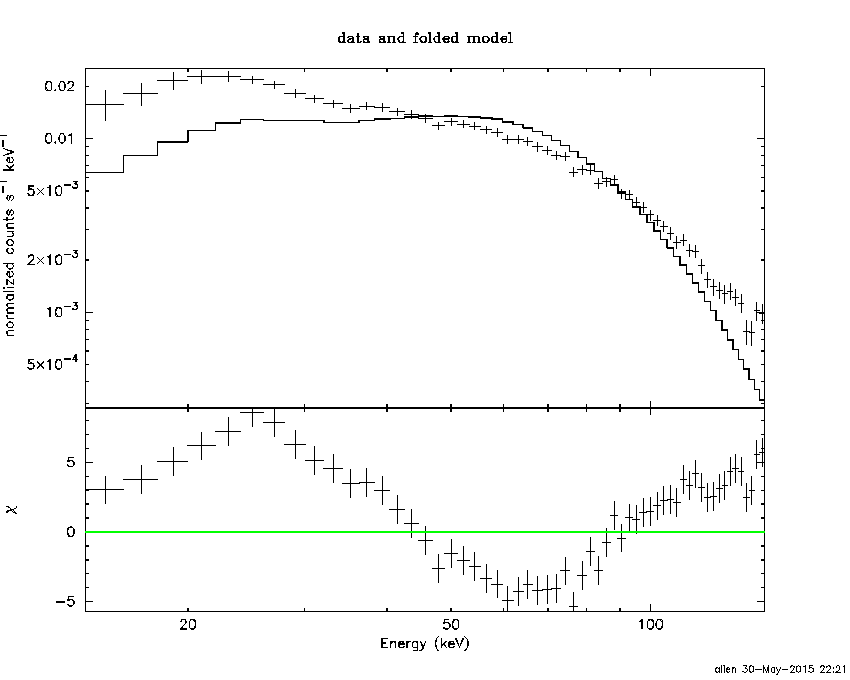

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 21.5311  (  )
R^2/D10^2   : 0.343490  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         858.31 using 59 PHA bins.
# Reduced chi-squared =         15.058 for     57 degrees of freedom
# Null hypothesis probability =  1.935136e-143

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.426e-06   4.337e-08
25- 50  7.443e-06   1.677e-07
50-150  2.576e-05   4.385e-07
15-150  3.463e-05   4.936e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 43.7936       (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         452.21 using 59 PHA bins.
# Reduced chi-squared =         7.9334 for     57 degrees of freedom
# Null hypothesis probability =   7.005736e-63

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.226e-06   9.584e-08
25- 50  1.005e-05   1.653e-07
50-150  2.205e-05   3.690e-07
15-150  3.732e-05   5.918e-07

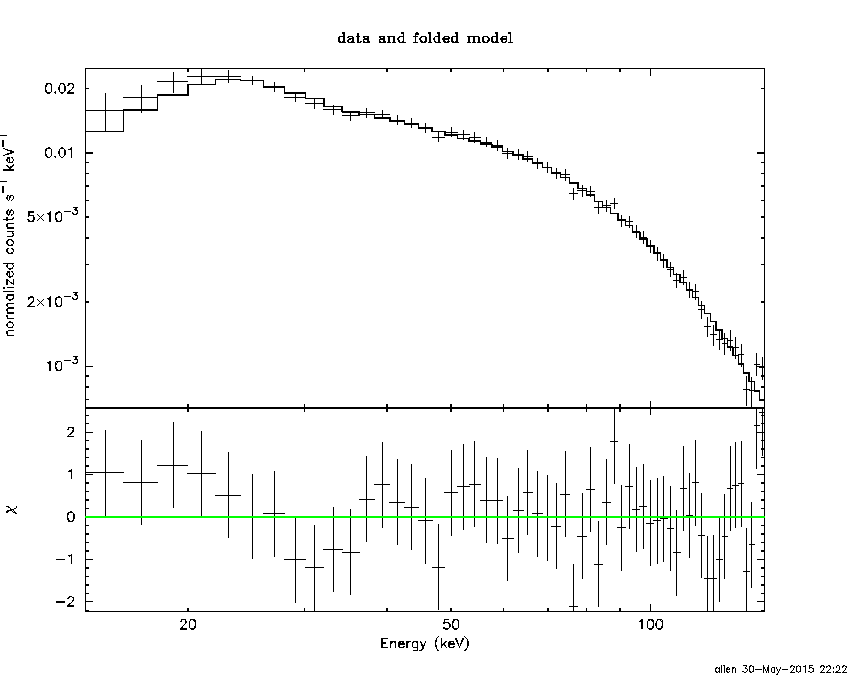

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 9.42777        (-0.580737      0.608677)
R1^2/D10^2  : 3.04013        (-0.520736      0.663582)
kT2 [keV]   : 32.2167        (-1.56473      1.86841)
R2^2/D10^2  : 6.95197E-02    (-0.0131401   0.0143422)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.52 using 59 PHA bins.
# Reduced chi-squared =         0.8276 for     55 degrees of freedom
# Null hypothesis probability =   8.152224e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.095e-06   1.653e-07
25- 50  9.163e-06   2.588e-07
50-150  2.590e-05   6.493e-07
15-150  3.816e-05   7.643e-07

Peak spectrum fit

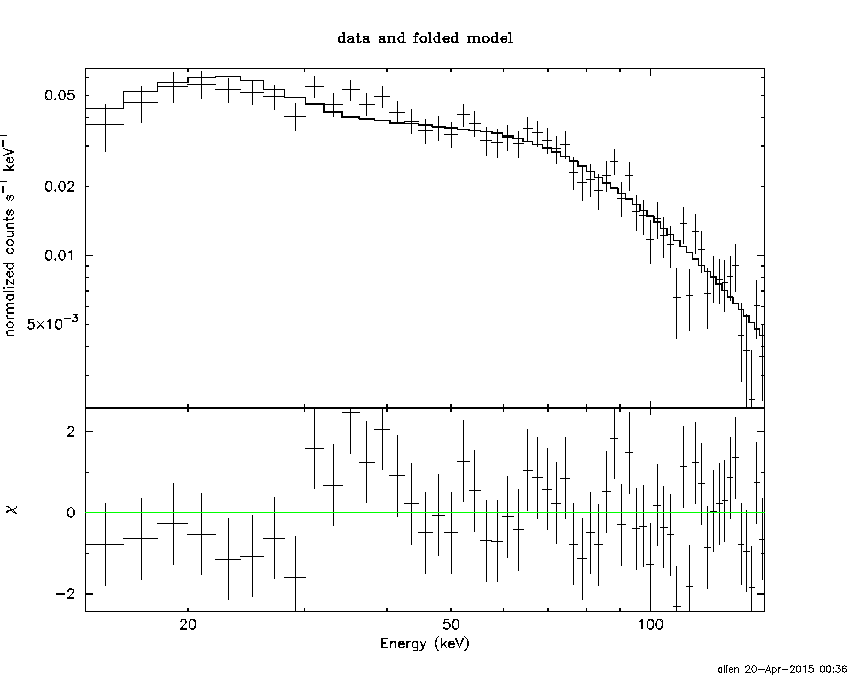

Power-law model

Time interval is from    6.904 sec. to    7.904 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.969015     ( -0.0559474   0.0555546 )
Norm@50keV  : 0.251201    ( -0.00834604   0.00833068 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.35 using 59 PHA bins.
# Reduced chi-squared =          1.076 for     57 degrees of freedom
# Null hypothesis probability =   3.227738e-01

Photon flux (15-150 keV)    in 1 sec: 28.8795 ( -0.974925  0.975475 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.74683e-06 ( -9.48529e-08  9.48849e-08 ) ergs/cm2

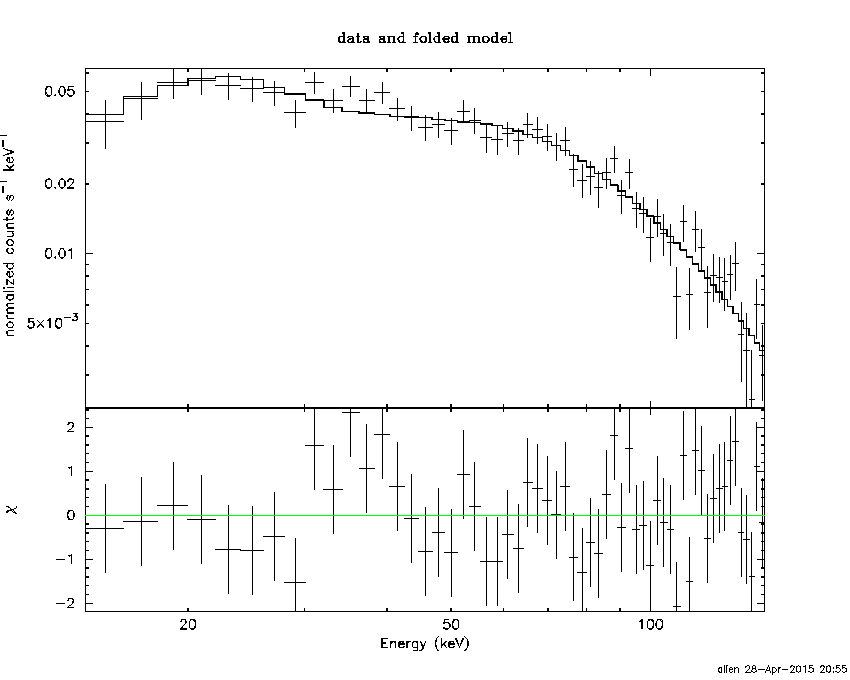

Cutoff power-law model

Time interval is from    6.904 sec. to    7.904 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.680225     ( -0.234004   0.222637 )
Epeak [keV] : 276.950      ( -96.5161 638.087 )
Norm@50keV  : 0.333578    ( -0.0641857   0.0832246 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.40 using 59 PHA bins.
# Reduced chi-squared =          1.007 for     56 degrees of freedom
# Null hypothesis probability =   4.599092e-01

Photon flux (15-150 keV)    in 1 sec: 28.6148 ( -0.9925  0.994 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.73168e-06 ( 0  0 ) ergs/cm2

Band function

Time interval is from    6.904 sec. to    7.904 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.311779   ( -4.37169   -4.37169 )
beta        : -1.08622    ( -0.0583998   0.0585335 )
Epeak [keV] : 71.1427      ( -16.735 135.37 )
Norm@50keV   : 1.33074    ( -1.3276   9.70307 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.98 using 59 PHA bins.
# Reduced chi-squared =         0.9634 for     55 degrees of freedom
# Null hypothesis probability =   5.520006e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 23.3719  (  )
R^2/D10^2   : 0.879615  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         197.62 using 59 PHA bins.
# Reduced chi-squared =         3.4670 for     57 degrees of freedom
# Null hypothesis probability =   2.114855e-17

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.640e-08   5.645e-09
25- 50  4.730e-07   2.410e-08
50-150  1.928e-06   9.300e-08
15-150  2.488e-06   1.005e-07

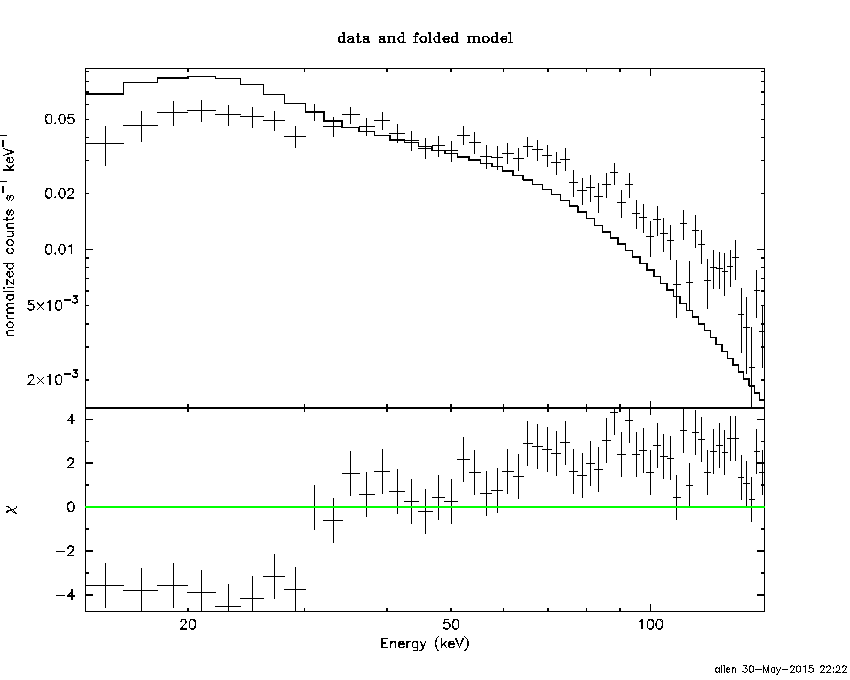

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 117.971       (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         356.22 using 59 PHA bins.
# Reduced chi-squared =         6.2495 for     57 degrees of freedom
# Null hypothesis probability =   7.159781e-45

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.938e-07   9.850e-09
25- 50  5.651e-07   1.955e-08
50-150  1.239e-06   4.300e-08
15-150  2.098e-06   7.500e-08

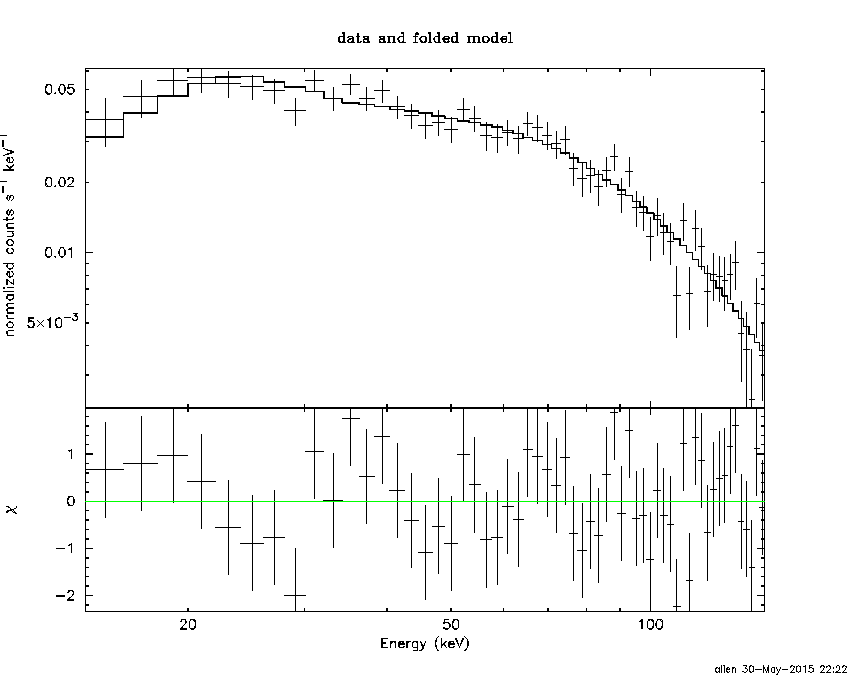

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 10.5190        (-1.4815      1.65485)
R1^2/D10^2  : 5.81259        (-1.79534      2.93241)
kT2 [keV]   : 41.9613        (-6.37086      11.5148)
R2^2/D10^2  : 0.119525    (-0.0601258   0.0815684)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.16 using 59 PHA bins.
# Reduced chi-squared =         0.9847 for     55 degrees of freedom
# Null hypothesis probability =   5.067895e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.592e-07   1.935e-08
25- 50  5.360e-07   5.715e-08
50-150  2.050e-06   3.390e-07
15-150  2.745e-06   4.190e-07

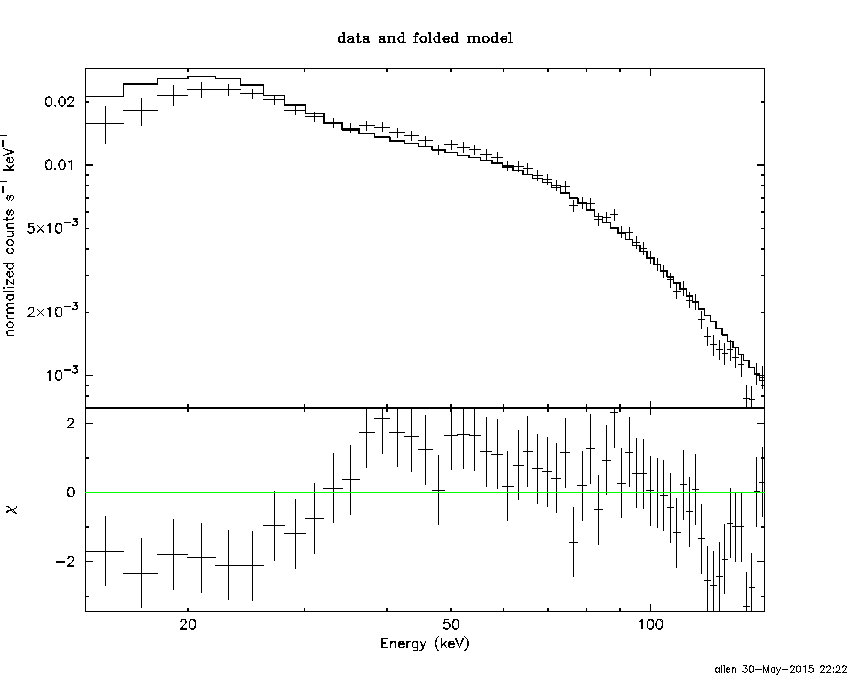

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.34000     (     )
Norm@50keV  : 8.24251E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         117.75 using 59 PHA bins.
# Reduced chi-squared =         2.0659 for     57 degrees of freedom
# Null hypothesis probability =   4.050404e-06

Photon flux (15-150 keV)    in 47.92 sec: 9.90966 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.86643e-05 ( 0  0 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.830896     ( -0.107116   0.104973 )
Epeak [keV] : 147.995      ( -14.6724 21.4632 )
Norm@50keV  : 0.130678    ( -0.0115538   0.0128828 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.67 using 59 PHA bins.
# Reduced chi-squared =         0.7977 for     56 degrees of freedom
# Null hypothesis probability =   8.618086e-01

Photon flux (15-150 keV)    in 47.92 sec: 9.54136 ( -0.17596  0.17701 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.83327e-05 ( -5.26018e-07  5.2573e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.805832   ( -0.113811   0.211238 )
beta        : -1.85637    ( 1.85336   0.270564 )
Epeak [keV] : 142.322      ( -34.8733 24.4949 )
Norm@50keV   : 0.134270    ( -0.013996   0.0394395 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.34 using 59 PHA bins.
# Reduced chi-squared =         0.8062 for     55 degrees of freedom
# Null hypothesis probability =   8.474574e-01

Photon flux (15-150 keV)    in 47.92 sec: 9.52157 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 8.80e-06
S(50-100 keV) = 1.39e-05

T90 vs. Hardness ratio plot

T90                                   = 25.7839999198914 sec.
Hardness ratio (energy fluence ratio) = 1.57955

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.86353
Count Ratio (50-100 keV) / (15-25 keV) = 1.8509

Mask shadow pattern

IMX = -7.077538567061747E-01, IMY = 6.896085308524967E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.128000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.128000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.128000

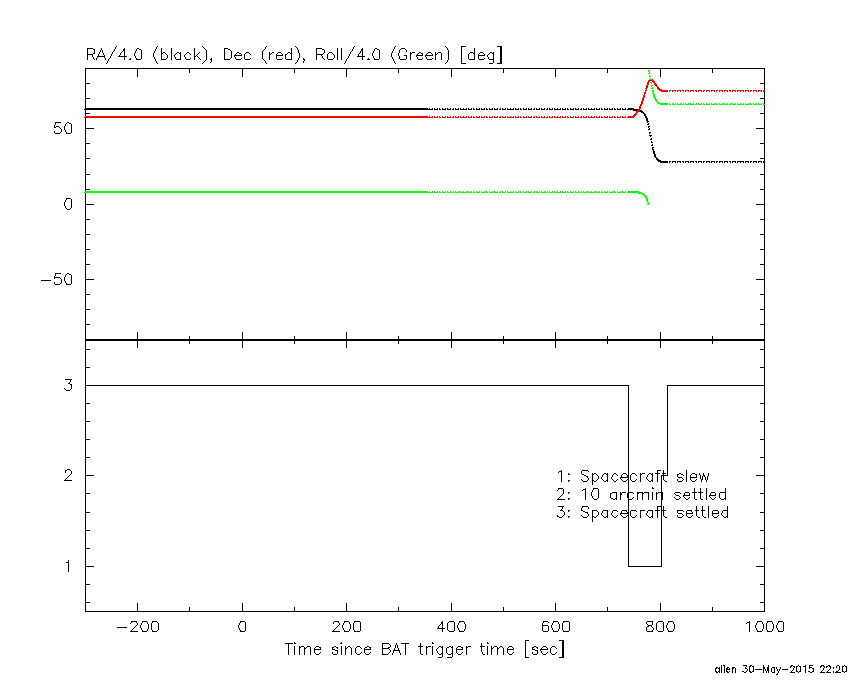

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-357.051400 -289.695600
-239.752000 -11.156000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4365  35.3552    1.3  22.3   51.2   2.0883   8.6    1.3	Her X-1
288.8255  10.8677    7.1  54.8   10.9   1.5926   1.6    4.9	GRS 1915+105
299.5980  35.1912    0.8  39.0  -18.2   3.8512  13.7    0.7	Cyg X-1
308.1062  41.0022    2.0  39.2  -32.3   1.8130   5.8    3.0	Cyg X-3
318.8288  26.1378    3.2  56.3  -28.3   3.8259   3.6 ------	UNKNOWN
327.7452  41.7092    2.8  49.1  -48.0   4.2081   4.1 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-11.156000 36.760000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.7002  35.3686   19.7  22.3   50.6   0.1497   0.6   12.0	Her X-1
288.7957  10.9447   36.3  54.7   10.9   0.2920   0.3    0.2	GRS 1915+105
299.6107  35.2057  183.8  39.0  -18.2  -0.0276  -0.1    1.0	Cyg X-1
308.1204  40.8057    5.9  39.3  -32.0   1.1211   2.0    8.8	Cyg X-3
233.3945  46.5055    3.4  15.5  110.2   0.9929   3.4 ------	UNKNOWN
146.7516  55.8934    3.1  51.4 -165.9   3.1038   3.8 ------	UNKNOWN
152.6195  74.4479    3.1  37.7 -147.6   1.8446   3.8 ------	UNKNOWN
319.5743  73.6370    2.8  30.0  -90.4   2.5615   4.2 ------	UNKNOWN
112.0548  75.1000    0.2  44.7 -135.7  58.9019  56.1 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
803.048600 962.306400

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
229.4232  54.9050    2.6  43.7   52.3   2.5913   4.4 ------	UNKNOWN
190.5380  66.8996    2.2  24.6   72.0   1.0326   5.3 ------	UNKNOWN
266.9600  65.8066    2.3  38.2   21.0   1.1384   5.1 ------	UNKNOWN
286.8404  52.9584    3.1  51.9    8.7   1.6036   3.7 ------	UNKNOWN
121.4171  34.7680    3.5  40.6  172.8   0.7992   3.3 ------	UNKNOWN
112.3095  17.1233    2.4  58.0 -175.6   3.7773   4.7 ------	UNKNOWN

Plot creation:
Sat May 30 22:23:13 EDT 2015
