batgrbproduct analysis for trigger=455155

batgrbproduct Analysis for Trigger=455155

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Mon Jan 13 22:07:58 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger455155
======================================================================

  Trigger: 00455155      Segment: 000

  BAT Trigger Time: 329412099.072   [s; MET]
      Trigger Stop: 329412100.096   [s; MET]
               UTC: 2011-06-10T15:21:32.029260    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 308.150900074669   Dec: 74.8229314124885  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    14.04
     Image Trigger?:     NO
     Rate S/N Ratio:     28.0178514522438  [ if not an image trigger ]
     Image S/N Ratio:    14.04

  Flight Position:   [ source = BAT ]
    RA: 308.150900074669   Dec: 74.8229314124885  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 308.211906438053   Dec: 74.824086032288  [deg; J2000]
        { 20h 32m 50.9s , +74d 49' 26.7" }
         +/- 0.857945296977731 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.284175885147032 [arcmin] (formal 1-sigma fit error)
    SNR: 37.8596066338322

  Angular difference between Flight and Ground position is 0.960764 arcmin

  Partial Coding Fraction: 0.7109375    [ including projection effects ]

  Duration
     T90: 49.4439999461174 +/- 6.06258690250995
        Measured from: -5.14000004529953
                   to: 44.3039999008179     [s; relative to TRIGTIME]
     T50: 29.9559999704361 +/- 1.06301453753783
        Measured from: 5.61999994516373
                   to: 35.5759999155998     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 34.4239999651909
                   to: 35.4239999651909     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -11.0879999995232
                   to: 59.4039999842644     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     2.013232   2.897798   2.125328   0.604842
           0.053626   0.056967   0.051092   0.041721 [error]
 Peak      0.120686   0.178148   0.160918   0.051551
           0.007502   0.008777   0.008169   0.006054 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 6.44e-07 1.19e-06 1.70e-06 5.14e-06 4.86e-06 8.68e-06   erg/cm2
              Error 3.32e-08 3.52e-08 5.38e-08 3.75e-07 1.31e-07 4.02e-07   erg/cm2
Peak flux Power-law 1.07e+00 1.26e+00 1.07e+00 1.54e+00 3.96e+00 4.96e+00   ph/cm2/s
              Error 1.07e-01 7.56e-02 6.61e-02 2.03e-01 2.10e-01 2.72e-01   ph/cm2/s

Fluence   Cutoff-PL 6.23e-07 1.20e-06 1.72e-06 4.20e-06 4.81e-06 7.75e-06   erg/cm2
              Error 4.07e-08 3.82e-08 5.96e-08 9.83e-07 1.47e-07 1.03e-06   erg/cm2
Peak flux Cutoff-PL 1.06e+00 1.27e+00 1.08e+00 1.44e+00 3.95e+00 4.86e+00   ph/cm2/s
              Error 1.23e-01 8.13e-02 7.44e-02 3.85e-01 2.16e-01 4.26e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.486    0.049    -      -           7.25e-03 1.84e-04   91.120 57
CPL   1.341    0.181     246.7  -67.7      8.46e-03 1.62e-03   89.440 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.237    0.092    -      -           3.36e-02 1.74e-03   44.520 57
CPL   1.157    0.226     527.7    0.0      3.66e-02 9.64e-03   44.570 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 50.688000 sec.
T50 in the 50-300 keV band: 30.848000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   70.492  -11.088   59.404
T90    49.444   -5.140   44.304
T50    29.956    5.620   35.576
Peak    1.000   34.424   35.424

Click here for the BAT GCN circular template


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  308.2119    74.8241   0.0051    26.9831   -48.9506         2.5581725     37.860 TRIG_00455155

Foreground time interval of the image:
-11.088  13.029 (delta_t =  24.117 [sec])
Background time interval of the image:
-239.072 -11.088 (delta_t = 227.984 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

The mask-weighted light curves based on cleaned DPHs

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from  -11.088 sec. to   59.404 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.48592     ( -0.0486964   0.0486975 )
Norm@50keV  : 7.25004E-03    ( -0.00018426   0.000184251 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          91.12 using 59 PHA bins.
# Reduced chi-squared =          1.599 for     57 degrees of freedom
# Null hypothesis probability =   2.748438e-03

Photon flux (15-150 keV)    in 70.49 sec: 0.901705 ( -0.0252836  0.0253557 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.85948e-06 ( -1.30968e-07  1.3118e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from  -11.088 sec. to   59.404 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.34100     ( -0.19808   0.164052 )
Epeak [keV] : 246.744      ( -111.266 -246.75 )
Norm@50keV  : 8.46203E-03    ( -0.00130532   0.00193406 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          89.44 using 59 PHA bins.
# Reduced chi-squared =          1.597 for     56 degrees of freedom
# Null hypothesis probability =   3.005789e-03

Photon flux (15-150 keV)    in 70.49 sec: 0.892021 ( -0.028001  0.028096 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.81099e-06 ( -1.47409e-07  1.46647e-07 ) ergs/cm2

Band function

Time interval is from  -11.088 sec. to   59.404 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.919238   ( -0.411139   0.918799 )
beta        : -1.58160    ( -0.118378   0.107038 )
Epeak [keV] : 79.6095      ( -49.2609 99.198 )
Norm@50keV   : 1.48001E-02    ( -0.00639891   0.111411 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          85.79 using 59 PHA bins.
# Reduced chi-squared =          1.560 for     55 degrees of freedom
# Null hypothesis probability =   4.961307e-03

Photon flux (15-150 keV)    in 70.49 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 16.4093  (  )
R^2/D10^2   : 7.22394E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         397.58 using 59 PHA bins.
# Reduced chi-squared =         6.9752 for     57 degrees of freedom
# Null hypothesis probability =   1.504343e-52

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.818e-07   1.456e-08
25- 50  1.212e-06   4.124e-08
50-150  2.301e-06   1.163e-07
15-150  3.795e-06   1.117e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 3.70510       (-0.0942285     0.0942264)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         101.26 using 59 PHA bins.
# Reduced chi-squared =         1.7766 for     57 degrees of freedom
# Null hypothesis probability =   2.788125e-04

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.504e-07   1.783e-08
25- 50  1.251e-06   3.454e-08
50-150  2.744e-06   7.965e-08
15-150  4.645e-06   1.357e-07

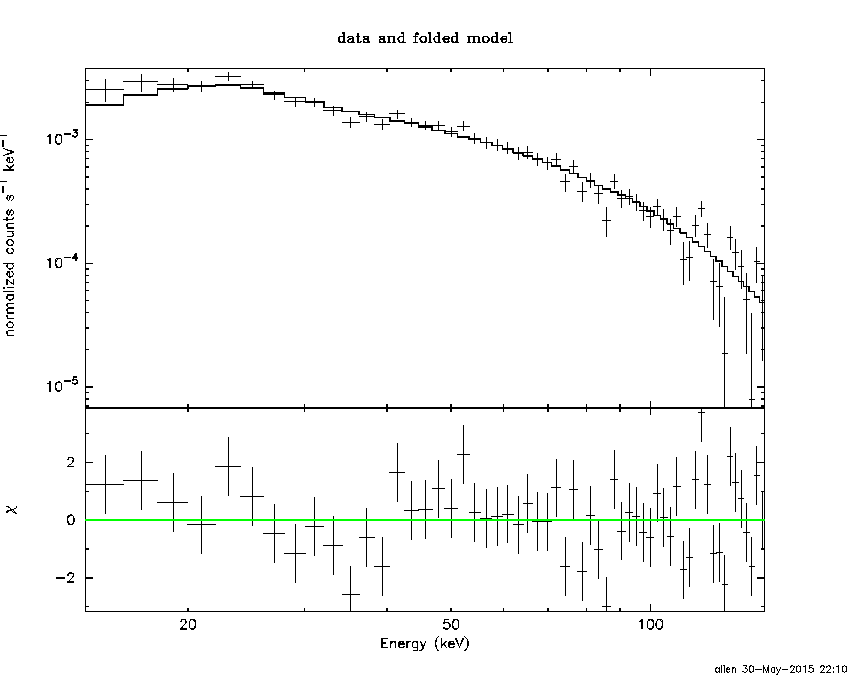

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.74173        (-0.827709      0.844274)
R1^2/D10^2  : 0.445772        (-0.110435      0.165122)
kT2 [keV]   : 34.2837        (-4.53516      6.66443)
R2^2/D10^2  : 4.44344E-03    (-0.00192181   0.00278813)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          95.00 using 59 PHA bins.
# Reduced chi-squared =          1.727 for     55 degrees of freedom
# Null hypothesis probability =   6.555728e-04

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.130e-07   4.162e-08
25- 50  1.277e-06   7.014e-08
50-150  2.997e-06   3.274e-07
15-150  4.788e-06   4.039e-07

Peak spectrum fit

Power-law model

Time interval is from   34.424 sec. to   35.424 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.23680     ( -0.0920101   0.0918562 )
Norm@50keV  : 3.35766E-02    ( -0.0017364   0.00173597 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.52 using 59 PHA bins.
# Reduced chi-squared =         0.7810 for     57 degrees of freedom
# Null hypothesis probability =   8.855883e-01

Photon flux (15-150 keV)    in 1 sec: 3.96284 ( -0.209841  0.210081 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.37214e-07 ( -1.96446e-08  1.97549e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   34.424 sec. to   35.424 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.15671     ( -0.359356   0.0928419 )
Epeak [keV] : 527.653      ( -935.106 -935.106 )
Norm@50keV  : 3.66415E-02    ( -0.00320801   0.016062 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.57 using 59 PHA bins.
# Reduced chi-squared =         0.7959 for     56 degrees of freedom
# Null hypothesis probability =   8.642567e-01

Photon flux (15-150 keV)    in 1 sec: 3.95496 ( -0.2168  0.21469 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.36344e-07 ( -1.0351e-08  2.0477e-08 ) ergs/cm2

Band function

Time interval is from   34.424 sec. to   35.424 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.626719   ( 0.728288   0.728288 )
beta        : -1.26314    ( 1.26278   0.111729 )
Epeak [keV] : 66.6579      ( -66.0347 526.659 )
Norm@50keV   : 8.69046E-02    ( -0.0580416   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.15 using 59 PHA bins.
# Reduced chi-squared =         0.8028 for     55 degrees of freedom
# Null hypothesis probability =   8.523067e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 18.3420  (  )
R^2/D10^2   : 0.238536  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         131.49 using 59 PHA bins.
# Reduced chi-squared =         2.3069 for     57 degrees of freedom
# Null hypothesis probability =   8.078775e-08

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.597e-08   1.690e-09
25- 50  7.489e-08   5.725e-09
50-150  1.837e-07   1.835e-08
15-150  2.746e-07   1.770e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 16.3221       (-0.857366     0.857275)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          77.95 using 59 PHA bins.
# Reduced chi-squared =          1.367 for     57 degrees of freedom
# Null hypothesis probability =   3.411235e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.065e-08   2.305e-09
25- 50  7.820e-08   4.830e-09
50-150  1.715e-07   3.080e-08
15-150  2.904e-07   3.850e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.01459        (-1.54491      1.79209)
R1^2/D10^2  : 2.28689        (-1.03044      2.28274)
kT2 [keV]   : 34.0819        (-6.3987      12.4274)
R2^2/D10^2  : 2.62693E-02    (-0.015948   0.0260909)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.04 using 59 PHA bins.
# Reduced chi-squared =         0.8552 for     55 degrees of freedom
# Null hypothesis probability =   7.688432e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.100e-08   7.850e-09
25- 50  7.519e-08   1.315e-08
50-150  2.323e-07   5.110e-08
15-150  3.385e-07   7.220e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.41614     ( -0.0742916   0.0742715 )
Norm@50keV  : 7.33304E-03    ( -0.000308481   0.000308344 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         107.38 using 59 PHA bins.
# Reduced chi-squared =         1.8839 for     57 degrees of freedom
# Null hypothesis probability =   6.204113e-05

Photon flux (15-150 keV)    in 24.12 sec: 0.896354 ( -0.0392169  0.0392771 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.70353e-06 ( -7.81823e-08  7.84344e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00389     ( -0.326873   0.303028 )
Epeak [keV] : 125.313      ( -34.1147 185.933 )
Norm@50keV  : 1.16514E-02    ( -0.00329114   0.00502929 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         101.86 using 59 PHA bins.
# Reduced chi-squared =         1.8190 for     56 degrees of freedom
# Null hypothesis probability =   1.749319e-04

Photon flux (15-150 keV)    in 24.12 sec: 0.877349 ( -0.041492  0.041511 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.65371e-06 ( -8.76159e-08  8.71311e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.404242   ( -0.602626   1.1062 )
beta        : -1.65965    ( -0.217471   0.165153 )
Epeak [keV] : 67.0854      ( -24.8765 45.8723 )
Norm@50keV   : 2.62451E-02    ( -0.0146051   0.127766 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          97.59 using 59 PHA bins.
# Reduced chi-squared =          1.774 for     55 degrees of freedom
# Null hypothesis probability =   3.567051e-04

Photon flux (15-150 keV)    in 24.12 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.19e-06
S(50-100 keV) = 1.70e-06

T90 vs. Hardness ratio plot

T90                                   = 49.4439999461174 sec.
Hardness ratio (energy fluence ratio) = 1.42857

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.43938
Count Ratio (50-100 keV) / (15-25 keV) = 1.05568

Mask shadow pattern

IMX = 3.343658566502133E-01, IMY = 3.839754157925001E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.072000 -11.088000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.3070  35.2923   47.5  22.4   95.5  -0.0622  -0.2    8.0	Her X-1
299.5972  35.2092    0.6  39.0   25.8   6.1688  18.6    0.6	Cyg X-1
308.1491  40.9499    1.8  39.3   11.8   1.9879   6.5    1.8	Cyg X-3
326.2601  38.1824    5.7  50.9    0.2  -1.0282  -2.1    9.3	Cyg X-2
237.4343  40.0315    2.6  19.7  134.9   0.9367   4.4 ------	UNKNOWN
208.8072  40.5639    2.6  31.8  178.4   1.0229   4.4 ------	UNKNOWN
296.9892  67.9050    3.2  22.7  -33.5   0.6592   3.5 ------	UNKNOWN
164.0602  40.5818    5.7  55.3 -145.2   3.1677   2.1 ------	UNKNOWN
  6.1947  61.7445    3.2  50.5  -44.1   3.4901   3.6 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-11.088000 13.028590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.5365  35.5049    7.2  22.2   94.9  -0.1259  -1.6   10.5	Her X-1
299.5843  35.0729    3.5  39.1   26.0   0.3542   3.3    7.7	Cyg X-1
308.1552  40.7979    6.1  39.4   12.0   0.1834   1.9    9.5	Cyg X-3
326.1096  38.2343   18.3  50.8    0.3  -0.0996  -0.6    6.0	Cyg X-2
266.4364  36.5644    2.1  23.3   69.9   0.4359   5.6 ------	UNKNOWN
327.6130  33.4085    2.6  55.2    3.0   1.3007   4.4 ------	UNKNOWN
188.7234  24.6088    2.4  54.8 -177.1   0.9534   4.7 ------	UNKNOWN
308.2119  74.8241    0.3  27.0  -49.0   2.5582  37.9 ------	UNKNOWN
178.0394  42.3576    2.3  46.9 -153.6   0.6131   5.1 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
61.028600 963.059500

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
299.5749  35.1955    0.8  39.8   55.1  28.9901  15.1    0.8	Cyg X-1
308.1211  40.9673    2.7  33.8   44.2   4.5413   4.2    1.0	Cyg X-3
326.3748  38.3023    4.6  37.5   20.4   2.1718   2.5    9.6	Cyg X-2
250.8405  47.4322    3.6  36.2  118.5   4.9678   3.2 ------	UNKNOWN
245.7676  47.5954    3.2  37.4  123.9   5.8919   3.5 ------	UNKNOWN
181.6213  46.1575    3.2  54.0 -179.3   7.7871   3.6 ------	UNKNOWN
 61.6713  73.5495    3.5  26.4 -100.0   2.5678   3.3 ------	UNKNOWN
140.0357  49.6216    5.6  55.3 -145.1  10.5139   2.2 ------	UNKNOWN
139.6793  49.7581    9.8  55.2 -144.9   6.5537   1.4 ------	UNKNOWN
 27.4165  39.8278    2.7  49.0  -48.1  13.6674   4.2 ------	UNKNOWN

Plot creation:
Sat May 30 22:11:14 EDT 2015
