batgrbproduct analysis for trigger=456014

batgrbproduct Analysis for Trigger=456014

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Tue Jul  5 10:47:31 EDT 2011
             Host Name: gcn5
   Current Working Dir: /local/data/raid16/prebascript_archive/trigger456014/batgroup_hand_proc
======================================================================

  Trigger: 00456014      Segment: 000

  BAT Trigger Time: 330653174.72   [s; MET]
      Trigger Stop: 330653178.816   [s; MET]
               UTC: 2011-06-25T00:06:07.629580    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 282.550970337691   Dec: -0.968196446949389  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.53
     Image Trigger?:     NO
     Rate S/N Ratio:     8.54400374531753  [ if not an image trigger ]
     Image S/N Ratio:    7.53

  Flight Position:   [ source = BAT ]
    RA: 282.550970337691   Dec: -0.968196446949389  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 282.497666117717   Dec: -0.958557538912312  [deg; J2000]
        { 18h 49m 59.4s , -00d 57' 30.8" }
         +/- 3.65931734736496 [arcmin] (estimated 90% radius based on SNR)
         +/- 2.46499219219371 [arcmin] (formal 1-sigma fit error)
    SNR: 4.76717539322832

  Angular difference between Flight and Ground position is 3.249677 arcmin

  Partial Coding Fraction: 0.421875    [ including projection effects ]

  Duration
     T90: 13 +/- 3.60555127546399
        Measured from: -0.720000028610229
                   to: 12.2799999713898     [s; relative to TRIGTIME]
     T50: 6 +/- 4.47213595499958
        Measured from: 1.27999997138977
                   to: 7.27999997138977     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 4.27999997138977
                   to: 5.27999997138977     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -1.72000002861023
                   to: 13.2799999713898     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.368752   0.077975  -0.044919   0.001017
           0.037772   0.034787   0.029691   0.025796 [error]
 Peak      0.043049   0.016472   0.005351  -0.009630
           0.010283   0.009173   0.007349   0.006977 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.20e-07 3.00e-08 3.92e-09 5.74e-10 1.54e-07 1.55e-07   erg/cm2
              Error 2.20e-08 1.51e-08 5.06e-09 1.34e-09 3.48e-08 3.51e-08   erg/cm2
Peak flux Power-law 5.73e-01 1.29e-01 1.48e-02 1.88e-03 7.18e-01 7.18e-01   ph/cm2/s
              Error 1.74e-01 9.45e-02 2.73e-02 8.36e-03 2.36e-01 2.36e-01   ph/cm2/s

Fluence   Cutoff-PL 1.24e-07 2.52e-08 7.05e-10 1.45e-12 1.50e-07 1.51e-07   erg/cm2
              Error 2.40e-08 2.08e-08 4.55e-09 2.36e-10 2.86e-08 3.38e-08   erg/cm2
Peak flux Cutoff-PL 5.72e-01 1.29e-01 1.48e-02 1.86e-03 7.17e-01 7.18e-01   ph/cm2/s
              Error 1.73e-01 9.45e-02 2.73e-02 8.22e-03 1.89e-01 2.36e-01   ph/cm2/s

Fluence        Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    4.936    0.852    -      -           2.20e-04 1.97e-04   48.460 57
CPL   1.000    0.000      50.0    0.0      3.41e-03 0.00e+00  110.240 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    4.124    1.504    -      -           1.04e-03 1.47e-03   60.830 57
CPL   1.794    0.000       1.9    0.0      8.23e-02 0.00e+00   61.800 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   15.000   -1.720   13.280
T90    13.000   -0.720   12.280
T50     6.000    1.280    7.280
Peak    1.000    4.280    5.280

Click here for the BAT GCN circular template

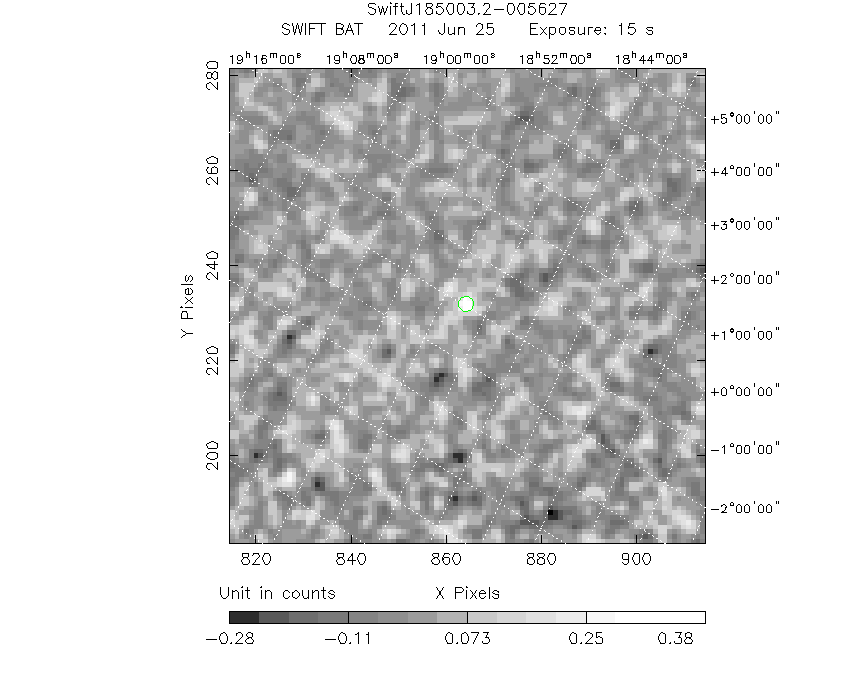

Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  282.4977    -0.9586   0.0405    27.2536    86.3896         0.3142498      4.767 TRIG_00456014

Foreground time interval of the image:
 -1.720  13.280 (delta_t =  15.000 [sec])
Background time interval of the image:
-177.419  -1.720 (delta_t = 175.699 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

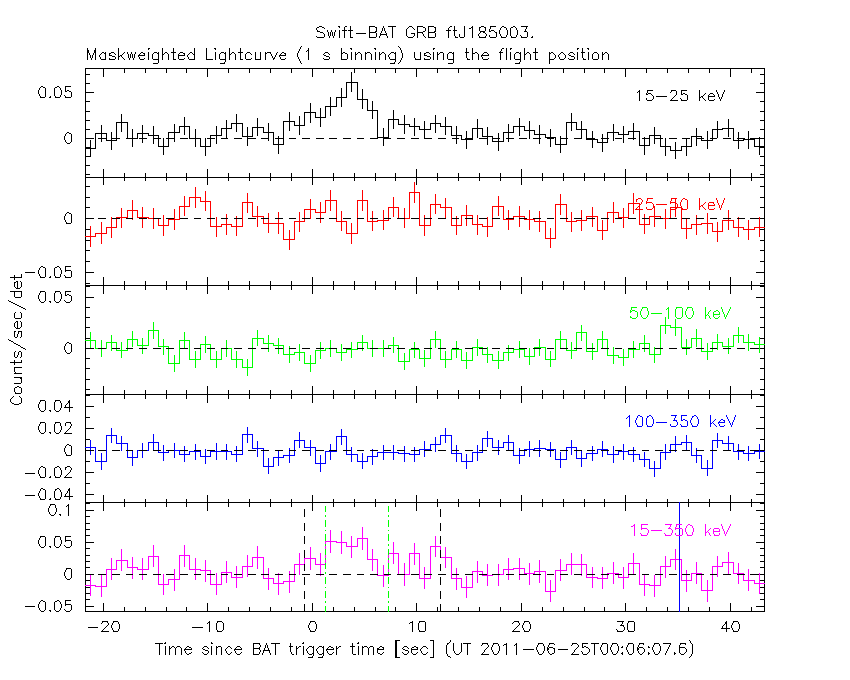

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

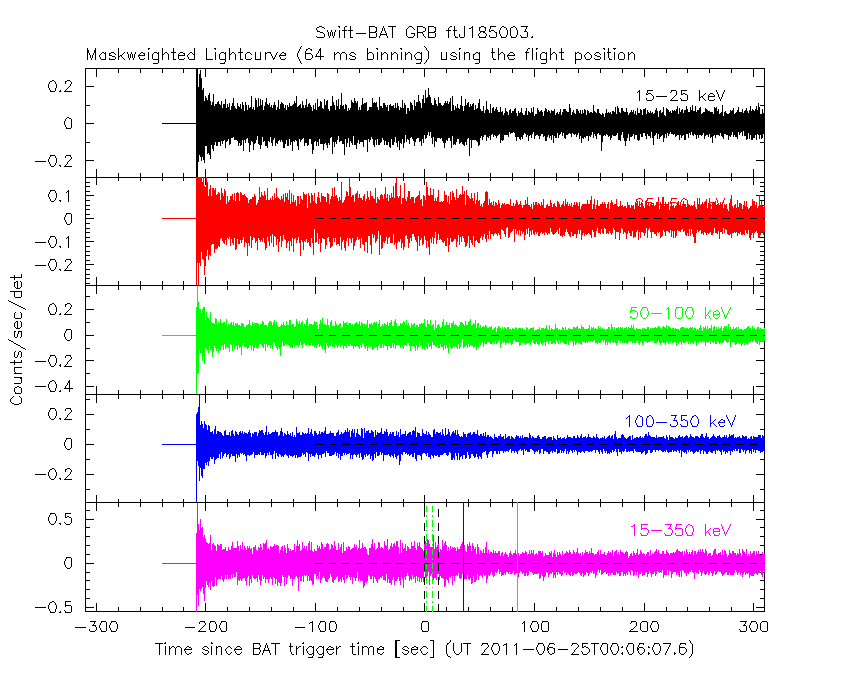

64 ms binning

Full time interval

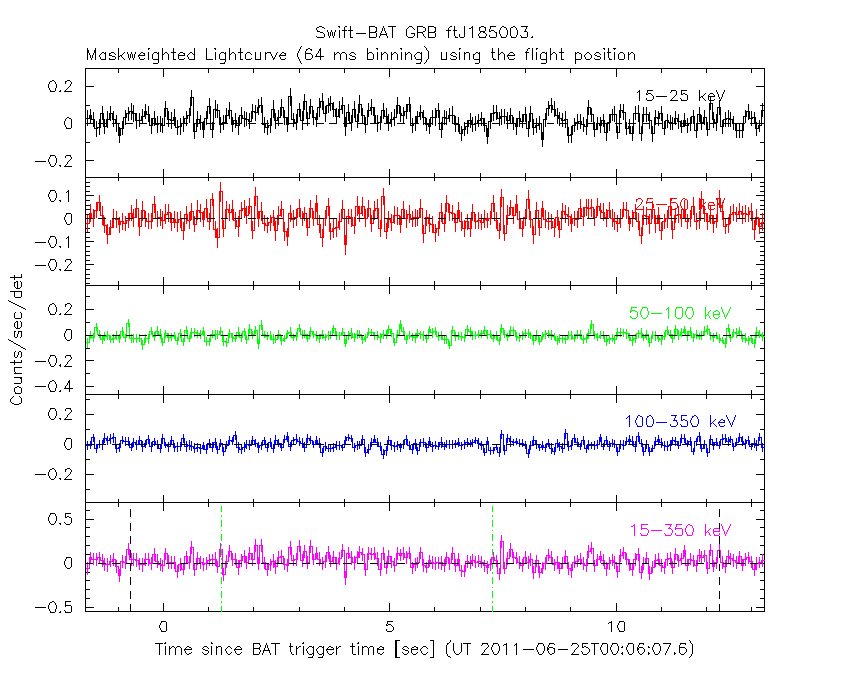

From T100_start to T100_end

From T0-5 sec to T0+5 sec

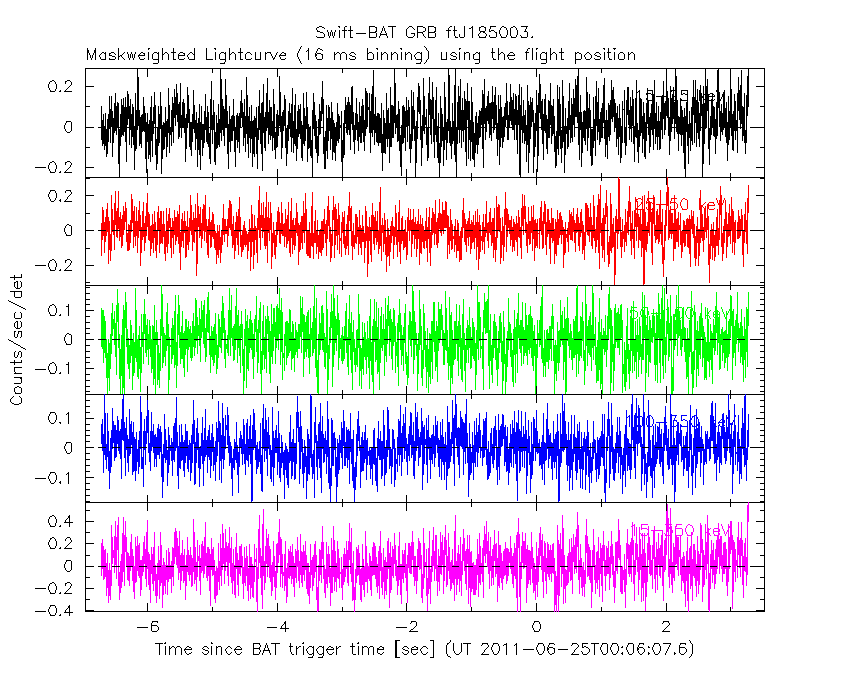

16 ms binning

From T100_start-5 s to T100_start+5 s

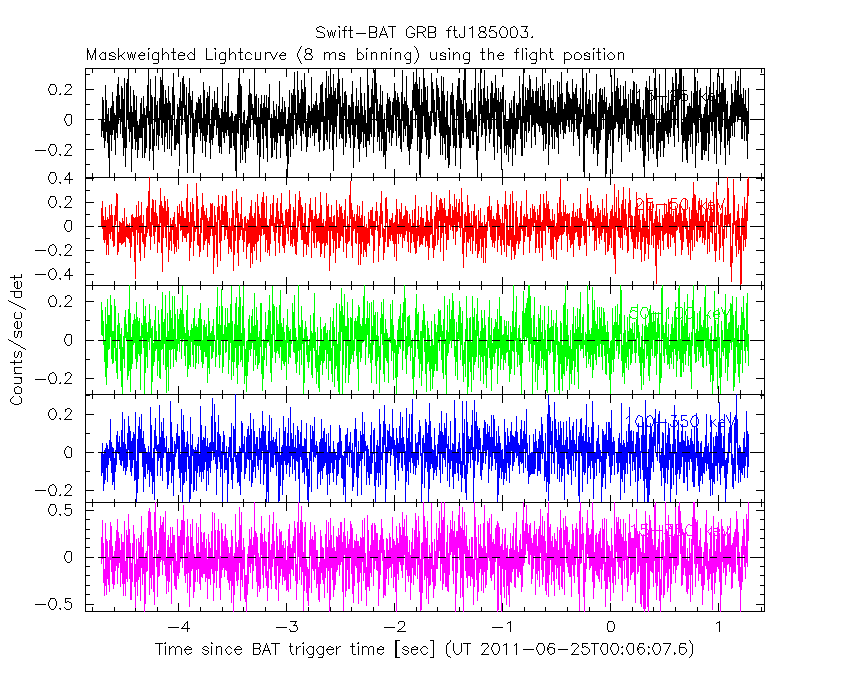

8 ms binning

From T100_start-3 s to T100_start+3 s

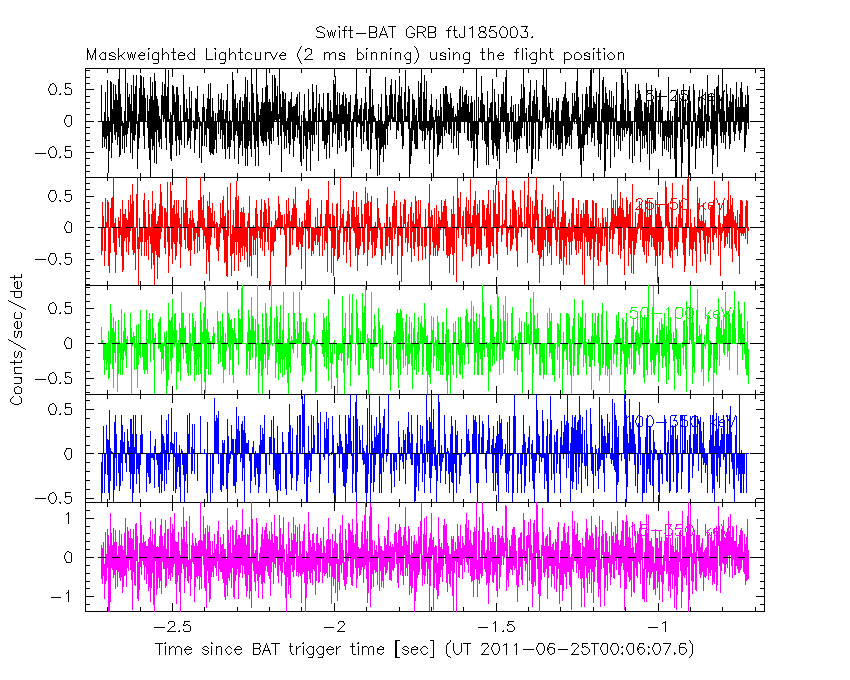

2 ms binning

From T100_start-1 s to T100_start+1 s

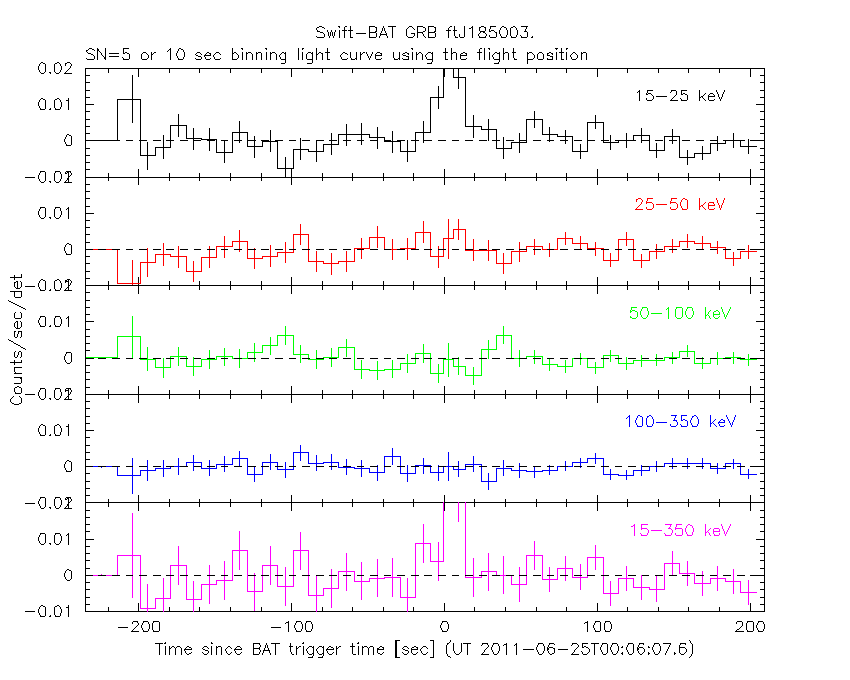

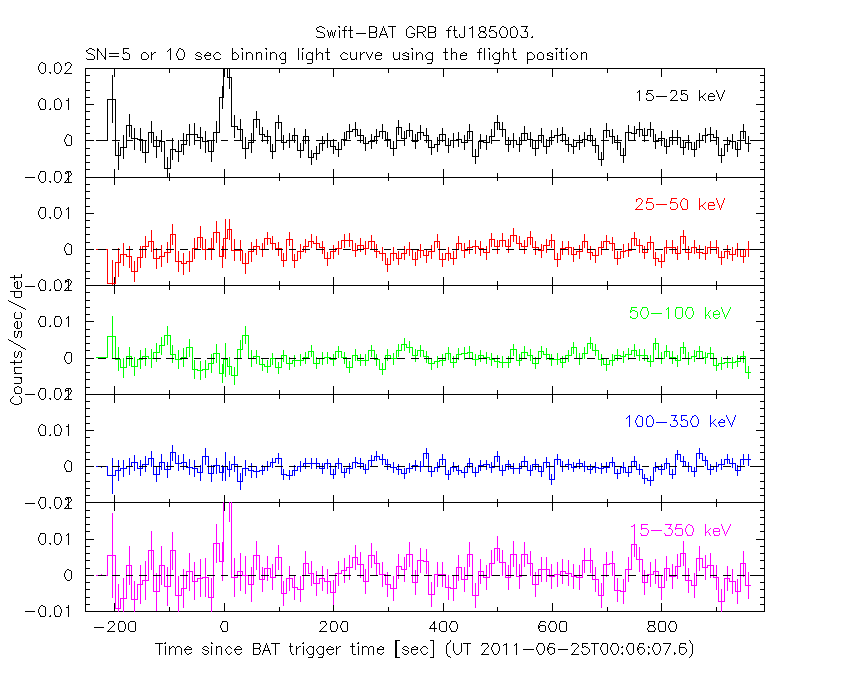

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

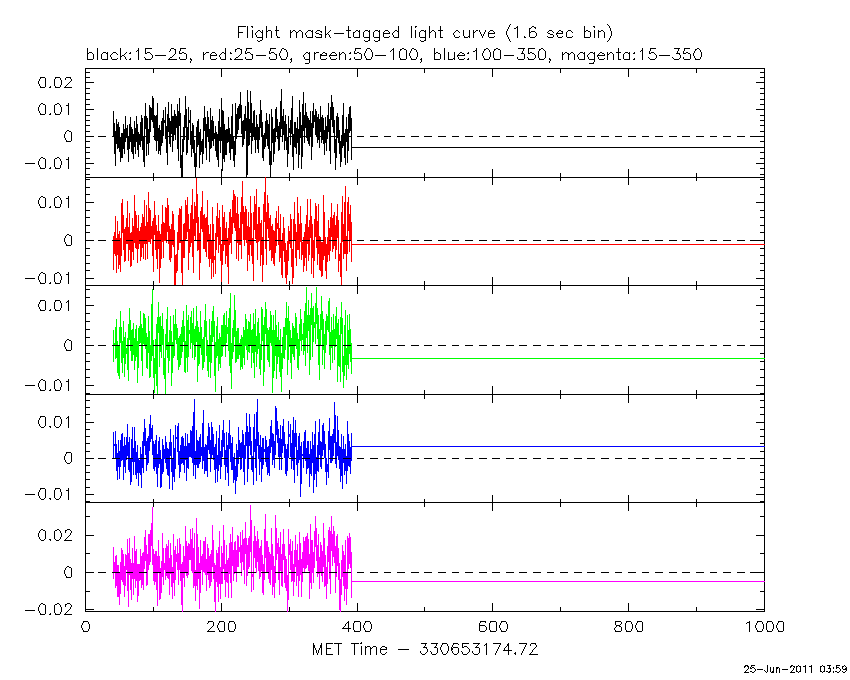

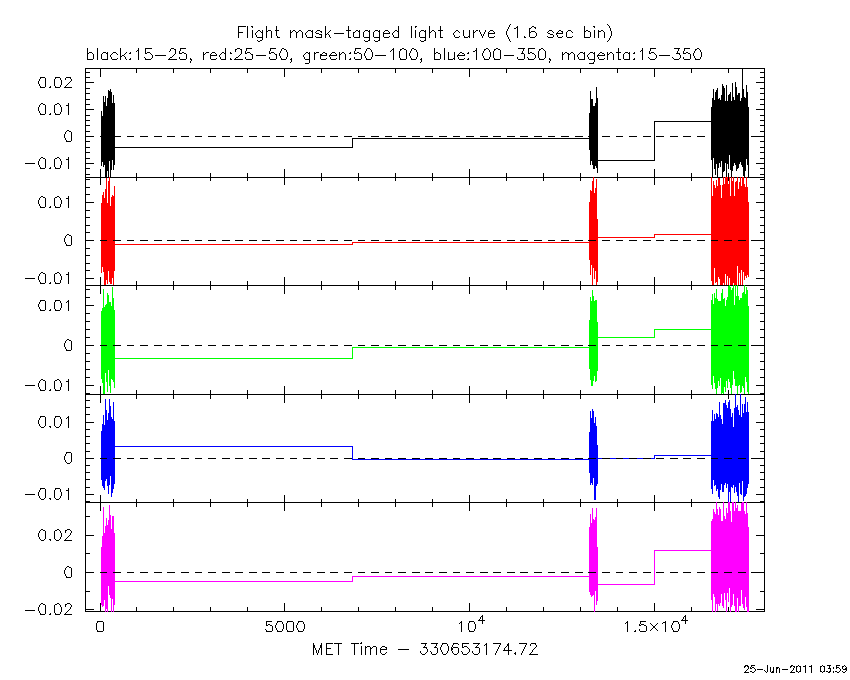

Flight mask-tagged light curves

Caution: Mask-weight map is always using the same on-axis map

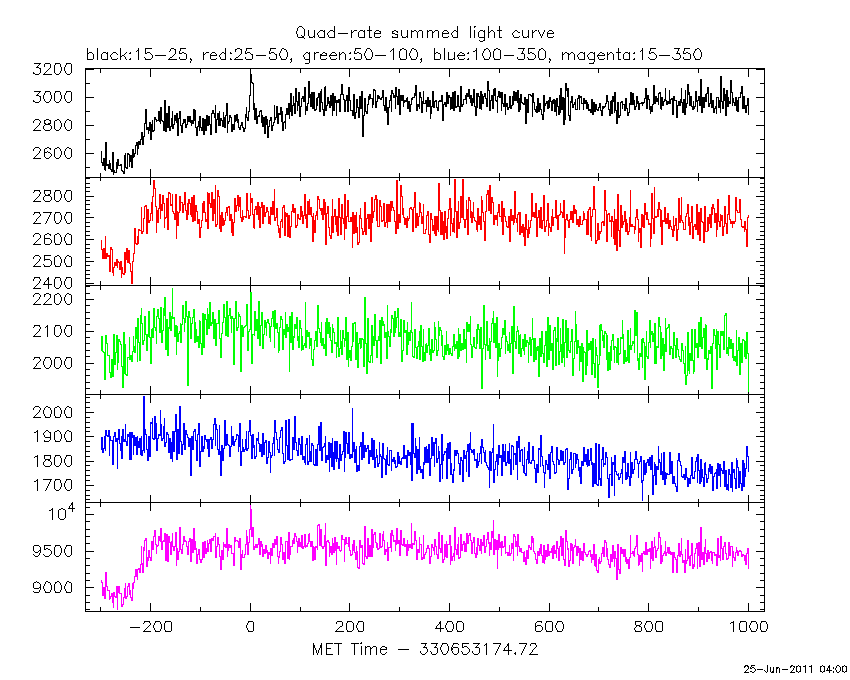

Quad-rate summed light curves (from T0-300 to T0+1000)

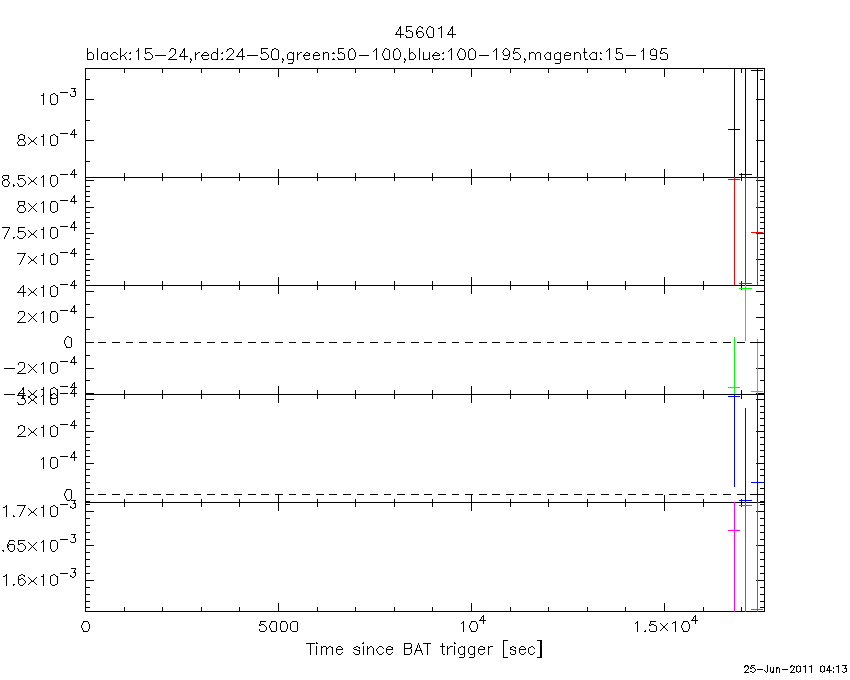

The mask-weighted light curves based on cleaned DPHs

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from   -1.720 sec. to   13.280 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.93606     ( -0.766186   0.93768 )
Norm@50keV  : 2.20228E-04    ( -0.000141234   0.000252233 )
------------------------------------------------------------
# Chi-Squared =          48.46 using 59 PHA bins.
# Reduced chi-squared =         0.8501 for     57 degrees of freedom
# Null hypothesis probability =   7.824889e-01

Photon flux (15-150 keV)    in 15 sec: 0.319747 ( -0.0614565  0.0616905 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.54353e-07 ( -3.37809e-08  3.58517e-08 ) ergs/cm2

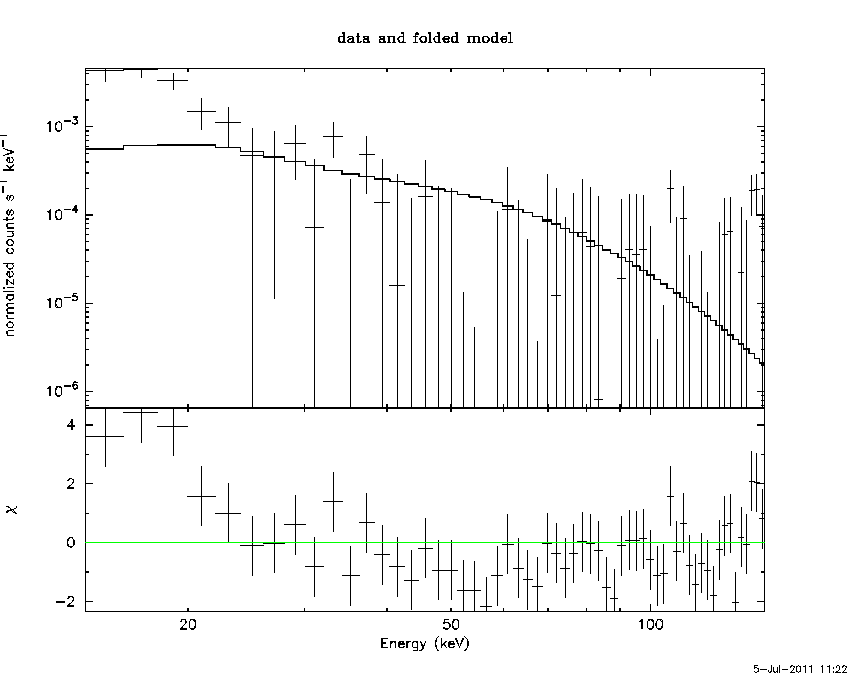

Cutoff power-law model

Time interval is from   -1.720 sec. to   13.280 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 3.40749E-03    (     )
------------------------------------------------------------
# Chi-Squared =         110.24 using 59 PHA bins.
# Reduced chi-squared =         1.9686 for     56 degrees of freedom
# Null hypothesis probability =   2.085796e-05

Photon flux (15-150 keV)    in 15 sec: 0.320339 ( -0.060245  0.0606 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.49984e-07 ( -3.17964e-08  2.54907e-08 ) ergs/cm2

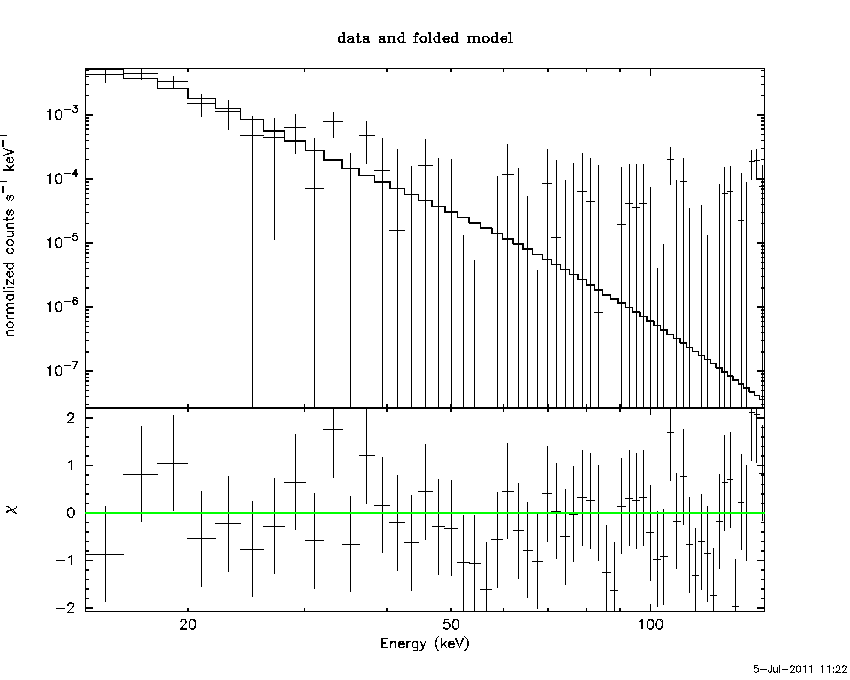

Band function

Time interval is from   -1.720 sec. to   13.280 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -7.37187   ( 1.64499   4.49434 )
beta        : -4.93604    ( -0.93682   0.766373 )
Epeak [keV] : 15.8435      ( -15.8435 -15.8435 )
Norm@50keV   : 2.99327E-02    ( -0.0191955   0.0342822 )
------------------------------------------------------------
# Chi-Squared =          48.46 using 59 PHA bins.
# Reduced chi-squared =         0.8810 for     55 degrees of freedom
# Null hypothesis probability =   7.211024e-01

Photon flux (15-150 keV)    in 15 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

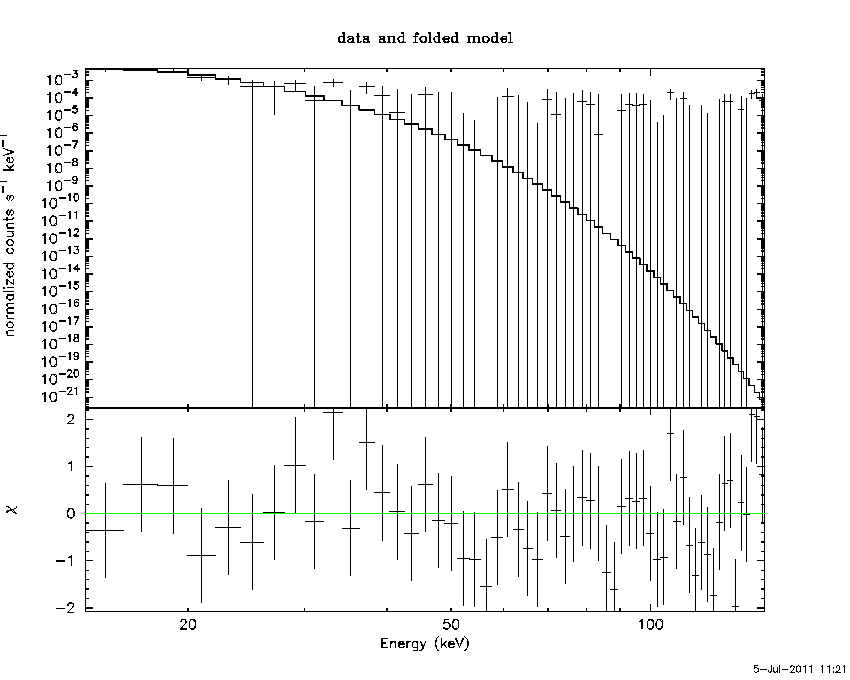

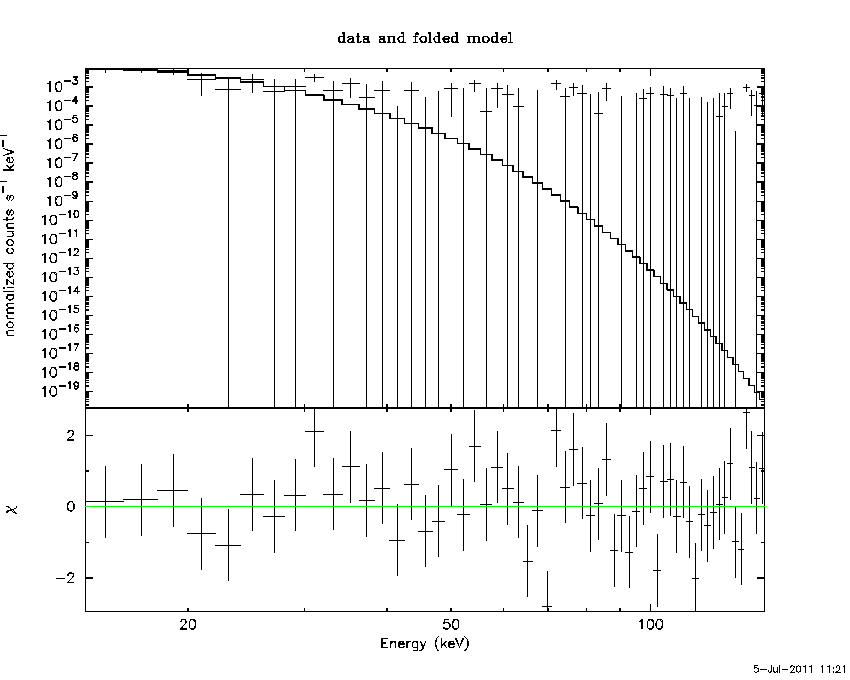

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.77783  (-0.480195  0.612642)
R^2/D10^2   : 75.2125  (-75.2151   205.969)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          48.51 using 59 PHA bins.
# Reduced chi-squared =         0.8511 for     57 degrees of freedom
# Null hypothesis probability =   7.807325e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.287e-07   7.117e-08
25- 50  1.422e-08   9.270e-09
50-150  1.196e-11   1.334e-11
15-150  1.429e-07   7.905e-08

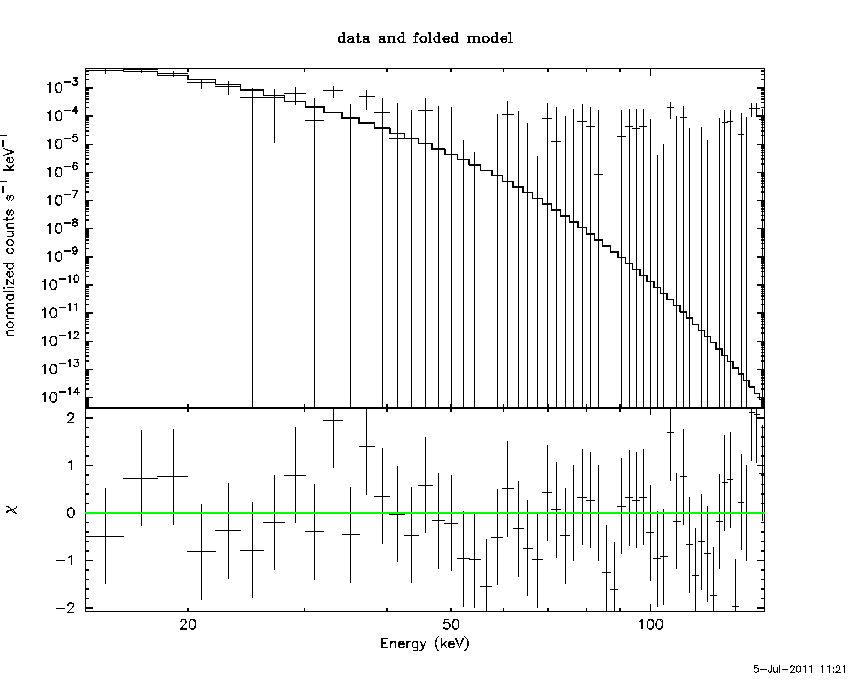

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 5.73963       (-1.53969      2.37737)
Norm        : 46.2534       (-28.6265     90.4383)
------------------------------------------------------------
# Chi-Squared =          47.95 using 59 PHA bins.
# Reduced chi-squared =         0.8413 for     57 degrees of freedom
# Null hypothesis probability =   7.977216e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.260e-07   6.995e-08
25- 50  2.143e-08   1.329e-08
50-150  2.132e-10   2.415e-10
15-150  1.476e-07   7.445e-08

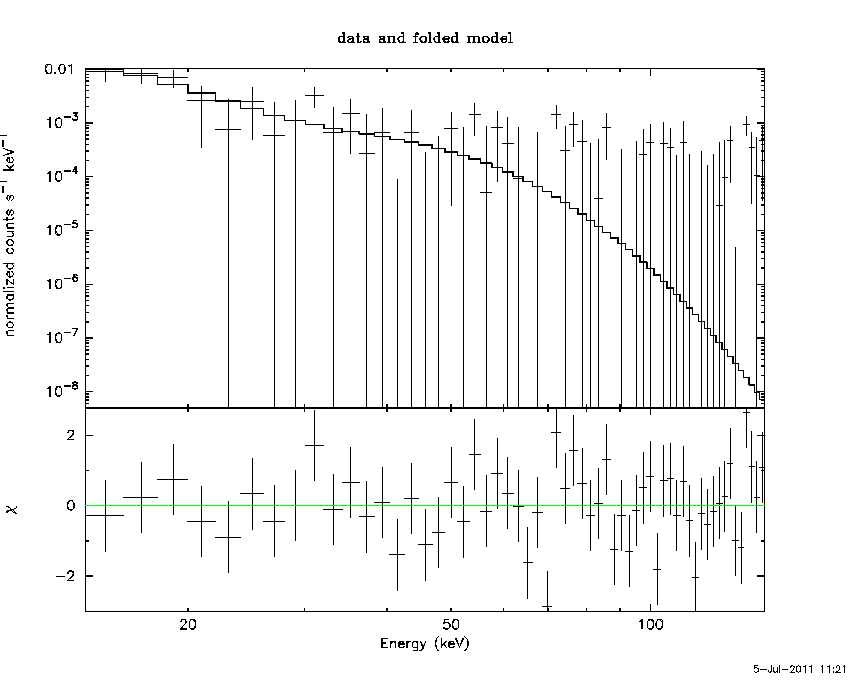

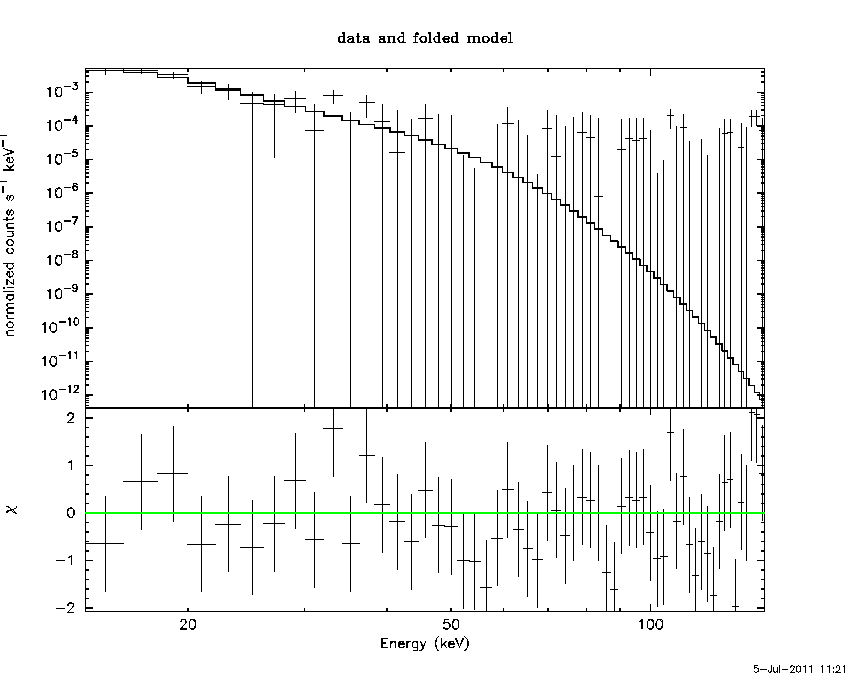

Double BB

------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.50062        (-3.03408      -3.03408)
R1^2/D10^2  : 0.497294        (      )
kT2 [keV]   : 2.33663        (-2.31306      0.880302)
R2^2/D10^2  : 194.792    (-212.272   22620.8)
------------------------------------------------------------
# Chi-Squared =          48.40 using 59 PHA bins.
# Chi-Squared =          47.19 using 59 PHA bins.
# Reduced chi-squared =         0.8800 for     55 degrees of freedom
# Reduced chi-squared =         0.8579 for     55 degrees of freedom
# Null hypothesis probability =   7.230602e-01
# Null hypothesis probability =   7.639973e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.283e-07   4.766e-03
25- 50  1.539e-08   4.416e-02
50-150  2.099e-11   6.332e-01
15-150  1.437e-07   4.801e-01

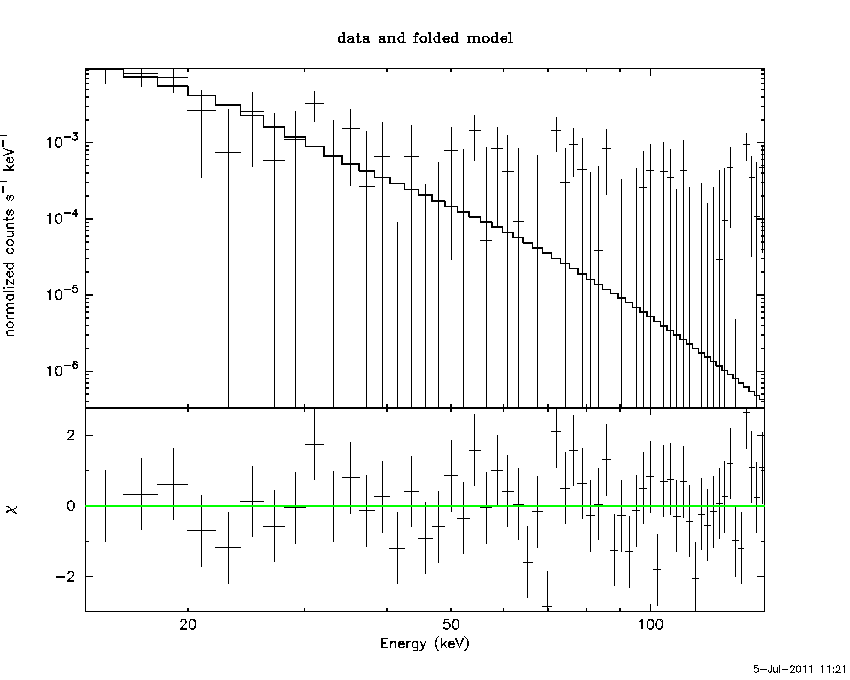

Peak spectrum fit

Power-law model

Time interval is from    4.280 sec. to    5.280 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.12353     ( -1.14939   1.85901 )
Norm@50keV  : 1.04406E-03    ( -0.00104407   0.00189486 )
------------------------------------------------------------
# Chi-Squared =          60.83 using 59 PHA bins.
# Reduced chi-squared =          1.067 for     57 degrees of freedom
# Null hypothesis probability =   3.396295e-01

Photon flux (15-150 keV)    in 1 sec: 0.717726 ( -0.236353  0.234922 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.51973e-08 ( -1.01601e-08  1.21931e-08 ) ergs/cm2

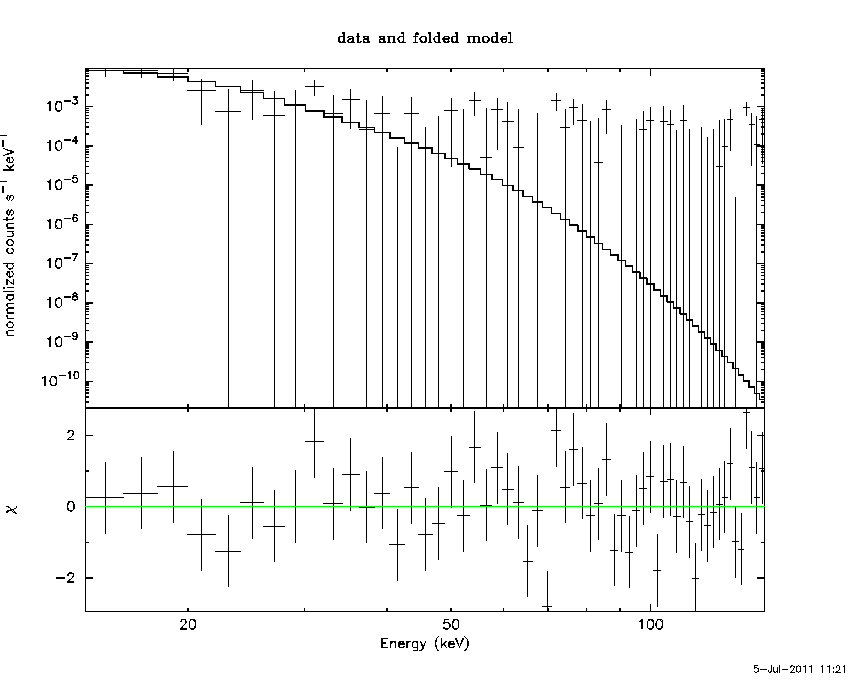

Cutoff power-law model

Time interval is from    4.280 sec. to    5.280 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.79450     (     )
Epeak [keV] : 1.88491      (   )
Norm@50keV  : 8.23416E-02    (     )
------------------------------------------------------------
# Chi-Squared =          61.80 using 59 PHA bins.
# Reduced chi-squared =          1.104 for     56 degrees of freedom
# Null hypothesis probability =   2.767190e-01

Photon flux (15-150 keV)    in 1 sec: 0.717218 ( -0.118523  0.25955 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.51779e-08 ( -1.01465e-08  1.22071e-08 ) ergs/cm2

Band function

Time interval is from    4.280 sec. to    5.280 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -7.85373   ( 0.745342   4.91324 )
beta        : -4.12354    ( -1.86248   1.14975 )
Epeak [keV] : 32.4689      ( -32.4689 -32.4689 )
Norm@50keV   : 0.141901    ( -0.141901   0.25754 )
------------------------------------------------------------
# Chi-Squared =          60.83 using 59 PHA bins.
# Reduced chi-squared =          1.106 for     55 degrees of freedom
# Null hypothesis probability =   2.739931e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.99598  (-1.01147  1.71349)
R^2/D10^2   : 94.4997  (-94.9859   1519.14)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          62.90 using 59 PHA bins.
# Reduced chi-squared =          1.103 for     57 degrees of freedom
# Null hypothesis probability =   2.754588e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.752e-08   9.920e-09
25- 50  2.541e-09   1.657e-09
50-150  4.050e-12   5.755e-12
15-150  2.007e-08   1.200e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 7.46594       (-3.82994      10.2364)
Norm        : 46.8827       (-46.6043     413.611)
------------------------------------------------------------
# Chi-Squared =          61.95 using 59 PHA bins.
# Reduced chi-squared =          1.087 for     57 degrees of freedom
# Null hypothesis probability =   3.040044e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.733e-08   1.019e-08
25- 50  4.806e-09   3.133e-09
50-150  1.341e-10   1.623e-10
15-150  2.227e-08   1.315e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.26243        (-2.20943      1.57129)
R1^2/D10^2  : 496.554        (-312.874      1.37386e+07)
kT2 [keV]   : 9.13557        (-8.15271      -8.72378)
R2^2/D10^2  : 0.201984    (-0.253825   92.6399)
------------------------------------------------------------
# Chi-Squared =          60.15 using 59 PHA bins.
# Reduced chi-squared =          1.094 for     55 degrees of freedom
# Null hypothesis probability =   2.948181e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.608e-08   8.570e-09
25- 50  7.810e-09   4.423e-09
50-150  2.872e-09   3.037e-09
15-150  2.676e-08   1.342e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.93606     ( -0.766186   0.93768 )
Norm@50keV  : 2.20228E-04    ( -0.000141234   0.000252233 )
------------------------------------------------------------
# Chi-Squared =          48.46 using 59 PHA bins.
# Reduced chi-squared =         0.8501 for     57 degrees of freedom
# Null hypothesis probability =   7.824889e-01

Photon flux (15-150 keV)    in 15 sec: 0.319747 ( -0.0614565  0.0616905 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.54353e-07 ( -3.37809e-08  3.58517e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 3.40749E-03    (     )
------------------------------------------------------------
# Chi-Squared =         110.24 using 59 PHA bins.
# Reduced chi-squared =         1.9686 for     56 degrees of freedom
# Null hypothesis probability =   2.085796e-05

Photon flux (15-150 keV)    in 15 sec: 0.320339 ( -0.060245  0.0606 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.49984e-07 ( -3.17964e-08  2.54907e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -7.37187   ( 1.64499   4.49434 )
beta        : -4.93604    ( -0.93682   0.766373 )
Epeak [keV] : 15.8435      ( -15.8435 -15.8435 )
Norm@50keV   : 2.99327E-02    ( -0.0191955   0.0342822 )
------------------------------------------------------------
# Chi-Squared =          48.46 using 59 PHA bins.
# Reduced chi-squared =         0.8810 for     55 degrees of freedom
# Null hypothesis probability =   7.211024e-01

Photon flux (15-150 keV)    in 15 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.99787e-08
S(50-100 keV) = 3.91698e-09

T90 vs. Hardness ratio plot

T90                                   = 13 sec.
Hardness ratio (energy fluence ratio) = 0.130659

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.211456
Count Ratio (50-100 keV) / (15-25 keV) = -0.121814

Mask shadow pattern

IMX = 3.243737027197651E-02, IMY = -5.140903830086476E-01

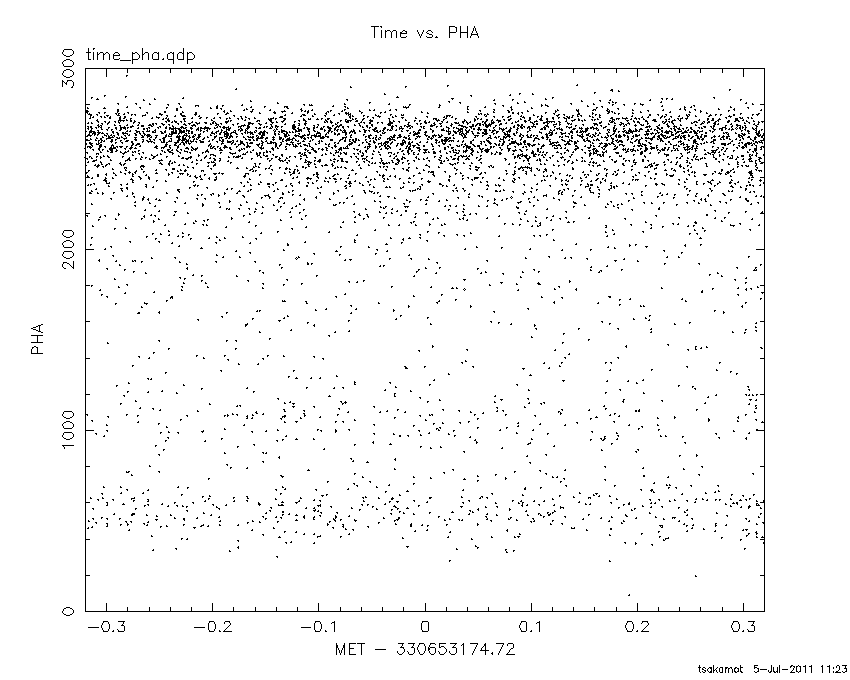

TIME vs. PHA plot around the trigger time

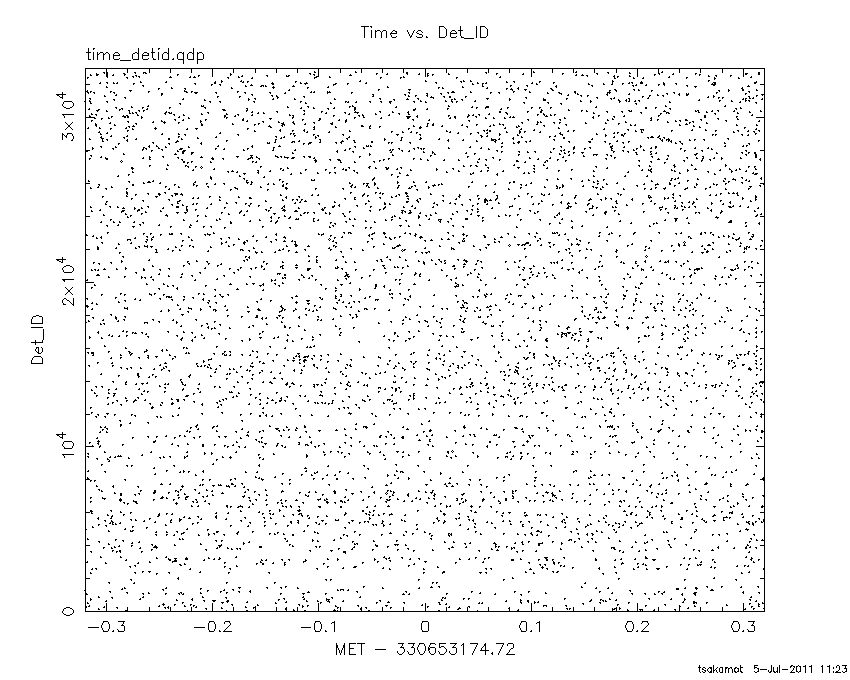

TIME vs. DetID plot around the trigger time

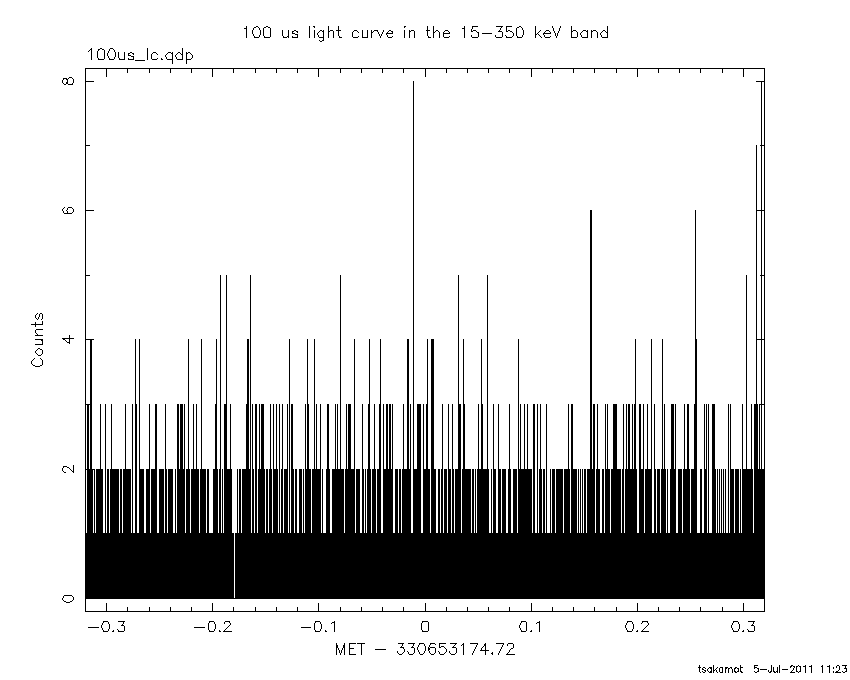

100 us light curve (15-350 keV)

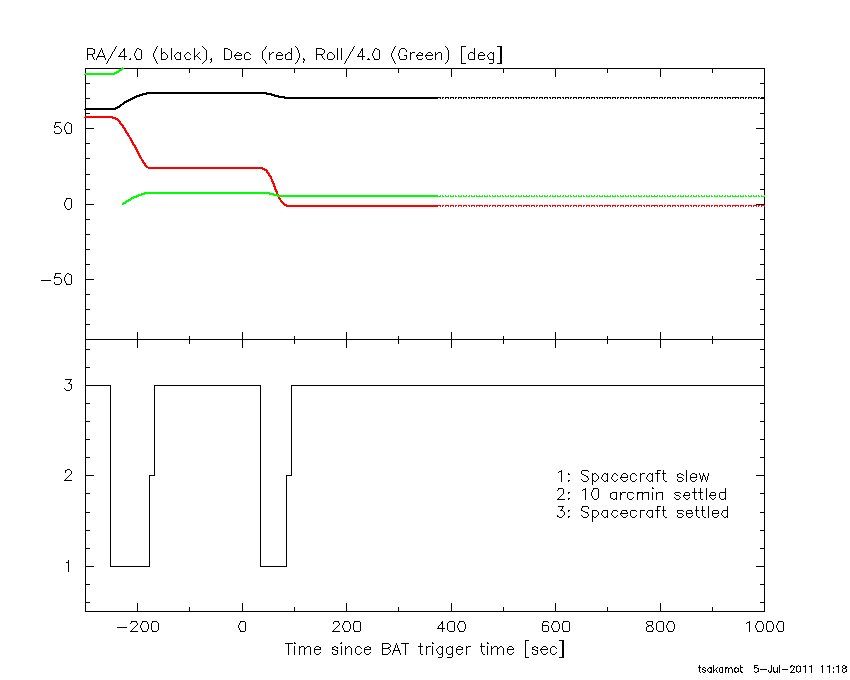

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-177.419410 -1.720000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4643  35.3576    2.6  36.4  177.6   1.0028   4.5    1.0	Her X-1
268.5102  -1.4321    8.9  35.6  108.2   0.5606   1.3    8.6	SW J1753.5-0127
288.7893  10.9189    0.7  13.9   83.3   2.9902  16.5    1.7	GRS 1915+105
299.5997  35.1956    0.5  12.3 -100.3   4.4316  24.0    0.6	Cyg X-1
308.1456  40.9735    2.4  20.7  -90.1   0.9732   4.9    2.0	Cyg X-3
326.0183  38.2367    6.1  30.5  -66.3  -0.4805  -1.9    8.8	Cyg X-2
255.3011  19.2508    3.0  36.6  150.3   1.2483   3.9 ------	UNKNOWN
235.8082  26.9268    2.2  52.6  166.2   3.6625   5.2 ------	UNKNOWN
237.1932  65.7672    3.6  55.2 -145.3   3.6741   3.2 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-1.720000 13.280000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.5309  35.3521   72.0  36.3  177.6  -0.0093  -0.2    3.6	Her X-1
268.4196  -1.6484    5.0  35.8  108.1   0.2514   2.3   12.1	SW J1753.5-0127
288.9714  10.9517   18.1  13.8   82.7   0.0298   0.6   10.2	GRS 1915+105
299.6550  35.0148   12.2  12.2  -99.8  -0.0404  -1.0   11.6	Cyg X-1
308.2824  41.0415   10.8  20.9  -90.0  -0.0548  -1.1    9.4	Cyg X-3
326.3582  38.3753   10.3  30.8  -66.4  -0.0702  -1.1    9.3	Cyg X-2
282.4895  -0.9570    2.1  27.3   86.4   0.3579   5.4 ------	UNKNOWN
283.8197  63.2492    2.3  40.2 -127.8   0.4172   5.1 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
84.180600 962.290000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9904 -15.6508    0.8  39.9  135.6  22.8754  13.8    0.9	Sco X-1
254.5170  35.3916    2.8  44.8 -143.7   4.9348   4.1    4.1	Her X-1
263.0421 -24.7283    1.4  30.4  106.2   9.3179   8.5    2.1	GX 1+4
268.4280  -1.4335    3.8  14.1  157.2   1.8201   3.0    3.8	SW J1753.5-0127
270.2842 -25.0791    5.0  26.9   94.5   2.1445   2.3    0.0	GX 5-1
270.3012 -25.7438   90.1  27.5   93.8   0.1252   0.1    0.1	GRS 1758-258
273.9225 -13.9812    3.4  15.6  102.2   1.7600   3.4    5.9	GX 17+2
275.9800 -30.2251    8.8  29.9   80.7   1.3789   1.3    9.0	H1820-303
285.0417 -24.8192    2.9  24.0   63.8   2.8612   4.0    6.1	HT1900.1-2455
288.7979  10.9423    0.6  13.4  -83.4  13.0289  19.3    0.2	GRS 1915+105
299.5788  35.1836    1.9  39.5  -88.6  21.7025   6.0    1.2	Cyg X-1
307.7222 -39.3416    3.3  44.7   41.4   6.3245   3.6 ------	UNKNOWN
312.9914  11.3254    3.3  32.6  -43.7   2.3838   3.5 ------	UNKNOWN
293.2551  25.5568    3.3  28.4  -90.2   2.7326   3.5 ------	UNKNOWN
243.8525  41.8626    5.2  55.2 -145.3  10.1032   2.3 ------	UNKNOWN
324.4687  22.7150    2.6  47.1  -53.5  13.3033   4.4 ------	UNKNOWN

Plot creation:
Tue Jul  5 11:23:50 EDT 2011
