batgrbproduct analysis for trigger=458345

batgrbproduct Analysis for Trigger=458345

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Fri Jul 29 14:48:42 EDT 2011
             Host Name: gcn5
   Current Working Dir: /local/data/raid16/prebascript_archive/trigger458345/GCN5_download_cron
======================================================================

  Trigger: 00458345      Segment: 000

  BAT Trigger Time: 333631162.604   [s; MET]
      Trigger Stop: 333631162.612   [s; MET]
               UTC: 2011-07-29T11:19:15.398420    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 26.5984666273142   Dec: 61.7286773680504  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    9.7
     Image Trigger?:     NO
     Rate S/N Ratio:     41.6293165929973  [ if not an image trigger ]
     Image S/N Ratio:    9.7

  Flight Position:   [ source = BAT ]
    RA: 26.5984666273142   Dec: 61.7286773680504  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 26.4154709320619   Dec: 61.6935203683584  [deg; J2000]
        { 01h 45m 39.7s , +61d 41' 36.7" }
         +/- 4.53179441668947 [arcmin] (estimated 90% radius based on SNR)
         +/- 2.99636512980901 [arcmin] (formal 1-sigma fit error)
    SNR: 3.51228317121021

  Angular difference between Flight and Ground position is 5.614799 arcmin

  Partial Coding Fraction: 0.3242188    [ including projection effects ]

  Duration
     T90: 386.307999968529 +/- 187.073451325776
        Measured from: 9.94800013303757
                   to: 396.256000101566     [s; relative to TRIGTIME]
     T50: 79.4559999108315 +/- 166.286796823613
        Measured from: 80.228000164032
                   to: 159.684000074863     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.0679999589920044
                   to: 0.932000041007996     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0
                   to: 425.040000021458     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.407026   0.136350   0.137485   0.185807
           0.128646   0.131212   0.115776   0.101517 [error]
 Peak      0.028514   0.028210   0.016768   0.006623
           0.011583   0.012590   0.010705   0.008767 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.46e-07 1.12e-07 5.75e-08 4.25e-08 3.35e-07 3.58e-07   erg/cm2
              Error 1.12e-07 9.53e-08 8.99e-08 1.93e-07 2.31e-07 3.42e-07   erg/cm2
Peak flux Power-law 3.63e-01 2.45e-01 1.08e-01 6.62e-02 7.49e-01 7.83e-01   ph/cm2/s
              Error 2.01e-01 1.11e-01 7.62e-02 9.17e-02 3.33e-01 3.49e-01   ph/cm2/s

Fluence   Cutoff-PL 1.46e-07 1.12e-07 5.76e-08 4.22e-08 3.36e-07 3.62e-07   erg/cm2
              Error 1.12e-07 7.68e-08 8.95e-08 1.91e-07 2.31e-07 3.51e-07   erg/cm2
Peak flux Cutoff-PL 2.88e-01 3.22e-01 1.21e-01 5.13e-03 7.40e-01 7.41e-01   ph/cm2/s
              Error 2.35e-01 1.56e-01 2.49e-01 3.32e-01 0.00e+00 0.00e+00   ph/cm2/s

Fluence        Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band 3.42e-01 3.46e-01 7.48e-01 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 2.28e-01 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.962    1.755    -      -           6.68e-05 7.57e-05   63.740 57
CPL   1.878    0.000       5.1    0.0      2.73e-04 0.00e+00   64.370 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.176    0.801    -      -           4.58e-03 2.61e-03   48.060 57
CPL  -0.041    4.035      40.4    0.0      8.08e-02 0.00e+00   46.460 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  425.040    0.000  425.040
T90   386.308    9.948  396.256
T50    79.456   80.228  159.684
Peak    1.000   -0.068    0.932

Click here for the BAT GCN circular template


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
   26.4155 +61.6935 0.0548   46.7  -25.8       0.2101     3.5  TRIG_00458345
------------------------------------------

Foreground time interval of the image:
  0.000   7.597 (delta_t =   7.597 [sec])
Background time interval of the image:
-115.103   0.000 (delta_t = 115.103 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

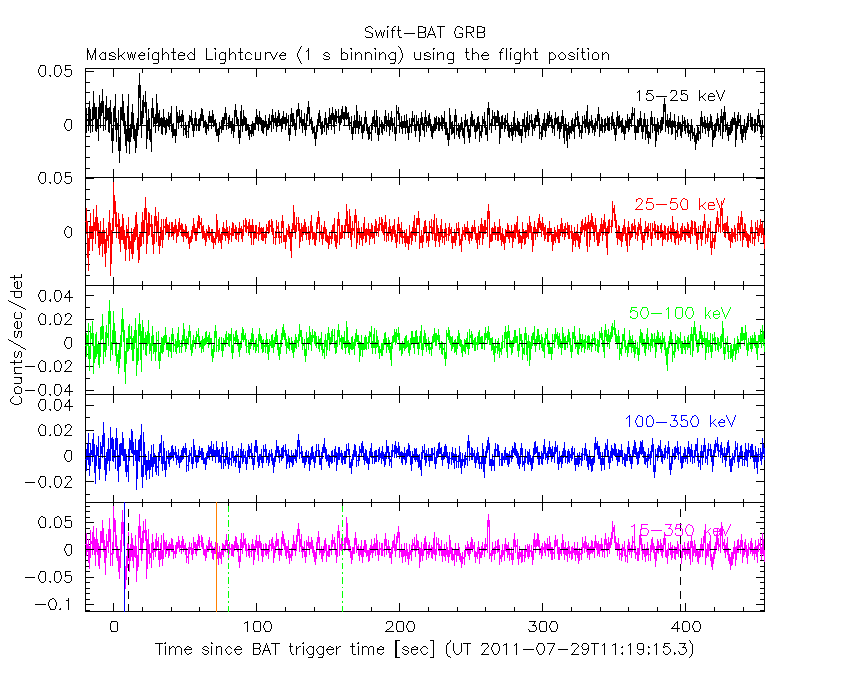

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

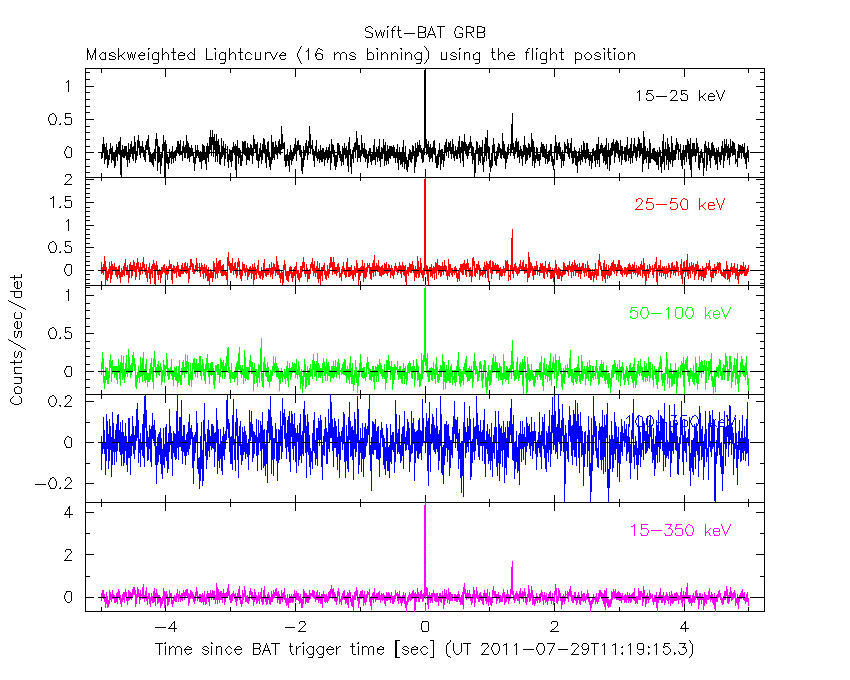

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

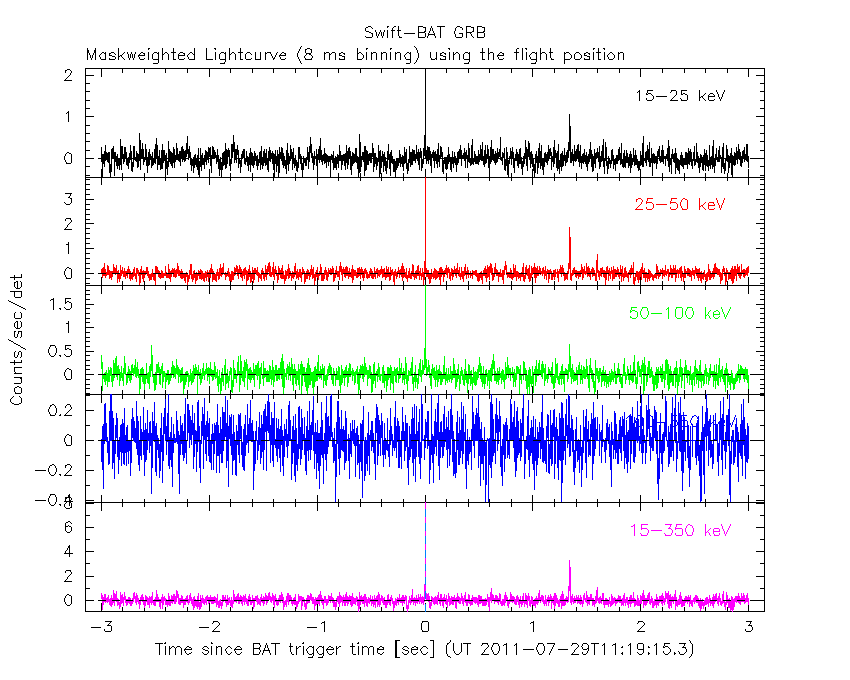

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

The mask-weighted light curves based on cleaned DPHs

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from    0.000 sec. to  425.040 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.96153     ( -1.23173   2.27796 )
Norm@50keV  : 6.68491E-05    ( -6.68165e-05   8.46063e-05 )
------------------------------------------------------------
# Chi-Squared =          63.74 using 59 PHA bins.
# Reduced chi-squared =          1.118 for     57 degrees of freedom
# Null hypothesis probability =   2.514930e-01

Photon flux (15-150 keV)    in 425 sec: 1.78781E-02 ( -0.00863411  0.00864014 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.35364e-07 ( -1.99019e-07  2.62253e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.000 sec. to  425.040 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.87792     (     )
Epeak [keV] : 5.05663      (   )
Norm@50keV  : 2.73104E-04    (     )
------------------------------------------------------------
# Chi-Squared =          64.37 using 59 PHA bins.
# Reduced chi-squared =          1.149 for     56 degrees of freedom
# Null hypothesis probability =   2.069810e-01

Photon flux (15-150 keV)    in 425 sec: 1.78656E-02 ( -0.00862404  0.0085886 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.36482e-07 ( -2.00446e-07  2.61225e-07 ) ergs/cm2

Band function

Time interval is from    0.000 sec. to  425.040 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.83899   ( 6.75108   6.75108 )
beta        : -2.96217    ( -2.27649   1.23159 )
Epeak [keV] : 8.52810      ( -8.5281 -8.5281 )
Norm@50keV   : 9.08106E-03    ( -0.00908106   0.0114994 )
------------------------------------------------------------
# Chi-Squared =          63.74 using 59 PHA bins.
# Reduced chi-squared =          1.159 for     55 degrees of freedom
# Null hypothesis probability =   1.961018e-01

Photon flux (15-150 keV)    in 425 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 3.85785  (-1.44295  2.94102)
R^2/D10^2   : 0.517888  (-0.517915   7.16801)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          64.23 using 59 PHA bins.
# Reduced chi-squared =          1.127 for     57 degrees of freedom
# Null hypothesis probability =   2.381975e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.675e-07   1.006e-07
25- 50  5.449e-08   3.808e-08
50-150  5.301e-10   7.121e-10
15-150  2.226e-07   1.500e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 12.1525       (-12.1795      135.613)
Norm        : 0.399387       (-0.397263     4.37408)
------------------------------------------------------------
# Chi-Squared =          64.39 using 59 PHA bins.
# Reduced chi-squared =          1.130 for     57 degrees of freedom
# Null hypothesis probability =   2.338281e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.557e-07   9.849e-08
25- 50  8.541e-08   5.395e-08
50-150  9.591e-09   1.156e-08
15-150  2.507e-07   1.703e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 3.49328        (-3.49078      2.21065)
R1^2/D10^2  : 0.784448        (-0.786547      28.3612)
kT2 [keV]   : 20.7970        (-20.7564      -20.7564)
R2^2/D10^2  : 2.80609E-04    (-0.00028304   1.85348)
------------------------------------------------------------
# Chi-Squared =          62.28 using 59 PHA bins.
# Reduced chi-squared =          1.132 for     55 degrees of freedom
# Null hypothesis probability =   2.331698e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.610e-07   1.013e-07
25- 50  8.642e-08   4.951e-08
50-150  1.612e-07   1.275e-07
15-150  4.086e-07   2.284e-07

Peak spectrum fit

Power-law model

Time interval is from   -0.068 sec. to    0.932 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.17621     ( -0.675173   0.926146 )
Norm@50keV  : 4.58260E-03    ( -0.00265954   0.00255088 )
------------------------------------------------------------
# Chi-Squared =          48.06 using 59 PHA bins.
# Reduced chi-squared =         0.8432 for     57 degrees of freedom
# Null hypothesis probability =   7.944348e-01

Photon flux (15-150 keV)    in 1 sec: 0.749336 ( -0.333016  0.333186 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.29159e-08 ( -2.12328e-08  2.26707e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.068 sec. to    0.932 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -4.08766E-02     ( -5.95258   2.11702 )
Epeak [keV] : 40.4260      (   )
Norm@50keV  : 8.08043E-02    (     )
------------------------------------------------------------
# Chi-Squared =          46.46 using 59 PHA bins.
# Reduced chi-squared =         0.8297 for     56 degrees of freedom
# Null hypothesis probability =   8.143732e-01

Photon flux (15-150 keV)    in 1 sec: 0.740037 ( -0.329633  0.168271 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.12855e-08 ( -1.81479e-08  2.13964e-08 ) ergs/cm2

Band function

Time interval is from   -0.068 sec. to    0.932 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.12754E-02   ( 0.649841   0.649841 )
beta        : -10.00000    ( 9.64595e+07   9.64595e+07 )
Epeak [keV] : 40.4149      ( -31.7585 -40.5503 )
Norm@50keV   : 8.08388E-02    ( -0.0799662   32.1968 )
------------------------------------------------------------
# Chi-Squared =          46.46 using 59 PHA bins.
# Reduced chi-squared =         0.8448 for     55 degrees of freedom
# Null hypothesis probability =   7.869235e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 10.8559  (-4.2472  5.32875)
R^2/D10^2   : 0.285301  (-0.285271   1.5474)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          46.81 using 59 PHA bins.
# Reduced chi-squared =         0.8213 for     57 degrees of freedom
# Null hypothesis probability =   8.300006e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.006e-09   4.733e-09
25- 50  1.948e-08   1.196e-08
50-150  1.283e-08   1.056e-08
15-150  3.931e-08   2.671e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 52.2481       (-31.4235      142.496)
Norm        : 4.35964       (-2.26306     4.60509)
------------------------------------------------------------
# Chi-Squared =          46.96 using 59 PHA bins.
# Reduced chi-squared =         0.8238 for     57 degrees of freedom
# Null hypothesis probability =   8.260551e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.076e-08   7.340e-09
25- 50  1.570e-08   1.045e-08
50-150  1.588e-08   1.302e-08
15-150  4.234e-08   3.015e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.06910        (-4.29528      41.8175)
R1^2/D10^2  : 5.24843        (-4.80526      -4.80526)
kT2 [keV]   : 12.6274        (-12.8906      -12.8906)
R2^2/D10^2  : 0.134894    (-0.123381   1.20689)
------------------------------------------------------------
# Chi-Squared =          46.14 using 59 PHA bins.
# Reduced chi-squared =         0.8389 for     55 degrees of freedom
# Null hypothesis probability =   7.968806e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.745e-09   4.630e-09
25- 50  1.718e-08   1.064e-08
50-150  1.510e-08   1.148e-08
15-150  4.203e-08   2.722e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.17054     ( -1.11288   2.1258 )
Norm@50keV  : 1.09276E-03    ( -0.000959745   0.000898358 )
------------------------------------------------------------
# Chi-Squared =          62.80 using 59 PHA bins.
# Reduced chi-squared =          1.102 for     57 degrees of freedom
# Null hypothesis probability =   2.783360e-01

Photon flux (15-150 keV)    in 7.597 sec: 0.178151 ( -0.115314  0.115381 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.77614e-08 ( -5.5246e-08  6.18343e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -9.91486     (     )
Epeak [keV] : 44.9223      ( -18.5511 114.869 )
Norm@50keV  : 1469.93    ( -1535.76   31599.1 )
------------------------------------------------------------
# Chi-Squared =          61.51 using 59 PHA bins.
# Reduced chi-squared =          1.098 for     56 degrees of freedom
# Null hypothesis probability =   2.853935e-01

Photon flux (15-150 keV)    in 7.597 sec: 0.123190 ( -0.0735971  0.148243 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.13149e-08 ( -3.63292e-08  6.37666e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.97760   ( -87.272   -87.272 )
beta        : -9.23127    ( 9.05991   8.87537 )
Epeak [keV] : 44.7320      ( -15.1394 19.984 )
Norm@50keV   : 5.35601    ( -3.22452   5.74173e+06 )
------------------------------------------------------------
# Chi-Squared =          61.79 using 59 PHA bins.
# Reduced chi-squared =          1.123 for     55 degrees of freedom
# Null hypothesis probability =   2.465679e-01

Photon flux (15-150 keV)    in 7.597 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.12086e-07
S(50-100 keV) = 5.75263e-08

T90 vs. Hardness ratio plot

T90                                   = 386.307999968529 sec.
Hardness ratio (energy fluence ratio) = 0.513234

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.334991
Count Ratio (50-100 keV) / (15-25 keV) = 0.337779

Mask shadow pattern

IMX = 9.558413758528360E-01, IMY = 4.617679082381481E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.008000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-115.103400 0.000000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.6516  35.3882   27.3  30.0  174.3   0.0633   0.4    9.9	Her X-1
299.6067  35.2096    0.6  22.6   86.0   3.3161  17.9    0.9	Cyg X-1
307.9567  40.9235    3.7  20.5   62.9   0.5113   3.1    7.2	Cyg X-3
326.2389  38.2574    6.4  31.6   41.7   0.3881   1.8    5.0	Cyg X-2
265.0662  38.4867    2.8  22.7  162.8   0.5754   4.2 ------	UNKNOWN
216.8965  25.6084    3.7  57.9 -156.8   2.4310   3.1 ------	UNKNOWN
210.1851  33.8064    6.5  55.3 -145.2   1.6319   1.8 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.000000 7.596580

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4447  35.2278    7.4  30.2  174.4  -0.0595  -1.6    6.9	Her X-1
299.4150  35.2018    5.4  22.6   86.4   0.0921   2.1    8.6	Cyg X-1
308.1422  41.0683    3.3  20.4   62.3   0.1334   3.6    7.1	Cyg X-3
325.9869  38.3090    7.2  31.4   41.9  -0.0827  -1.6    8.7	Cyg X-2
 16.5397  53.6255    2.4  48.0  -12.8   0.2822   4.9 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
71.696580 962.474600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
333.9640  44.3528    4.0  34.8  104.3   4.1064   2.9 ------	UNKNOWN
 41.1842   7.4318    3.5  55.4    1.7   8.7427   3.3 ------	UNKNOWN
 54.8340  68.8543    3.0  13.6 -114.1   2.4114   3.9 ------	UNKNOWN
 63.4554   9.3192    5.4  58.9  -24.3   9.9849   2.2 ------	UNKNOWN
179.6459  61.2938    3.8  55.3 -145.2  15.2033   3.0 ------	UNKNOWN

Plot creation:
Fri Jul 29 15:06:31 EDT 2011
