batgrbproduct analysis for trigger=458907

batgrbproduct Analysis for Trigger=458907

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Mon Aug  8 02:13:09 EDT 2011
             Host Name: gcn5
   Current Working Dir: /local/data/raid16/prebascript_archive/trigger458907/GCN5_download_cron
======================================================================

  Trigger: 00458907      Segment: 000

  BAT Trigger Time: 334439873.612   [s; MET]
      Trigger Stop: 334439873.644   [s; MET]
               UTC: 2011-08-07T19:57:46.375020    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 278.696248288915   Dec: -8.76002493492473  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.65
     Image Trigger?:     NO
     Rate S/N Ratio:     18.9472953214964  [ if not an image trigger ]
     Image S/N Ratio:    7.65

  Flight Position:   [ source = BAT ]
    RA: 278.696248288915   Dec: -8.76002493492473  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 278.708703651202   Dec: -8.7578781038455  [deg; J2000]
        { 18h 34m 50.1s , -08d 45' 28.4" }
         +/- 2.41320834554887 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.28527463692386 [arcmin] (formal 1-sigma fit error)
    SNR: 8.64080796653148

  Angular difference between Flight and Ground position is 0.749754 arcmin

  Partial Coding Fraction: 0.8984375    [ including projection effects ]

  Duration
     T90: 0.031999945640564 +/- 0.0113137314268704
        Measured from: 0.00400012731552124
                   to: 0.0360000729560852     [s; relative to TRIGTIME]
     T50: 0.015999972820282 +/- 0.00894423672410898
        Measured from: 0.00800013542175293
                   to: 0.0240001082420349     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.477999985218048
                   to: 0.522000014781952     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0
                   to: 0.0400000214576721     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.007058   0.015344   0.006628   0.001233
           0.002286   0.002333   0.001753   0.001015 [error]
 Peak      0.008666   0.012645   0.004313  -0.003023
           0.007805   0.006970   0.006042   0.005531 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.00e-09 3.76e-09 3.44e-09 5.49e-09 1.21e-08 1.57e-08   erg/cm2
              Error 8.81e-10 8.27e-10 9.63e-10 2.78e-09 2.69e-09 4.19e-09   erg/cm2
Peak flux Power-law 1.24e-01 8.87e-02 4.18e-02 2.76e-02 2.68e-01 2.83e-01   ph/cm2/s
              Error 1.04e-01 7.27e-02 4.52e-02 6.97e-02 1.69e-01 1.81e-01   ph/cm2/s

Fluence   Cutoff-PL 2.55e-09 5.77e-09 3.64e-09 3.60e-10 1.23e-08 1.23e-08   erg/cm2
              Error 9.77e-10 1.57e-09 1.64e-09 9.00e-10 2.70e-09 2.74e-09   erg/cm2
Peak flux Cutoff-PL 1.04e-01 1.13e-01 2.90e-02 9.74e-04 2.47e-01 2.47e-01   ph/cm2/s
              Error 1.15e-01 8.84e-02 4.58e-02 6.39e-02 1.74e-01 1.87e-01   ph/cm2/s

Fluence        Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.129    0.296    -      -           3.24e-02 7.52e-03   59.730 57
CPL  -0.698    2.566      40.5    8.0      1.45e+00 8.28e+01   51.910 56

The chi2 of BB fit is 52.47 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.087    1.575    -      -           1.72e-03 1.43e-03   50.220 57
CPL   0.214    0.000      35.2    0.0      2.45e-02 0.00e+00   49.950 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.040    0.000    0.040
T90     0.032    0.004    0.036
T50     0.016    0.008    0.024
Peak    1.000   -0.478    0.522

Click here for the BAT GCN circular template

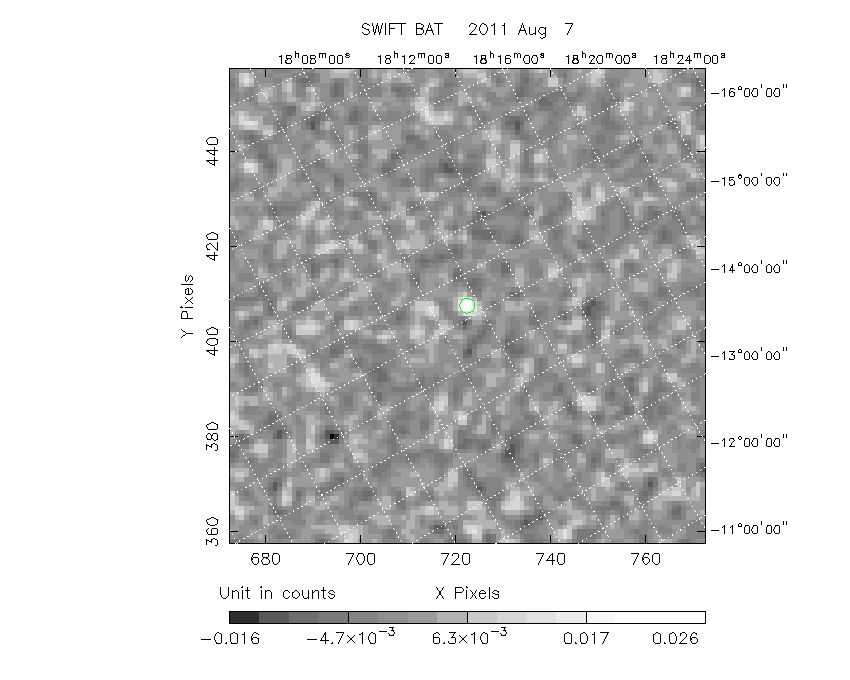

Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  278.7087  -8.7579 0.0222   19.8   23.7       0.0325     8.6  TRIG_00458907
------------------------------------------

Foreground time interval of the image:
  0.000   0.040 (delta_t =   0.040 [sec])
Background time interval of the image:
-239.612   0.000 (delta_t = 239.612 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

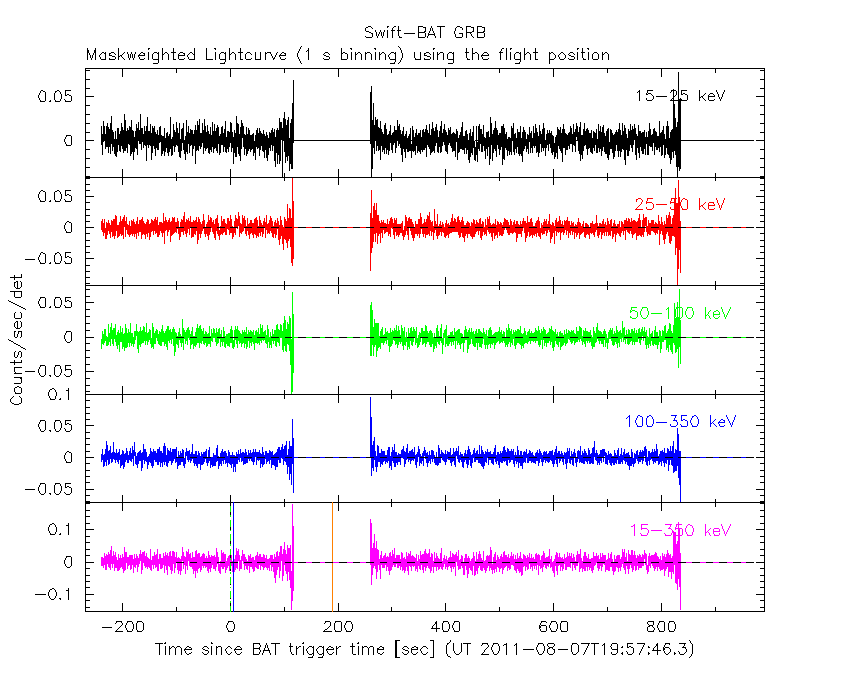

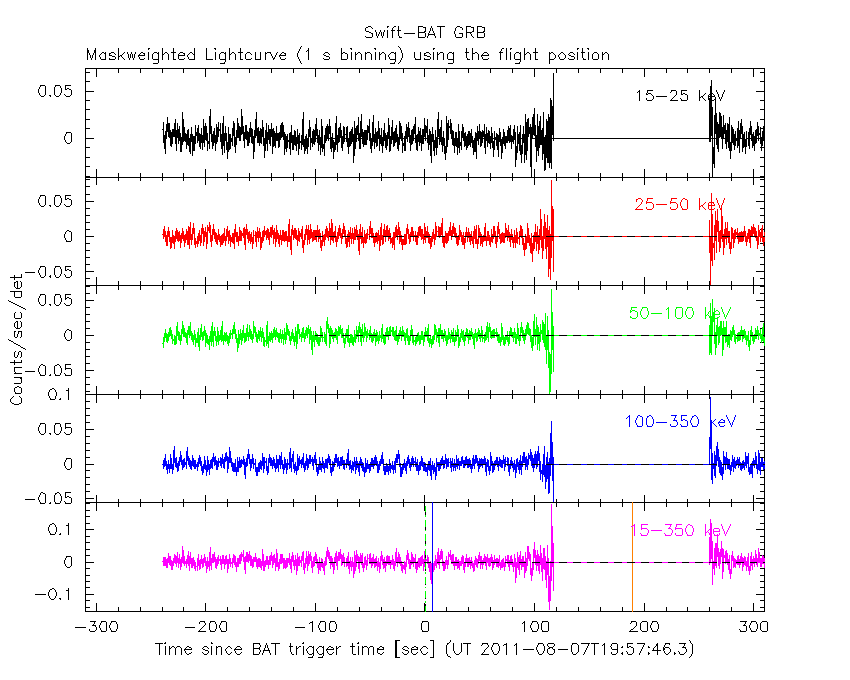

1 s binning

From T0-310 s to T0+310 s

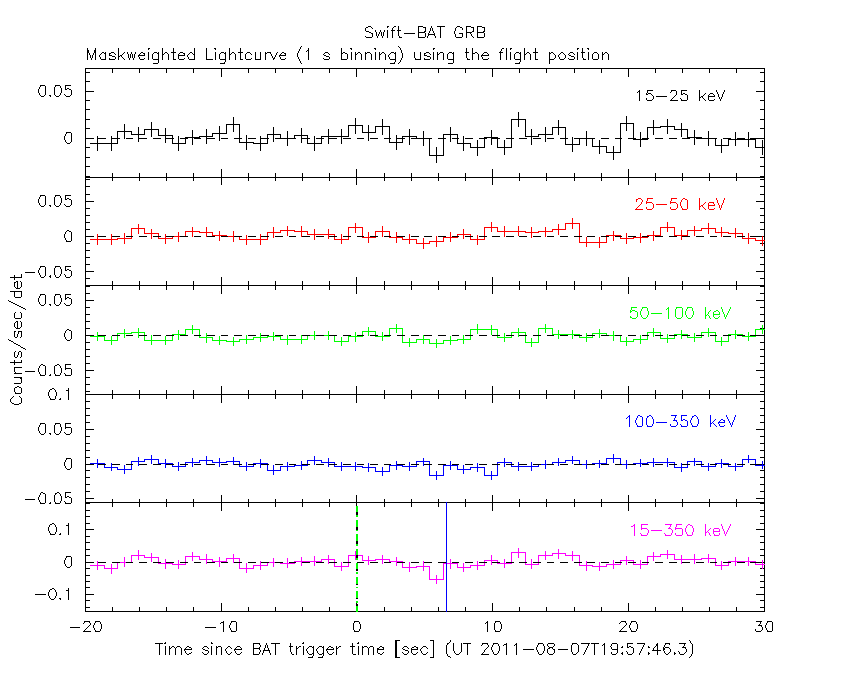

From T100_start - 20 s to T100_end + 30 s

Full time interval

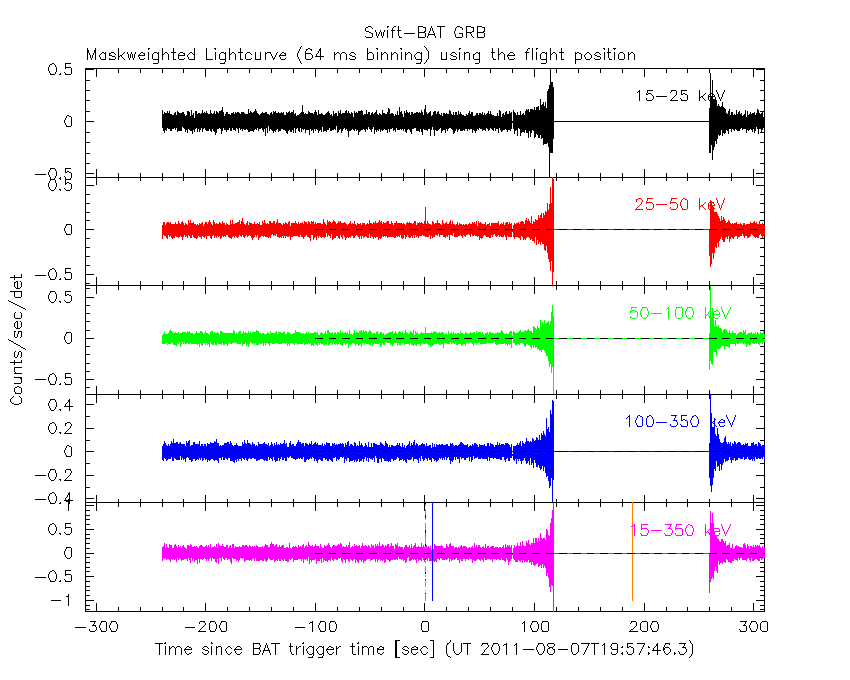

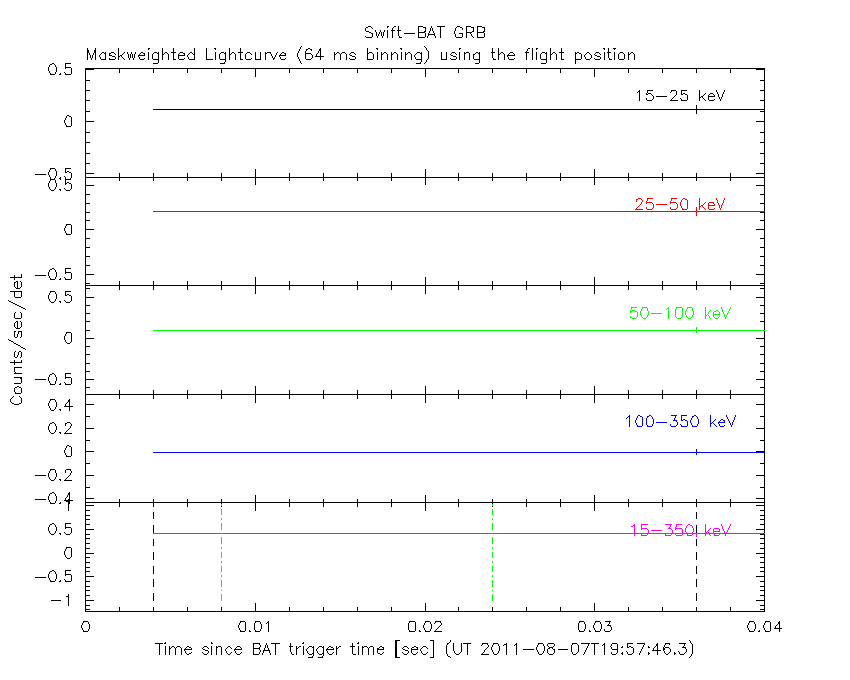

64 ms binning

Full time interval

From T100_start to T100_end

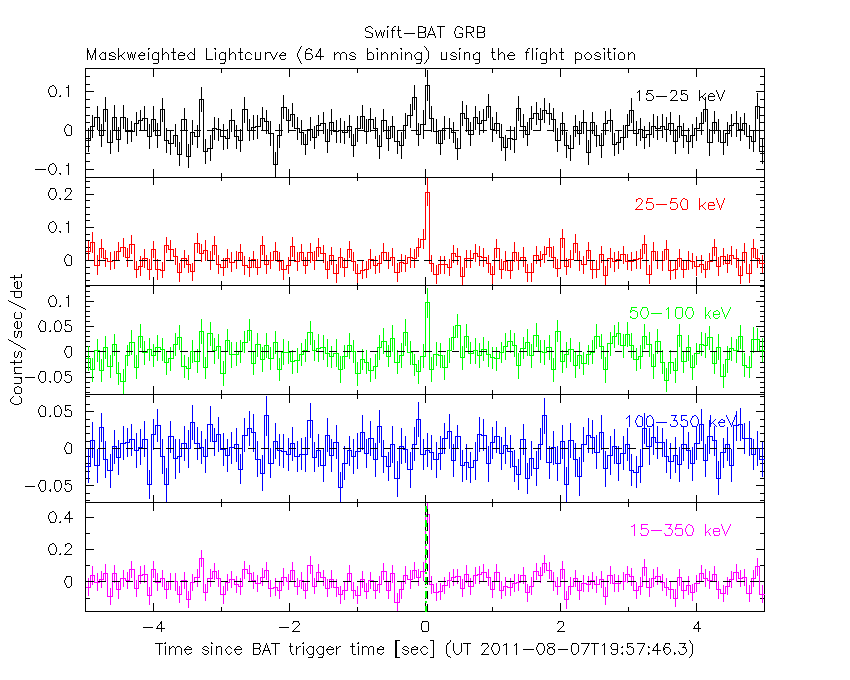

From T0-5 sec to T0+5 sec

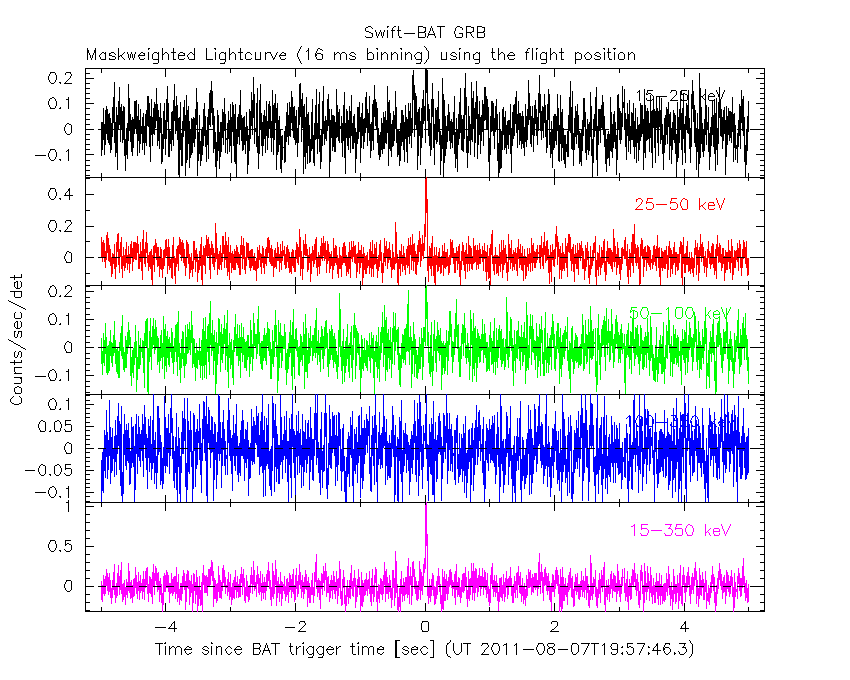

16 ms binning

From T100_start-5 s to T100_start+5 s

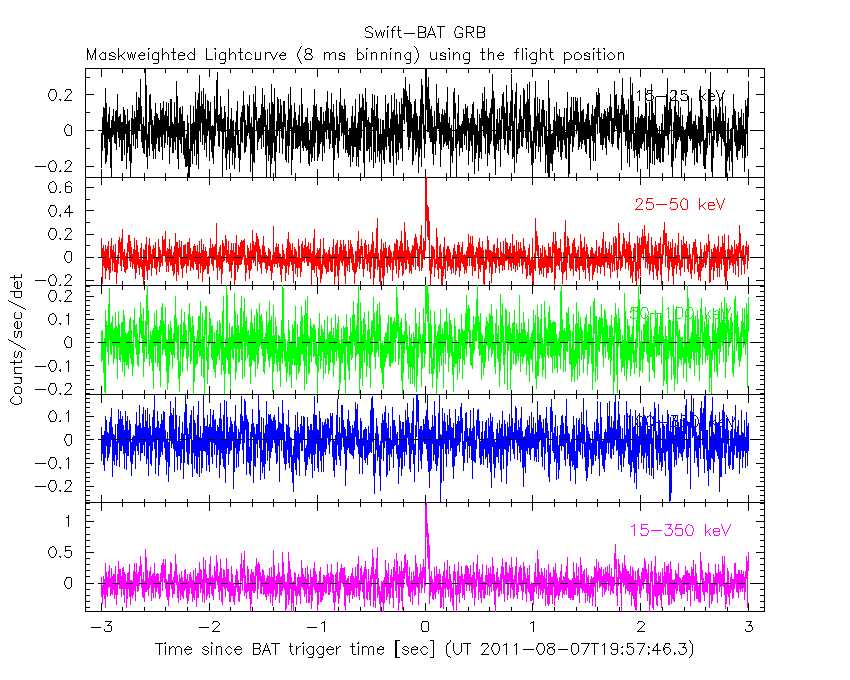

8 ms binning

From T100_start-3 s to T100_start+3 s

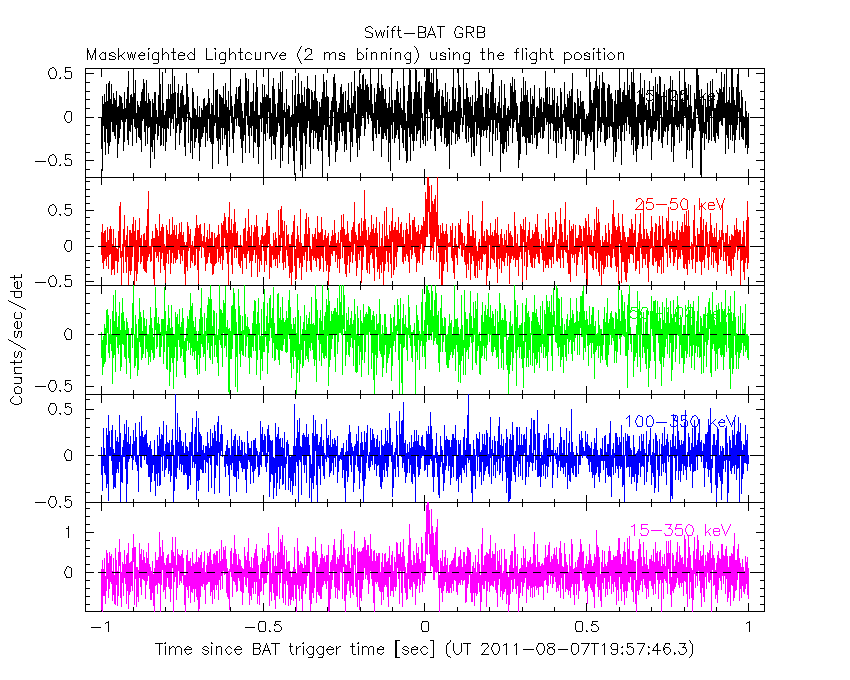

2 ms binning

From T100_start-1 s to T100_start+1 s

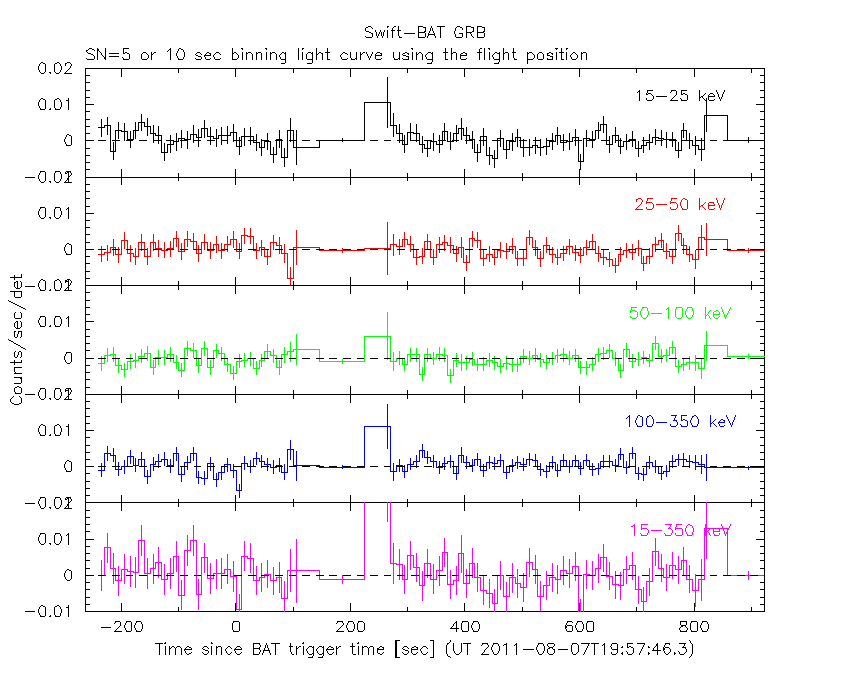

SN=5 or 10 sec. binning (whichever binning is satisfied first)

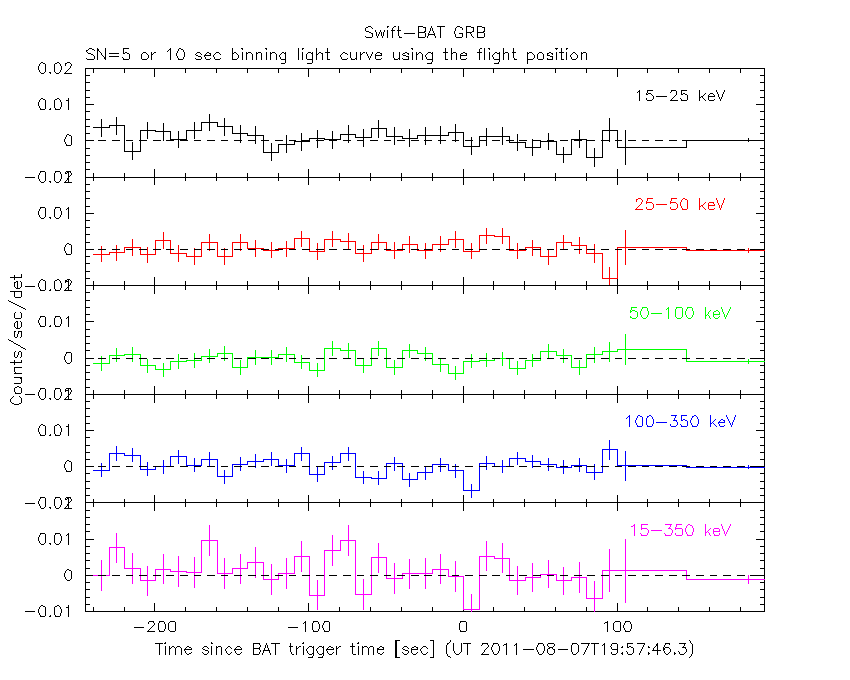

SN=5 or 10 sec. binning (T < 200 sec)

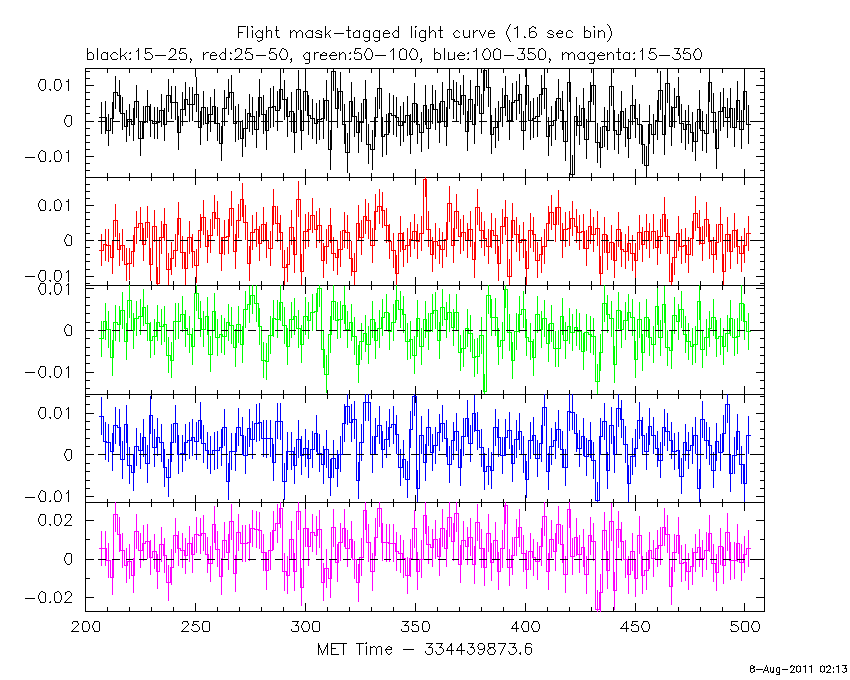

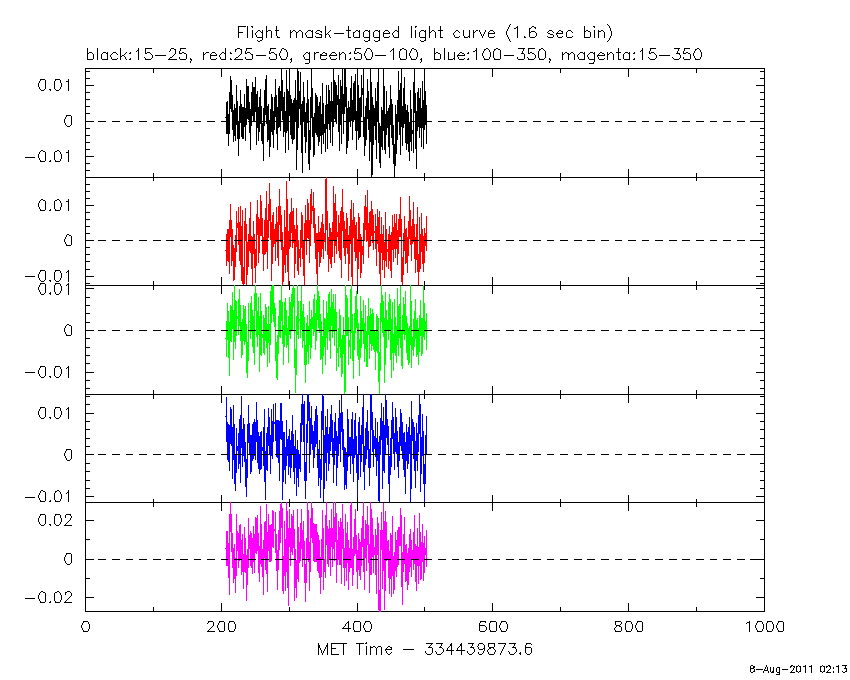

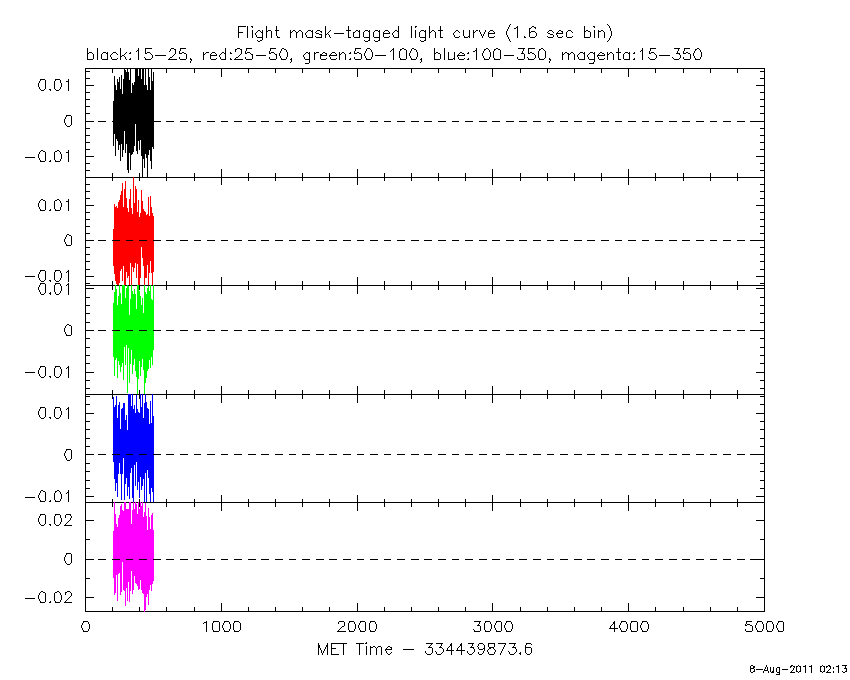

Flight mask-tagged light curves

Caution: Mask-weight map is always using the same on-axis map

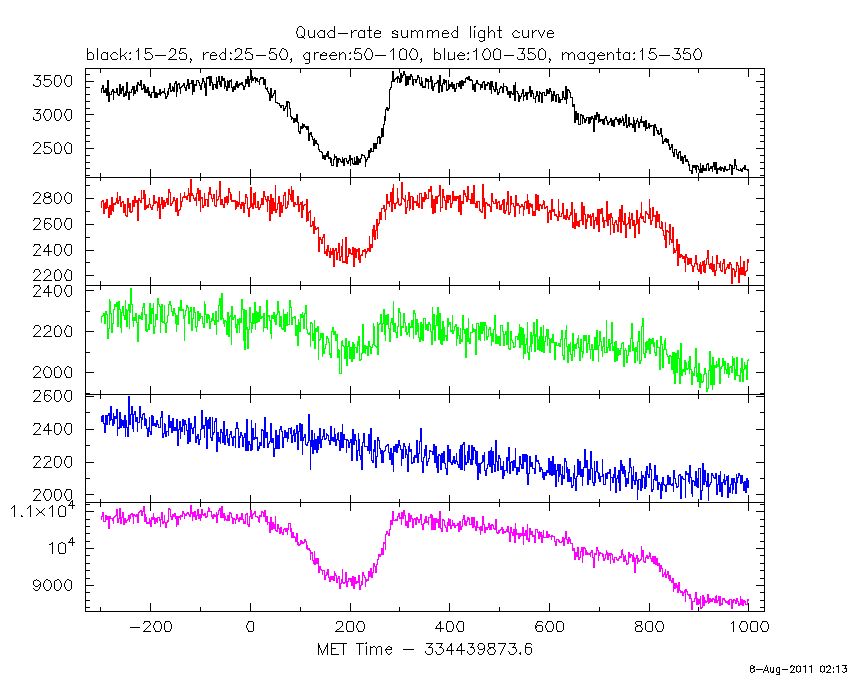

Quad-rate summed light curves (from T0-300 to T0+1000)

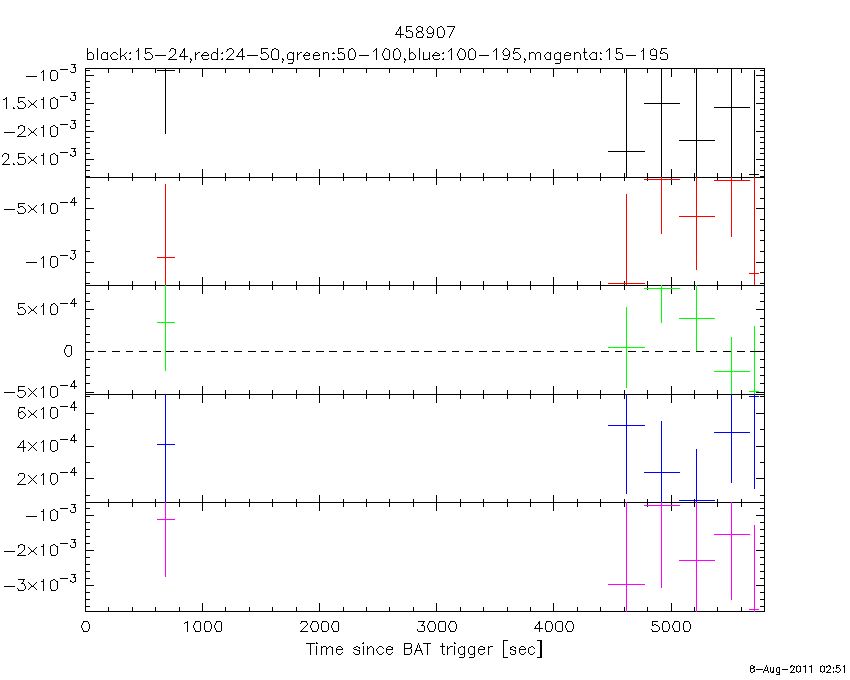

The mask-weighted light curves based on cleaned DPHs

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

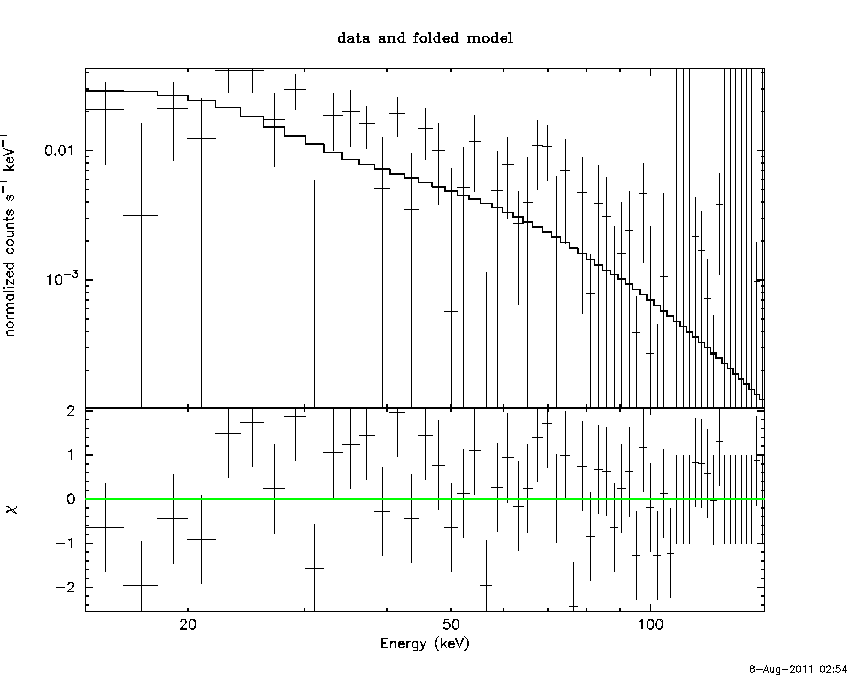

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from    0.000 sec. to    0.040 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.12947     ( -0.289862   0.302672 )
Norm@50keV  : 3.23978E-02    ( -0.00757153   0.00746747 )
------------------------------------------------------------
# Chi-Squared =          59.73 using 59 PHA bins.
# Reduced chi-squared =          1.048 for     57 degrees of freedom
# Null hypothesis probability =   3.768964e-01

Photon flux (15-150 keV)    in 0.04 sec: 5.17262 ( -1.182  1.18445 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.20768e-08 ( -2.69222e-09  2.69614e-09 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.000 sec. to    0.040 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.697669     ( -3.31058   1.82165 )
Epeak [keV] : 40.5075      ( -7.49678 8.55089 )
Norm@50keV  : 1.45055    ( -1.50835   164.014 )
------------------------------------------------------------
# Chi-Squared =          51.91 using 59 PHA bins.
# Reduced chi-squared =         0.9269 for     56 degrees of freedom
# Null hypothesis probability =   6.304890e-01

Photon flux (15-150 keV)    in 0.04 sec: 5.50021 ( -1.20298  1.2083 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.2289e-08 ( -2.70004e-09  2.69664e-09 ) ergs/cm2

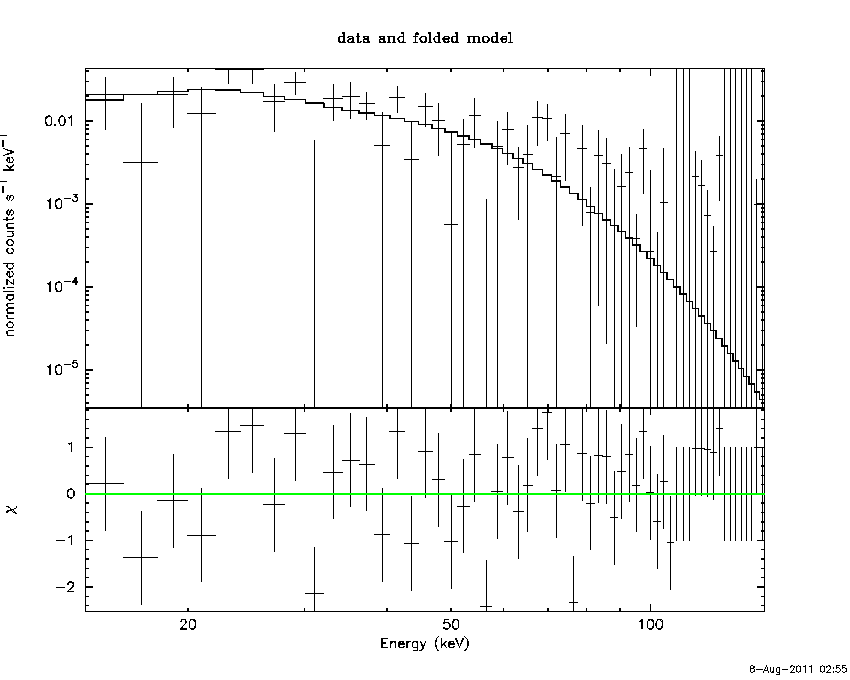

Band function

Time interval is from    0.000 sec. to    0.040 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.696186   ( 1.18327   1.34251 )
beta        : -10.00000    ( 1.33911e+11   1.33911e+11 )
Epeak [keV] : 40.5022      ( -7.66044 8.64643 )
Norm@50keV   : 1.44724    ( -1.51911   175.97 )
------------------------------------------------------------
# Chi-Squared =          51.91 using 59 PHA bins.
# Reduced chi-squared =         0.9438 for     55 degrees of freedom
# Null hypothesis probability =   5.935813e-01

Photon flux (15-150 keV)    in 0.04 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

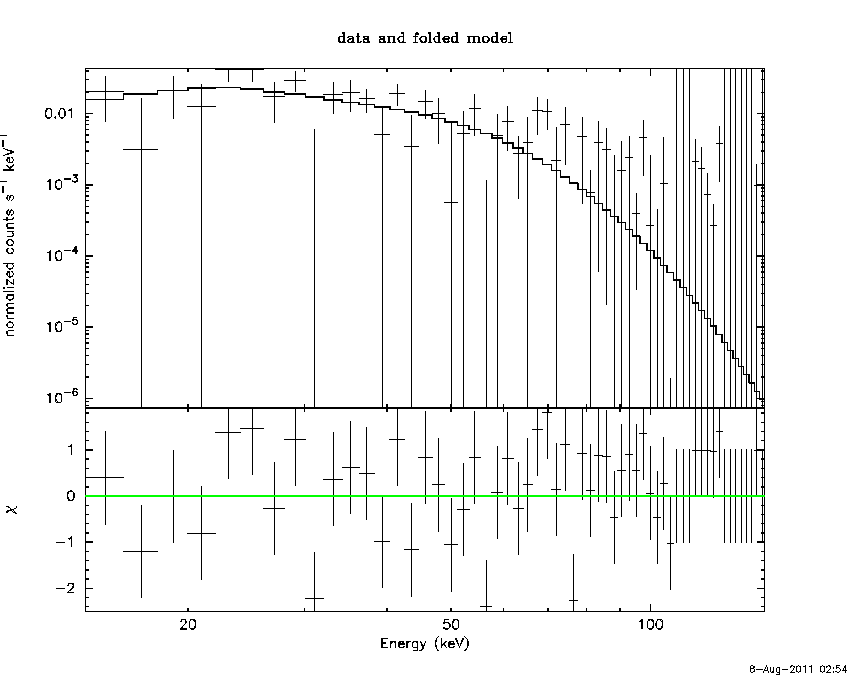

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 10.2877  (-1.68785  1.94804)
R^2/D10^2   : 2.70747  (-1.41436   2.79123)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          52.47 using 59 PHA bins.
# Reduced chi-squared =         0.9206 for     57 degrees of freedom
# Null hypothesis probability =   6.453324e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.356e-09   8.836e-10
25- 50  6.093e-09   1.766e-09
50-150  3.450e-09   1.486e-09
15-150  1.190e-08   3.700e-09

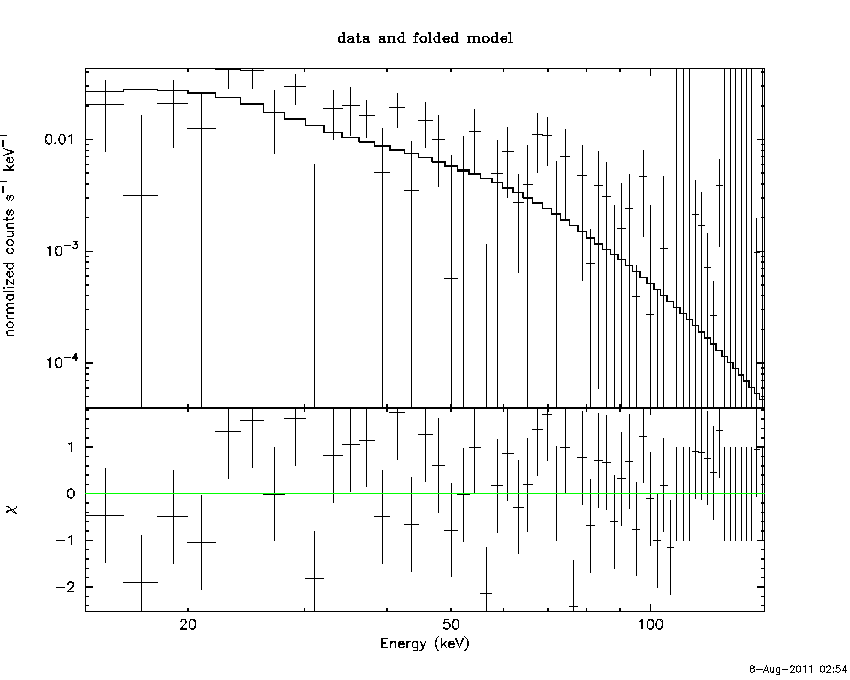

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 55.3798       (-17.5238      31.2047)
Norm        : 30.8205       (-9.24456     11.0579)
------------------------------------------------------------
# Chi-Squared =          55.36 using 59 PHA bins.
# Reduced chi-squared =         0.9712 for     57 degrees of freedom
# Null hypothesis probability =   5.369658e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.055e-09   8.222e-10
25- 50  4.532e-09   1.156e-09
50-150  4.816e-09   1.941e-09
15-150  1.240e-08   3.332e-09

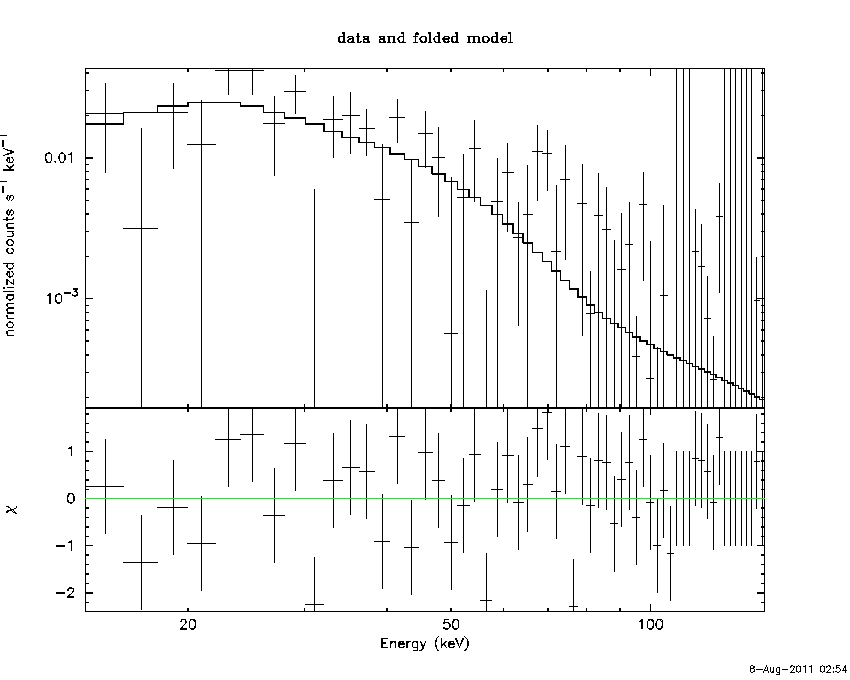

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 9.35692        (-3.08742      1.88701)
R1^2/D10^2  : 3.73685        (-1.93771      4.70792)
kT2 [keV]   : 194.067        (-175.021      -175.022)
R2^2/D10^2  : 2.02420E-04    (-0.000170844   1.37669)
------------------------------------------------------------
# Chi-Squared =          49.30 using 59 PHA bins.
# Reduced chi-squared =         0.8964 for     55 degrees of freedom
# Null hypothesis probability =   6.912126e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.606e-09   1.035e-09
25- 50  5.943e-09   2.625e-09
50-150  4.583e-09   1.712e-09
15-150  1.313e-08   4.610e-09

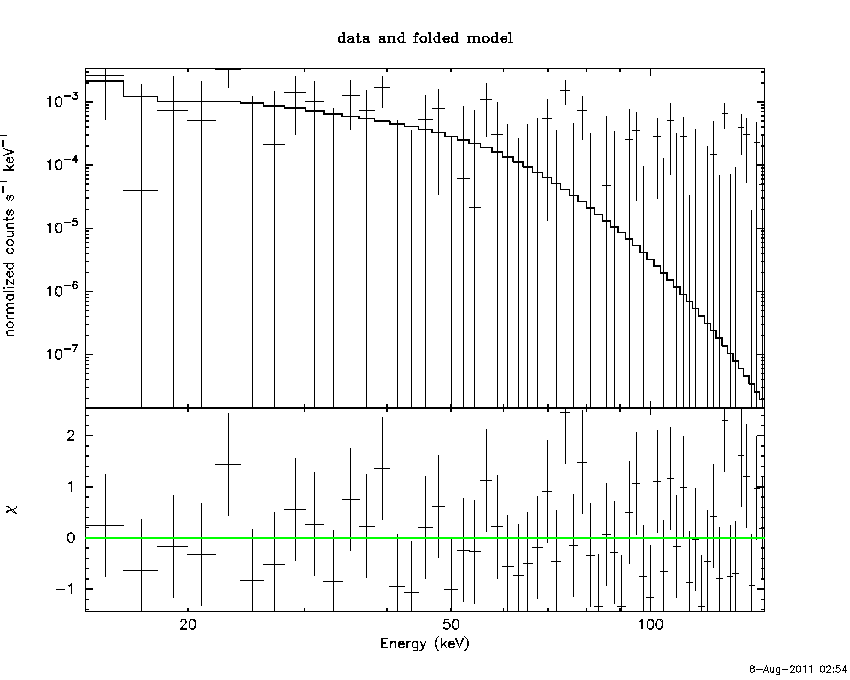

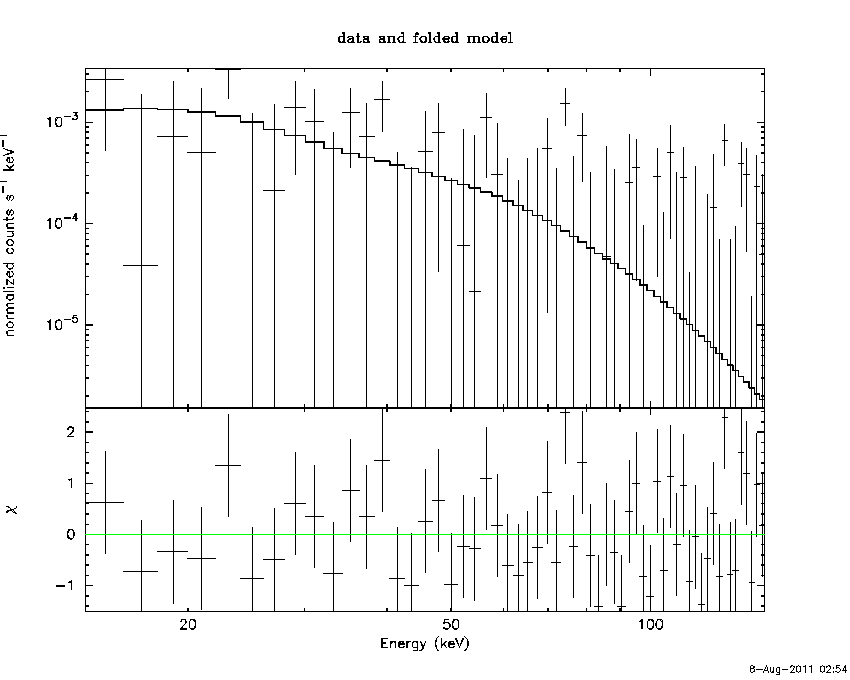

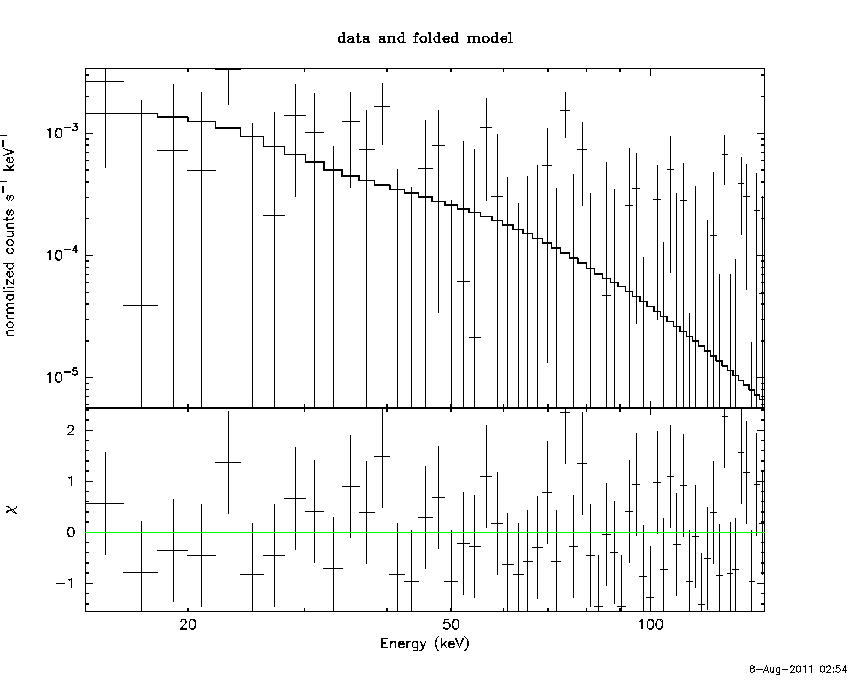

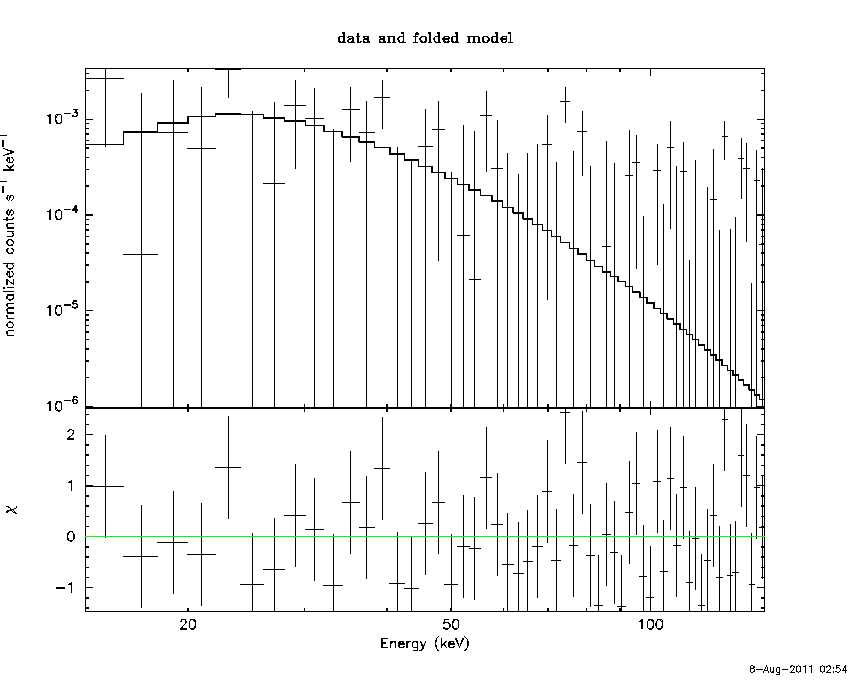

Peak spectrum fit

Power-law model

Time interval is from   -0.478 sec. to    0.522 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.08749     ( -1.23895   1.91049 )
Norm@50keV  : 1.71526E-03    ( -0.00144915   0.00140103 )
------------------------------------------------------------
# Chi-Squared =          50.22 using 59 PHA bins.
# Reduced chi-squared =         0.8811 for     57 degrees of freedom
# Null hypothesis probability =   7.252557e-01

Photon flux (15-150 keV)    in 1 sec: 0.268200 ( -0.169235  0.169265 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.59181e-08 ( -1.11577e-08  1.32173e-08 ) ergs/cm2

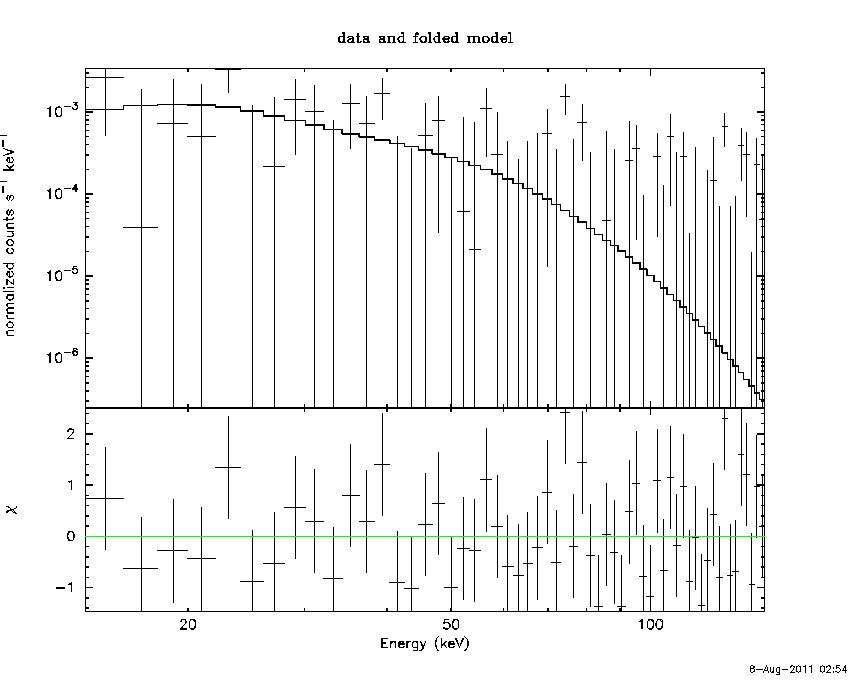

Cutoff power-law model

Time interval is from   -0.478 sec. to    0.522 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.213623     (     )
Epeak [keV] : 35.2431      (   )
Norm@50keV  : 2.45141E-02    (     )
------------------------------------------------------------
# Chi-Squared =          49.95 using 59 PHA bins.
# Reduced chi-squared =         0.8919 for     56 degrees of freedom
# Null hypothesis probability =   7.020523e-01

Photon flux (15-150 keV)    in 1 sec: 0.246944 ( -0.168231  0.180608 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.26566e-08 ( -8.69199e-09  1.52218e-08 ) ergs/cm2

Band function

Time interval is from   -0.478 sec. to    0.522 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.77507   ( -10.4516   -10.4516 )
beta        : -3.58794    ( 3.58181   3.18129 )
Epeak [keV] : 32.8092      ( -32.81 22.8673 )
Norm@50keV   : 41.7677    ( -42.0868   31.3369 )
------------------------------------------------------------
# Chi-Squared =          49.89 using 59 PHA bins.
# Reduced chi-squared =         0.9071 for     55 degrees of freedom
# Null hypothesis probability =   6.696494e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.92568  (-4.43972  9.85575)
R^2/D10^2   : 0.200913  (-0.200934   2.8779)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          49.94 using 59 PHA bins.
# Reduced chi-squared =         0.8761 for     57 degrees of freedom
# Null hypothesis probability =   7.348858e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.103e-09   2.169e-09
25- 50  6.510e-09   5.000e-09
50-150  2.421e-09   2.243e-09
15-150  1.203e-08   8.680e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 50.6600       (-50.66      -50.66)
Norm        : 1.52591       (-1.52591     5.07609)
------------------------------------------------------------
# Chi-Squared =          50.06 using 59 PHA bins.
# Reduced chi-squared =         0.8782 for     57 degrees of freedom
# Null hypothesis probability =   7.308497e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.742e-09   2.670e-09
25- 50  5.400e-09   3.817e-09
50-150  5.307e-09   5.460e-09
15-150  1.445e-08   1.137e-08

Double BB

R1^2/D10^2  : 2.43241E+05        (      )
kT2 [keV]   : 9.65394        (-4.65967      12.4285)
R2^2/D10^2  : 0.140913    (   )
------------------------------------------------------------
# Chi-Squared =          49.86 using 59 PHA bins.
# Chi-Squared =          49.49 using 59 PHA bins.
# Chi-Squared =          49.46 using 59 PHA bins.
# Reduced chi-squared =         0.9066 for     55 degrees of freedom
# Reduced chi-squared =         0.8998 for     55 degrees of freedom
# Reduced chi-squared =         0.8992 for     55 degrees of freedom
# Null hypothesis probability =   6.706686e-01
# Null hypothesis probability =   6.842675e-01
# Null hypothesis probability =   6.854995e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.135e-09   2.119e-09
25- 50  6.332e-09   4.106e-09
50-150  2.619e-09   2.342e-09
15-150  1.209e-08   8.875e-09

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.12947     ( -0.289862   0.302672 )
Norm@50keV  : 3.23978E-02    ( -0.00757153   0.00746747 )
------------------------------------------------------------
# Chi-Squared =          59.73 using 59 PHA bins.
# Reduced chi-squared =          1.048 for     57 degrees of freedom
# Null hypothesis probability =   3.768964e-01

Photon flux (15-150 keV)    in 0.04 sec: 5.17262 ( -1.182  1.18445 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.20768e-08 ( -2.69222e-09  2.69614e-09 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.697669     ( -3.31058   1.82165 )
Epeak [keV] : 40.5075      ( -7.49678 8.55089 )
Norm@50keV  : 1.45055    ( -1.50835   164.014 )
------------------------------------------------------------
# Chi-Squared =          51.91 using 59 PHA bins.
# Reduced chi-squared =         0.9269 for     56 degrees of freedom
# Null hypothesis probability =   6.304890e-01

Photon flux (15-150 keV)    in 0.04 sec: 5.50021 ( -1.20298  1.2083 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.2289e-08 ( -2.70004e-09  2.69664e-09 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.696186   ( 1.18327   1.34251 )
beta        : -10.00000    ( 1.33911e+11   1.33911e+11 )
Epeak [keV] : 40.5022      ( -7.66044 8.64643 )
Norm@50keV   : 1.44724    ( -1.51911   175.97 )
------------------------------------------------------------
# Chi-Squared =          51.91 using 59 PHA bins.
# Reduced chi-squared =         0.9438 for     55 degrees of freedom
# Null hypothesis probability =   5.935813e-01

Photon flux (15-150 keV)    in 0.04 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 3.76393e-09
S(50-100 keV) = 3.44053e-09

T90 vs. Hardness ratio plot

T90                                   = 0.031999945640564 sec.
Hardness ratio (energy fluence ratio) = 0.914079

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 2.17399
Count Ratio (50-100 keV) / (15-25 keV) = 0.939076

Mask shadow pattern

IMX = 3.302070920906747E-01, IMY = -1.450999975535166E-01

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.612000 0.000000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9861 -15.6375    0.3  35.1  -47.3  13.7703  35.2    0.4	Sco X-1
255.9751 -37.8692    1.0  22.4  -92.1   3.5819  11.9    1.6	4U 1700-377
256.4548 -36.5635    5.5  21.7  -89.1   0.6143   2.1    8.5	GX 349+2
263.1787 -24.8080    4.3  15.9  -51.6   0.7029   2.7   10.0	GX 1+4
265.0122 -44.5380    0.0  20.2 -117.8   0.4729   1.7   12.7	4U 1735-44
268.3567  -1.6235    5.7  29.3    3.5   0.6422   2.0   10.3	SW J1753.5-0127
270.3481 -25.0838    3.3   9.7  -42.7   0.9134   3.5    3.5	GX 5-1
270.3243 -25.7871    4.0   9.4  -46.7   0.7581   2.9    2.9	GRS 1758-258
273.9859 -13.9929    2.8  15.7    5.0   1.0408   4.1    2.9	GX 17+2
275.9103 -30.5405    8.2   4.4  -89.3   0.3882   1.4   10.4	H1820-303
284.9189 -24.8443    3.2   5.4   77.1   0.9046   3.7    7.8	HT1900.1-2455
288.8509  10.9374    3.5  40.3   41.6   2.3293   3.3    3.1	GRS 1915+105
319.7794 -21.2103    3.0  36.2  116.3   2.8612   3.9 ------	UNKNOWN
329.0246 -51.9248    2.0  42.7  165.9   3.0548   5.7 ------	UNKNOWN
322.7933 -56.4674    2.7  40.8  174.1   2.0919   4.3 ------	UNKNOWN
255.3193 -41.7727    2.4  24.3 -100.9   1.4823   4.8 ------	UNKNOWN
250.8283 -50.1944    2.2  31.2 -113.5   1.9593   5.2 ------	UNKNOWN
232.1160 -13.9706    2.0  47.0  -53.6   6.1799   5.8 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.000000 0.040000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0756 -15.7505   23.7  35.0  -47.4  -0.0026  -0.5    8.6	Sco X-1
256.1473 -37.9536   94.3  22.3  -92.5   0.0005   0.1   10.1	4U 1700-377
256.4937 -36.2896   11.2  21.6  -88.4   0.0045   1.0    8.5	GX 349+2
262.8978 -24.6285   11.2  16.2  -51.3  -0.0039  -1.0    9.3	GX 1+4
264.8279 -44.2804   14.3  20.1 -117.0  -0.0033  -0.8   10.8	4U 1735-44
268.3569  -1.4516   98.2  29.4    3.6  -0.0005  -0.1    0.7	SW J1753.5-0127
270.4232 -24.9961    6.3   9.6  -42.0   0.0064   1.8    9.1	GX 5-1
270.3861 -25.5448    0.0   9.5  -45.2  -0.0066  -1.9   12.7	GRS 1758-258
273.8804 -14.1161    6.6  15.6    4.5  -0.0061  -1.8    8.7	GX 17+2
275.9420 -30.5269    6.6   4.4  -89.3  -0.0064  -1.7    9.6	H1820-303
284.9158 -24.9462   15.6   5.3   77.9   0.0026   0.7    6.7	HT1900.1-2455
288.9174  10.9284    9.3  40.3   41.7   0.0114   1.2    7.1	GRS 1915+105
289.3484  -6.1163    2.1  23.9   51.1   0.0253   5.5 ------	UNKNOWN
278.7051  -8.7584    1.3  19.8   23.7   0.0323   8.6 ------	UNKNOWN
238.1793  13.1988    2.3  58.4  -21.4   0.1018   5.0 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
189.488600 201.488600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
251.8901  44.5708    2.7  54.1  159.1   0.9320   4.3 ------	UNKNOWN
345.4315  76.6887    2.4  17.8   96.6   0.2170   4.8 ------	UNKNOWN
220.9002  53.8225    2.8  42.6 -175.5   0.2625   4.2 ------	UNKNOWN

Plot creation:
Mon Aug  8 02:56:18 EDT 2011
