batgrbproduct analysis for trigger=501752

batgrbproduct Analysis for Trigger=501752

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Tue Aug 30 21:04:15 EDT 2011
             Host Name: gcn5
   Current Working Dir: /local/data/raid16/prebascript_archive/trigger501752/GCN5_download_cron
======================================================================

  Trigger: 00501752      Segment: 000

  BAT Trigger Time: 336354079.568   [s; MET]
      Trigger Stop: 336354079.584   [s; MET]
               UTC: 2011-08-29T23:41:12.256360    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 278.720563404872   Dec: -8.75131143344119  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.27
     Image Trigger?:     NO
     Rate S/N Ratio:     19.5703857907809  [ if not an image trigger ]
     Image S/N Ratio:    7.27

  Flight Position:   [ source = BAT ]
    RA: 278.720563404872   Dec: -8.75131143344119  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 278.7095326891   Dec: -8.76989483705778  [deg; J2000]
        { 18h 34m 50.3s , -08d 46' 11.6" }
         +/- 3.05558123513027 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.82301712675347 [arcmin] (formal 1-sigma fit error)
    SNR: 6.16775605270338

  Angular difference between Flight and Ground position is 1.292714 arcmin

  Partial Coding Fraction: 0.5703125    [ including projection effects ]

  Duration
     T90: 0.0119999051094055 +/- 0.00565686571343518
        Measured from: 1.19209289550781e-07
                   to: 0.0120000243186951     [s; relative to TRIGTIME]
     T50: 0.0079999566078186 +/- 0.004
        Measured from: 1.19209289550781e-07
                   to: 0.00800007581710815     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.492000043392181
                   to: 0.507999956607819     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0
                   to: 0.0119999647140503     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.006944   0.006675   0.003828  -0.000279
           0.001492   0.001598   0.001312   0.000610 [error]
 Peak      0.007227   0.023703   0.004510  -0.006152
           0.006973   0.007334   0.006067   0.006015 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.35e-09 9.20e-10 4.16e-10 2.67e-10 2.82e-09 2.90e-09   erg/cm2
              Error 5.86e-10 4.52e-10 3.07e-10 3.36e-10 1.26e-09 1.42e-09   erg/cm2
Peak flux Power-law 1.44e-01 1.16e-01 6.34e-02 5.07e-02 3.46e-01 3.74e-01   ph/cm2/s
              Error 1.04e-01 8.84e-02 4.81e-02 8.23e-02 1.81e-01 1.97e-01   ph/cm2/s

Fluence   Cutoff-PL 8.27e-10 3.56e-09 1.44e-09 1.32e-11 5.84e-09 5.83e-09   erg/cm2
              Error 8.50e-10 1.16e-09 9.68e-10 3.73e-11 1.76e-09 1.76e-09   erg/cm2
Peak flux Cutoff-PL 1.05e-01 1.46e-01 6.67e-02 6.97e-03 3.24e-01 3.25e-01   ph/cm2/s
              Error 1.20e-01 9.33e-02 5.75e-02 7.11e-02 2.56e-01 2.71e-01   ph/cm2/s

Fluence        Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band 1.02e-01 3.10e-01 3.16e-01 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.140    0.623    -      -           1.83e-02 1.12e-02   58.800 57
CPL  -3.968   -0.469      39.7    7.8      1.85e+02 2.10e+05   41.670 56

The chi2 of BB fit is 42.92 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.873    1.013    -      -           2.44e-03 1.95e-03   67.750 57
CPL -10.000    0.000      46.1    9.9      2.33e+03 1.21e+04   66.910 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.012    0.000    0.012
T90     0.012    0.000    0.012
T50     0.008    0.000    0.008
Peak    1.000   -0.492    0.508

Click here for the BAT GCN circular template


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  278.7095  -8.7699 0.0313   36.1  -32.2       0.0157     6.2  TRIG_00501752
------------------------------------------

Foreground time interval of the image:
  0.000   0.012 (delta_t =   0.012 [sec])
Background time interval of the image:
-239.568   0.000 (delta_t = 239.568 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

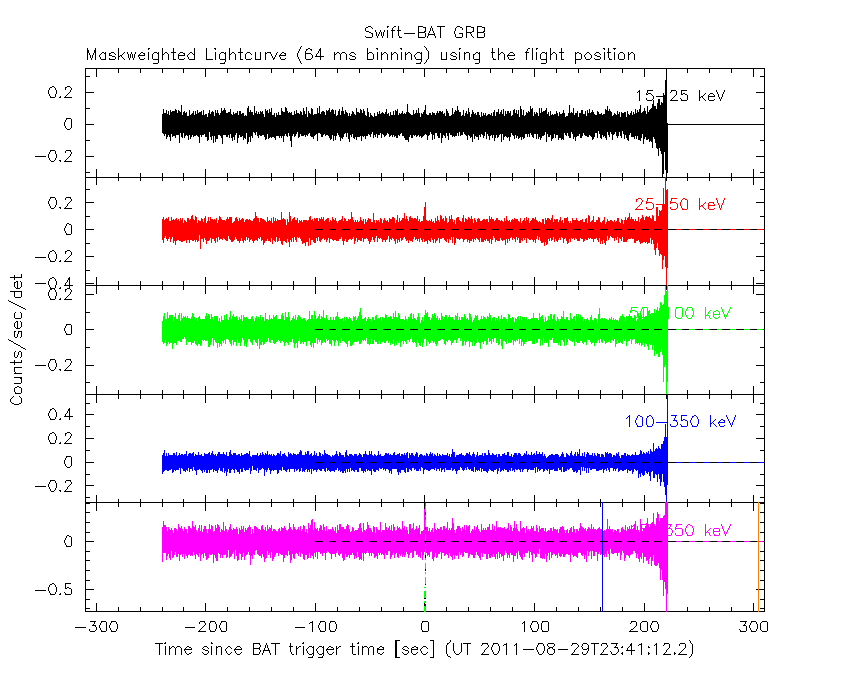

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Flight mask-tagged light curves

Caution: Mask-weight map is always using the same on-axis map

Quad-rate summed light curves (from T0-300 to T0+1000)

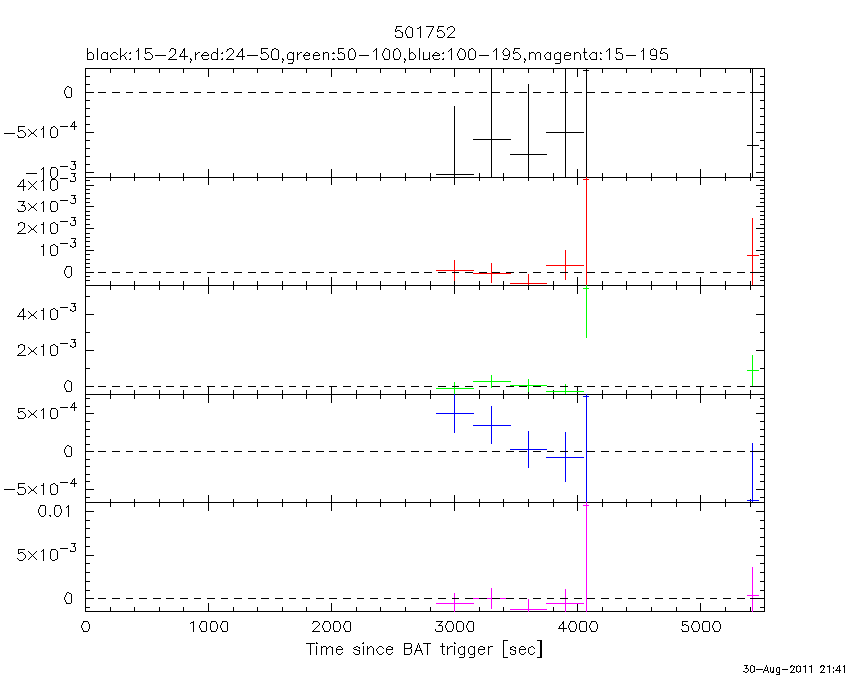

The mask-weighted light curves based on cleaned DPHs

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

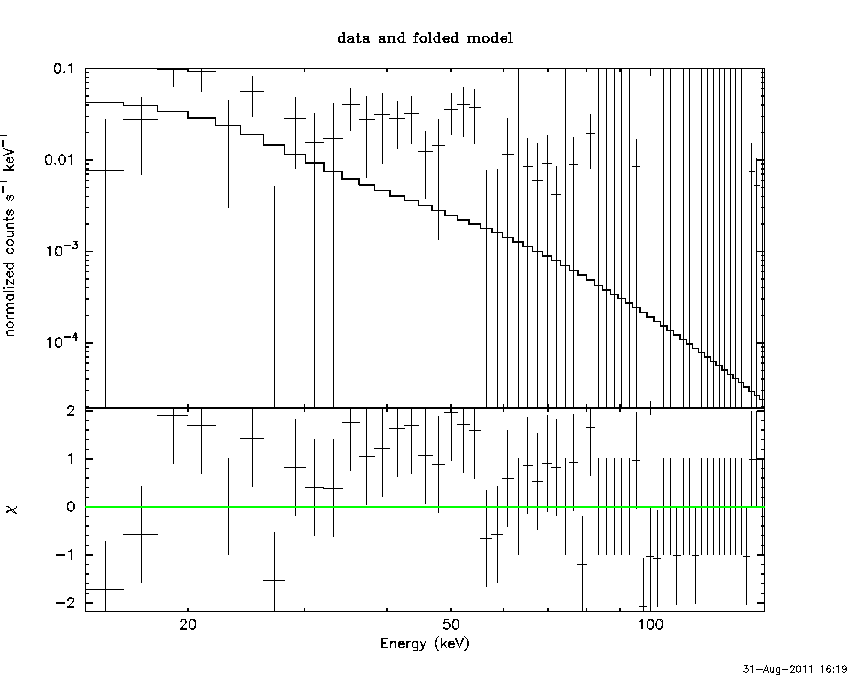

Power-law model

Time interval is from    0.000 sec. to    0.012 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.13963     ( -0.481445   0.764114 )
Norm@50keV  : 1.82565E-02    ( -0.0110047   0.0113523 )
------------------------------------------------------------
# Chi-Squared =          58.80 using 59 PHA bins.
# Reduced chi-squared =          1.032 for     57 degrees of freedom
# Null hypothesis probability =   4.094682e-01

Photon flux (15-150 keV)    in 0.012 sec: 5.56938 ( -2.39125  2.3872 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.82134e-09 ( -1.21277e-09  1.3014e-09 ) ergs/cm2

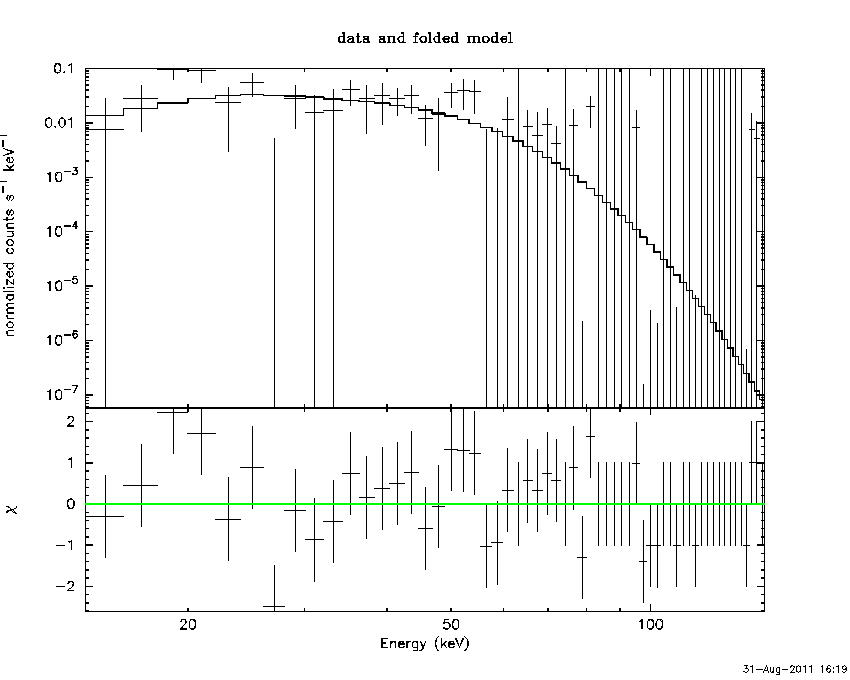

Cutoff power-law model

Time interval is from    0.000 sec. to    0.012 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -3.96794     ( 4.02666   3.08821 )
Epeak [keV] : 39.7283      ( -7.65284 7.97886 )
Norm@50keV  : 184.574    ( -219.921   419638 )
------------------------------------------------------------
# Chi-Squared =          41.67 using 59 PHA bins.
# Reduced chi-squared =         0.7441 for     56 degrees of freedom
# Null hypothesis probability =   9.230640e-01

Photon flux (15-150 keV)    in 0.012 sec: 8.53828 ( -2.91363  2.84762 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.84126e-09 ( -1.74704e-09  1.77526e-09 ) ergs/cm2

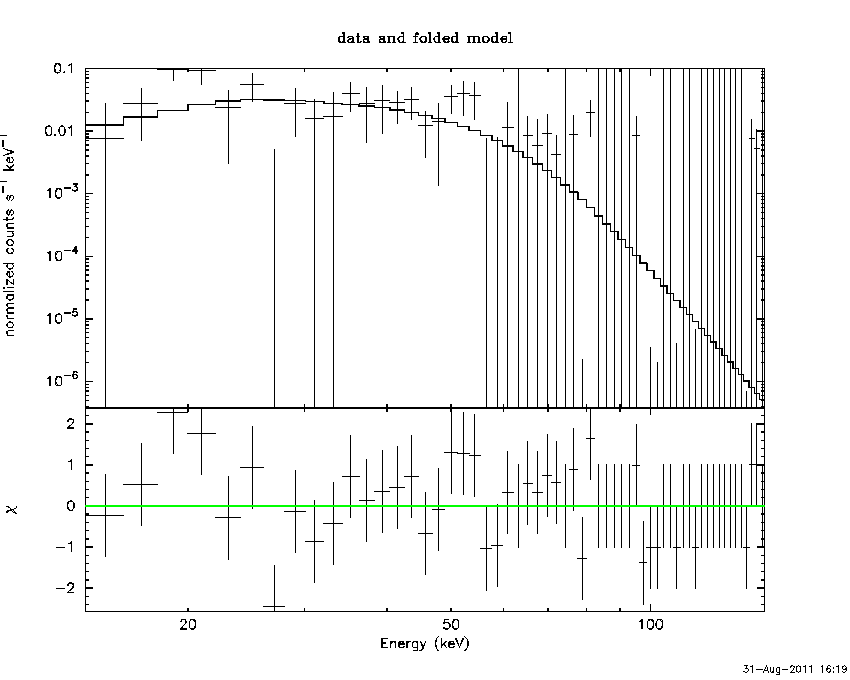

Band function

Time interval is from    0.000 sec. to    0.012 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.53704   ( -4.82004   -6.0442 )
beta        : -9.98839    ( 279.059   289.058 )
Epeak [keV] : 40.3327      ( -6.50082 5.60352 )
Norm@50keV   : 350.574    ( -350.069   143.069 )
------------------------------------------------------------
# Chi-Squared =          41.74 using 59 PHA bins.
# Reduced chi-squared =         0.7590 for     55 degrees of freedom
# Null hypothesis probability =   9.061971e-01

Photon flux (15-150 keV)    in 0.012 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

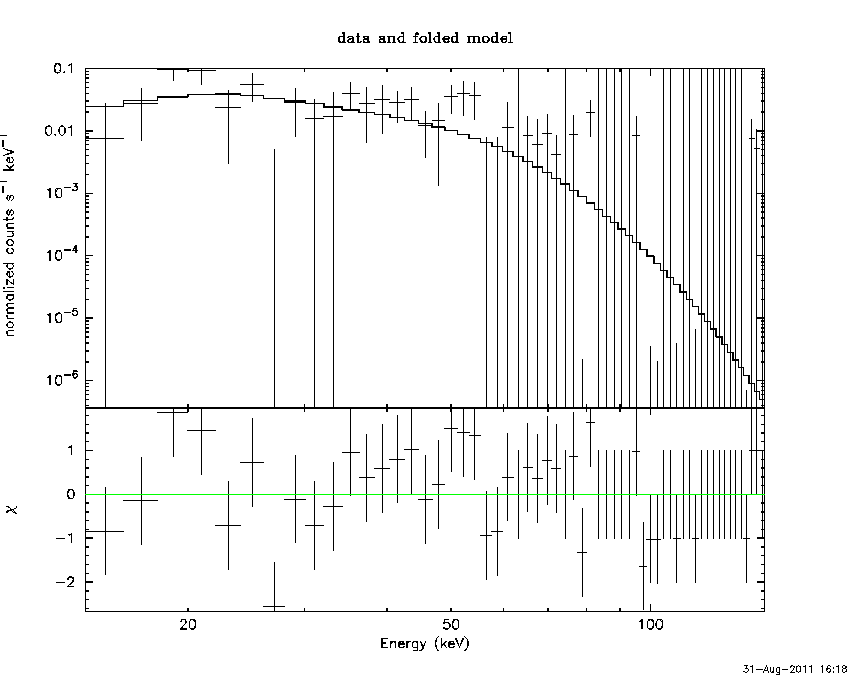

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 9.18729  (-1.68479  1.39554)
R^2/D10^2   : 6.86768  (-3.41282   7.48985)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          42.92 using 59 PHA bins.
# Reduced chi-squared =         0.7531 for     57 degrees of freedom
# Null hypothesis probability =   9.164854e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.368e-09   6.858e-10
25- 50  3.003e-09   1.406e-09
50-150  1.220e-09   8.556e-10
15-150  5.590e-09   2.575e-09

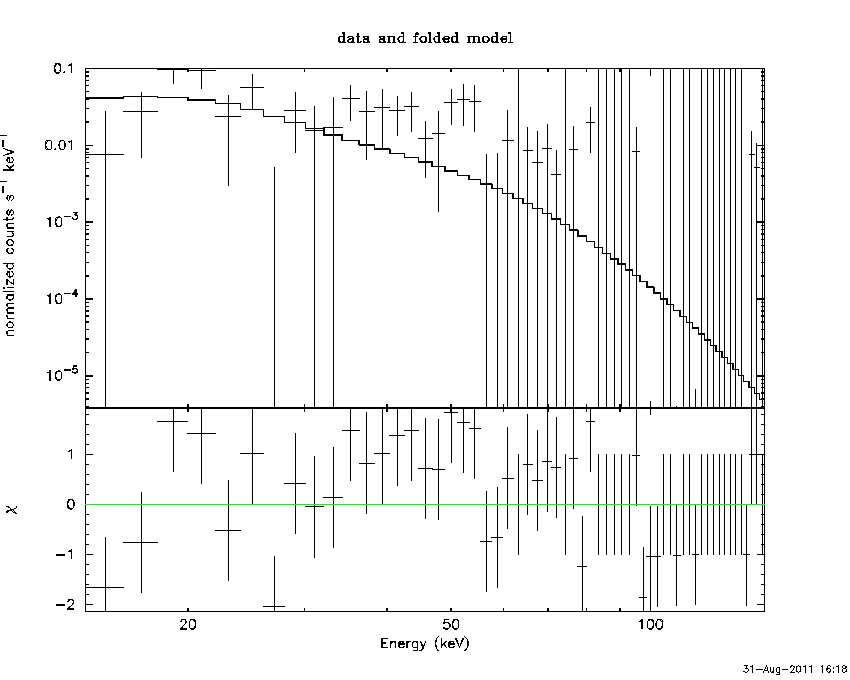

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 25.0600       (-8.43643      9.57321)
Norm        : 74.3275       (-31.0284     44.0671)
------------------------------------------------------------
# Chi-Squared =          51.25 using 59 PHA bins.
# Reduced chi-squared =         0.8990 for     57 degrees of freedom
# Null hypothesis probability =   6.897806e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.636e-09   7.271e-10
25- 50  1.680e-09   9.091e-10
50-150  7.167e-10   5.957e-10
15-150  4.032e-09   2.059e-09

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 0.226118        (-0.226118      -0.226118)
R1^2/D10^2  : 0.792745        (-0.792745      -0.792745)
kT2 [keV]   : 9.22348        (-1.65886      1.42052)
R2^2/D10^2  : 6.77235    (-3.35953   7.54109)
------------------------------------------------------------
# Chi-Squared =          42.92 using 59 PHA bins.
# Reduced chi-squared =         0.7804 for     55 degrees of freedom
# Null hypothesis probability =   8.817246e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  0.000e+00   0.000e+00
25- 50  0.000e+00   0.000e+00
50-150  0.000e+00   0.000e+00
15-150  0.000e+00   0.000e+00

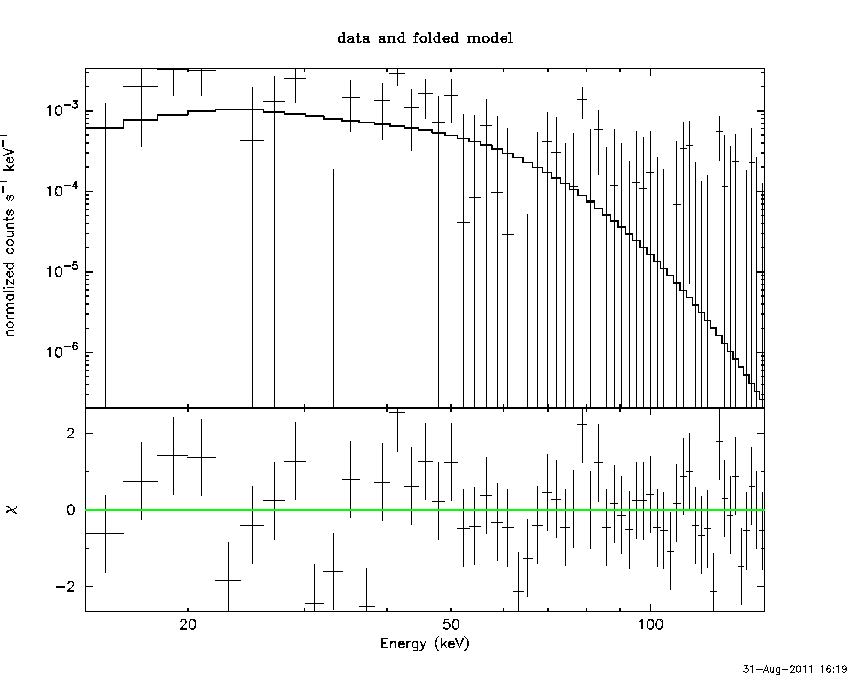

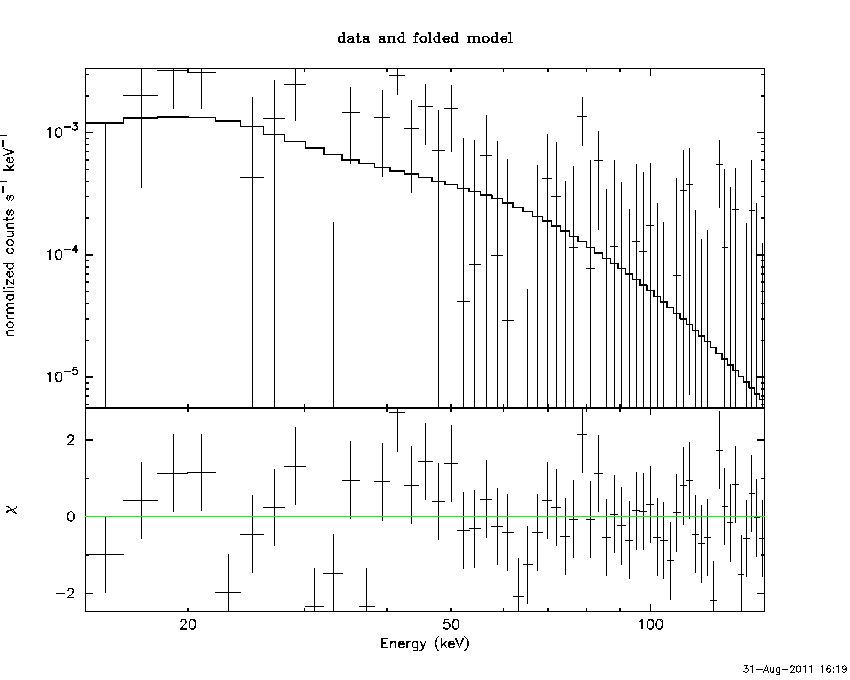

Peak spectrum fit

Power-law model

Time interval is from   -0.492 sec. to    0.508 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.87291     ( -0.890065   1.1367 )
Norm@50keV  : 2.43842E-03    ( -0.0024387   0.00145235 )
------------------------------------------------------------
# Chi-Squared =          67.75 using 59 PHA bins.
# Reduced chi-squared =          1.189 for     57 degrees of freedom
# Null hypothesis probability =   1.560248e-01

Photon flux (15-150 keV)    in 1 sec: 0.345979 ( -0.180872  0.181396 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.24189e-08 ( -1.29952e-08  1.41038e-08 ) ergs/cm2

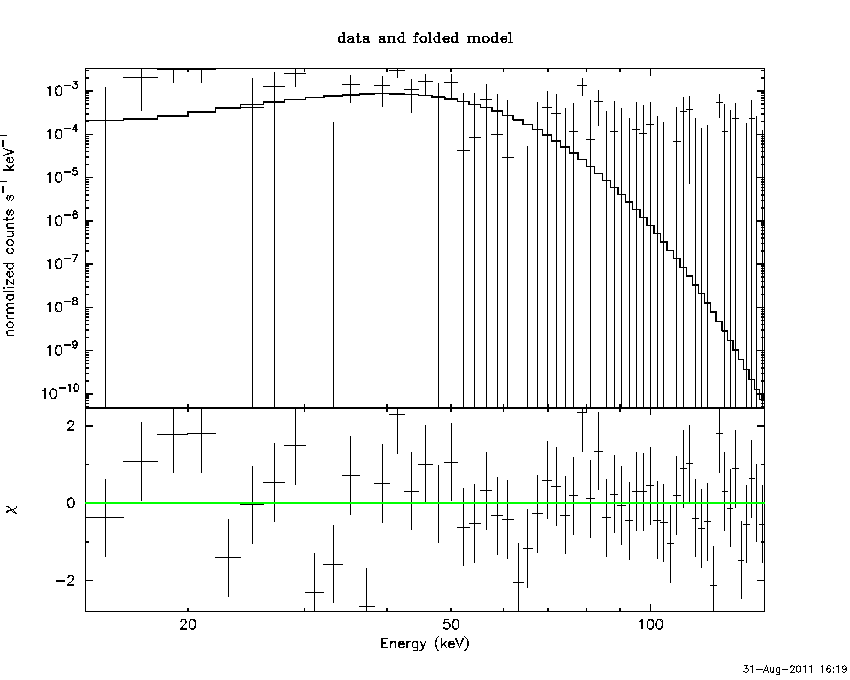

Cutoff power-law model

Time interval is from   -0.492 sec. to    0.508 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -10.0000     (     )
Epeak [keV] : 46.0588      ( -8.7624 10.9695 )
Norm@50keV  : 2327.16    ( -2327.17   21956.4 )
------------------------------------------------------------
# Chi-Squared =          66.91 using 59 PHA bins.
# Reduced chi-squared =          1.195 for     56 degrees of freedom
# Null hypothesis probability =   1.509094e-01

Photon flux (15-150 keV)    in 1 sec: 0.324071 ( -0.324071  0.188365 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.98789e-08 ( -1.22924e-08  1.47437e-08 ) ergs/cm2

Band function

Time interval is from   -0.492 sec. to    0.508 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.318670   ( 0.0750399   0.0750399 )
beta        : -10.00000    ( 1.40644e+07   1.40644e+07 )
Epeak [keV] : 46.9602      ( -43.5181 -47.0206 )
Norm@50keV   : 3.81777E-02    ( -0.045476   10.4833 )
------------------------------------------------------------
# Chi-Squared =          67.07 using 59 PHA bins.
# Reduced chi-squared =          1.219 for     55 degrees of freedom
# Null hypothesis probability =   1.274481e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 11.8855  (-4.71125  8.14308)
R^2/D10^2   : 9.37807E-02  (-0.0937807   0.487794)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          67.07 using 59 PHA bins.
# Reduced chi-squared =          1.177 for     57 degrees of freedom
# Null hypothesis probability =   1.699788e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.800e-09   1.879e-09
25- 50  8.712e-09   5.880e-09
50-150  7.352e-09   6.395e-09
15-150  1.886e-08   1.246e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 79.5873       (-79.5791      -79.5791)
Norm        : 1.66543       (-0.94986     2.12536)
------------------------------------------------------------
# Chi-Squared =          67.38 using 59 PHA bins.
# Reduced chi-squared =          1.182 for     57 degrees of freedom
# Null hypothesis probability =   1.634029e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.320e-09   2.835e-09
25- 50  7.103e-09   4.806e-09
50-150  9.991e-09   9.270e-09
15-150  2.141e-08   1.593e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 3.04920        (-3.08586      16.6054)
R1^2/D10^2  : 8.93609        (-8.43959      -8.43959)
kT2 [keV]   : 13.1705        (-13.1466      -13.1466)
R2^2/D10^2  : 5.82379E-02    (-0.0586789   0.419403)
------------------------------------------------------------
# Chi-Squared =          66.62 using 59 PHA bins.
# Reduced chi-squared =          1.211 for     55 degrees of freedom
# Null hypothesis probability =   1.353924e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.989e-09   1.875e-09
25- 50  7.766e-09   4.961e-09
50-150  8.267e-09   6.550e-09
15-150  2.002e-08   1.397e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.13963     ( -0.481445   0.764114 )
Norm@50keV  : 1.82565E-02    ( -0.0110047   0.0113523 )
------------------------------------------------------------
# Chi-Squared =          58.80 using 59 PHA bins.
# Reduced chi-squared =          1.032 for     57 degrees of freedom
# Null hypothesis probability =   4.094682e-01

Photon flux (15-150 keV)    in 0.012 sec: 5.56938 ( -2.39125  2.3872 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.82134e-09 ( -1.21277e-09  1.3014e-09 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -3.96794     ( 4.02666   3.08821 )
Epeak [keV] : 39.7283      ( -7.65284 7.97886 )
Norm@50keV  : 184.574    ( -219.921   419638 )
------------------------------------------------------------
# Chi-Squared =          41.67 using 59 PHA bins.
# Reduced chi-squared =         0.7441 for     56 degrees of freedom
# Null hypothesis probability =   9.230640e-01

Photon flux (15-150 keV)    in 0.012 sec: 8.53828 ( -2.91363  2.84762 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.84126e-09 ( -1.74704e-09  1.77526e-09 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.59110   ( -16.4198   -6.59918 )
beta        : -9.98817    ( 274.109   284.109 )
Epeak [keV] : 40.3523      ( -6.47125 5.64706 )
Norm@50keV   : 374.280    ( -373.704   155.48 )
------------------------------------------------------------
# Chi-Squared =          41.75 using 59 PHA bins.
# Reduced chi-squared =         0.7591 for     55 degrees of freedom
# Null hypothesis probability =   9.060919e-01

Photon flux (15-150 keV)    in 0.012 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 9.2025e-10
S(50-100 keV) = 4.16042e-10

T90 vs. Hardness ratio plot

T90                                   = 0.0119999051094055 sec.
Hardness ratio (energy fluence ratio) = 0.452097

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.961262
Count Ratio (50-100 keV) / (15-25 keV) = 0.551267

Mask shadow pattern

IMX = 6.172961633388324E-01, IMY = 3.894394472084158E-01

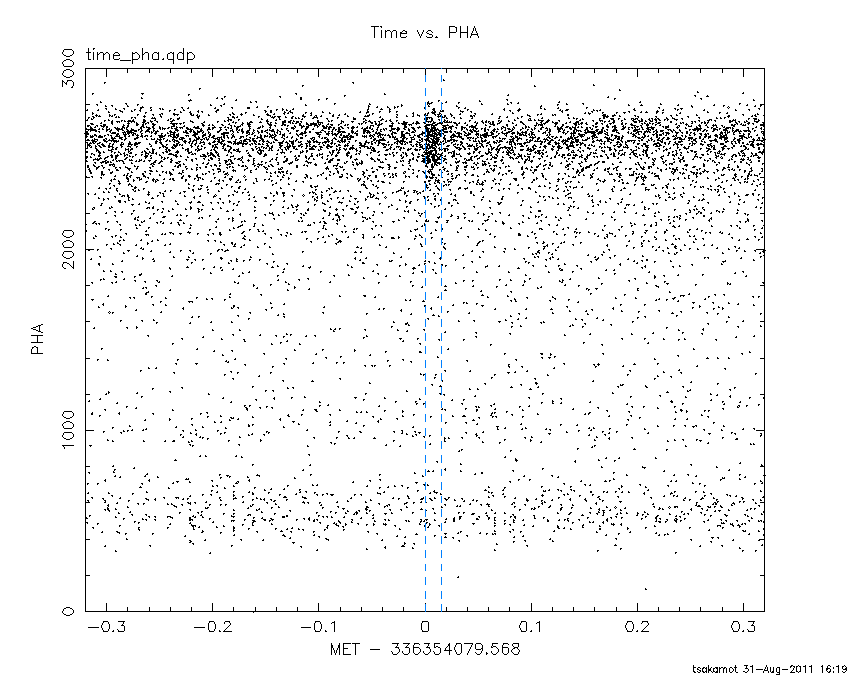

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.016000

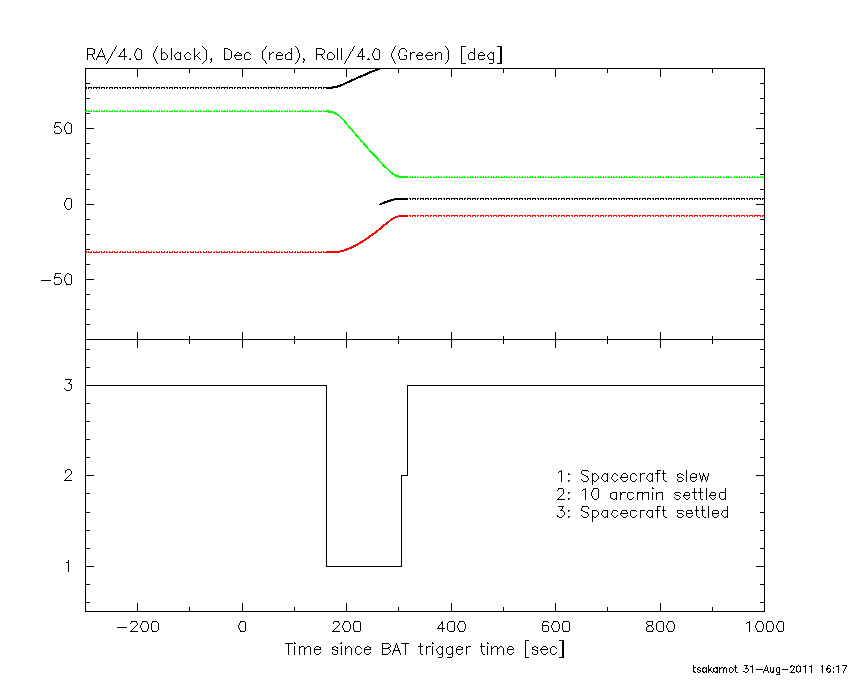

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.568000 0.000000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
263.1166 -24.8342    5.6  40.3  -67.3  -1.1155  -2.0    7.9	GX 1+4
264.7032 -44.4842    5.6  36.2  -98.7   0.9632   2.1    2.7	4U 1735-44
268.2513  -1.6105  406.8  48.6  -35.2  -0.0139  -0.0   11.8	SW J1753.5-0127
270.1685 -25.1081    3.4  34.3  -64.0   1.0275   3.4    6.5	GX 5-1
270.3281 -25.8704    9.4  33.9  -65.2   0.3650   1.2    7.8	GRS 1758-258
273.9518 -14.0533    7.3  36.3  -44.2   0.4266   1.6    3.3	GX 17+2
276.0628 -30.4837    5.5  27.7  -71.3   0.5015   2.1   10.0	H1820-303
285.2041 -24.9383   11.7  21.7  -52.7   0.1905   1.0    9.2	HT1900.1-2455
288.7730  10.9713    2.0  46.9   -2.7   2.0300   5.7    2.1	GRS 1915+105
316.0191  16.3135    2.9  48.8   33.9   3.4688   4.0 ------	UNKNOWN
 19.2310 -58.6090    2.9  53.2  166.5   3.4929   4.0 ------	UNKNOWN
 29.7811 -73.0363    2.4  57.0 -175.7   4.6874   4.8 ------	UNKNOWN
258.5202 -38.2148    3.5  40.9  -88.8   2.7764   3.3 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.000000 0.012000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
262.8524 -24.6913    3.6  40.6  -67.3   0.0196   3.2    9.1	GX 1+4
264.9459 -44.5856    5.1  36.0  -98.9  -0.0104  -2.3   11.9	4U 1735-44
268.4280  -1.5744    5.4  48.5  -35.0   0.0109   2.1    8.1	SW J1753.5-0127
270.4373 -24.9613  144.4  34.1  -63.6   0.0003   0.1   10.9	GX 5-1
270.2160 -25.8046    5.0  34.0  -65.2   0.0079   2.3    6.0	GRS 1758-258
274.1382 -13.9330    9.9  36.2  -43.8  -0.0036  -1.2    9.9	GX 17+2
275.9947 -30.4787   17.0  27.8  -71.3   0.0018   0.7    7.6	H1820-303
285.2225 -25.0233    0.0  21.6  -52.8   0.0024   1.1   11.9	HT1900.1-2455
288.8941  10.9875    6.1  46.9   -2.6  -0.0063  -1.9    6.2	GRS 1915+105
294.1315 -23.6247    3.7  15.2  -36.1   0.0055   3.2 ------	UNKNOWN
306.5371 -54.9472    2.3  23.0 -152.6   0.0086   4.9 ------	UNKNOWN
278.7083  -8.7741    1.8  36.1  -32.3   0.0162   6.4 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
304.532600 962.442000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
351.9850 -47.2655    2.3  44.2   41.1   5.0412   4.9 ------	UNKNOWN
336.6340  28.8462    2.4  51.9  155.1   8.1916   4.9 ------	UNKNOWN
  5.9995   8.2841    3.2  18.3  169.2   1.1015   3.6 ------	UNKNOWN
 45.7262 -54.6397    3.1  53.0   -3.0   3.2541   3.8 ------	UNKNOWN
 53.0365   7.6525    3.5  40.9  -92.4   6.3944   3.3 ------	UNKNOWN

Plot creation:
Wed Aug 31 16:20:13 EDT 2011
