Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Thu Sep  1 21:07:40 EDT 2011
             Host Name: gcn5
   Current Working Dir: /local/data/raid16/prebascript_archive/trigger502024/GCN5_download_cron
======================================================================

  Trigger: 00502024      Segment: 000

  BAT Trigger Time: 336571649.664   [s; MET]
      Trigger Stop: 336571657.856   [s; MET]
               UTC: 2011-09-01T12:07:22.343860    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 266.251751459167   Dec: -29.3460900568357  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    7
     Image Trigger?:     NO
     Rate S/N Ratio:     11.1803398874989  [ if not an image trigger ]
     Image S/N Ratio:    7

  Flight Position:   [ source = BAT ]
    RA: 266.251751459167   Dec: -29.3460900568357  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 266.307789539035   Dec: -29.269621823853  [deg; J2000]
        { 17h 45m 13.9s , -29d 16' 10.6" }
         +/- 2.84933665494166 [arcmin] (estimated 90% radius based on SNR)
         +/- 2.13689439258166 [arcmin] (formal 1-sigma fit error)
    SNR: 6.81529140482891

  Angular difference between Flight and Ground position is 5.444884 arcmin

  Partial Coding Fraction: 0.9609375    [ including projection effects ]

  Duration
     T90: 8.57600003480911 +/- 2.94156417057189
        Measured from: 1.68000012636185
                   to: 10.256000161171     [s; relative to TRIGTIME]
     T50: 1.98400002717972 +/- 3.07882574251269
        Measured from: 5.71200013160706
                   to: 7.69600015878677     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 5.62800002098083
                   to: 6.62800002098083     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 1.36000001430511
                   to: 11.3440000414848     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.151913   0.009903   0.023438  -0.002527
           0.018499   0.016286   0.013778   0.011752 [error]
 Peak      0.032053   0.017111   0.000568  -0.002955
           0.005957   0.005163   0.004382   0.003780 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 4.56e-08 6.65e-09 4.39e-10 3.09e-11 5.27e-08 5.27e-08   erg/cm2
              Error 9.92e-09 5.25e-09 9.57e-10 1.61e-10 1.40e-08 1.41e-08   erg/cm2
Peak flux Power-law 3.03e-01 1.18e-01 2.69e-02 7.38e-03 4.53e-01 4.55e-01   ph/cm2/s
              Error 8.78e-02 4.66e-02 2.21e-02 1.21e-02 1.22e-01 1.24e-01   ph/cm2/s

Fluence   Cutoff-PL 4.94e-08 1.84e-09 1.76e-14 2.08e-26 5.12e-08 5.12e-08   erg/cm2
              Error 1.14e-08 7.67e-09 9.75e-11 0.00e+00 1.17e-08 1.17e-08   erg/cm2
Peak flux Cutoff-PL 3.01e-01 1.27e-01 2.06e-02 1.40e-03 4.50e-01 4.51e-01   ph/cm2/s
              Error 9.19e-02 5.54e-02 2.55e-02 1.11e-02 1.20e-01 1.21e-01   ph/cm2/s

Fluence        Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    5.919    1.302    -      -           4.61e-05 7.75e-05   40.300 57
CPL   1.000    0.000      50.0    0.0      2.25e-03 0.00e+00   83.820 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.136    0.763    -      -           1.49e-03 9.52e-04   42.340 57
CPL   1.885    0.000       2.8    0.0      1.10e-02 0.00e+00   41.960 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    9.984    1.360   11.344
T90     8.576    1.680   10.256
T50     1.984    5.712    7.696
Peak    1.000    5.628    6.628

Click here for the BAT GCN circular template


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  266.3078 -29.2696 0.0282   13.2   38.7       0.2081     6.8  TRIG_00502024
------------------------------------------

Foreground time interval of the image:
  1.360  11.344 (delta_t =   9.984 [sec])
Background time interval of the image:
-239.664   1.360 (delta_t = 241.024 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

The mask-weighted light curves based on cleaned DPHs

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

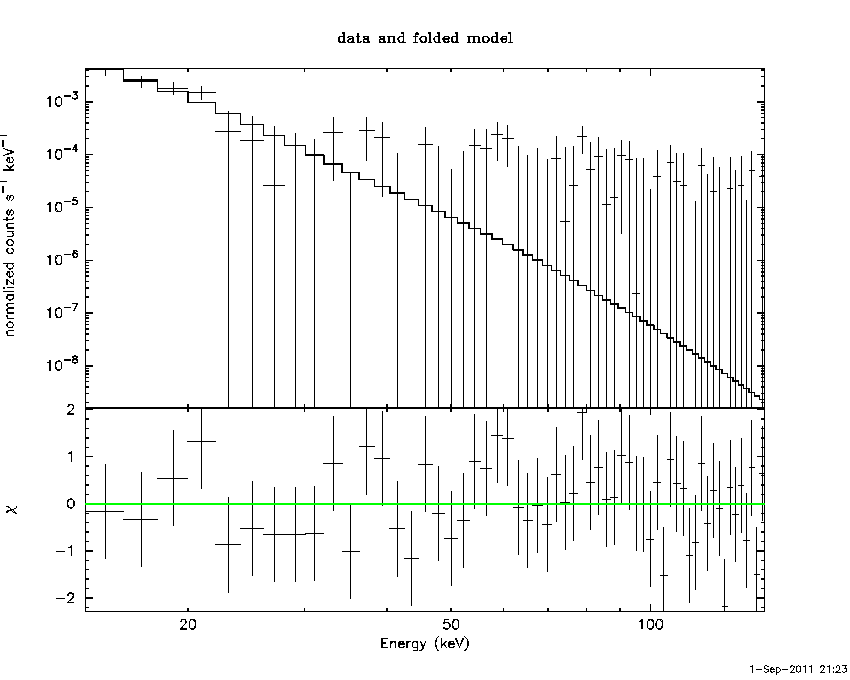

Power-law model

Time interval is from    1.360 sec. to   11.344 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 5.91892     ( -1.16829   1.4355 )
Norm@50keV  : 4.61085E-05    ( -4.61085e-05   0.000108884 )
------------------------------------------------------------
# Chi-Squared =          40.30 using 59 PHA bins.
# Reduced chi-squared =         0.7071 for     57 degrees of freedom
# Null hypothesis probability =   9.540214e-01

Photon flux (15-150 keV)    in 9.984 sec: 0.174932 ( -0.0402663  0.0404121 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.2672e-08 ( -1.35436e-08  1.45423e-08 ) ergs/cm2

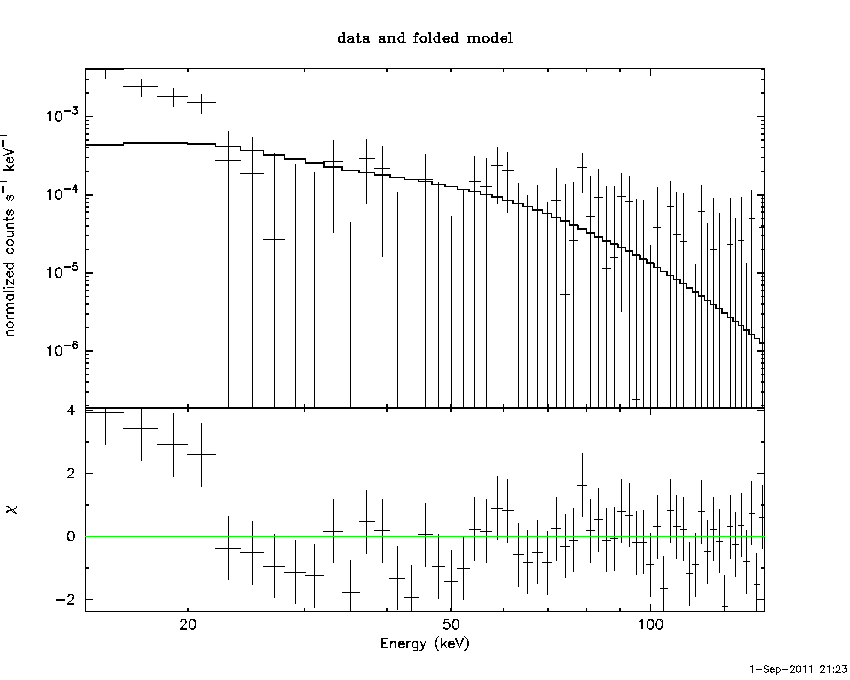

Cutoff power-law model

Time interval is from    1.360 sec. to   11.344 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 2.24958E-03    (     )
------------------------------------------------------------
# Chi-Squared =          83.82 using 59 PHA bins.
# Reduced chi-squared =          1.497 for     56 degrees of freedom
# Null hypothesis probability =   9.417238e-03

Photon flux (15-150 keV)    in 9.984 sec: 0.178931 ( -0.039454  0.038592 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.12186e-08 ( -1.16875e-08  1.16906e-08 ) ergs/cm2

Band function

Time interval is from    1.360 sec. to   11.344 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.80552   ( 6.64101   6.64101 )
beta        : -5.91780    ( -2.0564   0.546047 )
Epeak [keV] : 1.41873      ( -1.41873 -1.41873 )
Norm@50keV   : 6.27440E-03    ( -0.0062744   0.0147928 )
------------------------------------------------------------
# Chi-Squared =          40.30 using 59 PHA bins.
# Reduced chi-squared =         0.7328 for     55 degrees of freedom
# Null hypothesis probability =   9.312054e-01

Photon flux (15-150 keV)    in 9.984 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

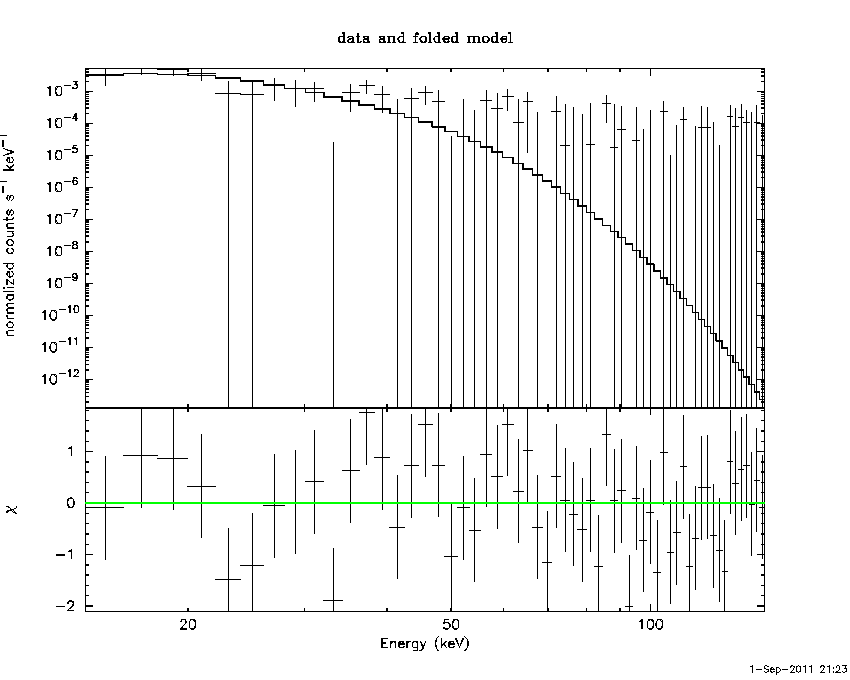

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.32167  (-0.445535  0.537602)
R^2/D10^2   : 154.521  (-154.521   690.229)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          39.42 using 59 PHA bins.
# Reduced chi-squared =         0.6916 for     57 degrees of freedom
# Null hypothesis probability =   9.633015e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.858e-08   2.626e-08
25- 50  2.622e-09   1.618e-09
50-150  3.900e-13   4.882e-13
15-150  5.120e-08   2.829e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 4.08914       (-1.13439      1.68702)
Norm        : 89.9197       (-89.9194     315.439)
------------------------------------------------------------
# Chi-Squared =          39.69 using 59 PHA bins.
# Reduced chi-squared =         0.6962 for     57 degrees of freedom
# Null hypothesis probability =   9.606926e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.754e-08   2.645e-08
25- 50  3.673e-09   2.304e-09
50-150  6.207e-12   7.213e-12
15-150  5.122e-08   2.876e-08

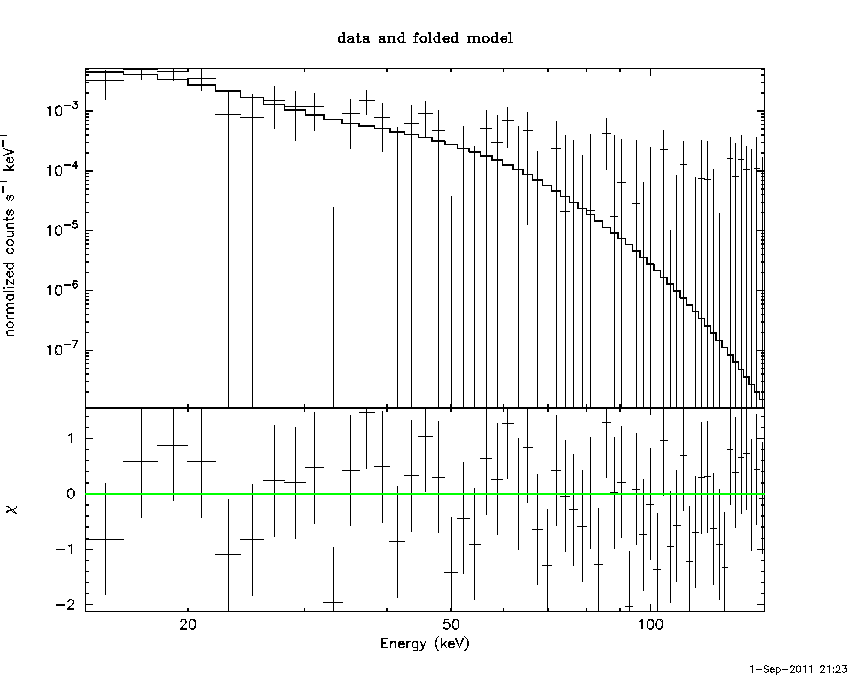

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.25942        (-0.446337      0.522912)
R1^2/D10^2  : 185.591        (-185.788      918.391)
kT2 [keV]   : 24.8262        (-25.2746      -25.2746)
R2^2/D10^2  : 7.59374E-04    (-0.000741382   0.0255029)
------------------------------------------------------------
# Chi-Squared =          37.20 using 59 PHA bins.
# Reduced chi-squared =         0.6764 for     55 degrees of freedom
# Null hypothesis probability =   9.685071e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.797e-08   2.548e-08
25- 50  6.867e-09   3.944e-09
50-150  2.107e-08   1.982e-08
15-150  7.591e-08   3.940e-08

Peak spectrum fit

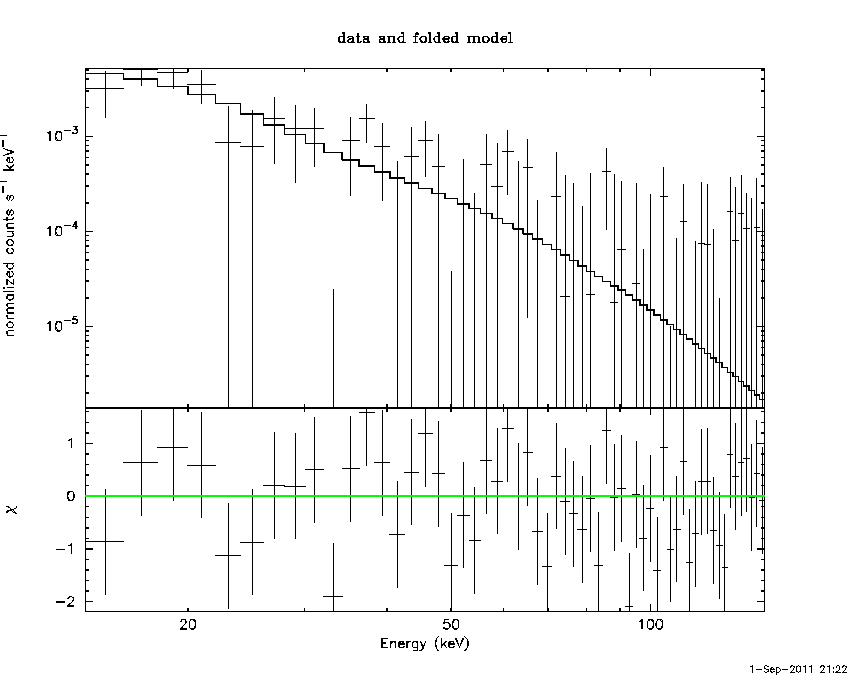

Power-law model

Time interval is from    5.628 sec. to    6.628 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.13648     ( -0.647019   0.879846 )
Norm@50keV  : 1.48766E-03    ( -0.000869877   0.00103485 )
------------------------------------------------------------
# Chi-Squared =          42.34 using 59 PHA bins.
# Reduced chi-squared =         0.7428 for     57 degrees of freedom
# Null hypothesis probability =   9.262715e-01

Photon flux (15-150 keV)    in 1 sec: 0.452602 ( -0.122265  0.122725 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.9092e-08 ( -6.36157e-09  7.18864e-09 ) ergs/cm2

Cutoff power-law model

Time interval is from    5.628 sec. to    6.628 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.88544     (     )
Epeak [keV] : 2.78649      (   )
Norm@50keV  : 1.09667E-02    (     )
------------------------------------------------------------
# Chi-Squared =          41.96 using 59 PHA bins.
# Reduced chi-squared =         0.7493 for     56 degrees of freedom
# Null hypothesis probability =   9.181704e-01

Photon flux (15-150 keV)    in 1 sec: 0.450370 ( -0.119147  0.120833 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.81615e-08 ( -5.8725e-09  7.4906e-09 ) ergs/cm2

Band function

Time interval is from    5.628 sec. to    6.628 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.96672   ( 1.90482   1.90482 )
beta        : -9.37167    ( 9.99999   20 )
Epeak [keV] : 0.863692      ( -0.863692 20.8198 )
Norm@50keV   : 9.68078E-03    ( -0.00507634   0.0119554 )
------------------------------------------------------------
# Chi-Squared =          41.94 using 59 PHA bins.
# Reduced chi-squared =         0.7626 for     55 degrees of freedom
# Null hypothesis probability =   9.023316e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 4.92257  (-1.55712  2.33111)
R^2/D10^2   : 4.03321  (-4.08019   23.4866)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          44.59 using 59 PHA bins.
# Reduced chi-squared =         0.7823 for     57 degrees of freedom
# Null hypothesis probability =   8.840900e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.211e-09   5.395e-09
25- 50  5.787e-09   3.629e-09
50-150  2.181e-10   2.182e-10
15-150  1.522e-08   9.280e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 17.2942       (-8.10116      15.4771)
Norm        : 6.64006       (-3.48498     10.7681)
------------------------------------------------------------
# Chi-Squared =          42.16 using 59 PHA bins.
# Reduced chi-squared =         0.7396 for     57 degrees of freedom
# Null hypothesis probability =   9.291402e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.005e-09   4.199e-09
25- 50  7.000e-09   4.106e-09
50-150  1.623e-09   1.491e-09
15-150  1.763e-08   8.247e-09

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.94439        (-1.48921      2.05075)
R1^2/D10^2  : 38.5799        (-33.7312      3827.87)
kT2 [keV]   : 9.41095        (-4.2895      9.79204)
R2^2/D10^2  : 0.150413    (-0.141115   2.20738)
------------------------------------------------------------
# Chi-Squared =          40.94 using 59 PHA bins.
# Reduced chi-squared =         0.7443 for     55 degrees of freedom
# Null hypothesis probability =   9.208374e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.065e-09   4.703e-09
25- 50  6.906e-09   3.865e-09
50-150  2.634e-09   2.186e-09
15-150  1.860e-08   9.810e-09

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 5.91892     ( -1.16829   1.4355 )
Norm@50keV  : 4.61085E-05    ( -4.61085e-05   0.000108884 )
------------------------------------------------------------
# Chi-Squared =          40.30 using 59 PHA bins.
# Reduced chi-squared =         0.7071 for     57 degrees of freedom
# Null hypothesis probability =   9.540214e-01

Photon flux (15-150 keV)    in 9.984 sec: 0.174932 ( -0.0402663  0.0404121 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.2672e-08 ( -1.35436e-08  1.45423e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 2.24958E-03    (     )
------------------------------------------------------------
# Chi-Squared =          83.82 using 59 PHA bins.
# Reduced chi-squared =          1.497 for     56 degrees of freedom
# Null hypothesis probability =   9.417238e-03

Photon flux (15-150 keV)    in 9.984 sec: 0.178931 ( -0.039454  0.038592 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.12186e-08 ( -1.16875e-08  1.16906e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.80552   ( 6.64101   6.64101 )
beta        : -5.91780    ( -2.0564   0.546047 )
Epeak [keV] : 1.41873      ( -1.41873 -1.41873 )
Norm@50keV   : 6.27440E-03    ( -0.0062744   0.0147928 )
------------------------------------------------------------
# Chi-Squared =          40.30 using 59 PHA bins.
# Reduced chi-squared =         0.7328 for     55 degrees of freedom
# Null hypothesis probability =   9.312054e-01

Photon flux (15-150 keV)    in 9.984 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 6.64523e-09
S(50-100 keV) = 4.39372e-10

T90 vs. Hardness ratio plot

T90                                   = 8.57600003480911 sec.
Hardness ratio (energy fluence ratio) = 0.0661184

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.0651886
Count Ratio (50-100 keV) / (15-25 keV) = 0.154286

Mask shadow pattern

IMX = 1.827405979074499E-01, IMY = -1.463985929230912E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.664000 1.360000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
186.6909 -62.7987   10.5  46.4 -142.1   0.5284   1.1    1.9	GX 301-2
244.9803 -15.6415    0.3  26.7  -25.6   7.8575  40.2    0.1	Sco X-1
255.7953 -37.6957    0.0   2.7  -23.1  -0.0360  -0.2   12.7	4U 1700-377
256.3861 -36.4318    3.6   3.7   -8.5   0.6072   3.2    2.4	GX 349+2
263.1622 -24.6784    4.2  16.2   21.1   0.5070   2.7    9.3	GX 1+4
264.5127 -44.3186    0.0   6.9  131.5   0.3965   2.4   12.6	4U 1735-44
268.2242  -1.3322    3.0  40.1   18.7   1.2125   3.9   11.3	SW J1753.5-0127
270.2727 -25.0772    2.9  18.6   41.3   0.8300   4.0    0.6	GX 5-1
270.1475 -25.7395    6.6  18.0   42.2   0.3668   1.7    8.4	GRS 1758-258
274.0710 -14.0399    3.2  30.0   35.7   0.9419   3.6    3.8	GX 17+2
276.1183 -30.4250    5.3  18.2   65.0   0.4709   2.2   10.6	H1820-303
285.0152 -24.8175    6.1  27.8   66.5   0.5039   1.9    6.3	HT1900.1-2455
292.1195 -16.0750    2.2  38.7   63.1   3.0675   5.2 ------	UNKNOWN
213.0405 -68.2796    2.7  36.7 -153.1   1.0695   4.4 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
1.360000 11.344000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
186.7326 -62.7592    7.5  46.4 -142.1  -0.1120  -1.5    2.2	GX 301-2
245.0481 -15.7899    7.2  26.5  -25.6  -0.0525  -1.6    9.8	Sco X-1
255.9254 -37.6947   11.6   2.6  -21.0  -0.0299  -1.0    9.4	4U 1700-377
256.2470 -36.2753    0.0   3.9   -9.8   0.0464   1.6   12.7	GX 349+2
262.8496 -24.7531   10.0  16.1   20.2   0.0355   1.2    8.7	GX 1+4
264.6598 -44.4105    4.0   7.0  131.6   0.0872   2.8    4.3	4U 1735-44
268.3920  -1.4060   10.8  40.0   18.9  -0.0570  -1.1    3.1	SW J1753.5-0127
270.4155 -24.9169    0.0  18.8   41.4  -0.0296  -0.9   12.1	GX 5-1
270.2327 -25.8387    9.0  18.0   42.6  -0.0414  -1.3    6.9	GRS 1758-258
273.8301 -13.9084    0.0  30.0   35.1   0.0537   1.2   12.8	GX 17+2
276.0552 -30.2401    7.2  18.3   64.5  -0.0579  -1.6   10.2	H1820-303
285.0280 -24.9673    4.9  27.8   66.8  -0.1088  -2.4    2.8	HT1900.1-2455
266.3080 -29.2696    1.7  13.2   38.7   0.2081   6.8 ------	UNKNOWN
220.8548 -27.9698    2.6  32.2  -77.8   0.2158   4.3 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
802.536590 926.696000
927.336000 962.390600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
307.2344 -52.9085    2.1  37.2   24.2   1.2075   5.6 ------	UNKNOWN
239.3551 -66.5119    2.8  56.4  -16.7   2.2880   4.1 ------	UNKNOWN

Plot creation:
Thu Sep  1 21:24:08 EDT 2011
