                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Wed Dec 21 12:42:18 EST 2011
             Host Name: gcn5
   Current Working Dir: /local/data/raid16/prebascript_archive/trigger510075/GCN5_download_cron
======================================================================

  Trigger: 00510075      Segment: 000

  BAT Trigger Time: 346126495.424   [s; MET]
      Trigger Stop: 346126511.808   [s; MET]
               UTC: 2011-12-21T02:14:47.726260    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 91.1750457754977   Dec: -23.9790138138591  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    6.74
     Image Trigger?:     NO
     Rate S/N Ratio:     16.3401346383682  [ if not an image trigger ]
     Image S/N Ratio:    6.74

  Flight Position:   [ source = BAT ]
    RA: 91.1750457754977   Dec: -23.9790138138591  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 91.1813715005106   Dec: -23.9351422159113  [deg; J2000]
        { 06h 04m 43.5s , -23d 56' 06.5" }
         +/- 3.38790472067156 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.94145304406248 [arcmin] (formal 1-sigma fit error)
    SNR: 5.32198720012495

  Angular difference between Flight and Ground position is 2.655049 arcmin

  Partial Coding Fraction: 0.8671875    [ including projection effects ]

  Duration
     T90: 16.3840000033379 +/-
        Measured from: 0
                   to: 16.3840000033379     [s; relative to TRIGTIME]
     T50: 16.3840000033379 +/-
        Measured from: 0
                   to: 16.3840000033379     [s; relative to TRIGTIME]

    WARNING: battblocks failed.  Used TDRSS fore/background intervals

  Fluence
     Peak Flux  (peak 16.3840000033379 second)
        Measured from: 2.98023223876953e-08
                   to: 16.3840000331402     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0
                   to: 16.3840000033379     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.086744   0.112072   0.007850   0.003735
           0.024145   0.023872   0.019991   0.017626 [error]
 Peak      0.086744   0.112072   0.007850   0.003735
           0.024145   0.023872   0.019991   0.017626 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.46e-08 2.98e-08 2.61e-08 3.92e-08 9.43e-08 1.20e-07   erg/cm2
              Error 9.47e-09 1.05e-08 1.55e-08 5.05e-08 3.84e-08 6.76e-08   erg/cm2
Peak flux Power-law 4.92e-02 3.30e-02 1.45e-02 8.72e-03 1.01e-01 1.05e-01   ph/cm2/s
              Error 1.92e-02 1.14e-02 8.33e-03 1.06e-02 3.32e-02 3.51e-02   ph/cm2/s

Fluence   Cutoff-PL 2.53e-08 4.22e-08 1.22e-09 7.48e-15 6.87e-08 6.86e-08   erg/cm2
              Error 1.12e-08 1.74e-08 6.90e-09 1.48e-10 2.29e-08 2.29e-08   erg/cm2
Peak flux Cutoff-PL 4.72e-02 5.02e-02 8.52e-04 2.77e-09 9.83e-02 9.82e-02   ph/cm2/s
              Error 2.18e-02 1.89e-02 4.32e-03 5.07e-05 3.00e-02 3.00e-02   ph/cm2/s

Fluence        Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.196    0.579    -      -           6.11e-04 2.79e-04   64.740 57
CPL  -7.376    0.000      28.3    4.9      3.32e+03 0.00e+00   56.650 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.196    0.579    -      -           6.11e-04 2.79e-04   64.740 57
CPL  -7.376    0.000      28.3    4.9      3.32e+03 0.00e+00   56.650 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   16.384    0.000   16.384
T90    16.384    0.000   16.384
T50    16.384    0.000   16.384
Peak   16.384    0.000   16.384

Click here for the BAT GCN circular template

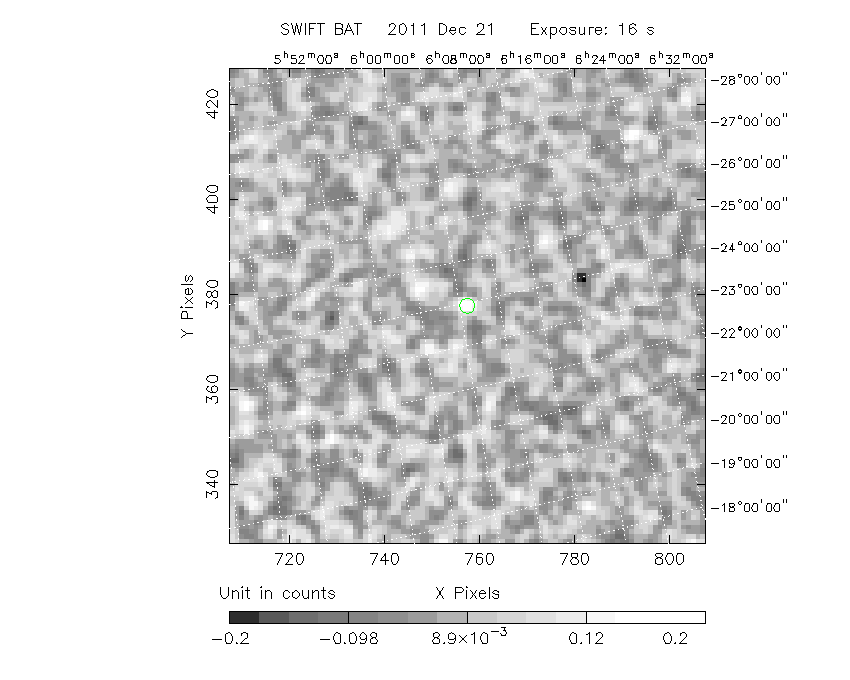

Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
   91.1814 -23.9351 0.0363   18.3   39.0       0.2565     5.3  TRIG_00510075
------------------------------------------

Foreground time interval of the image:
  0.000  16.384 (delta_t =  16.384 [sec])
Background time interval of the image:
-239.424 -39.424 (delta_t = 200.000 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 16.384000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 16.384000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 16.384000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

The mask-weighted light curves based on cleaned DPHs

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from    0.000 sec. to   16.384 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.19596     ( -0.529418   0.629053 )
Norm@50keV  : 6.11352E-04    ( -0.000275922   0.000281528 )
------------------------------------------------------------
# Chi-Squared =          64.74 using 59 PHA bins.
# Reduced chi-squared =          1.136 for     57 degrees of freedom
# Null hypothesis probability =   2.246801e-01

Photon flux (15-150 keV)    in 16.38 sec: 0.101019 ( -0.0331198  0.0332648 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.42576e-08 ( -3.65131e-08  4.03746e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.000 sec. to   16.384 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -7.37646     (     )
Epeak [keV] : 28.2993      ( -4.35537 5.47298 )
Norm@50keV  : 3315.88    (     )
------------------------------------------------------------
# Chi-Squared =          56.65 using 59 PHA bins.
# Reduced chi-squared =          1.012 for     56 degrees of freedom
# Null hypothesis probability =   4.505552e-01

Photon flux (15-150 keV)    in 16.38 sec: 9.82879E-02 ( -0.0291685  0.0307931 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.86859e-08 ( -2.09518e-08  2.4827e-08 ) ergs/cm2

Band function

Time interval is from    0.000 sec. to   16.384 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.97749   ( -96.8273   -86.8278 )
beta        : -8.03872    ( 6.42569   16.1998 )
Epeak [keV] : 28.7688      ( -5.70947 5.38181 )
Norm@50keV   : 63.2677    ( -63.2763   67.3939 )
------------------------------------------------------------
# Chi-Squared =          56.96 using 59 PHA bins.
# Reduced chi-squared =          1.036 for     55 degrees of freedom
# Null hypothesis probability =   4.021742e-01

Photon flux (15-150 keV)    in 16.38 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 7.42444  (-1.59723  2.11006)
R^2/D10^2   : 0.173823  (-0.173733   0.287149)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          58.74 using 59 PHA bins.
# Reduced chi-squared =          1.030 for     57 degrees of freedom
# Null hypothesis probability =   4.116157e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.669e-08   1.619e-08
25- 50  4.087e-08   2.652e-08
50-150  8.341e-09   7.424e-09
15-150  7.590e-08   4.731e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 37.1720       (-17.7422      55.7118)
Norm        : 0.716000       (-0.315797     0.559968)
------------------------------------------------------------
# Chi-Squared =          62.60 using 59 PHA bins.
# Reduced chi-squared =          1.098 for     57 degrees of freedom
# Null hypothesis probability =   2.843494e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.624e-08   1.373e-08
25- 50  3.341e-08   1.940e-08
50-150  2.381e-08   2.048e-08
15-150  8.345e-08   5.309e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.37111        (-7.39298      -7.39298)
R1^2/D10^2  : 0.124277        (-0.123734      -0.123734)
kT2 [keV]   : 7.49879        (-7.43944      -7.43944)
R2^2/D10^2  : 5.10488E-02    (-0.0504463   -0.0504463)
------------------------------------------------------------
# Chi-Squared =          58.74 using 59 PHA bins.
# Reduced chi-squared =          1.068 for     55 degrees of freedom
# Null hypothesis probability =   3.402118e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.676e-08   4.703e-02
25- 50  4.081e-08   4.649e-01
50-150  8.277e-09   9.509e+00
15-150  7.585e-08   1.025e+01

Peak spectrum fit

Power-law model

Time interval is from    0.000 sec. to   16.384 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.19596     ( -0.529418   0.629053 )
Norm@50keV  : 6.11352E-04    ( -0.000275922   0.000281528 )
------------------------------------------------------------
# Chi-Squared =          64.74 using 59 PHA bins.
# Reduced chi-squared =          1.136 for     57 degrees of freedom
# Null hypothesis probability =   2.246801e-01

Photon flux (15-150 keV)    in 16.38 sec: 0.101019 ( -0.0331198  0.0332648 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.42576e-08 ( -3.65131e-08  4.03746e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.000 sec. to   16.384 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -7.37646     (     )
Epeak [keV] : 28.2993      ( -4.35537 5.47298 )
Norm@50keV  : 3315.88    (     )
------------------------------------------------------------
# Chi-Squared =          56.65 using 59 PHA bins.
# Reduced chi-squared =          1.012 for     56 degrees of freedom
# Null hypothesis probability =   4.505552e-01

Photon flux (15-150 keV)    in 16.38 sec: 9.82879E-02 ( -0.0291685  0.0307931 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.86859e-08 ( -2.09518e-08  2.4827e-08 ) ergs/cm2

Band function

Time interval is from    0.000 sec. to   16.384 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.97749   ( -96.8276   -86.8278 )
beta        : -8.03872    ( 6.42569   16.1998 )
Epeak [keV] : 28.7688      ( -5.70947 5.38181 )
Norm@50keV   : 63.2677    ( -63.2763   67.5999 )
------------------------------------------------------------
# Chi-Squared =          56.96 using 59 PHA bins.
# Reduced chi-squared =          1.036 for     55 degrees of freedom
# Null hypothesis probability =   4.021742e-01

Photon flux (15-150 keV)    in 16.38 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 7.42444  (-1.59723  2.11006)
R^2/D10^2   : 0.173823  (-0.173733   0.287149)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          58.74 using 59 PHA bins.
# Reduced chi-squared =          1.030 for     57 degrees of freedom
# Null hypothesis probability =   4.116157e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.669e-08   1.575e-08
25- 50  4.087e-08   2.441e-08
50-150  8.341e-09   6.761e-09
15-150  7.590e-08   4.831e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 37.1720       (-17.7422      55.7118)
Norm        : 0.716000       (-0.315797     0.559968)
------------------------------------------------------------
# Chi-Squared =          62.60 using 59 PHA bins.
# Reduced chi-squared =          1.098 for     57 degrees of freedom
# Null hypothesis probability =   2.843494e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.624e-08   1.579e-08
25- 50  3.341e-08   1.969e-08
50-150  2.381e-08   1.994e-08
15-150  8.345e-08   5.613e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.37111        (-7.39298      -7.39298)
R1^2/D10^2  : 0.124277        (-0.123734      -0.123734)
kT2 [keV]   : 7.49879        (-7.43944      -7.43944)
R2^2/D10^2  : 5.10488E-02    (-0.0504463   -0.0504463)
------------------------------------------------------------
# Chi-Squared =          58.74 using 59 PHA bins.
# Reduced chi-squared =          1.068 for     55 degrees of freedom
# Null hypothesis probability =   3.402118e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.676e-08   5.371e-02
25- 50  4.081e-08   3.900e-01
50-150  8.277e-09   9.631e+00
15-150  7.585e-08   1.070e+01

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.19596     ( -0.529418   0.629053 )
Norm@50keV  : 6.11352E-04    ( -0.000275922   0.000281528 )
------------------------------------------------------------
# Chi-Squared =          64.74 using 59 PHA bins.
# Reduced chi-squared =          1.136 for     57 degrees of freedom
# Null hypothesis probability =   2.246801e-01

Photon flux (15-150 keV)    in 16.38 sec: 0.101019 ( -0.0331198  0.0332648 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.42576e-08 ( -3.65131e-08  4.03746e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -7.37646     (     )
Epeak [keV] : 28.2993      ( -4.35537 5.47298 )
Norm@50keV  : 3315.88    (     )
------------------------------------------------------------
# Chi-Squared =          56.65 using 59 PHA bins.
# Reduced chi-squared =          1.012 for     56 degrees of freedom
# Null hypothesis probability =   4.505552e-01

Photon flux (15-150 keV)    in 16.38 sec: 9.82879E-02 ( -0.0291685  0.0307931 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.86859e-08 ( -2.09518e-08  2.4827e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.97749   ( -96.8274   -86.8278 )
beta        : -8.03872    ( 6.42569   16.1998 )
Epeak [keV] : 28.7688      ( -5.70947 5.38181 )
Norm@50keV   : 63.2677    ( -63.2763   65.8371 )
------------------------------------------------------------
# Chi-Squared =          56.96 using 59 PHA bins.
# Reduced chi-squared =          1.036 for     55 degrees of freedom
# Null hypothesis probability =   4.021742e-01

Photon flux (15-150 keV)    in 16.38 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.98011e-08
S(50-100 keV) = 2.60835e-08

T90 vs. Hardness ratio plot

T90                                   = 16.3840000033379 sec.
Hardness ratio (energy fluence ratio) = 0.875253

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.29199
Count Ratio (50-100 keV) / (15-25 keV) = 0.0904962

Mask shadow pattern

IMX = 2.567720318959147E-01, IMY = -2.081808160436467E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 16.384000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 16.384000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 16.384000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.424000 -39.424000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5200 -40.5470    0.4  22.4 -129.0   5.3133  29.2    0.6	Vela X-1
121.0048   6.2090    2.5  39.0  127.1   2.0303   4.5 ------	UNKNOWN
171.3620 -18.9669    2.2  56.1 -157.4   3.7836   5.2 ------	UNKNOWN
173.0903 -16.3682    5.1  58.8 -159.3   2.7377   2.3 ------	UNKNOWN
152.4970 -58.2445    2.5  39.2 -104.4   2.9602   4.7 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.000000 16.384000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5188 -40.5880    1.2  22.4 -128.9   0.4614  10.0    2.0	Vela X-1
 54.2882 -25.8606    1.9  48.8   11.4   0.6846   5.9 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
115.876600 962.649200

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5396 -40.5413    0.6  40.5 -141.7  15.3119  18.2    0.9	Vela X-1
131.7892 -11.4814    3.7  40.5  172.5   2.3414   3.1 ------	UNKNOWN
 30.9688 -20.2477    3.2  55.5   -5.6   5.6080   3.6 ------	UNKNOWN
 24.8005 -36.7440    3.0  57.5  -26.3  12.3755   3.8 ------	UNKNOWN

Plot creation:
Wed Dec 21 13:00:30 EST 2011
