batgrbproduct analysis for trigger=511611

batgrbproduct Analysis for Trigger=511611

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Fri Jan 13 00:39:04 EST 2012
             Host Name: gcn5
   Current Working Dir: /local/data/raid16/prebascript_archive/trigger511611/GCN5_download_cron
======================================================================

  Trigger: 00511611      Segment: 000

  BAT Trigger Time: 348066586.432   [s; MET]
      Trigger Stop: 348066586.496   [s; MET]
               UTC: 2012-01-12T13:09:38.656740    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 26.6212981897003   Dec: 61.7632397690641  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    6.52
     Image Trigger?:     NO
     Rate S/N Ratio:     11.6189500386223  [ if not an image trigger ]
     Image S/N Ratio:    6.52

  Flight Position:   [ source = BAT ]
    RA: 26.6212981897003   Dec: 61.7632397690641  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 26.6877418483462   Dec: 61.7981693477776  [deg; J2000]
        { 01h 46m 45.1s , +61d 47' 53.4" }
         +/- 2.97358644097033 [arcmin] (estimated 90% radius based on SNR)
         +/- 2.07214270249446 [arcmin] (formal 1-sigma fit error)
    SNR: 6.41214423975584

  Angular difference between Flight and Ground position is 2.818818 arcmin

  Partial Coding Fraction: 0.84375    [ including projection effects ]

  Duration
     T90: 0.0239999294281006 +/- 0.00894429003608426
        Measured from: 0.00800013542175293
                   to: 0.0320000648498535     [s; relative to TRIGTIME]
     T50: 0.0159999132156372 +/- 0.00565686571343518
        Measured from: 0.0120001435279846
                   to: 0.0280000567436218     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.476000010967255
                   to: 0.523999989032745     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0.00800001621246338
                   to: 0.0360000133514404     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.006318   0.006693   0.003965   0.001665
           0.001492   0.001314   0.001354   0.000831 [error]
 Peak      0.009173   0.022522   0.010533  -0.006405
           0.006129   0.006211   0.005467   0.004757 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.95e-09 2.19e-09 1.76e-09 2.35e-09 6.77e-09 8.26e-09   erg/cm2
              Error 6.32e-10 6.09e-10 8.77e-10 2.74e-09 2.13e-09 3.54e-09   erg/cm2
Peak flux Power-law 1.62e-01 1.31e-01 7.14e-02 5.72e-02 3.89e-01 4.21e-01   ph/cm2/s
              Error 8.02e-02 4.98e-02 4.04e-02 6.82e-02 1.48e-01 1.63e-01   ph/cm2/s

Fluence   Cutoff-PL 2.02e-09 2.78e-09 8.74e-11 1.36e-15 4.88e-09 4.88e-09   erg/cm2
              Error 7.66e-10 9.38e-10 4.08e-10 1.01e-11 1.34e-09 1.34e-09   erg/cm2
Peak flux Cutoff-PL 1.12e-01 1.80e-01 7.52e-02 4.57e-03 3.71e-01 3.71e-01   ph/cm2/s
              Error 9.21e-02 7.24e-02 5.48e-02 2.80e-02 1.44e-01 1.46e-01   ph/cm2/s

Fluence        Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band 1.17e-01 1.77e-01 7.67e-02 5.64e-03 3.78e-01 3.76e-01   ph/cm2/s
              Error 9.01e-02 7.23e-02 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.315    0.500    -      -           2.52e-02 9.38e-03   42.380 57
CPL  -6.182    0.000      27.1    4.0      2.90e+04 0.00e+00   35.230 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.867    0.635    -      -           2.75e-03 1.25e-03   59.300 57
CPL  -1.036    4.658      45.7   31.9      1.13e-01 2.70e+02   56.120 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.028    0.008    0.036
T90     0.024    0.008    0.032
T50     0.016    0.012    0.028
Peak    1.000   -0.476    0.524

Click here for the BAT GCN circular template


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
   26.6877 +61.7982 0.0300   26.7 -149.9       0.0173     6.4  TRIG_00511611
------------------------------------------

Foreground time interval of the image:
  0.008   0.036 (delta_t =   0.028 [sec])
Background time interval of the image:
-239.432   0.008 (delta_t = 239.440 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

The mask-weighted light curves based on cleaned DPHs

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

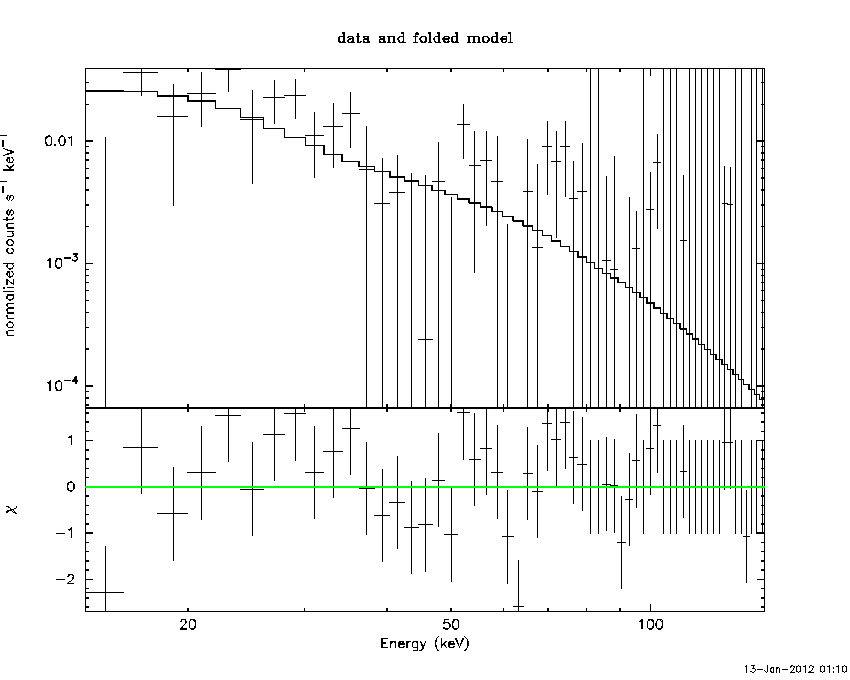

Power-law model

Time interval is from    0.008 sec. to    0.036 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.31540     ( -0.479339   0.521428 )
Norm@50keV  : 2.52255E-02    ( -0.00930745   0.00944304 )
------------------------------------------------------------
# Chi-Squared =          42.38 using 59 PHA bins.
# Reduced chi-squared =         0.7436 for     57 degrees of freedom
# Null hypothesis probability =   9.255401e-01

Photon flux (15-150 keV)    in 0.028 sec: 4.44646 ( -1.15878  1.15881 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.76869e-09 ( -2.04677e-09  2.20738e-09 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.008 sec. to    0.036 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -6.18206     (     )
Epeak [keV] : 27.0528      ( -3.72766 4.35207 )
Norm@50keV  : 2.90019E+04    (     )
------------------------------------------------------------
# Chi-Squared =          35.23 using 59 PHA bins.
# Reduced chi-squared =         0.6291 for     56 degrees of freedom
# Null hypothesis probability =   9.865096e-01

Photon flux (15-150 keV)    in 0.028 sec: 4.20793 ( -1.10984  1.12047 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.87981e-09 ( -1.277e-09  1.40608e-09 ) ergs/cm2

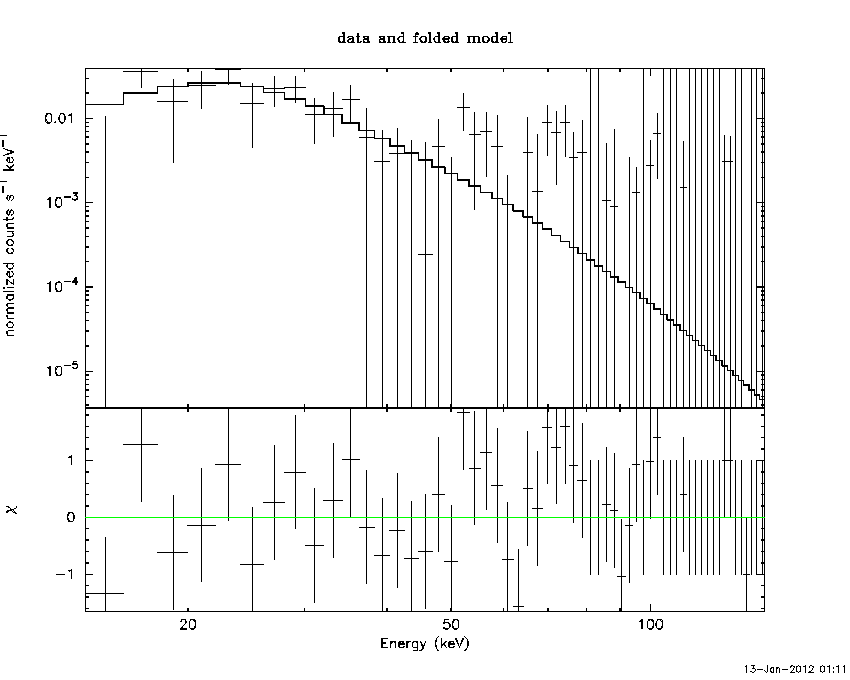

Band function

Time interval is from    0.008 sec. to    0.036 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.98835   ( -175.958   -165.958 )
beta        : -4.40110    ( 4.41076   1.68933 )
Epeak [keV] : 26.7144      ( -4.74735 4.25677 )
Norm@50keV   : 4395.18    ( -4387.09   3839.7 )
------------------------------------------------------------
# Chi-Squared =          34.65 using 59 PHA bins.
# Reduced chi-squared =         0.6300 for     55 degrees of freedom
# Null hypothesis probability =   9.855253e-01

Photon flux (15-150 keV)    in 0.028 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

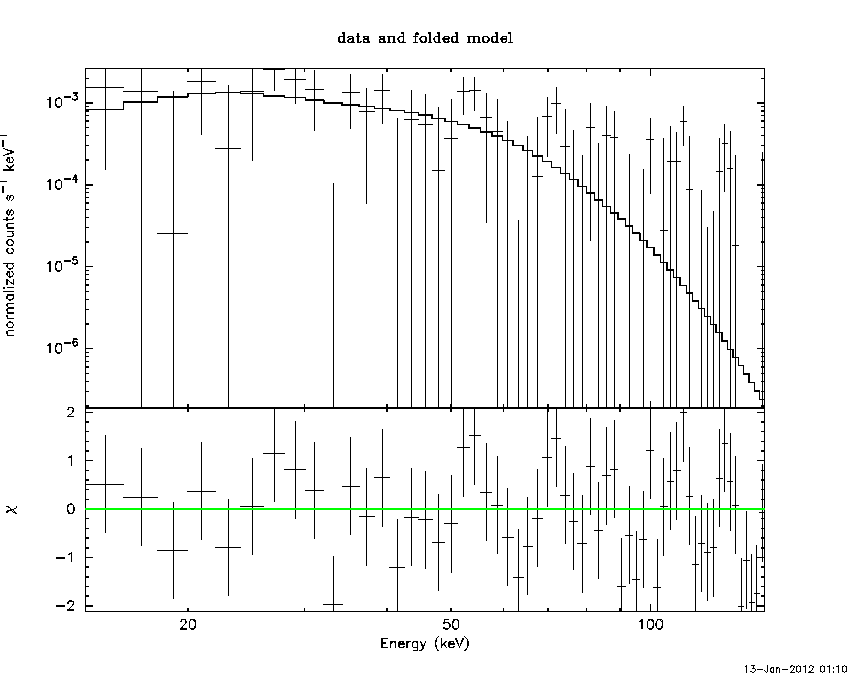

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 6.85351  (-1.24787  1.6181)
R^2/D10^2   : 10.1641  (-6.15208   13.9573)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          36.82 using 59 PHA bins.
# Reduced chi-squared =         0.6459 for     57 degrees of freedom
# Null hypothesis probability =   9.826003e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.100e-09   1.114e-09
25- 50  2.759e-09   1.443e-09
50-150  4.233e-10   3.442e-10
15-150  5.282e-09   2.828e-09

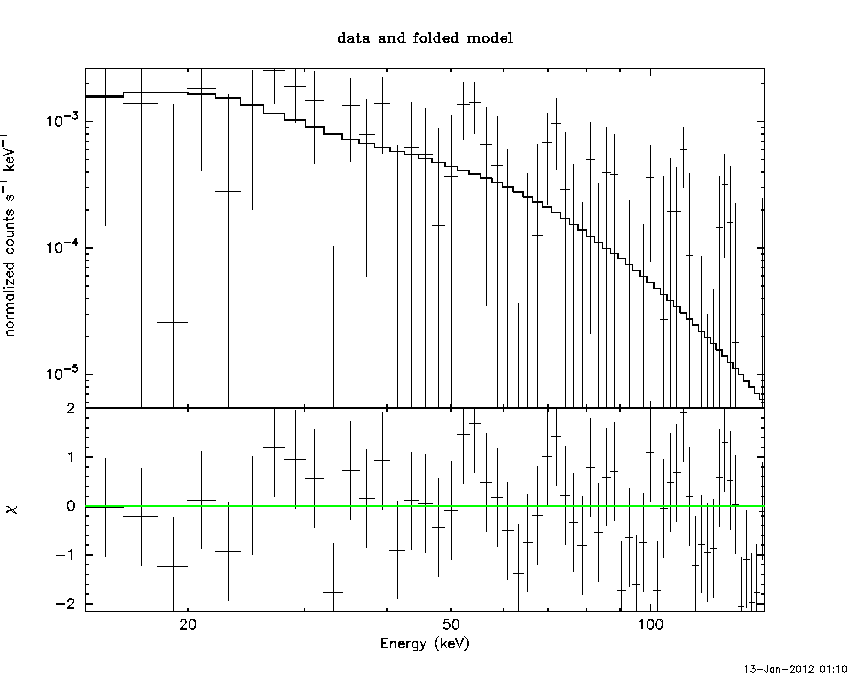

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 31.1869       (-12.4145      30.9155)
Norm        : 35.5423       (-14.9501     24.7664)
------------------------------------------------------------
# Chi-Squared =          40.36 using 59 PHA bins.
# Reduced chi-squared =         0.7080 for     57 degrees of freedom
# Null hypothesis probability =   9.534142e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.065e-09   8.572e-10
25- 50  2.410e-09   1.073e-09
50-150  1.388e-09   1.035e-09
15-150  5.863e-09   2.588e-09

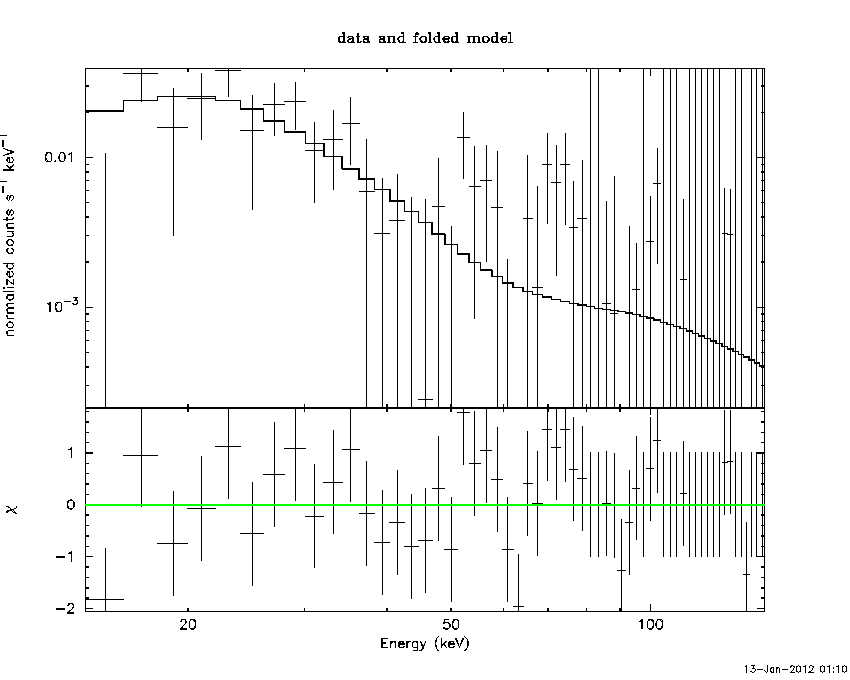

Double BB

------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.48283        (-1.25605      1.63135)
R1^2/D10^2  : 12.3053        (-6.15208      13.9571)
kT2 [keV]   : 200.000        (      )
R2^2/D10^2  : 4.00821E-04    (-0.000400589   0.000489795)
------------------------------------------------------------
# Chi-Squared =          36.86 using 59 PHA bins.
# Chi-Squared =          35.06 using 59 PHA bins.
# Reduced chi-squared =         0.6702 for     55 degrees of freedom
# Reduced chi-squared =         0.6374 for     55 degrees of freedom
# Null hypothesis probability =   9.714008e-01
# Null hypothesis probability =   9.834496e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.040e-09   1.199e-09
25- 50  2.822e-09   1.516e-09
50-150  4.764e-10   3.736e-10
15-150  5.338e-09   3.137e-09

Peak spectrum fit

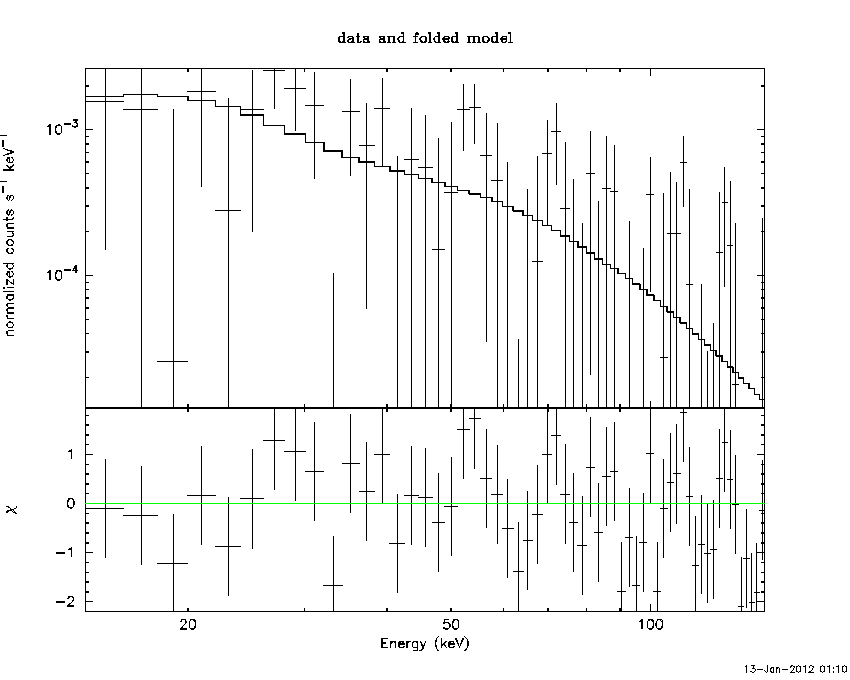

Power-law model

Time interval is from   -0.476 sec. to    0.524 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.86745     ( -0.575   0.69479 )
Norm@50keV  : 2.75082E-03    ( -0.00126945   0.00122817 )
------------------------------------------------------------
# Chi-Squared =          59.30 using 59 PHA bins.
# Reduced chi-squared =          1.040 for     57 degrees of freedom
# Null hypothesis probability =   3.916663e-01

Photon flux (15-150 keV)    in 1 sec: 0.389422 ( -0.148181  0.148182 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.52486e-08 ( -1.09863e-08  1.18314e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.476 sec. to    0.524 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -1.03574     ( -6.47054   2.84495 )
Epeak [keV] : 45.7164      ( -9.59034 54.147 )
Norm@50keV  : 0.113120    ( -0.145089   540.157 )
------------------------------------------------------------
# Chi-Squared =          56.12 using 59 PHA bins.
# Reduced chi-squared =          1.002 for     56 degrees of freedom
# Null hypothesis probability =   4.702257e-01

Photon flux (15-150 keV)    in 1 sec: 0.370887 ( -0.141056  0.14674 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.24561e-08 ( -9.086e-09  1.11261e-08 ) ergs/cm2

Band function

Time interval is from   -0.476 sec. to    0.524 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 1.12547   ( -1.85738   -0.024198 )
beta        : -10.00000    ( 9.20066e+06   9.20067e+06 )
Epeak [keV] : 45.5940      ( -17.9594 55.2437 )
Norm@50keV   : 0.127000    ( -0.148861   11.9964 )
------------------------------------------------------------
# Chi-Squared =          56.12 using 59 PHA bins.
# Reduced chi-squared =          1.020 for     55 degrees of freedom
# Null hypothesis probability =   4.327443e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 11.6547  (-3.45469  4.7201)
R^2/D10^2   : 0.119225  (-0.119225   0.305408)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          56.11 using 59 PHA bins.
# Reduced chi-squared =         0.9844 for     57 degrees of freedom
# Null hypothesis probability =   5.084748e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.415e-09   2.204e-09
25- 50  1.038e-08   6.460e-09
50-150  8.309e-09   6.255e-09
15-150  2.210e-08   1.450e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 75.8546       (-44.1399      -74.6138)
Norm        : 1.93554       (-0.788562     1.30128)
------------------------------------------------------------
# Chi-Squared =          57.93 using 59 PHA bins.
# Reduced chi-squared =          1.016 for     57 degrees of freedom
# Null hypothesis probability =   4.407205e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.003e-09   3.175e-09
25- 50  8.129e-09   5.310e-09
50-150  1.106e-08   9.695e-09
15-150  2.419e-08   1.603e-08

Double BB

R1^2/D10^2  : 2739.12        (      )
kT2 [keV]   : 11.9241        (-3.64392      -11.889)
R2^2/D10^2  : 0.107647    (   )
------------------------------------------------------------
# Chi-Squared =          56.07 using 59 PHA bins.
# Chi-Squared =          56.04 using 59 PHA bins.
# Chi-Squared =          55.89 using 59 PHA bins.
# Reduced chi-squared =          1.020 for     55 degrees of freedom
# Reduced chi-squared =          1.019 for     55 degrees of freedom
# Reduced chi-squared =          1.016 for     55 degrees of freedom
# Null hypothesis probability =   4.343969e-01
# Null hypothesis probability =   4.356768e-01
# Null hypothesis probability =   4.413229e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.635e-09   2.424e-09
25- 50  1.006e-08   9.565e-09
50-150  8.730e-09   1.010e-08
15-150  2.242e-08   1.670e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.31540     ( -0.479339   0.521428 )
Norm@50keV  : 2.52255E-02    ( -0.00930745   0.00944304 )
------------------------------------------------------------
# Chi-Squared =          42.38 using 59 PHA bins.
# Reduced chi-squared =         0.7436 for     57 degrees of freedom
# Null hypothesis probability =   9.255401e-01

Photon flux (15-150 keV)    in 0.028 sec: 4.44646 ( -1.15878  1.15881 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.76869e-09 ( -2.04677e-09  2.20738e-09 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -6.18206     (     )
Epeak [keV] : 27.0528      ( -3.72766 4.35207 )
Norm@50keV  : 2.90019E+04    (     )
------------------------------------------------------------
# Chi-Squared =          35.23 using 59 PHA bins.
# Reduced chi-squared =         0.6291 for     56 degrees of freedom
# Null hypothesis probability =   9.865096e-01

Photon flux (15-150 keV)    in 0.028 sec: 4.20793 ( -1.10984  1.12047 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.87981e-09 ( -1.277e-09  1.40608e-09 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.98835   ( -175.958   -165.958 )
beta        : -4.40110    ( 4.41076   1.68933 )
Epeak [keV] : 26.7144      ( -4.74735 4.25677 )
Norm@50keV   : 4395.18    ( -4387.09   3839.7 )
------------------------------------------------------------
# Chi-Squared =          34.65 using 59 PHA bins.
# Reduced chi-squared =         0.6300 for     55 degrees of freedom
# Null hypothesis probability =   9.855253e-01

Photon flux (15-150 keV)    in 0.028 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.19148e-09
S(50-100 keV) = 1.76082e-09

T90 vs. Hardness ratio plot

T90                                   = 0.0239999294281006 sec.
Hardness ratio (energy fluence ratio) = 0.803484

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.05935
Count Ratio (50-100 keV) / (15-25 keV) = 0.627572

Mask shadow pattern

IMX = -4.357404139983008E-01, IMY = 2.529101855929010E-01

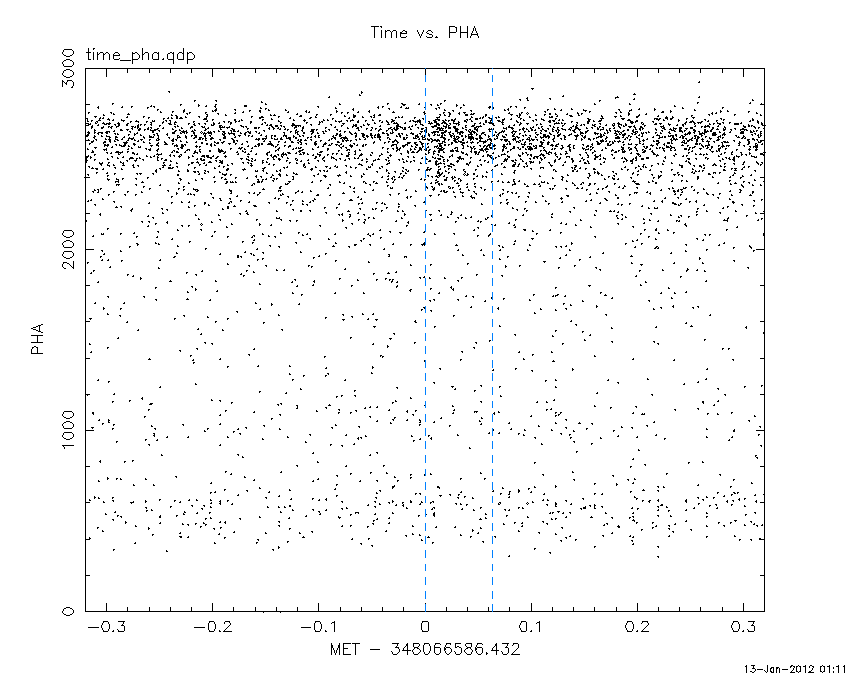

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.432000 0.008000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 87.5187  43.0172    2.6  28.2  115.4   1.2413   4.5 ------	UNKNOWN
 86.1873  43.8482    2.3  27.4  117.6   1.3283   5.0 ------	UNKNOWN
215.3266  68.1485    2.8  35.5  -41.3   1.0383   4.2 ------	UNKNOWN
264.2617  66.9342    2.5  41.9  -68.8   3.6031   4.7 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.008000 0.036000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
154.4575  37.1425    2.1  45.7   29.6   0.0373   5.6 ------	UNKNOWN
 26.6876  61.7982    1.8  26.7 -149.9   0.0173   6.4 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
61.368590 339.868600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
194.4864  63.9548    2.7  53.9   14.7   4.2886   4.3 ------	UNKNOWN
 11.3298  52.9748    2.6  12.0 -122.0   0.8423   4.5 ------	UNKNOWN
  4.0664  51.5331    3.0  15.9 -111.5   0.8459   3.8 ------	UNKNOWN
  0.3112  15.6253    3.1  49.8 -137.8   3.3014   3.7 ------	UNKNOWN
349.0226  25.0246    2.3  44.6 -119.9   5.0945   5.0 ------	UNKNOWN

Plot creation:
Fri Jan 13 01:11:44 EST 2012
