batgrbproduct Analysis for Trigger=514586

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Mon Jan 13 06:54:58 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger514586
======================================================================

  Trigger: 00514586      Segment: 000

  BAT Trigger Time: 350654315.968   [s; MET]
      Trigger Stop: 350654324.16   [s; MET]
               UTC: 2012-02-11T11:58:28.088540    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 87.751188537819   Dec: -24.7591984547618  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.93
     Image Trigger?:     NO
     Rate S/N Ratio:     8.24621125123532  [ if not an image trigger ]
     Image S/N Ratio:    7.93

  Flight Position:   [ source = BAT ]
    RA: 87.751188537819   Dec: -24.7591984547618  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 87.7797455193343   Dec: -24.7911638449394  [deg; J2000]
        { 05h 51m 07.1s , -24d 47' 28.2" }
         +/- 2.08983859512222 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.16579176176868 [arcmin] (formal 1-sigma fit error)
    SNR: 10.6124206961979

  Angular difference between Flight and Ground position is 2.469550 arcmin

  Partial Coding Fraction: 0.640625    [ including projection effects ]

  Duration
     T90: 64.3199999928474 +/- 8.83205800550182
        Measured from: -0.375999987125397
                   to: 63.944000005722     [s; relative to TRIGTIME]
     T50: 33.0239999890327 +/- 18.4165491049755
        Measured from: 8.00800001621246
                   to: 41.0320000052452     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 41.0120000243187
                   to: 42.0120000243187     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -2.2960000038147
                   to: 71.688000023365     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.325892   0.428668   0.415169   0.127515
           0.055831   0.057817   0.052402   0.050726 [error]
 Peak      0.020401   0.010884   0.023897   0.006507
           0.006731   0.006769   0.006228   0.006032 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.05e-07 2.04e-07 3.06e-07 9.95e-07 8.62e-07 1.61e-06   erg/cm2
              Error 2.34e-08 2.80e-08 5.17e-08 3.62e-07 1.27e-07 4.01e-07   erg/cm2
Peak flux Power-law 1.47e-01 1.53e-01 1.12e-01 1.33e-01 4.64e-01 5.46e-01   ph/cm2/s
              Error 9.07e-02 5.94e-02 5.18e-02 1.34e-01 1.69e-01 2.02e-01   ph/cm2/s

Fluence   Cutoff-PL 9.12e-08 2.21e-07 3.20e-07 3.31e-07 8.07e-07 9.64e-07   erg/cm2
              Error 2.20e-08 3.57e-08 5.86e-08 5.50e-07 1.42e-07 5.39e-07   erg/cm2
Peak flux Cutoff-PL 1.43e-01 1.56e-01 1.14e-01 1.04e-01 4.60e-01 5.17e-01   ph/cm2/s
              Error 8.54e-02 6.63e-02 5.67e-02 1.29e-01 1.71e-01 2.25e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band 1.43e-01 -------- -------- 1.06e-01 -------- 5.20e-01   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.413    0.224    -      -           1.21e-03 1.60e-04   47.930 57
CPL   0.575    1.092      84.8  -30.4      3.19e-03 6.54e-03   45.860 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.445    0.672    -      -           3.77e-03 1.40e-03   56.420 57
CPL   1.264    1.892     198.9    0.0      4.67e-03 0.00e+00   56.390 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 75.136000 sec.
T50 in the 50-300 keV band: 32.320000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   73.984   -2.296   71.688
T90    64.320   -0.376   63.944
T50    33.024    8.008   41.032
Peak    1.000   41.012   42.012

Click here for the BAT GCN circular template


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
   87.7797   -24.7912   0.0181    32.2416  -141.7938         1.0141090     10.612 TRIG_00514586

Foreground time interval of the image:
 -2.296  50.133 (delta_t =  52.429 [sec])
Background time interval of the image:
-566.567 -546.830 (delta_t =  19.737 [sec])
-239.968  -2.296 (delta_t = 237.672 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

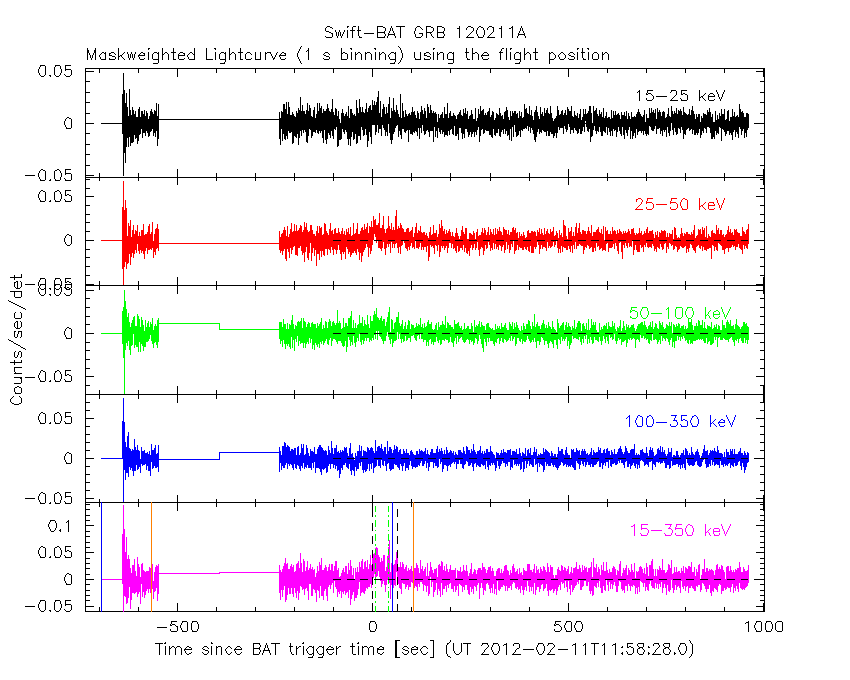

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

The mask-weighted light curves based on cleaned DPHs

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

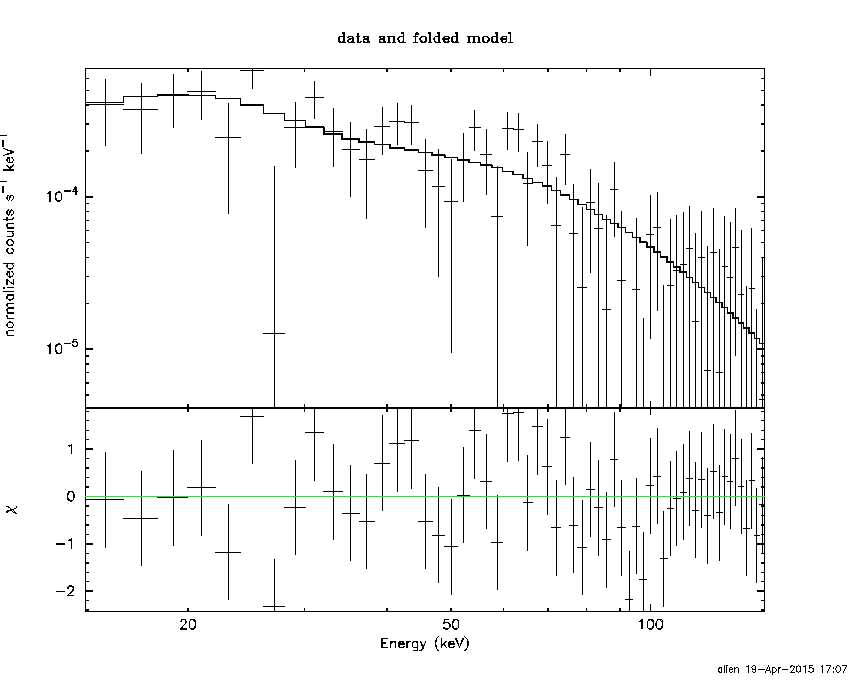

Power-law model

Time interval is from   -2.296 sec. to   71.688 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.41329     ( -0.223277   0.224352 )
Norm@50keV  : 1.20912E-03    ( -0.000160086   0.000159319 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.93 using 59 PHA bins.
# Reduced chi-squared =         0.8410 for     57 degrees of freedom
# Null hypothesis probability =   7.982454e-01

Photon flux (15-150 keV)    in 73.98 sec: 0.147697 ( -0.0194339  0.0194689 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.62022e-07 ( -1.26057e-07  1.27894e-07 ) ergs/cm2

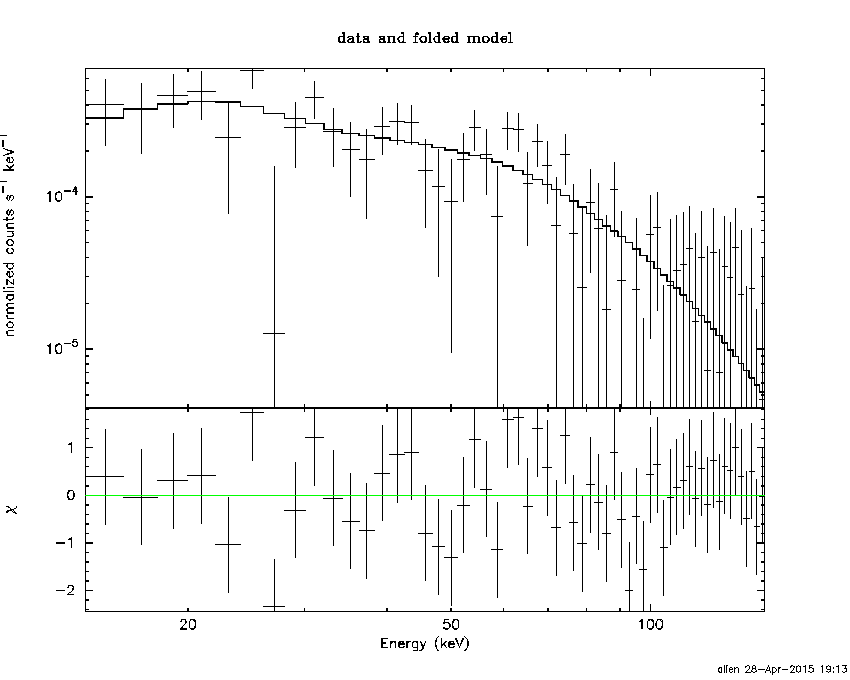

Cutoff power-law model

Time interval is from   -2.296 sec. to   71.688 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.574992     ( -1.26275   0.922052 )
Epeak [keV] : 84.8081      ( -23.9315 -84.8067 )
Norm@50keV  : 3.19315E-03    ( -0.00319328   0.00988341 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.86 using 59 PHA bins.
# Reduced chi-squared =         0.8188 for     56 degrees of freedom
# Null hypothesis probability =   8.313351e-01

Photon flux (15-150 keV)    in 73.98 sec: 0.142116 ( -0.020779  0.020619 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.06656e-07 ( -1.39671e-07  1.43847e-07 ) ergs/cm2

Band function

Time interval is from   -2.296 sec. to   71.688 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.507342   ( 0.70563   0.70563 )
beta        : -2.22829    ( 2.0173   2.26889 )
Epeak [keV] : 80.7993      ( -80.79 374.349 )
Norm@50keV   : 3.47987E-03    ( -0.0034878   74.8197 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.71 using 59 PHA bins.
# Reduced chi-squared =         0.8310 for     55 degrees of freedom
# Null hypothesis probability =   8.097839e-01

Photon flux (15-150 keV)    in 73.98 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

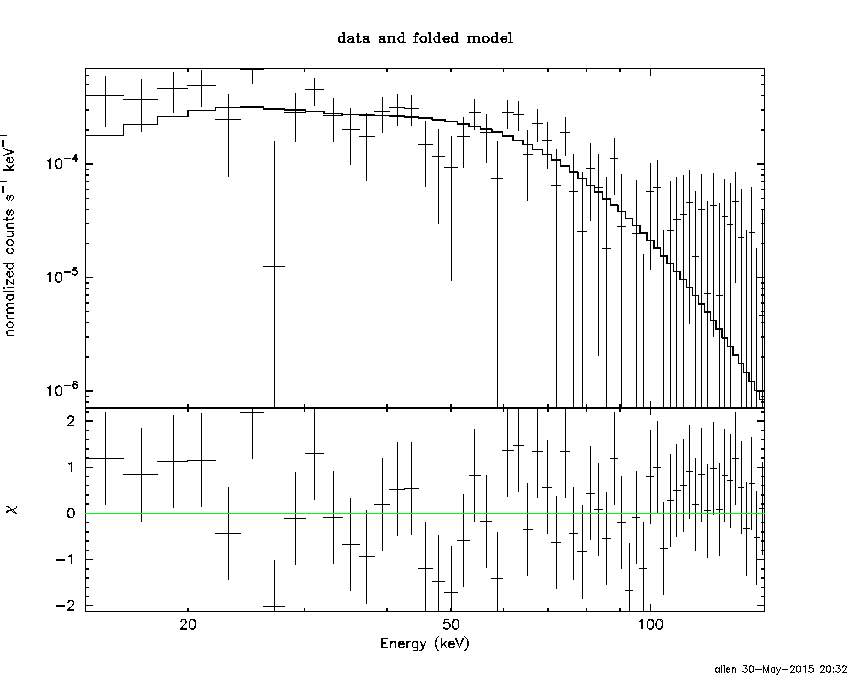

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 15.6958  (-2.17  2.62023)
R^2/D10^2   : 1.48337E-02  (-0.00617999   0.0100868)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.67 using 59 PHA bins.
# Reduced chi-squared =         0.9066 for     57 degrees of freedom
# Null hypothesis probability =   6.744581e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.613e-08   1.460e-08
25- 50  2.323e-07   4.276e-08
50-150  3.970e-07   9.518e-08
15-150  6.854e-07   1.237e-07

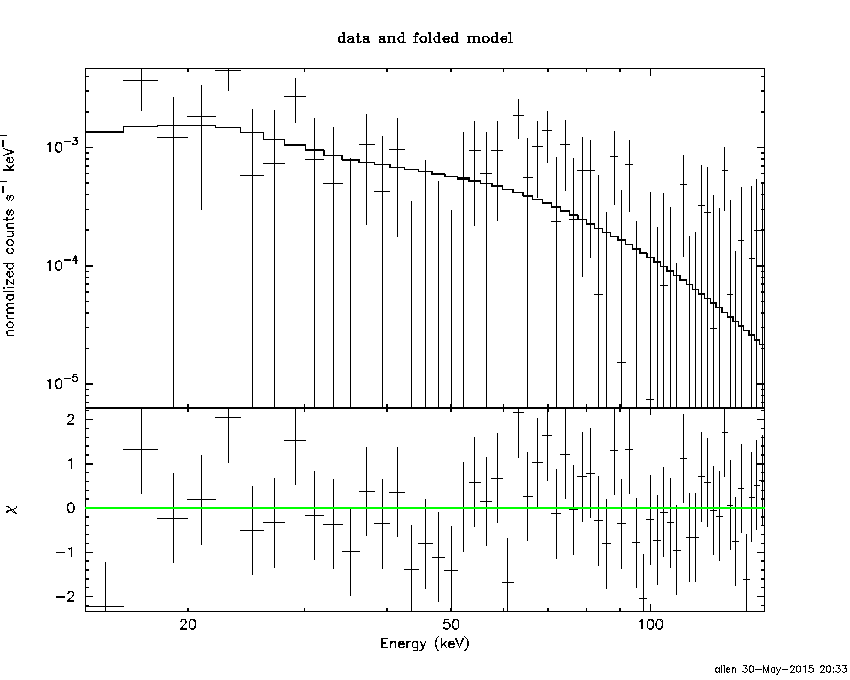

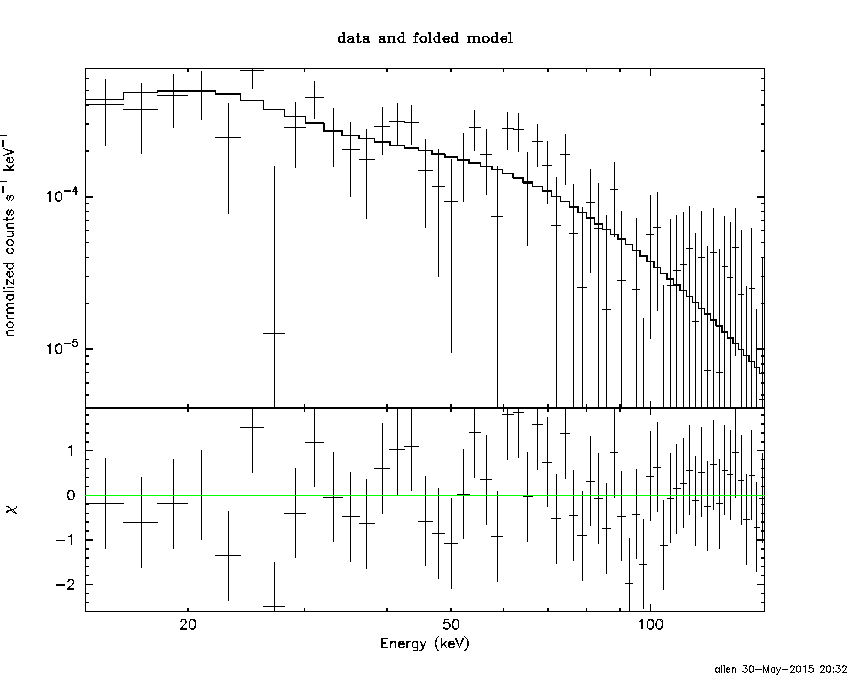

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 0.609158       (-0.0787425     0.0787387)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.75 using 59 PHA bins.
# Reduced chi-squared =         0.8378 for     57 degrees of freedom
# Null hypothesis probability =   8.035366e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.122e-07   6.329e-08
25- 50  2.159e-07   1.187e-07
50-150  4.735e-07   2.618e-07
15-150  8.016e-07   4.494e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.45200        (-2.77524      6.28868)
R1^2/D10^2  : 0.525303        (-0.492925      177.292)
kT2 [keV]   : 18.5786        (-3.50668      15.2791)
R2^2/D10^2  : 7.55465E-03    (-0.0069299   0.00882369)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.43 using 59 PHA bins.
# Reduced chi-squared =         0.8260 for     55 degrees of freedom
# Null hypothesis probability =   8.177303e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.623e-08   4.959e-08
25- 50  2.090e-07   8.867e-08
50-150  4.574e-07   2.037e-07
15-150  7.627e-07   2.917e-07

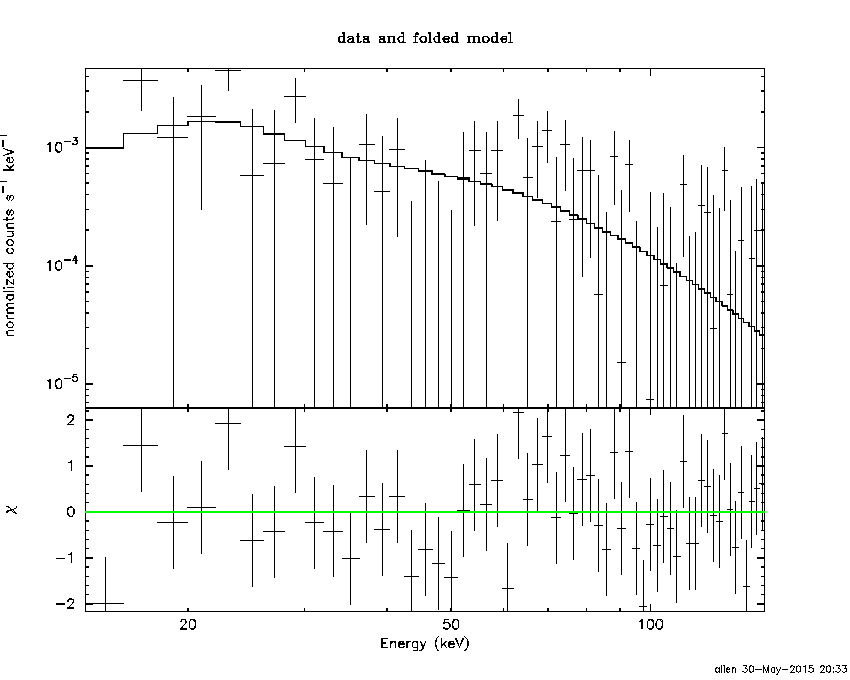

Peak spectrum fit

Power-law model

Time interval is from   41.012 sec. to   42.012 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.44507     ( -0.672446   0.672477 )
Norm@50keV  : 3.76973E-03    ( -0.00141928   0.0013806 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.42 using 59 PHA bins.
# Reduced chi-squared =         0.9898 for     57 degrees of freedom
# Null hypothesis probability =   4.969213e-01

Photon flux (15-150 keV)    in 1 sec: 0.464002 ( -0.168452  0.169318 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.61066e-08 ( -1.44592e-08  1.516e-08 ) ergs/cm2

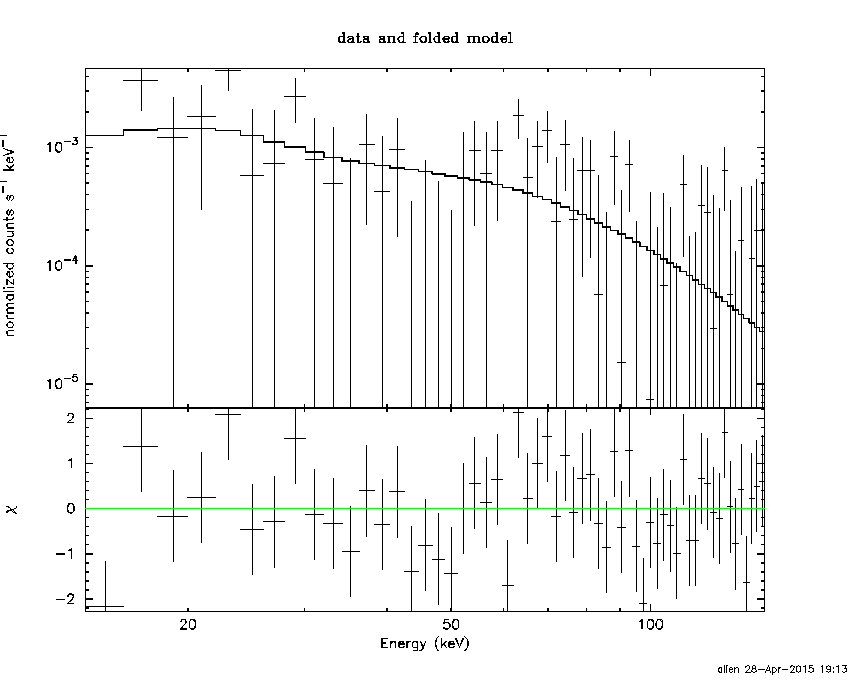

Cutoff power-law model

Time interval is from   41.012 sec. to   42.012 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.26388     ( -2.66009   1.12407 )
Epeak [keV] : 198.911      ( -136.164 -136.164 )
Norm@50keV  : 4.67121E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.39 using 59 PHA bins.
# Reduced chi-squared =          1.007 for     56 degrees of freedom
# Null hypothesis probability =   4.602449e-01

Photon flux (15-150 keV)    in 1 sec: 0.460153 ( -0.173069  0.169911 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.55434e-08 ( -1.54614e-08  1.56128e-08 ) ergs/cm2

Band function

Time interval is from   41.012 sec. to   42.012 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.32840   ( 1.21662   5.66883 )
beta        : -1.67208    ( 1.46956   0.688064 )
Epeak [keV] : 26.4695      ( -29.321 160.335 )
Norm@50keV   : 97.7396    ( -97.7386   87.646 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.49 using 59 PHA bins.
# Reduced chi-squared =          1.009 for     55 degrees of freedom
# Null hypothesis probability =   4.561178e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.54243e-08 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 18.0414  (-8.84322  12.8456)
R^2/D10^2   : 2.77005E-02  (-0.0276181   0.249541)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.88 using 59 PHA bins.
# Reduced chi-squared =          1.033 for     57 degrees of freedom
# Null hypothesis probability =   4.064154e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.804e-09   1.229e-09
25- 50  8.357e-09   5.390e-09
50-150  1.976e-08   1.336e-08
15-150  2.992e-08   1.894e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (-199.363      -199.363)
Norm        : 1.90390       (-0.682081     0.682406)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.47 using 59 PHA bins.
# Reduced chi-squared =         0.9906 for     57 degrees of freedom
# Null hypothesis probability =   4.950351e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.741e-09   2.968e-09
25- 50  9.120e-09   5.980e-09
50-150  2.000e-08   1.268e-08
15-150  3.386e-08   2.121e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.62418        (-2.3831      4.95893)
R1^2/D10^2  : 1.22112        (-1.15068      12.1288)
kT2 [keV]   : 26.8457        (-11.7156      120.187)
R2^2/D10^2  : 6.13617E-03    (-0.00595684   0.0388317)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.82 using 59 PHA bins.
# Reduced chi-squared =         0.9966 for     55 degrees of freedom
# Null hypothesis probability =   4.816449e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.388e-09   3.168e-09
25- 50  8.354e-09   4.175e-09
50-150  2.316e-08   1.442e-08
15-150  3.690e-08   2.068e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.44320     ( -0.244122   0.246191 )
Norm@50keV  : 1.31077E-03    ( -0.0001944   0.000193122 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.01 using 59 PHA bins.
# Reduced chi-squared =          1.053 for     57 degrees of freedom
# Null hypothesis probability =   3.673237e-01

Photon flux (15-150 keV)    in 52.43 sec: 0.161263 ( -0.0235092  0.0235456 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.58468e-07 ( -1.07142e-07  1.08971e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.375962     ( -1.46263   1.11005 )
Epeak [keV] : 74.4578      ( -19.7968 -74.4577 )
Norm@50keV  : 4.59495E-03    ( -0.00459496   0.0190406 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.38 using 59 PHA bins.
# Reduced chi-squared =          1.025 for     56 degrees of freedom
# Null hypothesis probability =   4.236541e-01

Photon flux (15-150 keV)    in 52.43 sec: 0.153909 ( -0.025037  0.024889 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.04439e-07 ( -1.15143e-07  1.22335e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.376360   ( 0.787077   0.787077 )
beta        : -7.73542    ( 4.94587   14.9459 )
Epeak [keV] : 74.4504      ( -74.4528 20.821 )
Norm@50keV   : 4.59337E-03    ( -0.00281934   43.9538 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.38 using 59 PHA bins.
# Reduced chi-squared =          1.043 for     55 degrees of freedom
# Null hypothesis probability =   3.868951e-01

Photon flux (15-150 keV)    in 52.43 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.04e-07
S(50-100 keV) = 3.06e-07

T90 vs. Hardness ratio plot

T90                                   = 64.3199999928474 sec.
Hardness ratio (energy fluence ratio) = 1.5

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.31537
Count Ratio (50-100 keV) / (15-25 keV) = 1.27395

Mask shadow pattern

IMX = -4.956360947873087E-01, IMY = 3.901141554868550E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

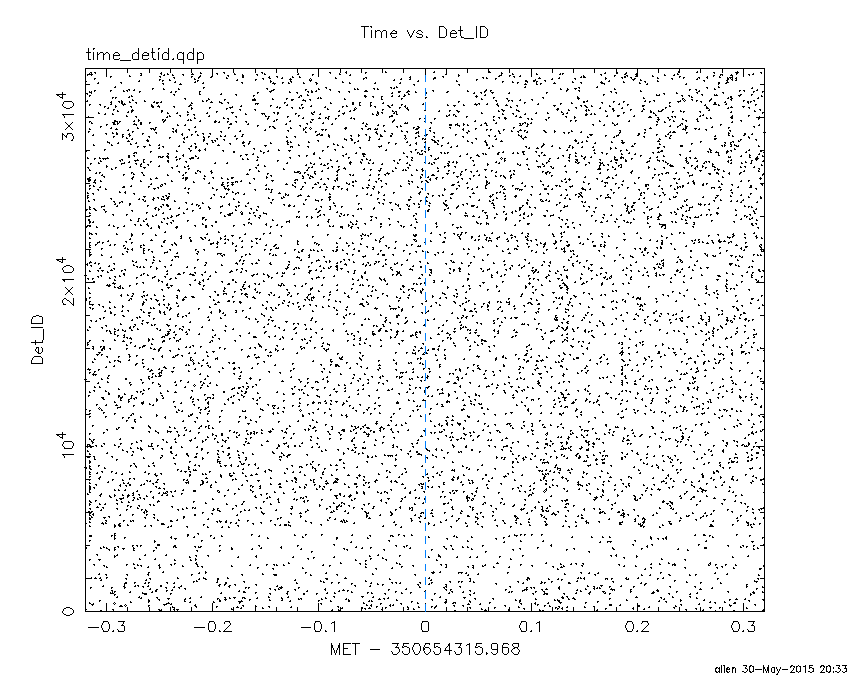

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 8.192000

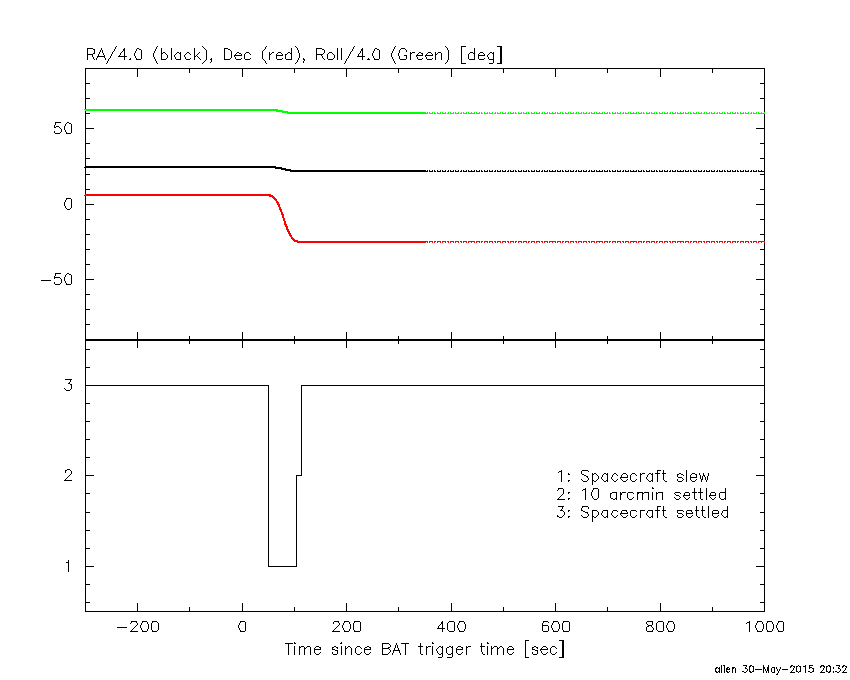

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-566.567360 -546.830400
-239.968000 -2.296000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.6321  22.0200    0.2  21.5  -19.3  10.4707  53.0    0.3	Crab
109.2785 -41.4897    2.1  48.4 -170.8   2.1773   5.4 ------	UNKNOWN
 70.5319 -34.4407    2.9  48.0 -128.7   3.7622   4.0 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-2.296000 50.132600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.8325  21.9364    0.0  21.3  -19.1  -0.0855  -1.1   12.0	Crab
131.6890 -28.7638    2.3  47.3  159.1   1.0239   5.2 ------	UNKNOWN
 86.5394  45.8503    2.2  41.3    8.0   0.6592   5.3 ------	UNKNOWN
 87.7797 -24.7911    1.1  32.2 -141.8   1.0129  10.6 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
103.332590 962.101300

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
 83.6322  22.0218    0.5  46.9   23.7  31.1518  22.4    0.4	Crab
135.6637 -40.6668  223.4  42.7  152.9   0.0495   0.1    9.1	Vela X-1
 95.4036  23.2670    2.5  48.6   38.3   9.6699   4.5 ------	UNKNOWN
150.9449 -67.0901    4.2  57.0 -175.6   6.3875   2.7 ------	UNKNOWN
 78.1952 -49.9974    3.1  26.3 -137.1   1.6918   3.7 ------	UNKNOWN
149.4415 -75.3557    3.1  59.1 -166.1  13.0184   3.8 ------	UNKNOWN
 60.1098 -34.6271    3.0  25.9  -90.0   2.0087   3.9 ------	UNKNOWN

Plot creation:
Sat May 30 20:34:10 EDT 2015
