TDRSS scaled map for 524642
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Mon 18 Jun 12 19:34:11 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 524642, Seg_Num: 0
GRB_RA: 287.577d {+19h 10m 18s} (J2000),
287.743d {+19h 10m 58s} (current),
286.909d {+19h 07m 38s} (1950)
GRB_DEC: -5.806d {-05d 48' 22"} (J2000),
-5.785d {-05d 47' 07"} (current),
-5.889d {-05d 53' 19"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 0 [cnts] Image_Peak=12214 [image_cnts]
TRIGGER_DUR: 1600.000 [sec] (=26.7 [min])
TRIGGER_INDEX: 20000 E_range: 15-50 keV
BKG_INTEN: 0 [cnts]
BKG_TIME: 0.00 SOD {00:00:00.00} UT
BKG_DUR: 0 [sec]
GRB_DATE: 16096 TJD; 170 DOY; 12/06/18
GRB_TIME: 68807.66 SOD {19:06:47.66} UT
GRB_PHI: 19.75 [deg]
GRB_THETA: 7.49 [deg]
SOLN_STATUS: 0x13
RATE_SIGNIF: 0.00 [sigma]
IMAGE_SIGNIF: 8.28 [sigma]
MERIT_PARAMS: +1 +0 +0 +5 +1 -1 +0 +1 +89 +0
SUN_POSTN: 87.76d {+05h 51m 03s} +23.42d {+23d 25' 16"}
SUN_DIST: 153.90 [deg] Sun_angle= 10.7 [hr] (West of Sun)
MOON_POSTN: 78.15d {+05h 12m 35s} +21.81d {+21d 48' 25"}
MOON_DIST: 147.21 [deg]
MOON_ILLUM: 1 [%]
GAL_COORDS: 29.89, -6.83 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 288.26, 16.53 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is an image trigger. (The RATE_SIGNIF & BKG_{INTEN, TIME, DUR} are undefined.)
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 157.30,11.75 [deg].
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Mon 18 Jun 12 19:40:40 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 524642, Seg_Num: 0
POINT_RA: 0.000d {+00h 00m 00s} (J2000)
POINT_DEC: +0.000d {+00d 00' 00"} (J2000)
MAP_DATE: 16096 TJD; 170 DOY; 12/06/18
MAP_TIME: 68807.66 SOD {19:06:47.66} UT
TRIGGER_DUR: 1600.000 [sec] (=26.7 [min])
SOLN_STATUS: 0x13
RATE_SIGNIF: 0.00 [sigma]
IMAGE_SIGNIF: 8.28 [sigma]
MAP_URL: sw00524642000msbsm.fits
SUN_POSTN: 87.77d {+05h 51m 04s} +23.42d {+23d 25' 17"}
MOON_POSTN: 78.21d {+05h 12m 49s} +21.81d {+21d 48' 24"}
MOON_ILLUM: 1 [%]
GAL_COORDS: 96.34,-60.19 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 0.00, 0.00 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS: WARNING: This Notice was received with 1 (or more) critical values out of range.
COMMENTS:
Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (287.577, -5.806).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 287.577 -5.806 1.0
No source found
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
244.9795 -15.6402 0.0 40.5 124.4 35.9128 12.6 0.0 Sco X-1
254.4576 35.3425 0.0 44.1 -154.9 -0.5232 -0.4 0.0 Her X-1
257.2333 -32.2833 0.0 40.3 93.3 -2.9795 -0.8 0.0 4U 1705-32
257.5517 -28.1317 0.0 37.1 97.5 2.0157 0.9 0.0 XTE J1710-281
261.3000 -36.2667 0.0 41.4 85.5 3.3310 0.7 0.0 IGR J17252-3616
261.3500 -32.9500 0.0 38.7 88.4 0.6703 0.2 0.0 IGR J17254-3257
261.8883 -30.8019 0.0 36.7 89.9 -4.7832 -1.9 0.0 4U 1722-30
262.9342 -16.9617 0.0 25.9 107.0 2.9515 2.6 0.0 GX 9+9
262.9892 -33.8347 0.0 38.6 85.8 4.3165 1.4 0.0 4U 1728-34
263.0090 -24.7456 0.0 31.3 95.3 1.6520 0.9 0.0 GX 1+4
263.3504 -33.3878 0.0 38.1 85.8 1.5704 0.5 0.0 4U 1730-335
264.5667 -27.0044 0.0 32.2 90.5 0.3706 0.2 0.0 SLX 1735-269
265.7500 -36.3447 0.0 39.6 80.7 -4.5146 -1.2 0.0 XTE J1743-363
265.9761 -29.7395 0.0 33.8 85.8 1.5729 0.6 0.0 1E 1740.7-2942
266.2500 -28.9167 0.0 33.0 86.2 0.0312 0.0 0.0 GRS 1741.9-2853
266.4167 -29.0082 0.0 33.0 85.9 0.7269 0.4 0.0 AX J1745.6-2900
266.5229 -29.5153 0.0 33.4 85.3 -1.2809 -0.6 0.0 1A 1742-294
266.8579 -29.9994 0.0 33.6 84.4 -1.9899 -0.9 0.0 SLX 1744-299
266.9833 -26.5636 0.0 30.6 87.6 0.9108 0.5 0.0 GX 3+1
270.2842 -25.0792 0.0 27.9 83.8 5.6455 4.2 0.0 GX 5-1
270.3025 -25.7431 0.0 28.4 83.1 1.9627 1.4 0.0 GRS 1758-258
270.3846 -20.5289 0.0 23.9 88.8 3.3731 3.2 0.0 GX 9+1
270.6663 -20.2871 0.0 23.5 88.6 2.0296 2.0 0.0 IGR J18027-2016
273.6315 -17.1574 0.0 19.4 86.3 1.5771 1.8 0.0 GX 13+1
273.8000 -12.0833 0.0 15.0 95.2 1.7566 2.0 0.0 4U 1812-12
274.0058 -14.0364 0.0 16.5 90.4 5.3590 6.2 0.0 GX 17+2
275.9185 -30.3611 0.0 31.1 70.5 2.5513 1.6 0.0 4U 1820-30
276.4450 -37.1053 0.0 37.6 67.3 1.8017 0.9 0.0 3A 1822-371
277.3675 -23.7969 0.0 24.4 71.1 3.9832 3.8 0.0 GS 1826-24
278.7590 32.6973 0.0 32.9 -127.4 -0.8595 -0.8 0.0 3C 382
278.9337 -32.9914 0.0 33.2 64.9 0.0694 0.0 0.0 XB 1832-330
279.9896 5.0358 0.0 5.8 -150.4 -0.7571 -1.0 0.0 Ser X-1
283.8804 -2.6067 0.0 2.8 36.9 0.0504 0.1 0.0 XTE J1855-026
287.4138 9.8292 0.0 10.8 -96.3 0.5683 0.7 0.0 4U 1907+09
287.7208 7.6667 0.0 9.1 -88.7 0.0335 0.0 0.0 4U 1909+07
287.9565 4.9827 0.0 7.1 -75.4 -0.1599 -0.2 0.0 SS 433
288.5083 9.8883 0.0 11.4 -91.5 1.4232 1.6 0.0 IGR J19140+0951
288.7983 10.9456 0.0 12.5 -92.8 14.1567 15.7 0.0 GRS 1915+105
297.3771 30.2067 0.0 33.2 -97.7 -0.6822 -0.4 0.0 KS 1947+300
298.9292 32.1000 0.0 35.5 -97.2 8.2588 4.3 0.0 4U 1954+31
299.5903 35.2016 0.0 38.5 -98.8 13.8659 4.4 0.0 Cyg X-1
322.4929 12.1674 0.0 41.2 -49.8 -0.2576 -0.1 0.0 4U 2129+12
285.6676 -9.9047 3.0 10.3 43.1 3.0958 3.9 ------ UNKNOWN
326.8209 -22.5337 3.6 48.4 -0.2 4.4885 3.2 ------ UNKNOWN
292.4273 3.4904 2.9 10.2 -51.2 2.6457 4.0 ------ UNKNOWN
239.8618 43.5120 3.7 57.9 -156.8 15.9933 3.1 ------ UNKNOWN
240.4193 47.8262 4.2 60.3 -152.5 43.6533 2.7 ------ UNKNOWN
252.3052 48.6622 4.3 55.3 -145.2 20.7850 2.7 ------ UNKNOWN
274.2521 48.7308 2.3 49.3 -128.5 36.9138 5.1 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
244.9795 -15.6402 0.0 40.5 124.4 35.9128 12.6 0.0 Sco X-1
254.4576 35.3425 0.0 44.1 -154.9 -0.5232 -0.4 0.0 Her X-1
263.0090 -24.7456 0.0 31.3 95.3 1.6524 0.9 0.0 GX 1+4
268.3680 -1.4526 0.0 14.5 143.1 2.4387 3.4 0.0 SW J1753.5-0127
270.2842 -25.0792 0.0 27.9 83.8 5.6452 4.2 0.0 GX 5-1
270.3025 -25.7431 0.0 28.4 83.1 1.9627 1.4 0.0 GRS 1758-258
274.0058 -14.0364 0.0 16.5 90.4 5.3524 6.2 0.0 GX 17+2
275.9250 -30.3670 0.0 31.1 70.5 2.4521 1.6 0.0 H1820-303
285.0360 -24.9205 0.0 25.0 54.2 -0.1081 -0.1 0.0 HT1900.1-2455
288.7983 10.9456 0.0 12.5 -92.8 14.1547 15.9 0.0 GRS 1915+105
299.5903 35.2016 0.0 38.5 -98.8 13.8659 4.4 0.0 Cyg X-1
262.9891 -33.8347 0.0 38.6 85.8 4.3158 1.4 0.0 GX 354-0
257.9376 -28.0206 4.3 36.8 97.3 5.9554 2.7 ------ UNKNOWN
285.6676 -9.9047 3.0 10.3 43.1 3.0958 3.9 ------ UNKNOWN
326.8209 -22.5337 3.6 48.4 -0.2 4.4885 3.2 ------ UNKNOWN
292.4273 3.4904 2.9 10.2 -51.2 2.6456 4.0 ------ UNKNOWN
239.8618 43.5120 3.7 57.9 -156.8 15.9933 3.1 ------ UNKNOWN
240.4193 47.8262 4.2 60.3 -152.5 43.6533 2.7 ------ UNKNOWN
252.3052 48.6622 4.3 55.3 -145.2 20.7850 2.7 ------ UNKNOWN
274.2521 48.7308 2.3 49.3 -128.5 36.9138 5.1 ------ UNKNOWN
Search for UNKNOWN source R.A. = 239.8618 Dec. = +43.5120 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 240.4193 Dec. = +47.8262 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 252.3052 Dec. = +48.6622 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 257.9376 Dec. = -28.0206 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 274.2521 Dec. = +48.7308 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 285.6676 Dec. = -9.9047 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 292.4273 Dec. = +3.4904 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 326.8209 Dec. = -22.5337 (search radius of 3 degrees)
No bright source found.
Result of batcelldetect cleaning the bright sources
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
244.9795 -15.6402 0.0 40.5 124.4 -180.9645 -38.8 0.0 Sco X-1
254.4576 35.3425 0.0 44.1 -154.9 0.8742 0.6 0.0 Her X-1
257.2333 -32.2833 0.0 40.3 93.3 8.1040 0.8 0.0 4U 1705-32
257.5517 -28.1317 0.0 37.1 97.5 1.8713 0.4 0.0 XTE J1710-281
261.3000 -36.2667 0.0 41.4 85.5 6.9351 0.7 0.0 IGR J17252-3616
261.3500 -32.9500 0.0 38.7 88.4 -10.2908 -1.8 0.0 IGR J17254-3257
261.8883 -30.8019 0.0 36.7 89.9 5.2810 1.4 0.0 4U 1722-30
262.9342 -16.9617 0.0 25.9 107.0 -0.5872 -0.4 0.0 GX 9+9
262.9892 -33.8347 0.0 38.6 85.8 9.4581 1.7 0.0 4U 1728-34
263.0090 -24.7456 0.0 31.3 95.3 2.1437 0.9 0.0 GX 1+4
263.3504 -33.3878 0.0 38.1 85.8 1.7010 0.3 0.0 4U 1730-335
264.5667 -27.0044 0.0 32.2 90.5 3.2383 1.3 0.0 SLX 1735-269
265.7500 -36.3447 0.0 39.6 80.7 5.7349 0.8 0.0 XTE J1743-363
265.9761 -29.7395 0.0 33.8 85.8 0.2084 0.1 0.0 1E 1740.7-2942
266.2500 -28.9167 0.0 33.0 86.2 -1.7049 -0.7 0.0 GRS 1741.9-2853
266.4167 -29.0082 0.0 33.0 85.9 -0.8448 -0.3 0.0 AX J1745.6-2900
266.5229 -29.5153 0.0 33.4 85.3 1.5641 0.6 0.0 1A 1742-294
266.8579 -29.9994 0.0 33.6 84.4 -0.2594 -0.1 0.0 SLX 1744-299
266.9833 -26.5636 0.0 30.6 87.6 -0.9847 -0.5 0.0 GX 3+1
270.2842 -25.0792 0.0 27.9 83.8 10.1742 5.9 0.0 GX 5-1
270.3025 -25.7431 0.0 28.4 83.1 0.2748 0.2 0.0 GRS 1758-258
270.3846 -20.5289 0.0 23.9 88.8 2.6654 1.8 0.0 GX 9+1
270.6663 -20.2871 0.0 23.5 88.6 0.6956 0.5 0.0 IGR J18027-2016
273.6315 -17.1574 0.0 19.4 86.3 2.3639 1.9 0.0 GX 13+1
273.8000 -12.0833 0.0 15.0 95.2 1.8010 1.7 0.0 4U 1812-12
274.0058 -14.0364 0.0 16.5 90.4 -14.5319 -13.3 0.0 GX 17+2
275.9185 -30.3611 0.0 31.1 70.5 1.7022 0.8 0.0 4U 1820-30
276.4450 -37.1053 0.0 37.6 67.3 4.2252 1.1 0.0 3A 1822-371
277.3675 -23.7969 0.0 24.4 71.1 2.3618 1.7 0.0 GS 1826-24
278.7590 32.6973 0.0 32.9 -127.4 -0.8282 -0.8 0.0 3C 382
278.9337 -32.9914 0.0 33.2 64.9 -2.7052 -1.2 0.0 XB 1832-330
279.9896 5.0358 0.0 5.8 -150.4 -1.2315 -1.3 0.0 Ser X-1
283.8804 -2.6067 0.0 2.8 36.9 -0.1123 -0.1 0.0 XTE J1855-026
287.4138 9.8292 0.0 10.8 -96.3 1.1924 1.5 0.0 4U 1907+09
287.7208 7.6667 0.0 9.1 -88.7 -1.0748 -1.3 0.0 4U 1909+07
287.9565 4.9827 0.0 7.1 -75.4 1.5254 1.8 0.0 SS 433
288.5083 9.8883 0.0 11.4 -91.5 -0.2891 -0.4 0.0 IGR J19140+0951
288.7983 10.9456 0.0 12.5 -92.8 -18.3737 -22.1 0.0 GRS 1915+105
297.3771 30.2067 0.0 33.2 -97.7 -0.2210 -0.2 0.0 KS 1947+300
298.9292 32.1000 0.0 35.5 -97.2 6.1421 3.8 0.0 4U 1954+31
299.5903 35.2016 0.0 38.5 -98.8 18.3327 7.3 0.0 Cyg X-1
322.4929 12.1674 0.0 41.2 -49.8 -3.1492 -1.8 0.0 4U 2129+12
263.0479 29.2567 3.0 34.8 -152.2 3.8468 3.9 ------ UNKNOWN
342.6249 -0.7509 2.7 59.8 -30.2 29.0286 4.4 ------ UNKNOWN
255.4268 50.2098 3.1 55.4 -142.1 41.6160 3.7 ------ UNKNOWN
337.1725 7.1006 2.1 54.7 -39.8 39.1622 5.5 ------ UNKNOWN
316.0976 29.2791 2.1 43.2 -76.7 45.5476 5.4 ------ UNKNOWN
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)
DPI of the scaled map

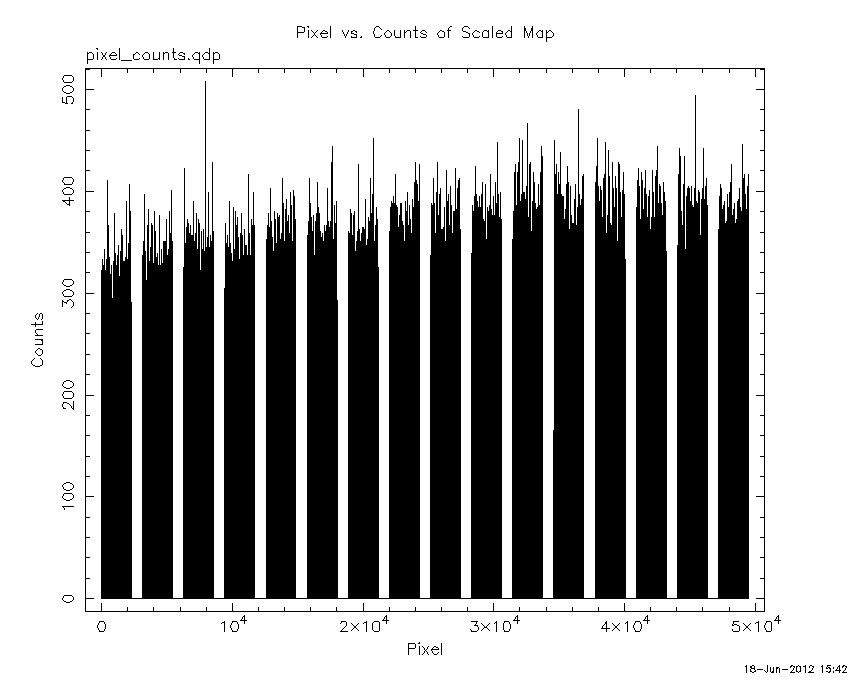

Pixel vs. Counts plot
The data/results are in /local/data/raid2/prebascript/trigger524642/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Mon Jun 18 15:42:06 EDT 2012
