batgrbproduct analysis for trigger=526593

batgrbproduct Analysis for Trigger=526593

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Mon Jan 13 03:28:14 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger526593
======================================================================

  Trigger: 00526593      Segment: 000

  BAT Trigger Time: 363944816.192   [s; MET]
      Trigger Stop: 363944818.24   [s; MET]
               UTC: 2012-07-14T07:46:46.767960    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 167.96954977866   Dec: -30.6319671895596  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    10.2
     Image Trigger?:     NO
     Rate S/N Ratio:     15.2315462117278  [ if not an image trigger ]
     Image S/N Ratio:    10.2

  Flight Position:   [ source = BAT ]
    RA: 167.96954977866   Dec: -30.6319671895596  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 167.981061803223   Dec: -30.6346942390255  [deg; J2000]
        { 11h 11m 55.5s , -30d 38' 04.9" }
         +/- 1.5161020776006 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.559628084628213 [arcmin] (formal 1-sigma fit error)
    SNR: 16.7855234907467

  Angular difference between Flight and Ground position is 0.616440 arcmin

  Partial Coding Fraction: 0.4023438    [ including projection effects ]

  Duration
     T90: 20 +/- 4.47213595499958
        Measured from: -0.191999971866608
                   to: 19.8080000281334     [s; relative to TRIGTIME]
     T50: 8 +/- 3.16227766016838
        Measured from: 1.80800002813339
                   to: 9.80800002813339     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 3.80800002813339
                   to: 4.80800002813339     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -1.19199997186661
                   to: 22.8080000281334     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.413886   0.575760   0.378513   0.068651
           0.046545   0.048132   0.042471   0.037552 [error]
 Peak      0.034879   0.075789   0.044532   0.007541
           0.009720   0.010482   0.009221   0.007787 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.44e-07 2.38e-07 2.99e-07 7.50e-07 8.91e-07 1.43e-06   erg/cm2
              Error 2.23e-08 2.37e-08 4.16e-08 2.15e-07 9.96e-08 2.52e-07   erg/cm2
Peak flux Power-law 5.12e-01 4.47e-01 2.68e-01 2.41e-01 1.33e+00 1.47e+00   ph/cm2/s
              Error 1.41e-01 8.70e-02 6.37e-02 1.04e-01 2.58e-01 2.79e-01   ph/cm2/s

Fluence   Cutoff-PL 1.34e-07 2.54e-07 3.05e-07 3.29e-07 8.52e-07 1.02e-06   erg/cm2
              Error 2.51e-08 3.03e-08 4.56e-08 -------- 1.09e-07 3.63e-07   erg/cm2
Peak flux Cutoff-PL 4.22e-01 5.20e-01 3.10e-01 8.92e-02 1.32e+00 1.34e+00   ph/cm2/s
              Error 1.58e-01 1.13e-01 8.45e-02 1.09e-01 2.58e-01 2.71e-01   ph/cm2/s

Fluence        Band 1.33e-07 2.57e-07 2.89e-07 6.15e-07 8.69e-07 1.29e-06   erg/cm2
              Error -------- -------- 4.41e-08 -------- -------- --------   erg/cm2
Peak flux      Band 4.45e-01 5.07e-01 3.06e-01 1.11e-01 1.34e+00 1.37e+00   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.670    0.169    -      -           4.00e-03 4.21e-04   61.040 57
CPL   1.126    0.667      75.1  -26.5      7.82e-03 7.52e-03   58.810 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.741    0.274    -      -           9.87e-03 1.96e-03   63.490 57
CPL   0.477    1.291      60.5   37.4      4.45e-02 1.55e-01   59.140 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 8.768000 sec.
T50 in the 50-300 keV band: 4.608000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   24.000   -1.192   22.808
T90    20.000   -0.192   19.808
T50     8.000    1.808    9.808
Peak    1.000    3.808    4.808

Click here for the BAT GCN circular template

Special notes of this burst


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  167.9811   -30.6347   0.0114    37.4398   -51.1695         1.5996273     16.786 TRIG_00526593

Foreground time interval of the image:
 -1.192  22.808 (delta_t =  24.000 [sec])
Background time interval of the image:
-239.192  -1.192 (delta_t = 238.000 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

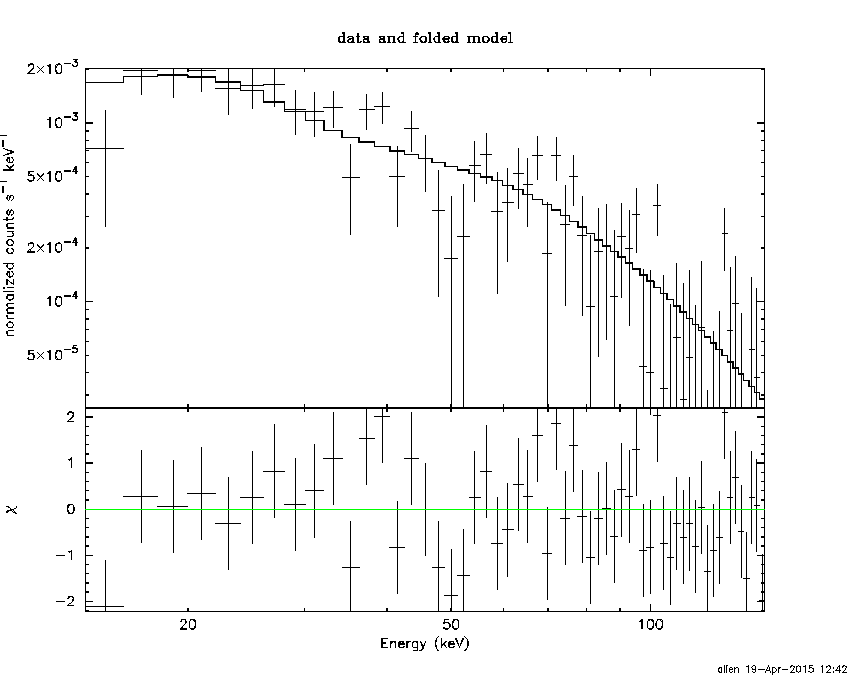

Power-law model

Time interval is from   -1.192 sec. to   22.808 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.66966     ( -0.167786   0.171022 )
Norm@50keV  : 3.99805E-03    ( -0.000423266   0.00041892 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.04 using 59 PHA bins.
# Reduced chi-squared =          1.071 for     57 degrees of freedom
# Null hypothesis probability =   3.330145e-01

Photon flux (15-150 keV)    in 24 sec: 0.525482 ( -0.0524323  0.0524893 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.90719e-07 ( -9.90017e-08  1.00103e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from   -1.192 sec. to   22.808 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.12569     ( -0.726718   0.607431 )
Epeak [keV] : 75.0644      ( -22.108 -75.0644 )
Norm@50keV  : 7.81935E-03    ( -0.0039943   0.0110404 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.81 using 59 PHA bins.
# Reduced chi-squared =          1.050 for     56 degrees of freedom
# Null hypothesis probability =   3.729921e-01

Photon flux (15-150 keV)    in 24 sec: 0.514629 ( -0.053908  0.053905 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.51616e-07 ( -1.0861e-07  1.09786e-07 ) ergs/cm2

Band function

Time interval is from   -1.192 sec. to   22.808 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.12534   ( -0.577403   0.522331 )
beta        : -10.0000    ( 10   7.10543e-15 )
Epeak [keV] : 75.0364      ( -22.0881 -75.0364 )
Norm@50keV   : 7.82173E-03    ( -0.00399875   0.0110603 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.81 using 59 PHA bins.
# Reduced chi-squared =          1.069 for     55 degrees of freedom
# Null hypothesis probability =   3.378256e-01

Photon flux (15-150 keV)    in 24 sec: 0.514880 ( 6.48512  -0.053888 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.68759e-07 ( 0  0 ) ergs/cm2

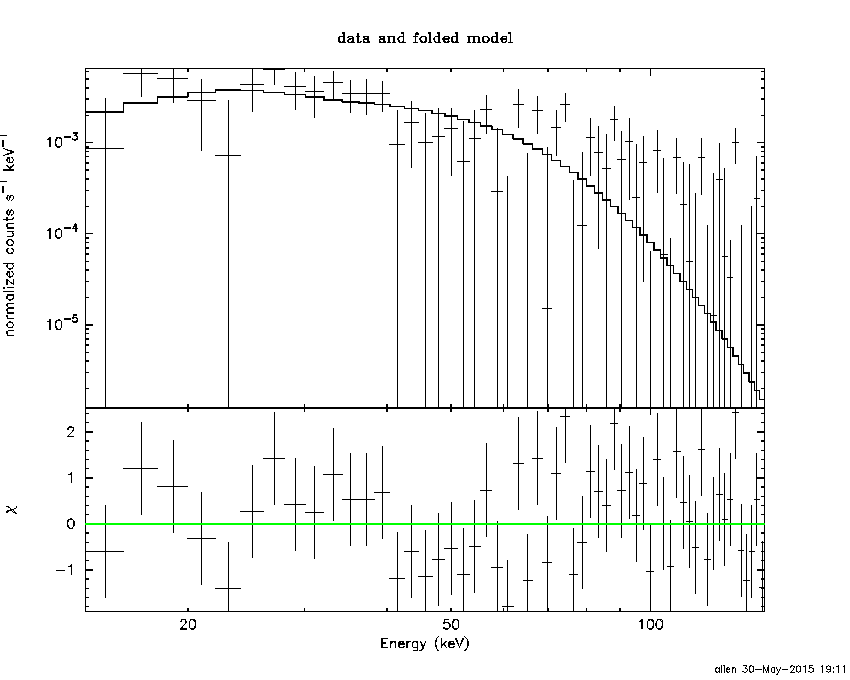

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 12.7713  (-1.62954  1.90141)
R^2/D10^2   : 0.102113  (-0.040269   0.0661455)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          82.21 using 59 PHA bins.
# Reduced chi-squared =          1.442 for     57 degrees of freedom
# Null hypothesis probability =   1.607005e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.478e-08   1.511e-08
25- 50  2.864e-07   3.960e-08
50-150  2.922e-07   6.331e-08
15-150  6.634e-07   8.820e-08

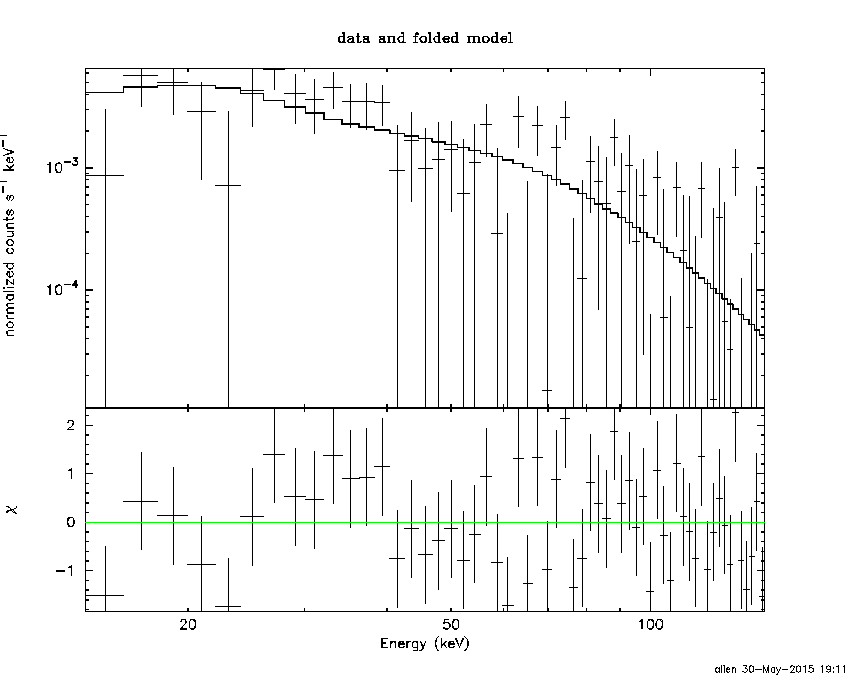

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 140.946       (-48.8434      -138.164)
Norm        : 2.18013       (-0.246461     0.314465)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.96 using 59 PHA bins.
# Reduced chi-squared =          1.034 for     57 degrees of freedom
# Null hypothesis probability =   4.037141e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.350e-07   2.227e-08
25- 50  2.480e-07   5.837e-08
50-150  4.768e-07   2.233e-07
15-150  8.598e-07   3.059e-07

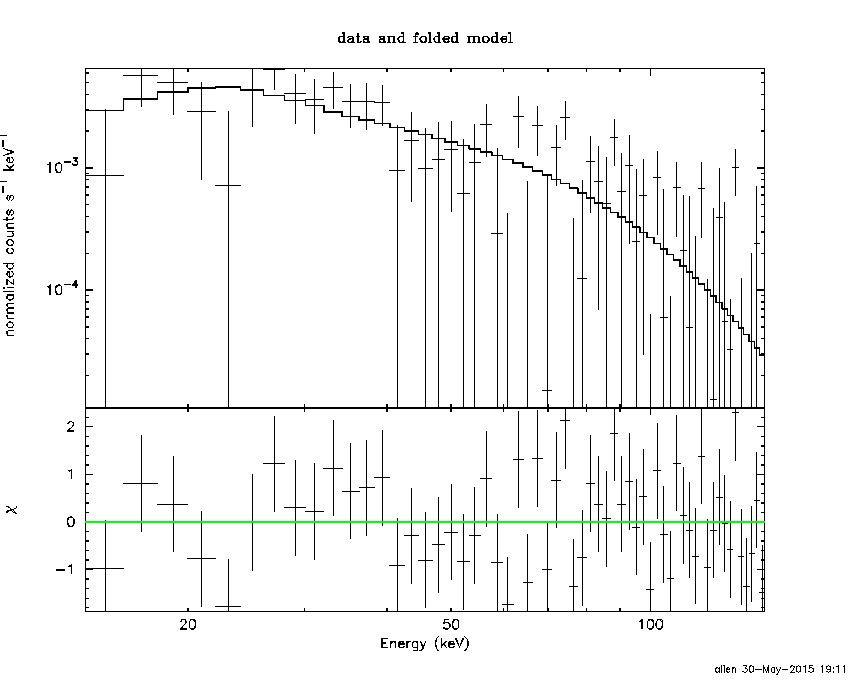

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.74393        (-1.46137      1.69489)
R1^2/D10^2  : 0.701053        (-0.373187      0.652043)
kT2 [keV]   : 24.0723        (-5.56892      10.5933)
R2^2/D10^2  : 7.65490E-03    (-0.0055397   0.0132874)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.37 using 59 PHA bins.
# Reduced chi-squared =          1.007 for     55 degrees of freedom
# Null hypothesis probability =   4.606771e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.369e-07   6.154e-08
25- 50  2.552e-07   9.895e-08
50-150  4.746e-07   2.487e-07
15-150  8.667e-07   3.444e-07

Peak spectrum fit

Power-law model

Time interval is from    3.808 sec. to    4.808 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.74064     ( -0.26495   0.282292 )
Norm@50keV  : 9.86999E-03    ( -0.00197421   0.00195248 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.49 using 59 PHA bins.
# Reduced chi-squared =          1.114 for     57 degrees of freedom
# Null hypothesis probability =   2.583420e-01

Photon flux (15-150 keV)    in 1 sec: 1.32996 ( -0.257721  0.258202 ) ph/cm2/s
Energy fluence (15-150 keV)             : 9.11335e-08 ( -1.85281e-08  1.86433e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    3.808 sec. to    4.808 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.476860     ( -1.52337   1.05955 )
Epeak [keV] : 60.5295      ( -16.6323 58.1911 )
Norm@50keV  : 4.44633E-02    ( -0.0444599   0.265374 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.14 using 59 PHA bins.
# Reduced chi-squared =          1.056 for     56 degrees of freedom
# Null hypothesis probability =   3.616642e-01

Photon flux (15-150 keV)    in 1 sec: 1.32066 ( -0.25739  0.25831 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.99437e-08 ( -2.00577e-08  1.96263e-08 ) ergs/cm2

Band function

Time interval is from    3.808 sec. to    4.808 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.73650   ( -5.59207   -4.7365 )
beta        : -2.36843    ( -0.762699   0.487687 )
Epeak [keV] : 34.8122      ( -7.4948 6.02136 )
Norm@50keV   : 129.130    ( -23.5098   685.769 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.92 using 59 PHA bins.
# Reduced chi-squared =          1.035 for     55 degrees of freedom
# Null hypothesis probability =   4.034490e-01

Photon flux (15-150 keV)    in 1 sec: 1.33515 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.82969e-08 ( -8.82899e-08  -1.90883e-08 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 12.4250  (-2.63571  3.69902)
R^2/D10^2   : 0.308486  (-0.188562   0.428162)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.49 using 59 PHA bins.
# Reduced chi-squared =          1.114 for     57 degrees of freedom
# Null hypothesis probability =   2.584701e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.010e-08   3.643e-09
25- 50  3.307e-08   9.445e-09
50-150  3.140e-08   1.290e-08
15-150  7.457e-08   2.371e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 118.389       (-50.7899      -117.324)
Norm        : 5.86471       (-1.26611     1.59471)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.63 using 59 PHA bins.
# Reduced chi-squared =          1.064 for     57 degrees of freedom
# Null hypothesis probability =   3.462097e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.528e-08   4.455e-09
25- 50  2.728e-08   1.280e-08
50-150  4.836e-08   3.002e-08
15-150  9.092e-08   4.188e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.03111        (-2.64115      3.40863)
R1^2/D10^2  : 1.00999        (-0.683333      2.50799)
kT2 [keV]   : 23.8119        (-8.23151      29.5895)
R2^2/D10^2  : 1.78758E-02    (-0.0171232   0.0878002)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.32 using 59 PHA bins.
# Reduced chi-squared =          1.042 for     55 degrees of freedom
# Null hypothesis probability =   3.890750e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.362e-08   7.720e-09
25- 50  3.080e-08   1.761e-08
50-150  4.775e-08   2.885e-08
15-150  9.217e-08   4.861e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.66966     ( -0.167786   0.171022 )
Norm@50keV  : 3.99805E-03    ( -0.000423266   0.00041892 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.04 using 59 PHA bins.
# Reduced chi-squared =          1.071 for     57 degrees of freedom
# Null hypothesis probability =   3.330145e-01

Photon flux (15-150 keV)    in 24 sec: 0.525482 ( -0.0524323  0.0524893 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.90719e-07 ( -9.90017e-08  1.00103e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.12569     ( -0.726718   0.607431 )
Epeak [keV] : 75.0644      ( -22.108 -75.0644 )
Norm@50keV  : 7.81935E-03    ( -0.0039943   0.0110404 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.81 using 59 PHA bins.
# Reduced chi-squared =          1.050 for     56 degrees of freedom
# Null hypothesis probability =   3.729921e-01

Photon flux (15-150 keV)    in 24 sec: 0.514629 ( -0.053908  0.053905 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.51616e-07 ( -1.0861e-07  1.09786e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.12534   ( -0.577403   0.52233 )
beta        : -10.0000    ( 10   20 )
Epeak [keV] : 75.0364      ( -22.0881 -75.0364 )
Norm@50keV   : 7.82173E-03    ( -0.00399875   0.0110603 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.81 using 59 PHA bins.
# Reduced chi-squared =          1.069 for     55 degrees of freedom
# Null hypothesis probability =   3.378256e-01

Photon flux (15-150 keV)    in 24 sec: 0.514880 ( 6.48512  -0.053888 ) ph/cm2/s
Energy fluence (15-150 keV)             : 8.68759e-07 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.38e-07
S(50-100 keV) = 2.99e-07

T90 vs. Hardness ratio plot

T90                                   = 20 sec.
Hardness ratio (energy fluence ratio) = 1.2563

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.39111
Count Ratio (50-100 keV) / (15-25 keV) = 0.914534

Mask shadow pattern

IMX = 4.800827972092739E-01, IMY = 5.964525613567480E-01

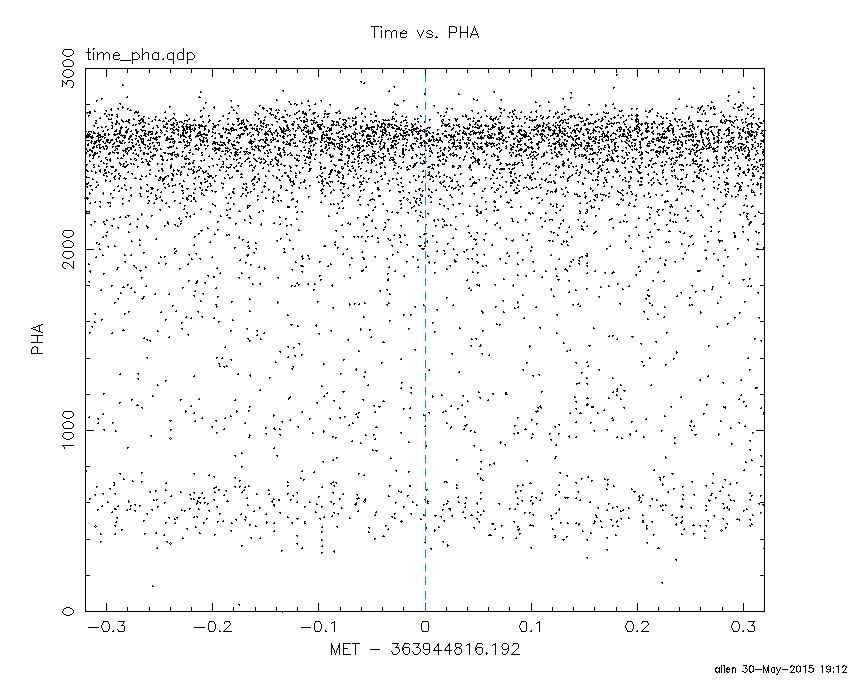

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.192000 -1.192000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.0988 -60.5929    3.9  13.4  -99.4   0.6138   3.0    6.6	Cen X-3
186.7102 -62.7814    1.8   5.2 -101.8   1.3419   6.5    1.6	GX 301-2
354.6468 -74.8553    2.8  41.6  165.1   1.5874   4.1 ------	UNKNOWN
159.4728 -47.6744    3.3  26.1  -78.9   0.9115   3.5 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-1.192000 22.808000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.6548 -60.6349    5.5  13.1  -99.2   0.1215   2.1   10.0	Cen X-3
186.3168 -62.7681   11.9   5.4 -101.8  -0.0539  -1.0    9.3	GX 301-2
284.1891 -62.9162    2.4  36.3  124.1   0.5952   4.8 ------	UNKNOWN
 22.2396 -62.7689    2.5  54.5  176.5   1.0298   4.6 ------	UNKNOWN
 41.1719 -65.0559    2.3  51.1 -173.6   0.6504   5.1 ------	UNKNOWN
167.9811 -30.6347    0.7  37.4  -51.2   1.5997  16.8 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
319.508600 962.880800

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9770 -15.6432    0.3  38.2 -166.0  31.3403  39.6    0.2	Sco X-1
255.9733 -37.9165    7.9  42.0  156.4   1.7813   1.5    4.4	4U 1700-377
256.3844 -36.4229    2.4  40.7  157.5   5.1185   4.8    2.5	GX 349+2
263.0998 -24.8528   14.4  28.2  163.3   0.5145   0.8    8.1	GX 1+4
264.7688 -44.3186    4.4  43.9  143.1   4.3818   2.7    8.0	4U 1735-44
268.4228  -1.5083    3.9  13.3 -138.0   1.5889   3.0    4.7	SW J1753.5-0127
270.2825 -25.1386    2.2  24.7  151.0   3.0555   5.2    3.6	GX 5-1
270.1325 -25.6712   18.1  25.2  150.7   0.4086   0.6   10.2	GRS 1758-258
273.9833 -14.0003    1.9  13.3  159.8   3.2482   6.2    2.5	GX 17+2
276.1434 -30.4198   14.0  27.9  135.9  -0.6037  -0.8   11.7	H1820-303
284.9938 -24.9794   10.2  22.2  117.6   0.7333   1.1    4.2	HT1900.1-2455
288.7873  10.9423    0.6  15.7  -27.3  10.1208  19.1    0.7	GRS 1915+105
299.5817  35.1501    2.0  41.7  -32.0   4.9811   5.8    3.1	Cyg X-1
308.0190  40.9522    5.0  50.1  -28.3   3.4540   2.3    4.1	Cyg X-3
326.1938  38.3665    7.9  58.3  -14.0  -5.1825  -1.5    2.9	Cyg X-2
262.9746 -33.7839    3.6  35.3  153.1   2.8219   3.2    3.1	GX 354-0
282.8189  43.9574    3.0  47.0  -53.1  10.8250   3.8 ------	UNKNOWN

Plot creation:
Sat May 30 19:12:12 EDT 2015
