batgrbproduct analysis for trigger=529813

batgrbproduct Analysis for Trigger=529813

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Mon Aug  6 09:55:41 EDT 2012
             Host Name: gcn5
   Current Working Dir: /local/data/raid16/prebascript_archive/trigger529813/batgroup_hand_proc
======================================================================

  Trigger: 00529813      Segment: 000

  BAT Trigger Time: 365808512.896   [s; MET]
      Trigger Stop: 365808513.408   [s; MET]
               UTC: 2012-08-04T21:28:23.394340    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 245.372550221826   Dec: -51.3676319909562  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    5.88
     Image Trigger?:     NO
     Rate S/N Ratio:     16.062378404209  [ if not an image trigger ]
     Image S/N Ratio:    5.88

  Flight Position:   [ source = BAT ]
    RA: 245.372550221826   Dec: -51.3676319909562  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 245.405744388095   Dec: -51.3429898852553  [deg; J2000]
        { 16h 21m 37.4s , -51d 20' 34.8" }
         +/- 5.60873039709874 [arcmin] (estimated 90% radius based on SNR)
         +/- 4.80089037573512 [arcmin] (formal 1-sigma fit error)
    SNR: 2.5900721317238

  Angular difference between Flight and Ground position is 1.932094 arcmin

  Partial Coding Fraction: 0.9921875    [ including projection effects ]

  Duration
     T90: 0.51199996471405 +/- 35.7770876399966
        Measured from: 0
                   to: 0.51199996471405     [s; relative to TRIGTIME]
     T50: 0.51199996471405 +/- 16
        Measured from: 0
                   to: 0.51199996471405     [s; relative to TRIGTIME]

    WARNING: battblocks failed.  Used TDRSS fore/background intervals

  Fluence
     Peak Flux  (peak 0.51199996471405 second)
        Measured from: 0
                   to: 0.51199996471405     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0
                   to: 0.51199996471405     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.003244  -0.002972   0.013961   0.025559
           0.005276   0.005426   0.005182   0.006180 [error]
 Peak      0.003244  -0.002972   0.013961   0.025559
           0.005276   0.005426   0.005182   0.006180 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.19e-10 9.85e-10 7.27e-09 3.04e-07 2.71e-08 3.13e-07   erg/cm2
              Error 4.26e-10 1.62e-09 6.24e-09 3.49e-07 2.05e-08 3.52e-07   erg/cm2
Peak flux Power-law 7.12e-03 3.10e-02 1.14e-01 1.51e+00 3.33e-01 1.66e+00   ph/cm2/s
              Error 2.62e-02 5.32e-02 9.48e-02 1.63e+00 2.72e-01 1.69e+00   ph/cm2/s

Fluence   Cutoff-PL 4.05e-11 7.15e-10 8.12e-09 1.09e-07 1.18e-07 0.00e+00   erg/cm2
              Error 2.16e-10 1.59e-09 7.47e-09 8.27e-07 1.10e-06 0.00e+00   erg/cm2
Peak flux Cutoff-PL 2.37e-03 2.17e-02 1.26e-01 6.70e-01 3.41e-01 7.94e-01   ph/cm2/s
              Error 2.51e-02 5.19e-02 1.32e-01 5.52e+00 2.69e-01 3.54e+00   ph/cm2/s

Fluence        Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL   -0.884    1.394    -      -           1.60e-03 2.00e-03   77.610 57
CPL  -2.480    0.000     262.7    0.0      3.35e-03 3.15e+00   77.470 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL   -0.884    1.394    -      -           1.60e-03 2.00e-03   77.610 57
CPL  -2.480    0.000     262.7    0.0      3.35e-03 3.14e+00   77.470 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.512    0.000    0.512
T90     0.512    0.000    0.512
T50     0.512    0.000    0.512
Peak    0.512    0.000    0.512

Click here for the BAT GCN circular template

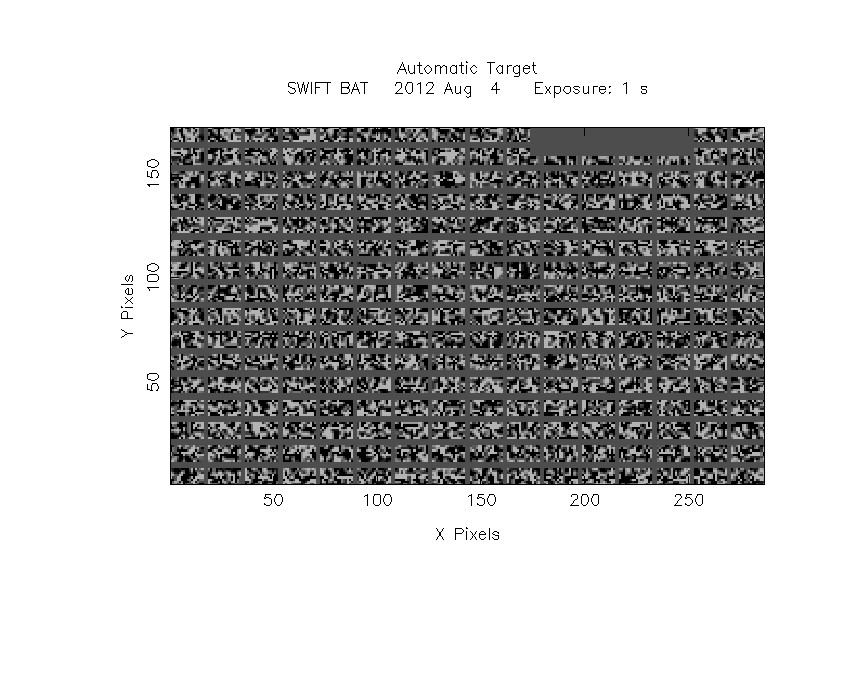

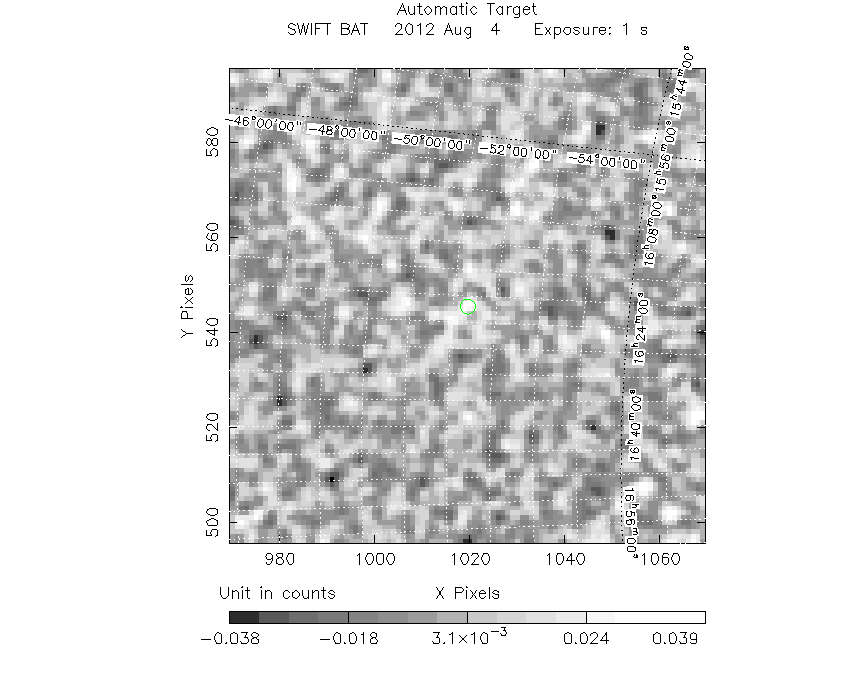

Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  245.4057   -51.3430   0.0740    18.1403  -153.8429         0.0292504      2.590 TRIG_00529813

Foreground time interval of the image:
  0.000   0.512 (delta_t =   0.512 [sec])
Background time interval of the image:
-108.795  -8.896 (delta_t =  99.899 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

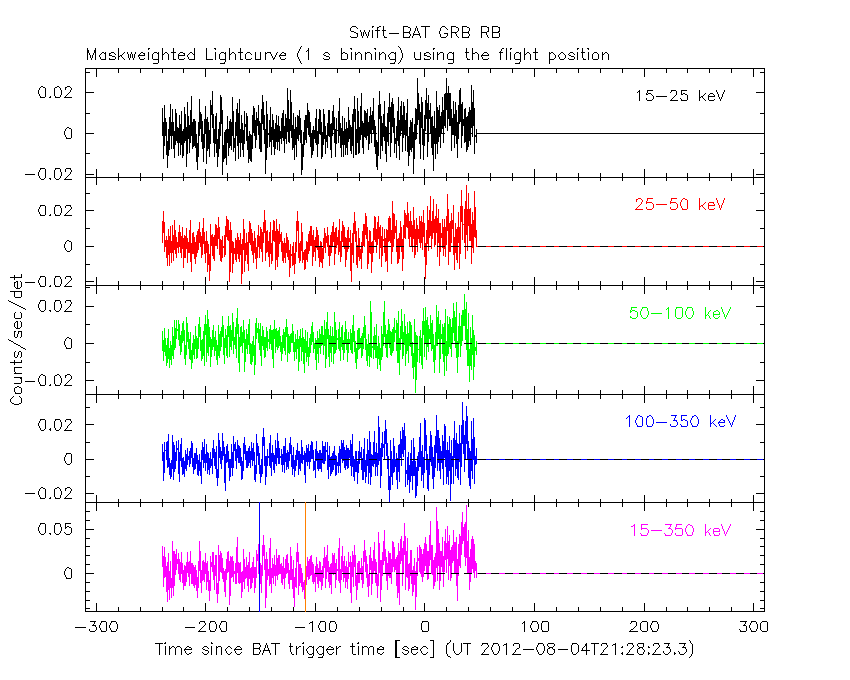

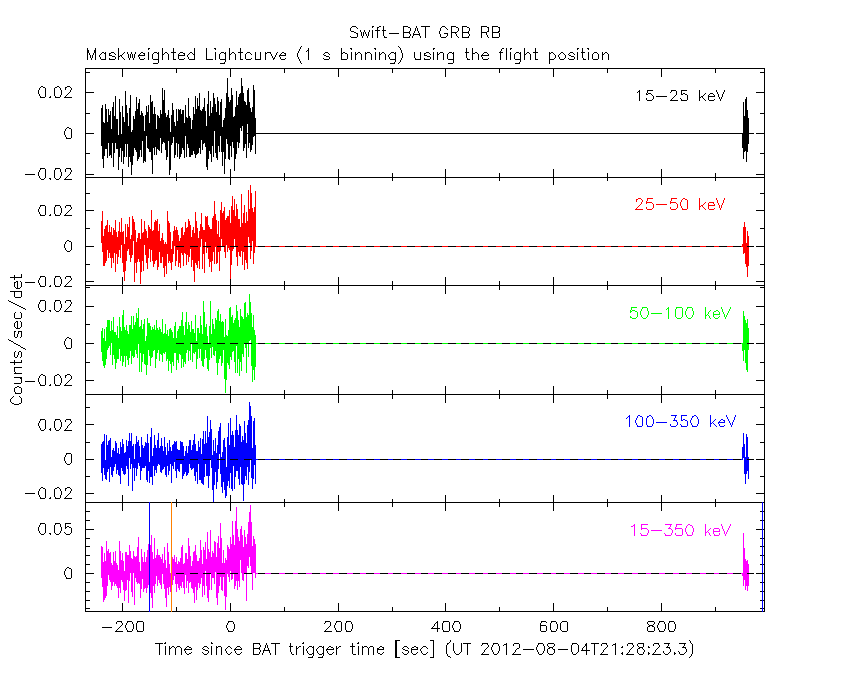

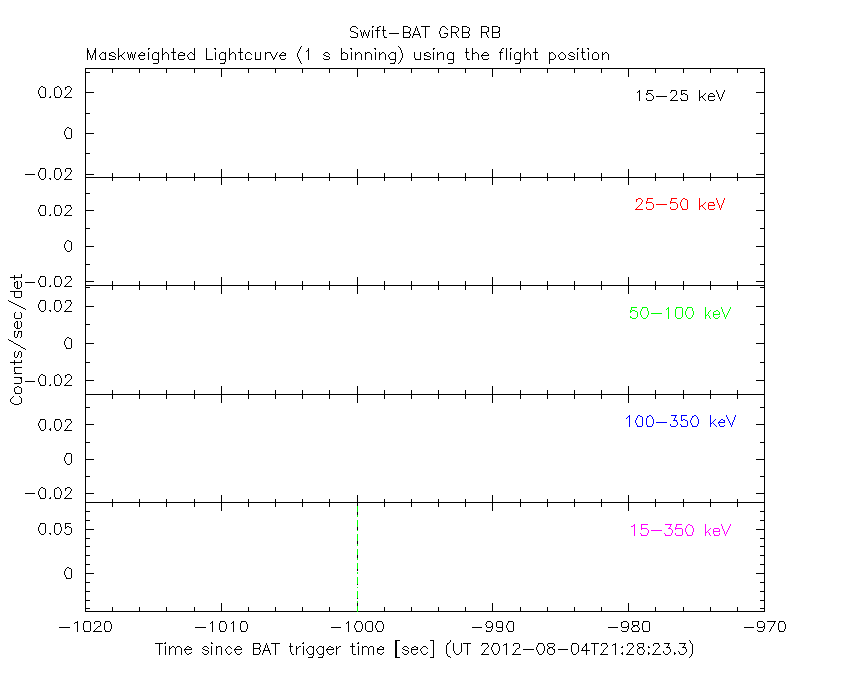

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

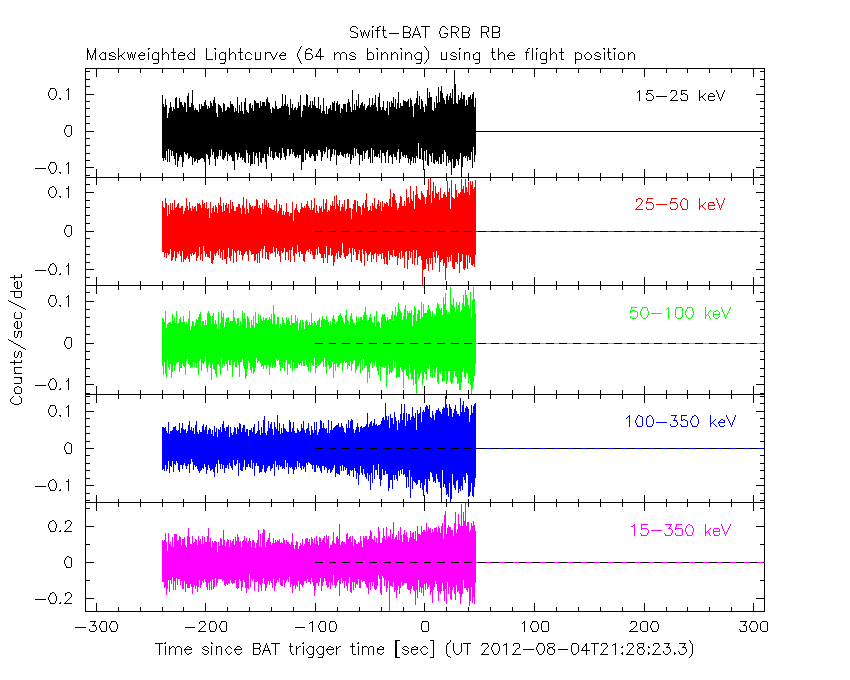

64 ms binning

Full time interval

From T100_start to T100_end

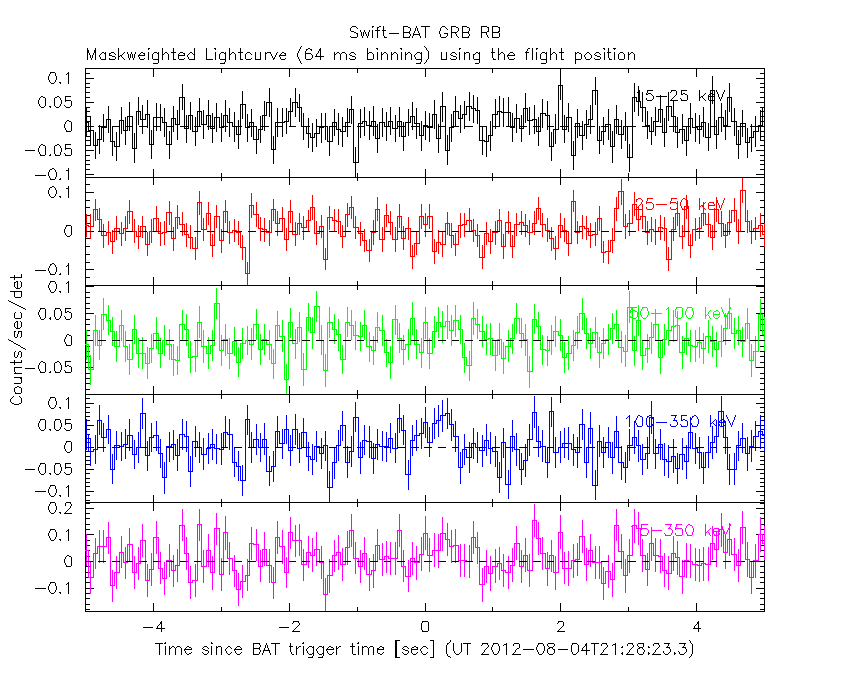

From T0-5 sec to T0+5 sec

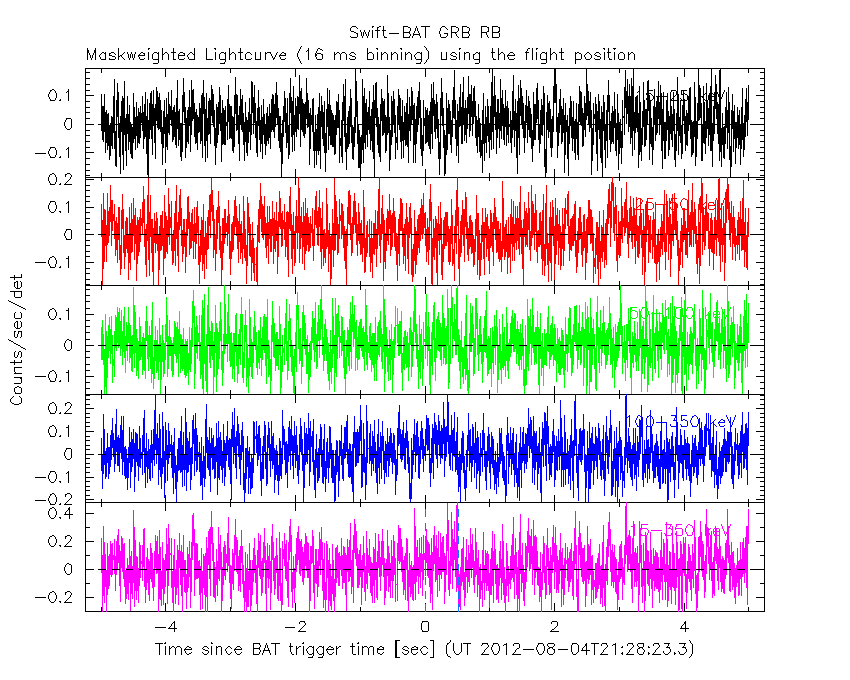

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

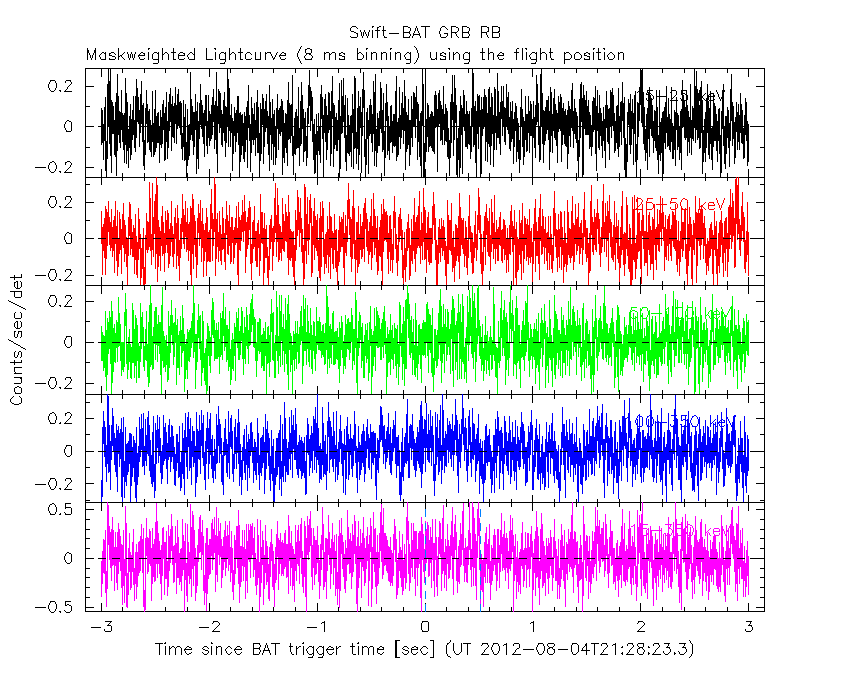

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

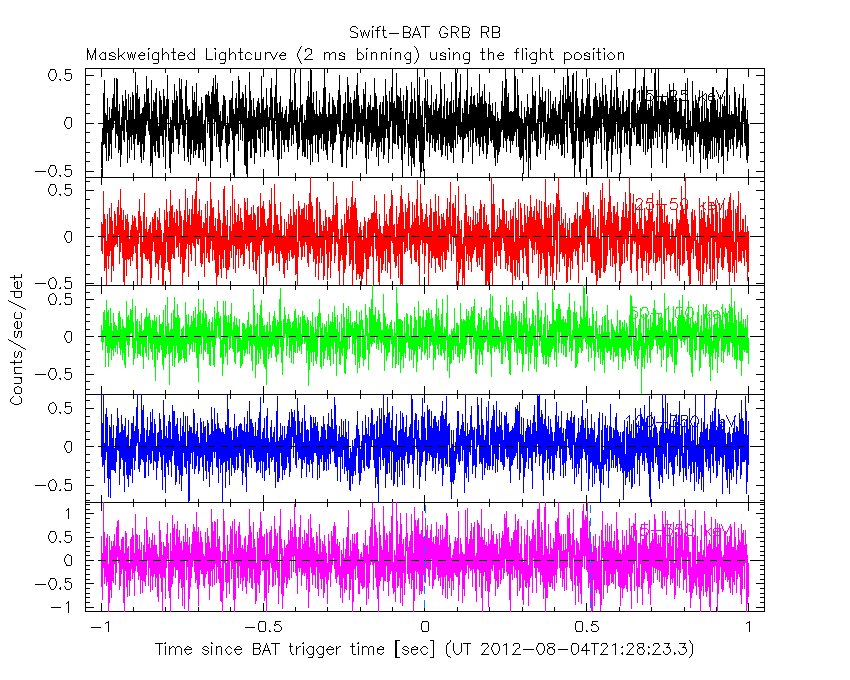

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

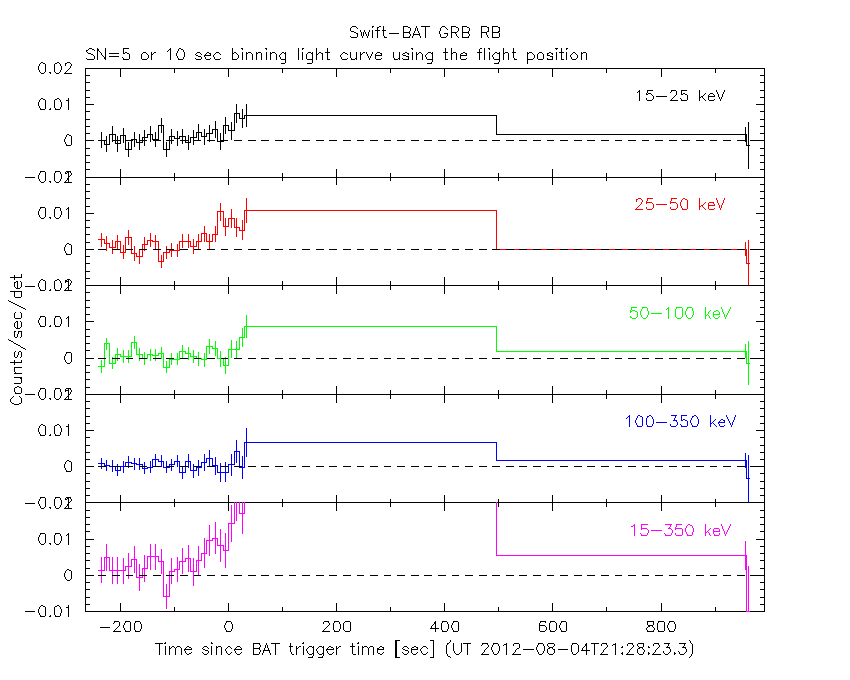

SN=5 or 10 sec. binning (whichever binning is satisfied first)

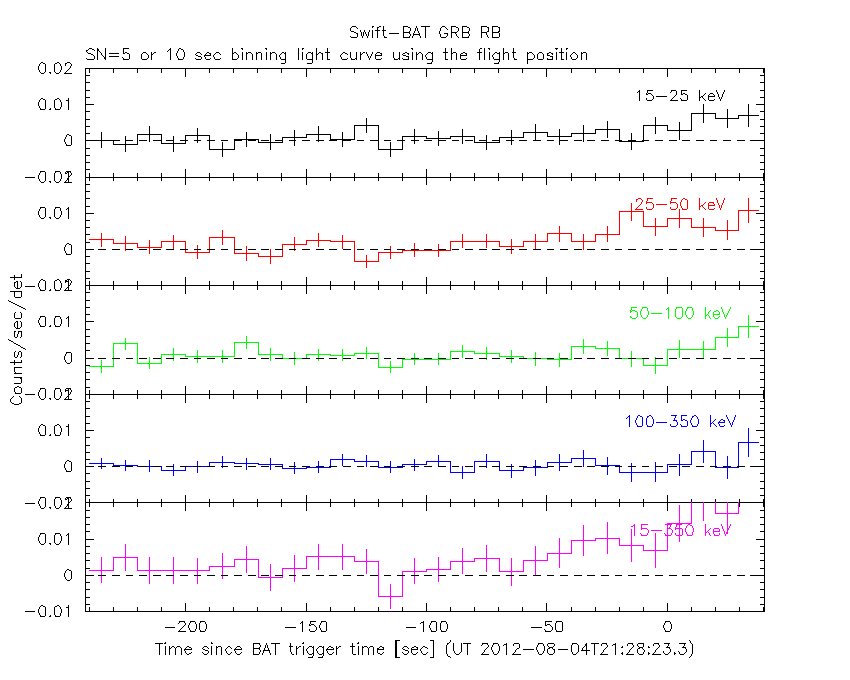

SN=5 or 10 sec. binning (T < 200 sec)

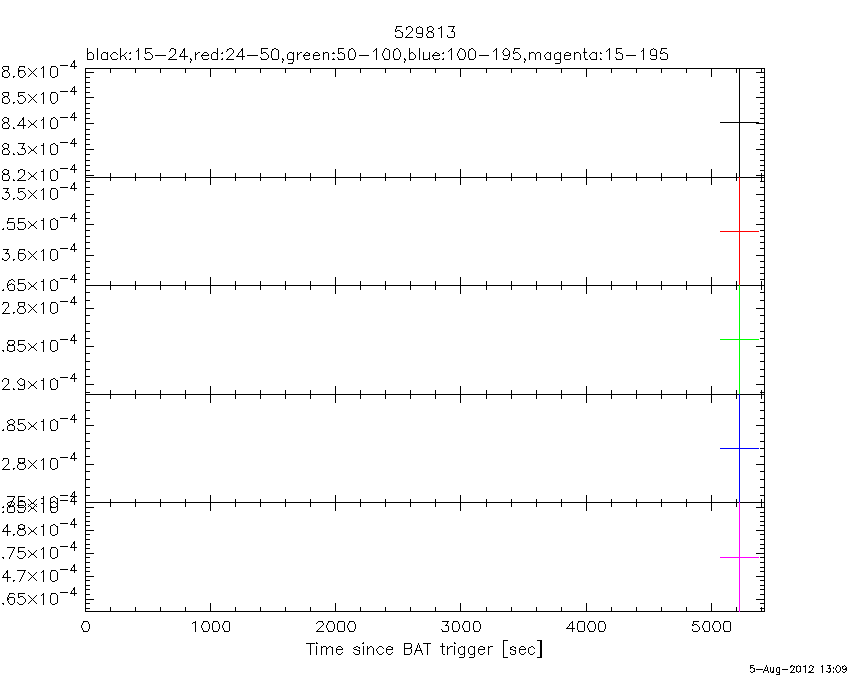

The mask-weighted light curves based on cleaned DPHs

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

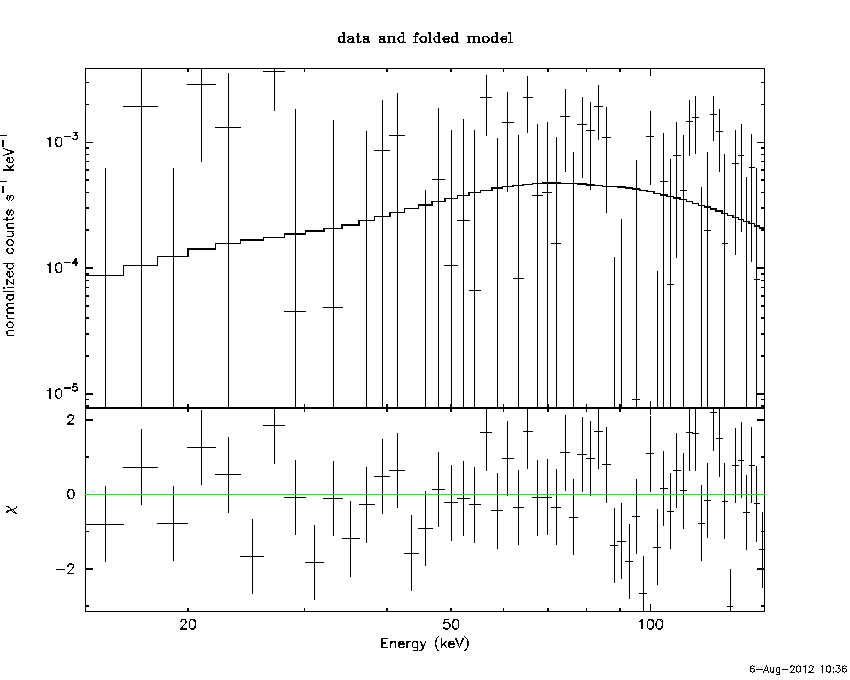

Power-law model

Time interval is from    0.000 sec. to    0.512 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.883522     ( -1.45103   1.33614 )
Norm@50keV  : 1.60445E-03    ( -0.00160293   0.00239564 )
------------------------------------------------------------
# Chi-Squared =          77.61 using 59 PHA bins.
# Reduced chi-squared =          1.362 for     57 degrees of freedom
# Null hypothesis probability =   3.611194e-02

Photon flux (15-150 keV)    in 0.512 sec: 0.332758 ( -0.332758  0.210894 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.7068e-08 ( -2.7068e-08  1.3915e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.000 sec. to    0.512 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -2.47966     (     )
Epeak [keV] : 262.711      ( -259.279 -259.279 )
Norm@50keV  : 3.34693E-03    ( -0.00345286   6.28926 )
------------------------------------------------------------
# Chi-Squared =          77.47 using 59 PHA bins.
# Reduced chi-squared =          1.383 for     56 degrees of freedom
# Null hypothesis probability =   3.030142e-02

Photon flux (15-150 keV)    in 0.512 sec: 0.340519 ( -0.340519  0.196536 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.17766e-07 ( -1.17766e-07  2.0922e-06 ) ergs/cm2

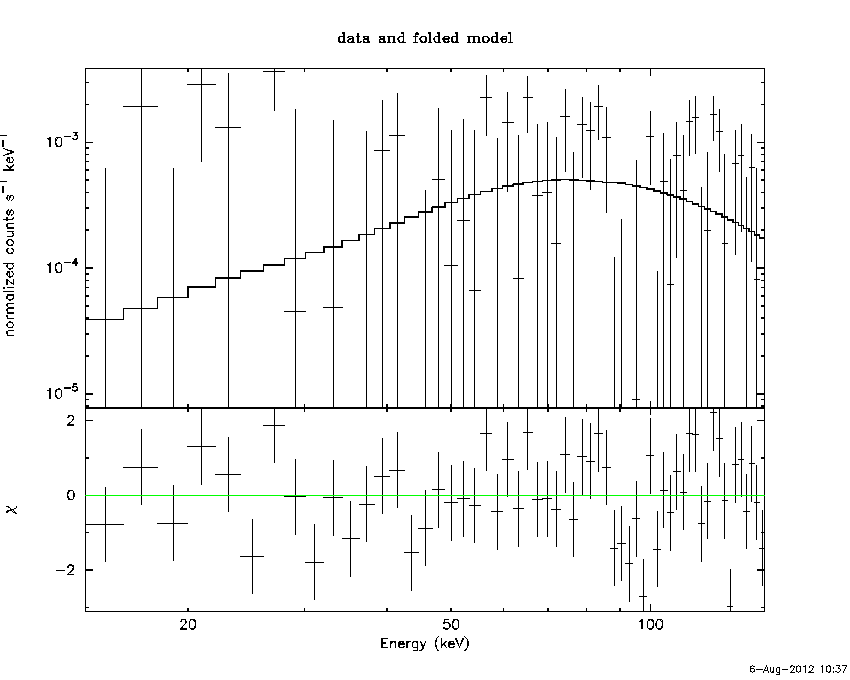

Band function

Time interval is from    0.000 sec. to    0.512 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 2.43024   ( -0.359819   -0.359819 )
beta        : -8.84369    ( -5.14162   0.609987 )
Epeak [keV] : 279.266      ( -169.303 -279.266 )
Norm@50keV   : 3.04872E-03    ( -0.00304872   745.438 )
------------------------------------------------------------
# Chi-Squared =          77.47 using 59 PHA bins.
# Reduced chi-squared =          1.409 for     55 degrees of freedom
# Null hypothesis probability =   2.460329e-02

Photon flux (15-150 keV)    in 0.512 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

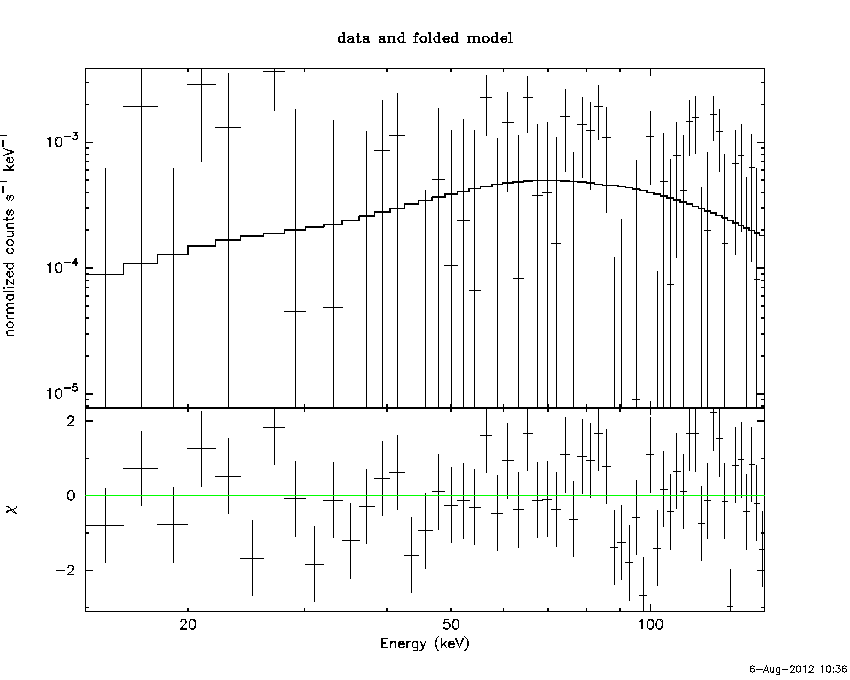

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 169.437  (  )
R^2/D10^2   : 2.40991E-04  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          77.59 using 59 PHA bins.
# Reduced chi-squared =          1.361 for     57 degrees of freedom
# Null hypothesis probability =   3.622984e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.214e-10   5.978e-11
25- 50  1.091e-10   5.855e-16
50-150  2.530e-12   5.399e-16
15-150  3.331e-10   5.376e-12

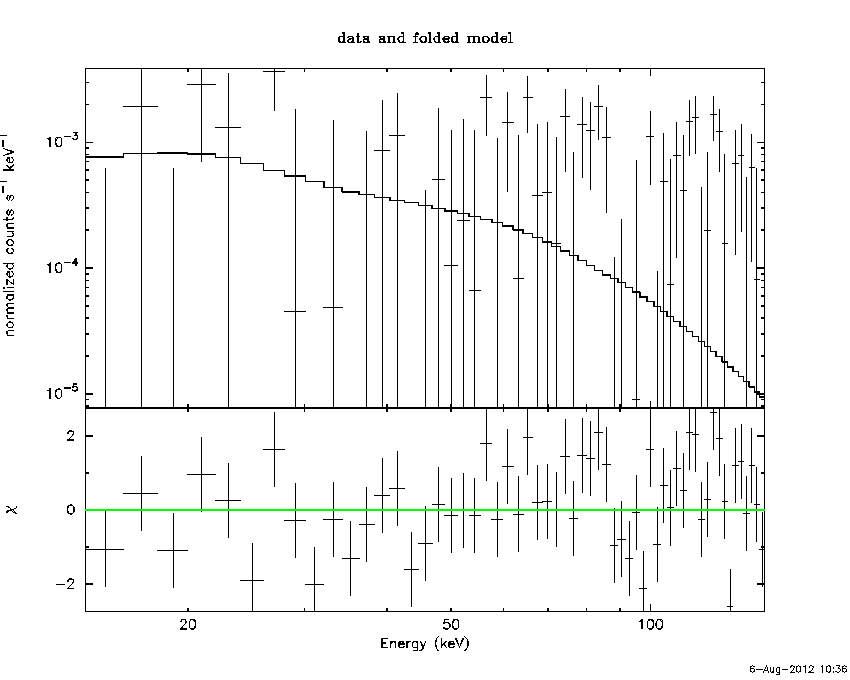

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (-199.998      -199.998)
Norm        : 0.898179       (-0.898204     1.00315)
------------------------------------------------------------
# Chi-Squared =          85.70 using 59 PHA bins.
# Reduced chi-squared =          1.504 for     57 degrees of freedom
# Null hypothesis probability =   8.284367e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.145e-09   1.091e-09
25- 50  2.203e-09   1.956e-09
50-150  4.831e-09   4.157e-09
15-150  8.179e-09   6.902e-09

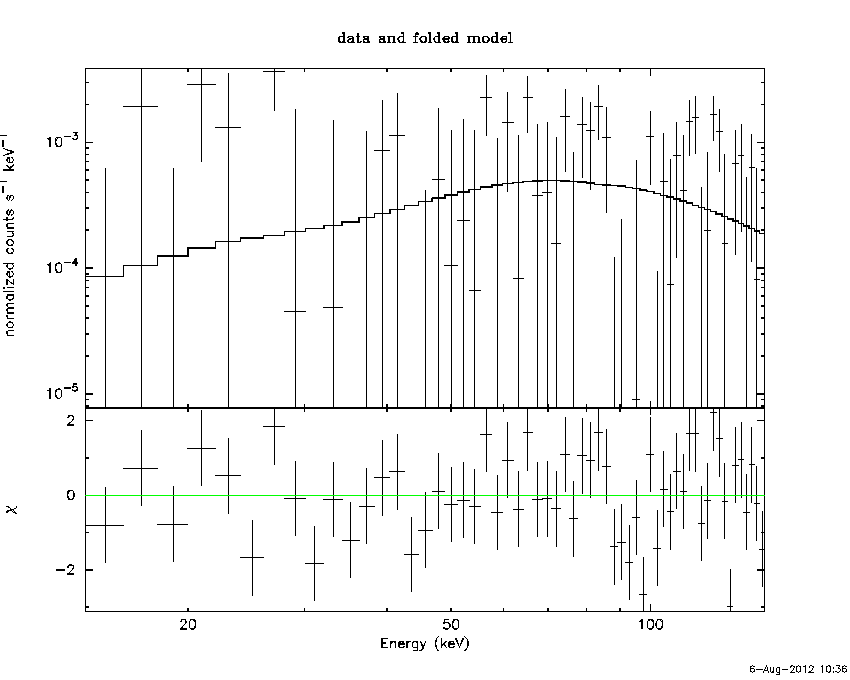

Double BB

R1^2/D10^2  : 1.95918E-04        (-8.31706e-07      -8.31706e-07)
kT2 [keV]   : 1.21793        (      )
R2^2/D10^2  : 1.37827E-05    (-3.57999e-06   -3.57999e-06)
------------------------------------------------------------
# Chi-Squared =          77.72 using 59 PHA bins.
# Chi-Squared =          77.59 using 59 PHA bins.
# Chi-Squared =          77.58 using 59 PHA bins.
# Reduced chi-squared =          1.413 for     55 degrees of freedom
# Reduced chi-squared =          1.411 for     55 degrees of freedom
# Reduced chi-squared =          1.411 for     55 degrees of freedom
# Null hypothesis probability =   2.354348e-02
# Null hypothesis probability =   2.408054e-02
# Null hypothesis probability =   2.413425e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  0.000e+00   0.000e+00
25- 50  0.000e+00   0.000e+00
50-150  0.000e+00   0.000e+00
15-150  0.000e+00   0.000e+00

Peak spectrum fit

Power-law model

Time interval is from    0.000 sec. to    0.512 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.883522     ( -1.45103   1.33614 )
Norm@50keV  : 1.60445E-03    ( -0.00160293   0.00239564 )
------------------------------------------------------------
# Chi-Squared =          77.61 using 59 PHA bins.
# Reduced chi-squared =          1.362 for     57 degrees of freedom
# Null hypothesis probability =   3.611194e-02

Photon flux (15-150 keV)    in 0.512 sec: 0.332758 ( -0.332758  0.210894 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.7068e-08 ( -2.7068e-08  1.3915e-08 ) ergs/cm2

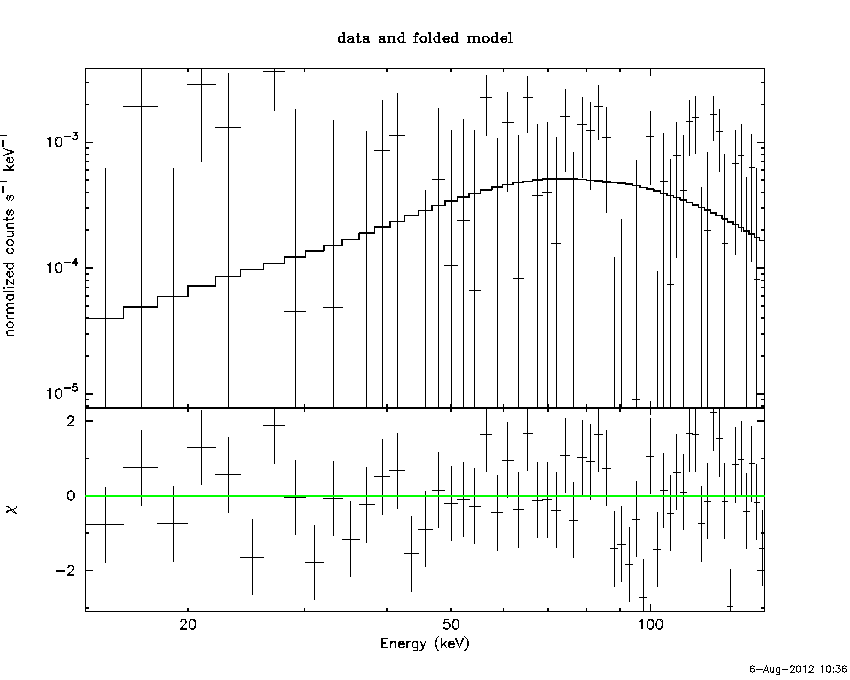

Cutoff power-law model

Time interval is from    0.000 sec. to    0.512 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -2.47966     (     )
Epeak [keV] : 262.711      ( -259.279 -259.279 )
Norm@50keV  : 3.34693E-03    ( -0.00345286   6.2763 )
------------------------------------------------------------
# Chi-Squared =          77.47 using 59 PHA bins.
# Reduced chi-squared =          1.383 for     56 degrees of freedom
# Null hypothesis probability =   3.030142e-02

Photon flux (15-150 keV)    in 0.512 sec: 0.340519 ( -0.340519  0.196536 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.17766e-07 ( -1.17766e-07  1.068e-06 ) ergs/cm2

Band function

Time interval is from    0.000 sec. to    0.512 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 2.43024   ( -0.359819   -0.359819 )
beta        : -8.84369    ( -5.14162   0.609987 )
Epeak [keV] : 279.266      ( -169.303 -279.266 )
Norm@50keV   : 3.04872E-03    ( -0.00304872   745.438 )
------------------------------------------------------------
# Chi-Squared =          77.47 using 59 PHA bins.
# Reduced chi-squared =          1.409 for     55 degrees of freedom
# Null hypothesis probability =   2.460329e-02

Photon flux (15-150 keV)    in 0.512 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 169.437  (  )
R^2/D10^2   : 2.40991E-04  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          77.59 using 59 PHA bins.
# Reduced chi-squared =          1.361 for     57 degrees of freedom
# Null hypothesis probability =   3.622984e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.214e-10   5.563e-11
25- 50  1.091e-10   1.744e-10
50-150  2.530e-12   4.611e-17
15-150  3.331e-10   2.112e-12

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (-199.998      -199.998)
Norm        : 0.898179       (-0.898204     1.00315)
------------------------------------------------------------
# Chi-Squared =          85.70 using 59 PHA bins.
# Reduced chi-squared =          1.504 for     57 degrees of freedom
# Null hypothesis probability =   8.284367e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.145e-09   1.123e-09
25- 50  2.203e-09   1.916e-09
50-150  4.831e-09   4.040e-09
15-150  8.179e-09   7.383e-09

Double BB

R1^2/D10^2  : 1.95918E-04        (-8.31706e-07      -8.31706e-07)
kT2 [keV]   : 1.21793        (      )
R2^2/D10^2  : 1.37827E-05    (-3.57999e-06   -3.57999e-06)
------------------------------------------------------------
# Chi-Squared =          77.72 using 59 PHA bins.
# Chi-Squared =          77.59 using 59 PHA bins.
# Chi-Squared =          77.58 using 59 PHA bins.
# Reduced chi-squared =          1.413 for     55 degrees of freedom
# Reduced chi-squared =          1.411 for     55 degrees of freedom
# Reduced chi-squared =          1.411 for     55 degrees of freedom
# Null hypothesis probability =   2.354348e-02
# Null hypothesis probability =   2.408054e-02
# Null hypothesis probability =   2.413425e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  0.000e+00   0.000e+00
25- 50  0.000e+00   0.000e+00
50-150  0.000e+00   0.000e+00
15-150  0.000e+00   0.000e+00

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.883522     ( -1.45103   1.33614 )
Norm@50keV  : 1.60445E-03    ( -0.00160293   0.00239564 )
------------------------------------------------------------
# Chi-Squared =          77.61 using 59 PHA bins.
# Reduced chi-squared =          1.362 for     57 degrees of freedom
# Null hypothesis probability =   3.611194e-02

Photon flux (15-150 keV)    in 0.512 sec: 0.332758 ( -0.332758  0.210894 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.7068e-08 ( -2.7068e-08  1.3915e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -2.47966     (     )
Epeak [keV] : 262.711      ( -259.279 -259.279 )
Norm@50keV  : 3.34693E-03    ( -0.00345286   6.72271 )
------------------------------------------------------------
# Chi-Squared =          77.47 using 59 PHA bins.
# Reduced chi-squared =          1.383 for     56 degrees of freedom
# Null hypothesis probability =   3.030142e-02

Photon flux (15-150 keV)    in 0.512 sec: 0.340519 ( -0.340519  0.196536 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.17766e-07 ( -1.17766e-07  2.54729e-06 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 2.43024   ( -0.359819   -0.359819 )
beta        : -8.84369    ( -5.14162   0.609987 )
Epeak [keV] : 279.266      ( -169.303 -279.266 )
Norm@50keV   : 3.04872E-03    ( -0.00304872   745.438 )
------------------------------------------------------------
# Chi-Squared =          77.47 using 59 PHA bins.
# Reduced chi-squared =          1.409 for     55 degrees of freedom
# Null hypothesis probability =   2.460329e-02

Photon flux (15-150 keV)    in 0.512 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 9.84847e-10
S(50-100 keV) = 7.27496e-09

T90 vs. Hardness ratio plot

T90                                   = 0.51199996471405 sec.
Hardness ratio (energy fluence ratio) = 7.38689

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = -0.916153
Count Ratio (50-100 keV) / (15-25 keV) = 4.30364

Mask shadow pattern

IMX = -2.940763928484095E-01, IMY = 1.444299840819258E-01

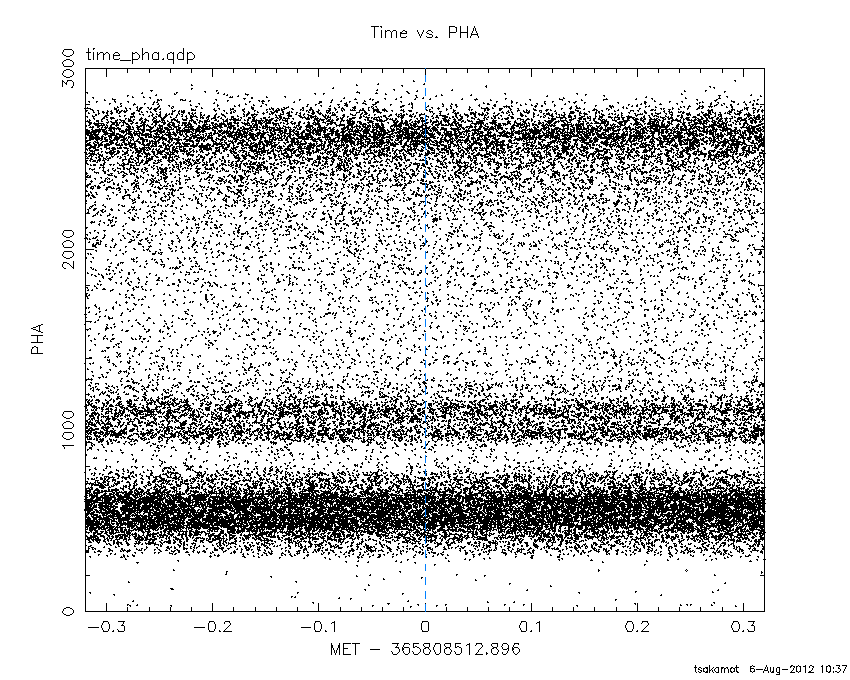

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

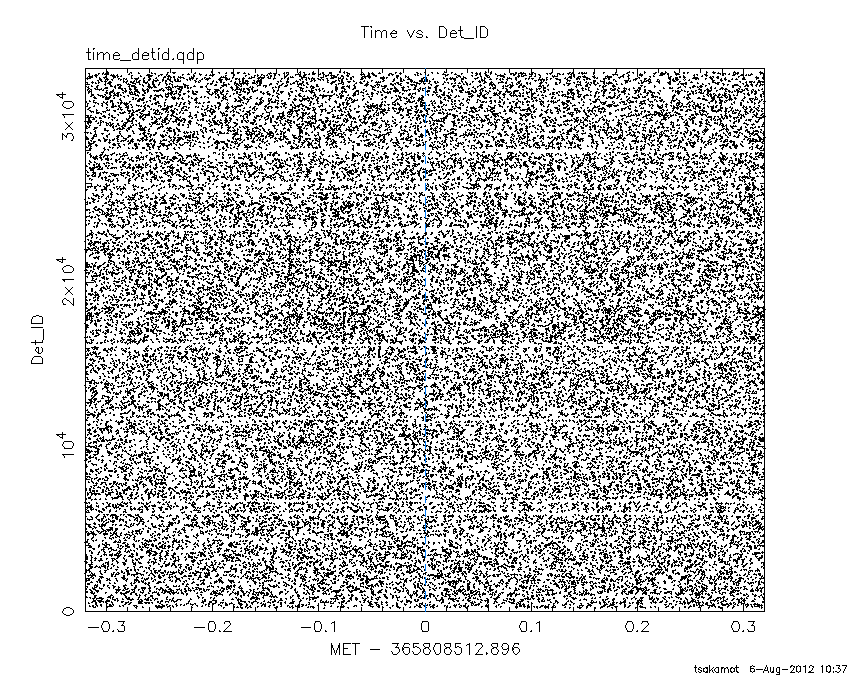

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

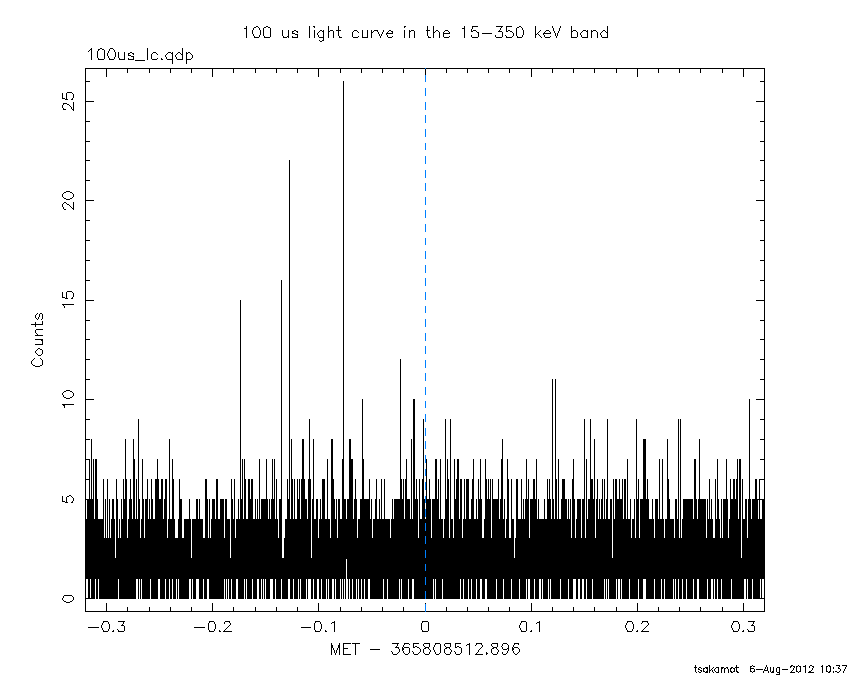

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.512000

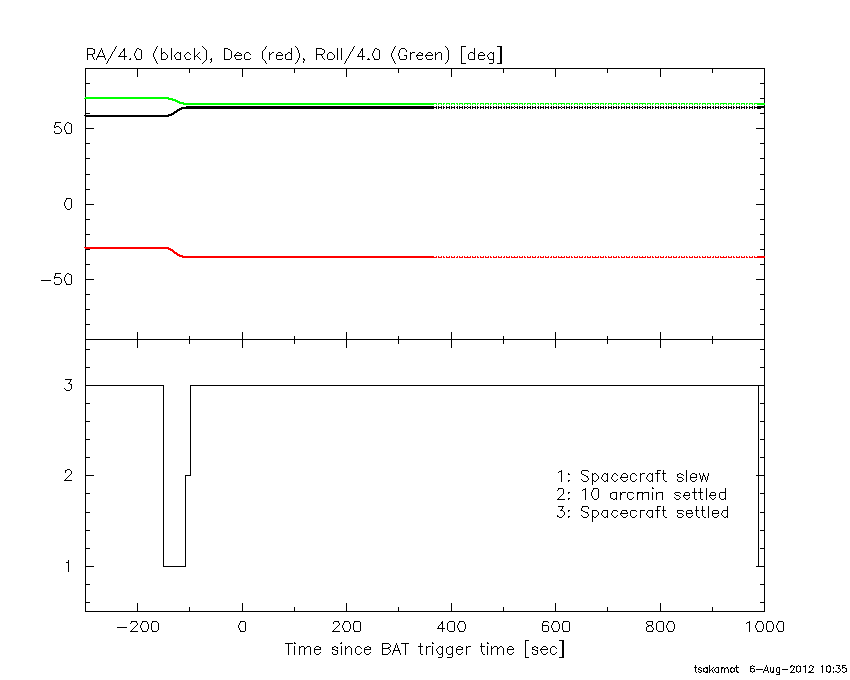

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-108.795410 -8.896000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
186.8172 -62.7754   12.5  50.1 -142.2   1.0373   0.9    4.4	GX 301-2
245.0054 -15.6642    1.2  21.8  -26.7   3.2526   9.7    2.1	Sco X-1
255.8973 -37.7920    5.2   2.8 -169.2   0.7231   2.2    5.3	4U 1700-377
256.2373 -36.2834    0.0   1.3 -172.9   0.4298   1.4   12.7	GX 349+2
262.8326 -24.6636   17.3  11.8   34.1  -0.2020  -0.7   10.8	GX 1+4
264.5481 -44.5182   10.5  11.4  152.8  -0.3381  -1.1    9.3	4U 1735-44
268.4873  -1.4011   32.4  35.5   25.1   0.1578   0.4    7.8	SW J1753.5-0127
270.4117 -25.2072   17.9  15.6   58.8  -0.2031  -0.6   10.3	GX 5-1
270.4201 -25.7242   11.5  15.3   60.2   0.3785   1.2    6.5	GRS 1758-258
274.1356 -14.1040    3.9  26.3   45.8   1.1477   3.0    8.6	GX 17+2
275.9860 -30.5016    7.6  17.1   84.1   0.5696   1.5    8.7	H1820-303
285.2433 -25.0028    0.0  26.8   79.9  -0.4368  -0.9   12.3	HT1900.1-2455
262.8453 -33.9973  463.3   5.5   85.1  -0.0072  -0.0   12.1	GX 354-0
297.1685 -27.2185    2.9  35.6   92.7   3.1681   4.0 ------	UNKNOWN
257.4557  20.2381    1.9  55.2    5.1   8.0640   6.0 ------	UNKNOWN
249.4148   9.3442    3.3  44.8   -5.9   1.7877   3.5 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.000000 0.512000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
186.8009 -62.6081  113.8  50.1 -142.0   0.0038   0.1   10.5	GX 301-2
245.1289 -15.5944   44.4  21.8  -26.4   0.0030   0.3    9.1	Sco X-1
255.9826 -37.9946    4.7   3.0 -171.0   0.0277   2.5    9.0	4U 1700-377
256.6214 -36.4141    3.9   1.4  174.4  -0.0335  -3.0    9.0	GX 349+2
263.0805 -24.8869    5.7  11.7   35.6  -0.0216  -2.0    9.3	GX 1+4
264.9235 -44.5269    5.7  11.6  151.8   0.0234   2.0    9.0	4U 1735-44
268.3732  -1.3065   18.6  35.5   24.9   0.0109   0.6    8.8	SW J1753.5-0127
270.1554 -25.2477    0.0  15.4   58.3  -0.0253  -2.2   12.3	GX 5-1
270.3623 -25.8818    3.7  15.1   60.6   0.0350   3.1    8.9	GRS 1758-258
274.0171 -13.9274    4.0  26.4   45.3  -0.0428  -2.9    6.6	GX 17+2
275.7210 -30.2865    5.2  17.0   83.1  -0.0276  -2.2   11.6	H1820-303
285.2313 -24.9721    6.7  26.8   79.8  -0.0289  -1.7   11.1	HT1900.1-2455
263.1342 -33.8924    4.6   5.7   84.6   0.0292   2.5    8.0	GX 354-0

Post-slew image of 15-350 keV band

Time interval of the image:

Plot creation:
Mon Aug  6 10:37:50 EDT 2012
