batgrbproduct analysis for trigger=530808

batgrbproduct Analysis for Trigger=530808

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Tue Aug 14 01:02:47 EDT 2012
             Host Name: gcn5
   Current Working Dir: /local/data/raid16/prebascript_archive/trigger530808/GCN5_download_cron
======================================================================

  Trigger: 00530808      Segment: 000

  BAT Trigger Time: 366542023.808   [s; MET]
      Trigger Stop: 366542025.856   [s; MET]
               UTC: 2012-08-13T09:13:34.275800    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 267.08831294264   Dec: -24.7715695901544  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    6.67
     Image Trigger?:     NO
     Rate S/N Ratio:     9.79795897113271  [ if not an image trigger ]
     Image S/N Ratio:    6.67

  Flight Position:   [ source = BAT ]
    RA: 267.08831294264   Dec: -24.7715695901544  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 267.047952156264   Dec: -24.7790110588198  [deg; J2000]
        { 17h 48m 11.5s , -24d 46' 44.4" }
         +/- 3.4226585851764 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.4215726898963 [arcmin] (formal 1-sigma fit error)
    SNR: 5.24495585652691

  Angular difference between Flight and Ground position is 2.243630 arcmin

  Partial Coding Fraction: 1.015625    [ including projection effects ]

  Duration
     T90: 7.04000002145767 +/- 3.24953658437378
        Measured from: -2.49599993228912
                   to: 4.54400008916855     [s; relative to TRIGTIME]
     T50: 2.36800003051758 +/- 3.02090845511165
        Measured from: -0.63999992609024
                   to: 1.72800010442734     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 0.555999994277954
                   to: 1.55599999427795     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -2.68800002336502
                   to: 4.79999995231628     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.125915   0.024968   0.006399   0.007824
           0.016000   0.013895   0.011863   0.010812 [error]
 Peak      0.042677  -0.000827   0.002049   0.001072
           0.006093   0.005107   0.004220   0.004023 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 3.70e-08 1.26e-08 2.43e-09 5.48e-10 5.24e-08 5.26e-08   erg/cm2
              Error 7.73e-09 7.35e-09 3.64e-09 1.73e-09 1.52e-08 1.57e-08   erg/cm2
Peak flux Power-law 3.67e-01 5.72e-02 4.11e-03 3.16e-04 4.28e-01 4.29e-01   ph/cm2/s
              Error 9.43e-02 3.95e-02 7.37e-03 1.24e-03 1.22e-01 1.22e-01   ph/cm2/s

Fluence   Cutoff-PL 3.70e-08 1.26e-08 2.41e-09 5.41e-10 5.26e-08 0.00e+00   erg/cm2
              Error 7.72e-09 1.03e-08 3.70e-09 1.70e-09 1.57e-08 0.00e+00   erg/cm2
Peak flux Cutoff-PL 4.36e-01 2.39e-02 1.85e-07 2.70e-20 4.60e-01 4.61e-01   ph/cm2/s
              Error 1.06e-01 2.26e-02 6.96e-05 0.00e+00 1.13e-01 1.13e-01   ph/cm2/s

Fluence        Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    4.378    1.053    -      -           2.38e-04 2.47e-04   69.780 57
CPL   1.732    0.000       1.9    0.0      4.75e-02 0.00e+00   70.990 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    4.796    1.212    -      -           3.37e-04 4.79e-04   55.560 57
CPL   1.000    0.000      50.0    0.0      5.93e-03 0.00e+00   82.790 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    7.488   -2.688    4.800
T90     7.040   -2.496    4.544
T50     2.368   -0.640    1.728
Peak    1.000    0.556    1.556

Click here for the BAT GCN circular template

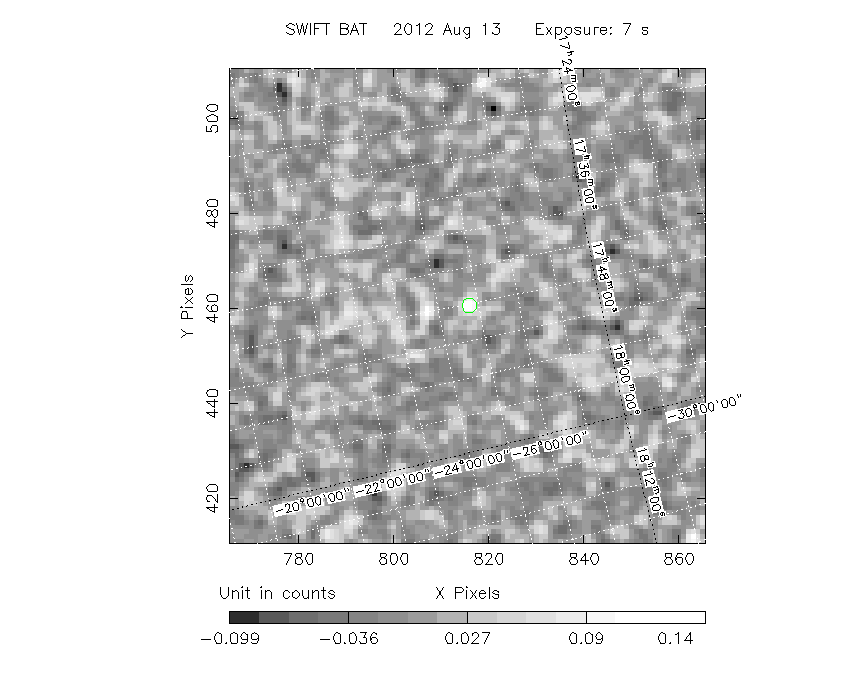

Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  267.0480 -24.7790 0.0368    7.9   14.1       0.1463     5.2  TRIG_00530808
------------------------------------------

Foreground time interval of the image:
 -2.688   4.800 (delta_t =   7.488 [sec])
Background time interval of the image:
-141.307  -2.688 (delta_t = 138.619 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

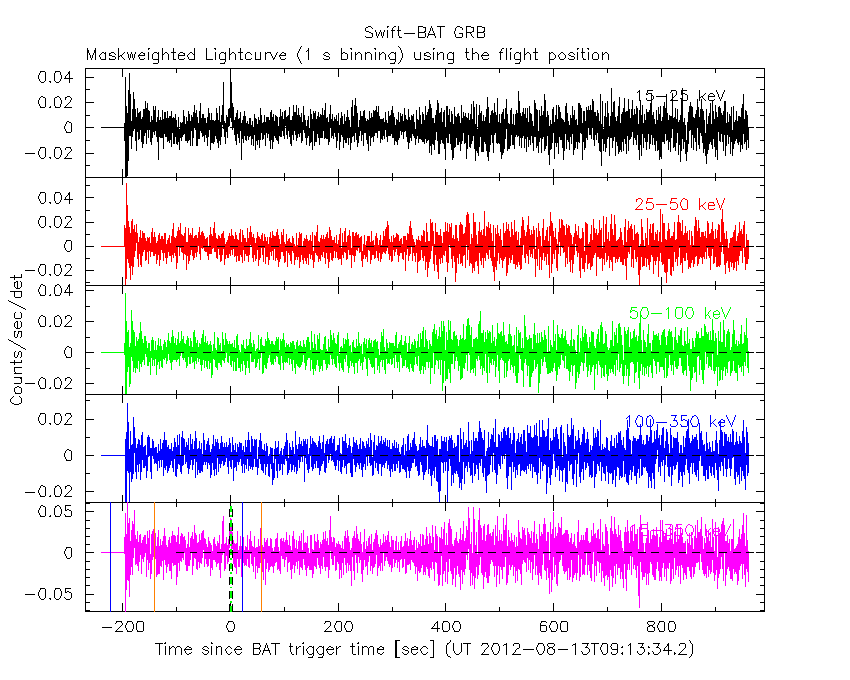

1 s binning

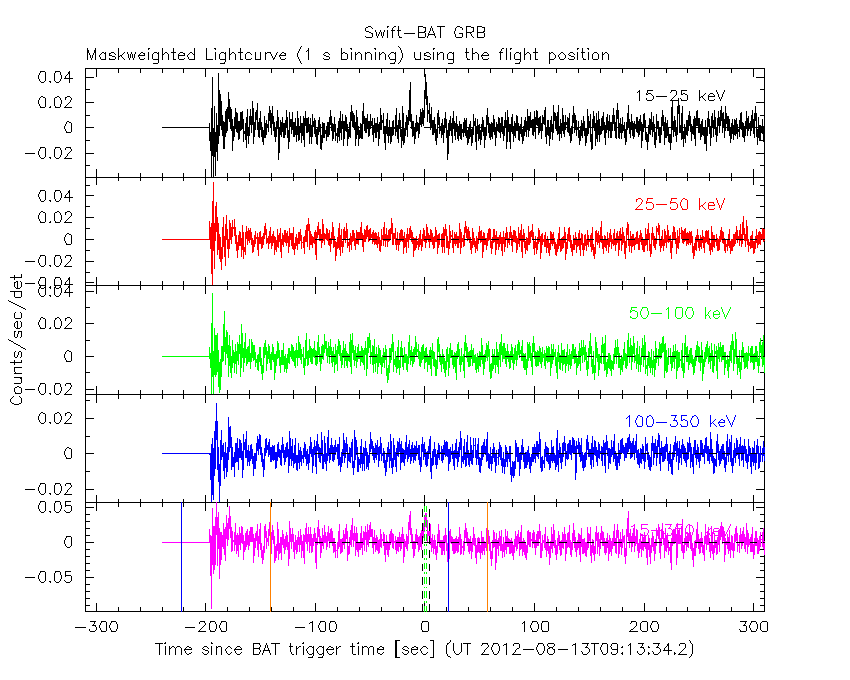

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

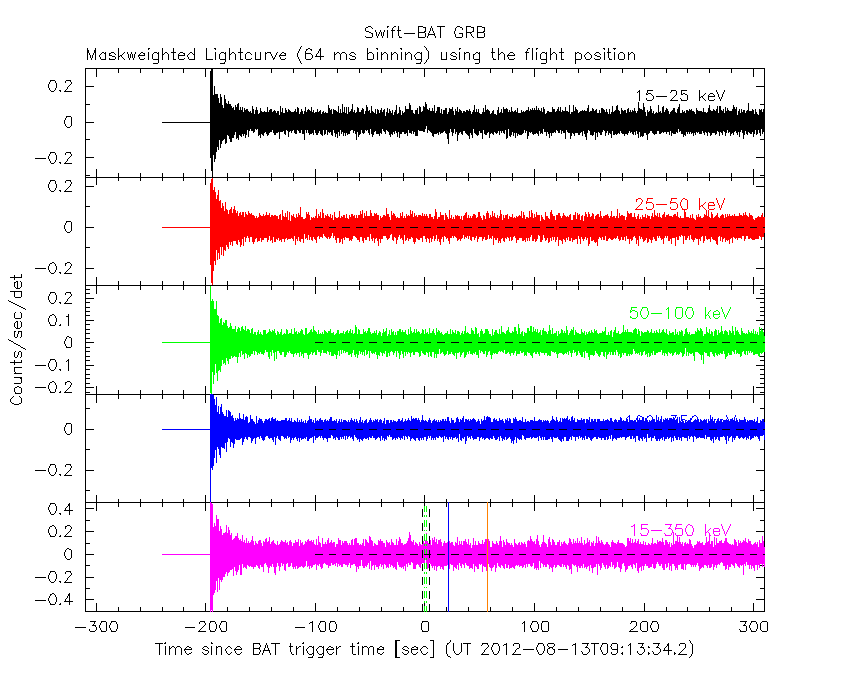

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

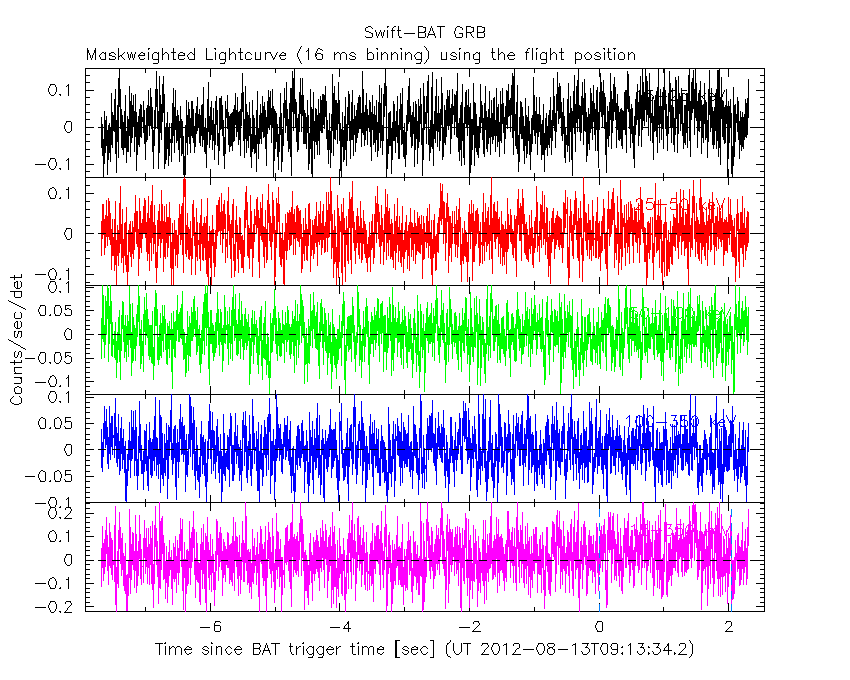

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

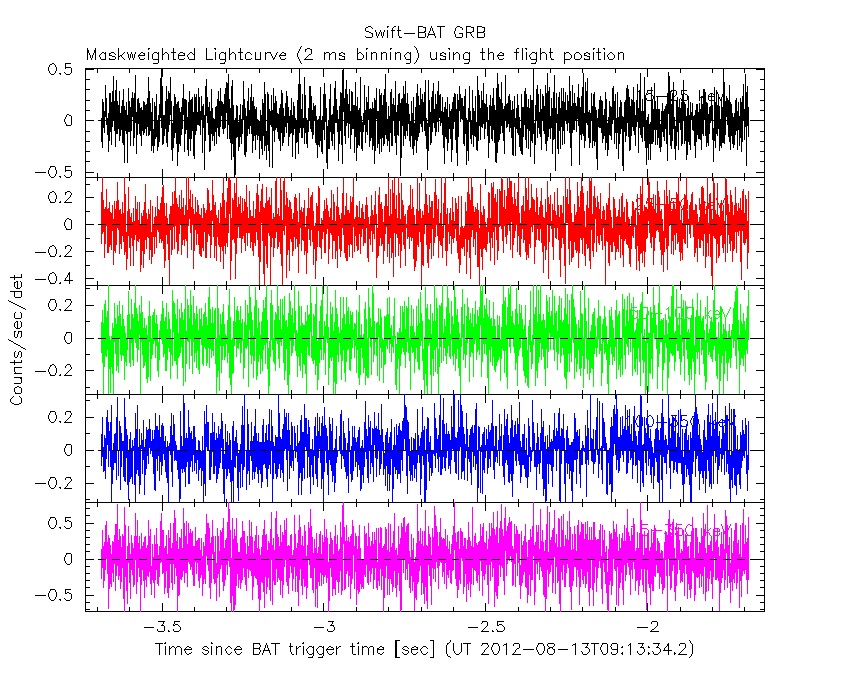

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

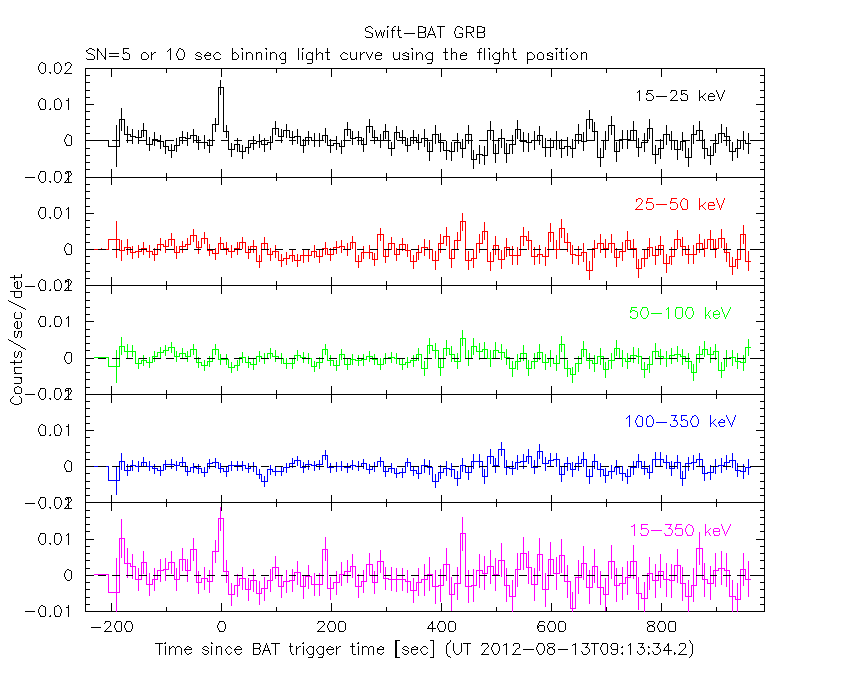

SN=5 or 10 sec. binning (whichever binning is satisfied first)

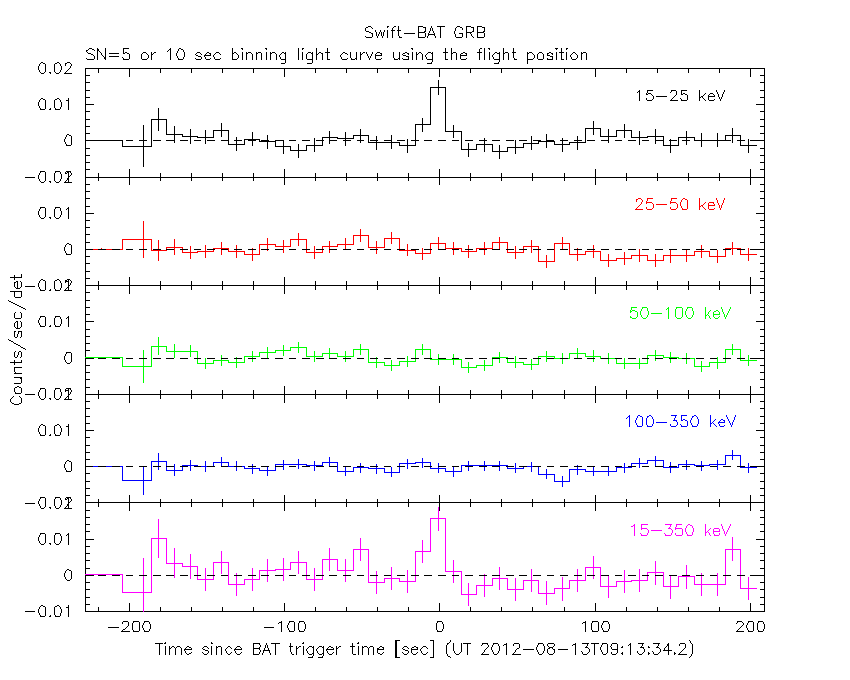

SN=5 or 10 sec. binning (T < 200 sec)

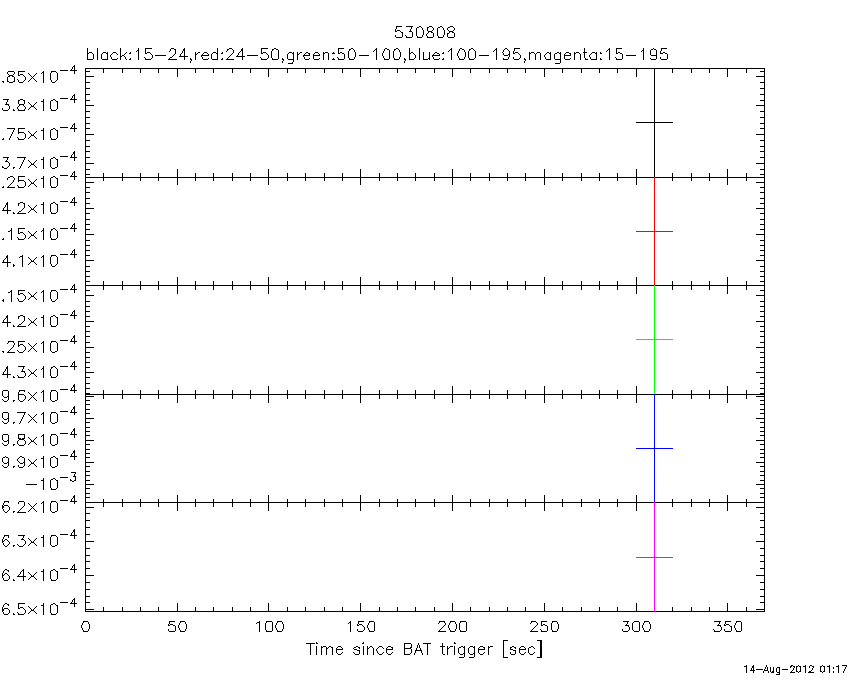

The mask-weighted light curves based on cleaned DPHs

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from   -2.688 sec. to    4.800 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.37838     ( -0.917783   1.1878 )
Norm@50keV  : 2.38157E-04    ( -0.000171317   0.000323681 )
------------------------------------------------------------
# Chi-Squared =          69.78 using 59 PHA bins.
# Reduced chi-squared =          1.224 for     57 degrees of freedom
# Null hypothesis probability =   1.192090e-01

Photon flux (15-150 keV)    in 7.488 sec: 0.205795 ( -0.0457715  0.0459796 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.24024e-08 ( -1.41349e-08  1.61943e-08 ) ergs/cm2

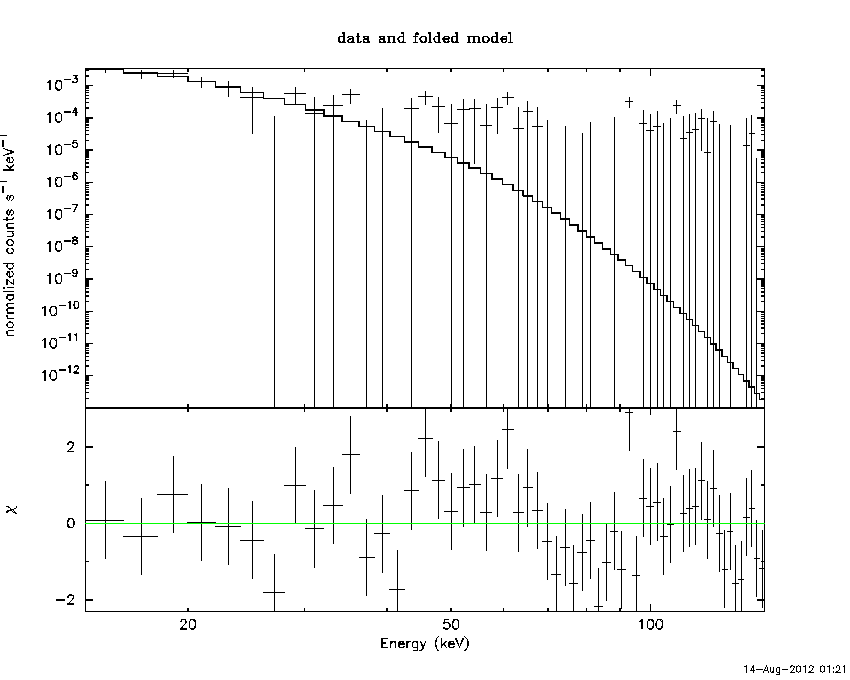

Cutoff power-law model

Time interval is from   -2.688 sec. to    4.800 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.73182     (     )
Epeak [keV] : 1.90318      (   )
Norm@50keV  : 4.74975E-02    (     )
------------------------------------------------------------
# Chi-Squared =          70.99 using 59 PHA bins.
# Reduced chi-squared =          1.268 for     56 degrees of freedom
# Null hypothesis probability =   8.554821e-02

Photon flux (15-150 keV)    in 7.488 sec: 0.205827 ( -0.04593  0.045725 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.25551e-08 ( -1.43239e-08  1.70419e-08 ) ergs/cm2

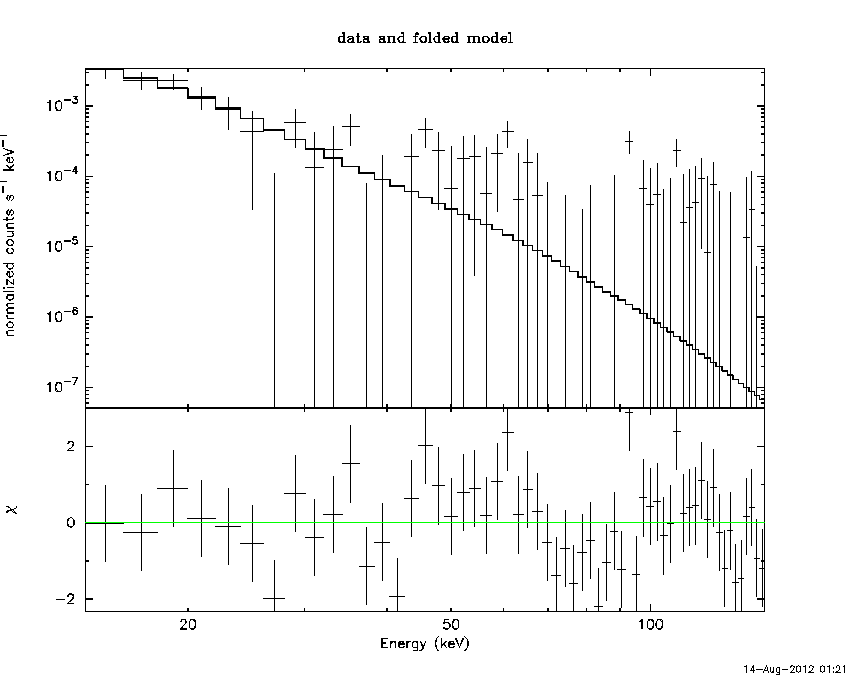

Band function

Time interval is from   -2.688 sec. to    4.800 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -9.01989   ( 0.600077   7.47323 )
beta        : -4.37918    ( -1.18665   0.917784 )
Epeak [keV] : 209.993      ( -209.993 -209.993 )
Norm@50keV   : 3.23430E-02    ( -0.0232847   0.0439938 )
------------------------------------------------------------
# Chi-Squared =          69.78 using 59 PHA bins.
# Reduced chi-squared =          1.269 for     55 degrees of freedom
# Null hypothesis probability =   8.661253e-02

Photon flux (15-150 keV)    in 7.488 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

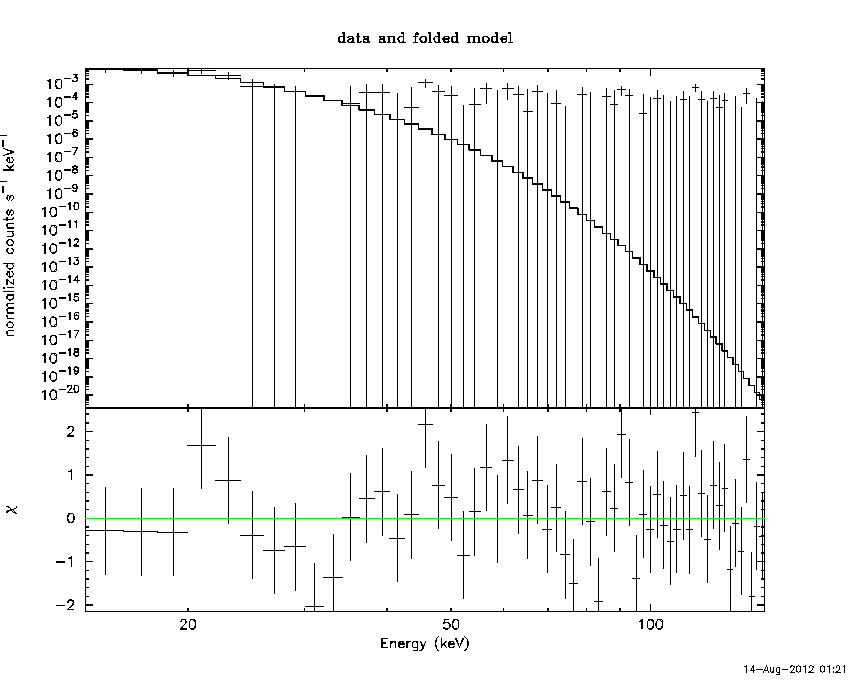

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.91442  (-0.597024  0.773491)
R^2/D10^2   : 33.5727  (-33.5739   123.684)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          71.47 using 59 PHA bins.
# Reduced chi-squared =          1.254 for     57 degrees of freedom
# Null hypothesis probability =   9.397542e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.918e-08   2.222e-08
25- 50  5.155e-09   3.278e-09
50-150  6.542e-12   7.619e-12
15-150  4.434e-08   2.545e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 6.29215       (-2.06468      4.02417)
Norm        : 21.5233       (-21.5238     57.8936)
------------------------------------------------------------
# Chi-Squared =          71.07 using 59 PHA bins.
# Reduced chi-squared =          1.247 for     57 degrees of freedom
# Null hypothesis probability =   9.964094e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.832e-08   2.133e-08
25- 50  7.818e-09   5.316e-09
50-150  1.147e-10   1.224e-10
15-150  4.625e-08   2.644e-08

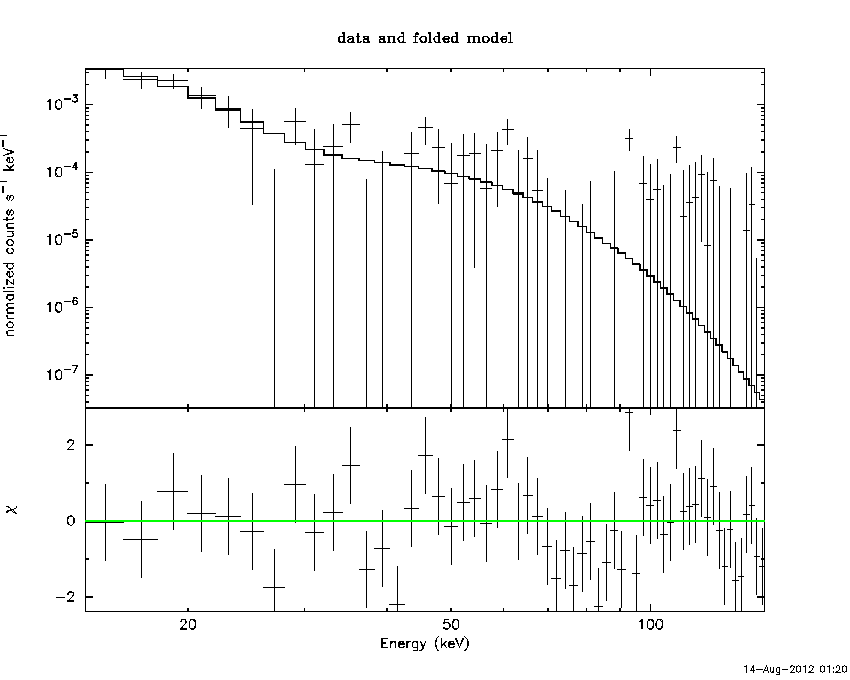

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.53792        (-0.642022      0.746212)
R1^2/D10^2  : 74.0362        (-59.3934      534.228)
kT2 [keV]   : 11.9549        (-5.97367      15.3942)
R2^2/D10^2  : 1.60945E-02    (-0.0154711   0.0847215)
------------------------------------------------------------
# Chi-Squared =          67.13 using 59 PHA bins.
# Reduced chi-squared =          1.221 for     55 degrees of freedom
# Null hypothesis probability =   1.264036e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.754e-08   2.052e-08
25- 50  1.406e-08   8.360e-09
50-150  9.782e-09   7.492e-09
15-150  6.138e-08   3.049e-08

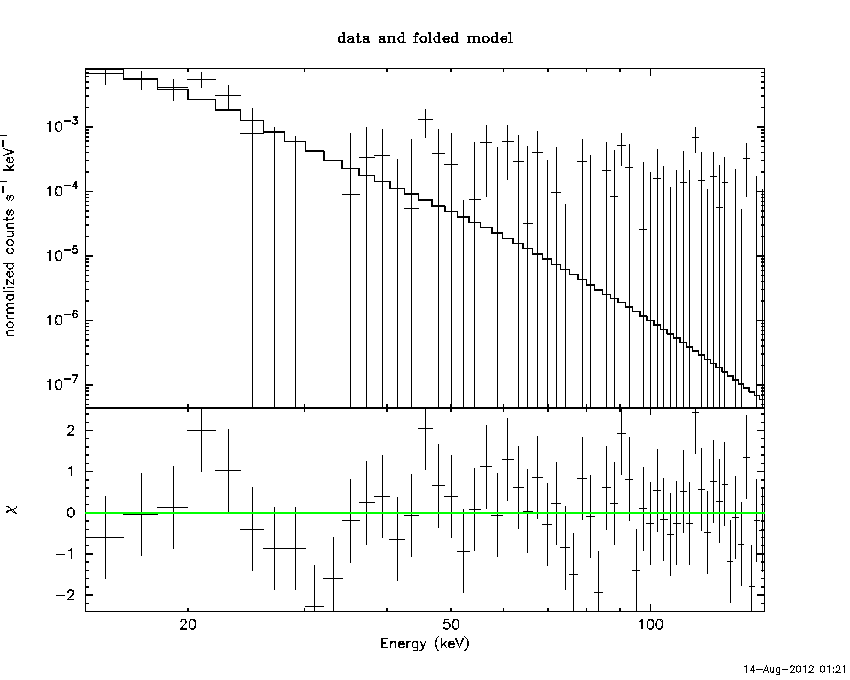

Peak spectrum fit

Power-law model

Time interval is from    0.556 sec. to    1.556 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.79639     ( -1.05192   1.37113 )
Norm@50keV  : 3.36762E-04    ( -0.000336628   0.000621925 )
------------------------------------------------------------
# Chi-Squared =          55.56 using 59 PHA bins.
# Reduced chi-squared =         0.9747 for     57 degrees of freedom
# Null hypothesis probability =   5.293495e-01

Photon flux (15-150 keV)    in 1 sec: 0.428428 ( -0.120626  0.122549 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.39559e-08 ( -4.50567e-09  5.15852e-09 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.556 sec. to    1.556 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 5.92820E-03    (     )
------------------------------------------------------------
# Chi-Squared =          82.79 using 59 PHA bins.
# Reduced chi-squared =          1.478 for     56 degrees of freedom
# Null hypothesis probability =   1.149525e-02

Photon flux (15-150 keV)    in 1 sec: 0.460349 ( -0.11286  0.113089 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.38276e-08 ( -3.4687e-09  3.4813e-09 ) ergs/cm2

Band function

Time interval is from    0.556 sec. to    1.556 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -8.54175   ( 3.28998   5.94609 )
beta        : -4.79658    ( -1.37088   1.05223 )
Epeak [keV] : 87.5189      ( -87.5189 -87.5189 )
Norm@50keV   : 4.57616E-02    ( -0.0457516   0.0845295 )
------------------------------------------------------------
# Chi-Squared =          55.56 using 59 PHA bins.
# Reduced chi-squared =          1.010 for     55 degrees of freedom
# Null hypothesis probability =   4.536108e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 2.89589  (-0.572585  0.675767)
R^2/D10^2   : 79.7479  (-80.2659   267.241)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          52.68 using 59 PHA bins.
# Reduced chi-squared =         0.9242 for     57 degrees of freedom
# Null hypothesis probability =   6.376807e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.193e-08   6.865e-09
25- 50  1.535e-09   9.625e-10
50-150  1.846e-12   2.126e-12
15-150  1.347e-08   7.690e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 5.66829       (-1.75076      2.83371)
Norm        : 64.9490       (-64.949     168.039)
------------------------------------------------------------
# Chi-Squared =          54.01 using 59 PHA bins.
# Reduced chi-squared =         0.9475 for     57 degrees of freedom
# Null hypothesis probability =   5.880134e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.135e-08   6.420e-09
25- 50  1.881e-09   1.223e-09
50-150  1.770e-11   2.177e-11
15-150  1.325e-08   7.595e-09

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 2.84934        (-0.587497      0.676817)
R1^2/D10^2  : 86.8701        (-87.352      318.133)
kT2 [keV]   : 27.4248        (-27.7587      -27.7587)
R2^2/D10^2  : 9.93828E-04    (-0.000976015   -0.000976015)
------------------------------------------------------------
# Chi-Squared =          51.95 using 59 PHA bins.
# Reduced chi-squared =         0.9446 for     55 degrees of freedom
# Null hypothesis probability =   5.918295e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.183e-08   6.645e-09
25- 50  2.152e-09   1.138e-09
50-150  4.007e-09   3.794e-09
15-150  1.799e-08   1.003e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 4.37838     ( -0.917783   1.1878 )
Norm@50keV  : 2.38157E-04    ( -0.000171317   0.000323681 )
------------------------------------------------------------
# Chi-Squared =          69.78 using 59 PHA bins.
# Reduced chi-squared =          1.224 for     57 degrees of freedom
# Null hypothesis probability =   1.192090e-01

Photon flux (15-150 keV)    in 7.488 sec: 0.205795 ( -0.0457715  0.0459796 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.24024e-08 ( -1.41349e-08  1.61943e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.73182     (     )
Epeak [keV] : 1.90318      (   )
Norm@50keV  : 4.74975E-02    (     )
------------------------------------------------------------
# Chi-Squared =          70.99 using 59 PHA bins.
# Reduced chi-squared =          1.268 for     56 degrees of freedom
# Null hypothesis probability =   8.554821e-02

Photon flux (15-150 keV)    in 7.488 sec: 0.205827 ( -0.04593  0.045725 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.25551e-08 ( -1.43239e-08  1.70419e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -9.01989   ( 0.600077   7.47323 )
beta        : -4.37918    ( -1.18665   0.917784 )
Epeak [keV] : 209.993      ( -209.993 -209.993 )
Norm@50keV   : 3.23430E-02    ( -0.0232847   0.0439938 )
------------------------------------------------------------
# Chi-Squared =          69.78 using 59 PHA bins.
# Reduced chi-squared =          1.269 for     55 degrees of freedom
# Null hypothesis probability =   8.661253e-02

Photon flux (15-150 keV)    in 7.488 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.26126e-08
S(50-100 keV) = 2.42569e-09

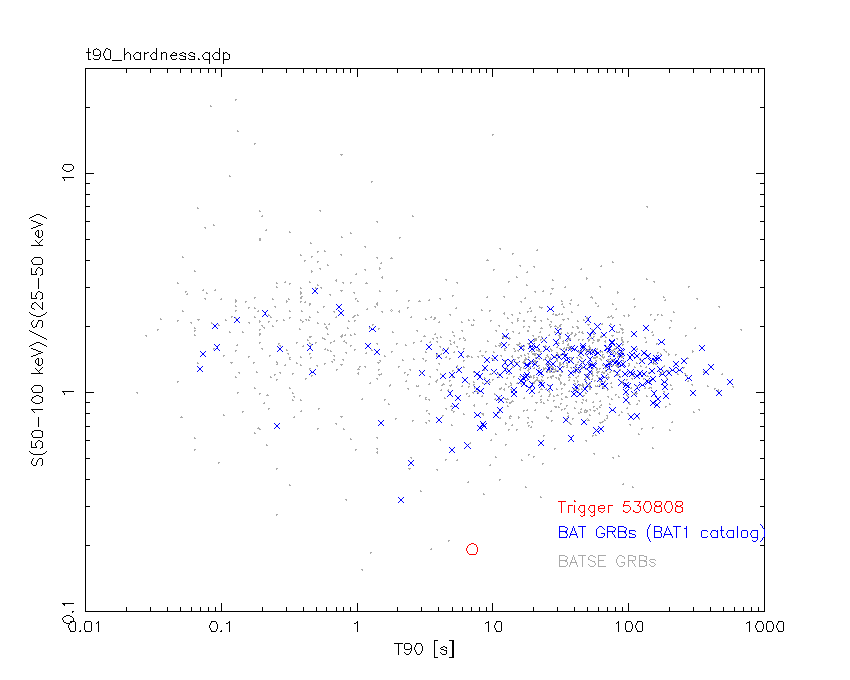

T90 vs. Hardness ratio plot

T90                                   = 7.04000002145767 sec.
Hardness ratio (energy fluence ratio) = 0.192323

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.198292
Count Ratio (50-100 keV) / (15-25 keV) = 0.05082

Mask shadow pattern

IMX = 1.338468436364867E-01, IMY = -3.368624593968897E-02

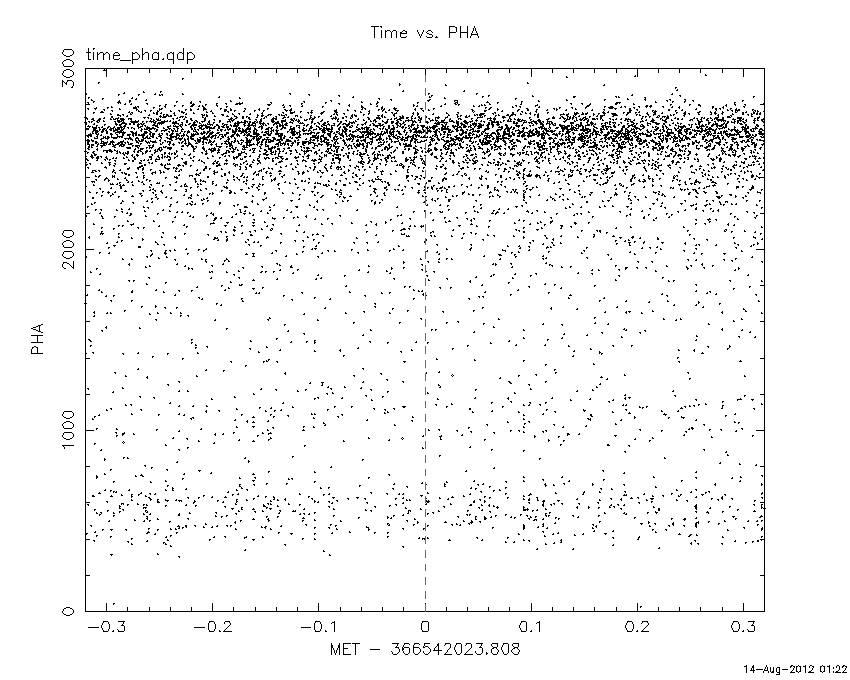

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

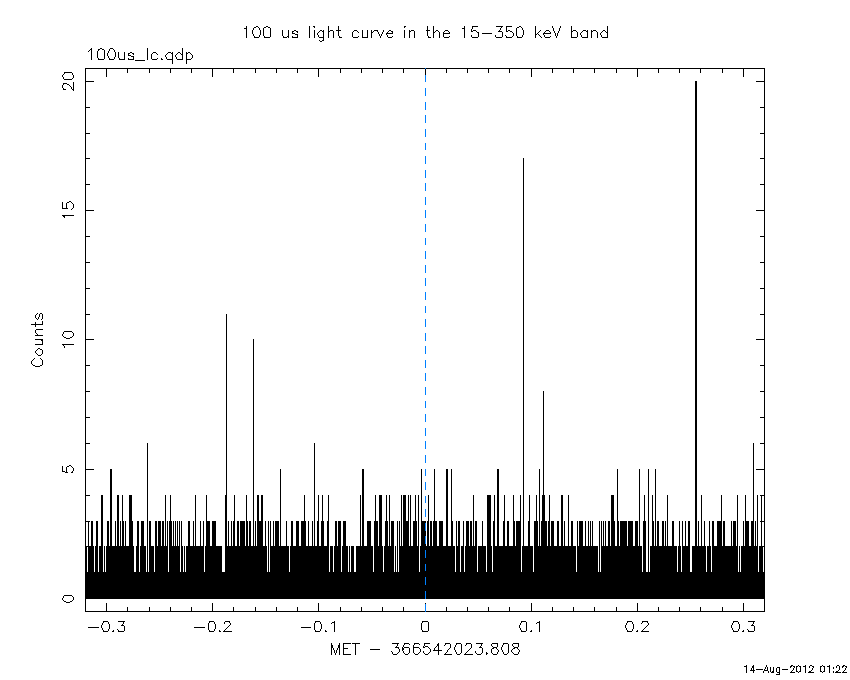

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

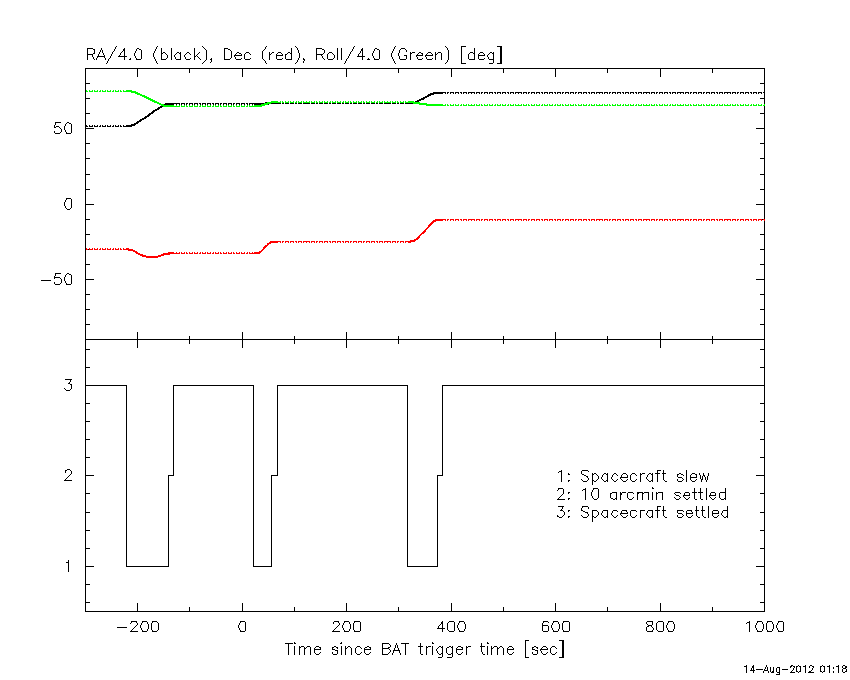

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-141.307400 -2.688000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0025 -15.6244    0.4  25.9  -43.1   5.0840  31.8    1.6	Sco X-1
255.8297 -37.9604    6.1  10.3 -113.2   0.2527   1.9   10.2	4U 1700-377
256.4482 -36.4832    2.8   9.2 -106.5   0.5330   4.0    3.7	GX 349+2
262.9051 -24.6093    4.5   8.6  -11.8   0.3534   2.6    9.9	GX 1+4
264.9008 -44.2790   11.3  11.7 -163.0   0.1331   1.0   12.3	4U 1735-44
268.3721  -1.3011    7.1  31.4   14.5   0.2807   1.6    9.1	SW J1753.5-0127
270.4824 -25.1921    0.0   8.2   36.7   0.1259   1.0   12.7	GX 5-1
270.1556 -25.8330    3.1   7.5   36.6   0.4894   3.8    9.6	GRS 1758-258
273.8201 -13.9252    0.0  19.8   32.2   0.2431   1.7   12.7	GX 17+2
275.8494 -30.2990    4.1   8.2   87.1   0.3644   2.8    5.7	H1820-303
285.2363 -24.9783    6.5  18.0   80.7   0.2705   1.8   11.4	HT1900.1-2455
288.9136  10.9205    3.7  48.5   40.9   1.9701   3.2    7.0	GRS 1915+105
262.8206 -33.8812   75.6   3.4 -101.7  -0.0217  -0.2    8.8	GX 354-0
328.5368 -46.6374    2.2  48.4  136.9   3.2732   5.4 ------	UNKNOWN
217.5863 -32.7025    3.3  40.9  -92.8   2.3533   3.5 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-2.688000 4.800000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9411 -15.4998    9.5  26.0  -43.0   0.0385   1.2    8.7	Sco X-1
255.9369 -37.7392    4.8  10.1 -112.4   0.0645   2.4    6.7	4U 1700-377
256.6389 -36.5572    0.0   9.1 -107.3  -0.0163  -0.6   12.7	GX 349+2
262.8347 -24.6957   17.2   8.6  -12.4   0.0185   0.7   10.0	GX 1+4
264.7776 -44.2940   11.9  11.8 -162.6   0.0277   1.0    9.5	4U 1735-44
268.2201  -1.3785    5.9  31.3   14.2  -0.0696  -2.0    9.9	SW J1753.5-0127
270.3367 -25.2217    8.8   8.1   35.9   0.0364   1.3    9.0	GX 5-1
270.4698 -25.8624   18.7   7.6   38.6  -0.0165  -0.6   11.5	GRS 1758-258
273.9018 -14.2097    0.0  19.6   32.7  -0.0412  -1.4   12.0	GX 17+2
275.9704 -30.2525    3.5   8.3   87.0  -0.0910  -3.3    7.3	H1820-303
284.9291 -24.8032   11.5  17.9   79.8   0.0337   1.0    9.1	HT1900.1-2455
288.9362  10.9529    7.0  48.5   41.0  -0.2030  -1.6    8.1	GRS 1915+105
263.1386 -33.6631    0.0   3.1  -99.6   0.0272   1.0   12.7	GX 354-0
271.8283  18.5903    2.2  51.5   17.4   0.5570   5.3 ------	UNKNOWN
263.8626  11.8163    2.3  44.5    7.3   0.2487   5.0 ------	UNKNOWN
280.2807 -56.1373    2.6  25.4  173.1   0.1351   4.4 ------	UNKNOWN
267.0480 -24.7791    2.2   7.9   14.1   0.1463   5.2 ------	UNKNOWN
261.7835 -10.3612    2.1  22.7   -1.3   0.1552   5.4 ------	UNKNOWN
217.8582 -31.4587    2.7  41.0  -90.9   0.5196   4.2 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
56.892600 315.692610

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9934 -15.6352    0.3  22.6  -70.3   9.2006  34.4    0.9	Sco X-1
256.0726 -37.8973    1.7  16.1 -147.0   1.3722   6.9    5.2	4U 1700-377
256.4186 -36.4087    3.3  14.8 -144.2   0.7082   3.5    1.2	GX 349+2
262.9365 -24.7184    3.9   3.8  -90.0   0.6205   3.0    4.3	GX 1+4
264.7585 -44.4069    3.6  19.7 -175.0   0.6986   3.2    2.7	4U 1735-44
268.2783  -1.4664    5.8  23.3    3.1   0.4200   2.0    5.4	SW J1753.5-0127
270.2822 -25.0289    6.9   2.9   96.0   0.3445   1.7    3.0	GX 5-1
270.1321 -25.5971    0.0   2.9  107.5  -0.1951  -1.0   12.7	GRS 1758-258
274.0670 -13.9117    2.7  12.7   32.6   0.8405   4.3    8.3	GX 17+2
276.1040 -30.4399   11.9   9.8  127.5   0.1900   1.0   10.2	H1820-303
285.1672 -25.0493    5.6  16.4   94.9   0.4769   2.1   10.5	HT1900.1-2455
288.7966  10.9461    1.2  41.5   33.3   4.2712   9.5    0.1	GRS 1915+105
262.8506 -33.7527   10.5   9.7 -158.6  -0.2239  -1.1    8.5	GX 354-0
291.9978  -1.8244    2.6  33.2   50.3   1.5549   4.4 ------	UNKNOWN
230.7332 -13.5830    2.4  36.0  -78.6   2.4982   4.8 ------	UNKNOWN
233.7182  15.8189    2.1  52.0  -42.1   5.8955   5.4 ------	UNKNOWN

Plot creation:
Tue Aug 14 01:22:52 EDT 2012
