batgrbproduct analysis for trigger=531428

batgrbproduct Analysis for Trigger=531428

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Thu Jun 11 22:39:55 EDT 2015
             Host Name: bat1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger531428
======================================================================

  Trigger: 00531428      Segment: 000

  BAT Trigger Time: 367074624   [s; MET]
      Trigger Stop: 367074696   [s; MET]
               UTC: 2012-08-19T13:10:14.445520    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 235.887635135529   Dec: -7.30488686709695  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.61
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    7.61

  Flight Position:   [ source = BAT ]
    RA: 235.887635135529   Dec: -7.30488686709695  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 235.879923719611   Dec: -7.29881705637643  [deg; J2000]
        { 15h 43m 31.2s , -07d 17' 55.7" }
         +/- 2.23634410683237 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.28343333246984 [arcmin] (formal 1-sigma fit error)
    SNR: 9.63335313855334

  Angular difference between Flight and Ground position is 0.585878 arcmin

  Partial Coding Fraction: 0.3085938    [ including projection effects ]

  Duration
     T90: 71.0199999809265 +/- 17.3326166382544
        Measured from: 5.66399997472763
                   to: 76.6839999556541     [s; relative to TRIGTIME]
     T50: 27.755999982357 +/- 15.0192393376962
        Measured from: 14.8799999952316
                   to: 42.6359999775887     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 6.19599997997284
                   to: 7.19599997997284     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 4.4200000166893
                   to: 83.0120000243187     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.428290   0.795839   0.595127   0.226233
           0.107100   0.096783   0.082591   0.074119 [error]
 Peak      0.020453   0.021202   0.041349   0.022462
           0.012478   0.011545   0.010346   0.009223 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.84e-07 3.43e-07 4.93e-07 1.50e-06 1.40e-06 2.52e-06   erg/cm2
              Error 4.36e-08 4.95e-08 8.09e-08 5.37e-07 2.00e-07 5.92e-07   erg/cm2
Peak flux Power-law 1.38e-01 2.14e-01 2.48e-01 5.53e-01 7.63e-01 1.15e+00   ph/cm2/s
              Error 1.20e-01 1.12e-01 7.95e-02 4.35e-01 2.81e-01 4.18e-01   ph/cm2/s

Fluence   Cutoff-PL 1.56e-07 3.75e-07 5.14e-07 4.39e-07 1.30e-06 1.48e-06   erg/cm2
              Error 5.33e-08 6.38e-08 9.26e-08 8.36e-07 2.35e-07 8.19e-07   erg/cm2
Peak flux Cutoff-PL 1.18e-01 2.09e-01 2.58e-01 4.27e-01 7.44e-01 1.01e+00   ph/cm2/s
              Error 1.40e-01 1.64e-01 1.05e-01 4.23e-01 3.06e-01 5.44e-01   ph/cm2/s

Fluence        Band 1.41e-07 3.91e-07 4.92e-07 8.46e-07 1.31e-06 1.87e-06   erg/cm2
              Error -------- 6.92e-08 9.43e-08 -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.478    0.229    -      -           1.88e-03 2.49e-04   48.720 57
CPL   0.511    1.256      76.1  -27.4      5.76e-03 1.56e-02   46.370 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.785    0.687    -      -           6.63e-03 2.59e-03   61.230 57
CPL   0.419    2.395     301.9    0.0      8.88e-03 3.27e-01   61.180 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 40.384000 sec.
T50 in the 50-300 keV band: 20.608000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   78.592    4.420   83.012
T90    71.020    5.664   76.684
T50    27.756   14.880   42.636
Peak    1.000    6.196    7.196

Click here for the BAT GCN circular template

Special notes of this burst


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  235.8799    -7.2988   0.0200    36.0466   -63.6585         2.0262079      9.633 TRIG_00531428

Foreground time interval of the image:
  4.420  82.701 (delta_t =  78.281 [sec])
Background time interval of the image:
-239.000   4.420 (delta_t = 243.420 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 72.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 72.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 72.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from    4.420 sec. to   83.012 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.47808     ( -0.229509   0.227962 )
Norm@50keV  : 1.87516E-03    ( -0.000248916   0.000248097 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.72 using 59 PHA bins.
# Reduced chi-squared =         0.8548 for     57 degrees of freedom
# Null hypothesis probability =   7.742381e-01

Photon flux (15-150 keV)    in 78.59 sec: 0.232739 ( -0.0321597  0.03235 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.40319e-06 ( -1.98579e-07  2.00485e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from    4.420 sec. to   83.012 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.510612     ( -1.47286   1.03929 )
Epeak [keV] : 76.1070      ( -21.3349 -76.0969 )
Norm@50keV  : 5.76153E-03    ( -0.00576376   0.0255084 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.37 using 59 PHA bins.
# Reduced chi-squared =         0.8281 for     56 degrees of freedom
# Null hypothesis probability =   8.169389e-01

Photon flux (15-150 keV)    in 78.59 sec: 0.221565 ( -0.034862  0.034729 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.29629e-06 ( -2.34096e-07  2.35456e-07 ) ergs/cm2

Band function

Time interval is from    4.420 sec. to   83.012 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 9.86235E-02   ( -1.34019   4.06019 )
beta        : -2.05286    ( 2.054   0.599764 )
Epeak [keV] : 59.6879      ( -32.4682 79.8258 )
Norm@50keV   : 1.29036E-02    ( -0.0142715   22.3543 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.13 using 59 PHA bins.
# Reduced chi-squared =         0.8205 for     55 degrees of freedom
# Null hypothesis probability =   8.263571e-01

Photon flux (15-150 keV)    in 78.59 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.30795e-06 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 14.6995  (-2.02273  2.49649)
R^2/D10^2   : 2.87787E-02  (-0.0124585   0.0204625)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.98 using 59 PHA bins.
# Reduced chi-squared =         0.8944 for     57 degrees of freedom
# Null hypothesis probability =   6.991173e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.026e-07   2.675e-08
25- 50  4.002e-07   7.619e-08
50-150  5.831e-07   1.655e-07
15-150  1.086e-06   1.914e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (-81.5119      -199.363)
Norm        : 0.961714       (-0.126004     0.126256)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.71 using 59 PHA bins.
# Reduced chi-squared =         0.8369 for     57 degrees of freedom
# Null hypothesis probability =   8.049867e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.882e-07   1.059e-07
25- 50  3.620e-07   1.991e-07
50-150  7.940e-07   4.393e-07
15-150  1.344e-06   7.395e-07

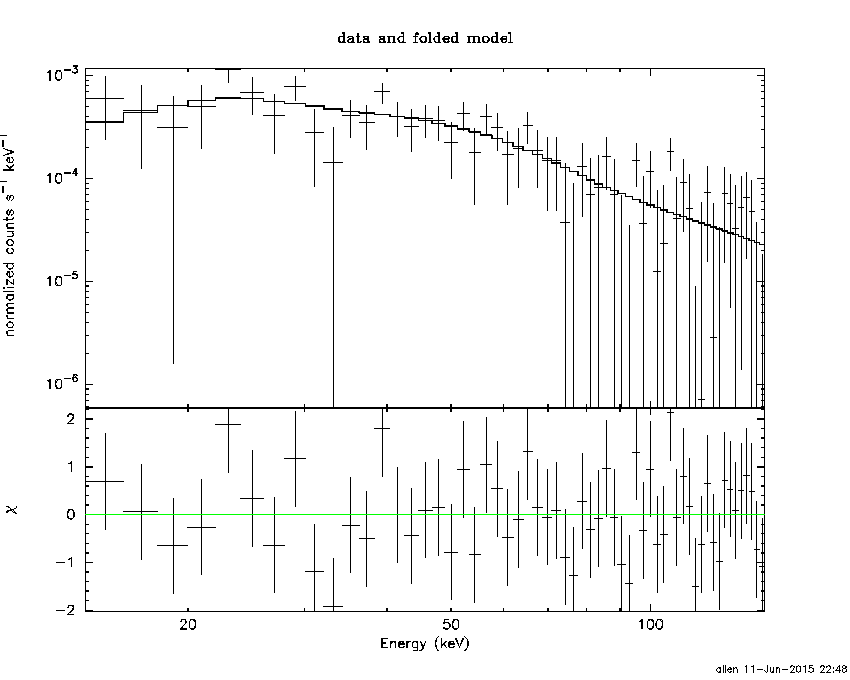

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 12.1111        (-1.90687      2.39665)
R1^2/D10^2  : 5.05895E-02        (-0.0233321      0.0872605)
kT2 [keV]   : 198.246        (-198.338      -198.339)
R2^2/D10^2  : 2.05746E-05    (-1.27287e-05   0.00122026)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.15 using 59 PHA bins.
# Reduced chi-squared =         0.8027 for     55 degrees of freedom
# Null hypothesis probability =   8.524008e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.255e-07   4.938e-08
25- 50  4.101e-07   1.884e-07
50-150  7.734e-07   2.457e-07
15-150  1.309e-06   3.980e-07

Peak spectrum fit

Power-law model

Time interval is from    6.196 sec. to    7.196 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.785376     ( -0.75154   0.621917 )
Norm@50keV  : 6.63171E-03    ( -0.00270321   0.0024707 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.23 using 59 PHA bins.
# Reduced chi-squared =          1.074 for     57 degrees of freedom
# Null hypothesis probability =   3.268856e-01

Photon flux (15-150 keV)    in 1 sec: 0.762588 ( -0.274281  0.287476 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.79759e-08 ( -2.53936e-08  2.55015e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    6.196 sec. to    7.196 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.419020     ( -5.20913   -0.418638 )
Epeak [keV] : 301.924      ( -301.708 -301.708 )
Norm@50keV  : 8.87883E-03    ( -0.00478269   0.648422 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.18 using 59 PHA bins.
# Reduced chi-squared =          1.092 for     56 degrees of freedom
# Null hypothesis probability =   2.954968e-01

Photon flux (15-150 keV)    in 1 sec: 0.744157 ( -0.310505  0.300833 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.74765e-08 ( -2.63333e-08  2.57715e-08 ) ergs/cm2

Band function

Time interval is from    6.196 sec. to    7.196 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.787761   ( 0.787881   0.787881 )
beta        : -0.785374    ( -0.621608   0.751582 )
Epeak [keV] : 15.1896      ( -15.1892 -15.1892 )
Norm@50keV   : 9.81466E-03    ( -0.00557903   193702 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.23 using 59 PHA bins.
# Reduced chi-squared =          1.113 for     55 degrees of freedom
# Null hypothesis probability =   2.625082e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 30.0539  (-10.3884  27.3863)
R^2/D10^2   : 1.12452E-02  (-0.0112452   0.0299914)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.65 using 59 PHA bins.
# Reduced chi-squared =          1.082 for     57 degrees of freedom
# Null hypothesis probability =   3.134321e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.587e-09   1.055e-09
25- 50  9.798e-09   6.050e-09
50-150  6.247e-08   3.759e-08
15-150  7.386e-08   4.586e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 3.36199       (-1.18367     1.18336)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.71 using 59 PHA bins.
# Reduced chi-squared =          1.153 for     57 degrees of freedom
# Null hypothesis probability =   2.006535e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.382e-09   5.225e-09
25- 50  1.612e-08   1.008e-08
50-150  3.536e-08   2.193e-08
15-150  5.987e-08   3.715e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.01667        (-4.82125      55.8745)
R1^2/D10^2  : 1.78175        (-1.92751      31.0864)
kT2 [keV]   : 34.2472        (-13.0035      -34.2466)
R2^2/D10^2  : 7.37257E-03    (-0.00736107   0.0220563)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.38 using 59 PHA bins.
# Reduced chi-squared =          1.098 for     55 degrees of freedom
# Null hypothesis probability =   2.875231e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.634e-09   3.655e-09
25- 50  1.095e-08   5.595e-09
50-150  6.280e-08   3.682e-08
15-150  7.939e-08   4.264e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.48704     ( -0.228022   0.226857 )
Norm@50keV  : 1.88176E-03    ( -0.000249198   0.000248758 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.28 using 59 PHA bins.
# Reduced chi-squared =         0.8646 for     57 degrees of freedom
# Null hypothesis probability =   7.565760e-01

Photon flux (15-150 keV)    in 78.28 sec: 0.234109 ( -0.0322505  0.0324388 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.40039e-06 ( -1.97896e-07  1.99864e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.413013     ( -1.51374   1.0811 )
Epeak [keV] : 72.9002      ( -18.9134 925.412 )
Norm@50keV  : 6.54301E-03    ( -0.00654452   0.0305808 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.46 using 59 PHA bins.
# Reduced chi-squared =         0.8296 for     56 degrees of freedom
# Null hypothesis probability =   8.144988e-01

Photon flux (15-150 keV)    in 78.28 sec: 0.221636 ( -0.035036  0.034935 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.28354e-06 ( -2.31904e-07  2.34824e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.131167   ( -1.27792   -0.155073 )
beta        : -2.12981    ( 2.12922   0.634729 )
Epeak [keV] : 59.8092      ( -30.9637 76.1703 )
Norm@50keV   : 1.34063E-02    ( -0.014801   22.2619 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.29 using 59 PHA bins.
# Reduced chi-squared =         0.8235 for     55 degrees of freedom
# Null hypothesis probability =   8.217527e-01

Photon flux (15-150 keV)    in 78.28 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.2982e-06 ( -1.29766e-06  -2.20069e-07 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 3.43e-07
S(50-100 keV) = 4.93e-07

T90 vs. Hardness ratio plot

T90                                   = 71.0199999809265 sec.
Hardness ratio (energy fluence ratio) = 1.43732

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.85818
Count Ratio (50-100 keV) / (15-25 keV) = 1.38954

Mask shadow pattern

IMX = 3.229335019026143E-01, IMY = 6.522179006549594E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 72.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 72.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 72.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.000000 4.420000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9919 -15.6350    0.4  24.8  -73.2   9.8777  32.5    0.8	Sco X-1
254.3758  35.2345    5.8  57.6   -5.5   2.6508   2.0    7.6	Her X-1
255.9831 -37.8446    0.3  21.7 -137.0  10.0332  41.0    0.2	4U 1700-377
256.2726 -36.2811   36.4  20.4 -134.7   0.0747   0.3   11.6	GX 349+2
263.0478 -24.7931   11.7   8.3 -114.0   0.2276   1.0    3.6	GX 1+4
264.9683 -44.5840    0.0  24.8 -160.1   0.1218   0.5   12.6	4U 1735-44
268.3804  -1.5138    4.1  18.9    3.3   0.6556   2.8    3.7	SW J1753.5-0127
270.2865 -25.0413    2.4   4.8 -166.0   1.0366   4.7    2.3	GX 5-1
270.2052 -25.7159    7.9   5.5 -165.7   0.3212   1.5    5.5	GRS 1758-258
273.9080 -14.0526    3.7   7.0   37.5   0.7172   3.2    5.8	GX 17+2
275.8761 -30.2496    6.7  11.0  165.9   0.3857   1.7    7.5	H1820-303
284.9699 -25.0891    7.9  14.1  122.9   0.3344   1.5   10.7	HT1900.1-2455
288.8131  10.9489    1.3  36.0   41.7   3.9474   8.7    0.9	GRS 1915+105
263.1889 -33.9669    0.0  15.2 -145.6   0.2957   1.4   12.7	GX 354-0

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
4.420000 82.700600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.1329 -15.5553    5.9  24.7  -72.9  -0.2755  -2.0   10.2	Sco X-1
254.4616  35.4128    3.6  57.8   -5.3   1.9908   3.2    4.2	Her X-1
256.0193 -37.9116    2.5  21.7 -137.2   0.5192   4.6    4.3	4U 1700-377
256.4486 -36.4203    4.6  20.4 -135.2   0.2827   2.5    0.7	GX 349+2
263.1650 -24.6753    4.4   8.2 -113.7   0.2855   2.6    9.5	GX 1+4
264.9683 -44.5840    0.0  24.8 -160.1  -0.2232  -1.9   12.6	4U 1735-44
268.2442  -1.5683   43.8  18.8    2.8  -0.0285  -0.3   10.2	SW J1753.5-0127
270.4105 -25.0334   11.8   4.8 -167.4  -0.1089  -1.0    7.4	GX 5-1
270.4953 -25.8644    0.0   5.6 -168.5   0.0489   0.4   12.7	GRS 1758-258
273.9409 -14.2010    5.3   6.8   38.3  -0.2215  -2.2   10.6	GX 17+2
276.1006 -30.3707    5.5  11.2  165.3  -0.2180  -2.1    9.1	H1820-303
285.1839 -24.8468    4.6  14.2  121.8   0.2760   2.5    9.2	HT1900.1-2455
288.8812  10.8548    3.6  35.9   41.9   0.6059   3.3    7.3	GRS 1915+105
262.7931 -33.7233    7.3  15.1 -144.0  -0.1711  -1.6   11.8	GX 354-0
259.9685 -30.3088    2.6  13.9 -128.1   0.4902   4.5 ------	UNKNOWN
235.8799  -7.2988    1.2  36.0  -63.7   2.0269   9.6 ------	UNKNOWN
237.1587  23.6038    3.0  54.7  -28.0   1.7362   3.9 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
140.300620 317.700640

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9802 -15.6356    0.3  12.2  121.3   7.0229  41.3    0.3	Sco X-1
254.4362  35.3569    2.2  46.1    8.4   1.8784   5.2    1.4	Her X-1
255.9744 -37.8582    0.6  35.5  139.6   6.2465  19.4    1.0	4U 1700-377
256.6068 -36.3633    4.4  34.7  137.3   0.8321   2.6    9.0	GX 349+2
262.9938 -24.6152    7.3  31.1  114.2   0.4785   1.6    7.9	GX 1+4
264.6891 -44.5252    5.5  44.8  138.2   1.3530   2.1    5.1	4U 1735-44
268.4622  -1.3461    4.7  33.0   68.5   0.8074   2.4    8.5	SW J1753.5-0127
270.2484 -24.9569    6.2  37.2  109.7   0.8310   1.9    7.6	GX 5-1
270.4801 -25.6320   11.4  37.7  110.5  -0.4780  -1.0   11.7	GRS 1758-258
274.0056 -14.0362  609.1  38.0   90.8  -0.0117  -0.0    0.0	GX 17+2
263.1493 -33.8896   19.2  36.6  127.8  -0.2388  -0.6    8.6	GX 354-0
272.0099 -27.5569    2.7  39.7  112.5   2.6250   4.3 ------	UNKNOWN
243.4426  50.5060    2.3  58.2   -7.0   4.6057   5.0 ------	UNKNOWN
190.4369 -50.5870    3.9  57.3 -160.1   2.9897   3.0 ------	UNKNOWN
195.8653   1.1322    3.1  40.8  -92.4   3.3326   3.7 ------	UNKNOWN

Plot creation:
Thu Jun 11 22:48:59 EDT 2015
