Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Mon Sep 10 14:49:39 EDT 2012
             Host Name: gcn5
   Current Working Dir: /local/data/raid16/prebascript_archive/trigger533120/GCN5_download_cron
======================================================================

  Trigger: 00533120      Segment: 000

  BAT Trigger Time: 368926464   [s; MET]
      Trigger Stop: 368926784   [s; MET]
               UTC: 2012-09-09T23:34:14.367740    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 264.819323552384   Dec: -30.4048040183987  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    5.81
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    5.81

  Flight Position:   [ source = BAT ]
    RA: 264.819323552384   Dec: -30.4048040183987  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 264.768813426127   Dec: -30.3930384224268  [deg; J2000]
        { 17h 39m 04.5s , -30d 23' 34.9" }
         +/- 3.82388222277554 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.57972714376363 [arcmin] (formal 1-sigma fit error)
    SNR: 4.4768143383062

  Angular difference between Flight and Ground position is 2.707615 arcmin

  Partial Coding Fraction: 1.015625    [ including projection effects ]

  Duration
     T90: 320 +/-
        Measured from: 0
                   to: 320     [s; relative to TRIGTIME]
     T50: 320 +/-
        Measured from: 0
                   to: 320     [s; relative to TRIGTIME]

    WARNING: battblocks failed.  Used TDRSS fore/background intervals

  Fluence
     Peak Flux  (peak 320 second)
        Measured from: 0
                   to: 320     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 0
                   to: 320     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.600077   0.388405   0.145527   0.014773
           0.107941   0.098744   0.085245   0.078834 [error]
 Peak      0.600077   0.388405   0.145527   0.014773
           0.107941   0.098744   0.085245   0.078834 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.33e-07 1.45e-07 1.13e-07 1.45e-07 4.46e-07 5.36e-07   erg/cm2
              Error 4.43e-08 4.54e-08 6.67e-08 1.90e-07 1.59e-07 2.65e-07   erg/cm2
Peak flux Power-law 1.37e-02 8.34e-03 3.25e-03 1.69e-03 2.62e-02 2.70e-02   ph/cm2/s
              Error 4.67e-03 2.53e-03 1.85e-03 2.09e-03 7.25e-03 7.61e-03   ph/cm2/s

Fluence   Cutoff-PL 1.45e-07 1.50e-07 7.97e-09 1.98e-12 3.03e-07 0.00e+00   erg/cm2
              Error 5.20e-08 7.25e-08 7.92e-08 4.71e-08 2.56e-07 0.00e+00   erg/cm2
Peak flux Cutoff-PL 1.45e-02 9.17e-03 2.79e-04 3.68e-08 2.40e-02 2.40e-02   ph/cm2/s
              Error 5.35e-03 3.98e-03 2.26e-03 3.01e-04 6.92e-03 6.92e-03   ph/cm2/s

Fluence        Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.362    0.582    -      -           1.45e-04 6.33e-05   40.410 57
CPL  -5.390    0.000      24.5    6.0      8.86e+01 0.00e+00   38.950 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.362    0.582    -      -           1.45e-04 6.33e-05   40.410 57
CPL  -5.390    0.000      24.5    6.9      8.86e+01 0.00e+00   38.950 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  320.000    0.000  320.000
T90   320.000    0.000  320.000
T50   320.000    0.000  320.000
Peak  320.000    0.000  320.000

Click here for the BAT GCN circular template

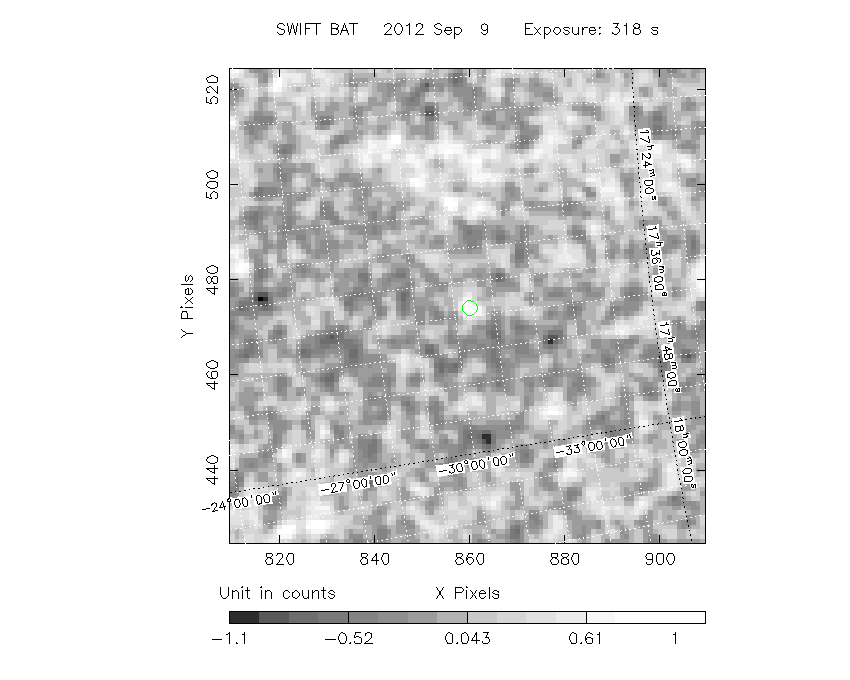

Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  264.7688 -30.3930 0.0430    2.4    7.4       1.2076     4.5  TRIG_00533120
------------------------------------------

Foreground time interval of the image:
  0.000  45.020 (delta_t =  45.020 [sec])
 46.000 309.260 (delta_t = 263.260 [sec])
310.000 320.000 (delta_t =  10.000 [sec])
Background time interval of the image:

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

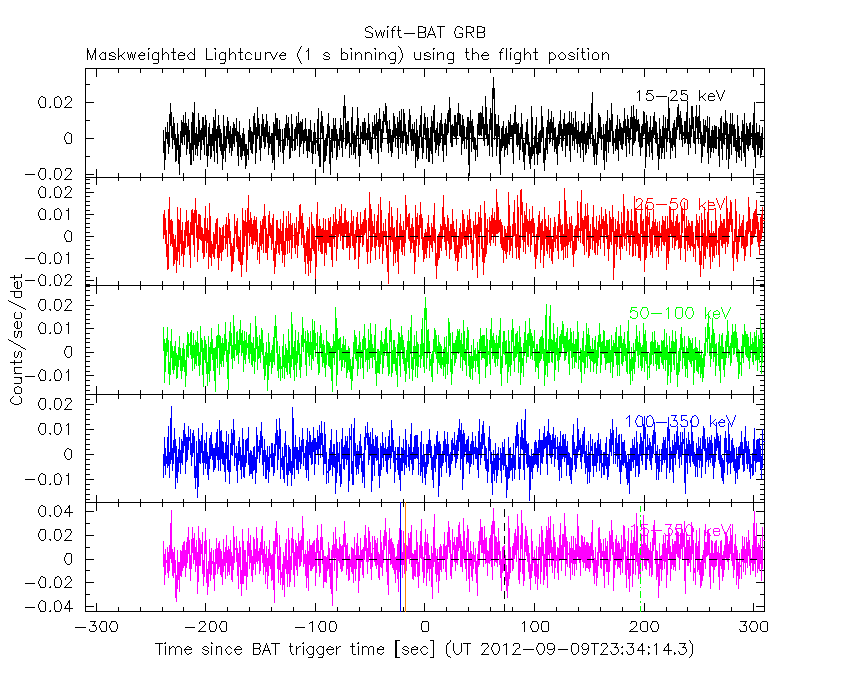

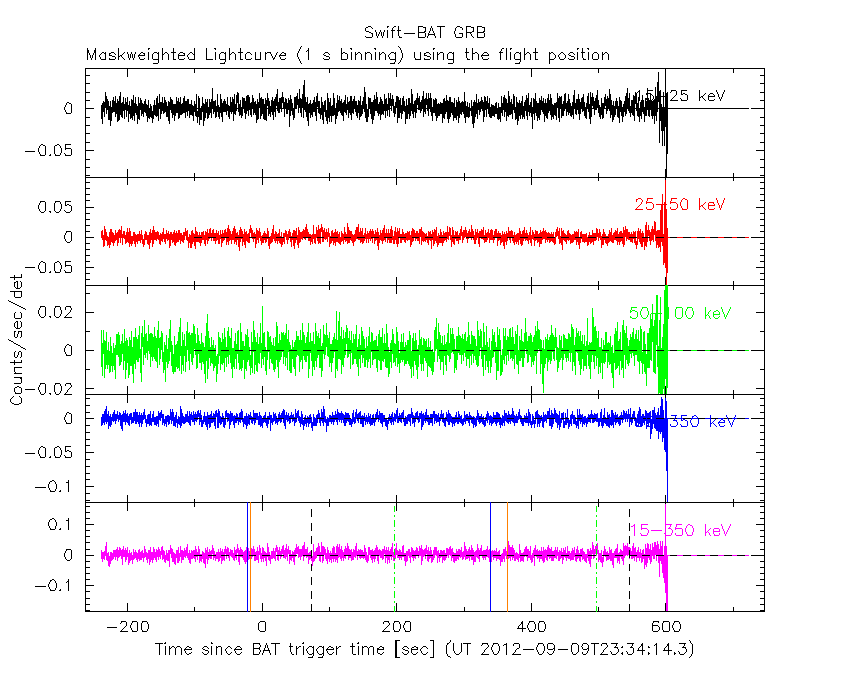

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

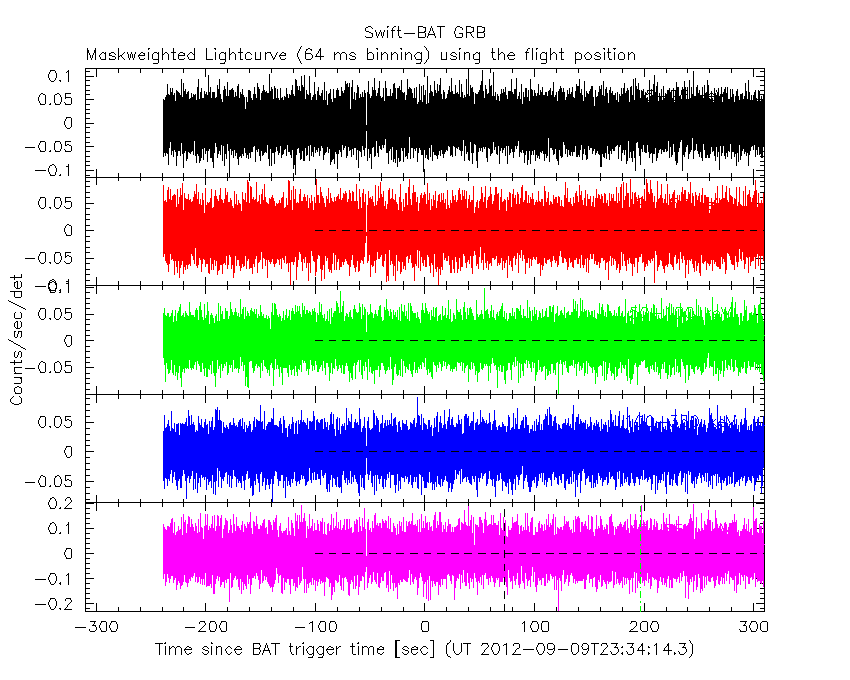

64 ms binning

Full time interval

From T100_start to T100_end

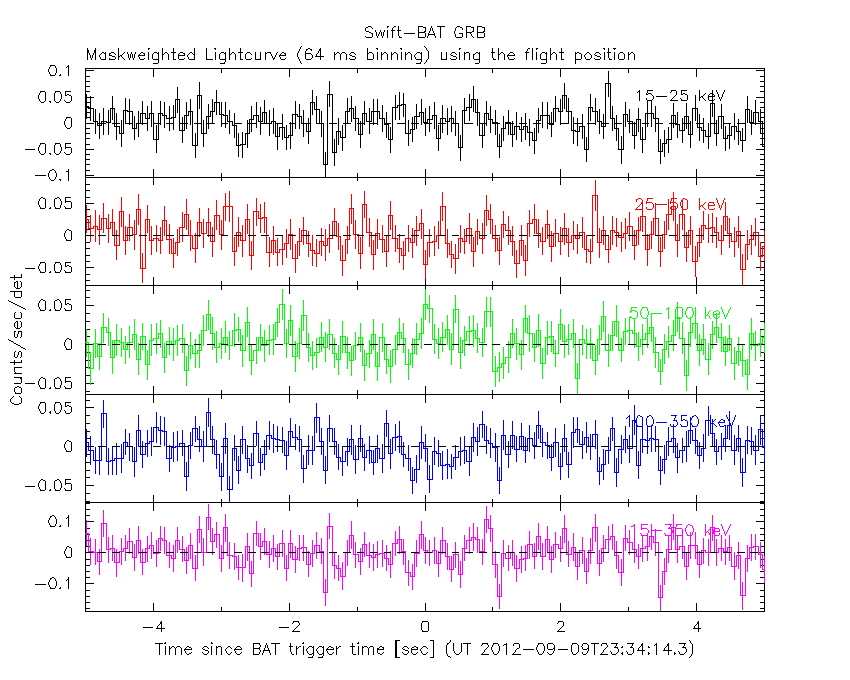

From T0-5 sec to T0+5 sec

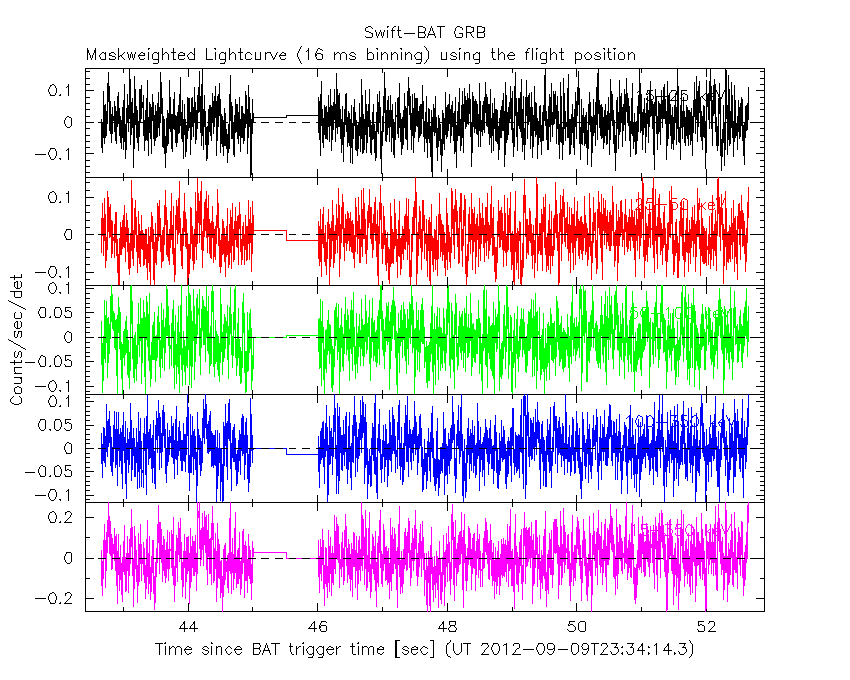

16 ms binning

From T100_start-5 s to T100_start+5 s

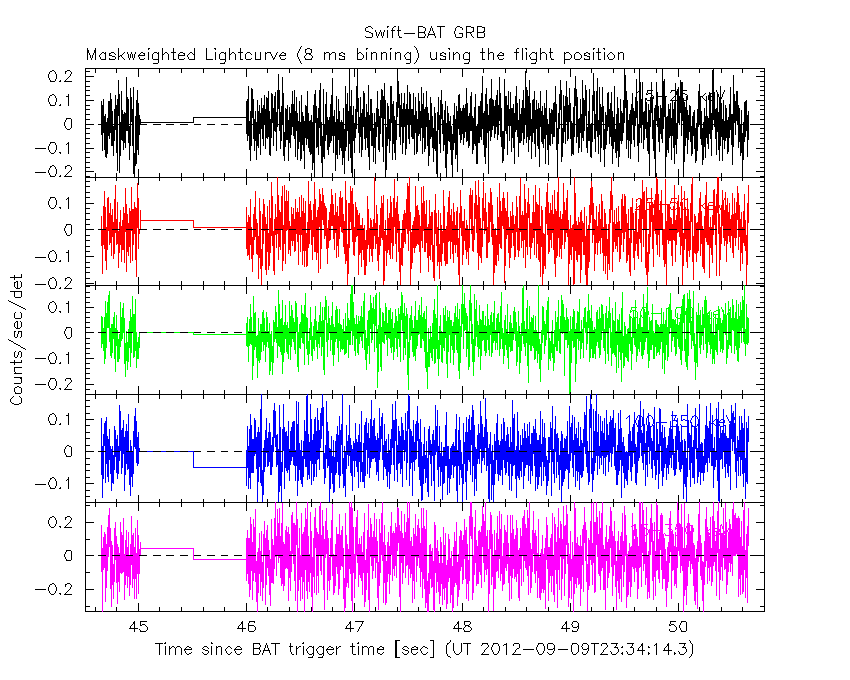

8 ms binning

From T100_start-3 s to T100_start+3 s

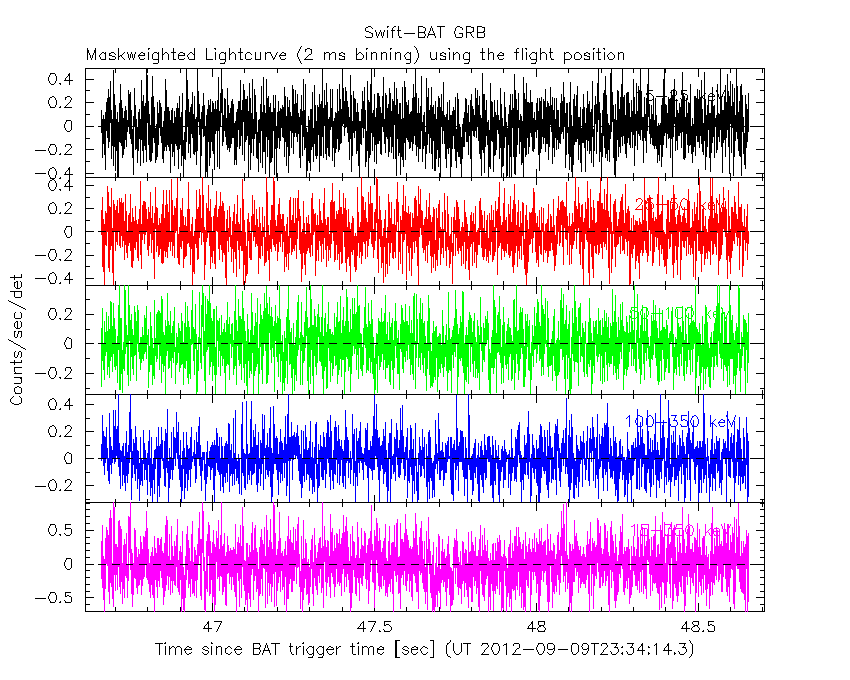

2 ms binning

From T100_start-1 s to T100_start+1 s

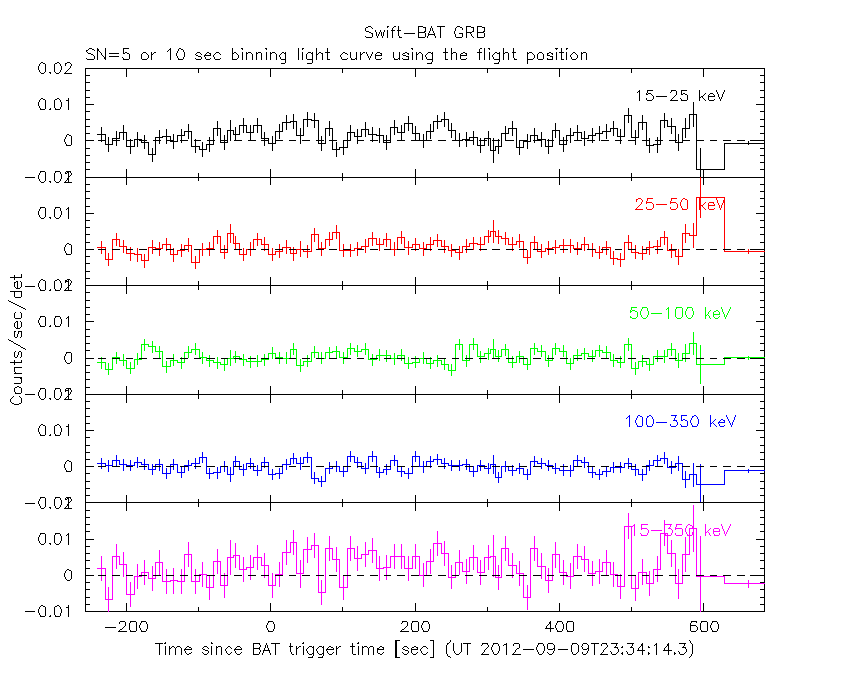

SN=5 or 10 sec. binning (whichever binning is satisfied first)

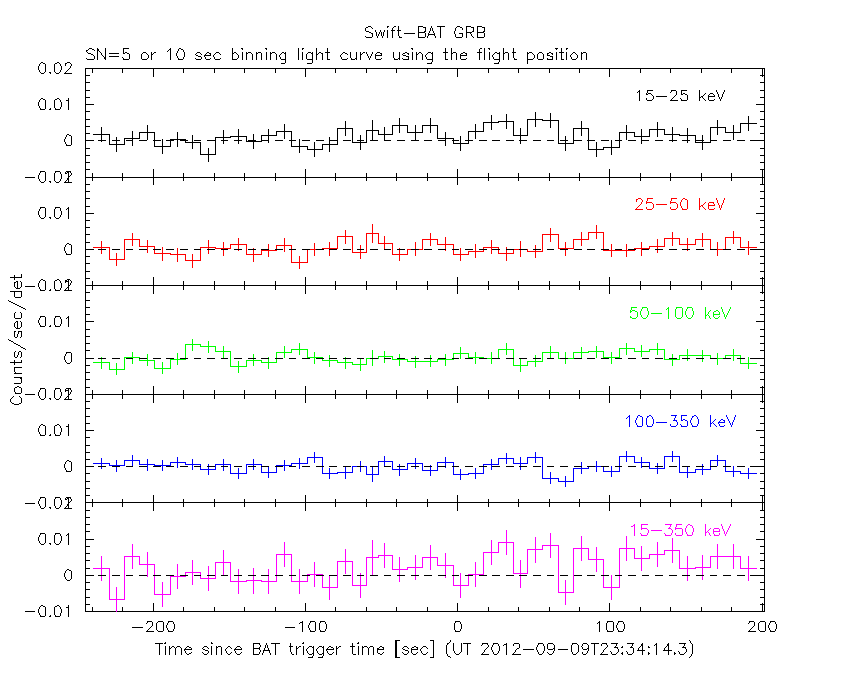

SN=5 or 10 sec. binning (T < 200 sec)

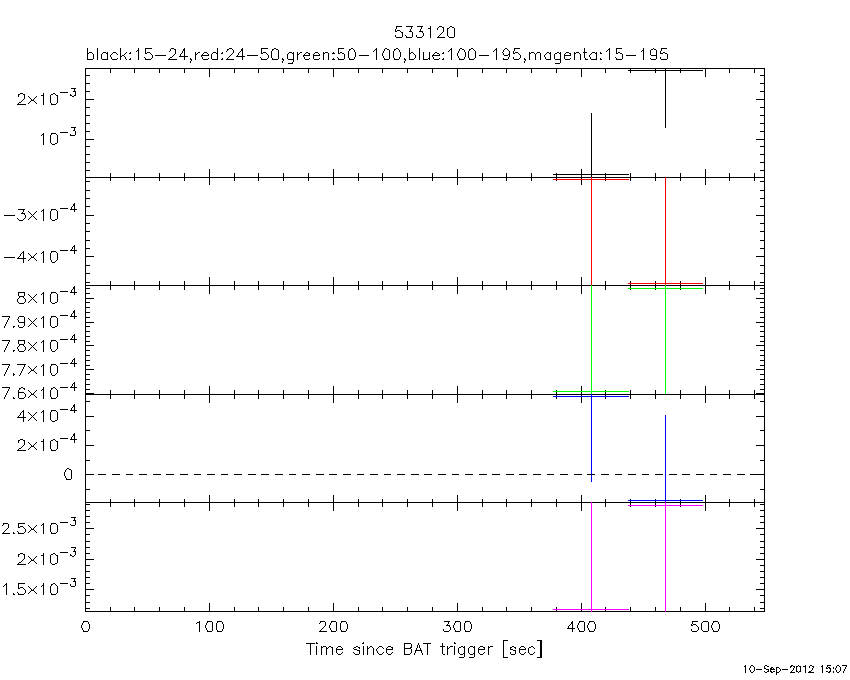

The mask-weighted light curves based on cleaned DPHs

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Multiple GTIs in the spectrum
tstart tstop
0.000000 45.020000
46.000000 309.260000
310.000000 320.000000

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.36227     ( -0.534948   0.628629 )
Norm@50keV  : 1.44712E-04    ( -6.26449e-05   6.39043e-05 )
------------------------------------------------------------
# Chi-Squared =          40.41 using 59 PHA bins.
# Reduced chi-squared =         0.7090 for     57 degrees of freedom
# Null hypothesis probability =   9.527643e-01

Photon flux (15-150 keV)    in 318.3 sec: 2.61960E-02 ( -0.00724473  0.00725166 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.45626e-07 ( -1.50723e-07  1.67586e-07 ) ergs/cm2

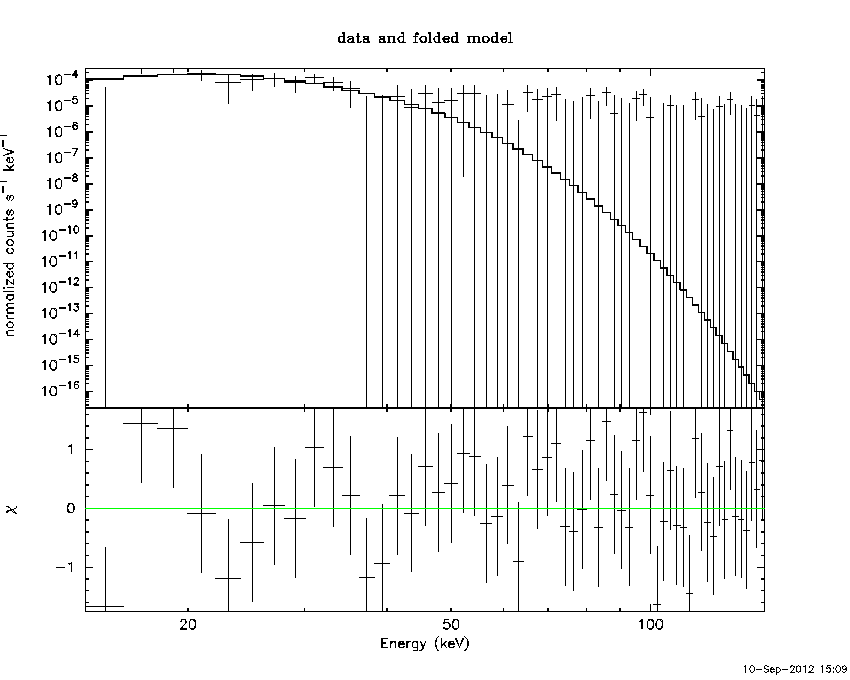

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
0.000000 45.020000
46.000000 309.260000
310.000000 320.000000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -5.38952     (     )
Epeak [keV] : 24.5112      ( -6.73434 5.36086 )
Norm@50keV  : 88.5835    (     )
------------------------------------------------------------
# Chi-Squared =          38.95 using 59 PHA bins.
# Reduced chi-squared =         0.6955 for     56 degrees of freedom
# Null hypothesis probability =   9.596808e-01

Photon flux (15-150 keV)    in 318.3 sec: 2.39665E-02 ( -0.0068004  0.007031 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.03003e-07 ( -9.4305e-08  4.18612e-07 ) ergs/cm2

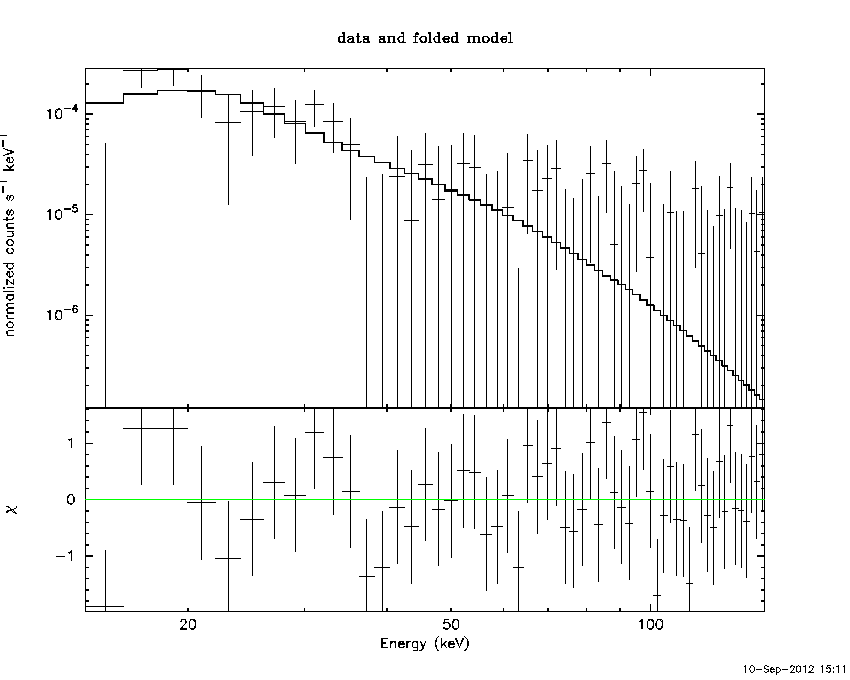

Band function

Multiple GTIs in the spectrum
tstart tstop
0.000000 45.020000
46.000000 309.260000
310.000000 320.000000

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.99760   ( -808.33   -798.33 )
beta        : -3.07940    ( 3.0794   0.945031 )
Epeak [keV] : 22.4123      ( -6.86506 6.65692 )
Norm@50keV   : 77.1991    ( -77.1992   1083.72 )
------------------------------------------------------------
# Chi-Squared =          37.36 using 59 PHA bins.
# Reduced chi-squared =         0.6793 for     55 degrees of freedom
# Null hypothesis probability =   9.670925e-01

Photon flux (15-150 keV)    in 318.3 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

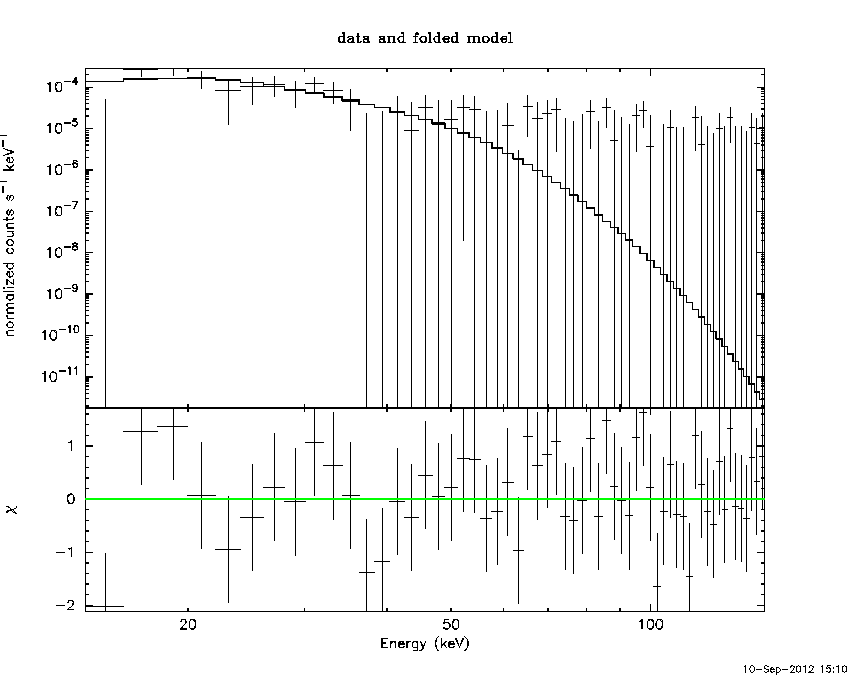

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 6.25061  (-1.42042  1.98008)
R^2/D10^2   : 8.20168E-02  (-0.0820154   0.169828)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          39.01 using 59 PHA bins.
# Reduced chi-squared =         0.6844 for     57 degrees of freedom
# Null hypothesis probability =   9.670995e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.434e-07   8.387e-08
25- 50  1.561e-07   9.748e-08
50-150  1.686e-08   1.461e-08
15-150  3.164e-07   1.884e-07

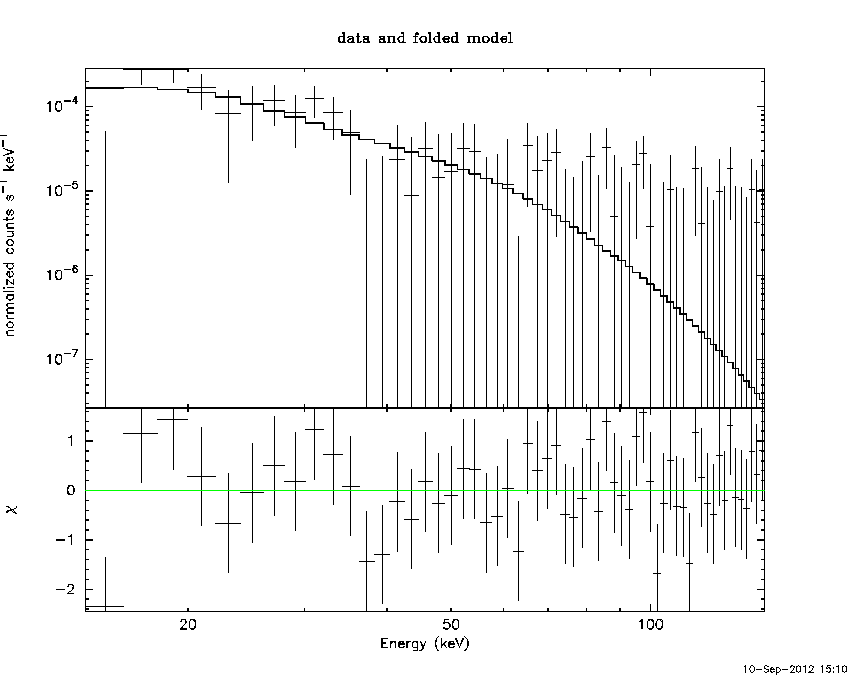

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 30.0877       (-14.2147      41.9285)
Norm        : 0.210676       (-0.0966071     0.202327)
------------------------------------------------------------
# Chi-Squared =          39.71 using 59 PHA bins.
# Reduced chi-squared =         0.6967 for     57 degrees of freedom
# Null hypothesis probability =   9.604451e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.367e-07   5.865e-08
25- 50  1.564e-07   9.312e-08
50-150  8.600e-08   6.929e-08
15-150  3.791e-07   1.948e-07

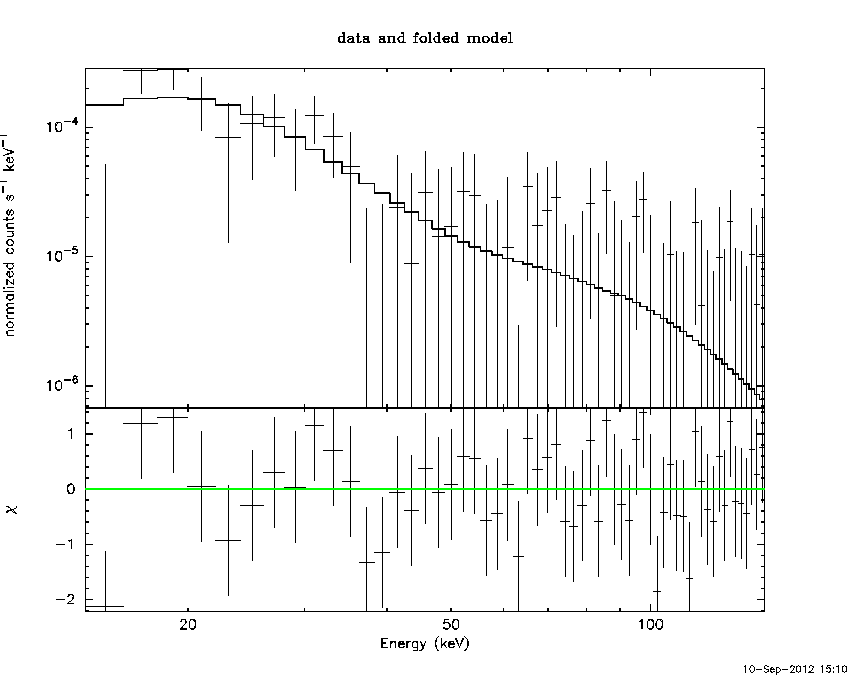

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.74395        (-5.74395      1.93049)
R1^2/D10^2  : 0.109972        (-0.109997      0.298296)
kT2 [keV]   : 38.4460        (-38.4398      -38.4398)
R2^2/D10^2  : 4.36377E-05    (-4.36598e-05   0.000609852)
------------------------------------------------------------
# Chi-Squared =          37.17 using 59 PHA bins.
# Reduced chi-squared =         0.6759 for     55 degrees of freedom
# Null hypothesis probability =   9.687623e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.465e-07   8.589e-08
25- 50  1.485e-07   8.799e-08
50-150  1.770e-07   1.154e-07
15-150  4.720e-07   2.284e-07

Peak spectrum fit

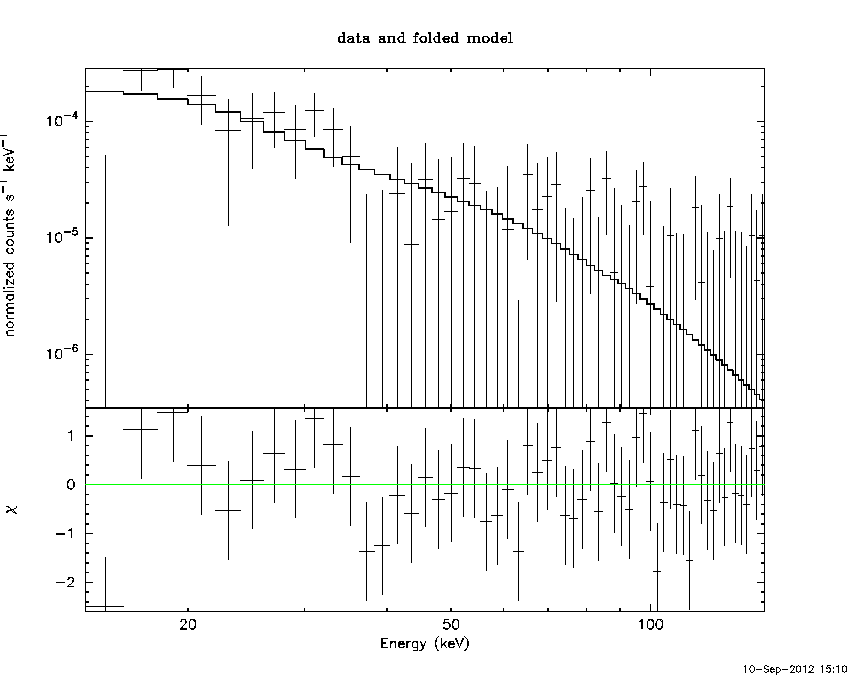

Power-law model

Time interval is from  310.000 sec. to  320.000 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.36227     ( -0.534948   0.628629 )
Norm@50keV  : 1.44712E-04    ( -6.26449e-05   6.39043e-05 )
------------------------------------------------------------
# Chi-Squared =          40.41 using 59 PHA bins.
# Reduced chi-squared =         0.7090 for     57 degrees of freedom
# Null hypothesis probability =   9.527643e-01

Photon flux (15-150 keV)    in 318.3 sec: 2.61960E-02 ( -0.00724473  0.00725166 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.45626e-07 ( -1.50723e-07  1.67586e-07 ) ergs/cm2

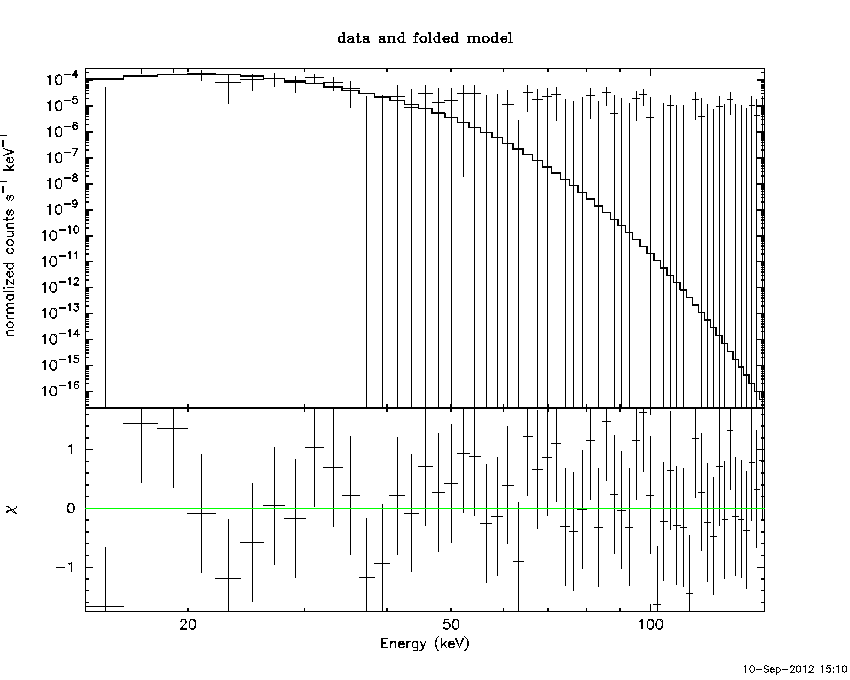

Cutoff power-law model

Time interval is from  310.000 sec. to  320.000 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -5.38952     (     )
Epeak [keV] : 24.5112      ( -7.068 6.70975 )
Norm@50keV  : 88.5835    (     )
------------------------------------------------------------
# Chi-Squared =          38.95 using 59 PHA bins.
# Reduced chi-squared =         0.6955 for     56 degrees of freedom
# Null hypothesis probability =   9.596808e-01

Photon flux (15-150 keV)    in 318.3 sec: 2.39665E-02 ( -0.0068004  0.007031 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.03003e-07 ( -9.4305e-08  4.18612e-07 ) ergs/cm2

Band function

Time interval is from  310.000 sec. to  320.000 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.99760   ( -808.33   -798.33 )
beta        : -3.07940    ( 3.0794   0.945031 )
Epeak [keV] : 22.4123      ( -6.86506 6.65692 )
Norm@50keV   : 77.1991    ( -77.1992   1075.91 )
------------------------------------------------------------
# Chi-Squared =          37.36 using 59 PHA bins.
# Reduced chi-squared =         0.6793 for     55 degrees of freedom
# Null hypothesis probability =   9.670925e-01

Photon flux (15-150 keV)    in 318.3 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 6.25061  (-1.42042  1.98008)
R^2/D10^2   : 8.20168E-02  (-0.0820154   0.169828)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          39.01 using 59 PHA bins.
# Reduced chi-squared =         0.6844 for     57 degrees of freedom
# Null hypothesis probability =   9.670995e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.434e-07   8.535e-08
25- 50  1.561e-07   9.885e-08
50-150  1.686e-08   1.435e-08
15-150  3.164e-07   1.907e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 30.0877       (-14.2147      41.9285)
Norm        : 0.210676       (-0.0966071     0.202327)
------------------------------------------------------------
# Chi-Squared =          39.71 using 59 PHA bins.
# Reduced chi-squared =         0.6967 for     57 degrees of freedom
# Null hypothesis probability =   9.604451e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.367e-07   6.401e-08
25- 50  1.564e-07   8.032e-08
50-150  8.600e-08   7.105e-08
15-150  3.791e-07   1.911e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.74395        (-5.74395      1.93049)
R1^2/D10^2  : 0.109972        (-0.109997      0.298296)
kT2 [keV]   : 38.4460        (-38.4398      -38.4398)
R2^2/D10^2  : 4.36377E-05    (-4.36598e-05   0.00061527)
------------------------------------------------------------
# Chi-Squared =          37.17 using 59 PHA bins.
# Reduced chi-squared =         0.6759 for     55 degrees of freedom
# Null hypothesis probability =   9.687623e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.465e-07   8.941e-08
25- 50  1.485e-07   9.048e-08
50-150  1.770e-07   1.219e-07
15-150  4.720e-07   2.513e-07

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.36227     ( -0.534948   0.628629 )
Norm@50keV  : 1.44712E-04    ( -6.26449e-05   6.39043e-05 )
------------------------------------------------------------
# Chi-Squared =          40.41 using 59 PHA bins.
# Reduced chi-squared =         0.7090 for     57 degrees of freedom
# Null hypothesis probability =   9.527643e-01

Photon flux (15-150 keV)    in 318.3 sec: 2.61960E-02 ( -0.00724473  0.00725166 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.45626e-07 ( -1.50723e-07  1.67586e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -5.38952     (     )
Epeak [keV] : 24.5112      ( -7.068 6.70975 )
Norm@50keV  : 88.5835    (     )
------------------------------------------------------------
# Chi-Squared =          38.95 using 59 PHA bins.
# Reduced chi-squared =         0.6955 for     56 degrees of freedom
# Null hypothesis probability =   9.596808e-01

Photon flux (15-150 keV)    in 318.3 sec: 2.39665E-02 ( -0.0068004  0.007031 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.03003e-07 ( -9.4305e-08  4.18612e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.99760   ( -808.33   -798.33 )
beta        : -3.07940    ( 3.0794   0.945031 )
Epeak [keV] : 22.4123      ( -6.86506 6.65692 )
Norm@50keV   : 77.1991    ( -77.1992   1078.47 )
------------------------------------------------------------
# Chi-Squared =          37.36 using 59 PHA bins.
# Reduced chi-squared =         0.6793 for     55 degrees of freedom
# Null hypothesis probability =   9.670925e-01

Photon flux (15-150 keV)    in 318.3 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.45359e-07
S(50-100 keV) = 1.13086e-07

T90 vs. Hardness ratio plot

T90                                   = 320 sec.
Hardness ratio (energy fluence ratio) = 0.777977

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.647259
Count Ratio (50-100 keV) / (15-25 keV) = 0.242514

Mask shadow pattern

IMX = 4.129490976246045E-02, IMY = -5.371482916305113E-03

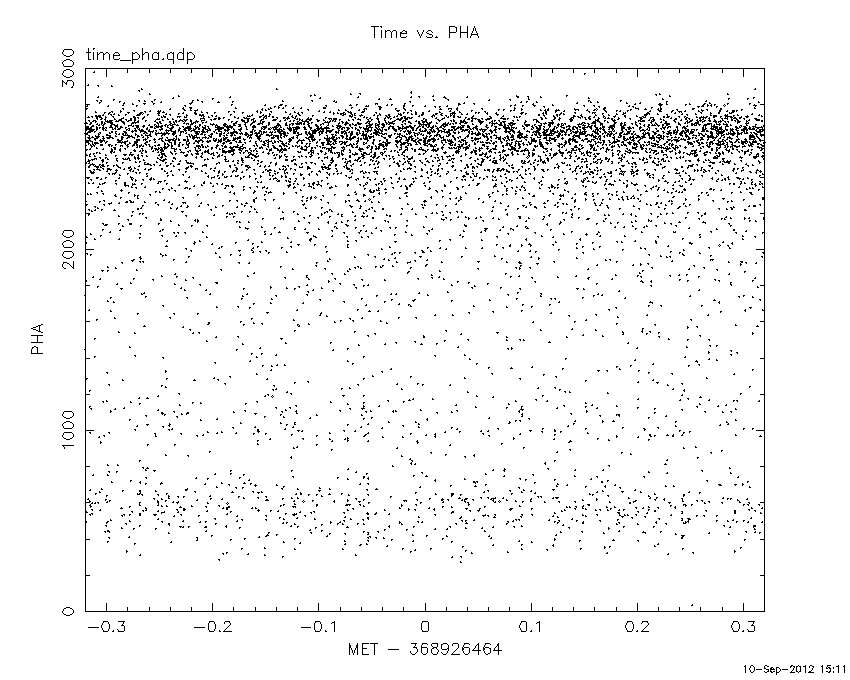

TIME vs. PHA plot around the trigger time

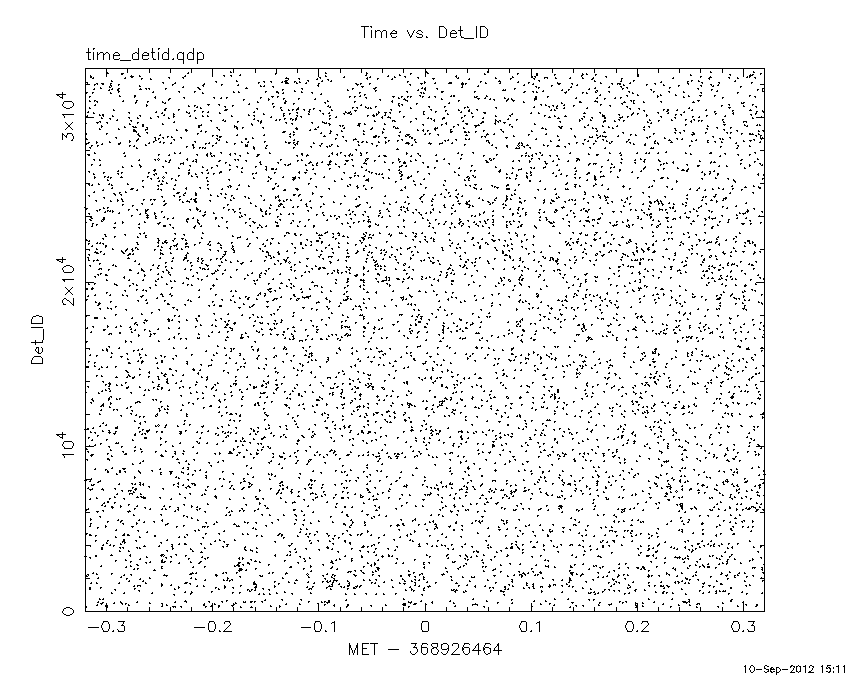

TIME vs. DetID plot around the trigger time

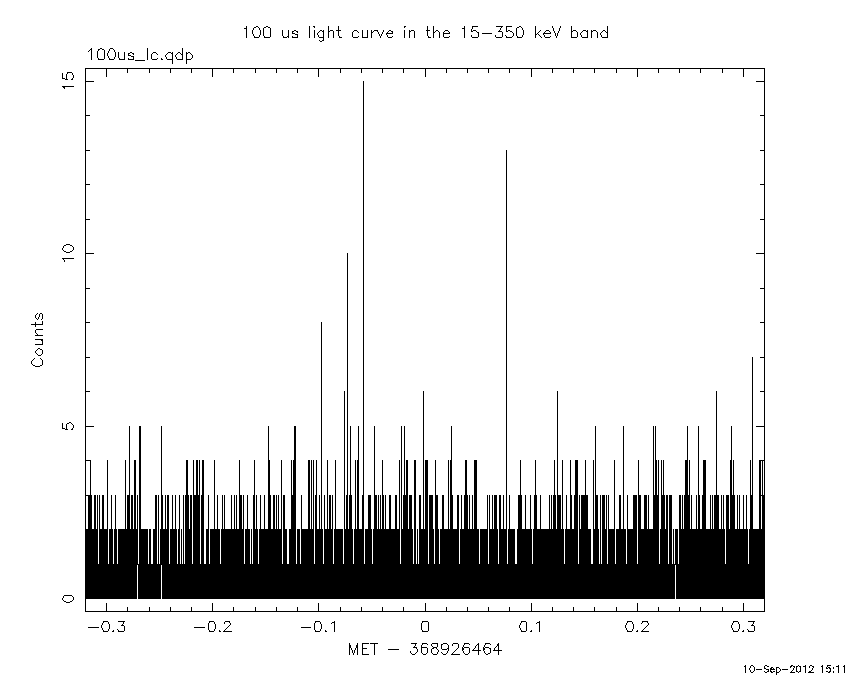

100 us light curve (15-350 keV)

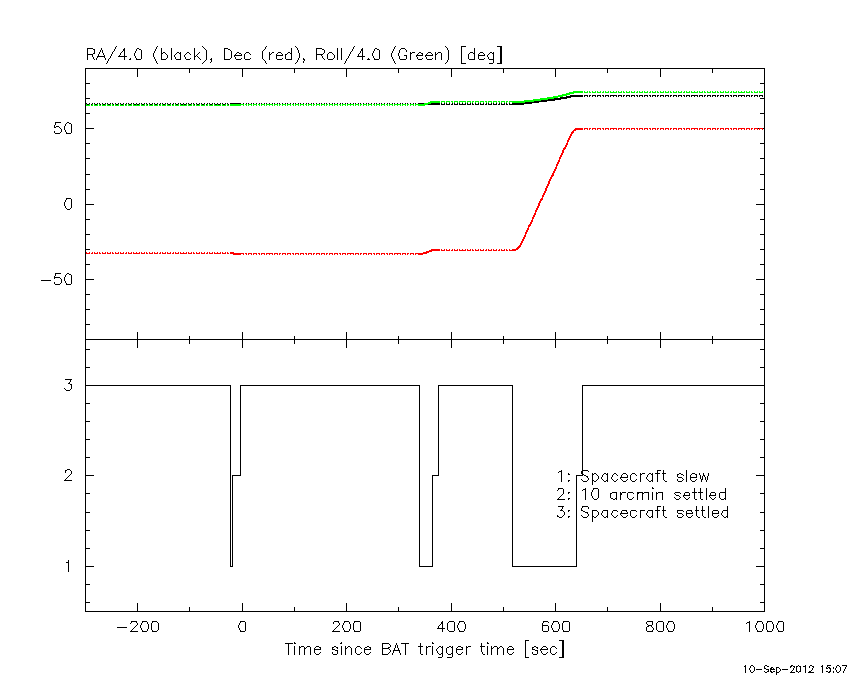

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-17.599400 45.020000
46.000000 47.656000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9933 -15.6374    0.6  24.8  -44.1   1.9413  19.0    0.8	Sco X-1
255.9482 -37.9074    2.0   8.8 -121.2   0.5176   5.7    4.2	4U 1700-377
256.6289 -36.5618    4.0   7.7 -115.0   0.2618   2.9   12.5	GX 349+2
262.9188 -24.6921   13.3   8.2   -4.8   0.0809   0.9    5.9	GX 1+4
264.7371 -44.3179    6.7  11.5 -173.2   0.1517   1.7    7.9	4U 1735-44
268.2280  -1.4035    7.2  31.5   13.5   0.1794   1.6    8.9	SW J1753.5-0127
270.2792 -24.9984    2.6   9.2   40.1   0.3809   4.4    4.9	GX 5-1
270.2267 -25.7435    4.0   8.5   42.4   0.2495   2.9    4.1	GRS 1758-258
274.1327 -14.0500    4.6  20.6   33.6   0.2493   2.5    7.4	GX 17+2
275.8761 -30.3776    5.0   9.8   85.6   0.2160   2.3    2.6	H1820-303
285.0235 -25.0713   11.1  19.3   78.5   0.1155   1.0    9.1	HT1900.1-2455
288.7914  10.9651    4.6  49.4   38.6   1.0381   2.5    1.2	GRS 1915+105
262.9888 -33.8345   58.3   1.8 -119.5  -0.0175  -0.2    0.0	GX 354-0
309.4994 -35.6928    2.3  36.8  114.1   1.1928   5.0 ------	UNKNOWN
306.7448 -55.0159    2.8  36.7  146.9   0.6990   4.1 ------	UNKNOWN
275.2900 -70.1293    3.2  37.8 -179.0   0.4579   3.6 ------	UNKNOWN
253.0975  16.0290    2.0  50.1   -7.8   1.1687   5.8 ------	UNKNOWN
236.9037  -7.9061    2.6  35.8  -45.4   0.6140   4.5 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
0.000000 45.020000
46.000000 309.260000
310.000000 320.000000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9774 -15.6348    0.3  24.8  -44.1   9.9285  34.8    0.3	Sco X-1
255.9652 -37.8528    1.0   8.8 -121.0   2.7173  11.3    1.1	4U 1700-377
256.2564 -36.5765    0.0   7.9 -114.1   0.4351   1.8   12.6	GX 349+2
262.8593 -24.7625    3.1   8.2   -5.3   0.9567   3.7    8.2	GX 1+4
264.7907 -44.5386    5.3  11.8 -173.4   0.5873   2.2    5.7	4U 1735-44
268.5119  -1.5221    5.1  31.5   14.1   0.6938   2.3    9.6	SW J1753.5-0127
270.2931 -25.0712    2.7   9.1   40.4   1.0427   4.3    0.7	GX 5-1
270.2584 -25.8036    3.3   8.5   42.8   0.8374   3.5    4.3	GRS 1758-258
273.9836 -14.0829    2.5  20.5   33.2   1.3185   4.7    3.1	GX 17+2
275.8514 -30.3921    3.3   9.8   85.6   0.8953   3.5    4.1	H1820-303
284.9439 -24.9514    9.6  19.3   78.1   0.3901   1.2    5.3	HT1900.1-2455
288.8655  10.9373    3.2  49.4   38.7   4.4141   3.6    4.0	GRS 1915+105
262.8324 -33.7745    4.1   1.9 -115.7   0.7710   2.8    8.6	GX 354-0
242.3514 -44.3546    2.7  20.9 -123.3   1.1562   4.3 ------	UNKNOWN
206.1742 -67.0183    2.2  48.0 -146.5   3.3778   5.2 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
364.100600 517.400590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0019 -15.6354    0.5  23.4  -56.2   4.9691  25.7    1.3	Sco X-1
256.0213 -37.8598    1.2  10.4 -139.0   1.6132   9.5    1.9	4U 1700-377
256.3838 -36.2784    4.2   9.2 -133.0   0.4602   2.7    9.0	GX 349+2
262.9944 -24.7403    3.2   5.9  -17.3   0.5617   3.5    0.9	GX 1+4
264.5353 -44.5975    0.0  14.2  180.0   0.0642   0.4   12.5	4U 1735-44
268.3019  -1.5282    4.6  29.1    6.3   0.4675   2.5    6.0	SW J1753.5-0127
270.1150 -24.9605   19.2   7.2   41.2   0.0929   0.6   11.6	GX 5-1
270.2270 -25.8943    5.5   6.6   47.1   0.3276   2.1    9.9	GRS 1758-258
274.0186 -14.0862    3.9  18.4   28.6   0.4797   3.0    3.1	GX 17+2
275.8892 -30.3471    3.7   9.5   91.6   0.4552   3.1    2.2	H1820-303
285.0727 -24.8400   29.4  18.8   76.8   0.0780   0.4    5.2	HT1900.1-2455
288.7886  10.9590    3.1  47.3   32.0   1.9396   3.7    1.0	GRS 1915+105
262.9097 -33.9825    3.6   3.9 -157.1   0.5004   3.2    9.7	GX 354-0
308.9240 -26.1245    2.5  38.8   94.0   3.1552   4.6 ------	UNKNOWN
217.1803 -75.5230    2.7  50.6 -167.0   1.7180   4.3 ------	UNKNOWN
216.2937 -75.6287    3.0  50.8 -167.0   1.7450   4.4 ------	UNKNOWN
209.2173 -72.7750    3.0  51.1 -162.6   1.5781   3.8 ------	UNKNOWN
210.9353 -69.9123    2.8  49.5 -159.5   1.5700   4.1 ------	UNKNOWN

Plot creation:
Mon Sep 10 15:12:01 EDT 2012
