batgrbproduct analysis for trigger=534394

batgrbproduct Analysis for Trigger=534394

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Mon Jan 13 00:32:36 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger534394
======================================================================

  Trigger: 00534394      Segment: 000

  BAT Trigger Time: 370045838.336   [s; MET]
      Trigger Stop: 370045842.432   [s; MET]
               UTC: 2012-09-22T22:30:28.656560    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 234.755696507915   Dec: -20.1770777233188  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.36
     Image Trigger?:     NO
     Rate S/N Ratio:     7.54983443527075  [ if not an image trigger ]
     Image S/N Ratio:    7.36

  Flight Position:   [ source = BAT ]
    RA: 234.755696507915   Dec: -20.1770777233188  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 234.75907394634   Dec: -20.1819017240909  [deg; J2000]
        { 15h 39m 02.2s , -20d 10' 54.8" }
         +/- 1.20957029224793 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.33454593546001 [arcmin] (formal 1-sigma fit error)
    SNR: 23.1778919852115

  Angular difference between Flight and Ground position is 0.346344 arcmin

  Partial Coding Fraction: 0.3398438    [ including projection effects ]

  Duration
     T90: 168.223999977112 +/- 29.2386949482096
        Measured from: -14.4240000247955
                   to: 153.799999952316     [s; relative to TRIGTIME]
     T50: 94.7039999365807 +/- 4.32286242624889
        Measured from: 7.61599999666214
                   to: 102.319999933243     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 99.2119999527931
                   to: 100.211999952793     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -22.5800000429153
                   to: 215.727999985218     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     3.521307   3.982178   2.018350   0.389878
           0.125922   0.121078   0.103817   0.089877 [error]
 Peak      0.081989   0.078987   0.042982   0.013267
           0.007103   0.006851   0.005818   0.004670 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.23e-06 1.66e-06 1.66e-06 3.01e-06 5.52e-06 7.56e-06   erg/cm2
              Error 8.32e-08 6.78e-08 1.04e-07 3.97e-07 2.40e-07 4.86e-07   erg/cm2
Peak flux Power-law 7.32e-01 5.65e-01 2.92e-01 2.18e-01 1.69e+00 1.81e+00   ph/cm2/s
              Error 1.07e-01 5.45e-02 4.78e-02 6.92e-02 1.64e-01 1.76e-01   ph/cm2/s

Fluence   Cutoff-PL 1.15e-06 1.73e-06 1.66e-06 1.58e-06 5.31e-06 6.12e-06   erg/cm2
              Error 1.01e-07 8.40e-08 1.11e-07 7.93e-07 2.91e-07 8.55e-07   erg/cm2
Peak flux Cutoff-PL 7.27e-01 5.68e-01 2.92e-01 2.02e-01 1.68e+00 1.79e+00   ph/cm2/s
              Error 1.15e-01 6.30e-02 4.82e-02 1.08e-01 1.69e-01 2.09e-01   ph/cm2/s

Fluence        Band 1.09e-06 1.76e-06 1.61e-06 2.34e-06 5.31e-06 6.84e-06   erg/cm2
              Error -------- 9.27e-08 1.14e-07 6.10e-07 2.05e-07 6.81e-07   erg/cm2
Peak flux      Band 7.28e-01 5.68e-01 2.92e-01 2.02e-01 1.68e+00 1.79e+00   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.000    0.080    -      -           2.51e-03 1.14e-04   58.290 57
CPL   1.580    0.343      46.1   14.3      4.19e-03 1.81e-03   53.410 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.951    0.191    -      -           1.15e-02 1.40e-03   47.690 57
CPL   1.903    0.000      87.6    0.0      1.23e-02 0.00e+00   47.670 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 220.608000 sec.
T50 in the 50-300 keV band: 99.968000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  238.308  -22.580  215.728
T90   168.224  -14.424  153.800
T50    94.704    7.616  102.320
Peak    1.000   99.212  100.212

Click here for the BAT GCN circular template

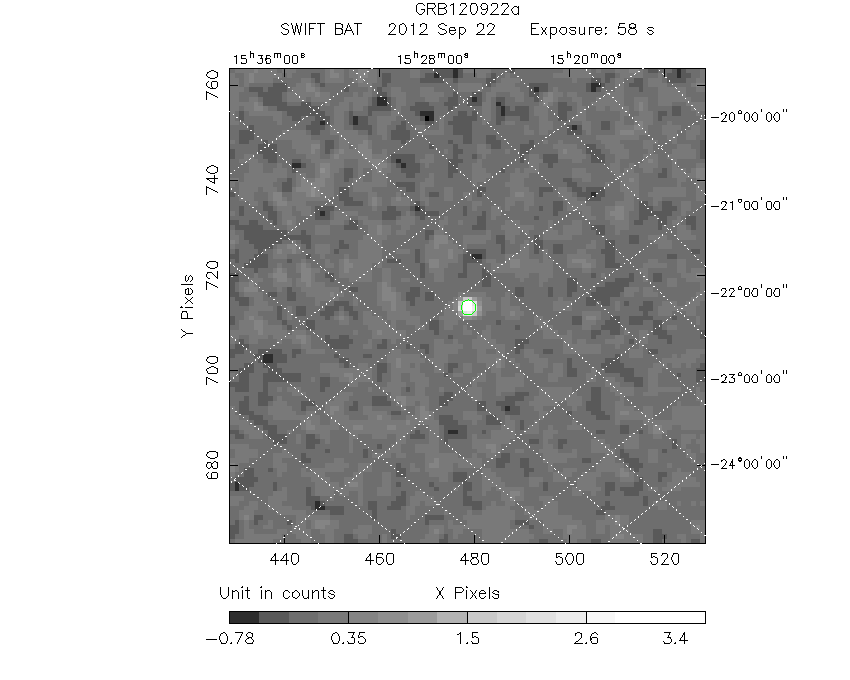

Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  234.7591   -20.1819   0.0083    44.3644   -30.5427         4.0994776     23.178 TRIG_00534394

Foreground time interval of the image:
-22.580  35.565 (delta_t =  58.145 [sec])
Background time interval of the image:
-239.336 -22.580 (delta_t = 216.756 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

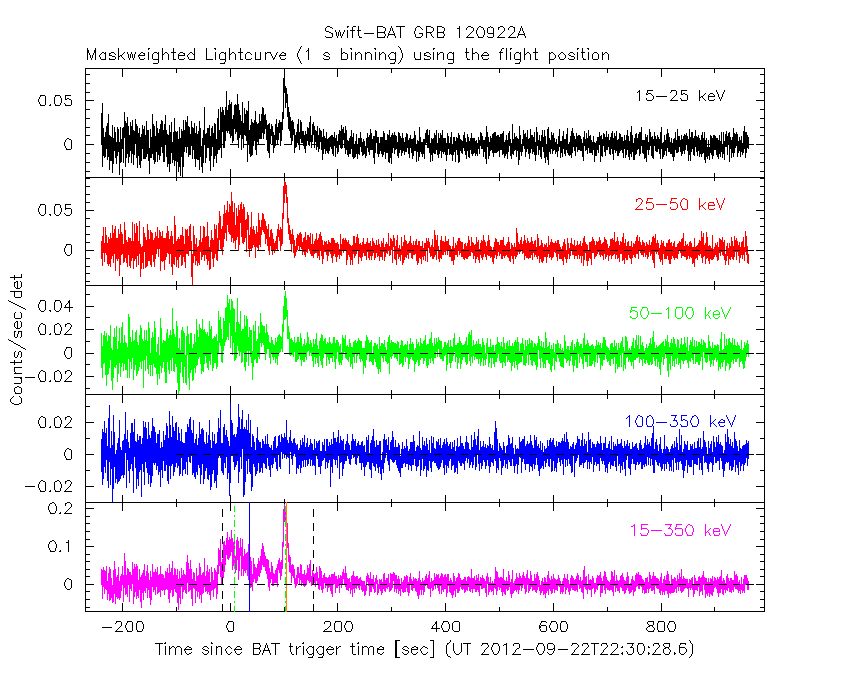

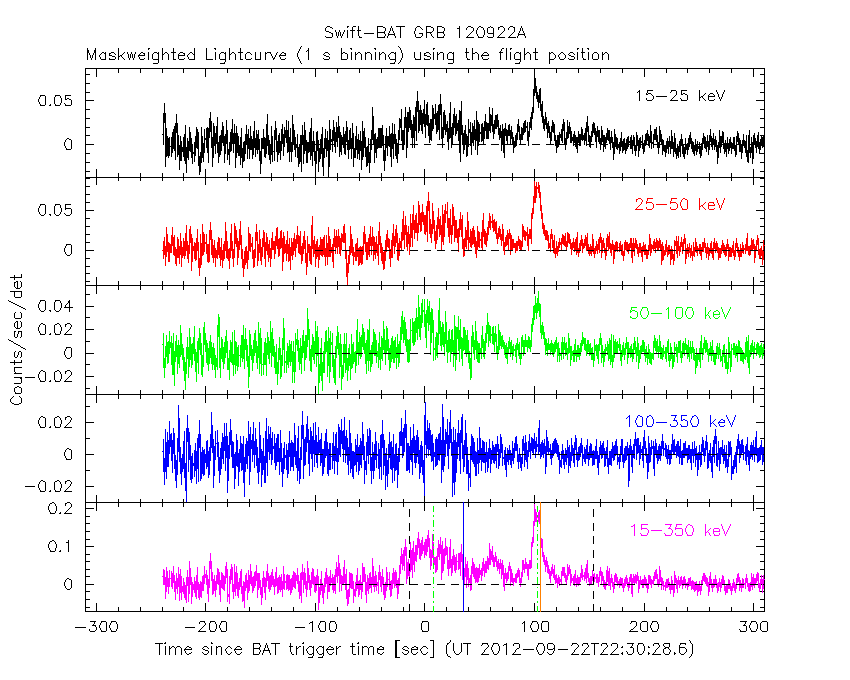

1 s binning

From T0-310 s to T0+310 s

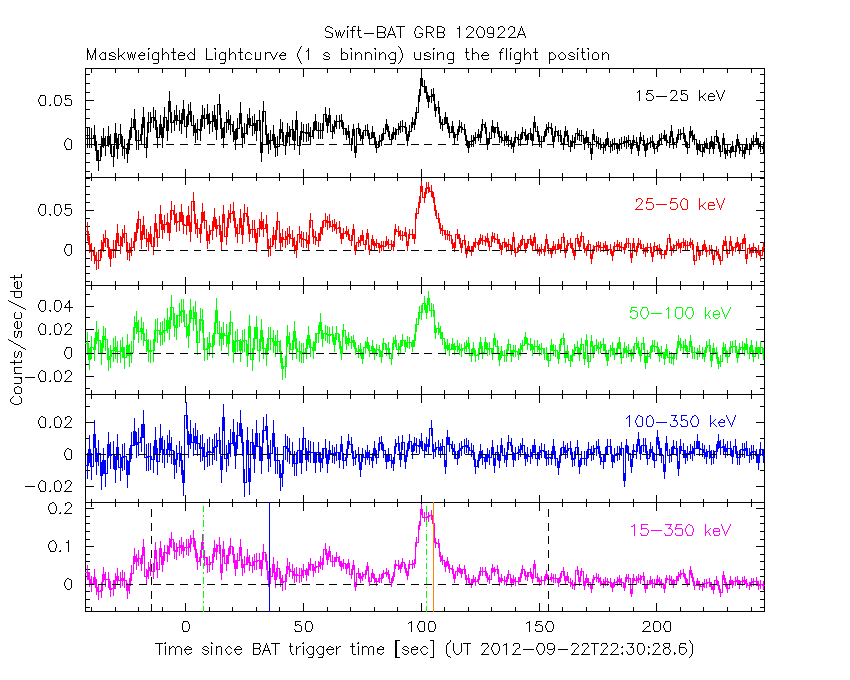

From T100_start - 20 s to T100_end + 30 s

Full time interval

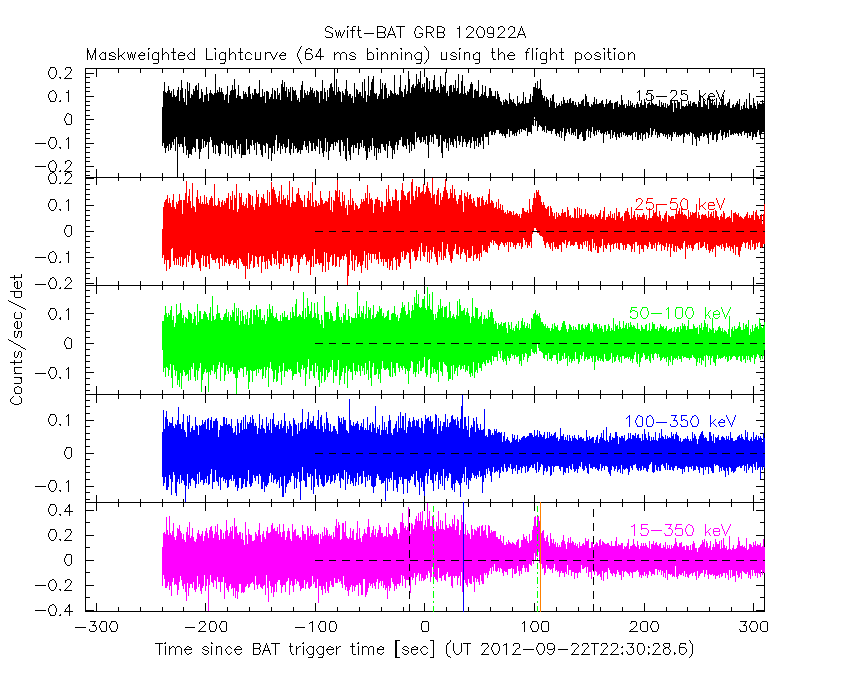

64 ms binning

Full time interval

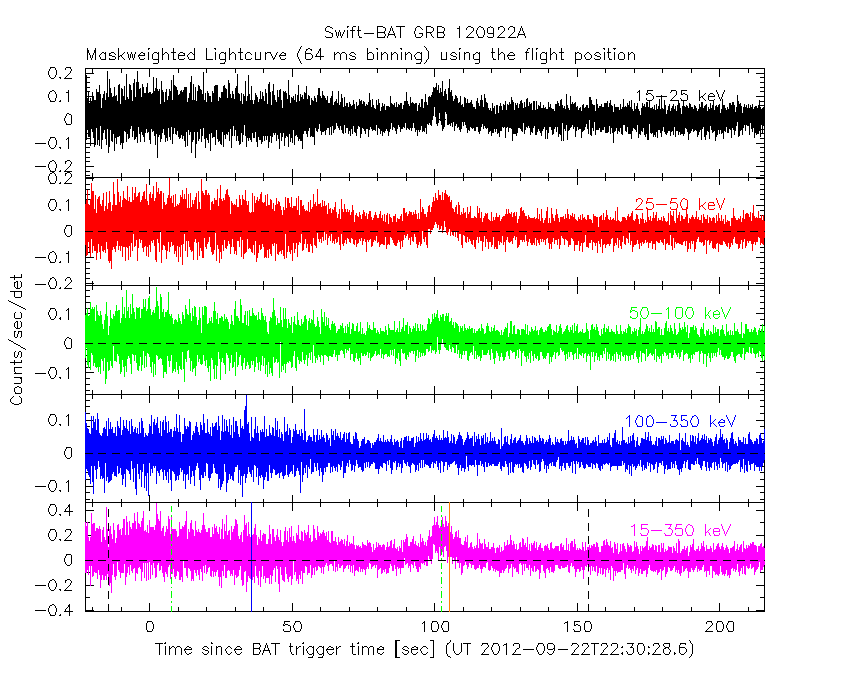

From T100_start to T100_end

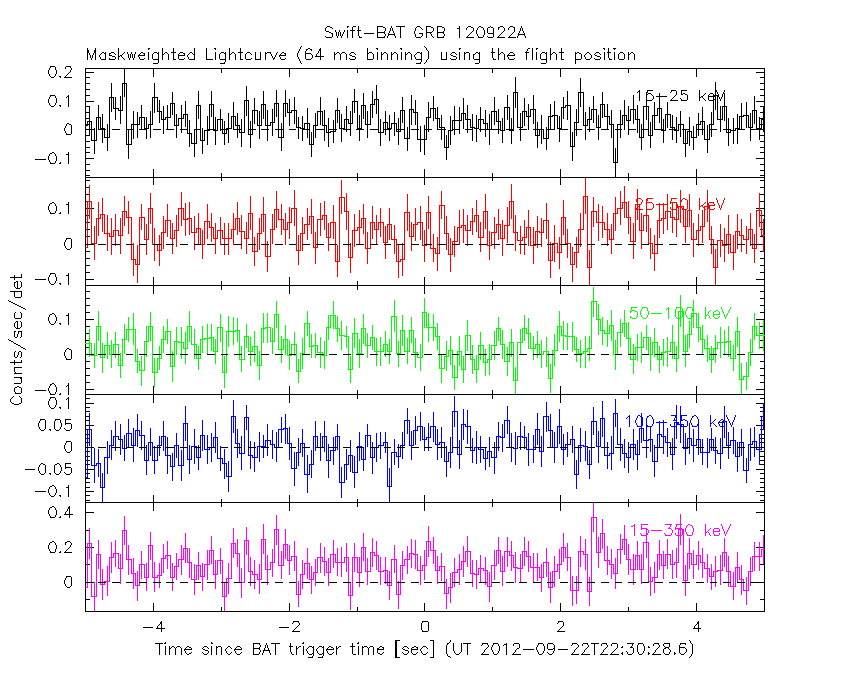

From T0-5 sec to T0+5 sec

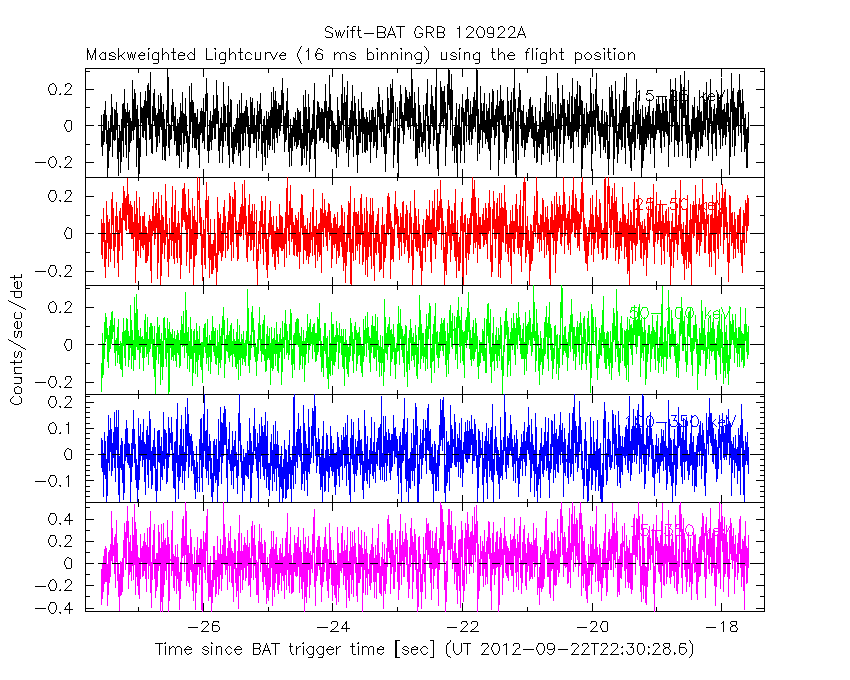

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

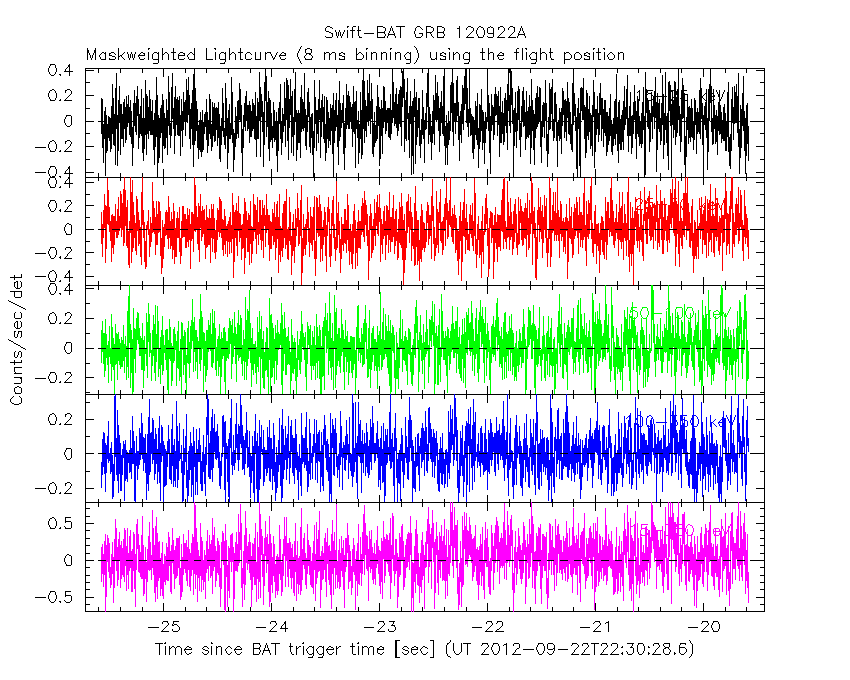

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

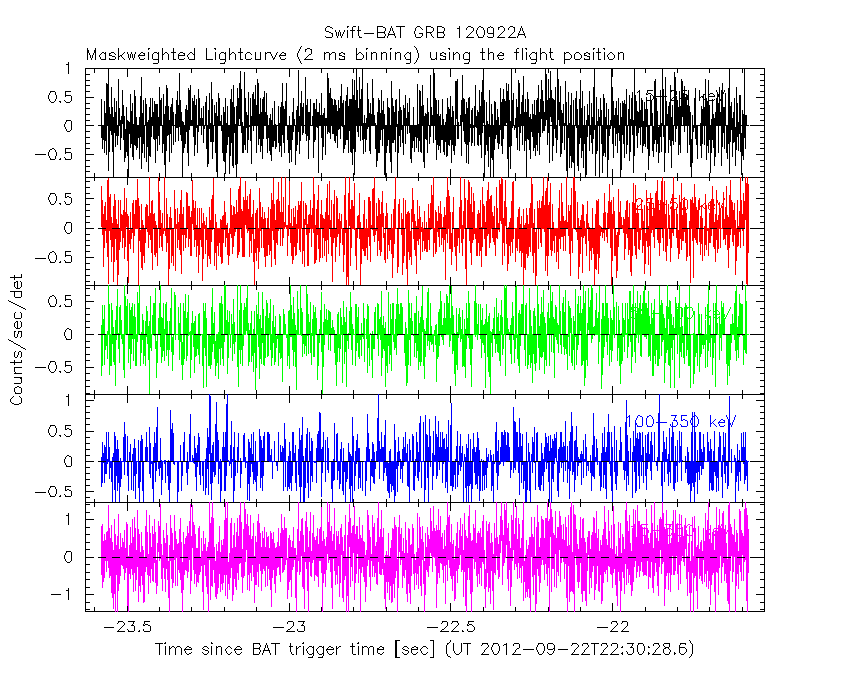

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

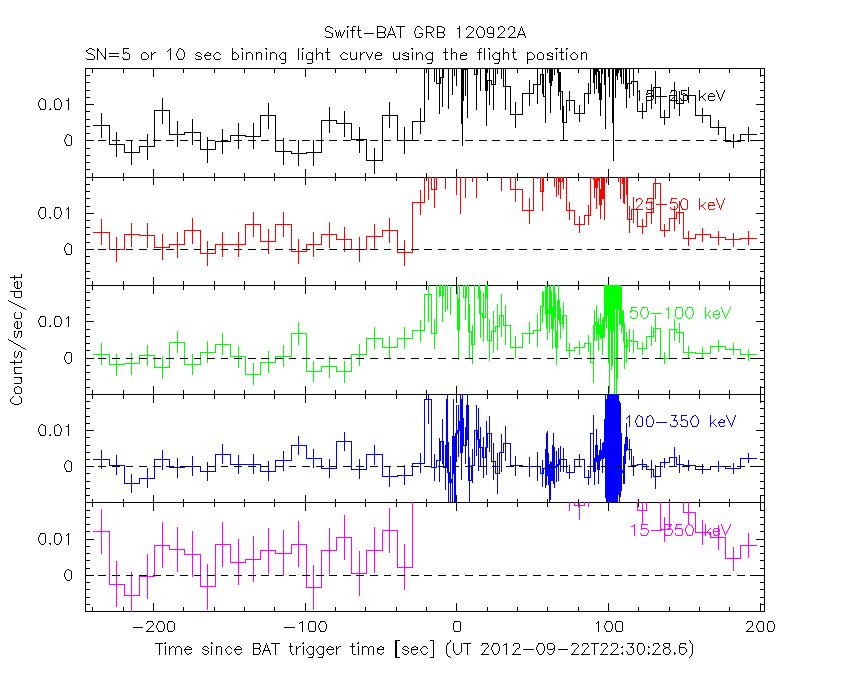

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

The mask-weighted light curves based on cleaned DPHs

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

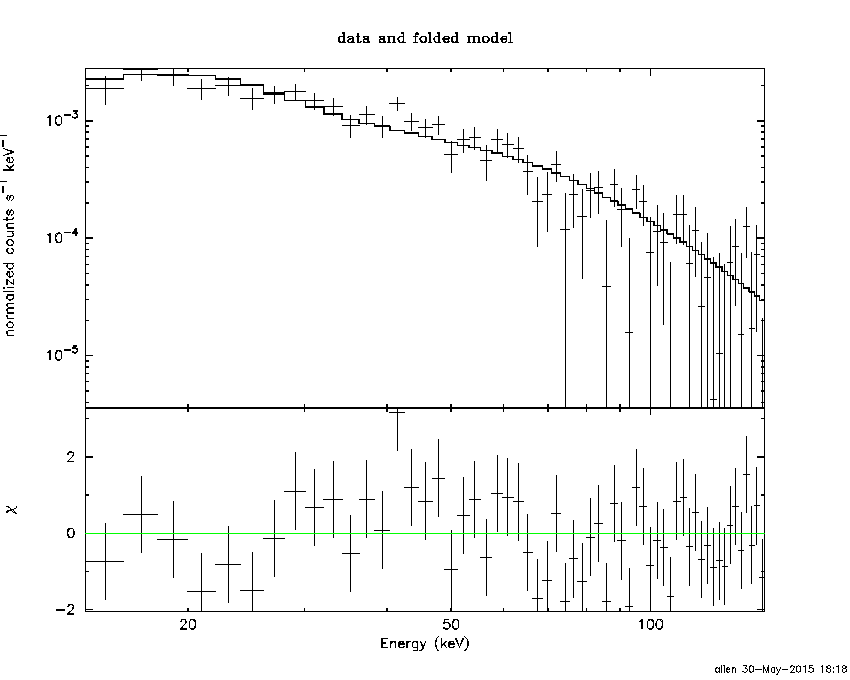

Time averaged spectrum fit using the average DRM

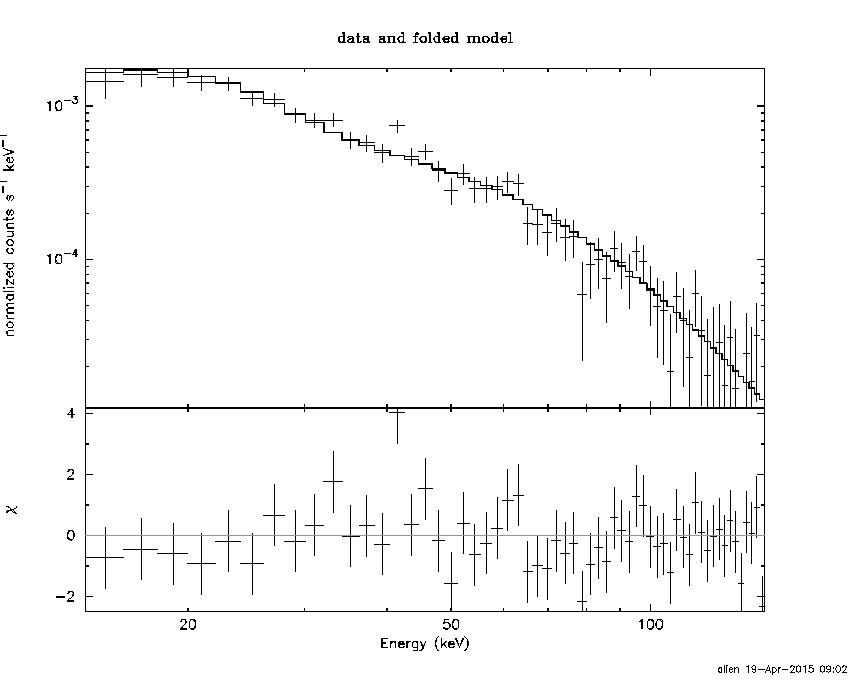

Power-law model

Time interval is from  -22.580 sec. to  215.728 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.99952     ( -0.078984   0.0801652 )
Norm@50keV  : 2.51367E-03    ( -0.000113995   0.000113216 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.29 using 59 PHA bins.
# Reduced chi-squared =          1.023 for     57 degrees of freedom
# Null hypothesis probability =   4.277966e-01

Photon flux (15-150 keV)    in 238.3 sec: 0.376968 ( -0.0162566  0.0163114 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.52351e-06 ( -2.39117e-07  2.4074e-07 ) ergs/cm2

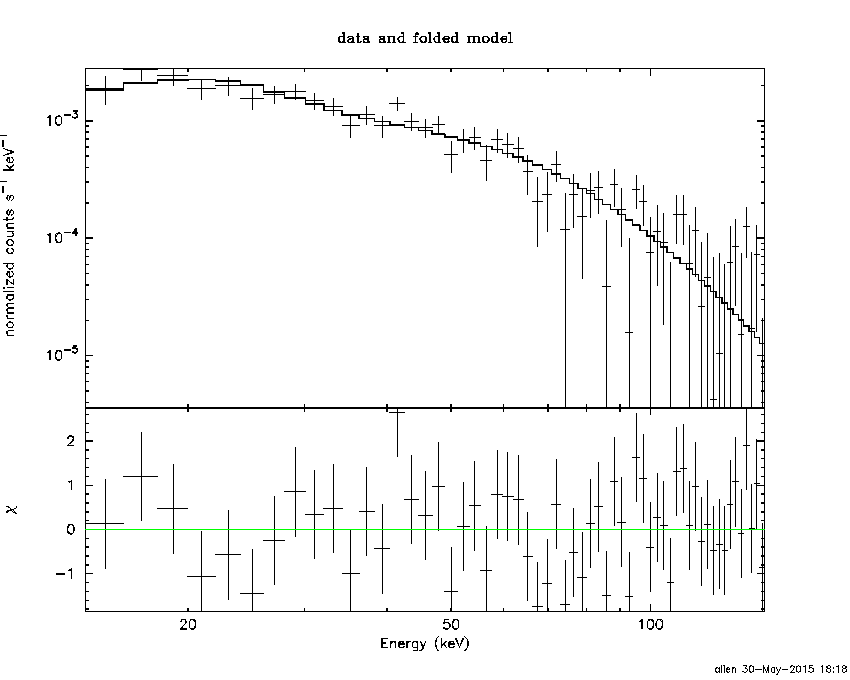

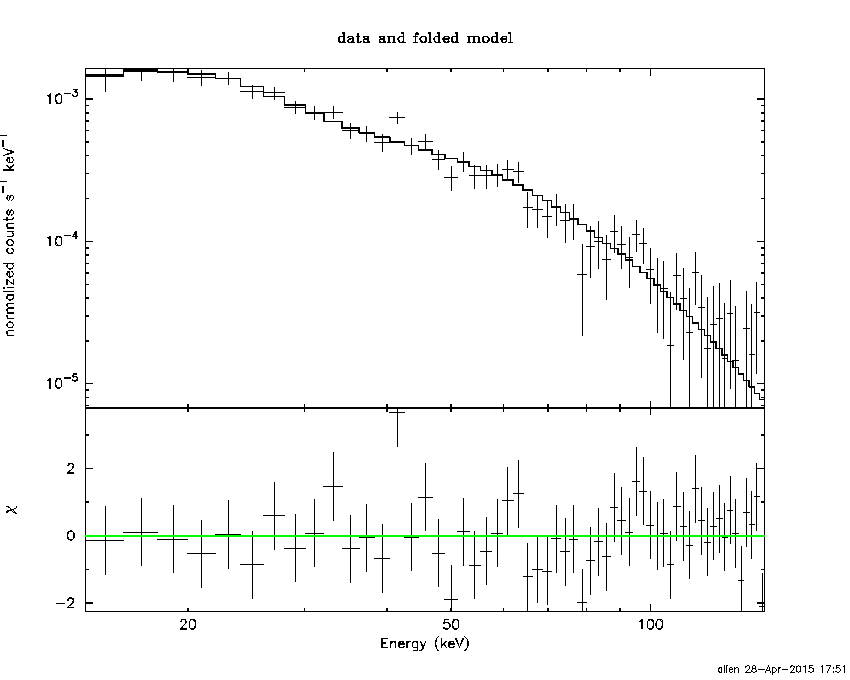

Cutoff power-law model

Time interval is from  -22.580 sec. to  215.728 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.57977     ( -0.357862   0.327667 )
Epeak [keV] : 46.0948      ( -13.6324 14.9827 )
Norm@50keV  : 4.19120E-03    ( -0.00135213   0.0022604 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.41 using 59 PHA bins.
# Reduced chi-squared =         0.9537 for     56 degrees of freedom
# Null hypothesis probability =   5.735962e-01

Photon flux (15-150 keV)    in 238.3 sec: 0.366180 ( -0.018119  0.018182 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.30937e-06 ( -2.90774e-07  2.90988e-07 ) ergs/cm2

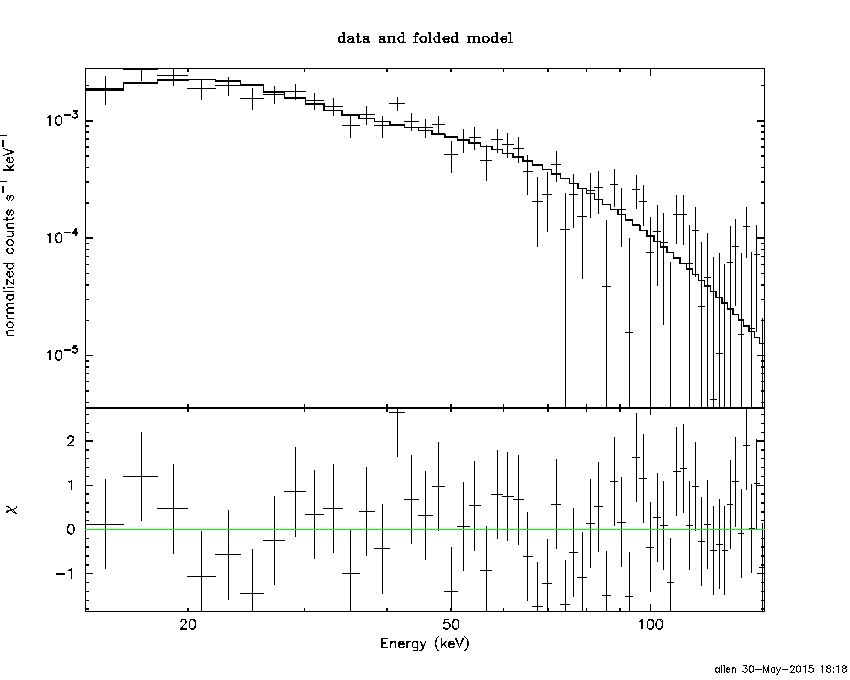

Band function

Time interval is from  -22.580 sec. to  215.728 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.05726   ( -0.660168   1.13464 )
beta        : -2.22389    ( 2.22576   0.172029 )
Epeak [keV] : 38.4933      ( -8.50157 11.0836 )
Norm@50keV   : 8.92488E-03    ( -0.00543647   0.0458862 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.84 using 59 PHA bins.
# Reduced chi-squared =         0.9244 for     55 degrees of freedom
# Null hypothesis probability =   6.340608e-01

Photon flux (15-150 keV)    in 238.3 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.30582e-06 ( -5.30415e-06  -1.37523e-07 ) ergs/cm2

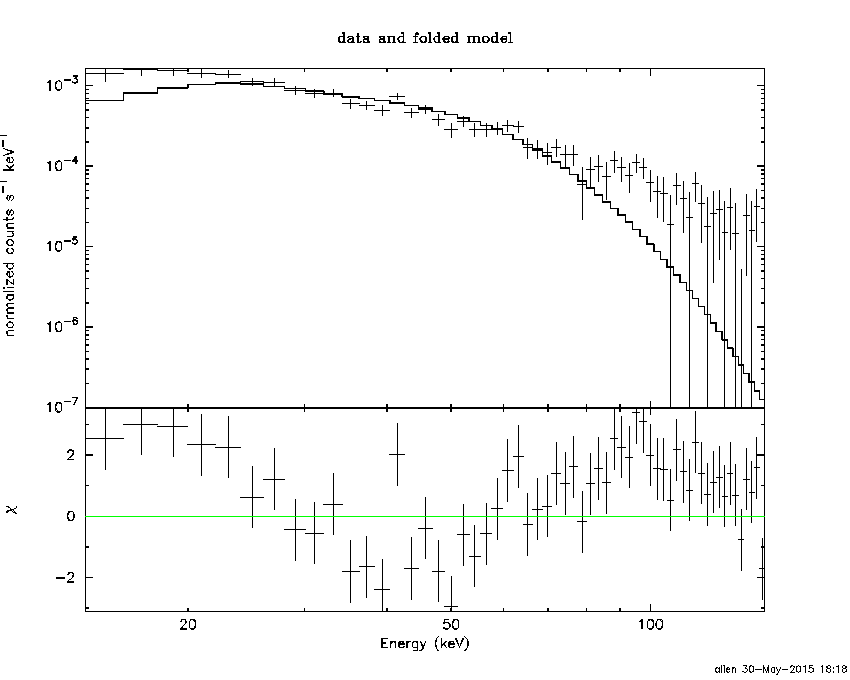

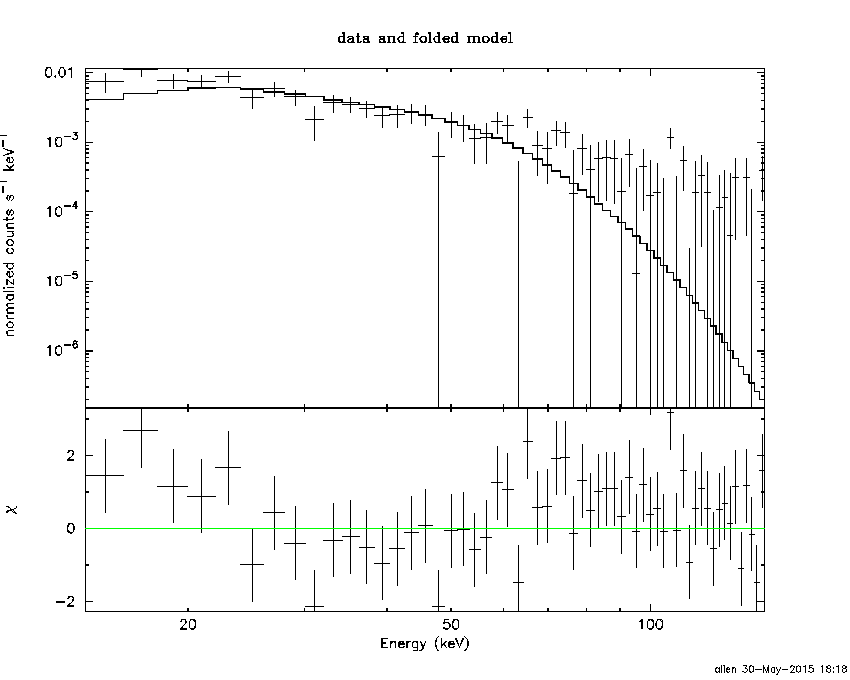

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 11.0710  (  )
R^2/D10^2   : 0.112423  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         162.23 using 59 PHA bins.
# Reduced chi-squared =         2.8461 for     57 degrees of freedom
# Null hypothesis probability =   4.900172e-12

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.869e-07   5.123e-08
25- 50  1.959e-06   9.151e-08
50-150  1.363e-06   1.293e-07
15-150  4.008e-06   1.787e-07

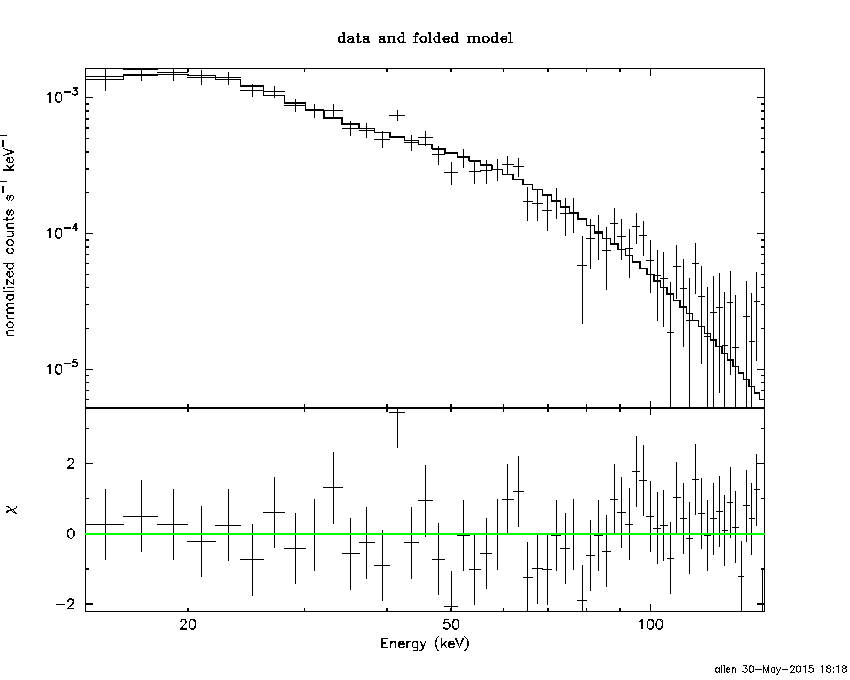

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 73.3370       (-9.15935      11.3138)
Norm        : 1.77696       (-0.125308     0.137214)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.82 using 59 PHA bins.
# Reduced chi-squared =         0.9617 for     57 degrees of freedom
# Null hypothesis probability =   5.574423e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.091e-06   6.660e-08
25- 50  1.758e-06   7.042e-08
50-150  2.336e-06   2.188e-07
15-150  5.185e-06   2.478e-07

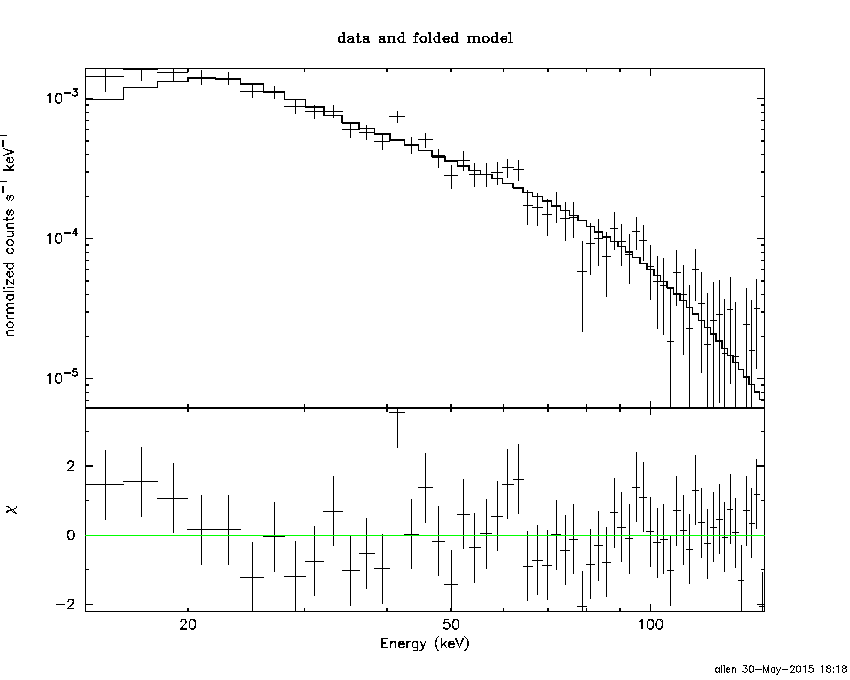

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.27525        (-0.969319      0.902957)
R1^2/D10^2  : 0.427015        (-0.137834      0.265198)
kT2 [keV]   : 24.7600        (-4.88282      7.83124)
R2^2/D10^2  : 3.35850E-03    (-0.00212104   0.0048408)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.36 using 59 PHA bins.
# Reduced chi-squared =          1.061 for     55 degrees of freedom
# Null hypothesis probability =   3.530805e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.847e-07   1.189e-07
25- 50  1.809e-06   2.116e-07
50-150  2.454e-06   7.982e-07
15-150  5.247e-06   9.615e-07

Peak spectrum fit

Power-law model

Time interval is from   99.212 sec. to  100.212 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.95087     ( -0.18624   0.19526 )
Norm@50keV  : 1.15087E-02    ( -0.0014167   0.00138167 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.69 using 59 PHA bins.
# Reduced chi-squared =         0.8366 for     57 degrees of freedom
# Null hypothesis probability =   8.055118e-01

Photon flux (15-150 keV)    in 1 sec: 1.68845 ( -0.16397  0.164055 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.05914e-07 ( -1.23656e-08  1.26124e-08 ) ergs/cm2

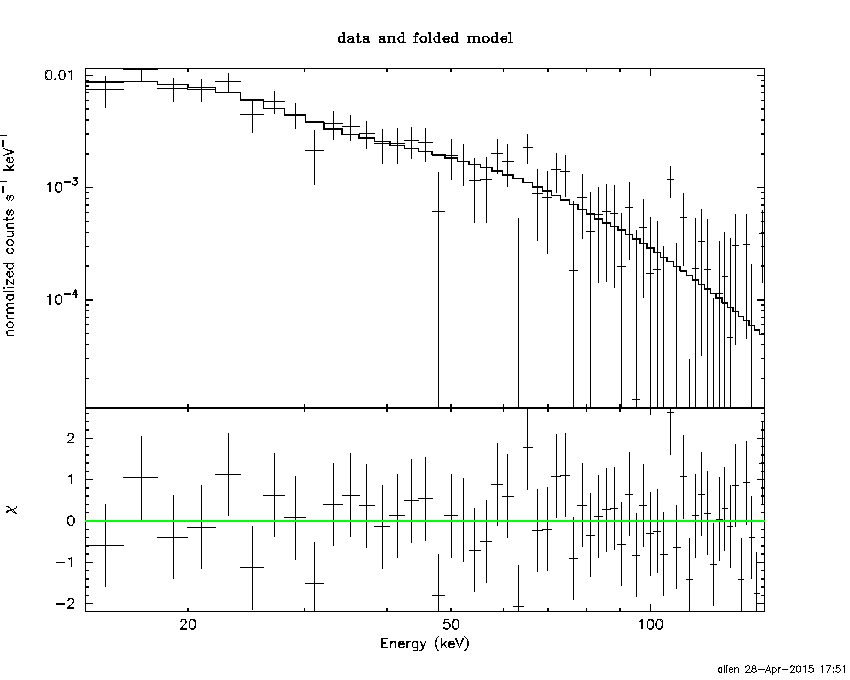

Cutoff power-law model

Time interval is from   99.212 sec. to  100.212 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.90270     (     )
Epeak [keV] : 87.5565      (   )
Norm@50keV  : 1.22532E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.67 using 59 PHA bins.
# Reduced chi-squared =         0.8513 for     56 degrees of freedom
# Null hypothesis probability =   7.781653e-01

Photon flux (15-150 keV)    in 1 sec: 1.68446 ( -0.17037  0.16685 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.05407e-07 ( -1.42776e-08  1.2968e-08 ) ergs/cm2

Band function

Time interval is from   99.212 sec. to  100.212 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.90184   ( 1.90184   0.541929 )
beta        : -8.68616    ( 8.68526   18.6853 )
Epeak [keV] : 79.7630      ( -79.763 -79.763 )
Norm@50keV   : 1.23118E-02    ( -0.00166191   0.00385267 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.67 using 59 PHA bins.
# Reduced chi-squared =         0.8668 for     55 degrees of freedom
# Null hypothesis probability =   7.479419e-01

Photon flux (15-150 keV)    in 1 sec: 1.68449 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 10.0909  (-1.29591  1.51407)
R^2/D10^2   : 0.729479  (-0.29905   0.504671)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          79.72 using 59 PHA bins.
# Reduced chi-squared =          1.399 for     57 degrees of freedom
# Null hypothesis probability =   2.512485e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.517e-08   2.565e-09
25- 50  3.821e-08   5.055e-09
50-150  2.047e-08   5.540e-09
15-150  7.386e-08   8.825e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 76.0417       (-22.0453      38.0694)
Norm        : 7.97584       (-1.17707     1.48422)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.64 using 59 PHA bins.
# Reduced chi-squared =         0.8709 for     57 degrees of freedom
# Null hypothesis probability =   7.447967e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.062e-08   2.940e-09
25- 50  3.352e-08   3.730e-09
50-150  4.570e-08   1.710e-08
15-150  9.985e-08   1.632e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.30614        (-1.36406      1.54408)
R1^2/D10^2  : 6.38176        (-3.89989      15.4126)
kT2 [keV]   : 20.7115        (-5.27812      9.65663)
R2^2/D10^2  : 3.74579E-02    (-0.0279018   0.0458187)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.18 using 59 PHA bins.
# Reduced chi-squared =         0.8760 for     55 degrees of freedom
# Null hypothesis probability =   7.307255e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.262e-08   8.805e-09
25- 50  3.032e-08   1.022e-08
50-150  5.048e-08   2.809e-08
15-150  1.034e-07   3.993e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.88244     ( -0.109475   0.111719 )
Norm@50keV  : 4.84402E-03    ( -0.000324276   0.00032176 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.02 using 59 PHA bins.
# Reduced chi-squared =          1.088 for     57 degrees of freedom
# Null hypothesis probability =   3.018067e-01

Photon flux (15-150 keV)    in 58.14 sec: 0.690044 ( -0.0441878  0.0443027 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.58902e-06 ( -1.72027e-07  1.72934e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.05983     ( -0.605079   0.52356 )
Epeak [keV] : 53.3003      ( -7.77502 16.8918 )
Norm@50keV  : 1.31696E-02    ( -0.00612079   0.0142121 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.35 using 59 PHA bins.
# Reduced chi-squared =         0.9705 for     56 degrees of freedom
# Null hypothesis probability =   5.375938e-01

Photon flux (15-150 keV)    in 58.14 sec: 0.660714 ( -0.047773  0.047782 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.42911e-06 ( -1.98659e-07  1.99897e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.06027   ( -0.232047   0.603163 )
beta        : -10.00000    ( 10   5.32907e-15 )
Epeak [keV] : 53.2963      ( -7.76426 9.99226 )
Norm@50keV   : 1.31612E-02    ( -0.000799833   0.014244 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.35 using 59 PHA bins.
# Reduced chi-squared =         0.9882 for     55 degrees of freedom
# Null hypothesis probability =   4.994666e-01

Photon flux (15-150 keV)    in 58.14 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.44055e-06 ( -2.44015e-06  -1.89996e-07 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.66e-06
S(50-100 keV) = 1.66e-06

T90 vs. Hardness ratio plot

T90                                   = 168.223999977112 sec.
Hardness ratio (energy fluence ratio) = 1

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.13088
Count Ratio (50-100 keV) / (15-25 keV) = 0.573182

Mask shadow pattern

IMX = 8.423515396214318E-01, IMY = 4.970291649291343E-01

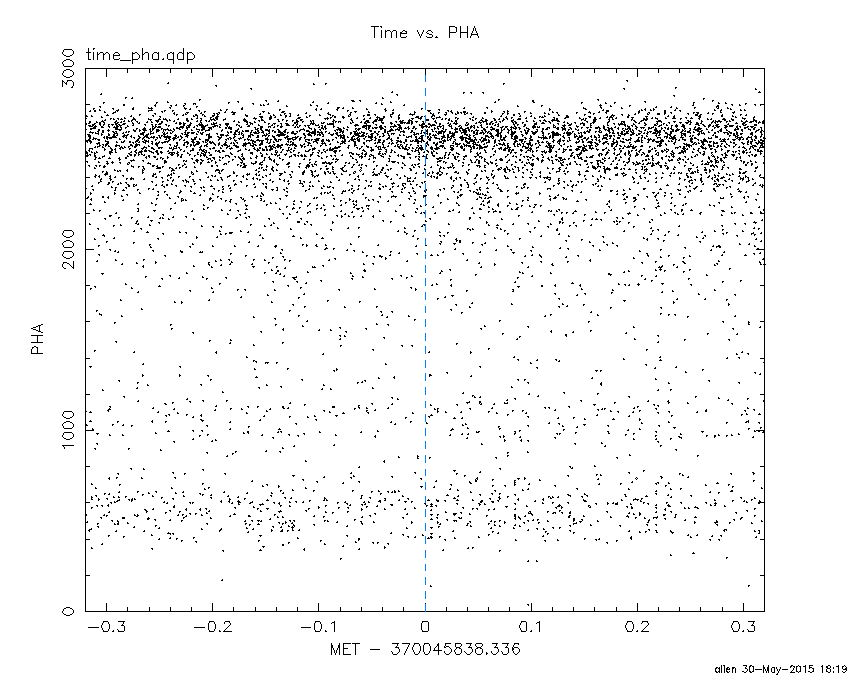

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

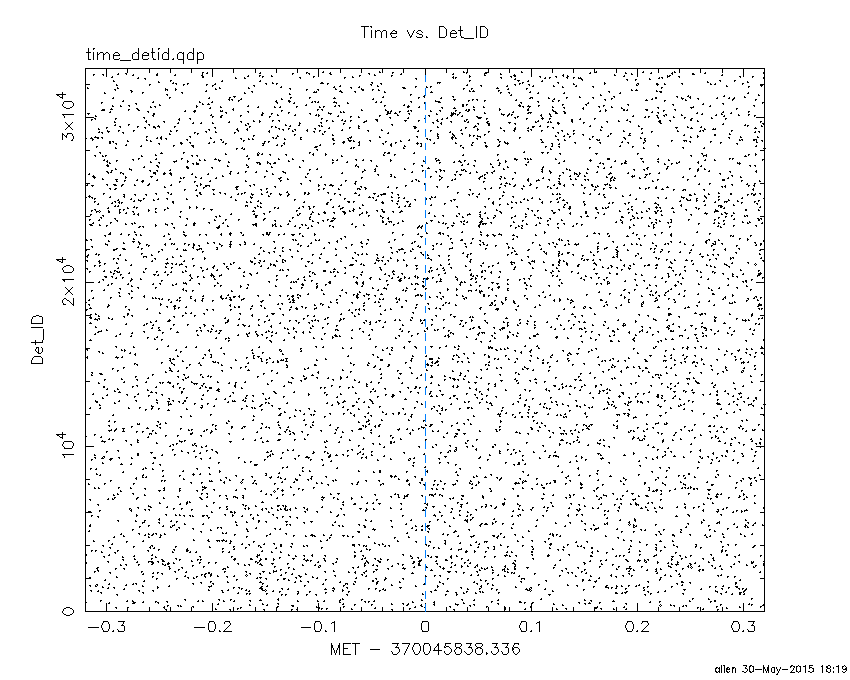

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

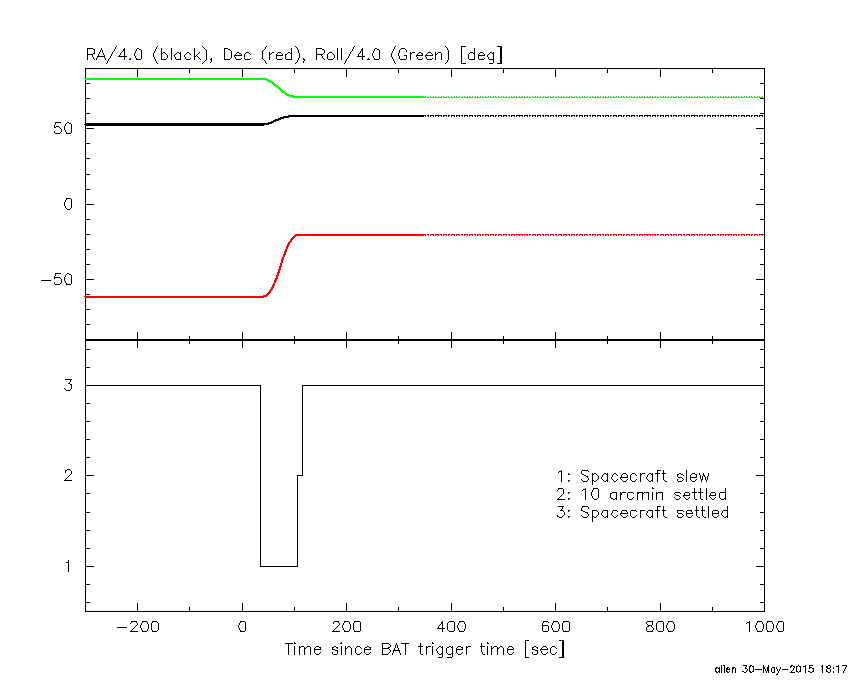

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.336000 -22.580000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5358 -40.5402   15.2  48.7 -164.1   0.3392   0.8    0.9	Vela X-1
170.5763 -60.7672   16.6  19.4 -169.0   0.1373   0.7   11.5	Cen X-3
186.6539 -62.7759    1.7  11.5 -170.4   1.3695   6.9    0.3	GX 301-2
244.9804 -15.6402    1.0  51.7  -19.9   5.4881  11.3    0.1	Sco X-1
255.9937 -37.8488    2.3  36.2    7.4   1.1995   5.0    0.4	4U 1700-377
256.5639 -36.4710   31.6  37.6    6.7   0.0935   0.4    6.8	GX 349+2
263.0162 -24.6939    7.3  50.5    4.7   0.7259   1.6    3.1	GX 1+4
264.7575 -44.3801    4.7  35.1   23.3   0.6931   2.5    4.2	4U 1735-44
270.2488 -25.0574    3.9  53.4   12.2   2.3980   3.0    2.3	GX 5-1
270.2548 -25.8229    7.6  52.8   12.7  -1.1991  -1.5    5.4	GRS 1758-258
275.8022 -30.4816    0.0  51.5   21.1   1.7236   2.2    9.4	H1820-303
262.9816 -33.9265    4.3  42.6   11.3   0.9233   2.7    5.5	GX 354-0
103.8828 -71.4042    2.3  38.1  146.7   1.8058   5.0 ------	UNKNOWN
266.2964 -26.4045    1.1  50.5    9.2   5.6606  10.4 ------	UNKNOWN
218.5754 -14.6424    3.4  47.1  -53.2   3.2361   3.5 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-22.580000 35.564610

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5587 -40.5497    8.8  48.7 -164.1  -0.2666  -1.3    1.4	Vela X-1
170.3433 -60.6115 1093.5  19.5 -168.7  -0.0009  -0.0    1.1	Cen X-3
186.6515 -62.7750    3.8  11.5 -170.4  -0.2755  -3.1    0.3	GX 301-2
244.8060 -15.6474    6.1  51.6  -20.1   0.4612   1.9   10.0	Sco X-1
256.1893 -37.7705    9.5  36.3    7.5   0.1529   1.2   10.6	4U 1700-377
256.3738 -36.3795   51.0  37.5    6.4  -0.0301  -0.2    4.0	GX 349+2
263.0090 -24.7456   80.7  50.4    4.8   0.0352   0.1    0.0	GX 1+4
264.9596 -44.3560    0.0  35.2   23.4  -0.2346  -1.7   10.9	4U 1735-44
270.3371 -25.1608    6.4  53.4   12.3  -0.7253  -1.8    5.7	GX 5-1
270.3450 -25.7273    4.5  52.9   12.7   1.0141   2.6    2.5	GRS 1758-258
276.0042 -30.5175    5.2  51.5   21.3  -0.8649  -2.2    9.9	H1820-303
262.9072 -33.6860    6.3  42.7   11.0   0.3203   1.8    9.8	GX 354-0
252.0617 -25.6978    2.2  45.0   -6.5   0.8165   5.1 ------	UNKNOWN
252.7851 -17.4521    2.7  52.7  -10.3   1.0982   4.3 ------	UNKNOWN
234.7591 -20.1819    0.5  44.4  -30.5   4.0997  23.2 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
105.164590 962.748300

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
186.6400 -62.8297   12.4  53.6 -168.6   2.7366   0.9    3.6	GX 301-2
244.9742 -15.6341    0.2  10.7   53.2  34.7007  47.9    0.5	Sco X-1
256.0257 -37.9845    4.7  25.6  125.1   2.2050   2.5    8.6	4U 1700-377
256.3540 -36.5625    6.0  25.0  122.1   1.6342   1.9    9.2	GX 349+2
262.9502 -24.7396    5.5  26.4   91.7   2.3656   2.1    3.2	GX 1+4
264.5521 -44.3351    0.0  34.6  127.7  -1.0211  -0.7   10.7	4U 1735-44
268.4553  -1.6093    6.9  37.8   51.4   2.6870   1.7   10.8	SW J1753.5-0127
270.1802 -25.1381    3.7  33.0   91.9   4.8152   3.1    6.7	GX 5-1
270.2404 -25.7118    5.0  33.1   92.9   3.5714   2.3    3.8	GRS 1758-258
273.9675 -13.9557   85.0  37.9   73.4   0.3134   0.1    5.3	GX 17+2
275.9500 -30.3581  182.1  38.4  100.3   0.1438   0.1    1.4	H1820-303
262.9827 -33.7869    4.4  28.5  110.9   3.0762   2.7    2.9	GX 354-0
266.3024 -26.3978    0.6  29.6   94.7  23.8812  18.7 ------	UNKNOWN
263.5710   9.3560    3.1  40.9   33.0   5.1955   3.7 ------	UNKNOWN
248.4798 -47.3792    2.2  29.4  147.4   4.8210   5.2 ------	UNKNOWN
233.5683 -67.8550    2.5  47.7  167.1   8.2119   4.6 ------	UNKNOWN
243.2489 -15.8930    3.1   9.1   50.1   2.5727   3.8 ------	UNKNOWN
242.0683  21.4776    3.6  42.2   -3.4   3.9280   3.2 ------	UNKNOWN

Plot creation:
Sat May 30 18:19:33 EDT 2015
