batgrbproduct analysis for trigger=535026

batgrbproduct Analysis for Trigger=535026

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Mon Jan 13 00:18:17 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger535026
======================================================================

  Trigger: 00535026      Segment: 000

  BAT Trigger Time: 370808592   [s; MET]
      Trigger Stop: 370808656   [s; MET]
               UTC: 2012-10-01T18:23:02.288260    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 276.032542704368   Dec: -5.66707146788107  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    9.79
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    9.79

  Flight Position:   [ source = BAT ]
    RA: 276.032542704368   Dec: -5.66707146788107  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 276.032652738635   Dec: -5.66746101233414  [deg; J2000]
        { 18h 24m 07.8s , -05d 40' 02.9" }
         +/- 1.51295989025431 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.685078133259708 [arcmin] (formal 1-sigma fit error)
    SNR: 16.8353470408549

  Angular difference between Flight and Ground position is 0.024278 arcmin

  Partial Coding Fraction: 1    [ including projection effects ]

  Duration
     T90: 147.823999941349 +/- 18.6049249307883
        Measured from: -22.7879999876022
                   to: 125.035999953747     [s; relative to TRIGTIME]
     T50: 61.7359999418259 +/- 24.4651086343509
        Measured from: -6.38800001144409
                   to: 55.3479999303818     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 3.27200001478195
                   to: 4.27200001478195     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -27.727999985218
                   to: 142.967999994755     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.764618   0.981461   0.785278   0.204625
           0.084112   0.075263   0.062830   0.053878 [error]
 Peak      0.016752   0.022189   0.014835   0.003988
           0.007066   0.005901   0.004852   0.004226 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.95e-07 3.92e-07 6.14e-07 2.13e-06 1.71e-06 3.33e-06   erg/cm2
              Error 3.03e-08 3.56e-08 6.08e-08 4.82e-07 1.50e-07 5.17e-07   erg/cm2
Peak flux Power-law 1.75e-01 1.55e-01 9.49e-02 8.78e-02 4.62e-01 5.13e-01   ph/cm2/s
              Error 8.48e-02 4.76e-02 3.93e-02 7.59e-02 1.40e-01 1.53e-01   ph/cm2/s

Fluence   Cutoff-PL 1.92e-07 3.94e-07 6.18e-07 1.93e-06 1.70e-06 3.10e-06   erg/cm2
              Error 3.45e-08 3.89e-08 6.48e-08 7.74e-07 1.62e-07 8.87e-07   erg/cm2
Peak flux Cutoff-PL 1.61e-01 1.63e-01 9.72e-02 4.87e-02 4.51e-01 4.70e-01   ph/cm2/s
              Error 9.68e-02 5.64e-02 4.39e-02 8.80e-02 1.46e-01 1.73e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band 1.58e-01 1.64e-01 9.77e-02 4.52e-02 4.48e-01 4.65e-01   ph/cm2/s
              Error -------- -------- -------- -------- 1.45e-01 --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.351    0.148    -      -           1.03e-03 8.18e-05   90.120 57
CPL   1.237    0.400     326.3    0.0      1.16e-03 6.67e-04   90.170 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.711    0.558    -      -           3.47e-03 1.12e-03   47.010 57
CPL   1.205    1.895      74.3    0.0      6.40e-03 9.18e-02   46.800 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 191.616000 sec.
T50 in the 50-300 keV band: 87.680000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  170.696  -27.728  142.968
T90   147.824  -22.788  125.036
T50    61.736   -6.388   55.348
Peak    1.000    3.272    4.272

Click here for the BAT GCN circular template


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  276.0327    -5.6675   0.0114    12.3053    20.1469         2.1445387     16.835 TRIG_00535026

Foreground time interval of the image:
-27.728  74.501 (delta_t = 102.229 [sec])
Background time interval of the image:
-239.000 -27.728 (delta_t = 211.272 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

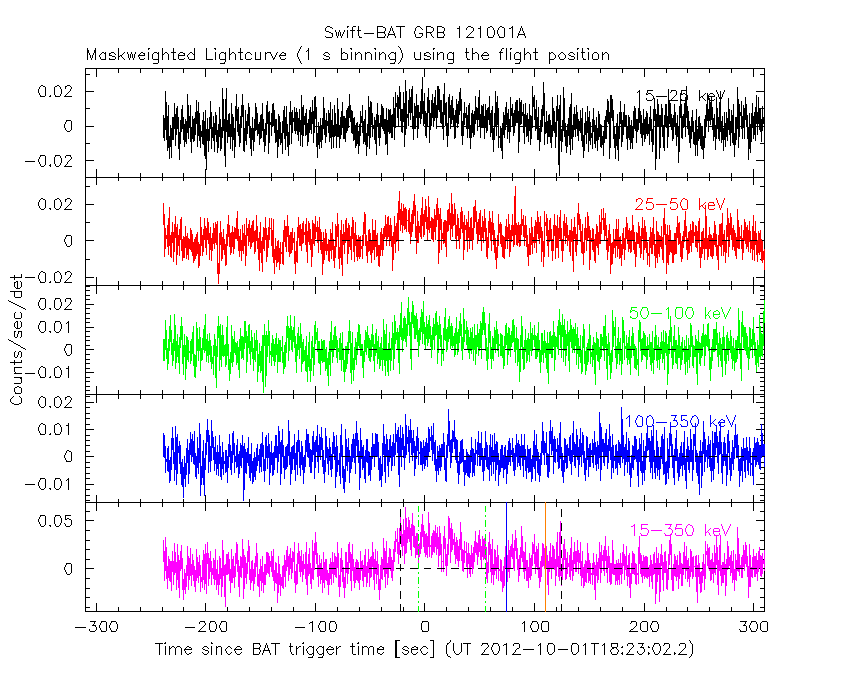

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

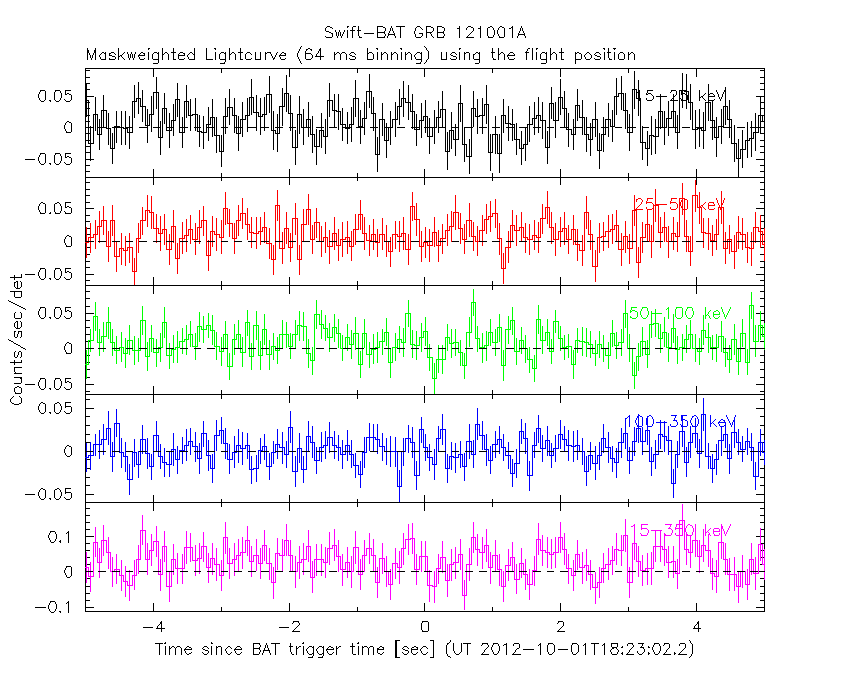

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

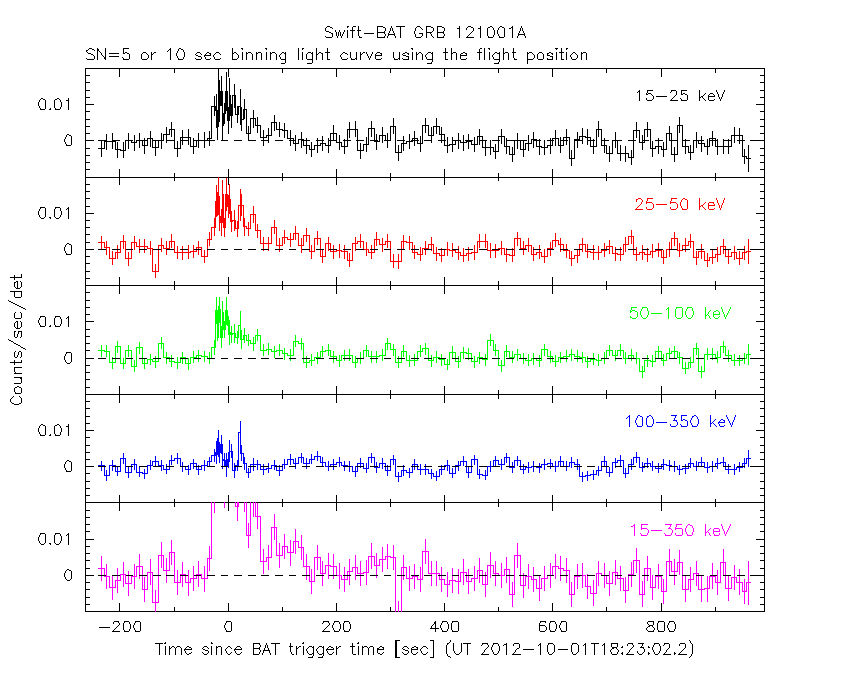

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

The mask-weighted light curves based on cleaned DPHs

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from  -27.728 sec. to  142.968 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.35063     ( -0.148763   0.147229 )
Norm@50keV  : 1.02672E-03    ( -8.18552e-05   8.18247e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          90.12 using 59 PHA bins.
# Reduced chi-squared =          1.581 for     57 degrees of freedom
# Null hypothesis probability =   3.388242e-03

Photon flux (15-150 keV)    in 170.7 sec: 0.123706 ( -0.0103677  0.0104173 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.71149e-06 ( -1.49568e-07  1.50603e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from  -27.728 sec. to  142.968 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.23707     ( -0.596545   0.204121 )
Epeak [keV] : 326.251      ( -583.181 -583.181 )
Norm@50keV  : 1.16416E-03    ( -0.000364864   0.000969197 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          90.17 using 59 PHA bins.
# Reduced chi-squared =          1.610 for     56 degrees of freedom
# Null hypothesis probability =   2.569109e-03

Photon flux (15-150 keV)    in 170.7 sec: 0.123250 ( -0.011023  0.010677 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.70384e-06 ( -1.67378e-07  1.56786e-07 ) ergs/cm2

Band function

Time interval is from  -27.728 sec. to  142.968 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.93087   ( -4.93087   -4.93087 )
beta        : -1.38973    ( -0.162568   0.15865 )
Epeak [keV] : 23.0971      ( -23.0971 5.41418 )
Norm@50keV   : 135.975    ( -10.8139   368774 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          89.20 using 59 PHA bins.
# Reduced chi-squared =          1.622 for     55 degrees of freedom
# Null hypothesis probability =   2.413939e-03

Photon flux (15-150 keV)    in 170.7 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 17.1578  (  )
R^2/D10^2   : 8.83021E-03  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         124.88 using 59 PHA bins.
# Reduced chi-squared =         2.1909 for     57 degrees of freedom
# Null hypothesis probability =   5.525472e-07

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.014e-08   1.579e-08
25- 50  4.018e-07   4.984e-08
50-150  8.469e-07   1.316e-07
15-150  1.339e-06   1.460e-07

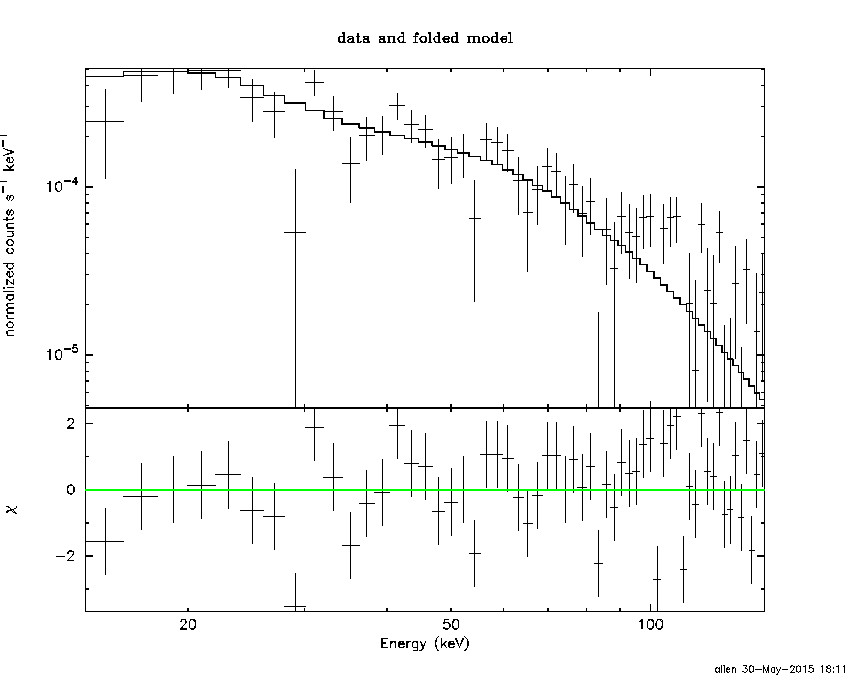

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 0.514798       (-0.0412779     0.041273)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          95.93 using 59 PHA bins.
# Reduced chi-squared =          1.683 for     57 degrees of freedom
# Null hypothesis probability =   9.605878e-04

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.188e-07   2.313e-08
25- 50  4.209e-07   5.420e-08
50-150  9.231e-07   4.000e-07
15-150  1.563e-06   5.020e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.22076        (-2.57959      1.4436)
R1^2/D10^2  : 7.14192E-02        (-0.0418653      0.110271)
kT2 [keV]   : 33.7548        (-10.2372      40.3472)
R2^2/D10^2  : 7.51450E-04    (-0.000650173   0.00183598)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          91.73 using 59 PHA bins.
# Reduced chi-squared =          1.668 for     55 degrees of freedom
# Null hypothesis probability =   1.384060e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.731e-07   6.737e-08
25- 50  4.155e-07   1.420e-07
50-150  1.122e-06   5.510e-07
15-150  1.711e-06   7.052e-07

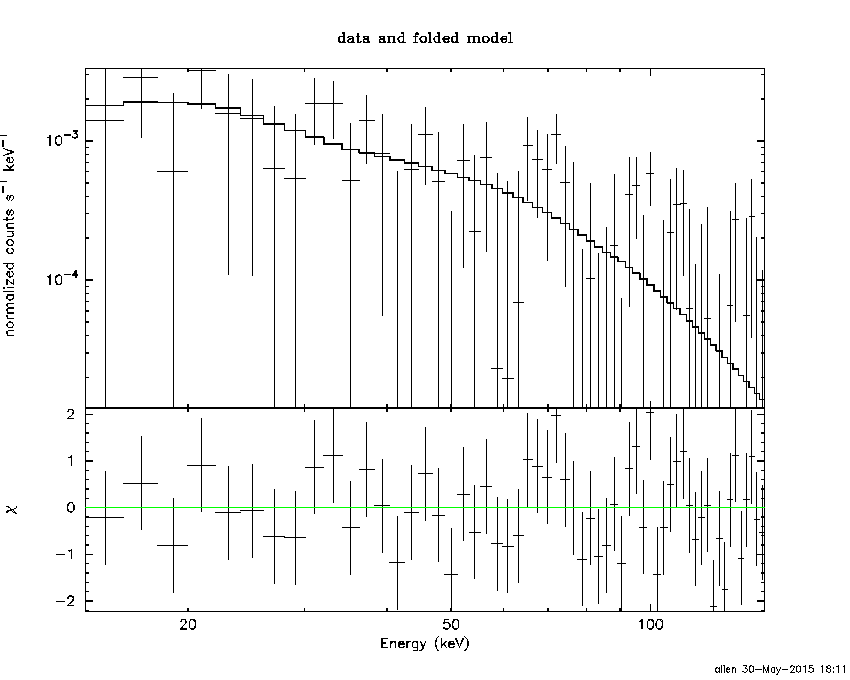

Peak spectrum fit

Power-law model

Time interval is from    3.272 sec. to    4.272 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.71097     ( -0.542116   0.574582 )
Norm@50keV  : 3.46663E-03    ( -0.00114268   0.0011 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          47.01 using 59 PHA bins.
# Reduced chi-squared =         0.8247 for     57 degrees of freedom
# Null hypothesis probability =   8.246578e-01

Photon flux (15-150 keV)    in 1 sec: 0.462187 ( -0.139742  0.140742 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.20698e-08 ( -1.05953e-08  1.10374e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    3.272 sec. to    4.272 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.20528     ( -2.73202   1.05834 )
Epeak [keV] : 74.3144      ( -74.3092 -74.3092 )
Norm@50keV  : 6.39657E-03    ( -0.00639717   0.1773 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.80 using 59 PHA bins.
# Reduced chi-squared =         0.8357 for     56 degrees of freedom
# Null hypothesis probability =   8.045972e-01

Photon flux (15-150 keV)    in 1 sec: 0.450767 ( -0.145883  0.146275 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.07112e-08 ( -1.12489e-08  1.1935e-08 ) ergs/cm2

Band function

Time interval is from    3.272 sec. to    4.272 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.21709   ( -0.79019   2.74136 )
beta        : -10.0000    ( 10   0 )
Epeak [keV] : 74.8380      ( -49.2925 -74.838 )
Norm@50keV   : 6.31078E-03    ( -0.00393767   0.177443 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.80 using 59 PHA bins.
# Reduced chi-squared =         0.8509 for     55 degrees of freedom
# Null hypothesis probability =   7.763854e-01

Photon flux (15-150 keV)    in 1 sec: 0.448344 ( 6.55166  -0.14333 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.05094e-08 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 13.1228  (-4.69068  7.43753)
R^2/D10^2   : 7.91658E-02  (-0.0784025   0.325037)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.55 using 59 PHA bins.
# Reduced chi-squared =         0.8693 for     57 degrees of freedom
# Null hypothesis probability =   7.478287e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.891e-09   1.846e-09
25- 50  1.006e-08   6.115e-09
50-150  1.101e-08   7.610e-09
15-150  2.396e-08   1.445e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 136.082       (-88.5612      -132.513)
Norm        : 1.90153       (-0.618124     1.10241)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.82 using 59 PHA bins.
# Reduced chi-squared =         0.8215 for     57 degrees of freedom
# Null hypothesis probability =   8.297530e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.920e-09   2.958e-09
25- 50  8.986e-09   5.250e-09
50-150  1.701e-08   1.106e-08
15-150  3.092e-08   1.911e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.17103        (-5.04076      7.04457)
R1^2/D10^2  : 0.823619        (-0.77128      260.117)
kT2 [keV]   : 22.4441        (-22.4988      -22.4991)
R2^2/D10^2  : 8.91005E-03    (-0.00881273   0.106044)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.41 using 59 PHA bins.
# Reduced chi-squared =         0.8438 for     55 degrees of freedom
# Null hypothesis probability =   7.885540e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.158e-09   3.286e-09
25- 50  8.995e-09   4.728e-09
50-150  1.705e-08   1.064e-08
15-150  3.120e-08   1.644e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.36805     ( -0.150897   0.149786 )
Norm@50keV  : 1.34954E-03    ( -0.000106631   0.000106569 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.75 using 59 PHA bins.
# Reduced chi-squared =          1.189 for     57 degrees of freedom
# Null hypothesis probability =   1.560134e-01

Photon flux (15-150 keV)    in 102.2 sec: 0.163196 ( -0.0135985  0.0136696 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.3417e-06 ( -1.16477e-07  1.17283e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.36472     ( -0.447345   0.184509 )
Epeak [keV] : 1.00000E+04      (   )
Norm@50keV  : 1.35458E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.75 using 59 PHA bins.
# Reduced chi-squared =          1.210 for     56 degrees of freedom
# Null hypothesis probability =   1.349474e-01

Photon flux (15-150 keV)    in 102.2 sec: 0.163291 ( -0.013757  0.013297 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.34145e-06 ( -1.19349e-07  1.16263e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.03462   ( 1.03367   1.03367 )
beta        : -1.36919    ( 1.369   0.151757 )
Epeak [keV] : 55.5555      ( -55.0563 -55.0563 )
Norm@50keV   : 2.59569E-03    ( -0.00108163   114763 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.74 using 59 PHA bins.
# Reduced chi-squared =          1.232 for     55 degrees of freedom
# Null hypothesis probability =   1.162101e-01

Photon flux (15-150 keV)    in 102.2 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 3.92e-07
S(50-100 keV) = 6.14e-07

T90 vs. Hardness ratio plot

T90                                   = 147.823999941349 sec.
Hardness ratio (energy fluence ratio) = 1.56633

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.2836
Count Ratio (50-100 keV) / (15-25 keV) = 1.02702

Mask shadow pattern

IMX = 2.047849142613579E-01, IMY = -7.513075084194860E-02

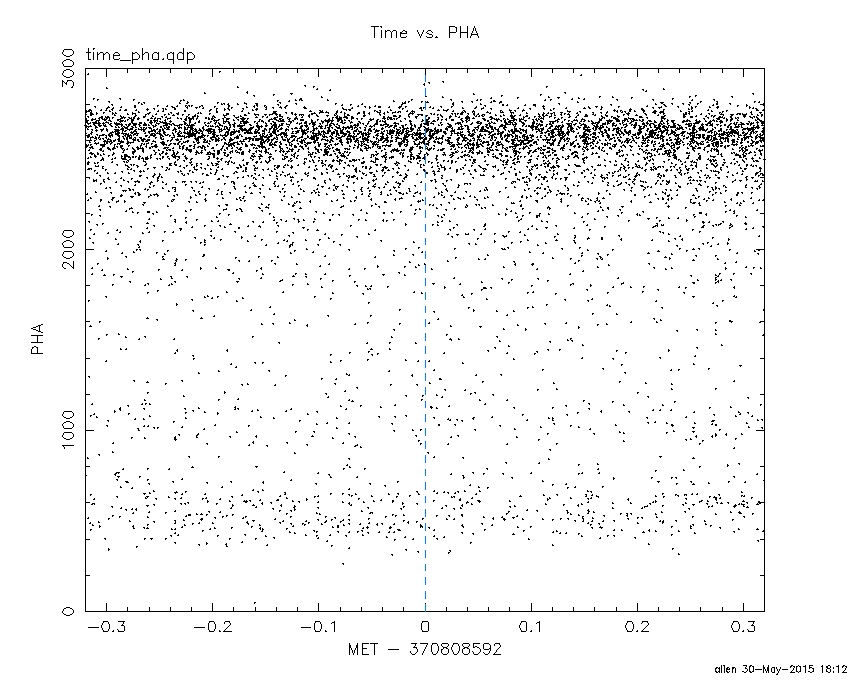

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.000000 -27.728000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9848 -15.6401    0.2  28.1  -77.8  14.3572  46.4    0.3	Sco X-1
254.3488  35.3609    9.2  56.5   -7.4   1.1874   1.3    5.4	Her X-1
255.9327 -37.7232    4.0  25.6 -132.6   0.6991   2.9    7.7	4U 1700-377
256.4825 -36.5650    2.8  24.4 -131.4   0.9814   4.1    8.8	GX 349+2
263.0305 -24.7297   23.4  12.6 -113.0  -0.1185  -0.5    1.5	GX 1+4
264.6690 -44.5771   16.4  27.9 -153.1   0.1723   0.7    8.3	4U 1735-44
268.4906  -1.3300    3.4  17.5   -7.6   0.6828   3.4   10.4	SW J1753.5-0127
270.2284 -25.0146    2.3   8.1 -140.6   1.0363   5.1    4.9	GX 5-1
270.3556 -25.6826    6.6   8.6 -143.4   0.3678   1.8    4.6	GRS 1758-258
274.0632 -14.0969    1.7   3.8    8.4   1.4732   6.8    4.9	GX 17+2
276.0276 -30.1934    4.3  12.4 -174.8   0.5679   2.7   11.7	H1820-303
285.1489 -24.7347    0.0  12.2  138.3  -0.2982  -1.3   12.7	HT1900.1-2455
288.8620  10.9128    3.1  32.2   39.7   1.2206   3.7    4.2	GRS 1915+105
262.9891 -33.8347   71.8  18.9 -137.7  -0.0371  -0.2    0.0	GX 354-0
311.9258 -43.3143    2.8  40.6  149.1   1.7906   4.2 ------	UNKNOWN
266.3075 -26.3993    0.6  11.3 -128.4   4.1098  19.3 ------	UNKNOWN
257.9996 -41.5350    2.4  27.5 -140.8   1.1933   4.9 ------	UNKNOWN
240.7500  25.1020    2.2  54.0  -26.1   3.8604   5.3 ------	UNKNOWN
237.8392 -24.5752    2.7  34.6  -95.5   1.8577   4.3 ------	UNKNOWN
232.7300  10.6781    2.2  50.0  -46.3   5.4235   5.1 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-27.728000 74.500590

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9474 -15.5573    5.5  28.2  -77.6  -0.4228  -2.1    5.3	Sco X-1
254.5095  35.2169  216.3  56.3   -7.3   0.0291   0.1    7.9	Her X-1
255.8831 -37.9869    7.3  25.8 -132.9   0.2655   1.6    9.9	4U 1700-377
256.5510 -36.5639    5.6  24.4 -131.5  -0.3370  -2.0   10.1	GX 349+2
263.1961 -24.8707    7.8  12.5 -113.9   0.1960   1.5   12.7	GX 1+4
264.5771 -44.5657    7.0  27.9 -153.0  -0.2537  -1.6    9.9	4U 1735-44
268.4633  -1.2804    5.5  17.5   -7.7  -0.2698  -2.1   11.8	SW J1753.5-0127
270.0912 -24.9591    0.0   8.1 -139.7   0.2806   2.2   12.7	GX 5-1
270.4119 -25.8770    7.0   8.8 -144.3   0.2185   1.7   10.0	GRS 1758-258
273.9557 -13.8934    8.4   4.0    7.1   0.1729   1.4    9.1	GX 17+2
276.0516 -30.1887    0.0  12.4 -174.9  -0.1826  -1.4   12.5	H1820-303
285.1811 -24.8407    5.5  12.3  138.6   0.2897   2.1    9.2	HT1900.1-2455
288.7030  10.7890    0.0  32.0   39.6   0.2913   1.4   10.9	GRS 1915+105
262.9977 -33.6869    6.9  18.8 -137.4   0.2338   1.7    8.9	GX 354-0
276.0326  -5.6675    0.7  12.3   20.1   2.1447  16.8 ------	UNKNOWN
257.4081  31.3336    2.1  51.8   -6.3   1.8016   5.4 ------	UNKNOWN
260.9506 -65.0455    2.3  48.0 -160.4   1.3800   5.1 ------	UNKNOWN
242.4937 -25.2199    2.4  30.4  -97.5   1.0620   4.8 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
110.300580 963.014400

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9821 -15.6376    0.3  32.1 -107.1  53.3118  46.0    0.2	Sco X-1
254.5883  35.5218    5.6  45.8  -21.0  -2.8320  -2.1   12.5	Her X-1
255.9040 -37.8352    2.3  37.0 -149.6   4.1299   5.0    3.9	4U 1700-377
256.5129 -36.5156    3.5  35.7 -149.0   2.5839   3.3    6.7	GX 349+2
262.9655 -24.7785    5.0  22.9 -144.6   1.6424   2.3    3.1	GX 1+4
264.8723 -44.3759   30.4  39.9 -164.0   0.3265   0.4    7.1	4U 1735-44
268.3239  -1.4594    4.0   8.8  -58.1   1.6477   2.9    2.7	SW J1753.5-0127
270.3060 -25.0576    2.0  20.2 -161.3   3.6318   5.7    1.8	GX 5-1
270.2449 -25.6898    3.1  20.8 -161.6   2.3880   3.8    4.5	GRS 1758-258
273.9866 -14.0712    1.5   8.6 -163.2   4.8873   7.9    2.4	GX 17+2
276.0200 -30.2914    4.1  24.6 -176.4   1.9893   2.8    6.7	H1820-303
284.8769 -24.8872   47.2  21.0  160.6  -0.1826  -0.2    8.9	HT1900.1-2455
288.8308  10.8912    1.7  20.9   41.1   4.8371   6.7    3.8	GRS 1915+105
299.4305  35.3052   43.9  46.5   30.1  -0.5154  -0.3   10.0	Cyg X-1
263.0652 -33.9862   16.5  30.8 -155.1   0.4825   0.7    9.9	GX 354-0
290.7098  33.1168    3.7  41.2   22.3   3.4756   3.1 ------	UNKNOWN
288.7455  40.9086    3.7  48.0   16.5   4.7167   3.1 ------	UNKNOWN
266.2903 -26.4080    0.5  22.7 -153.4  16.0981  22.6 ------	UNKNOWN
266.5957 -32.2195    1.4  28.0 -159.3   5.6586   8.2 ------	UNKNOWN
239.9101 -52.4275    2.8  55.4 -150.6  11.2572   4.1 ------	UNKNOWN
235.2715  15.9230    2.5  45.8  -57.7  11.9831   4.5 ------	UNKNOWN

Plot creation:
Sat May 30 18:13:00 EDT 2015
