batgrbproduct analysis for trigger=535747

batgrbproduct Analysis for Trigger=535747

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Fri Oct 12 00:30:12 EDT 2012
             Host Name: gcn5
   Current Working Dir: /local/data/raid16/prebascript_archive/trigger535747/GCN5_download_cron
======================================================================

  Trigger: 00535747      Segment: 000

  BAT Trigger Time: 371616871.036   [s; MET]
      Trigger Stop: 371616871.1   [s; MET]
               UTC: 2012-10-11T02:54:21.290040    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 272.130169213924   Dec: -20.409982700456  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    6.73
     Image Trigger?:     NO
     Rate S/N Ratio:     10.3923048454133  [ if not an image trigger ]
     Image S/N Ratio:    6.73

  Flight Position:   [ source = BAT ]
    RA: 272.130169213924   Dec: -20.409982700456  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 272.171500079999   Dec: -20.4478731713649  [deg; J2000]
        { 18h 08m 41.2s , -20d 26' 52.3" }
         +/- 2.38160684235883 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.15988990836728 [arcmin] (formal 1-sigma fit error)
    SNR: 8.80506500558838

  Angular difference between Flight and Ground position is 3.250986 arcmin

  Partial Coding Fraction: 0.984375    [ including projection effects ]

  Duration
     T90: 0.671999990940094 +/- 0.161046585190824
        Measured from: -0.0159999132156372
                   to: 0.656000077724457     [s; relative to TRIGTIME]
     T50: 0.403999984264374 +/- 0.172754161861871
        Measured from: 0.0400000810623169
                   to: 0.444000065326691     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.184000015258789
                   to: 0.815999984741211     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.0519999861717224
                   to: 0.684000015258789     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.035141   0.028740   0.012819  -0.003403
           0.006077   0.005450   0.004271   0.003686 [error]
 Peak      0.033508   0.031967   0.007313  -0.005115
           0.006972   0.006166   0.004934   0.004298 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 9.98e-09 1.08e-08 8.28e-09 1.04e-08 3.29e-08 3.94e-08   erg/cm2
              Error 2.52e-09 2.43e-09 3.52e-09 8.43e-09 8.37e-09 1.34e-08   erg/cm2
Peak flux Power-law 3.12e-01 1.90e-01 7.41e-02 3.87e-02 5.96e-01 6.15e-01   ph/cm2/s
              Error 9.17e-02 4.84e-02 3.36e-02 3.19e-02 1.43e-01 1.49e-01   ph/cm2/s

Fluence   Cutoff-PL 9.38e-09 1.24e-08 7.35e-09 1.78e-09 3.09e-08 0.00e+00   erg/cm2
              Error 2.78e-09 3.25e-09 4.28e-09 8.01e-09 1.31e-08 0.00e+00   erg/cm2
Peak flux Cutoff-PL 2.68e-01 2.49e-01 5.67e-02 1.83e-03 5.76e-01 5.76e-01   ph/cm2/s
              Error 1.07e-01 7.02e-02 4.17e-02 1.17e-02 1.41e-01 1.40e-01   ph/cm2/s

Fluence        Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band 5.82e-01 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.381    0.420    -      -           4.61e-03 1.45e-03   69.810 57
CPL   1.213    1.520      25.8    0.0      2.39e-02 0.00e+00   68.060 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.357    0.455    -      -           3.30e-03 1.16e-03   73.440 57
CPL  -0.094    2.976      31.5    0.0      1.10e-01 0.00e+00   68.860 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.736   -0.052    0.684
T90     0.672   -0.016    0.656
T50     0.404    0.040    0.444
Peak    1.000   -0.184    0.816

Click here for the BAT GCN circular template


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  272.1715 -20.4479 0.0218   10.8   38.2       0.0848     8.8  TRIG_00535747
------------------------------------------

Foreground time interval of the image:
 -0.052   0.684 (delta_t =   0.736 [sec])
Background time interval of the image:
-239.036  -0.052 (delta_t = 238.984 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

The mask-weighted light curves based on cleaned DPHs

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

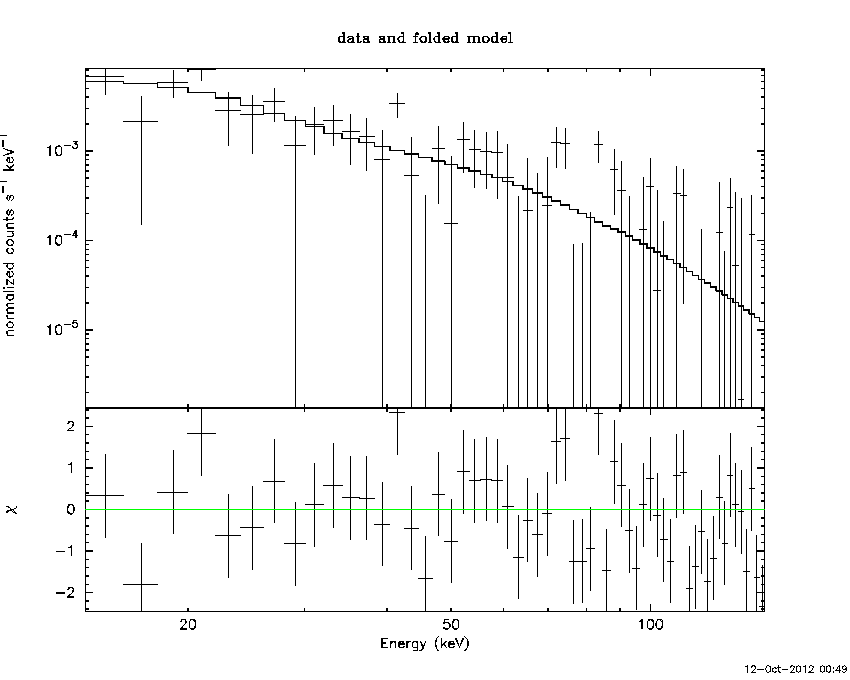

Power-law model

Time interval is from   -0.052 sec. to    0.684 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.38082     ( -0.38609   0.453828 )
Norm@50keV  : 4.60883E-03    ( -0.00146683   0.00143961 )
------------------------------------------------------------
# Chi-Squared =          69.81 using 59 PHA bins.
# Reduced chi-squared =          1.225 for     57 degrees of freedom
# Null hypothesis probability =   1.187434e-01

Photon flux (15-150 keV)    in 0.736 sec: 0.843271 ( -0.172188  0.172198 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.29476e-08 ( -8.14406e-09  8.60413e-09 ) ergs/cm2

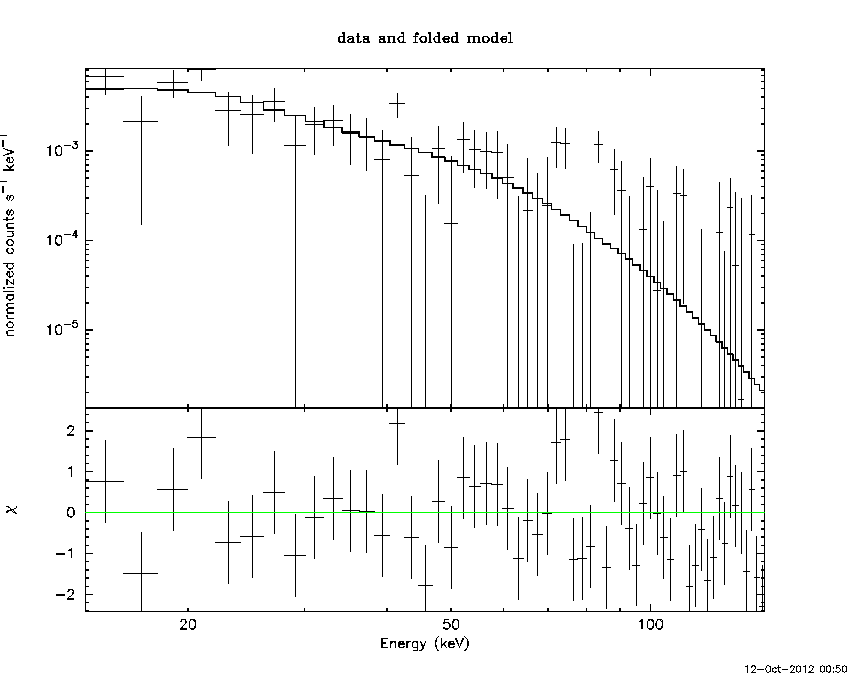

Cutoff power-law model

Time interval is from   -0.052 sec. to    0.684 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.21291     ( -2.25034   0.789102 )
Epeak [keV] : 25.7694      (   )
Norm@50keV  : 2.38676E-02    (     )
------------------------------------------------------------
# Chi-Squared =          68.06 using 59 PHA bins.
# Reduced chi-squared =          1.215 for     56 degrees of freedom
# Null hypothesis probability =   1.294594e-01

Photon flux (15-150 keV)    in 0.736 sec: 0.823877 ( -0.169391  0.172489 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.08688e-08 ( -9.1487e-09  1.70359e-08 ) ergs/cm2

Band function

Time interval is from   -0.052 sec. to    0.684 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.21160   ( 1.2265   5.11697 )
beta        : -10.00000    ( 1.45582e+08   1.45582e+08 )
Epeak [keV] : 25.7723      ( -24.2831 17.0398 )
Norm@50keV   : 2.39128E-02    ( -0.0238594   0.647868 )
------------------------------------------------------------
# Chi-Squared =          68.06 using 59 PHA bins.
# Reduced chi-squared =          1.238 for     55 degrees of freedom
# Null hypothesis probability =   1.110224e-01

Photon flux (15-150 keV)    in 0.736 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.08676  (-1.84066  2.31201)
R^2/D10^2   : 0.893760  (-0.567942   1.66408)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          71.94 using 59 PHA bins.
# Reduced chi-squared =          1.262 for     57 degrees of freedom
# Null hypothesis probability =   8.779913e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.841e-09   3.010e-09
25- 50  1.398e-08   5.966e-09
50-150  3.803e-09   2.282e-09
15-150  2.562e-08   8.508e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 38.3227       (-14.7072      28.4454)
Norm        : 5.68523       (-1.81828     3.01023)
------------------------------------------------------------
# Chi-Squared =          68.09 using 59 PHA bins.
# Reduced chi-squared =          1.195 for     57 degrees of freedom
# Null hypothesis probability =   1.492635e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.466e-09   2.542e-09
25- 50  1.222e-08   3.957e-09
50-150  9.016e-09   5.174e-09
15-150  3.070e-08   1.042e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.29199        (-4.29181      20.712)
R1^2/D10^2  : 7.59051        (-6.61591      -7.58686)
kT2 [keV]   : 12.8617        (-12.8637      12.1774)
R2^2/D10^2  : 9.94449E-02    (-0.0901472   0.70612)
------------------------------------------------------------
# Chi-Squared =          67.57 using 59 PHA bins.
# Reduced chi-squared =          1.229 for     55 degrees of freedom
# Null hypothesis probability =   1.188894e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.644e-09   5.572e-09
25- 50  1.185e-08   6.138e-09
50-150  9.143e-09   6.020e-09
15-150  3.064e-08   1.577e-08

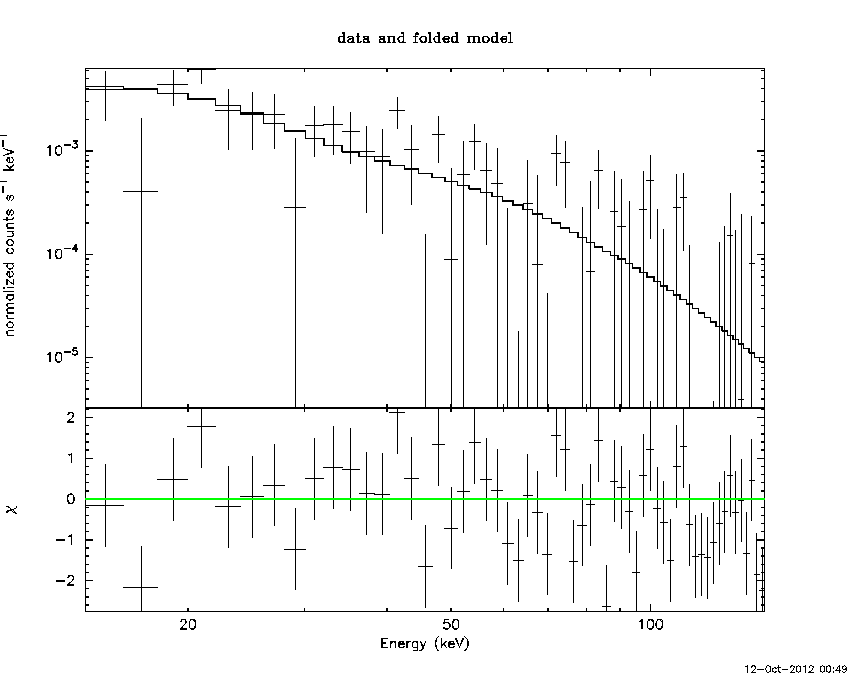

Peak spectrum fit

Power-law model

Time interval is from   -0.184 sec. to    0.816 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.35730     ( -0.417996   0.491003 )
Norm@50keV  : 3.30245E-03    ( -0.00116307   0.00116266 )
------------------------------------------------------------
# Chi-Squared =          73.44 using 59 PHA bins.
# Reduced chi-squared =          1.288 for     57 degrees of freedom
# Null hypothesis probability =   7.026610e-02

Photon flux (15-150 keV)    in 1 sec: 0.596095 ( -0.143138  0.143172 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.18955e-08 ( -9.03346e-09  9.63069e-09 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.184 sec. to    0.816 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -9.40361E-02     ( -3.90874   2.04392 )
Epeak [keV] : 31.4793      (   )
Norm@50keV  : 0.110390    (     )
------------------------------------------------------------
# Chi-Squared =          68.86 using 59 PHA bins.
# Reduced chi-squared =          1.230 for     56 degrees of freedom
# Null hypothesis probability =   1.160068e-01

Photon flux (15-150 keV)    in 1 sec: 0.575523 ( -0.140264  0.141253 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.81481e-08 ( -7.4756e-09  9.325e-09 ) ergs/cm2

Band function

Time interval is from   -0.184 sec. to    0.816 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.133832   ( -1.43205   0.237545 )
beta        : -9.99999    ( 512210   512220 )
Epeak [keV] : 31.5339      ( -25.9513 10.4903 )
Norm@50keV   : 0.116954    ( -0.153232   37.1515 )
------------------------------------------------------------
# Chi-Squared =          68.86 using 59 PHA bins.
# Reduced chi-squared =          1.252 for     55 degrees of freedom
# Null hypothesis probability =   9.902954e-02

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

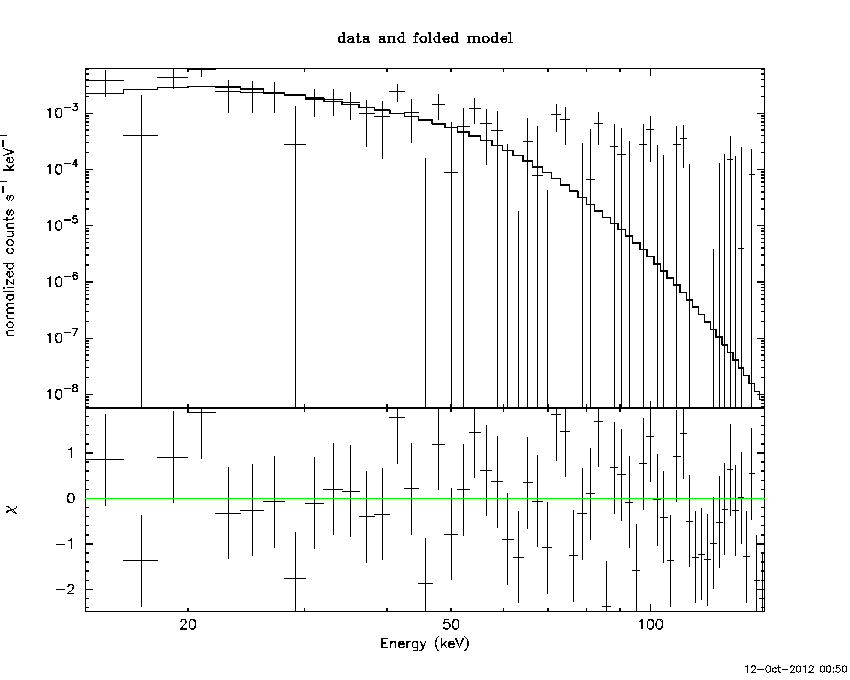

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.41005  (-1.7738  2.16709)
R^2/D10^2   : 0.575828  (-0.34945   0.918719)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          69.32 using 59 PHA bins.
# Reduced chi-squared =          1.216 for     57 degrees of freedom
# Null hypothesis probability =   1.268681e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.624e-09   3.582e-09
25- 50  1.453e-08   7.084e-09
50-150  4.484e-09   2.810e-09
15-150  2.663e-08   1.193e-08

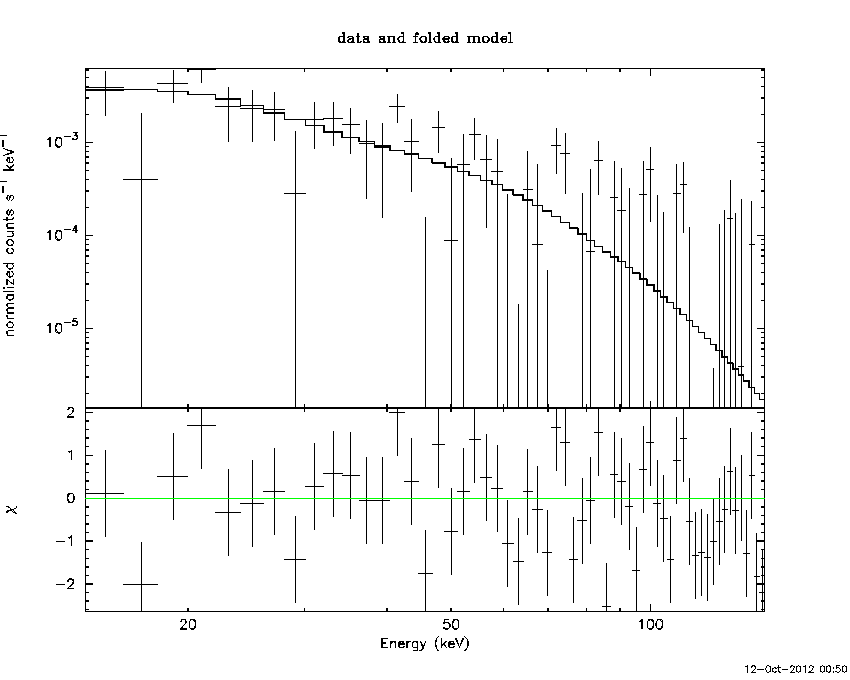

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 37.3582       (-14.5268      29.4246)
Norm        : 4.17909       (-1.44392     2.3471)
------------------------------------------------------------
# Chi-Squared =          70.18 using 59 PHA bins.
# Reduced chi-squared =          1.231 for     57 degrees of freedom
# Null hypothesis probability =   1.127806e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.367e-09   3.445e-09
25- 50  1.195e-08   5.339e-09
50-150  8.567e-09   5.709e-09
15-150  2.989e-08   1.281e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.00617        (-4.00092      -4.00092)
R1^2/D10^2  : 3.57013        (-3.59056      -3.59056)
kT2 [keV]   : 9.71185        (-9.70323      -9.70323)
R2^2/D10^2  : 0.274487    (-0.275868   1.04427)
------------------------------------------------------------
# Chi-Squared =          68.69 using 59 PHA bins.
# Reduced chi-squared =          1.249 for     55 degrees of freedom
# Null hypothesis probability =   1.016000e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.488e-09   4.441e-09
25- 50  1.362e-08   7.670e-09
50-150  5.976e-09   3.633e-09
15-150  2.809e-08   1.564e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.38082     ( -0.38609   0.453828 )
Norm@50keV  : 4.60883E-03    ( -0.00146683   0.00143961 )
------------------------------------------------------------
# Chi-Squared =          69.81 using 59 PHA bins.
# Reduced chi-squared =          1.225 for     57 degrees of freedom
# Null hypothesis probability =   1.187434e-01

Photon flux (15-150 keV)    in 0.736 sec: 0.843271 ( -0.172188  0.172198 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.29476e-08 ( -8.14406e-09  8.60413e-09 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.21291     ( -2.25034   0.789102 )
Epeak [keV] : 25.7694      (   )
Norm@50keV  : 2.38676E-02    (     )
------------------------------------------------------------
# Chi-Squared =          68.06 using 59 PHA bins.
# Reduced chi-squared =          1.215 for     56 degrees of freedom
# Null hypothesis probability =   1.294594e-01

Photon flux (15-150 keV)    in 0.736 sec: 0.823877 ( -0.169391  0.172489 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.08688e-08 ( -9.1487e-09  1.69488e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.21160   ( 1.2265   5.12063 )
beta        : -10.00000    ( 1.45582e+08   1.45582e+08 )
Epeak [keV] : 25.7723      ( -24.3969 17.0514 )
Norm@50keV   : 2.39128E-02    ( -0.0238594   0.647868 )
------------------------------------------------------------
# Chi-Squared =          68.06 using 59 PHA bins.
# Reduced chi-squared =          1.238 for     55 degrees of freedom
# Null hypothesis probability =   1.110224e-01

Photon flux (15-150 keV)    in 0.736 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.07763e-08
S(50-100 keV) = 8.27654e-09

T90 vs. Hardness ratio plot

T90                                   = 0.671999990940094 sec.
Hardness ratio (energy fluence ratio) = 0.768032

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.817848
Count Ratio (50-100 keV) / (15-25 keV) = 0.364788

Mask shadow pattern

IMX = 1.499820914632959E-01, IMY = -1.179876071362596E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

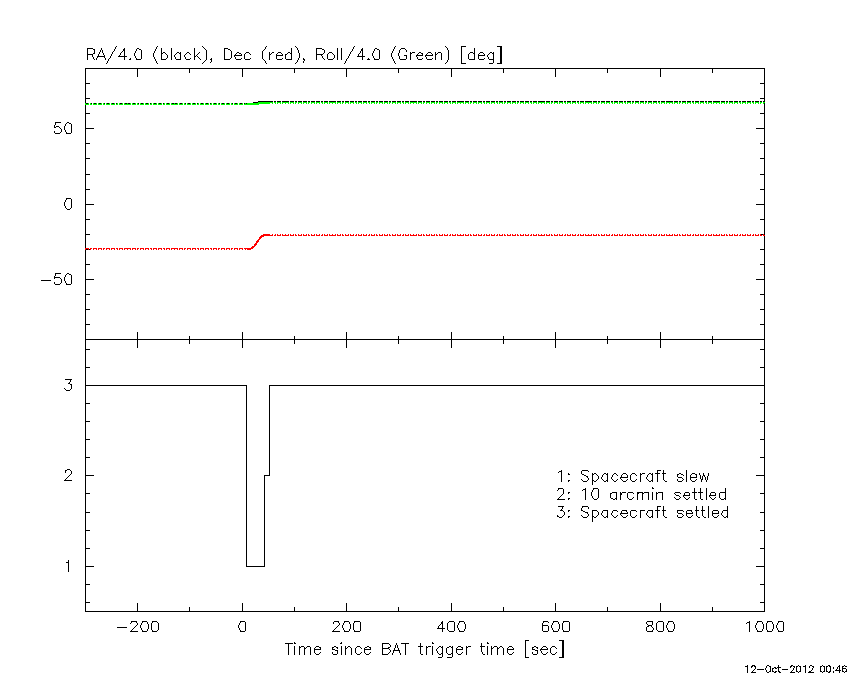

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.036000 -0.052000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9628 -15.6472    0.3  23.8  -53.1   9.8570  39.3    1.0	Sco X-1
255.9309 -37.8613    2.0  11.7 -131.7   1.3530   5.8    2.8	4U 1700-377
256.4685 -36.4862    3.2  10.5 -127.6   0.8034   3.6    4.1	GX 349+2
263.1484 -24.5859    5.6   5.7  -21.4   0.4707   2.0   12.2	GX 1+4
264.5222 -44.3117    0.0  14.7 -170.5   0.2939   1.4   12.6	4U 1735-44
268.3339  -1.4884    4.3  28.3   10.5   0.6510   2.7    3.0	SW J1753.5-0127
270.2693 -25.0641    1.6   6.0   46.1   1.6373   7.3    1.2	GX 5-1
270.4743 -25.7704    9.0   5.6   52.2   0.2823   1.3    9.4	GRS 1758-258
273.9896 -13.9137    5.4  17.4   32.4   0.4627   2.2    7.4	GX 17+2
275.8345 -30.3748    2.7   8.6  102.6   0.8799   4.3    4.7	H1820-303
284.9164 -24.8001    6.9  17.5   83.8   0.4760   1.7    9.7	HT1900.1-2455
288.8943  10.9726    3.5  46.3   37.4   2.6715   3.3    5.9	GRS 1915+105
262.8265 -33.9936    8.4   5.1 -143.7   0.2964   1.4   12.5	GX 354-0
266.3213 -26.4066    0.6   3.3   11.1   3.9821  17.8 ------	UNKNOWN
266.5465 -32.2615    1.8   2.6  174.6   1.4137   6.5 ------	UNKNOWN
239.4695 -52.9463    2.5  30.3 -142.3   1.2206   4.6 ------	UNKNOWN
189.2756 -74.5810    3.2  58.0 -156.8   5.0679   3.6 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.052000 0.684000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.8253 -15.6649    8.2  23.9  -53.4   0.0161   1.4    9.0	Sco X-1
256.0268 -37.6962    3.8  11.5 -131.3   0.0292   3.0    9.1	4U 1700-377
256.5513 -36.2749   15.1  10.3 -126.9   0.0072   0.8   10.5	GX 349+2
262.8527 -24.8587    6.0   5.6  -25.1   0.0191   1.9   10.9	GX 1+4
264.5222 -44.3117    0.0  14.7 -170.5   0.0080   0.8   12.6	4U 1735-44
268.3968  -1.3634    6.5  28.4   10.6   0.0198   1.8    5.6	SW J1753.5-0127
270.0987 -24.9498    0.0   6.0   44.3   0.0182   1.9   12.7	GX 5-1
270.4179 -25.5846    3.8   5.7   50.5   0.0300   3.1   11.4	GRS 1758-258
274.0372 -14.1128    7.3  17.3   32.8  -0.0163  -1.6    4.9	GX 17+2
276.0089 -30.2026    7.1   8.7  101.4  -0.0164  -1.6   10.8	H1820-303
284.9008 -25.0454    5.5  17.4   84.6   0.0243   2.1   10.5	HT1900.1-2455
288.6963  10.8876    4.6  46.1   37.2  -0.0764  -2.5    6.9	GRS 1915+105
263.1592 -33.7119    8.7   4.7 -144.7   0.0129   1.3   11.2	GX 354-0
272.1714 -20.4479    1.3  10.8   38.2   0.0848   8.8 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
42.164600 807.474000
808.964000 963.009000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9904 -15.6344    0.3  26.2  -82.1  37.7921  39.6    0.7	Sco X-1
254.4599  35.3450   53.5  58.2  -15.0   0.7948   0.2    0.2	Her X-1
255.9935 -37.8553    1.6  22.4 -142.9   4.7082   7.2    0.7	4U 1700-377
256.4373 -36.4263    2.2  21.1 -140.9   3.5295   5.3    0.2	GX 349+2
262.8405 -24.8871    7.8   9.7 -117.4   1.0155   1.5   12.5	GX 1+4
264.9373 -44.3087    0.0  24.6 -165.7   0.7262   1.1   11.9	4U 1735-44
268.3947  -1.4357    4.0  19.3   -9.5   1.7657   2.9    1.9	SW J1753.5-0127
270.3347 -25.0338    1.2   4.9 -158.8   6.3154   9.4    3.9	GX 5-1
270.3765 -25.8036    4.1   5.6 -161.8   1.8504   2.8    5.4	GRS 1758-258
273.8623 -13.9983    2.7   6.6   16.6   2.6587   4.2    8.7	GX 17+2
275.9002 -30.3293    3.0  10.5  163.7   2.3653   3.8    2.6	H1820-303
284.8549 -24.7936    0.0  12.5  114.7   0.1546   0.2   12.5	HT1900.1-2455
288.7812  10.9640    2.9  35.4   31.0   3.7878   4.0    1.5	GRS 1915+105
262.8146 -33.7919    5.8  15.7 -148.4   1.3080   2.0    9.1	GX 354-0
312.1101 -37.2472    2.8  38.5  126.6   6.9048   4.1 ------	UNKNOWN
286.5641 -74.0022    4.6  54.2  177.0   6.6972   2.5 ------	UNKNOWN
266.5324 -32.2319    1.5  12.8 -156.3   5.0617   7.5 ------	UNKNOWN
266.2892 -26.4070    0.5   8.0 -137.5  14.6362  22.5 ------	UNKNOWN
239.7970 -67.2438    2.9  51.1 -162.7   6.9091   4.0 ------	UNKNOWN
218.3421 -69.8516    3.8  58.8 -159.1  14.7311   3.0 ------	UNKNOWN
244.2764  31.8974    3.3  58.7  -25.8  14.1614   3.5 ------	UNKNOWN

Plot creation:
Fri Oct 12 00:51:46 EDT 2012
