Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Tue Oct 23 16:06:46 EDT 2012
             Host Name: gcn5
   Current Working Dir: /local/data/raid16/prebascript_archive/trigger536502/GCN5_download_cron
======================================================================

  Trigger: 00536502      Segment: 000

  BAT Trigger Time: 372622096   [s; MET]
      Trigger Stop: 372622160   [s; MET]
               UTC: 2012-10-22T18:08:06.211480    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 274.514964409207   Dec: -17.0953412624424  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    5.81
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    5.81

  Flight Position:   [ source = BAT ]
    RA: 274.514964409207   Dec: -17.0953412624424  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 274.422089830933   Dec: -17.1418618426101  [deg; J2000]
        { 18h 17m 41.3s , -17d 08' 30.7" }
         +/- 4.01870184773982 [arcmin] (estimated 90% radius based on SNR)
         +/- 2.34848995147156 [arcmin] (formal 1-sigma fit error)
    SNR: 4.17002525200181

  Angular difference between Flight and Ground position is 6.012737 arcmin

  Partial Coding Fraction: 0.8203125    [ including projection effects ]

  Duration
     T90: 160 +/- 35.7770876399966
        Measured from: -70.9999998807907
                   to: 89.0000001192093     [s; relative to TRIGTIME]
     T50: 96 +/- 35.7770876399966
        Measured from: -54.9999998807907
                   to: 41.0000001192093     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -63.5
                   to: -62.5     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -71
                   to: 105     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.500635   1.042675   0.220547   0.111701
           0.110186   0.107020   0.093623   0.086108 [error]
 Peak      0.002471  -0.000033   0.003630   0.013744
           0.008655   0.008733   0.007571   0.007283 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.93e-07 2.85e-07 3.14e-07 6.52e-07 9.91e-07 1.45e-06   erg/cm2
              Error 4.23e-08 4.70e-08 8.08e-08 3.23e-07 1.95e-07 4.17e-07   erg/cm2
Peak flux Power-law 3.73e-04 2.83e-03 1.90e-02 6.74e-01 6.78e-02 6.95e-01   ph/cm2/s
              Error 7.81e-02 4.14e-02 4.44e-02 7.41e-01 1.28e-01 7.67e-01   ph/cm2/s

Fluence   Cutoff-PL 1.16e-07 4.63e-07 1.57e-07 9.68e-10 7.37e-07 0.00e+00   erg/cm2
              Error 5.40e-08 7.82e-08 8.87e-08 6.09e-09 1.34e-07 0.00e+00   erg/cm2
Peak flux Cutoff-PL 1.59e-05 3.72e-04 8.01e-03 1.88e+00 4.96e-02 8.53e-01   ph/cm2/s
              Error 5.65e-02 3.73e-02 4.16e-02 1.96e+00 1.17e-01 0.00e+00   ph/cm2/s

Fluence        Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.000    0.000    -      -           0.00e+00 0.00e+00    0.000  0
CPL   0.000    0.000       0.0    0.0      0.00e+00 0.00e+00    0.000  0

The chi2 of BB fit is 67.68 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.000    0.000    -      -           0.00e+00 0.00e+00    0.000  0
CPL   0.000    0.000       0.0    0.0      0.00e+00 0.00e+00    0.000  0

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  176.000  -71.000  105.000
T90   160.000  -71.000   89.000
T50    96.000  -55.000   41.000
Peak    1.000  -63.500  -62.500

Click here for the BAT GCN circular template

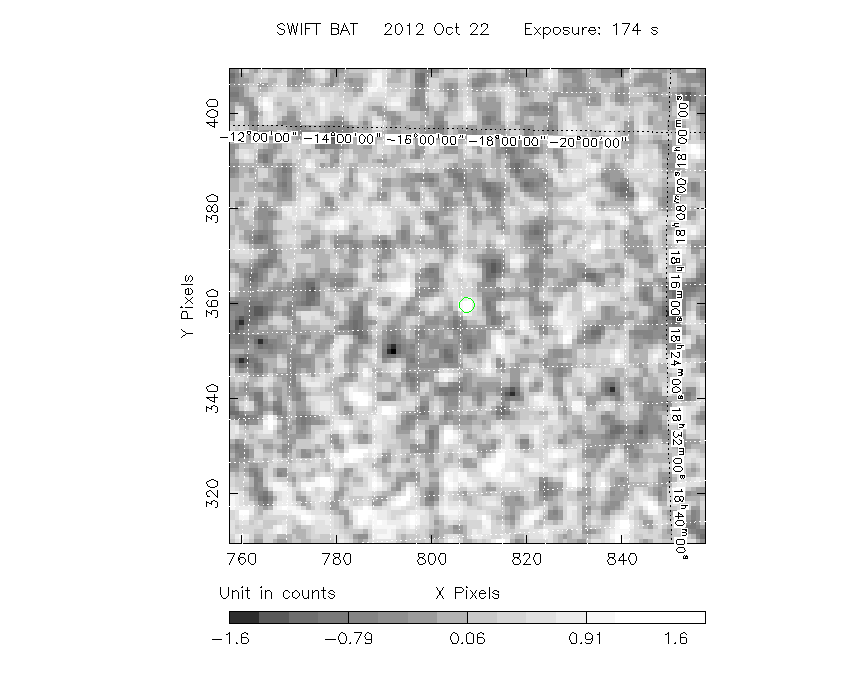

Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  274.4221 -17.1419 0.0460   16.1   58.3       1.9224     4.2  TRIG_00536502
------------------------------------------

Foreground time interval of the image:
-71.000 -56.963 (delta_t =  14.037 [sec])
-56.000  52.360 (delta_t = 108.360 [sec])
 53.000 105.000 (delta_t =  52.000 [sec])
Background time interval of the image:
-119.000 -71.000 (delta_t =  48.000 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

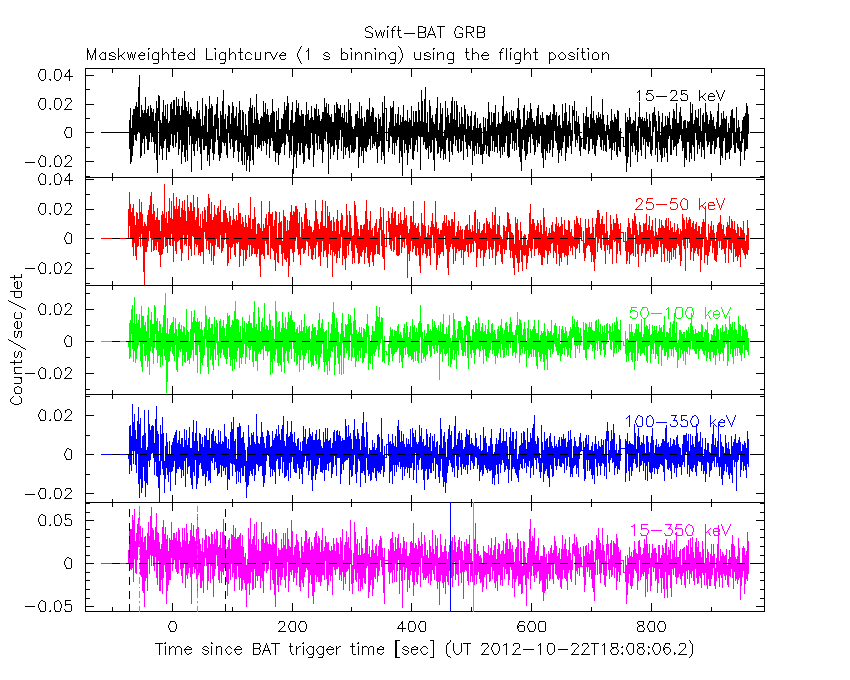

1 s binning

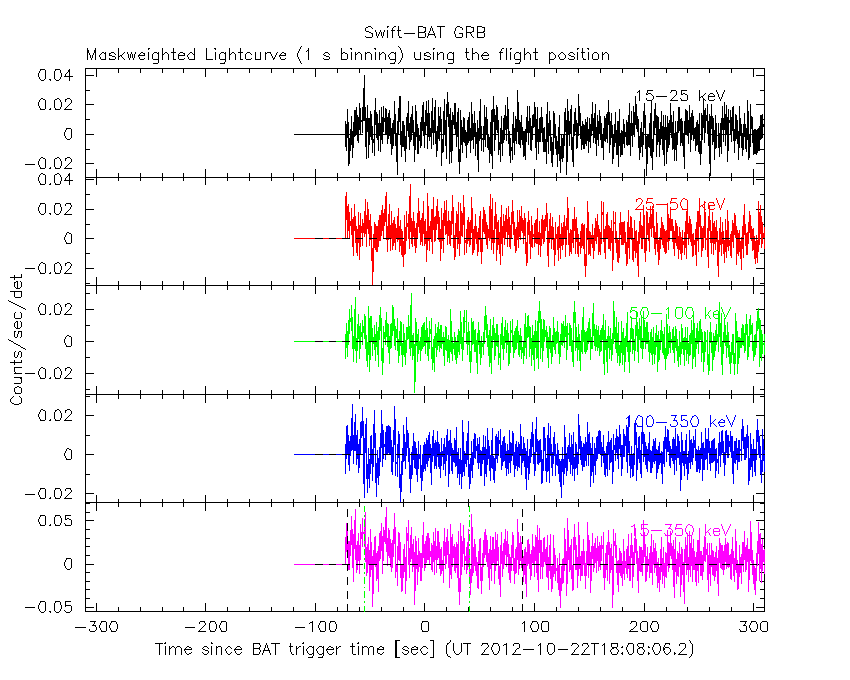

From T0-310 s to T0+310 s

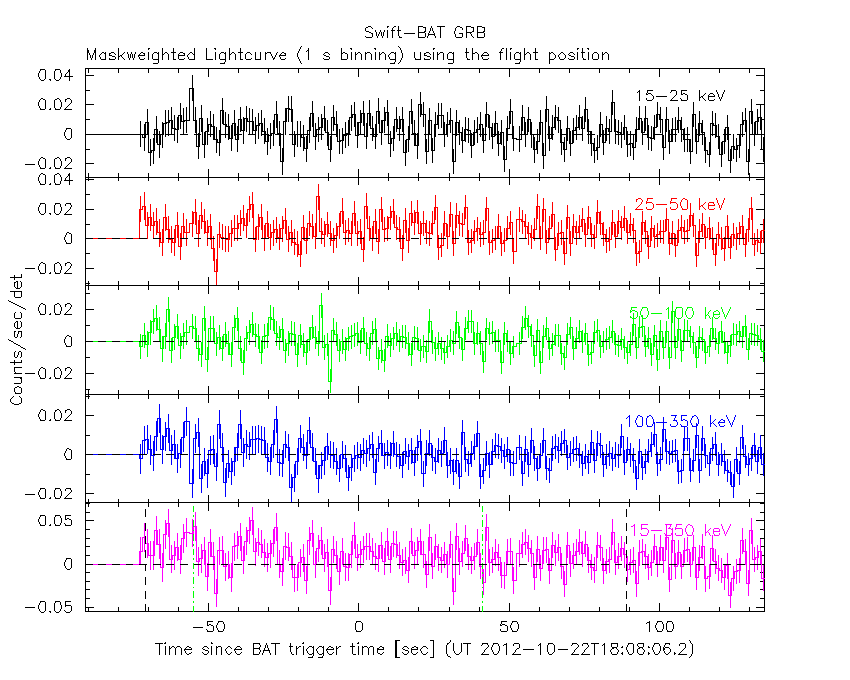

From T100_start - 20 s to T100_end + 30 s

Full time interval

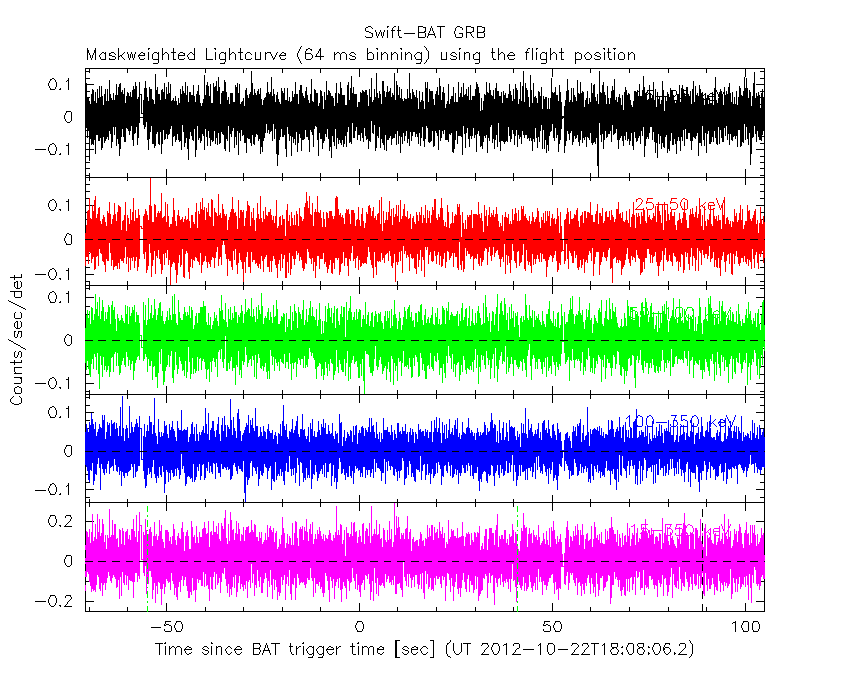

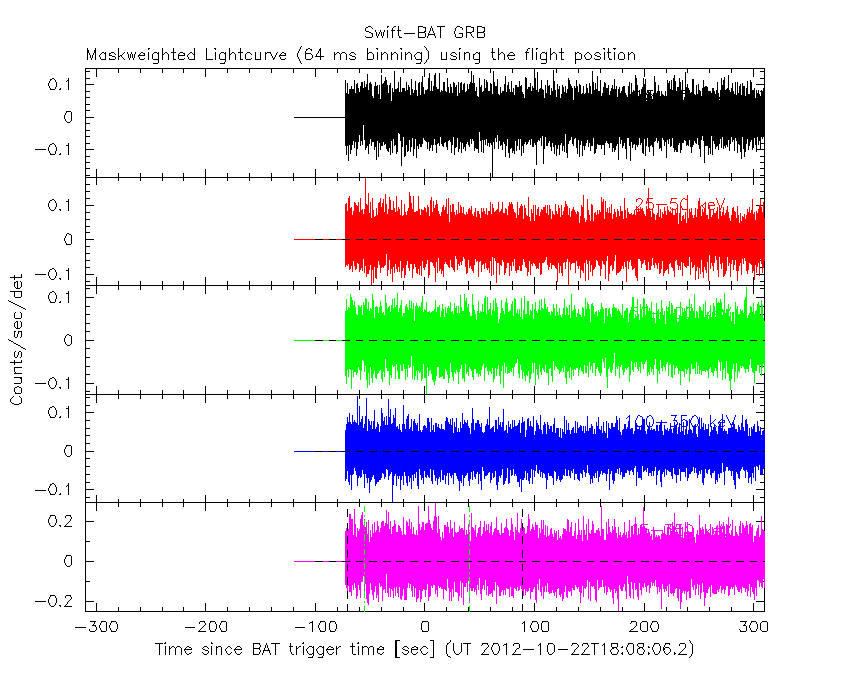

64 ms binning

Full time interval

From T100_start to T100_end

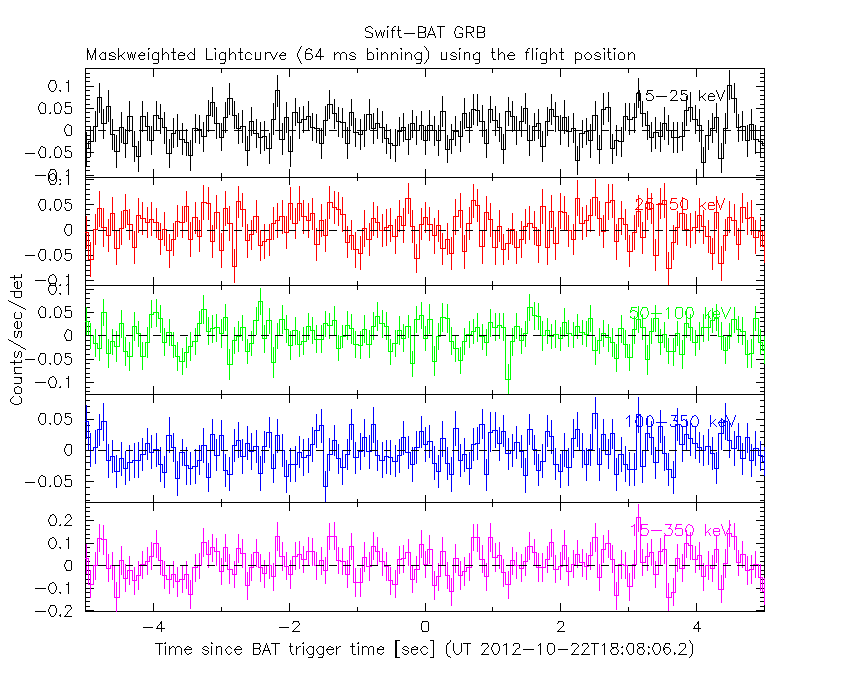

From T0-5 sec to T0+5 sec

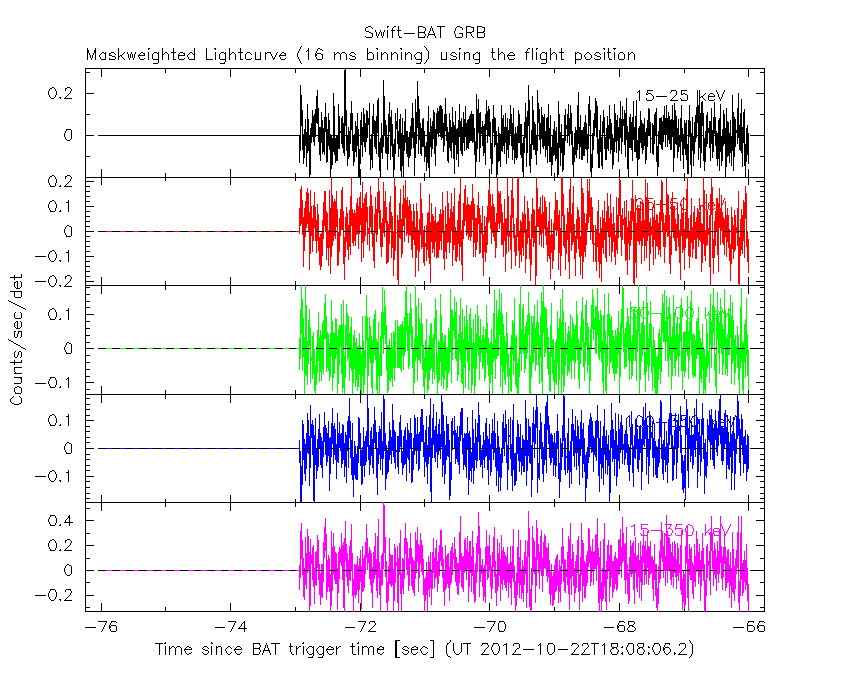

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

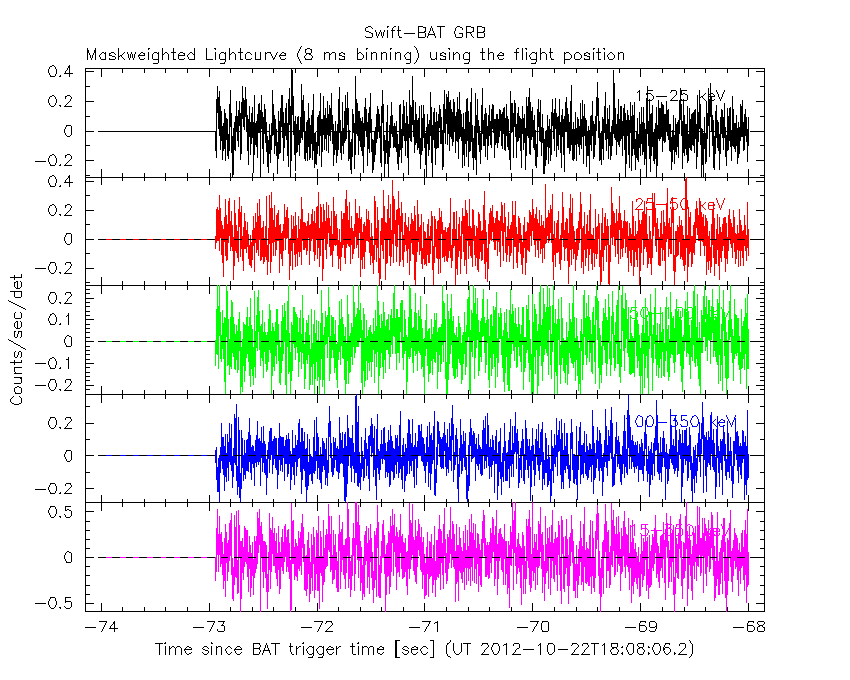

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

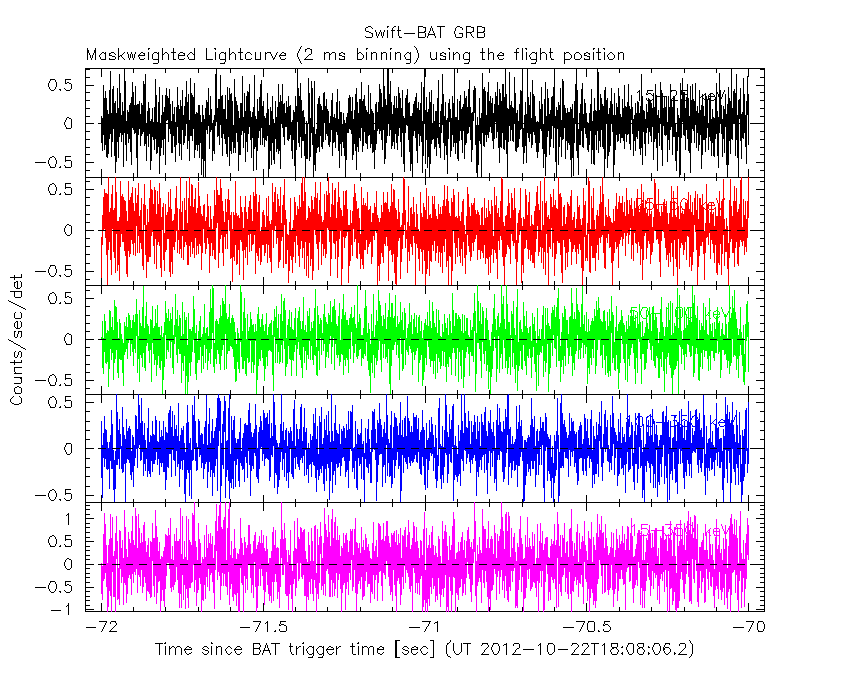

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

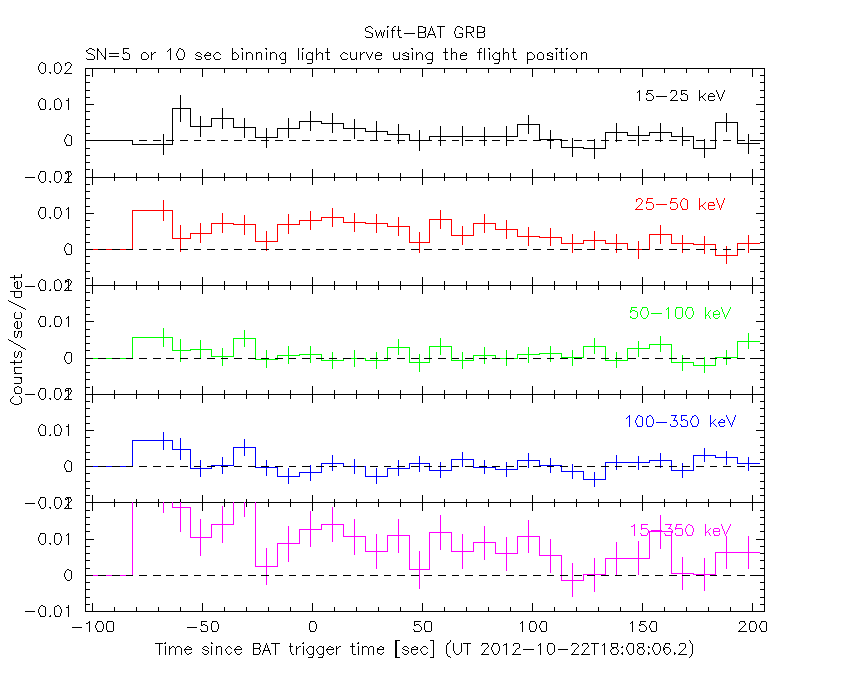

SN=5 or 10 sec. binning (T < 200 sec)

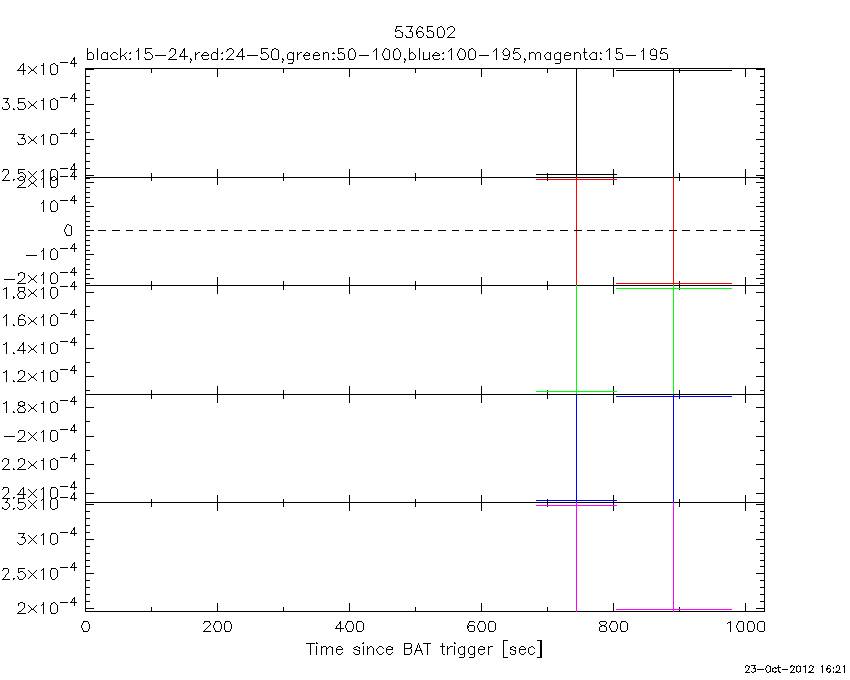

The mask-weighted light curves based on cleaned DPHs

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

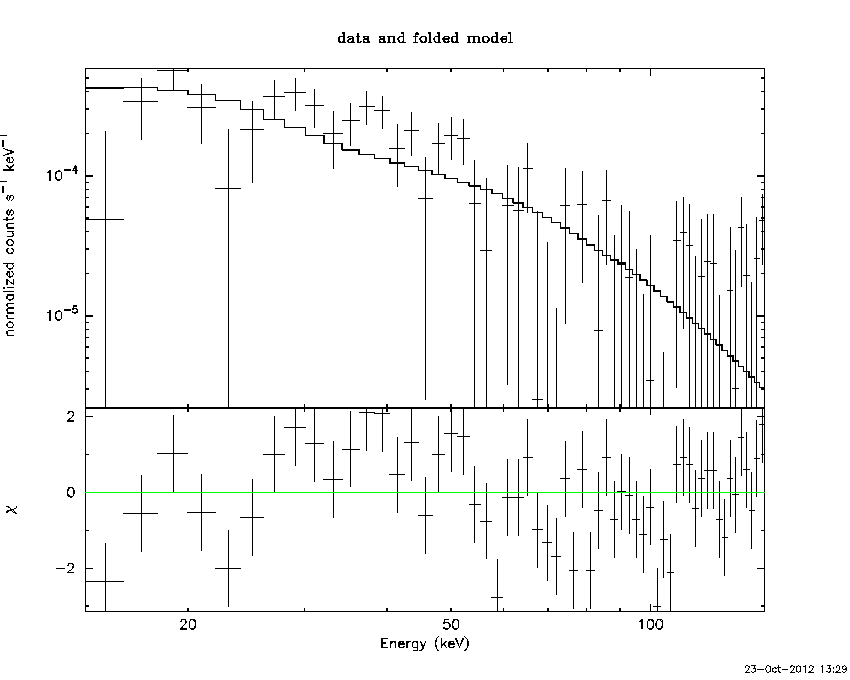

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-71.000000 -56.963300
-56.000000 52.360000
53.000000 105.000000
XSPEC12>exit
 XSPEC: quit


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index:      (     )
Norm@50keV  :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec: 8.72673E-02 ( -0.0143294  0.0143302 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

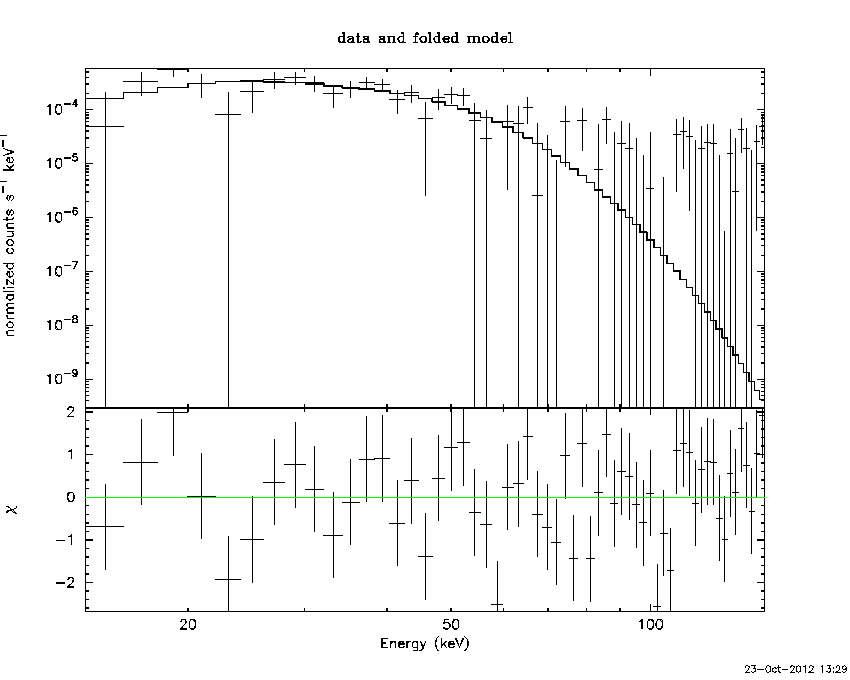

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-71.000000 -56.963300
-56.000000 52.360000
53.000000 105.000000
 XSPEC: quit


Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index:      (     )
Epeak [keV] :       (   )
Norm@50keV  :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec: 7.64082E-02 ( -0.0137925  0.0140751 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Band function

Multiple GTIs in the spectrum
tstart tstop
-71.000000 -56.963300
-56.000000 52.360000
53.000000 105.000000
XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

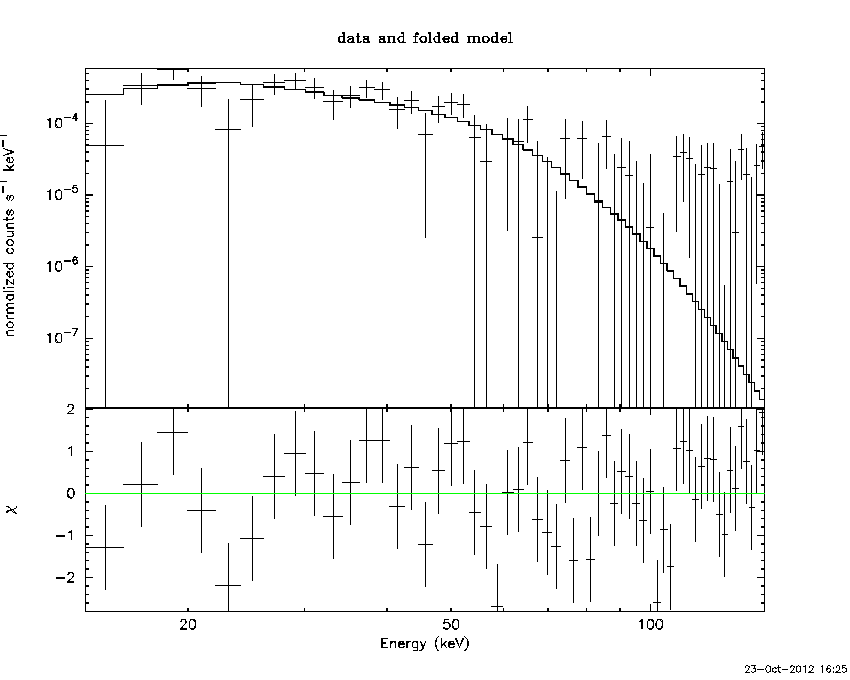

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 10.2357  (-1.213  1.40599)
R^2/D10^2   : 4.27601E-02  (-0.016865   0.0264276)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          67.68 using 59 PHA bins.
# Reduced chi-squared =          1.187 for     57 degrees of freedom
# Null hypothesis probability =   1.573467e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.603e-07   4.301e-08
25- 50  4.118e-07   8.589e-08
50-150  2.298e-07   9.247e-08
15-150  8.019e-07   1.745e-07

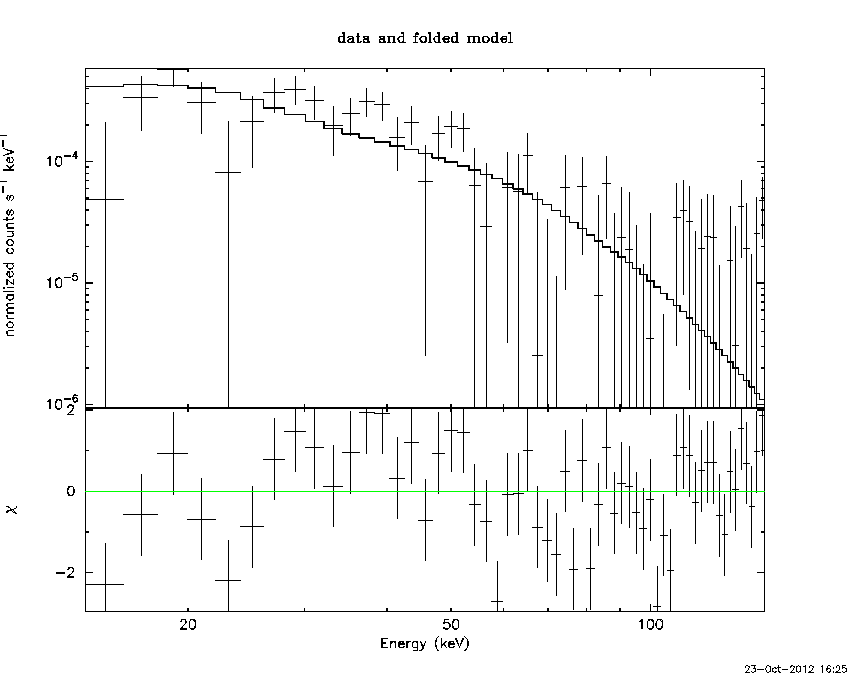

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 67.1477       (-23.2858      48.8564)
Norm        : 0.449385       (-0.0970655     0.119072)
------------------------------------------------------------
# Chi-Squared =          82.96 using 59 PHA bins.
# Reduced chi-squared =          1.455 for     57 degrees of freedom
# Null hypothesis probability =   1.398584e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.001e-07   4.510e-08
25- 50  3.148e-07   7.028e-08
50-150  3.918e-07   2.194e-07
15-150  9.067e-07   2.602e-07

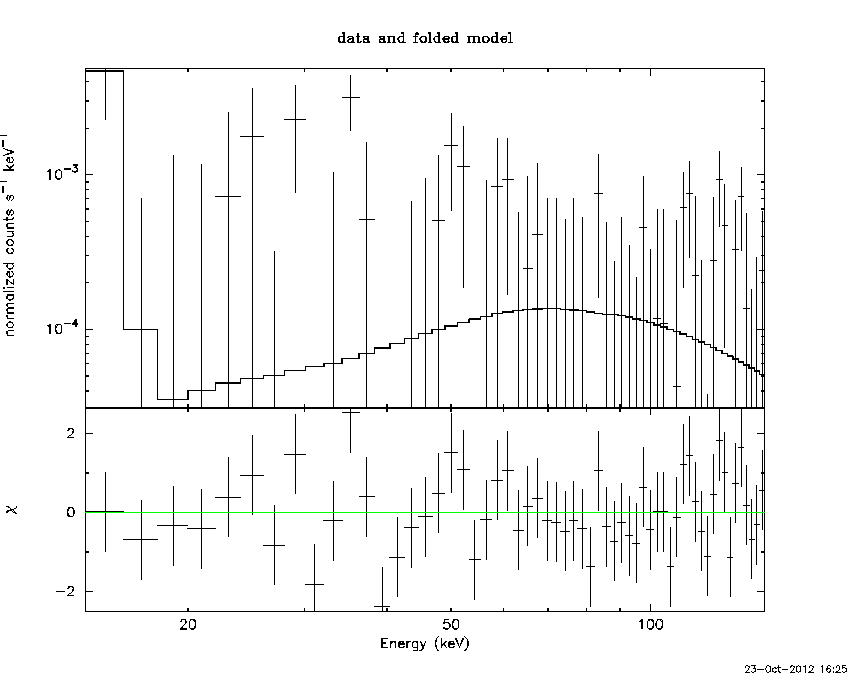

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 0.141191        (-0.141191      -0.141191)
R1^2/D10^2  : 3.30031E-02        (-0.0330031      -0.0330031)
kT2 [keV]   : 10.2353        (-1.21306      1.40594)
R2^2/D10^2  : 4.27657E-02    (-0.016864   0.0264286)
------------------------------------------------------------
# Chi-Squared =          67.68 using 59 PHA bins.
# Reduced chi-squared =          1.231 for     55 degrees of freedom
# Null hypothesis probability =   1.171504e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  0.000e+00   0.000e+00
25- 50  0.000e+00   0.000e+00
50-150  0.000e+00   0.000e+00
15-150  0.000e+00   0.000e+00

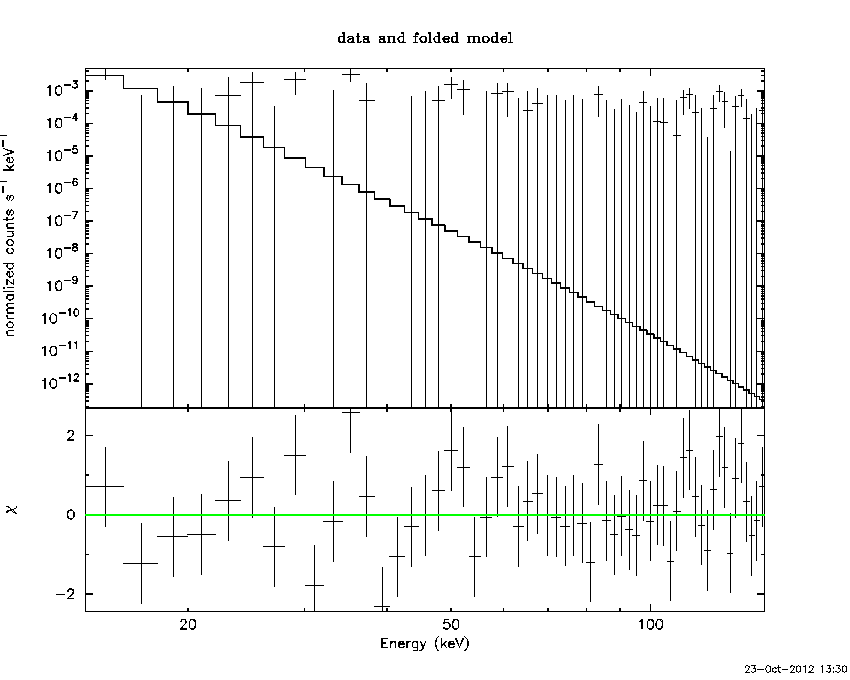

Peak spectrum fit

Power-law model

Time interval is from  -63.500 sec. to  -62.500 sec.
XSPEC12>exit
 XSPEC: quit


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index:      (     )
Norm@50keV  :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec: 6.78496E-02 ( -0.0678496  0.18887 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

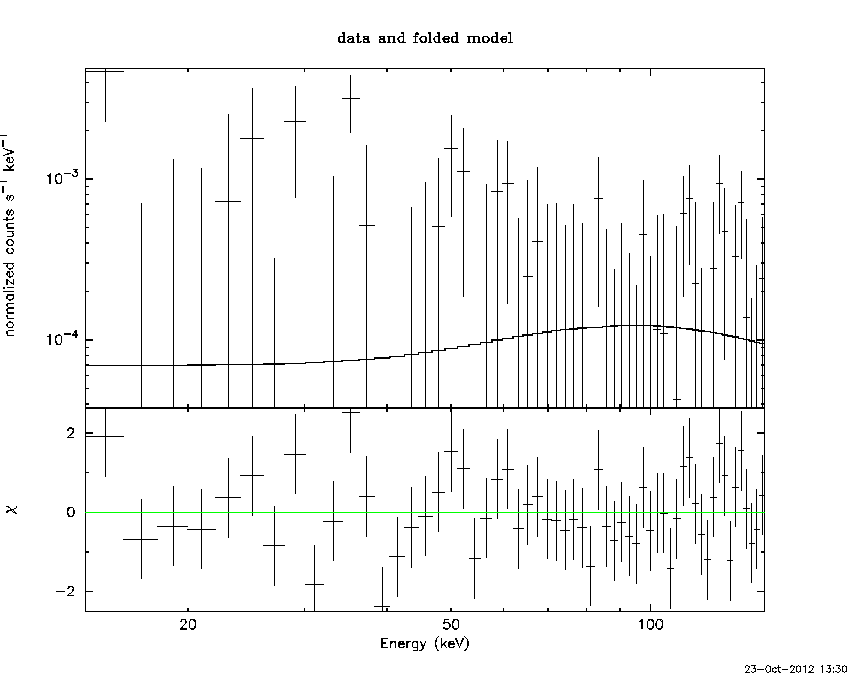

Cutoff power-law model

Time interval is from  -63.500 sec. to  -62.500 sec.
 XSPEC: quit


Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index:      (     )
Epeak [keV] :       (   )
Norm@50keV  :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec: 4.95876E-02 ( -0.0495876  0.184703 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.58742e-13 ( 0  0 ) ergs/cm2

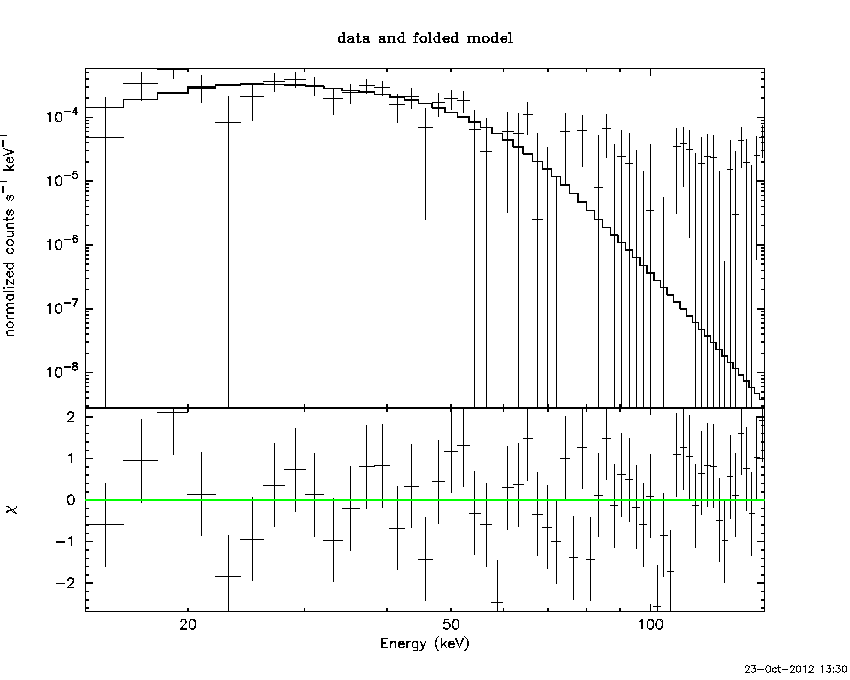

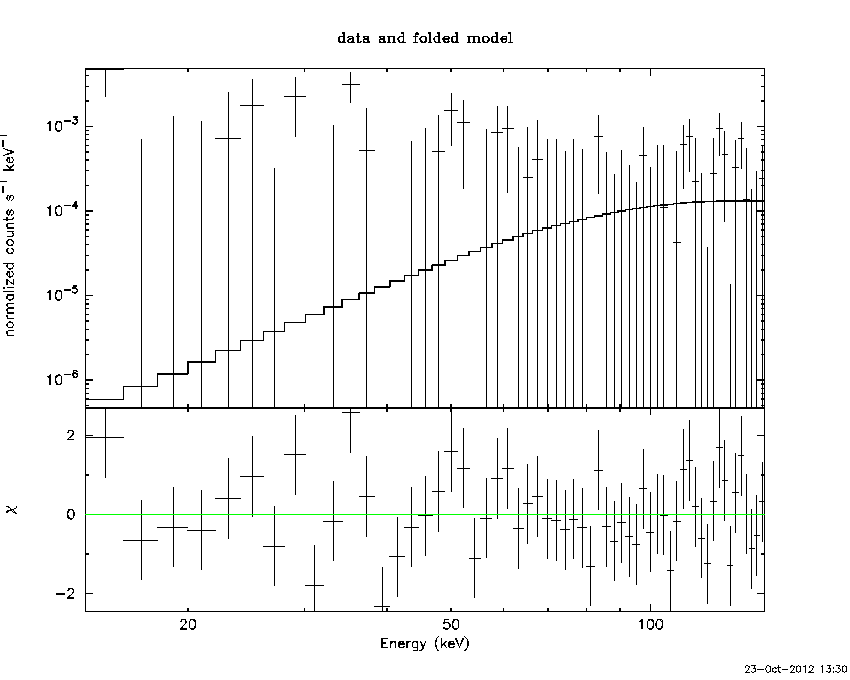

Band function

Time interval is from  -63.500 sec. to  -62.500 sec.
XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 0.673389  (-0.814148  2.27862)
R^2/D10^2   : 3.73958E+08  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
# Chi-Squared =          53.76 using 59 PHA bins.
# Reduced chi-squared =         0.9431 for     57 degrees of freedom
# Null hypothesis probability =   5.974763e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.799e-10   6.220e-11
25- 50  1.509e-14   3.911e-17
50-150  0.000e+00   0.000e+00
15-150  6.799e-10   6.210e-11

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 0.775687       (      )
Norm        : 1.19628E+08       (     )
------------------------------------------------------------
# Chi-Squared =          53.71 using 59 PHA bins.
# Reduced chi-squared =         0.9424 for     57 degrees of freedom
# Null hypothesis probability =   5.991249e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.477e-10   7.660e-11
25- 50  2.389e-14   2.317e-15
50-150  1.117e-25   0.000e+00
15-150  6.477e-10   4.945e-11

Double BB

R1^2/D10^2  : 4.33543E+15        (      )
kT2 [keV]   : 200.000        (      )
R2^2/D10^2  : 5.30387E-05    (-5.30388e-05   7.01407e-05)
------------------------------------------------------------
# Chi-Squared =          55.52 using 59 PHA bins.
# Chi-Squared =          52.05 using 59 PHA bins.
# Chi-Squared =          51.84 using 59 PHA bins.
# Reduced chi-squared =          1.009 for     55 degrees of freedom
# Reduced chi-squared =         0.9463 for     55 degrees of freedom
# Reduced chi-squared =         0.9426 for     55 degrees of freedom
# Null hypothesis probability =   4.551880e-01
# Null hypothesis probability =   5.881618e-01
# Null hypothesis probability =   5.960338e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.905e-11   7.765e+09
25- 50  5.866e-10   6.895e+10
50-150  1.428e-08   1.598e+12
15-150  1.493e-08   1.482e+12

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model

XSPEC12>exit
 XSPEC: quit


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index:      (     )
Norm@50keV  :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec: 8.72673E-02 ( -0.0143294  0.0143302 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Cutoff power-law model

 XSPEC: quit


Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index:      (     )
Epeak [keV] :       (   )
Norm@50keV  :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec: 7.64082E-02 ( -0.0137925  0.0140751 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Band function

XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in  sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.85289e-07
S(50-100 keV) = 3.14328e-07

T90 vs. Hardness ratio plot

T90                                   = 160 sec.
Hardness ratio (energy fluence ratio) = 1.10179

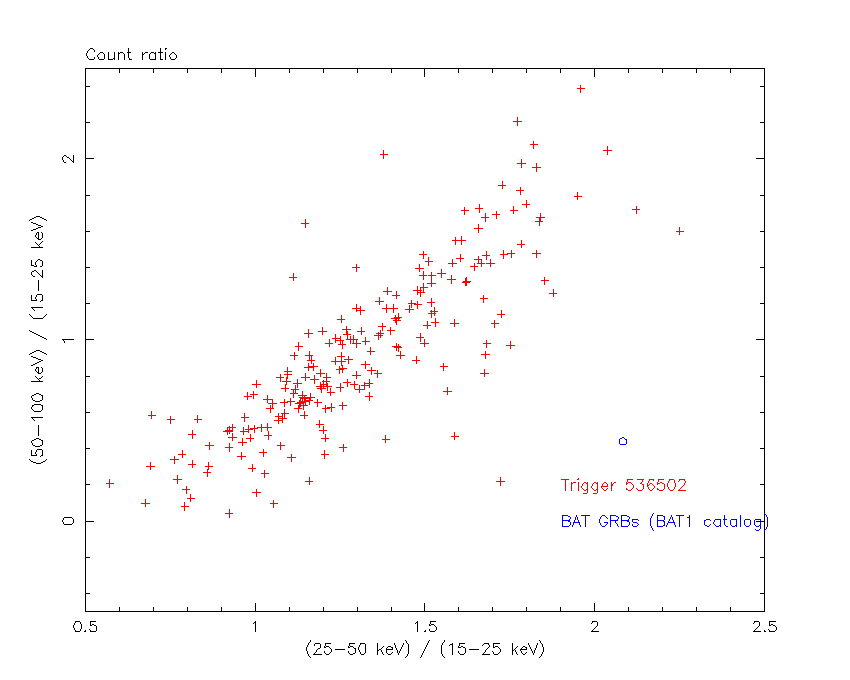

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 2.0827
Count Ratio (50-100 keV) / (15-25 keV) = 0.440535

Mask shadow pattern

IMX = 1.518666326358280E-01, IMY = -2.456632472377230E-01

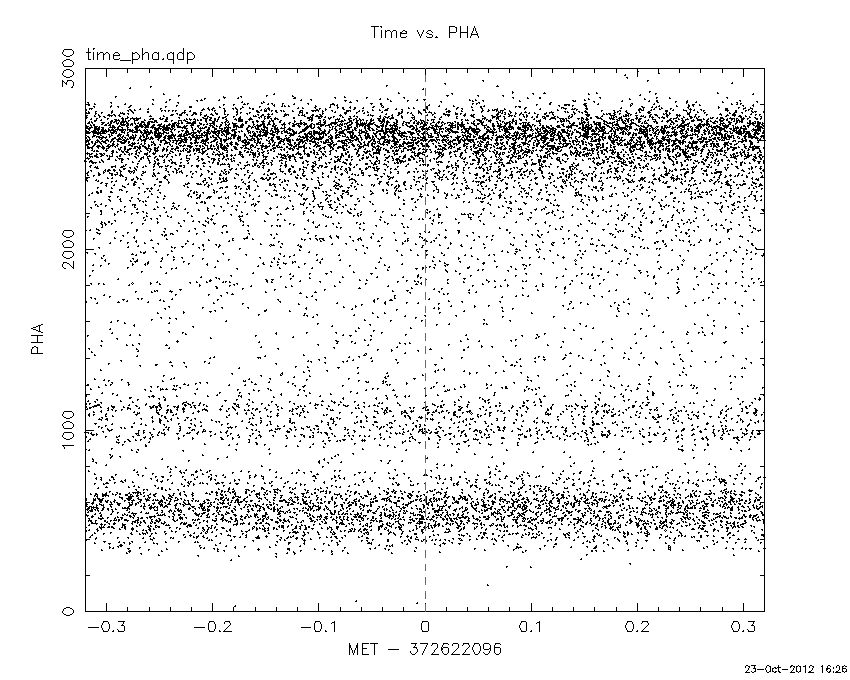

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

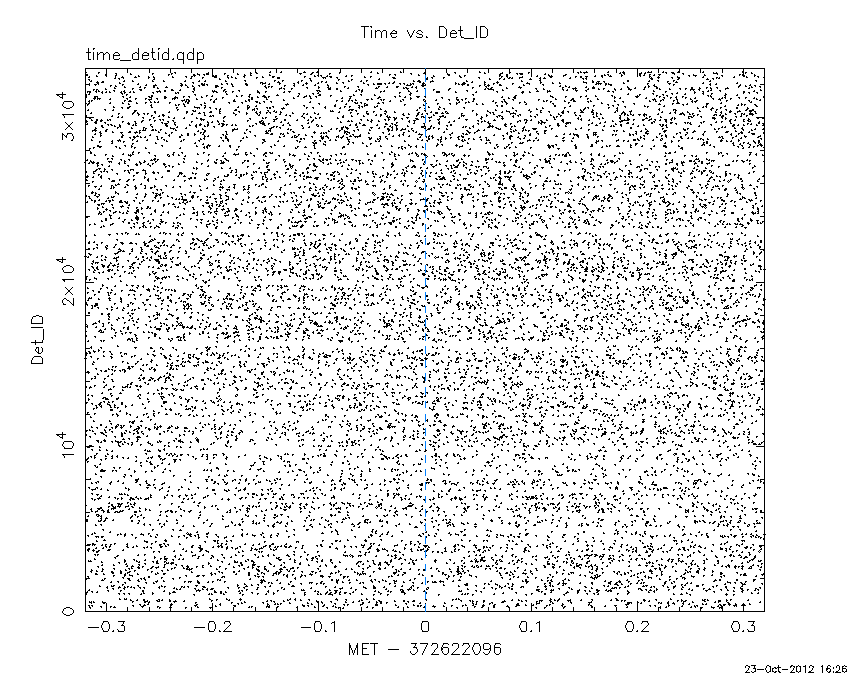

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

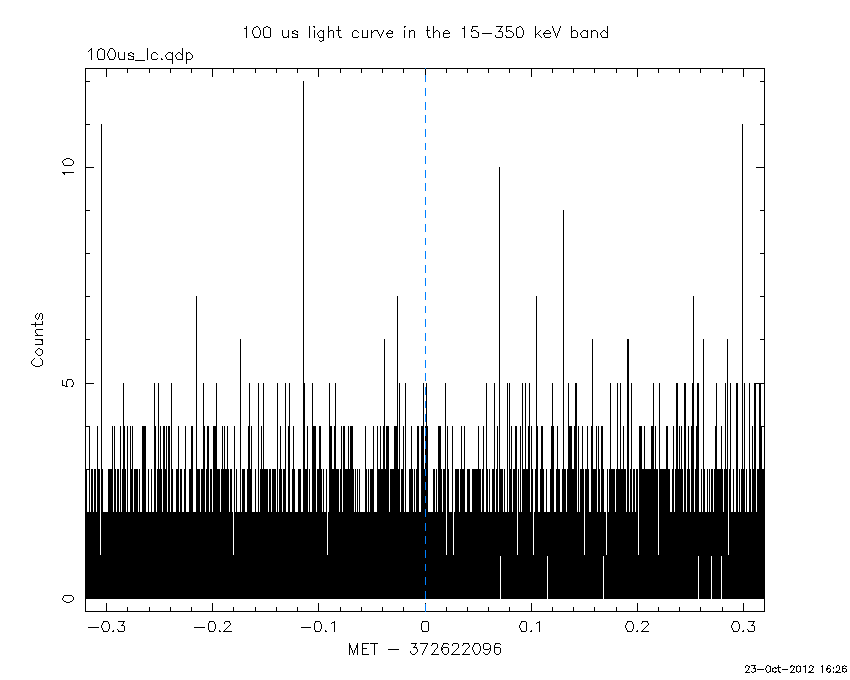

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

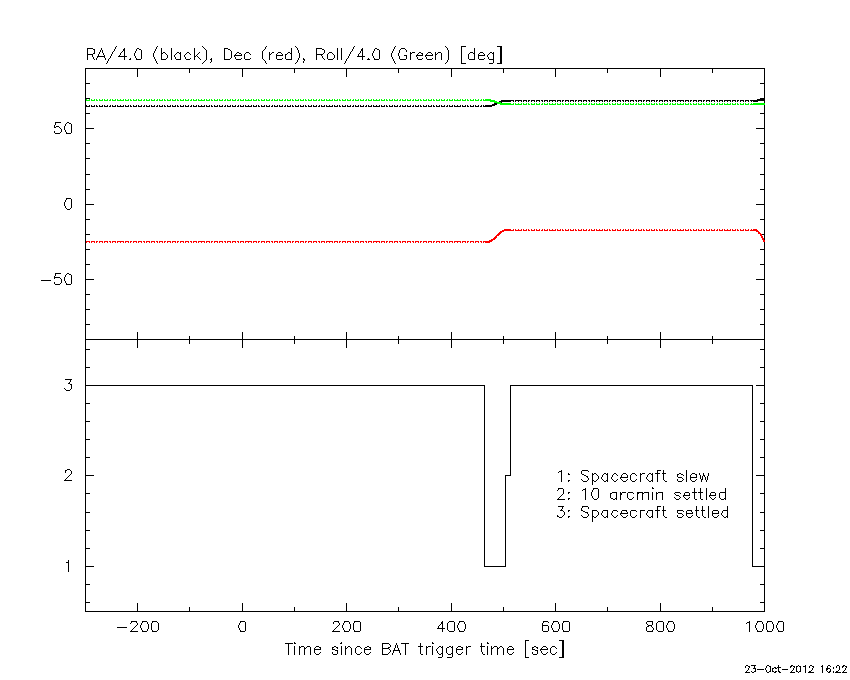

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-119.000000 -71.000000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9549 -15.6291    2.4  16.4  -63.4   0.1135   4.8    1.6	Sco X-1
255.8042 -37.8185   20.5  13.2 -173.2   0.0123   0.6    8.8	4U 1700-377
256.4773 -36.3407   12.0  11.6 -174.0   0.0209   1.0    5.3	GX 349+2
262.9252 -24.8904    6.5   3.3   83.5   0.0389   1.8    9.8	GX 1+4
264.5359 -44.5450    6.4  20.0  163.6   0.0407   1.8   10.5	4U 1735-44
268.3814  -1.6032    3.7  25.0   16.4  -0.0788  -3.1    9.1	SW J1753.5-0127
270.1211 -24.9290    0.0   9.8   86.4  -0.0073  -0.3   12.6	GX 5-1
270.1367 -25.7016    6.1   9.8   91.0  -0.0409  -1.9    9.3	GRS 1758-258
274.0491 -14.1838   11.5  17.6   49.3  -0.0240  -1.0    9.2	GX 17+2
276.0449 -30.5068    6.6  15.8  108.7  -0.0426  -1.7   10.4	H1820-303
284.9806 -24.8862    9.8  23.2   89.7  -0.0344  -1.2    3.7	HT1900.1-2455
288.6463  11.1125    0.0  46.1   36.4  -0.2538  -3.6   13.4	GRS 1915+105
262.9285 -33.9816    4.6   9.5  156.1  -0.0548  -2.5    9.3	GX 354-0
253.0082  25.0467    2.3  50.4  -12.9   0.2429   5.1 ------	UNKNOWN
237.3314  22.6749    2.2  52.2  -31.4   0.3635   5.3 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-71.000000 -56.963300
-56.000000 52.360000
53.000000 105.000000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9729 -15.6456    0.6  16.4  -63.4   8.9030  18.7    0.5	Sco X-1
256.0356 -37.7794    2.5  13.1 -173.9   1.7811   4.6    4.5	4U 1700-377
256.5976 -36.5703    7.7  11.8 -174.7   0.6054   1.5   11.8	GX 349+2
262.8514 -24.6417   18.5   3.2   79.0   0.2656   0.6   10.6	GX 1+4
264.5568 -44.2972    0.0  19.8  163.4  -0.3253  -0.8   12.2	4U 1735-44
268.3101  -1.5840  137.3  25.0   16.2  -0.0377  -0.1    8.6	SW J1753.5-0127
270.4485 -25.1698    7.0  10.1   87.9   0.7226   1.6   10.5	GX 5-1
270.4672 -25.8690    4.6  10.1   91.9   1.1410   2.5   11.7	GRS 1758-258
273.8558 -14.1434    6.3  17.4   48.8  -0.8632  -1.8   10.8	GX 17+2
275.7473 -30.2295    0.0  15.4  108.0   0.1001   0.2   12.4	H1820-303
285.0616 -25.0566   15.1  23.3   90.2   0.4168   0.8    8.3	HT1900.1-2455
288.7479  10.9453    4.7  46.0   36.6  -3.1973  -2.5    3.0	GRS 1915+105
262.8104 -33.8309    4.3   9.3  156.4   1.0760   2.7    8.9	GX 354-0
283.6550   8.5025    2.2  41.0   32.9   4.2470   5.2 ------	UNKNOWN
270.9696  20.1860    2.5  46.6    9.6   3.8204   4.6 ------	UNKNOWN
266.2555 -26.4397    2.1   6.4   99.0   2.3556   5.3 ------	UNKNOWN
245.2931  28.7442    3.7  55.4  -20.5   4.8820   3.1 ------	UNKNOWN
190.4402 -65.9982    4.7  58.7 -159.1   7.2687   2.5 ------	UNKNOWN
231.3334  -4.2255    3.7  34.0  -62.4   2.0138   3.2 ------	UNKNOWN
205.6110 -43.4646    2.9  47.2 -132.6   5.8897   3.9 ------	UNKNOWN
194.6836 -54.0201    3.2  55.3 -145.2  10.7389   3.7 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
503.300600 669.710000
671.000000 682.200000
686.000000 727.280000
728.000000 728.475400
730.000000 750.710000
756.000000 963.047900

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9826 -15.6434    0.3  28.3  -86.4  23.5874  38.7    0.3	Sco X-1
254.5732  35.4750    8.3  55.9  -14.6   2.3138   1.4    9.8	Her X-1
255.9066 -37.8751    1.9  26.4 -140.6   2.7671   6.1    4.2	4U 1700-377
256.4085 -36.4928    4.8  25.1 -139.1   1.0703   2.4    4.4	GX 349+2
262.9374 -24.7104    4.3  13.2 -122.2   1.0760   2.7    4.4	GX 1+4
264.7520 -44.3681   10.0  28.5 -160.3   0.4989   1.1    4.9	4U 1735-44
268.3663  -1.4531    5.0  16.8  -16.7   0.8523   2.3    0.1	SW J1753.5-0127
270.3800 -25.0576    3.9   8.8 -150.0   1.1944   3.0    5.4	GX 5-1
270.3413 -25.8893    5.1   9.6 -152.1   0.9235   2.3    9.0	GRS 1758-258
273.8450 -13.9679    6.6   3.2   -6.4   0.7302   1.7   10.2	GX 17+2
275.8265 -30.3356    3.5  13.3  180.0   1.2768   3.3    5.4	H1820-303
285.1747 -24.7526   23.9  12.6  134.3  -0.1906  -0.5   12.6	HT1900.1-2455
288.8163  10.9262    2.7  31.4   32.8   2.3119   4.3    1.6	GRS 1915+105
263.1635 -33.8582    7.3  19.6 -145.9   0.6605   1.6    8.8	GX 354-0
268.7198  17.5633    4.5  35.1   -4.6   1.3719   2.6 ------	UNKNOWN
264.5447  33.5209    3.1  51.5   -5.6   3.4734   3.8 ------	UNKNOWN
266.3018 -26.3940    0.8  12.0 -137.2   6.0112  14.8 ------	UNKNOWN
266.5100 -32.1558    2.7  16.7 -150.9   1.7320   4.3 ------	UNKNOWN
241.6395 -67.3138    2.6  54.5 -160.1   6.2612   4.5 ------	UNKNOWN
239.7442 -64.9857    2.8  53.2 -157.5   5.0176   4.1 ------	UNKNOWN

Plot creation:
Tue Oct 23 16:26:52 EDT 2012
