batgrbproduct analysis for trigger=549841

batgrbproduct Analysis for Trigger=549841

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Wed Feb 27 15:50:27 EST 2013
             Host Name: gcn5
   Current Working Dir: /local/data/raid16/prebascript_archive/trigger549841/GCN5_download_cron
======================================================================

  Trigger: 00549841      Segment: 000

  BAT Trigger Time: 383620911.092   [s; MET]
      Trigger Stop: 383620911.124   [s; MET]
               UTC: 2013-02-27T01:21:40.828620    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 272.182940122723   Dec: -20.3927283534388  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    10.59
     Image Trigger?:     NO
     Rate S/N Ratio:     29.9165506033032  [ if not an image trigger ]
     Image S/N Ratio:    10.59

  Flight Position:   [ source = BAT ]
    RA: 272.182940122723   Dec: -20.3927283534388  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 272.158401893098   Dec: -20.3992559516043  [deg; J2000]
        { 18h 08m 38.0s , -20d 23' 57.3" }
         +/- 1.73818020320213 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.614322080793411 [arcmin] (formal 1-sigma fit error)
    SNR: 13.8078420233556

  Angular difference between Flight and Ground position is 1.434492 arcmin

  Partial Coding Fraction: 1.015625    [ including projection effects ]

  Duration
     T90: 0.0519999861717224 +/- 0.01442223432929
        Measured from: -0.0159999132156372
                   to: 0.0360000729560852     [s; relative to TRIGTIME]
     T50: 0.0199999213218689 +/- 0.00565686571343518
        Measured from: 0.00400012731552124
                   to: 0.0240000486373901     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.490000009536743
                   to: 0.509999990463257     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.0239999890327454
                   to: 0.0400000214576721     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.021236   0.021821   0.006994   0.002317
           0.002417   0.002323   0.001720   0.001036 [error]
 Peak      0.023989   0.018446   0.018755  -0.001679
           0.006264   0.005811   0.004762   0.004230 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 6.59e-09 6.93e-09 5.15e-09 6.20e-09 2.11e-08 2.49e-08   erg/cm2
              Error 1.06e-09 9.65e-10 1.30e-09 2.88e-09 3.20e-09 4.83e-09   erg/cm2
Peak flux Power-law 1.83e-01 1.54e-01 8.85e-02 7.54e-02 4.59e-01 5.02e-01   ph/cm2/s
              Error 7.71e-02 4.40e-02 3.74e-02 6.34e-02 1.31e-01 1.45e-01   ph/cm2/s

Fluence   Cutoff-PL 6.19e-09 8.07e-09 4.73e-09 1.12e-09 1.99e-08 2.01e-08   erg/cm2
              Error 1.18e-09 1.40e-09 1.67e-09 2.46e-09 3.25e-09 3.98e-09   erg/cm2
Peak flux Cutoff-PL 1.66e-01 1.68e-01 9.09e-02 3.13e-02 4.47e-01 4.56e-01   ph/cm2/s
              Error 8.75e-02 5.42e-02 4.28e-02 5.37e-02 1.33e-01 1.91e-01   ph/cm2/s

Fluence        Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band 4.60e-01 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    2.427    0.245    -      -           3.35e-02 6.33e-03   49.540 57
CPL   1.230    1.231      25.1    0.0      1.79e-01 0.00e+00   45.660 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.802    0.515    -      -           3.33e-03 1.10e-03   51.590 57
CPL   1.027    0.000      56.6    0.0      8.86e-03 0.00e+00   50.970 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.064   -0.024    0.040
T90     0.052   -0.016    0.036
T50     0.020    0.004    0.024
Peak    1.000   -0.490    0.510

Click here for the BAT GCN circular template

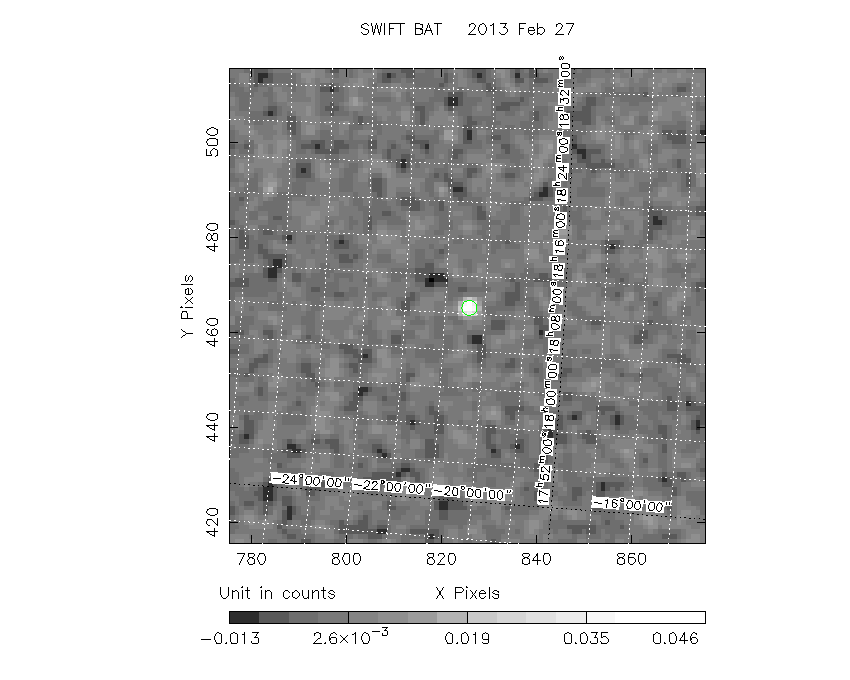

Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  272.1584 -20.3993 0.0139    6.6   12.1       0.0531    13.8  TRIG_00549841
------------------------------------------

Foreground time interval of the image:
 -0.024   0.040 (delta_t =   0.064 [sec])
Background time interval of the image:
-239.092 -55.562 (delta_t = 183.530 [sec])
-54.092 -50.462 (delta_t =   3.630 [sec])
-49.092 -41.002 (delta_t =   8.090 [sec])
-40.092 -39.512 (delta_t =   0.580 [sec])
-38.092 -37.605 (delta_t =   0.487 [sec])
-36.092 -35.502 (delta_t =   0.590 [sec])
-32.092 -31.802 (delta_t =   0.290 [sec])
-31.092 -30.416 (delta_t =   0.676 [sec])
-12.092 -11.832 (delta_t =   0.260 [sec])
-10.092  -0.024 (delta_t =  10.068 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

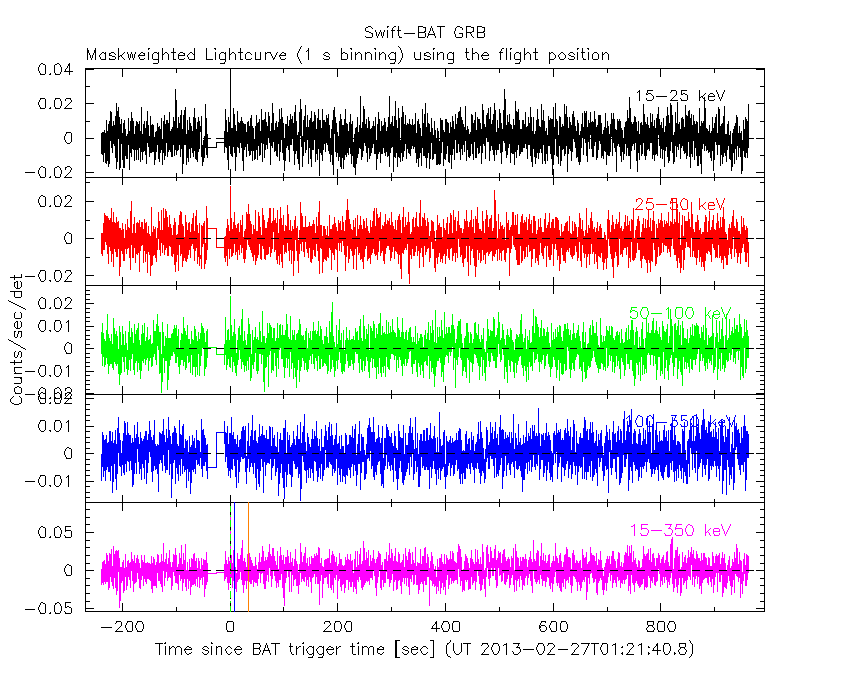

1 s binning

From T0-310 s to T0+310 s

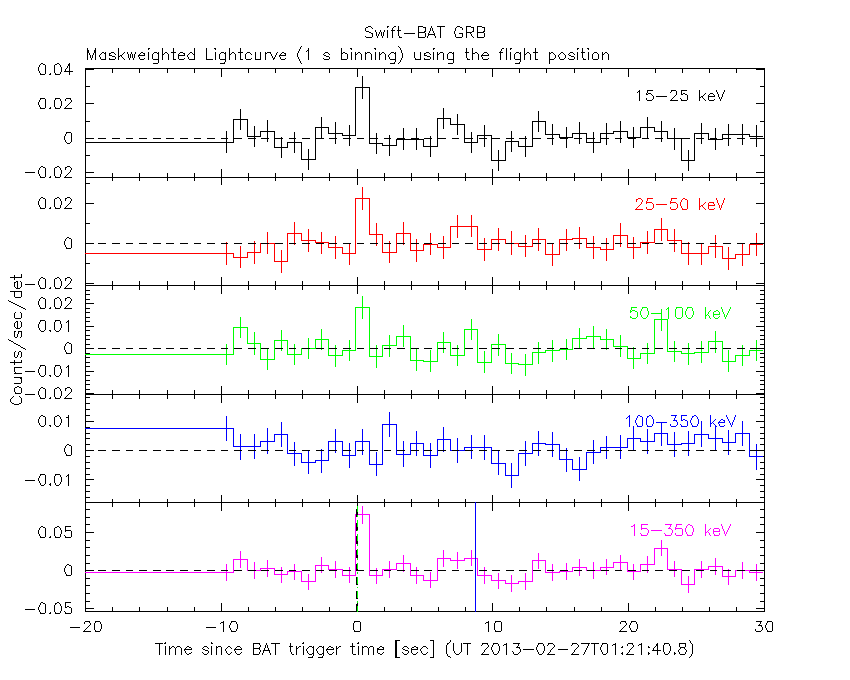

From T100_start - 20 s to T100_end + 30 s

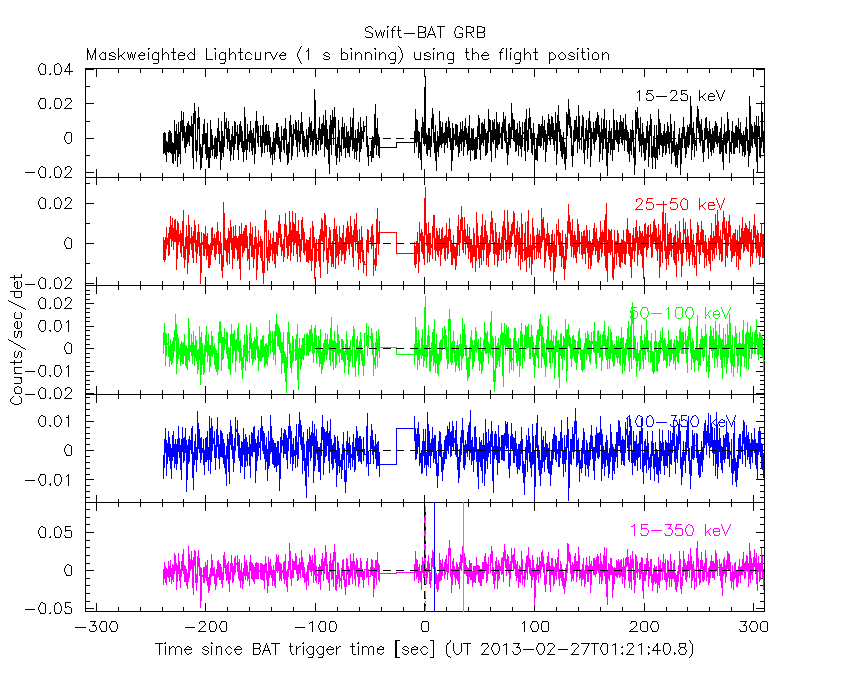

Full time interval

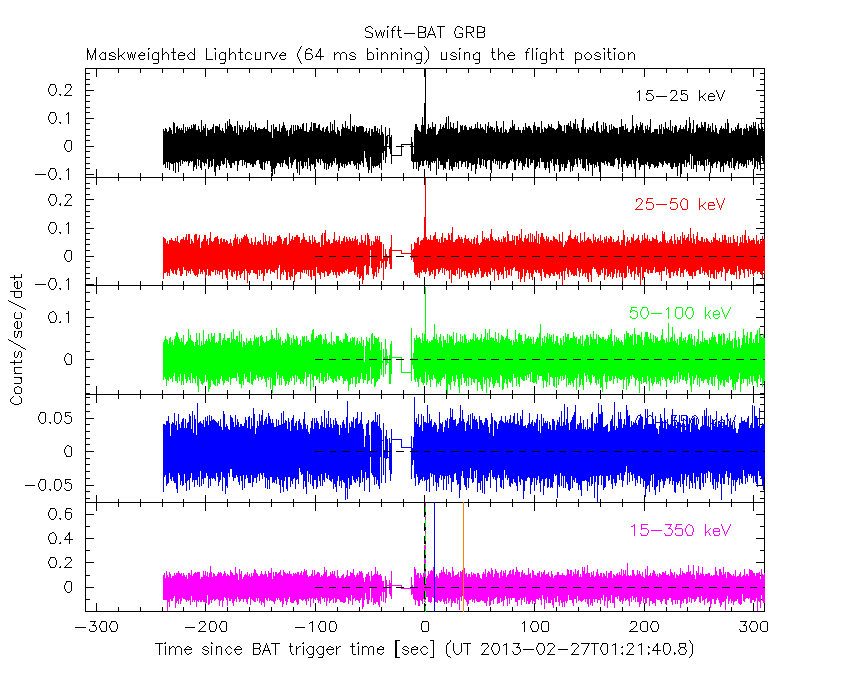

64 ms binning

Full time interval

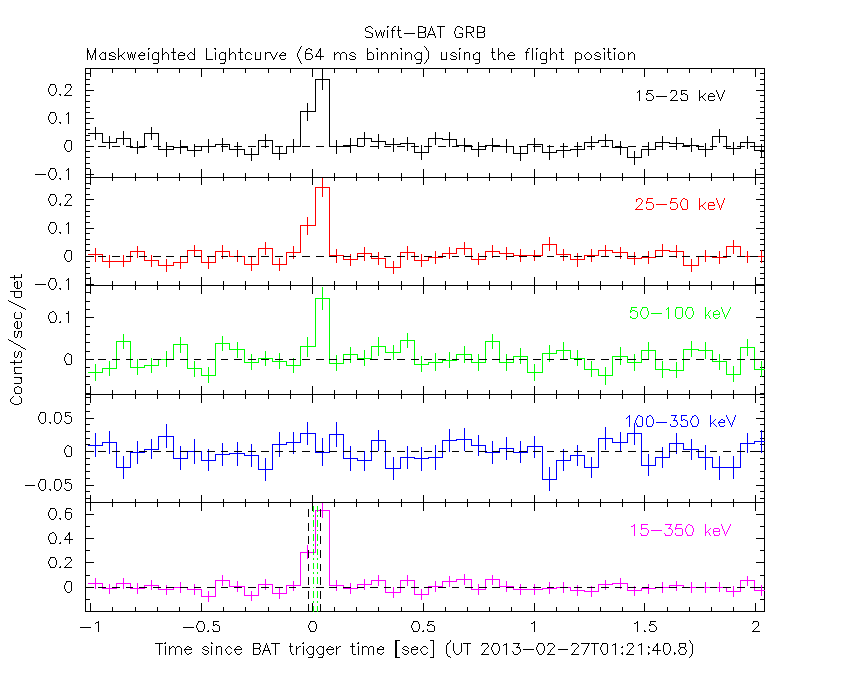

From T100_start to T100_end

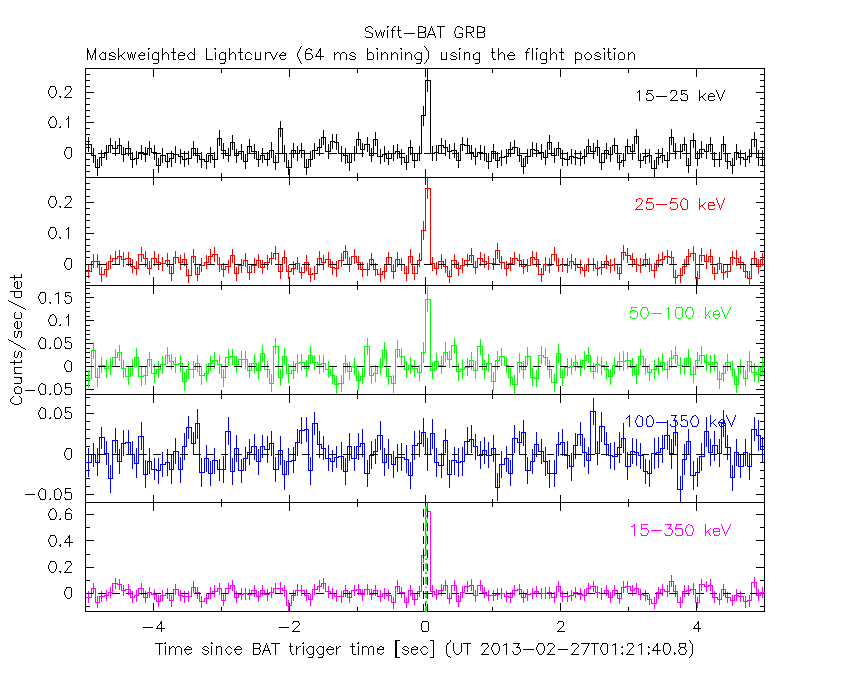

From T0-5 sec to T0+5 sec

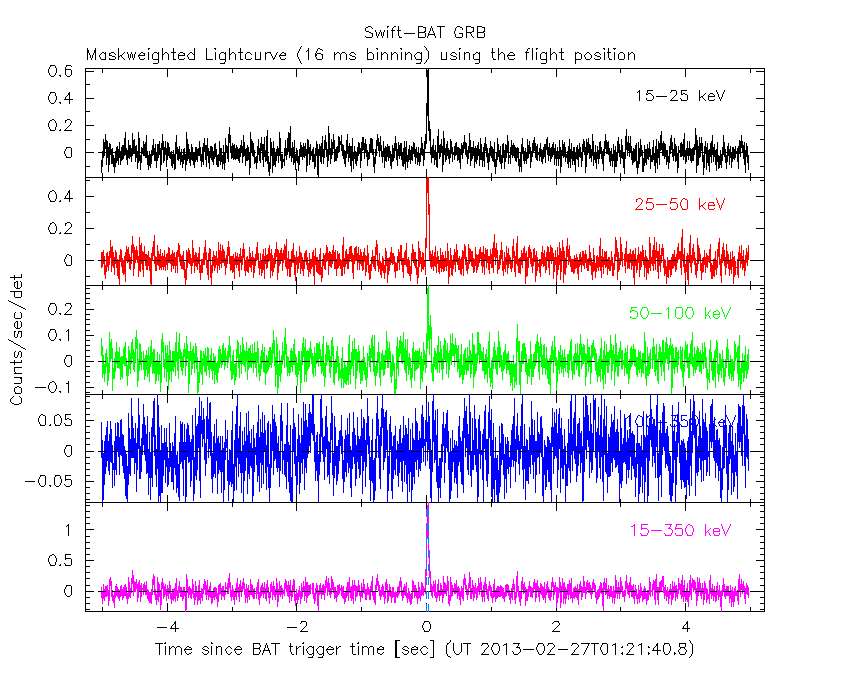

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

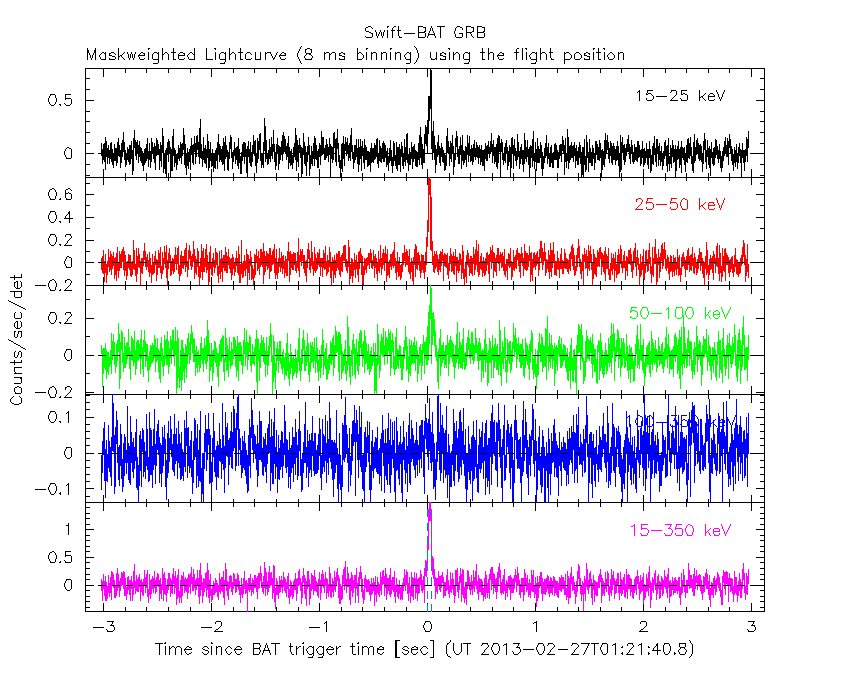

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

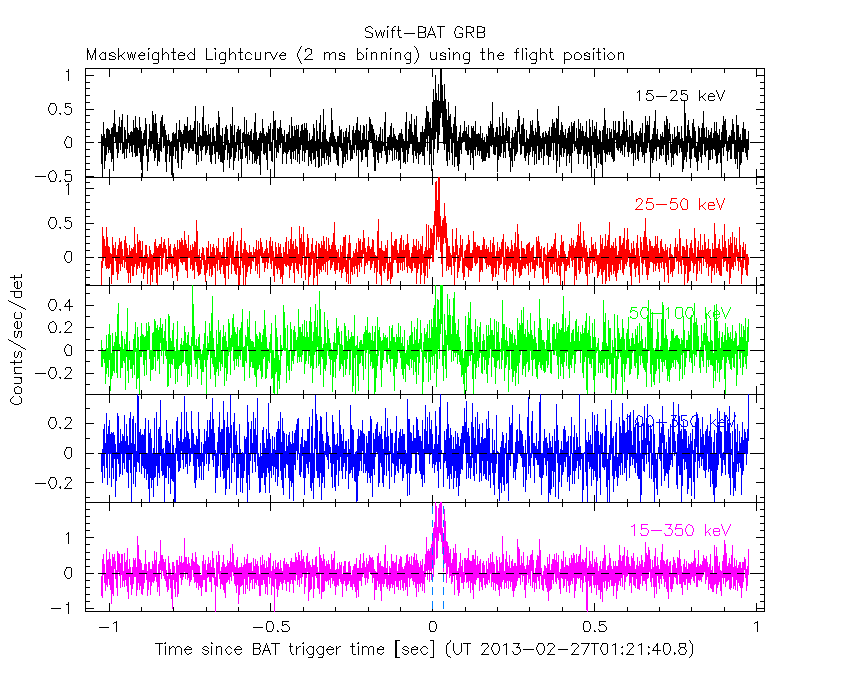

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

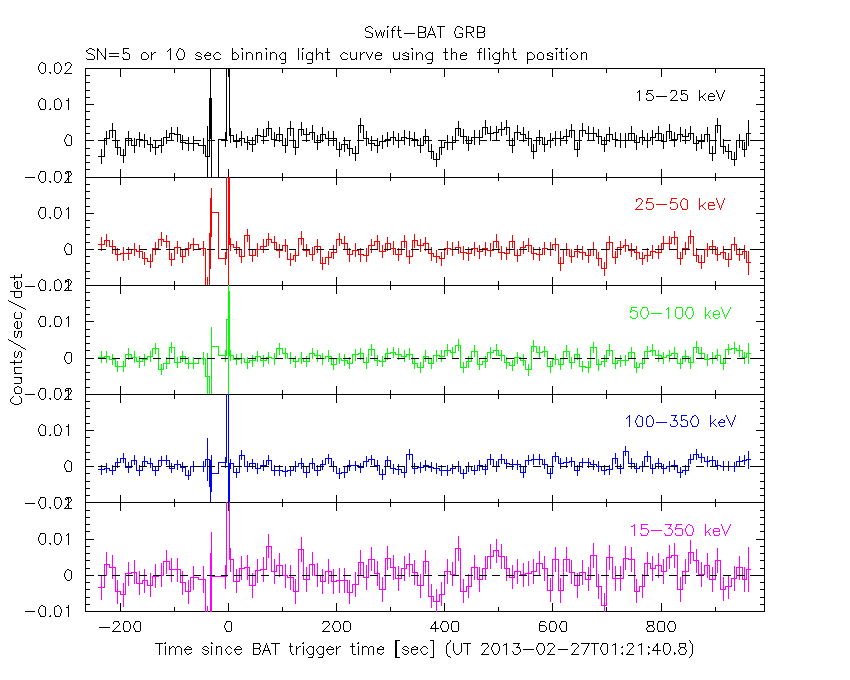

SN=5 or 10 sec. binning (whichever binning is satisfied first)

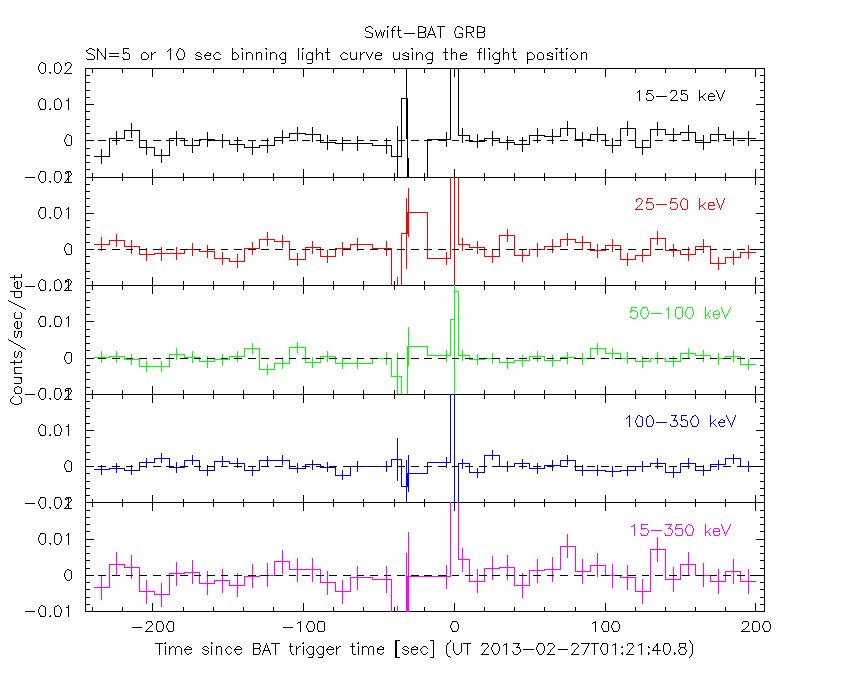

SN=5 or 10 sec. binning (T < 200 sec)

The mask-weighted light curves based on cleaned DPHs

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

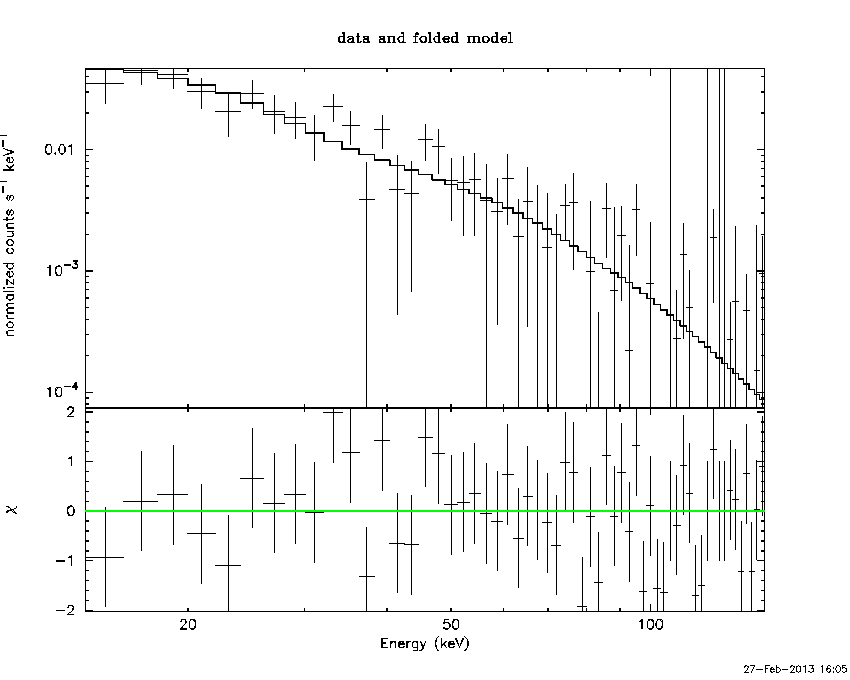

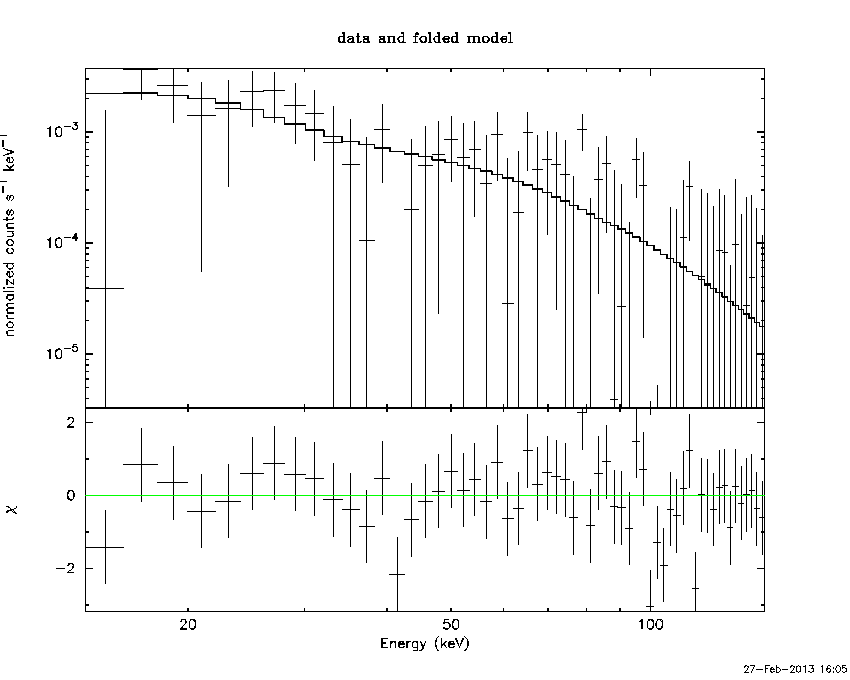

Power-law model

Time interval is from   -0.024 sec. to    0.040 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.42672     ( -0.231375   0.258195 )
Norm@50keV  : 3.35152E-02    ( -0.00641031   0.00624014 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.54 using 59 PHA bins.
# Reduced chi-squared =         0.8692 for     57 degrees of freedom
# Null hypothesis probability =   7.480501e-01

Photon flux (15-150 keV)    in 0.064 sec: 6.29948 ( -0.822051  0.822161 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.10536e-08 ( -3.17776e-09  3.23061e-09 ) ergs/cm2

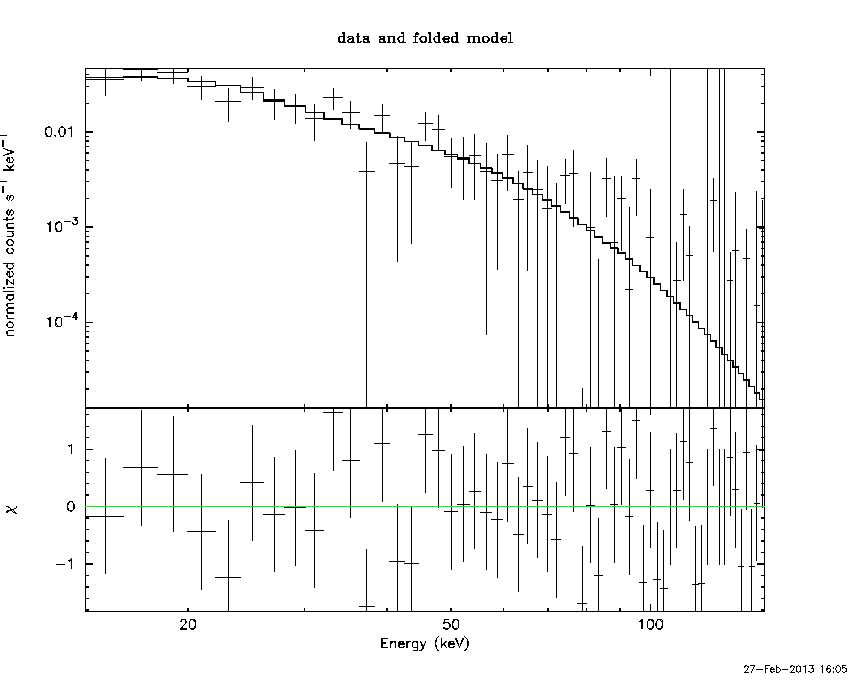

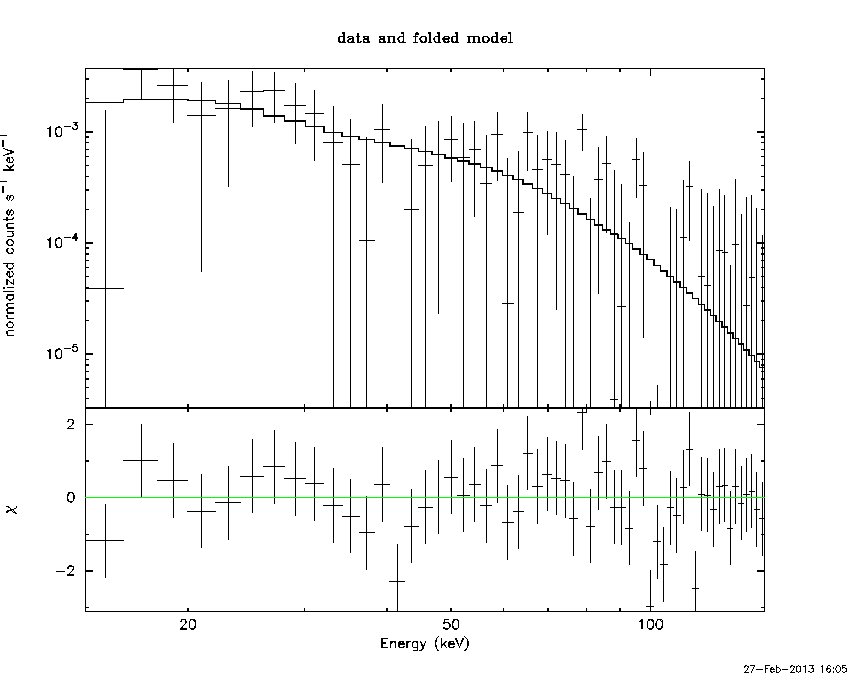

Cutoff power-law model

Time interval is from   -0.024 sec. to    0.040 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.22956     ( -1.40299   1.05888 )
Epeak [keV] : 25.1490      (   )
Norm@50keV  : 0.178565    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.66 using 59 PHA bins.
# Reduced chi-squared =         0.8153 for     56 degrees of freedom
# Null hypothesis probability =   8.366727e-01

Photon flux (15-150 keV)    in 0.064 sec: 6.20785 ( -0.82736  0.82699 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.98798e-08 ( -3.1593e-09  3.344e-09 ) ergs/cm2

Band function

Time interval is from   -0.024 sec. to    0.040 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.22955   ( -0.446502   1.59234 )
beta        : -10.00000    ( 10   20 )
Epeak [keV] : 25.1435      ( -6.03131 10.3417 )
Norm@50keV   : 0.178553    ( -0.0229914   1.16863 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.66 using 59 PHA bins.
# Reduced chi-squared =         0.8301 for     55 degrees of freedom
# Null hypothesis probability =   8.112115e-01

Photon flux (15-150 keV)    in 0.064 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

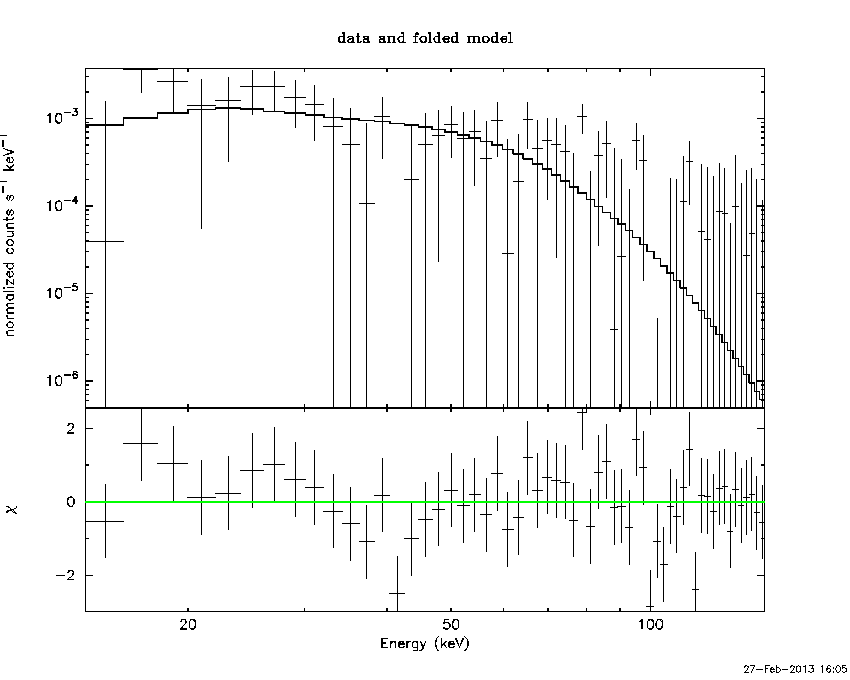

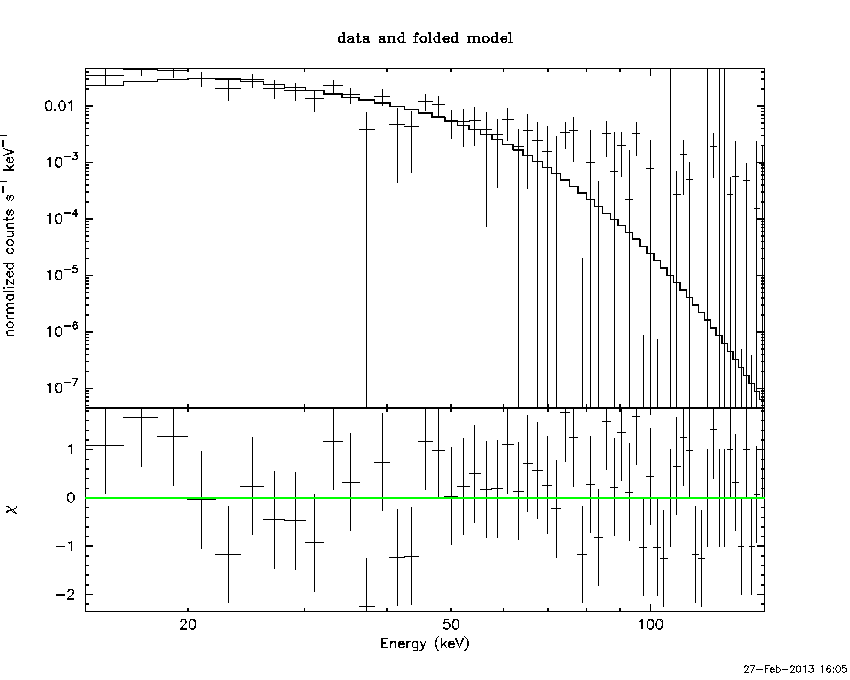

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.24221  (-1.12595  1.26153)
R^2/D10^2   : 6.30444  (-2.77895   5.14481)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.13 using 59 PHA bins.
# Reduced chi-squared =         0.9497 for     57 degrees of freedom
# Null hypothesis probability =   5.833977e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.063e-09   1.140e-09
25- 50  9.326e-09   1.814e-09
50-150  2.699e-09   1.085e-09
15-150  1.709e-08   3.037e-09

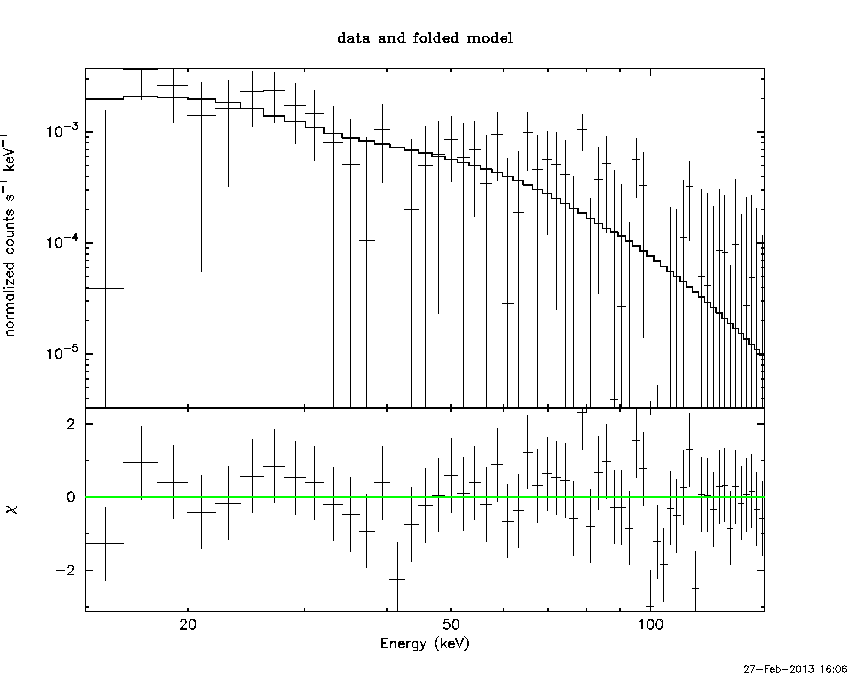

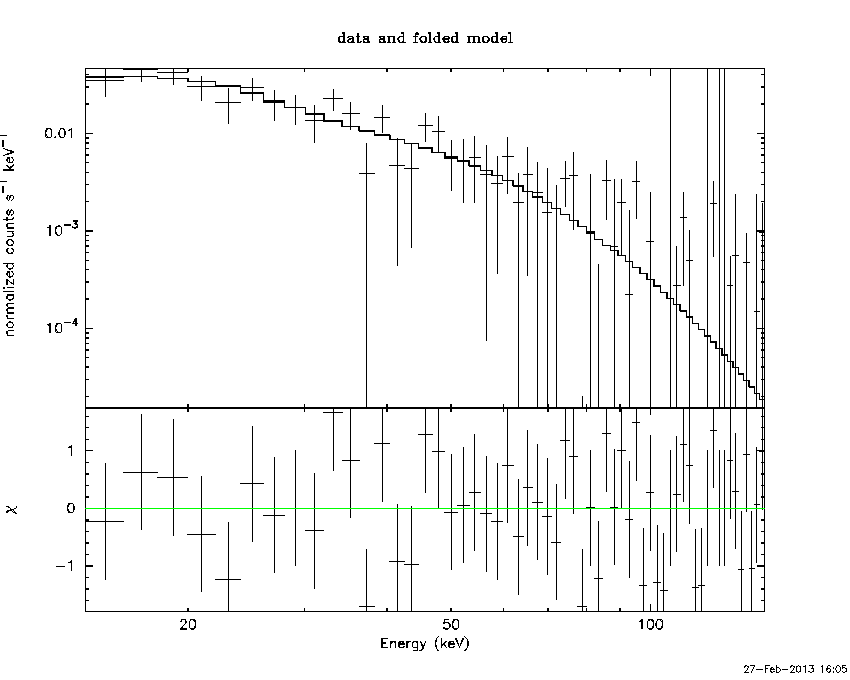

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 37.6337       (-9.50592      13.573)
Norm        : 43.3383       (-9.5398     12.709)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.70 using 59 PHA bins.
# Reduced chi-squared =         0.8017 for     57 degrees of freedom
# Null hypothesis probability =   8.587153e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.234e-09   1.036e-09
25- 50  7.982e-09   1.222e-09
50-150  5.769e-09   2.257e-09
15-150  1.998e-08   3.206e-09

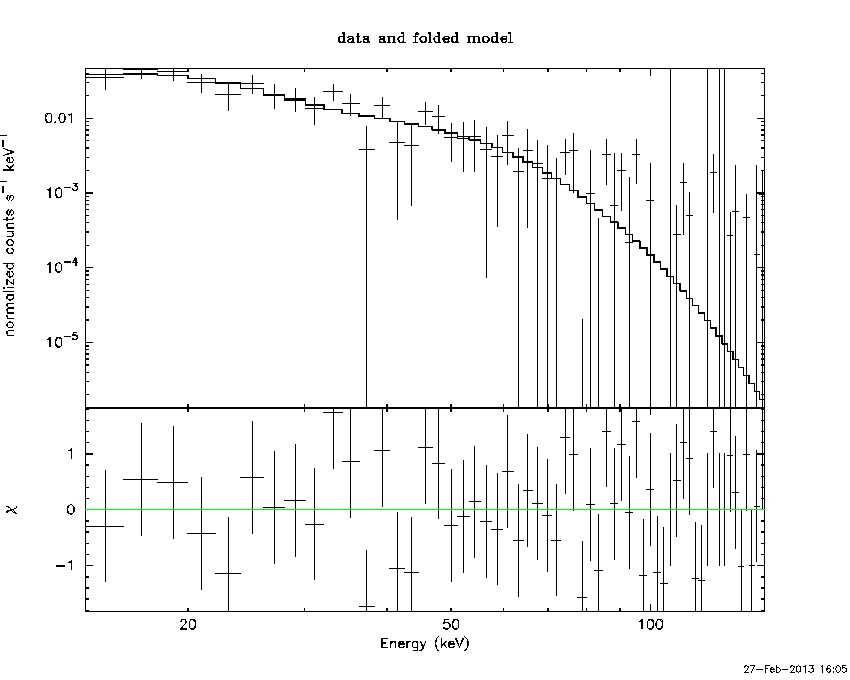

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 3.72201        (-1.90235      2.7431)
R1^2/D10^2  : 95.9406        (-83.5792      6186.79)
kT2 [keV]   : 11.2737        (-2.62541      6.75368)
R2^2/D10^2  : 1.37580    (-1.25337   1.97923)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.51 using 59 PHA bins.
# Reduced chi-squared =         0.8275 for     55 degrees of freedom
# Null hypothesis probability =   8.154391e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.245e-09   3.322e-09
25- 50  7.992e-09   4.294e-09
50-150  5.020e-09   3.040e-09
15-150  1.926e-08   9.926e-09

Peak spectrum fit

Power-law model

Time interval is from   -0.490 sec. to    0.510 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.80235     ( -0.491156   0.539065 )
Norm@50keV  : 3.32980E-03    ( -0.00111994   0.00107329 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.59 using 59 PHA bins.
# Reduced chi-squared =         0.9051 for     57 degrees of freedom
# Null hypothesis probability =   6.775438e-01

Photon flux (15-150 keV)    in 1 sec: 0.459259 ( -0.131023  0.131171 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.0652e-08 ( -1.00034e-08  1.05263e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.490 sec. to    0.510 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.02664     (     )
Epeak [keV] : 56.6240      (   )
Norm@50keV  : 8.86461E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.97 using 59 PHA bins.
# Reduced chi-squared =         0.9102 for     56 degrees of freedom
# Null hypothesis probability =   6.650898e-01

Photon flux (15-150 keV)    in 1 sec: 0.446773 ( -0.132718  0.132539 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.88112e-08 ( -9.9399e-09  1.11404e-08 ) ergs/cm2

Band function

Time interval is from   -0.490 sec. to    0.510 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.04518   ( -1.68463   2.19285 )
beta        : -10.0000    ( 10   1.42109e-14 )
Epeak [keV] : 57.0423      ( -42.1758 -57.0423 )
Norm@50keV   : 8.64834E-03    ( -0.00864837   0.137333 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.97 using 59 PHA bins.
# Reduced chi-squared =         0.9268 for     55 degrees of freedom
# Null hypothesis probability =   6.291565e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 12.9672  (-4.90892  6.11833)
R^2/D10^2   : 8.29361E-02  (-0.0813695   0.386997)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.23 using 59 PHA bins.
# Reduced chi-squared =         0.9514 for     57 degrees of freedom
# Null hypothesis probability =   5.795662e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.958e-09   1.860e-09
25- 50  1.016e-08   6.225e-09
50-150  1.078e-08   7.880e-09
15-150  2.390e-08   1.487e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 95.4162       (-55.8386      -95.4204)
Norm        : 2.06790       (-0.679542     1.09365)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.04 using 59 PHA bins.
# Reduced chi-squared =         0.8955 for     57 degrees of freedom
# Null hypothesis probability =   6.969684e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.403e-09   3.311e-09
25- 50  9.253e-09   5.595e-09
50-150  1.459e-08   1.144e-08
15-150  2.925e-08   1.986e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.13030        (-2.31576      3.81539)
R1^2/D10^2  : 1.72494        (-1.59287      5.5576)
kT2 [keV]   : 19.4080        (-6.96653      16.7281)
R2^2/D10^2  : 1.52752E-02    (-0.0138146   0.0695686)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.46 using 59 PHA bins.
# Reduced chi-squared =         0.8992 for     55 degrees of freedom
# Null hypothesis probability =   6.855865e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.767e-09   3.502e-09
25- 50  8.708e-09   4.643e-09
50-150  1.537e-08   9.490e-09
15-150  2.985e-08   1.640e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.42672     ( -0.231375   0.258195 )
Norm@50keV  : 3.35152E-02    ( -0.00641031   0.00624014 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.54 using 59 PHA bins.
# Reduced chi-squared =         0.8692 for     57 degrees of freedom
# Null hypothesis probability =   7.480501e-01

Photon flux (15-150 keV)    in 0.064 sec: 6.29948 ( -0.822051  0.822161 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.10536e-08 ( -3.17776e-09  3.23061e-09 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.22956     ( -1.40299   1.05888 )
Epeak [keV] : 25.1490      (   )
Norm@50keV  : 0.178565    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.66 using 59 PHA bins.
# Reduced chi-squared =         0.8153 for     56 degrees of freedom
# Null hypothesis probability =   8.366727e-01

Photon flux (15-150 keV)    in 0.064 sec: 6.20785 ( -0.82736  0.82699 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.98798e-08 ( -3.1593e-09  3.344e-09 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.22955   ( -0.27304   1.59234 )
beta        : -10.00000    ( 10   20 )
Epeak [keV] : 25.1435      ( -6.03131 10.3417 )
Norm@50keV   : 0.178553    ( -0.0229914   1.16863 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.66 using 59 PHA bins.
# Reduced chi-squared =         0.8301 for     55 degrees of freedom
# Null hypothesis probability =   8.112115e-01

Photon flux (15-150 keV)    in 0.064 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 6.9287e-09
S(50-100 keV) = 5.15457e-09

T90 vs. Hardness ratio plot

T90                                   = 0.0519999861717224 sec.
Hardness ratio (energy fluence ratio) = 0.743945

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.02755
Count Ratio (50-100 keV) / (15-25 keV) = 0.329346

Mask shadow pattern

IMX = 1.128989742401474E-01, IMY = -2.419813773516796E-02

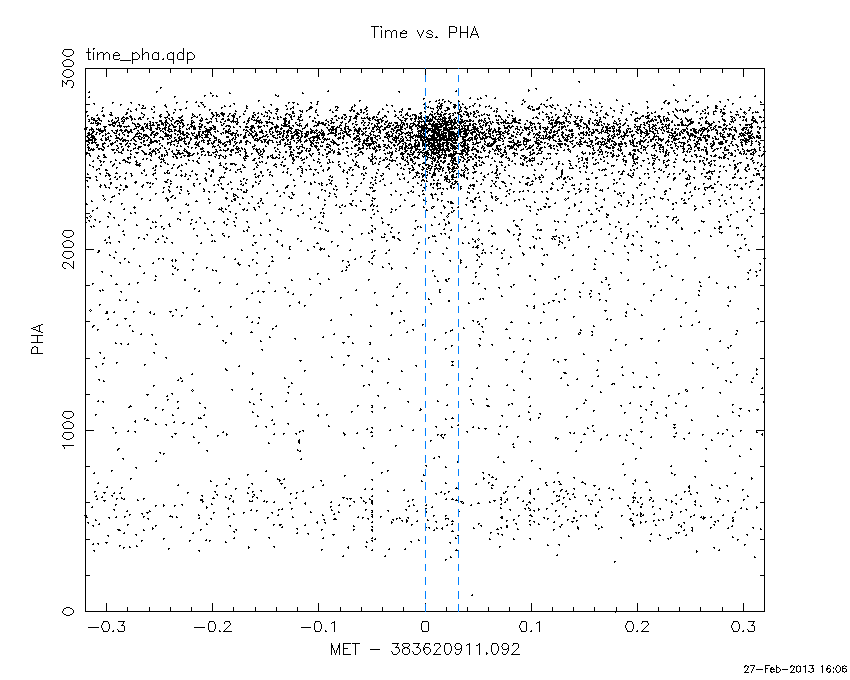

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

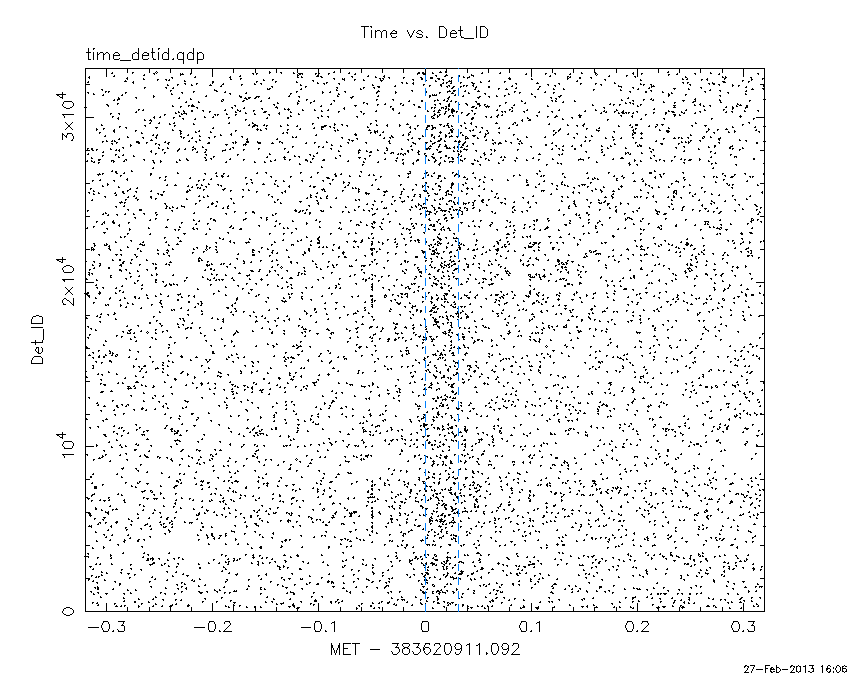

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

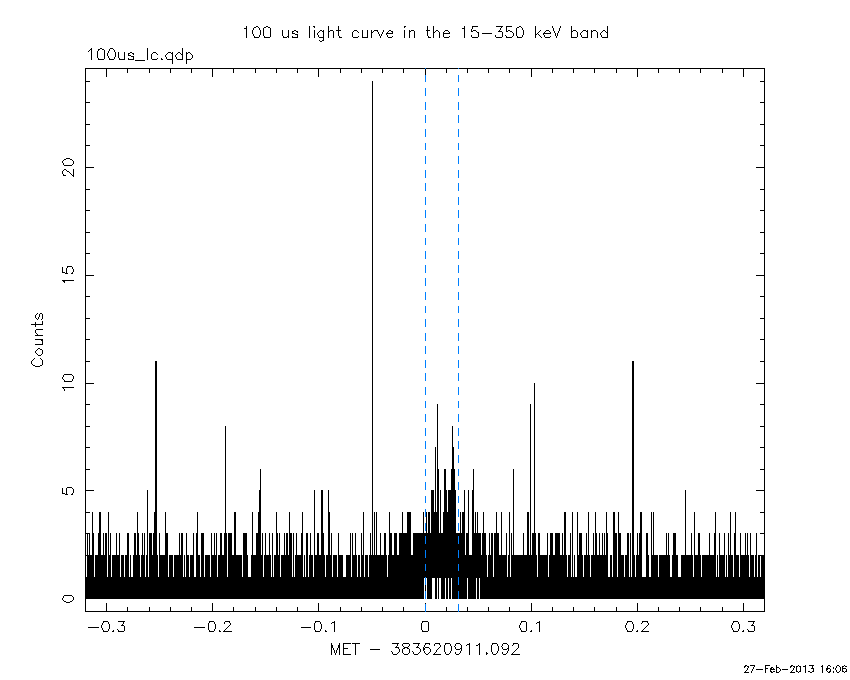

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.032000

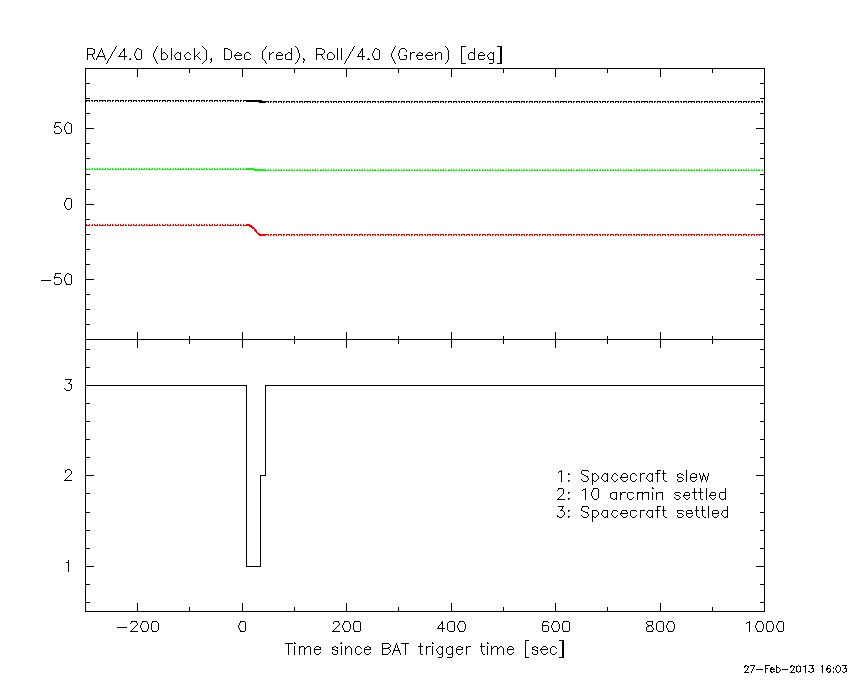

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.092000 -55.562000
-54.092000 -50.462000
-49.092000 -41.002000
-40.092000 -39.512000
-38.092000 -37.604900
-36.092000 -35.502000
-32.092000 -31.802000
-31.092000 -30.416200
-12.092000 -11.832000
-10.092000 -0.024000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9844 -15.6531    0.5  28.0   80.3   7.4469  22.3    0.8	Sco X-1
254.5104  35.4345   11.3  52.8  157.5  -1.1631  -1.0    6.1	Her X-1
255.9840 -37.8411   26.5  28.6   27.9   0.1042   0.4    0.2	4U 1700-377
256.3132 -36.3058    5.1  27.3   29.5   0.5293   2.2    9.2	GX 349+2
262.9029 -24.5842   27.7  14.8   40.3   0.0775   0.4   11.3	GX 1+4
264.6391 -44.3861    5.7  31.4   10.2   0.4884   2.0    5.9	4U 1735-44
268.3442  -1.4802    3.1  13.7  153.1   0.6555   3.7    2.2	SW J1753.5-0127
270.3141 -24.9803    7.4  11.5   14.1   0.3074   1.6    6.2	GX 5-1
270.3837 -25.6574    4.5  12.1   12.9   0.5221   2.6    6.8	GRS 1758-258
274.0266 -14.0049    1.5   0.1 -113.4   1.4633   7.7    2.2	GX 17+2
275.8006 -30.3595    6.3  16.4   -8.3   0.3417   1.8    6.5	H1820-303
284.8735 -24.9425    7.2  15.0  -44.3   0.3154   1.6    8.9	HT1900.1-2455
288.7826  10.9316    1.3  29.0 -151.4   1.9814   9.2    1.2	GRS 1915+105
299.6315  35.2122    2.3  54.9 -157.0   3.3770   5.0    2.1	Cyg X-1
262.9126 -33.8730    2.0  22.2   22.2   1.0938   5.8    4.5	GX 354-0
232.9172 -43.2538    2.5  45.6   39.3   2.8226   4.6 ------	UNKNOWN
271.7201  40.1030    2.8  54.2  175.3   3.3917   4.1 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.024000 0.040000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.8939 -15.5256    4.1  28.1   80.6   0.0189   2.8    8.5	Sco X-1
254.6115  35.4614    7.5  52.8  157.6   0.0336   1.5   10.4	Her X-1
256.1401 -37.9637    4.1  28.7   27.5  -0.0135  -2.8   10.2	4U 1700-377
256.2661 -36.4058   15.1  27.4   29.5  -0.0037  -0.8    8.2	GX 349+2
263.1163 -24.7671   92.5  14.8   39.3   0.0005   0.1    6.0	GX 1+4
264.6104 -44.5226    9.7  31.5   10.2  -0.0056  -1.2    7.2	4U 1735-44
268.3068  -1.3004    6.3  13.9  153.3   0.0075   1.8    9.8	SW J1753.5-0127
270.1211 -25.0840    9.2  11.6   14.8   0.0051   1.3    8.9	GX 5-1
270.2634 -25.5903    6.2  12.1   13.4  -0.0076  -1.9    9.4	GRS 1758-258
274.1660 -13.8933    5.1   0.3 -125.9  -0.0089  -2.3   12.7	GX 17+2
276.0985 -30.2210    0.0  16.3   -9.3  -0.0004  -0.1   12.6	H1820-303
285.0324 -24.9180  360.2  15.1  -44.8  -0.0001  -0.0    0.2	HT1900.1-2455
288.8728  10.9438   11.0  29.0 -151.2   0.0047   1.1    4.4	GRS 1915+105
299.5894  35.2006   18.4  54.9 -157.0   0.0090   0.6    0.1	Cyg X-1
262.9873 -33.9689    6.6  22.3   21.9  -0.0077  -1.7    8.1	GX 354-0
241.0200 -18.3534    2.2  31.9   75.1   0.0377   5.2 ------	UNKNOWN
272.1584 -20.3992    0.8   6.6   12.1   0.0531  13.8 ------	UNKNOWN
279.3758  -3.4402    2.6  11.9 -155.3   0.0161   4.4 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
34.808600 963.008000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9882 -15.6362    0.4  26.3   95.7  29.6531  31.7    0.6	Sco X-1
256.1579 -37.9195   10.4  22.4   34.7  -0.6699  -1.1    9.3	4U 1700-377
256.4069 -36.4402    2.8  21.1   37.1   2.5150   4.1    1.7	GX 349+2
263.0048 -24.7380 2700.0   9.5   60.9   0.0019   0.0    0.5	GX 1+4
264.5553 -44.3957    6.5  24.8   12.8   1.1889   1.8    8.7	4U 1735-44
268.4361  -1.5206    3.3  19.2  168.3   2.1931   3.5    5.8	SW J1753.5-0127
270.2576 -25.0724    1.7   5.0   20.2   4.0613   6.9    1.5	GX 5-1
270.2408 -25.8329    2.7   5.7   17.6   2.5008   4.3    6.3	GRS 1758-258
274.0128 -14.0706    1.3   6.6 -164.6   5.8821   9.1    2.1	GX 17+2
275.9320 -30.3326    3.3  10.5  -18.3   2.1736   3.5    2.1	H1820-303
284.8856 -24.7894    6.9  12.5  -67.4   1.0774   1.7   11.4	HT1900.1-2455
288.7973  10.9520    1.1  35.4 -151.2   8.4446  10.6    0.4	GRS 1915+105
263.0208 -33.8568    2.7  15.7   29.0   2.8009   4.3    2.1	GX 354-0
243.0103  15.8432    3.6  46.2  139.2   8.0149   3.2 ------	UNKNOWN
249.3561 -39.2732    3.2  27.2   40.8   2.6734   3.6 ------	UNKNOWN
251.2382 -28.7516    2.7  20.8   61.9   3.0998   4.3 ------	UNKNOWN
266.2515 -42.5438    2.7  22.7   11.1   2.5717   4.3 ------	UNKNOWN
270.6614 -14.2279    3.5   6.3  166.2   2.0788   3.3 ------	UNKNOWN
298.4505 -69.4084    3.7  51.5  -11.7   5.0839   3.1 ------	UNKNOWN
325.6558 -47.8307    4.1  50.7  -44.4  12.0468   2.8 ------	UNKNOWN
308.4382  11.6630    3.1  47.9 -129.0  13.9231   3.7 ------	UNKNOWN

Plot creation:
Wed Feb 27 16:06:54 EST 2013
