Special notes of this burst
Pre-slew 15.0-350.0 keV image (Event data)
# RAcent DECcent POSerr Theta Phi Peak Cts SNR Name
91.9790 55.7285 0.0192 36.3509 -150.6459 0.4060423 10.008 TRIG_00552063
Foreground time interval of the image:
-2.296 5.744 (delta_t = 8.040 [sec])
Background time interval of the image:
-89.683 -2.296 (delta_t = 87.387 [sec])
Lightcurves
Notes:
- 1) The mask-weighted light curves are using the flight position.
- 2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
- 3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
- 4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
- 5) Time of each bin is in the middle of the bin.
1 s binning
From T0-310 s to T0+310 s
From T100_start - 20 s to T100_end + 30 s
Full time interval
64 ms binning
Full time interval
From T100_start to T100_end
From T0-5 sec to T0+5 sec
16 ms binning
From T100_start-5 s to T100_start+5 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000
8 ms binning
From T100_start-3 s to T100_start+3 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000
2 ms binning
From T100_start-1 s to T100_start+1 s
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000
SN=5 or 10 sec. binning (whichever binning is satisfied first)
SN=5 or 10 sec. binning (T < 200 sec)
Quad-rate summed light curves (from T0-300s to T0+1000s)
The mask-weighted light curves based on cleaned DPHs
Spectral Evolution
Spectra
Notes:
- 1) The fitting includes the systematic errors.
- 2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
- 3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

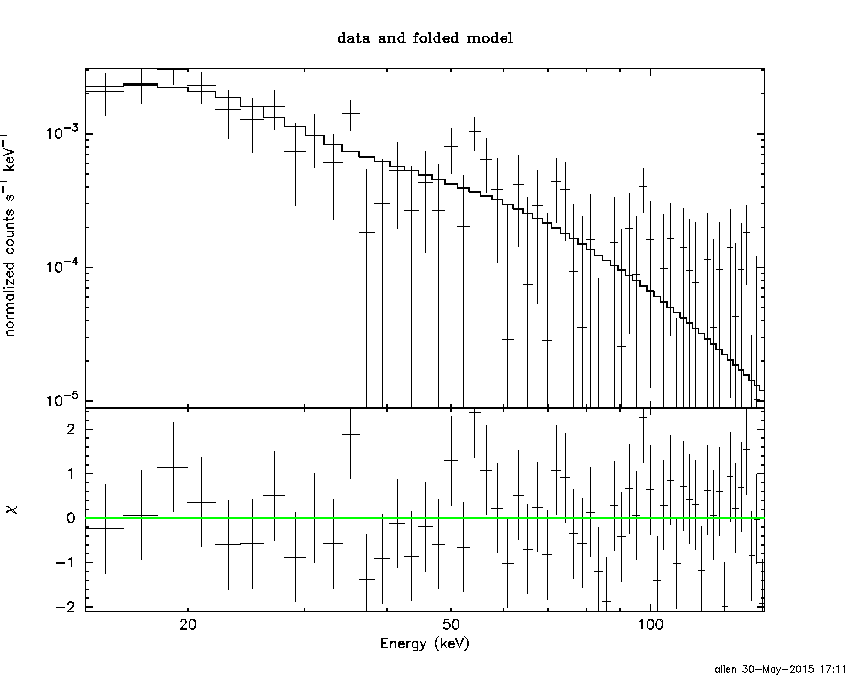

Time averaged spectrum fit using the average DRM
Power-law model
Time interval is from -2.296 sec. to 5.744 sec.
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 2.16507 ( -0.296776 0.332479 )
Norm@50keV : 3.01483E-03 ( -0.000662641 0.000632131 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 55.03 using 59 PHA bins.
# Reduced chi-squared = 0.9655 for 57 degrees of freedom
# Null hypothesis probability = 5.492533e-01
Photon flux (15-150 keV) in 8.04 sec: 0.490128 ( -0.0717242 0.0717257 ) ph/cm2/s
Energy fluence (15-150 keV) : 2.26842e-07 ( -4.18364e-08 4.33061e-08 ) ergs/cm2
Cutoff power-law model
Time interval is from -2.296 sec. to 5.744 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 2.31074 ( )
Epeak [keV] : 133.255 ( )
Norm@50keV : 2.49160E-03 ( )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 54.89 using 59 PHA bins.
# Reduced chi-squared = 0.9801 for 56 degrees of freedom
# Null hypothesis probability = 5.169968e-01
Photon flux (15-150 keV) in 8.04 sec: 0.489994 ( ) ph/cm2/s
Energy fluence (15-150 keV) : 2.25212e-07 ( -4.1759e-08 4.50023e-08 ) ergs/cm2
Band function
Time interval is from -2.296 sec. to 5.744 sec.
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : -9.33665 ( 9.33665 9.33665 )
beta : -2.16507 ( -0.332479 0.296934 )
Epeak [keV] : 1.67962 ( -1.67962 -1.67962 )
Norm@50keV : 0.409758 ( -0.0900624 0.0859155 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 55.03 using 59 PHA bins.
# Reduced chi-squared = 1.001 for 55 degrees of freedom
# Null hypothesis probability = 4.734085e-01
Photon flux (15-150 keV) in 8.04 sec: ( ) ph/cm2/s
Energy fluence (15-150 keV) : 0 ( 0 0 ) ergs/cm2
Single BB
Spectral model blackbody:
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 8.62491 (-1.94017 2.35066)
R^2/D10^2 : 0.379958 (-0.374876 0.657582)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 73.41 using 59 PHA bins.
# Reduced chi-squared = 1.288 for 57 degrees of freedom
# Null hypothesis probability = 7.057845e-02
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 4.321e-08 1.332e-08
25- 50 8.582e-08 1.929e-08
50-150 2.869e-08 1.327e-08
15-150 1.577e-07 3.437e-08
Thermal bremsstrahlung (OTTB)
Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 54.5331 (-20.7012 39.4225)
Norm : 2.65134 (-0.639902 0.392071)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 57.58 using 59 PHA bins.
# Reduced chi-squared = 1.010 for 57 degrees of freedom
# Null hypothesis probability = 4.534174e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 5.266e-08 1.056e-08
25- 50 7.773e-08 1.464e-08
50-150 8.148e-08 3.385e-08
15-150 2.119e-07 5.411e-08
Double BB
Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT1 [keV] : 4.07867 (-1.21262 1.59857)
R1^2/D10^2 : 6.46669 (-4.89958 31.2719)
kT2 [keV] : 17.3999 (-5.07361 10.6372)
R2^2/D10^2 : 1.96633E-02 (-0.0163137 0.0395639)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 54.29 using 59 PHA bins.
# Reduced chi-squared = 0.9870 for 55 degrees of freedom
# Null hypothesis probability = 5.018314e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 6.161e-08 3.432e-08
25- 50 6.345e-08 3.345e-08
50-150 9.528e-08 5.633e-08
15-150 2.203e-07 1.094e-07
Peak spectrum fit
Power-law model
Time interval is from 0.284 sec. to 1.284 sec.
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 2.19771 ( -0.378384 0.441886 )
Norm@50keV : 6.34830E-03 ( -0.00189773 0.00180362 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 39.36 using 59 PHA bins.
# Reduced chi-squared = 0.6905 for 57 degrees of freedom
# Null hypothesis probability = 9.638948e-01
Photon flux (15-150 keV) in 1 sec: 1.04972 ( -0.201567 0.201588 ) ph/cm2/s
Energy fluence (15-150 keV) : 5.96681e-08 ( -1.46287e-08 1.5376e-08 ) ergs/cm2
Cutoff power-law model
Time interval is from 0.284 sec. to 1.284 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 2.28415 ( )
Epeak [keV] : 136.471 ( )
Norm@50keV : 5.63084E-03 ( )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 39.33 using 59 PHA bins.
# Reduced chi-squared = 0.7023 for 56 degrees of freedom
# Null hypothesis probability = 9.555824e-01
Photon flux (15-150 keV) in 1 sec: 1.04944 ( ) ph/cm2/s
Energy fluence (15-150 keV) : 5.93916e-08 ( -1.56226e-08 1.56605e-08 ) ergs/cm2
Band function
Time interval is from 0.284 sec. to 1.284 sec.
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : -2.29664 ( 2.29664 2.29664 )
beta : -2.19771 ( -0.441884 0.378987 )
Epeak [keV] : 9.65406 ( -9.65406 -9.65406 )
Norm@50keV : 0.862823 ( -0.257928 0.245138 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 39.36 using 59 PHA bins.
# Reduced chi-squared = 0.7156 for 55 degrees of freedom
# Null hypothesis probability = 9.448345e-01
Photon flux (15-150 keV) in 1 sec: ( ) ph/cm2/s
Energy fluence (15-150 keV) : 0 ( 0 0 ) ergs/cm2
Single BB
Spectral model blackbody:
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 7.33778 (-1.74559 2.52586)
R^2/D10^2 : 1.57193 (-1.07749 3.22456)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 48.10 using 59 PHA bins.
# Reduced chi-squared = 0.8439 for 57 degrees of freedom
# Null hypothesis probability = 7.932988e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 1.424e-08 5.815e-09
25- 50 2.133e-08 8.337e-09
50-150 4.180e-09 2.826e-09
15-150 3.975e-08 1.417e-08
Thermal bremsstrahlung (OTTB)
Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT [keV] : 47.9761 (-21.6955 52.6392)
Norm : 6.05644 (-1.88131 3.34943)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 40.74 using 59 PHA bins.
# Reduced chi-squared = 0.7148 for 57 degrees of freedom
# Null hypothesis probability = 9.488032e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 1.466e-08 3.856e-09
25- 50 2.075e-08 6.035e-09
50-150 1.936e-08 1.150e-08
15-150 5.477e-08 2.128e-08
Double BB
Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters : value Lower 90% Upper 90%
kT1 [keV] : 4.94425 (-1.95587 2.15745)
R1^2/D10^2 : 6.47201 (-4.91442 53.4032)
kT2 [keV] : 21.4456 (-10.235 45.5061)
R2^2/D10^2 : 1.72497E-02 (-0.0166574 0.206878)
------------------------------------------------------------
#Fit statistic : Chi-Squared = 39.11 using 59 PHA bins.
# Reduced chi-squared = 0.7110 for 55 degrees of freedom
# Null hypothesis probability = 9.481221e-01
Energy Fluence 90% Error
[keV] [erg/cm2] [erg/cm2]
15- 25 1.653e-08 9.470e-09
25- 50 1.729e-08 8.727e-09
50-150 2.692e-08 1.642e-08
15-150 6.074e-08 3.276e-08
Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)
Power-law model
Spectral model in power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 2.16507 ( -0.296776 0.332479 )
Norm@50keV : 3.01483E-03 ( -0.000662641 0.000632131 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 55.03 using 59 PHA bins.
# Reduced chi-squared = 0.9655 for 57 degrees of freedom
# Null hypothesis probability = 5.492533e-01
Photon flux (15-150 keV) in 8.04 sec: 0.490128 ( -0.0717242 0.0717257 ) ph/cm2/s
Energy fluence (15-150 keV) : 2.26842e-07 ( -4.18364e-08 4.33061e-08 ) ergs/cm2
Cutoff power-law model
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
Photon index: 2.31074 ( )
Epeak [keV] : 133.255 ( )
Norm@50keV : 2.49160E-03 ( )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 54.89 using 59 PHA bins.
# Reduced chi-squared = 0.9801 for 56 degrees of freedom
# Null hypothesis probability = 5.169968e-01
Photon flux (15-150 keV) in 8.04 sec: 0.489994 ( ) ph/cm2/s
Energy fluence (15-150 keV) : 2.25212e-07 ( -4.1759e-08 4.50023e-08 ) ergs/cm2
Band function
Spectral model in the Band function:
------------------------------------------------------------
Parameters : value lower 90% higher 90%
alpha : -9.33665 ( 9.33665 9.33665 )
beta : -2.16507 ( -0.332479 0.296934 )
Epeak [keV] : 1.67962 ( -1.67962 -1.67962 )
Norm@50keV : 0.409758 ( -0.0900624 0.0859155 )
------------------------------------------------------------
#Fit statistic : Chi-Squared = 55.03 using 59 PHA bins.
# Reduced chi-squared = 1.001 for 55 degrees of freedom
# Null hypothesis probability = 4.734085e-01
Photon flux (15-150 keV) in 8.04 sec: ( ) ph/cm2/s
Energy fluence (15-150 keV) : 0 ( 0 0 ) ergs/cm2
S(25-50 keV) vs. S(50-100 keV) plot
S(25-50 keV) = 7.13e-08
S(50-100 keV) = 6.36e-08
T90 vs. Hardness ratio plot
T90 = 6.37199997901917 sec.
Hardness ratio (energy fluence ratio) = 0.892006
Color vs. Color plot
Count Ratio (25-50 keV) / (15-25 keV) = 0.878766
Count Ratio (50-100 keV) / (15-25 keV) = 0.546014
Mask shadow pattern
IMX = -6.414519398469432E-01, IMY = 3.607626099574490E-01

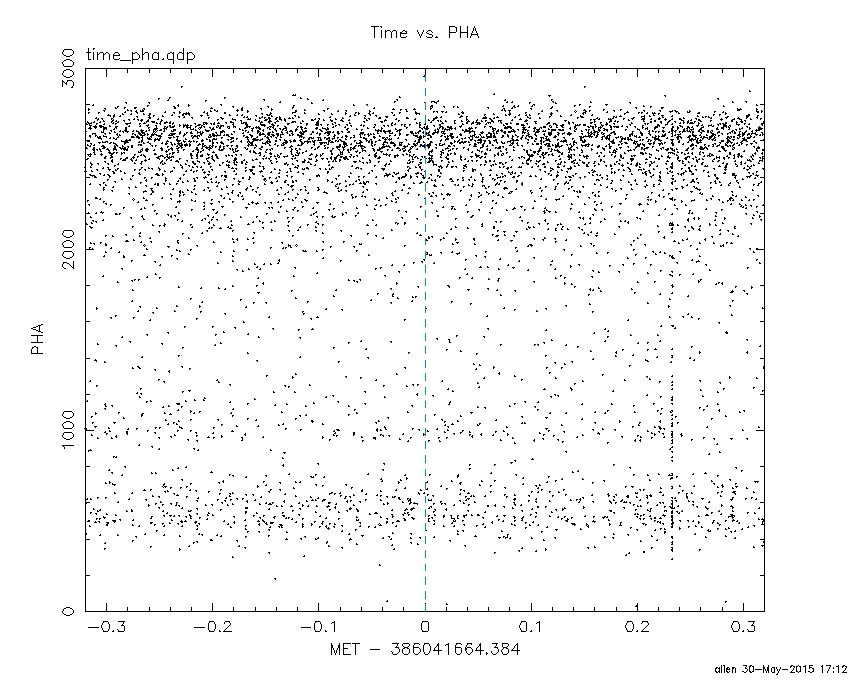

TIME vs. PHA plot around the trigger time
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000
TIME vs. DetID plot around the trigger time
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000
100 us light curve (15-350 keV)
Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 2.048000

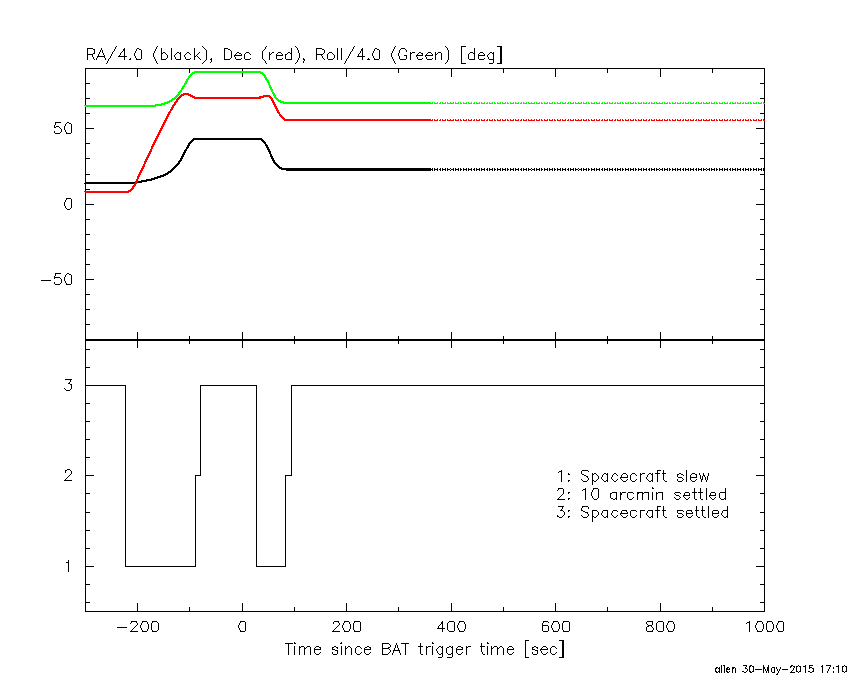

Spacecraft aspect plot
Bright source in the pre-burst/pre-slew/post-slew images
Pre-burst image of 15-350 keV band
Time interval of the image:
-89.683400 -2.296000
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
254.3944 35.3688 5.1 53.8 4.9 0.8568 2.3 3.5 Her X-1
266.8183 38.2471 3.0 55.2 -7.7 1.3517 3.8 ------ UNKNOWN
272.9096 45.1551 2.3 50.8 -16.5 1.1531 5.0 ------ UNKNOWN
Pre-slew background subtracted image of 15-350 keV band
Time interval of the image:
-2.296000 5.744000
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
254.6529 35.2554 0.0 54.0 4.7 0.1873 1.7 10.9 Her X-1
230.4152 29.8480 2.6 51.0 31.1 0.6841 4.5 ------ UNKNOWN
263.8695 43.4444 2.3 49.6 -7.9 0.3177 5.0 ------ UNKNOWN
267.4174 38.3149 2.7 55.3 -8.3 0.3955 4.3 ------ UNKNOWN
91.9791 55.7285 1.2 36.4 -150.6 0.4058 10.0 ------ UNKNOWN
Post-slew image of 15-350 keV band
Time interval of the image:
83.316600 962.711600
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
83.6361 22.0124 0.2 34.3 -164.1 35.3049 53.6 0.2 Crab
86.1361 17.5541 2.9 38.5 -168.9 3.1495 3.9 ------ UNKNOWN
293.5752 68.0740 2.7 55.2 -7.6 9.1690 4.3 ------ UNKNOWN
41.8395 66.5317 2.7 25.6 -43.0 2.4788 4.3 ------ UNKNOWN
353.4916 55.3938 4.5 50.7 -44.5 10.0360 2.6 ------ UNKNOWN
40.6359 33.7894 3.8 41.3 -98.1 10.5990 3.1 ------ UNKNOWN
Plot creation:
Sat May 30 17:12:17 EDT 2015
