batgrbproduct analysis for trigger=552369

batgrbproduct Analysis for Trigger=552369

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Tue Apr 23 13:36:50 EDT 2013
             Host Name: gcn5
   Current Working Dir: /local/data/raid16/prebascript_archive/trigger552369/heasarc_download
======================================================================

  Trigger: 00552369      Segment: 000

  BAT Trigger Time: 386349048   [s; MET]
      Trigger Stop: 386349112   [s; MET]
               UTC: 2013-03-30T15:10:37.617100    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 276.148848940488   Dec: -24.8769090861674  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    8.1
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    8.1

  Flight Position:   [ source = BAT ]
    RA: 276.148848940488   Dec: -24.8769090861674  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 276.222333946796   Dec: -24.8743307171418  [deg; J2000]
        { 18h 24m 53.4s , -24d 52' 27.6" }
         +/- 2.76344597381655 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.43434565331081 [arcmin] (formal 1-sigma fit error)
    SNR: 7.11990378959261

  Angular difference between Flight and Ground position is 4.003028 arcmin

  Partial Coding Fraction: 1    [ including projection effects ]

  Duration
     T90: 55.2359999418259 +/- 11.9343510750244
        Measured from: -7.89999997615814
                   to: 47.3359999656677     [s; relative to TRIGTIME]
     T50: 29.0479999184608 +/- 11.4056963245776
        Measured from: 4.47200000286102
                   to: 33.5199999213219     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 36.944000005722
                   to: 37.944000005722     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -15.8960000276566
                   to: 53.744000017643     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.434809   0.334253   0.196948   0.068900
           0.056082   0.049010   0.042293   0.038731 [error]
 Peak      0.014937   0.013597   0.006047   0.008156
           0.006541   0.006089   0.005050   0.004539 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.06e-07 1.45e-07 1.46e-07 2.65e-07 4.83e-07 6.63e-07   erg/cm2
              Error 2.39e-08 2.22e-08 4.08e-08 1.52e-07 9.12e-08 1.94e-07   erg/cm2
Peak flux Power-law 9.41e-02 9.42e-02 6.62e-02 7.38e-02 2.84e-01 3.28e-01   ph/cm2/s
              Error 7.37e-02 7.06e-02 3.93e-02 1.09e-01 1.37e-01 1.58e-01   ph/cm2/s

Fluence   Cutoff-PL 1.07e-07 1.45e-07 1.45e-07 2.59e-07 4.80e-07 6.55e-07   erg/cm2
              Error 2.39e-08 2.37e-08 3.42e-08 2.17e-07 9.09e-08 2.20e-07   erg/cm2
Peak flux Cutoff-PL 7.36e-02 1.20e-01 5.83e-02 5.17e-03 2.57e-01 2.57e-01   ph/cm2/s
              Error 8.25e-02 9.41e-02 4.89e-02 4.74e-02 1.46e-01 1.74e-01   ph/cm2/s

Fluence        Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.993    0.316    -      -           7.52e-04 1.50e-04   35.410 57
CPL   2.422    0.000     153.8    0.0      4.60e-04 0.00e+00   35.010 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.508    0.902    -      -           2.27e-03 1.11e-03   57.690 57
CPL  -0.605    2.000      50.3    0.0      3.80e-02 2.42e+03   57.310 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   69.640  -15.896   53.744
T90    55.236   -7.900   47.336
T50    29.048    4.472   33.520
Peak    1.000   36.944   37.944

Click here for the BAT GCN circular template


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  276.2223 -24.8743 0.0268    0.1  -98.2       0.7645     7.1  TRIG_00552369
------------------------------------------

Foreground time interval of the image:
-15.896  53.744 (delta_t =  69.640 [sec])
Background time interval of the image:
-239.000 -15.896 (delta_t = 223.104 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

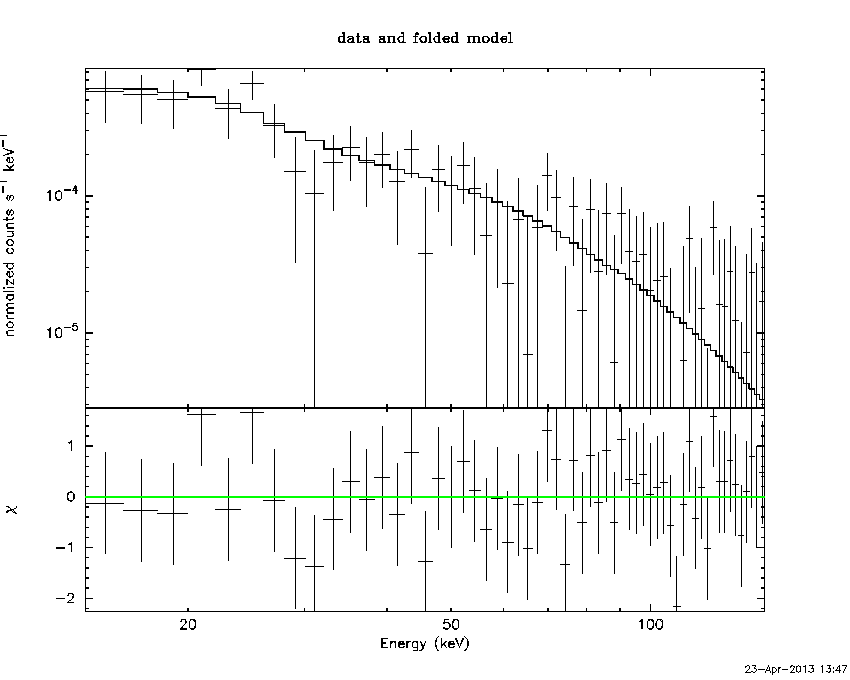

Power-law model

Time interval is from  -15.896 sec. to   53.744 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.99259     ( -0.304993   0.327885 )
Norm@50keV  : 7.52038E-04    ( -0.000153162   0.000146534 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          35.41 using 59 PHA bins.
# Reduced chi-squared =         0.6212 for     57 degrees of freedom
# Null hypothesis probability =   9.890023e-01

Photon flux (15-150 keV)    in 69.64 sec: 0.112423 ( -0.0170652  0.017077 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.82778e-07 ( -8.95591e-08  9.28984e-08 ) ergs/cm2

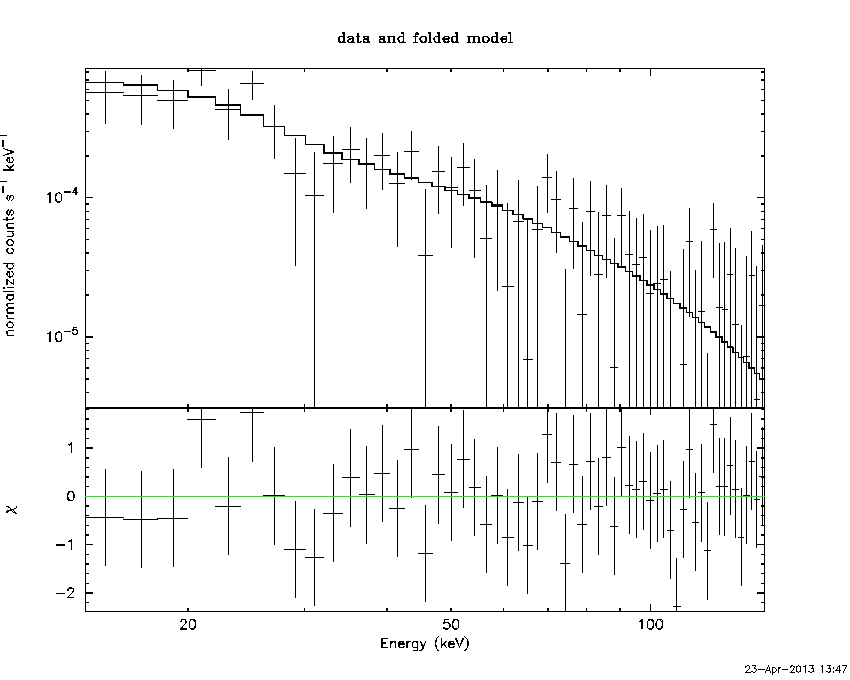

Cutoff power-law model

Time interval is from  -15.896 sec. to   53.744 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.42158     (     )
Epeak [keV] : 153.791      (   )
Norm@50keV  : 4.60468E-04    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          35.01 using 59 PHA bins.
# Reduced chi-squared =         0.6251 for     56 degrees of freedom
# Null hypothesis probability =   9.874663e-01

Photon flux (15-150 keV)    in 69.64 sec: 0.112486 ( -0.0171516  0.017005 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.79689e-07 ( -8.88001e-08  9.29478e-08 ) ergs/cm2

Band function

Time interval is from  -15.896 sec. to   53.744 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.665124   ( 1.41962   1.41962 )
beta        : -2.03457    ( 2.01178   0.321372 )
Epeak [keV] : 20.8670      ( -22.8606 -22.8606 )
Norm@50keV   : 0.113929    ( -0.11374   259.577 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          35.30 using 59 PHA bins.
# Reduced chi-squared =         0.6419 for     55 degrees of freedom
# Null hypothesis probability =   9.821003e-01

Photon flux (15-150 keV)    in 69.64 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

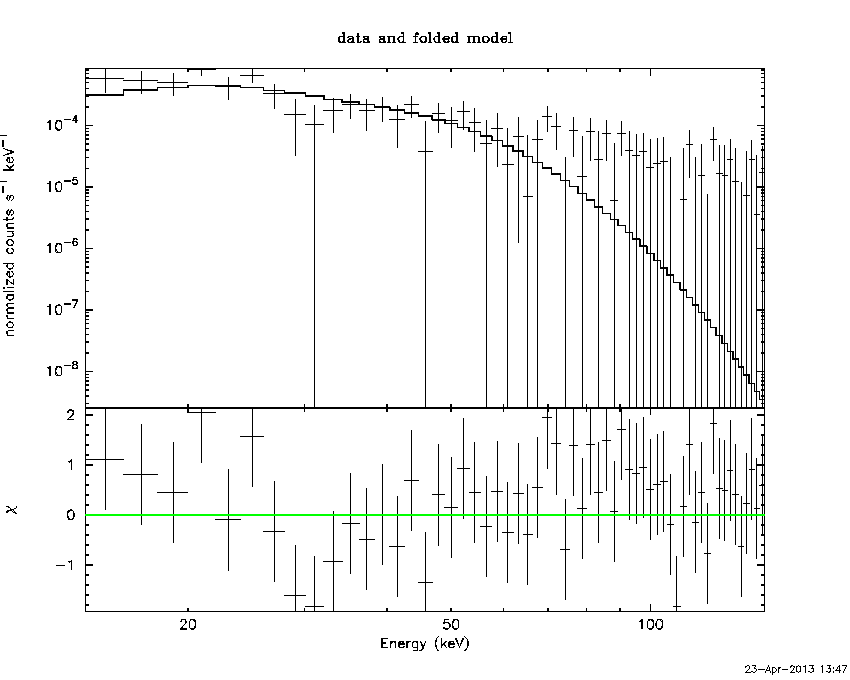

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 9.00513  (-1.91102  2.56883)
R^2/D10^2   : 7.30258E-02  (-0.0724082   0.114105)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.66 using 59 PHA bins.
# Reduced chi-squared =         0.9238 for     57 degrees of freedom
# Null hypothesis probability =   6.385356e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.032e-08   2.477e-08
25- 50  1.709e-07   4.286e-08
50-150  6.529e-08   3.144e-08
15-150  3.165e-07   7.970e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 70.8582       (-29.816      77.1028)
Norm        : 0.540489       (-0.124973     0.184163)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          37.79 using 59 PHA bins.
# Reduced chi-squared =         0.6629 for     57 degrees of freedom
# Null hypothesis probability =   9.766776e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.669e-08   2.177e-08
25- 50  1.543e-07   2.956e-08
50-150  2.000e-07   1.072e-07
15-150  4.511e-07   1.379e-07

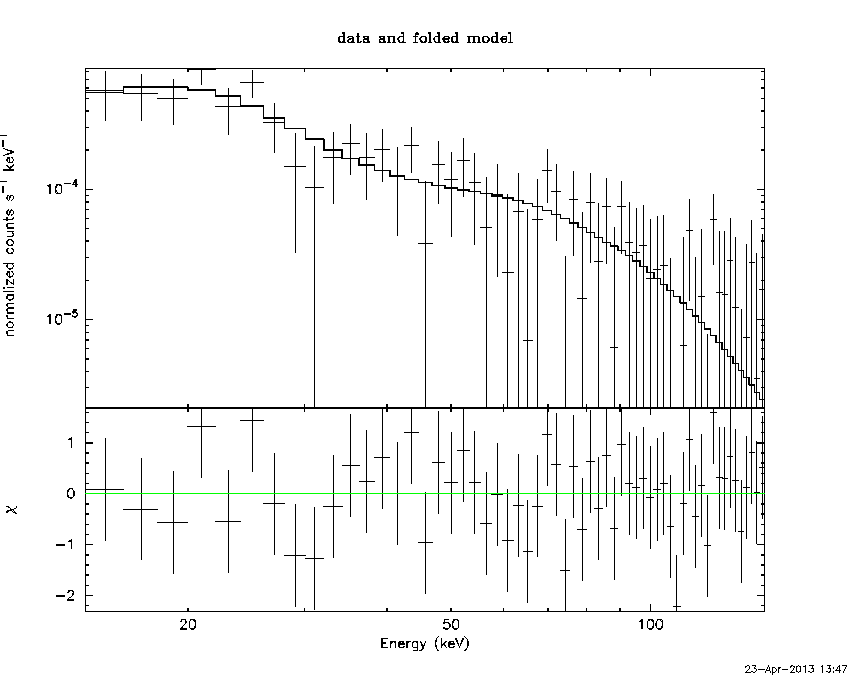

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.14409        (-1.48293      1.95796)
R1^2/D10^2  : 0.549437        (-0.391287      1.83525)
kT2 [keV]   : 24.4231        (-9.31253      35.3841)
R2^2/D10^2  : 1.39821E-03    (-0.00128421   0.00409991)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          34.73 using 59 PHA bins.
# Reduced chi-squared =         0.6314 for     55 degrees of freedom
# Null hypothesis probability =   9.851360e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.143e-07   6.209e-08
25- 50  1.301e-07   6.232e-08
50-150  2.574e-07   1.477e-07
15-150  5.018e-07   2.534e-07

Peak spectrum fit

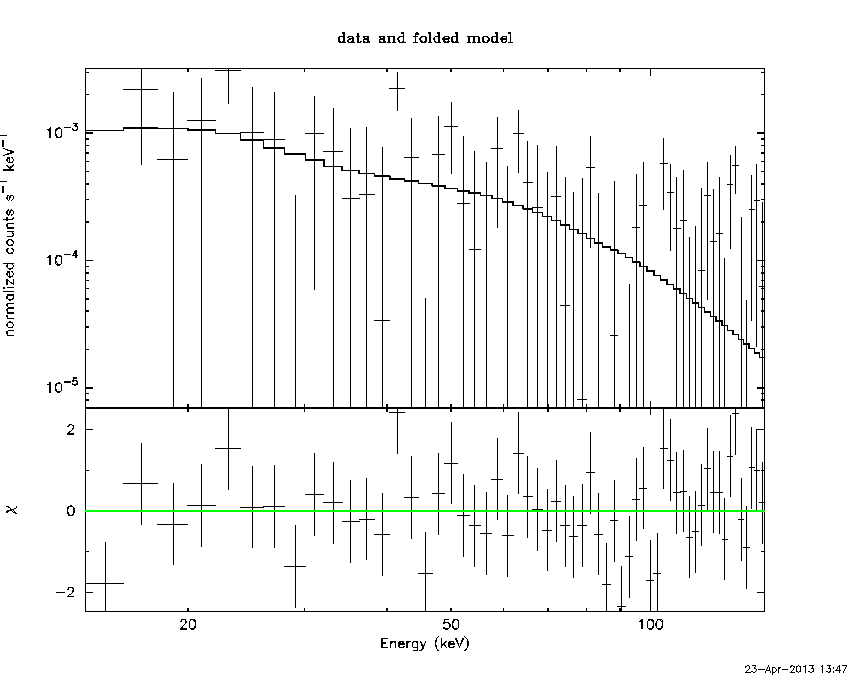

Power-law model

Time interval is from   36.944 sec. to   37.944 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.50848     ( -0.935765   0.867965 )
Norm@50keV  : 2.26709E-03    ( -0.00112803   0.00109656 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.69 using 59 PHA bins.
# Reduced chi-squared =          1.012 for     57 degrees of freedom
# Null hypothesis probability =   4.494364e-01

Photon flux (15-150 keV)    in 1 sec: 0.283672 ( -0.136539  0.137669 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.14772e-08 ( -1.09797e-08  1.16465e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   36.944 sec. to   37.944 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.605233     ( 0.674318   4.67493 )
Epeak [keV] : 50.2516      ( -49.7266 -49.7266 )
Norm@50keV  : 3.80478E-02    ( -0.0477786   4831.14 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.31 using 59 PHA bins.
# Reduced chi-squared =          1.023 for     56 degrees of freedom
# Null hypothesis probability =   4.264781e-01

Photon flux (15-150 keV)    in 1 sec: 0.256752 ( -0.13813  0.153585 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.62874e-08 ( -8.46259e-09  1.58487e-08 ) ergs/cm2

Band function

Time interval is from   36.944 sec. to   37.944 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 5.00000   ( -5   -5 )
beta        : -1.80197    ( 1.80396   1.04699 )
Epeak [keV] : 26.8856      ( -26.915 58.6598 )
Norm@50keV   : 177.104    ( -79.6176   2.72831e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.85 using 59 PHA bins.
# Reduced chi-squared =          1.034 for     55 degrees of freedom
# Null hypothesis probability =   4.058566e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

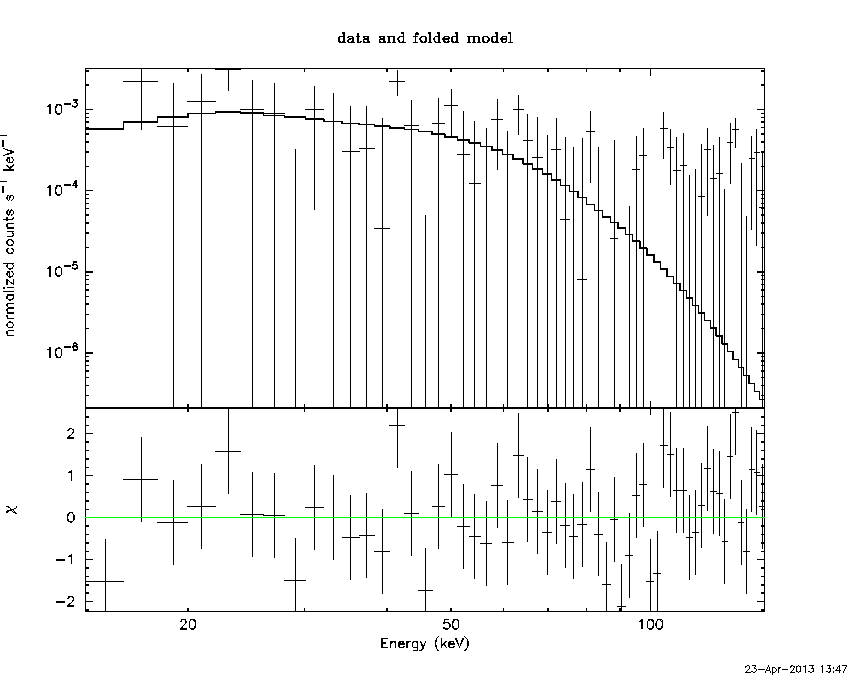

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 12.3299  (-4.64534  8.65114)
R^2/D10^2   : 6.71263E-02  (-0.0671263   0.304198)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.31 using 59 PHA bins.
# Reduced chi-squared =          1.005 for     57 degrees of freedom
# Null hypothesis probability =   4.637519e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.162e-09   1.407e-09
25- 50  7.022e-09   4.754e-09
50-150  6.534e-09   4.770e-09
15-150  1.572e-08   1.083e-08

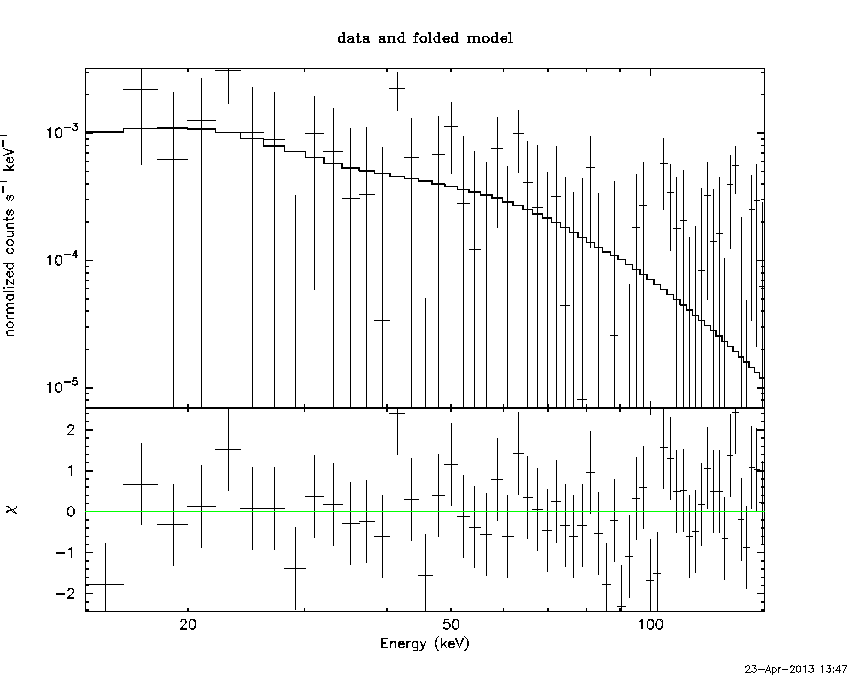

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 187.378       (-188.336      -188.336)
Norm        : 1.16738       (-0.552388     1.06743)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.62 using 59 PHA bins.
# Reduced chi-squared =          1.011 for     57 degrees of freedom
# Null hypothesis probability =   4.520078e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.930e-09   1.932e-09
25- 50  5.594e-09   3.725e-09
50-150  1.201e-08   7.955e-09
15-150  2.054e-08   1.320e-08

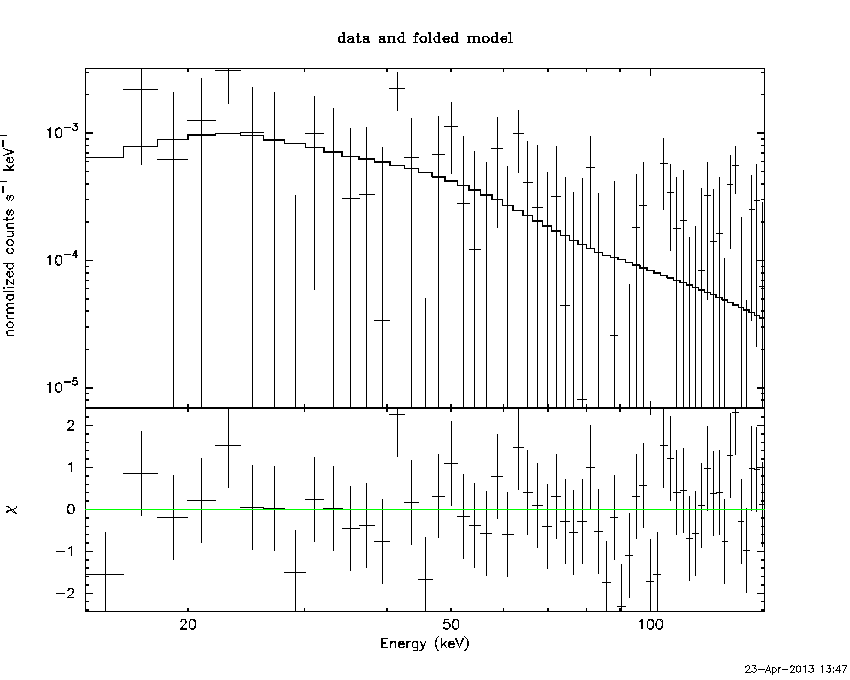

Double BB

------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.26 using 59 PHA bins.
#Fit statistic : Chi-Squared =          56.07 using 59 PHA bins.
#Fit statistic : Chi-Squared =          56.02 using 59 PHA bins.
#Fit statistic : Chi-Squared =          56.00 using 59 PHA bins.
# Reduced chi-squared =          1.041 for     55 degrees of freedom
# Reduced chi-squared =          1.019 for     55 degrees of freedom
# Reduced chi-squared =          1.018 for     55 degrees of freedom
# Reduced chi-squared =          1.018 for     55 degrees of freedom
# Null hypothesis probability =   3.912199e-01
# Null hypothesis probability =   4.346818e-01
# Null hypothesis probability =   4.364632e-01
# Null hypothesis probability =   4.370622e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.457e-09   3.485e-09
25- 50  6.756e-09   7.995e-09
50-150  7.081e-09   6.840e-09
15-150  1.629e-08   1.300e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.99259     ( -0.304993   0.327885 )
Norm@50keV  : 7.52038E-04    ( -0.000153162   0.000146534 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          35.41 using 59 PHA bins.
# Reduced chi-squared =         0.6212 for     57 degrees of freedom
# Null hypothesis probability =   9.890023e-01

Photon flux (15-150 keV)    in 69.64 sec: 0.112423 ( -0.0170652  0.017077 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.82778e-07 ( -8.95591e-08  9.28984e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.42158     (     )
Epeak [keV] : 153.791      (   )
Norm@50keV  : 4.60468E-04    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          35.01 using 59 PHA bins.
# Reduced chi-squared =         0.6251 for     56 degrees of freedom
# Null hypothesis probability =   9.874663e-01

Photon flux (15-150 keV)    in 69.64 sec: 0.112486 ( -0.0171516  0.017005 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.79689e-07 ( -8.88001e-08  9.29478e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.665124   ( 1.41962   1.41962 )
beta        : -2.03457    ( 2.01178   0.321372 )
Epeak [keV] : 20.8670      ( -22.8606 -22.8606 )
Norm@50keV   : 0.113929    ( -0.11374   261.642 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          35.30 using 59 PHA bins.
# Reduced chi-squared =         0.6419 for     55 degrees of freedom
# Null hypothesis probability =   9.821003e-01

Photon flux (15-150 keV)    in 69.64 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.45014e-07
S(50-100 keV) = 1.45761e-07

T90 vs. Hardness ratio plot

T90                                   = 55.2359999418259 sec.
Hardness ratio (energy fluence ratio) = 1.00515

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.768735
Count Ratio (50-100 keV) / (15-25 keV) = 0.452953

Mask shadow pattern

IMX = -2.398844059729363E-04, IMY = 1.658506732097355E-03

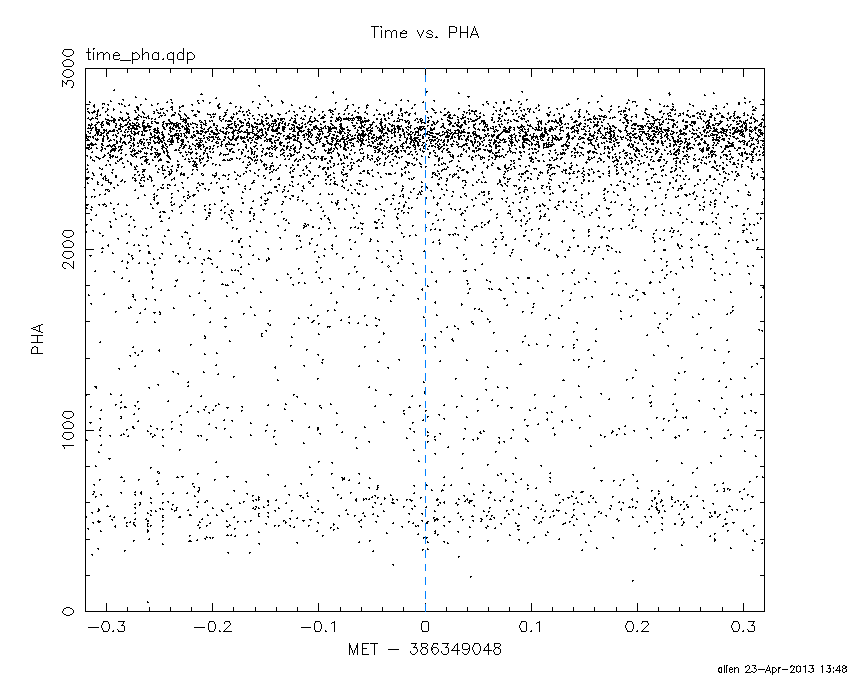

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.000000 -15.896000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9826 -15.6435    0.4  30.5   94.1  12.2555  26.9    0.3	Sco X-1
256.1989 -37.7820    8.2  21.3   40.4   0.3210   1.4   10.7	4U 1700-377
256.5839 -36.5339    5.1  20.4   43.0   0.5122   2.2    9.8	GX 349+2
262.9050 -24.5725    8.5  12.0   81.2   0.3017   1.4   11.8	GX 1+4
264.5659 -44.4308   16.8  21.7   15.3  -0.1647  -0.7    7.7	4U 1735-44
268.4143  -1.3679    5.4  24.7  153.8   0.5223   2.2    5.8	SW J1753.5-0127
270.2145 -24.9164   11.8   5.4   80.8   0.2267   1.0   10.5	GX 5-1
270.1547 -25.6757   69.3   5.4   72.8  -0.0389  -0.2    9.0	GRS 1758-258
274.0162 -14.0839    3.1  11.0  161.7   0.9217   3.7    2.9	GX 17+2
275.7559 -30.4415    5.3   5.6   -4.3   0.5166   2.2    9.8	H1820-303
285.0834 -25.0721   21.6   8.1  -94.2  -0.1304  -0.5    9.5	HT1900.1-2455
288.7978  10.9179    1.4  37.9 -166.9   2.4991   8.4    1.7	GRS 1915+105
263.0045 -33.8428    3.6  14.5   41.3   0.7614   3.3    0.9	GX 354-0
255.9214  -8.0098    2.6  25.6  120.2   1.3743   4.5 ------	UNKNOWN
265.8655  15.5862    3.3  41.7  157.6   1.5635   3.5 ------	UNKNOWN
307.7993 -32.7648    2.1  28.7  -74.2   1.6165   5.5 ------	UNKNOWN
308.9121  -2.9431    3.2  38.4 -127.0   1.3575   3.6 ------	UNKNOWN
312.1856  17.8840    5.0  55.3 -144.6   3.4781   2.3 ------	UNKNOWN
311.5532  21.2251    3.9  57.5 -147.7   5.4237   3.0 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-15.896000 53.744000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9772 -15.6634    1.2  30.5   94.0   1.8289   9.5    1.4	Sco X-1
255.7758 -37.9380 1359.6  21.6   40.5  -0.0009  -0.0   11.5	4U 1700-377
256.5891 -36.5192    5.6  20.4   43.0  -0.2453  -2.0    9.4	GX 349+2
262.8843 -24.5681    0.0  12.0   81.2  -0.1792  -1.6   12.6	GX 1+4
264.5081 -44.5523   78.2  21.8   15.2  -0.0174  -0.1   11.8	4U 1735-44
268.2959  -1.4324    5.6  24.6  153.5  -0.2499  -2.1    4.5	SW J1753.5-0127
270.0984 -25.1701    7.1   5.5   78.1   0.1718   1.6   11.5	GX 5-1
270.1829 -25.8756    5.2   5.5   70.7   0.2339   2.2   10.2	GRS 1758-258
273.8560 -14.0107    8.5  11.1  161.0   0.1399   1.3    8.9	GX 17+2
276.0737 -30.5352    0.0   5.7   -7.1   0.0896   0.8   12.7	H1820-303
284.9112 -25.0618    4.8   8.0  -94.3   0.2609   2.4   10.9	HT1900.1-2455
288.9162  10.8406    6.4  37.8 -166.7  -0.2470  -1.8    9.4	GRS 1915+105
263.1572 -33.8849    6.2  14.4   40.9   0.1980   1.9    8.9	GX 354-0
276.2224 -24.8743    1.6   0.1  -98.3   0.7643   7.1 ------	UNKNOWN
289.5791 -18.3283    2.5  14.1 -122.5   0.4754   4.6 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
-239.000000 363.084000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9871 -15.6418    0.6  30.5   94.1  19.6671  17.8    0.5	Sco X-1
256.1853 -37.8195   12.8  21.3   40.3   0.4819   0.9    9.5	4U 1700-377
256.5087 -36.5984    5.0  20.5   42.9   1.2575   2.3   11.1	GX 349+2
263.1146 -24.6293   11.7  11.8   81.0   0.4683   1.0    9.0	GX 1+4
264.5385 -44.4592  191.6  21.7   15.3  -0.0332  -0.1    8.8	4U 1735-44
268.2284  -1.5835   22.9  24.5  153.2   0.2887   0.5   11.5	SW J1753.5-0127
270.2508 -24.9222    3.9   5.3   80.8   1.6208   3.0    9.6	GX 5-1
270.1583 -25.6163   15.3   5.4   73.4   0.4267   0.8   10.9	GRS 1758-258
273.9828 -14.1230    4.5  10.9  161.5   1.5739   2.6    5.4	GX 17+2
275.7972 -30.4089    6.5   5.5   -4.6   1.0244   1.8    7.1	H1820-303
285.0369 -24.9207   17.2   8.1  -95.3  -0.3755  -0.7    0.0	HT1900.1-2455
288.7797  10.9377    2.8  37.9 -167.0   2.6695   4.1    1.2	GRS 1915+105
263.0765 -33.8105    4.0  14.4   41.3   1.5720   2.9    4.6	GX 354-0
247.2778 -11.1058    0.5  30.6  104.0  25.2723  23.3 ------	UNKNOWN
284.5334 -74.1101    3.2  49.4  -10.5   3.5174   3.6 ------	UNKNOWN
307.7874 -32.7954    2.5  28.7  -74.2   3.1194   4.5 ------	UNKNOWN
303.2222  27.7529    3.5  58.7 -159.4  12.2578   3.3 ------	UNKNOWN
337.0410 -74.9668    3.4  58.6  -22.9  10.2345   3.4 ------	UNKNOWN
312.1192  17.9599    6.7  55.4 -144.7   6.1399   1.8 ------	UNKNOWN

Plot creation:
Tue Apr 23 13:48:50 EDT 2013
