batgrbproduct analysis for trigger=552677

batgrbproduct Analysis for Trigger=552677

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Tue Apr 23 15:42:29 EDT 2013
             Host Name: gcn5
   Current Working Dir: /local/data/raid16/prebascript_archive/trigger552677/heasarc_download
======================================================================

  Trigger: 00552677      Segment: 000

  BAT Trigger Time: 386596600   [s; MET]
      Trigger Stop: 386597592   [s; MET]
               UTC: 2013-04-02T11:56:29.606260    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 250.423654349211   Dec: -45.5609368436553  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    6.39
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    6.39

  Flight Position:   [ source = BAT ]
    RA: 250.423654349211   Dec: -45.5609368436553  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 250.444942027003   Dec: -45.6052900911363  [deg; J2000]
        { 16h 41m 46.8s , -45d 36' 19.0" }
         +/- 3.29668294872698 [arcmin] (estimated 90% radius based on SNR)
         +/- 2.08852124729429 [arcmin] (formal 1-sigma fit error)
    SNR: 5.53360455587913

  Angular difference between Flight and Ground position is 2.807321 arcmin

  Partial Coding Fraction: 0.7109375    [ including projection effects ]

  Duration
     T90: 0.0479999184608459 +/- 0.0199999928474746
        Measured from: 165.148000001907
                   to: 165.195999920368     [s; relative to TRIGTIME]
     T50: 0.0239999890327454 +/- 0.0178885001041659
        Measured from: 165.163999974728
                   to: 165.18799996376     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 164.677999973297
                   to: 165.677999973297     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: 165.148000001907
                   to: 165.203999996185     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.005000   0.006472   0.000617   0.004397
           0.001756   0.001767   0.001504   0.001447 [error]
 Peak      0.001762   0.003220  -0.001200   0.008435
           0.007351   0.007048   0.006154   0.005953 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 0.00e+00 1.13e-09 5.54e-10 1.69e-10 6.51e-11 1.89e-09   erg/cm2
              Error 4.19e-10 1.99e-10 1.30e-10 1.25e-09 4.90e-09 0.00e+00   erg/cm2
Peak flux Power-law 1.29e-04 9.83e-04 6.62e-03 2.37e-01 2.37e-02 5.59e-02   ph/cm2/s
              Error 6.15e-02 3.64e-02 2.82e-02 4.25e-01 1.09e-01 0.00e+00   ph/cm2/s

Fluence   Cutoff-PL 1.36e-09 2.16e-09 8.27e-11 1.79e-15 3.57e-09 3.59e-09   erg/cm2
              Error 8.43e-10 1.67e-09 2.35e-10 1.27e-12 1.56e-09 1.56e-09   erg/cm2
Peak flux Cutoff-PL 3.78e-02 3.29e-02 2.39e-04 5.70e-11 7.10e-02 7.10e-02   ph/cm2/s
              Error 7.55e-02 6.21e-02 2.70e-02 0.00e+00 1.07e-01 1.08e-01   ph/cm2/s

Fluence        Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.741    0.000    -      -           1.83e-03 1.90e-03   57.640 57
CPL   1.000    0.000      50.0    0.0      1.37e-03 0.00e+00   63.730 56

The chi2 of BB fit is 48.45 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.916    0.000    -      -           3.60e-04 8.57e-04   50.520 57
CPL -10.000    0.000     373.1    0.0      1.81e-06 0.00e+00   49.910 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.056  165.148  165.204
T90     0.048  165.148  165.196
T50     0.024  165.164  165.188
Peak    1.000  164.678  165.678

Click here for the BAT GCN circular template


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  250.4449 -45.6053 0.0350   28.8  163.2       0.0178     5.5  TRIG_00552677
------------------------------------------

Foreground time interval of the image:
165.148 165.204 (delta_t =   0.056 [sec])
Background time interval of the image:
-14.599 165.148 (delta_t = 179.747 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

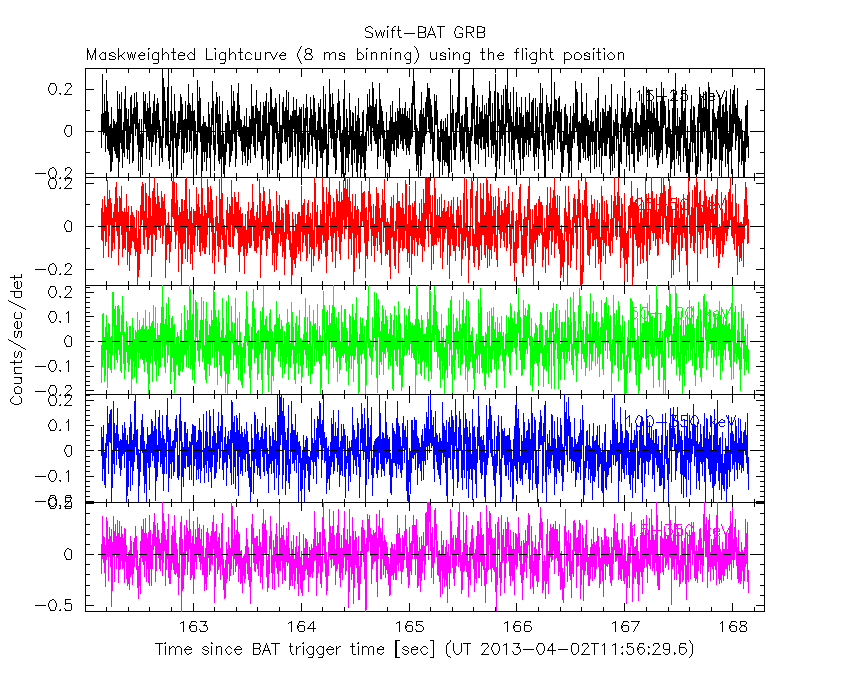

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from  165.148 sec. to  165.204 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.74065     (     )
Norm@50keV  : 1.83343E-03    ( -0.00186796   0.0019402 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.64 using 59 PHA bins.
# Reduced chi-squared =          1.011 for     57 degrees of freedom
# Null hypothesis probability =   4.513144e-01

Photon flux (15-150 keV)    in 0.056 sec: 0.902234 ( -0.593717  0.593712 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.88669e-09 ( -1.25948e-09  1.24257e-09 ) ergs/cm2

Cutoff power-law model

Time interval is from  165.148 sec. to  165.204 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.36932E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.73 using 59 PHA bins.
# Reduced chi-squared =          1.138 for     56 degrees of freedom
# Null hypothesis probability =   2.232631e-01

Photon flux (15-150 keV)    in 0.056 sec: 1.50932 ( -0.623441  0.64391 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.57493e-09 ( -1.51704e-09  1.60481e-09 ) ergs/cm2

Band function

Time interval is from  165.148 sec. to  165.204 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 5.00000   ( -4.16931   -4.98289 )
beta        : -10.0000    ( 10   10 )
Epeak [keV] : 27.9997      ( -6.06928 6.12326 )
Norm@50keV   : 1196.69    ( -474.732   5232.76 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.91 using 59 PHA bins.
# Reduced chi-squared =         0.8529 for     55 degrees of freedom
# Null hypothesis probability =   7.729481e-01

Photon flux (15-150 keV)    in 0.056 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 6.35234  (-1.59507  1.37534)
R^2/D10^2   : 4.84384  (-4.7708   10.6426)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.45 using 59 PHA bins.
# Reduced chi-squared =         0.8501 for     57 degrees of freedom
# Null hypothesis probability =   7.825974e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.572e-09   9.926e-10
25- 50  1.770e-09   1.152e-09
50-150  2.037e-10   2.119e-10
15-150  3.545e-09   2.372e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 15.3488       (-6.14804      7.47555)
Norm        : 22.6915       (-13.7936     27.5978)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.07 using 59 PHA bins.
# Reduced chi-squared =         0.9310 for     57 degrees of freedom
# Null hypothesis probability =   6.233280e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.516e-09   1.009e-09
25- 50  1.057e-09   7.868e-10
50-150  1.950e-10   2.139e-10
15-150  2.768e-09   1.992e-09

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.43371        (-6.42986      -6.42986)
R1^2/D10^2  : 4.11989        (-4.14524      -4.14524)
kT2 [keV]   : 6.38870        (-6.43139      -6.43139)
R2^2/D10^2  : 0.508071    (-0.537404   -0.537404)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.45 using 59 PHA bins.
# Reduced chi-squared =         0.8809 for     55 degrees of freedom
# Null hypothesis probability =   7.213436e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.561e-09   2.778e-02
25- 50  1.803e-09   2.113e-01
50-150  2.173e-10   5.362e+00
15-150  3.582e-09   5.687e+00

Peak spectrum fit

Power-law model

Time interval is from  164.678 sec. to  165.678 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.91628     ( -1.98598   -1.98598 )
Norm@50keV  : 3.60439E-04    ( -0.000356908   0.00135651 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.52 using 59 PHA bins.
# Reduced chi-squared =         0.8863 for     57 degrees of freedom
# Null hypothesis probability =   7.151300e-01

Photon flux (15-150 keV)    in 1 sec: 2.36951E-02 ( -0.0236951  0.194049 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.18366e-09 ( -4.18366e-09  1.50957e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from  164.678 sec. to  165.678 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -9.99981     (     )
Epeak [keV] : 373.066      (   )
Norm@50keV  : 1.80726E-06    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          49.91 using 59 PHA bins.
# Reduced chi-squared =         0.8912 for     56 degrees of freedom
# Null hypothesis probability =   7.034116e-01

Photon flux (15-150 keV)    in 1 sec: 7.09671E-02 ( -0.0709671  0.142838 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.84654e-18 ( 0  0 ) ergs/cm2

Band function

Time interval is from  164.678 sec. to  165.678 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 5.00000   ( -4.97605   -4.97605 )
beta        : -0.461116    ( 9.34066   9.34066 )
Epeak [keV] : 386.833      ( -393.762 -393.762 )
Norm@50keV   : 4.99950E-05    ( -4.86099e-05   0.218962 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.12 using 59 PHA bins.
# Reduced chi-squared =         0.9113 for     55 degrees of freedom
# Null hypothesis probability =   6.610651e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 7.96888  (-7.80555  -7.80555)
R^2/D10^2   : 8.56536E-02  (-0.0874594   -0.0874594)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.25 using 59 PHA bins.
# Reduced chi-squared =         0.8817 for     57 degrees of freedom
# Null hypothesis probability =   7.242318e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.807e-10   7.850e-10
25- 50  1.705e-09   1.653e-09
50-150  4.420e-10   8.620e-10
15-150  3.128e-09   4.393e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 32.0300       (-33.407      -33.407)
Norm        : 0.428011       (-0.425213     -0.425213)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.47 using 59 PHA bins.
# Reduced chi-squared =         0.8854 for     57 degrees of freedom
# Null hypothesis probability =   7.169282e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.994e-10   9.985e-10
25- 50  1.064e-09   1.067e-09
50-150  6.342e-10   2.590e-09
15-150  2.598e-09   3.547e-09

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.12600        (-7.38962      -7.38962)
R1^2/D10^2  : 2.16193E-02        (-0.0201143      -0.0201143)
kT2 [keV]   : 8.07363        (-7.99569      -7.99569)
R2^2/D10^2  : 6.87696E-02    (-0.068098   -0.068098)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.26 using 59 PHA bins.
# Reduced chi-squared =         0.9137 for     55 degrees of freedom
# Null hypothesis probability =   6.561444e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.956e-10   7.040e-05
25- 50  1.706e-09   5.725e-04
50-150  4.376e-10   1.489e-02
15-150  3.139e-09   1.505e-02

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.74065     (     )
Norm@50keV  : 1.83343E-03    ( -0.00186796   0.0019402 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.64 using 59 PHA bins.
# Reduced chi-squared =          1.011 for     57 degrees of freedom
# Null hypothesis probability =   4.513144e-01

Photon flux (15-150 keV)    in 0.056 sec: 0.902234 ( -0.593717  0.593712 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.88669e-09 ( -1.25948e-09  1.24257e-09 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.36932E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.73 using 59 PHA bins.
# Reduced chi-squared =          1.138 for     56 degrees of freedom
# Null hypothesis probability =   2.232631e-01

Photon flux (15-150 keV)    in 0.056 sec: 1.50932 ( -0.623441  0.64391 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.57493e-09 ( -1.51704e-09  1.60481e-09 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 5.00000   ( -4.16931   -4.98289 )
beta        : -10.0000    ( 10   10 )
Epeak [keV] : 27.9997      ( -6.06928 6.12326 )
Norm@50keV   : 1196.69    ( -474.732   5232.76 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.91 using 59 PHA bins.
# Reduced chi-squared =         0.8529 for     55 degrees of freedom
# Null hypothesis probability =   7.729481e-01

Photon flux (15-150 keV)    in 0.056 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 5.53926e-10
S(50-100 keV) = 1.68857e-10

T90 vs. Hardness ratio plot

T90                                   = 0.0479999184608459 sec.
Hardness ratio (energy fluence ratio) = 0.304837

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.2944
Count Ratio (50-100 keV) / (15-25 keV) = 0.1234

Mask shadow pattern

IMX = -5.269505169541323E-01, IMY = -1.593702417784803E-01

TIME vs. PHA plot around the trigger time

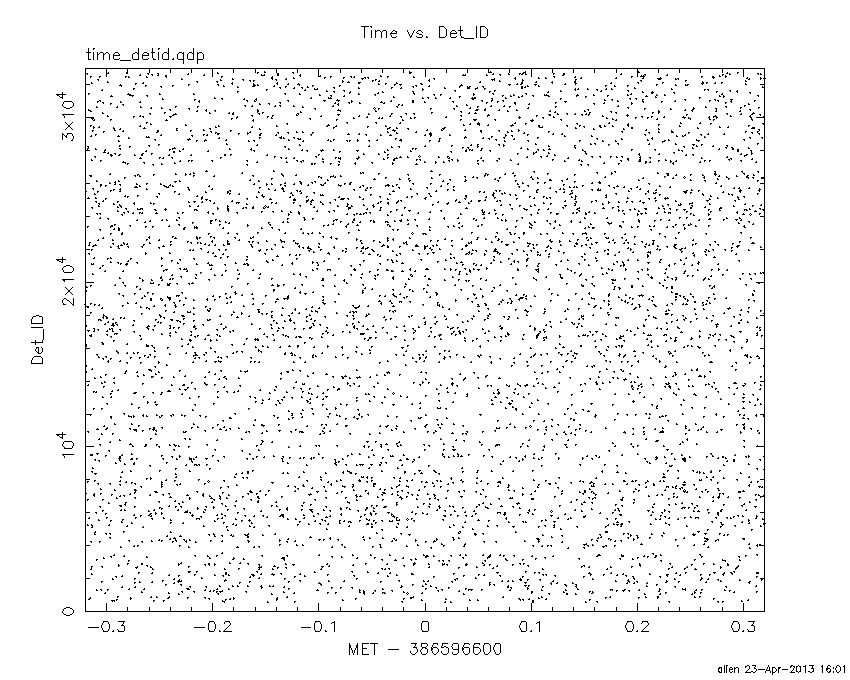

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-14.599400 165.148000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5648 -40.5475    3.5  49.8   11.6   1.5689   3.3    1.7	Vela X-1
170.4186 -60.6097    2.1  21.2   22.3   1.0411   5.6    3.1	Cen X-3
186.9766 -62.7967    6.0  13.9   34.7   0.3421   1.9    8.9	GX 301-2
255.9712 -37.8143    1.3  37.6  164.8   2.5420   9.1    1.9	4U 1700-377
256.5924 -36.4578   15.2  39.0  164.8   0.2213   0.8    7.9	GX 349+2
262.9887 -24.7173    6.4  51.9  166.6   1.2772   1.8    2.0	GX 1+4
264.5717 -44.4498   12.9  34.2  179.5   0.1963   0.9    7.3	4U 1735-44
270.3335 -25.1820    7.2  53.7  174.7   1.1079   1.6    6.7	GX 5-1
270.3102 -25.7433    8.4  53.2  174.9   0.9186   1.4    0.4	GRS 1758-258
276.0175 -30.3219    4.2  50.8 -177.0   1.2134   2.7    5.5	H1820-303
262.9317 -33.9342    4.2  43.3  170.8   0.8947   2.8    6.6	GX 354-0
123.6004 -37.3325    3.6  56.8    3.0   2.9162   3.2 ------	UNKNOWN
289.0358 -26.1628    3.5  59.1 -166.1   3.3983   3.3 ------	UNKNOWN
 90.9278 -48.0147    2.4  56.3  -28.4   4.5657   4.9 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
165.148000 165.204000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5914 -40.4618    8.6  49.9   11.7  -0.0108  -1.3    6.3	Vela X-1
170.4739 -60.6990   26.8  21.1   22.2   0.0012   0.4    6.5	Cen X-3
187.0215 -62.6401    0.0  14.0   35.3   0.0068   2.5   12.7	GX 301-2
255.9624 -37.8543    9.3  37.6  164.8  -0.0054  -1.2    1.3	4U 1700-377
256.3727 -36.3709    8.4  39.1  164.5  -0.0064  -1.4    4.4	GX 349+2
263.0854 -24.8131    7.5  51.9  166.7  -0.0166  -1.5    5.8	GX 1+4
264.5657 -44.4910    4.7  34.1  179.6  -0.0081  -2.4    8.0	4U 1735-44
270.3127 -25.1127   11.6  53.8  174.6   0.0109   1.0    2.5	GX 5-1
270.1332 -25.8303    7.0  53.0  174.7   0.0183   1.8   10.5	GRS 1758-258
276.0170 -30.4061   21.9  50.7 -177.0   0.0038   0.5    5.3	H1820-303
262.9543 -33.6804    5.0  43.5  170.7  -0.0115  -2.3    9.4	GX 354-0
250.4449 -45.6053    2.1  28.8  163.2   0.0178   5.5 ------	UNKNOWN
113.7712 -43.9888    2.7  53.9   -8.7   0.0375   4.3 ------	UNKNOWN
305.2833 -43.9456    3.3  48.7 -141.8   0.0252   3.5 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:

Plot creation:
Tue Apr 23 16:01:41 EDT 2013
