batgrbproduct analysis for trigger=554635

batgrbproduct Analysis for Trigger=554635

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sun Jan 12 03:59:38 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger554635
======================================================================

  Trigger: 00554635      Segment: 000

  BAT Trigger Time: 388761652.288   [s; MET]
      Trigger Stop: 388761653.312   [s; MET]
               UTC: 2013-04-27T13:20:41.798740    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 314.890834623513   Dec: -22.5305015261419  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.7
     Image Trigger?:     NO
     Rate S/N Ratio:     12.1655250605964  [ if not an image trigger ]
     Image S/N Ratio:    8.7

  Flight Position:   [ source = BAT ]
    RA: 314.890834623513   Dec: -22.5305015261419  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 314.897486886499   Dec: -22.5368500737513  [deg; J2000]
        { 20h 59m 35.4s , -22d 32' 12.7" }
         +/- 1.33997238808646 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.50840427909294 [arcmin] (formal 1-sigma fit error)
    SNR: 20.0240942645296

  Angular difference between Flight and Ground position is 0.530101 arcmin

  Partial Coding Fraction: 0.2226562    [ including projection effects ]

  Duration
     T90: 25.904000043869 +/- 5.97184327558282
        Measured from: -0.0559999942779541
                   to: 25.8480000495911     [s; relative to TRIGTIME]
     T50: 4.80000007152557 +/- 1.93923694237467
        Measured from: 1.52799999713898
                   to: 6.32800006866455     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 0.972000002861023
                   to: 1.97200000286102     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.61599999666214
                   to: 29.4959999918938     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.602832   0.947531   0.604642   0.138968
           0.071928   0.072363   0.061342   0.051789 [error]
 Peak      0.086912   0.138102   0.117371   0.044114
           0.015599   0.017821   0.015883   0.010921 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.25e-07 3.82e-07 4.94e-07 1.29e-06 1.45e-06 2.39e-06   erg/cm2
              Error 3.32e-08 3.54e-08 5.99e-08 3.27e-07 1.44e-07 3.77e-07   erg/cm2
Peak flux Power-law 9.60e-01 1.03e+00 7.86e-01 9.79e-01 3.15e+00 3.76e+00   ph/cm2/s
              Error 2.21e-01 1.50e-01 1.20e-01 3.00e-01 4.25e-01 4.95e-01   ph/cm2/s

Fluence   Cutoff-PL 2.10e-07 4.05e-07 5.04e-07 6.07e-07 1.40e-06 1.73e-06   erg/cm2
              Error 3.76e-08 4.55e-08 6.51e-08 6.22e-07 1.62e-07 5.97e-07   erg/cm2
Peak flux Cutoff-PL 9.17e-01 1.06e+00 8.11e-01 7.45e-01 3.13e+00 3.53e+00   ph/cm2/s
              Error 2.53e-01 1.75e-01 1.43e-01 4.92e-01 4.28e-01 6.44e-01   ph/cm2/s

Fluence        Band 1.95e-07 4.26e-07 4.77e-07 1.00e-06 1.41e-06 2.11e-06   erg/cm2
              Error 4.28e-08 5.23e-08 6.43e-08 -------- 1.50e-07 4.09e-07   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.628    0.154    -      -           5.18e-03 4.83e-04   41.810 57
CPL   1.129    0.630      82.9  -28.6      9.51e-03 8.55e-03   39.800 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.391    0.212    -      -           2.59e-02 3.38e-03   38.960 57
CPL   1.140    0.667     180.1    0.0      3.45e-02 3.70e-02   38.670 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 6.592000 sec.
T50 in the 50-300 keV band: 2.048000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   30.112   -0.616   29.496
T90    25.904   -0.056   25.848
T50     4.800    1.528    6.328
Peak    1.000    0.972    1.972

Click here for the BAT GCN circular template

Special notes of this burst


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  314.8975   -22.5369   0.0096    37.5336   -70.9081         2.0793661     20.024 TRIG_00554635

Foreground time interval of the image:
 -0.616  10.413 (delta_t =  11.029 [sec])
Background time interval of the image:
-439.887 -413.786 (delta_t =  26.101 [sec])
-239.288  -0.616 (delta_t = 238.672 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

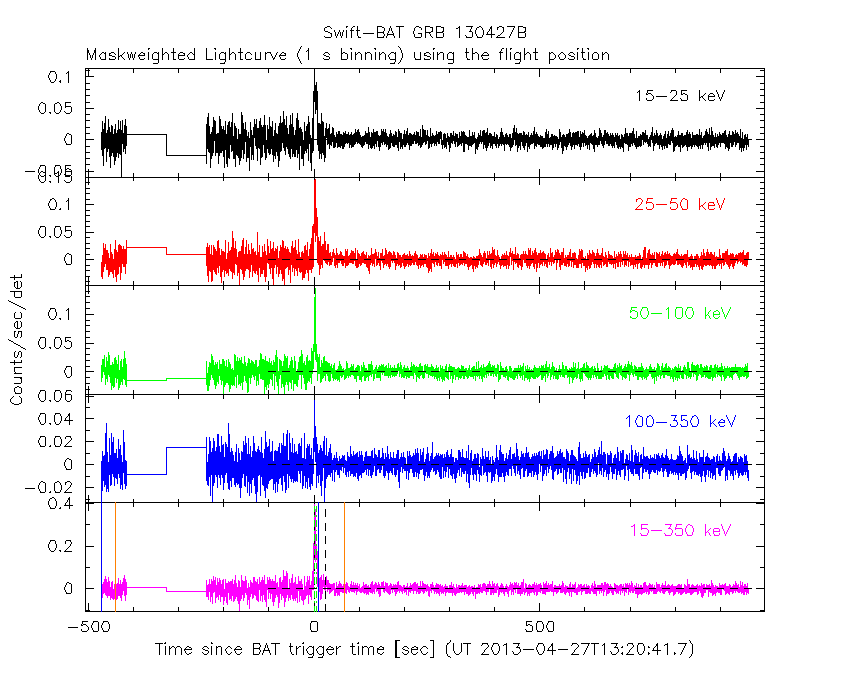

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

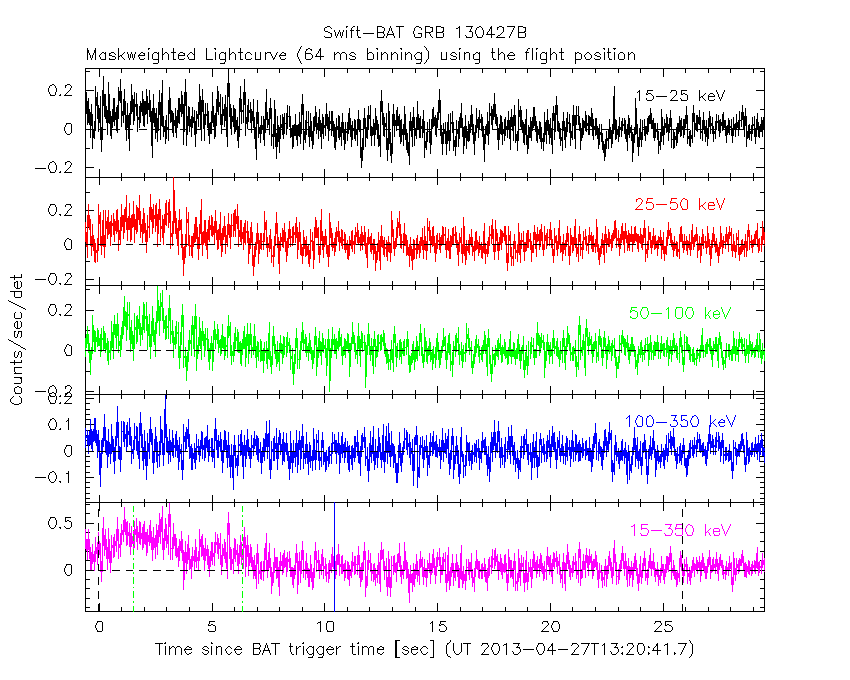

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

The mask-weighted light curves based on cleaned DPHs

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -0.616 sec. to   29.496 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.62760     ( -0.153132   0.154582 )
Norm@50keV  : 5.18189E-03    ( -0.00048496   0.00048198 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.81 using 59 PHA bins.
# Reduced chi-squared =         0.7336 for     57 degrees of freedom
# Null hypothesis probability =   9.343284e-01

Photon flux (15-150 keV)    in 30.11 sec: 0.671715 ( -0.0619356  0.0620448 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.45453e-06 ( -1.43905e-07  1.45028e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.616 sec. to   29.496 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.12935     ( -0.698635   0.560877 )
Epeak [keV] : 82.8528      ( -25.6423 -82.856 )
Norm@50keV  : 9.51159E-03    ( -0.00456438   0.0125422 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          39.80 using 59 PHA bins.
# Reduced chi-squared =         0.7107 for     56 degrees of freedom
# Null hypothesis probability =   9.500240e-01

Photon flux (15-150 keV)    in 30.11 sec: 0.658588 ( -0.063997  0.063989 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.39682e-06 ( -1.61817e-07  1.61399e-07 ) ergs/cm2

Band function

Time interval is from   -0.616 sec. to   29.496 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 3.13911   ( -5.3438   -4.21731 )
beta        : -1.84644    ( -0.274364   0.229052 )
Epeak [keV] : 30.3468      ( -6.77654 6.11909 )
Norm@50keV   : 11.1156    ( -11.1114   101.374 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          36.45 using 59 PHA bins.
# Reduced chi-squared =         0.6627 for     55 degrees of freedom
# Null hypothesis probability =   9.746177e-01

Photon flux (15-150 keV)    in 30.11 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.40631e-06 ( -1.4061e-06  -1.49041e-07 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 12.9583  (-1.41384  1.64136)
R^2/D10^2   : 0.125281  (-0.0444615   0.0666849)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          64.39 using 59 PHA bins.
# Reduced chi-squared =          1.130 for     57 degrees of freedom
# Null hypothesis probability =   2.338694e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.343e-07   2.400e-08
25- 50  4.611e-07   5.661e-08
50-150  4.886e-07   9.801e-08
15-150  1.084e-06   1.257e-07

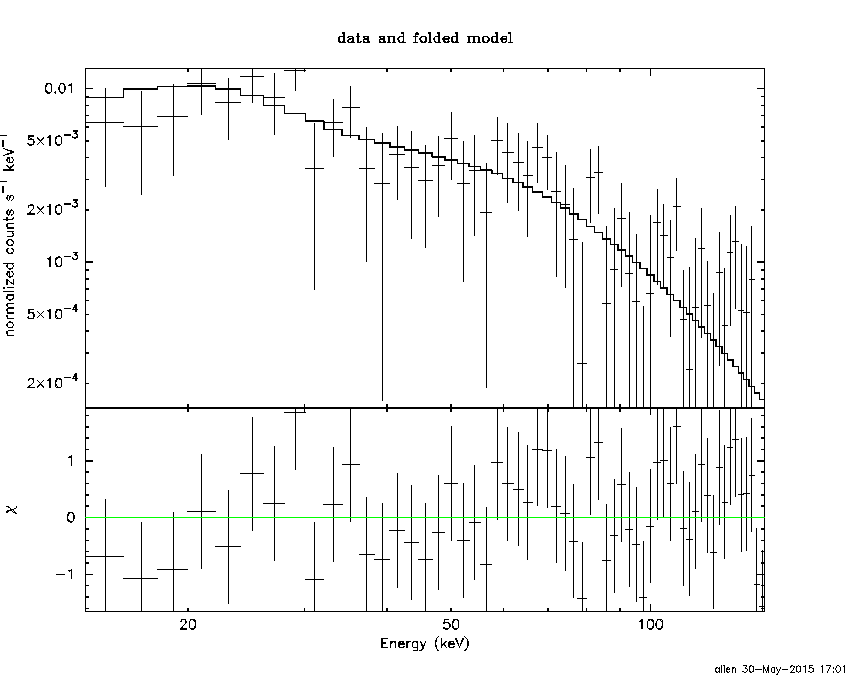

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 160.684       (-57.1559      -159.508)
Norm        : 2.76256       (-0.269827     0.350645)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          39.87 using 59 PHA bins.
# Reduced chi-squared =         0.6995 for     57 degrees of freedom
# Null hypothesis probability =   9.587464e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.123e-07   5.150e-08
25- 50  3.974e-07   1.230e-07
50-150  8.064e-07   4.193e-07
15-150  1.416e-06   4.819e-07

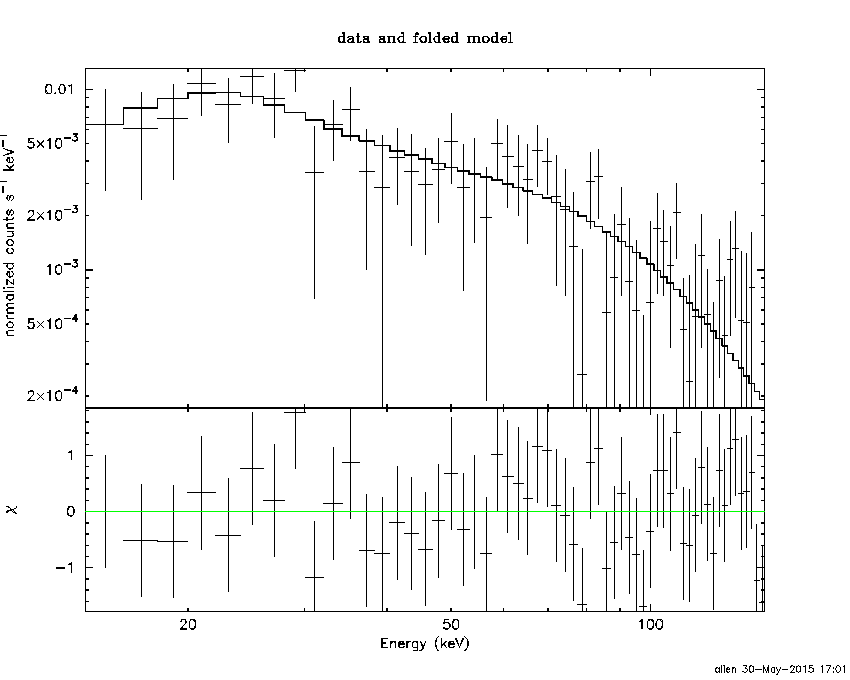

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.09167        (-1.70474      1.84891)
R1^2/D10^2  : 0.507073        (-0.243714      0.572708)
kT2 [keV]   : 30.8432        (-9.55111      30.3779)
R2^2/D10^2  : 3.90464E-03    (-0.0033737   0.0114349)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          36.13 using 59 PHA bins.
# Reduced chi-squared =         0.6569 for     55 degrees of freedom
# Null hypothesis probability =   9.769024e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.995e-07   6.310e-08
25- 50  4.327e-07   1.321e-07
50-150  8.015e-07   3.799e-07
15-150  1.434e-06   5.444e-07

Peak spectrum fit

Power-law model

Time interval is from    0.972 sec. to    1.972 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.39075     ( -0.212526   0.211304 )
Norm@50keV  : 2.59044E-02    ( -0.00337991   0.00337363 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          38.96 using 59 PHA bins.
# Reduced chi-squared =         0.6836 for     57 degrees of freedom
# Null hypothesis probability =   9.675150e-01

Photon flux (15-150 keV)    in 1 sec: 3.14812 ( -0.424427  0.425127 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.50784e-07 ( -3.51745e-08  3.53257e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    0.972 sec. to    1.972 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.13991     ( -0.895678   0.438903 )
Epeak [keV] : 180.146      ( -180.157 -180.157 )
Norm@50keV  : 3.45239E-02    ( -0.0157208   0.0582218 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          38.67 using 59 PHA bins.
# Reduced chi-squared =         0.6906 for     56 degrees of freedom
# Null hypothesis probability =   9.624966e-01

Photon flux (15-150 keV)    in 1 sec: 3.13195 ( -0.4276  0.42801 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.4847e-07 ( -3.6524e-08  3.6235e-08 ) ergs/cm2

Band function

Time interval is from    0.972 sec. to    1.972 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.73723   ( -4.73723   -4.73723 )
beta        : -1.55256    ( -0.286113   0.260524 )
Epeak [keV] : 29.1560      ( -14.1968 6.3917 )
Norm@50keV   : 674.993    ( -87.1207   9.82746e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          36.95 using 59 PHA bins.
# Reduced chi-squared =         0.6718 for     55 degrees of freedom
# Null hypothesis probability =   9.706650e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 16.8216  (-2.73239  3.31837)
R^2/D10^2   : 0.251996  (-0.116838   0.213856)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.40 using 59 PHA bins.
# Reduced chi-squared =         0.9544 for     57 degrees of freedom
# Null hypothesis probability =   5.731928e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.456e-08   3.712e-09
25- 50  6.390e-08   1.491e-08
50-150  1.287e-07   3.139e-08
15-150  2.071e-07   3.880e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 13.1495       (-1.71621     1.71604)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          40.43 using 59 PHA bins.
# Reduced chi-squared =         0.7093 for     57 degrees of freedom
# Null hypothesis probability =   9.525946e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.275e-08   1.850e-08
25- 50  6.301e-08   3.540e-08
50-150  1.382e-07   7.645e-08
15-150  2.340e-07   1.295e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.81287        (-2.51912      3.78009)
R1^2/D10^2  : 2.30176        (-1.60029      6.149)
kT2 [keV]   : 31.6372        (-10.1677      87.911)
R2^2/D10^2  : 2.25659E-02    (-0.021184   0.0687776)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          37.64 using 59 PHA bins.
# Reduced chi-squared =         0.6843 for     55 degrees of freedom
# Null hypothesis probability =   9.644973e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.837e-08   1.614e-08
25- 50  6.343e-08   3.181e-08
50-150  1.590e-07   8.468e-08
15-150  2.508e-07   1.230e-07

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.69190     ( -0.136127   0.138295 )
Norm@50keV  : 1.14838E-02    ( -0.000951967   0.000944703 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.66 using 59 PHA bins.
# Reduced chi-squared =         0.8185 for     57 degrees of freedom
# Null hypothesis probability =   8.341989e-01

Photon flux (15-150 keV)    in 11.03 sec: 1.52088 ( -0.122574  0.122759 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.17354e-06 ( -1.01609e-07  1.02238e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.42172     ( -0.58624   0.38154 )
Epeak [keV] : 103.646      (   )
Norm@50keV  : 1.58946E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.90 using 59 PHA bins.
# Reduced chi-squared =         0.8196 for     56 degrees of freedom
# Null hypothesis probability =   8.301356e-01

Photon flux (15-150 keV)    in 11.03 sec: 1.50420 ( -0.12685  0.12676 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.15149e-06 ( -1.11441e-07  1.11083e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.94478   ( -4.94478   -4.94478 )
beta        : -1.73758    ( -0.154578   0.146491 )
Epeak [keV] : 21.4283      ( -21.4283 4.7766 )
Norm@50keV   : 3435.77    ( -267.699   7.7791e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          45.36 using 59 PHA bins.
# Reduced chi-squared =         0.8248 for     55 degrees of freedom
# Null hypothesis probability =   8.197184e-01

Photon flux (15-150 keV)    in 11.03 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.15389e-06 ( -1.15382e-06  -1.11485e-07 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 3.82e-07
S(50-100 keV) = 4.94e-07

T90 vs. Hardness ratio plot

T90                                   = 25.904000043869 sec.
Hardness ratio (energy fluence ratio) = 1.29319

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.5718
Count Ratio (50-100 keV) / (15-25 keV) = 1.003

Mask shadow pattern

IMX = 2.512856471787510E-01, IMY = 7.260013859811530E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-439.887400 -413.786400
-239.288000 -0.616000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9814 -15.6571    0.7  29.4   89.4   8.2581  17.6    1.0	Sco X-1
255.8206 -37.6761    0.0  27.8   38.0  -0.3064  -0.9   12.8	4U 1700-377
256.4539 -36.4442    3.2  26.5   39.1   1.2314   3.6    1.5	GX 349+2
262.9716 -24.5972   12.7  14.6   55.1   0.2132   0.9    9.1	GX 1+4
264.8923 -44.6082   11.7  29.9   18.2  -0.3163  -1.0   11.4	4U 1735-44
268.3386  -1.4248    7.8  16.3  156.1   0.3985   1.5    2.4	SW J1753.5-0127
270.4189 -25.0851    2.2  10.2   30.3   1.3934   5.3    7.3	GX 5-1
270.2537 -25.7589    3.5  10.9   29.3   0.8793   3.4    2.8	GRS 1758-258
273.9644 -13.9634    5.2   2.6  145.9   0.5500   2.2    5.0	GX 17+2
275.9409 -30.3893    4.8  14.3    1.7   0.6174   2.4    1.6	H1820-303
285.1845 -24.7762    7.3  12.5  -41.5  -0.3919  -1.6   11.8	HT1900.1-2455
288.8103  10.9264    1.1  30.0 -150.5   3.2556  11.0    1.3	GRS 1915+105
299.5901  35.2159    7.2  56.1 -153.6  -2.1161  -1.6    0.9	Cyg X-1
262.8923 -33.9383    3.4  21.2   33.2   0.9138   3.4    7.9	GX 354-0
243.5326  21.1214    2.5  48.7  141.6   5.9878   4.5 ------	UNKNOWN
277.3865  26.3821    2.9  42.5 -174.8   1.8978   4.0 ------	UNKNOWN
291.6919 -60.3431    2.5  45.8   -8.2   1.9416   4.6 ------	UNKNOWN
318.8193 -18.0656    2.3  41.3  -77.9   5.2231   4.9 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.616000 10.412610

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0634 -15.7655   74.9  29.3   89.2   0.0103   0.2    8.9	Sco X-1
255.9774 -37.6971   13.2  27.7   37.8   0.0454   0.9    8.8	4U 1700-377
256.6010 -36.5895    0.0  26.5   38.7   0.0968   1.9   12.8	GX 349+2
263.1206 -24.8968   14.6  14.6   53.8  -0.0342  -0.8   10.9	GX 1+4
264.8414 -44.4646    7.4  29.8   18.4  -0.0792  -1.6    4.3	4U 1735-44
268.5128  -1.4339    7.3  16.2  156.7   0.0617   1.6    8.8	SW J1753.5-0127
270.4481 -25.0859    6.5  10.2   30.2  -0.0699  -1.8    8.9	GX 5-1
270.1343 -25.5950    0.0  10.8   30.2  -0.0681  -1.7   12.7	GRS 1758-258
274.1535 -13.8801    0.0   2.6  150.3  -0.0764  -2.0   12.7	GX 17+2
275.7593 -30.4159   13.2  14.3    2.3   0.0341   0.9    9.1	H1820-303
284.9599 -24.7792   11.1  12.3  -40.8   0.0420   1.0    9.4	HT1900.1-2455
288.9204  11.0750    8.7  30.2 -150.4  -0.0641  -1.3   10.6	GRS 1915+105
299.6352  35.3201    5.2  56.2 -153.6   0.5109   2.2    7.4	Cyg X-1
262.8194 -33.6798    8.8  21.0   33.7   0.0614   1.3   12.6	GX 354-0
277.6951 -50.9614    2.3  34.9    0.6   0.2570   4.9 ------	UNKNOWN
314.8975 -22.5368    0.6  37.5  -70.9   2.0794  20.0 ------	UNKNOWN
302.4474  35.8394    2.1  57.8 -151.5   1.5836   5.5 ------	UNKNOWN
307.0850  28.0158    2.1  53.6 -142.2   1.5399   5.5 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
66.612600 962.768400

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
274.0084 -14.0395   12.4  39.6  112.0   1.9031   0.9    0.2	GX 17+2
275.7522 -30.2396    0.0  35.7   86.0  -1.7326  -1.1   11.8	H1820-303
285.0337 -24.9226   46.3  27.4   95.9   0.2494   0.2    0.2	HT1900.1-2455
288.8004  10.9557    1.6  42.1  156.8  10.1757   7.0    0.6	GRS 1915+105
271.7875 -26.2159    3.7  39.2   92.5   7.2291   3.1 ------	UNKNOWN
277.5811  11.9970    2.0  50.3  146.5  19.2194   5.7 ------	UNKNOWN
 15.3743 -64.4305    3.2  57.2   -9.7  10.7278   3.6 ------	UNKNOWN
311.8527  36.5126    2.8  59.1 -166.0  14.8904   4.1 ------	UNKNOWN
319.0026  36.0714    3.8  58.7 -159.2  14.2777   3.1 ------	UNKNOWN
  7.1183 -29.5705    3.5  47.1  -53.0  11.3623   3.3 ------	UNKNOWN

Plot creation:
Sat May 30 17:01:59 EDT 2015
