batgrbproduct analysis for trigger=555880

batgrbproduct Analysis for Trigger=555880

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sun Jan 12 03:12:19 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger555880
======================================================================

  Trigger: 00555880      Segment: 000

  BAT Trigger Time: 390273688.396   [s; MET]
      Trigger Stop: 390273688.46   [s; MET]
               UTC: 2013-05-15T01:21:17.839880    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 283.421862578053   Dec: -54.2810228525545  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    7.13
     Image Trigger?:     NO
     Rate S/N Ratio:     60.390396587537  [ if not an image trigger ]
     Image S/N Ratio:    7.13

  Flight Position:   [ source = BAT ]
    RA: 283.421862578053   Dec: -54.2810228525545  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 283.436108777723   Dec: -54.2823007474519  [deg; J2000]
        { 18h 53m 44.7s , -54d 16' 56.3" }
         +/- 1.58171427143075 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.676250945416898 [arcmin] (formal 1-sigma fit error)
    SNR: 15.7997334837692

  Angular difference between Flight and Ground position is 0.504873 arcmin

  Partial Coding Fraction: 0.6953125    [ including projection effects ]

  Duration
     T90: 0.295999944210052 +/- 0.0609261752673085
        Measured from: -0.0160000324249268
                   to: 0.279999911785126     [s; relative to TRIGTIME]
     T50: 0.151999950408936 +/- 0.0526117745496101
        Measured from: 0.0199999809265137
                   to: 0.171999931335449     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.350000023841858
                   to: 0.649999976158142     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.0360000133514404
                   to: 0.331999957561493     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.029868   0.053789   0.083314   0.024511
           0.005169   0.006484   0.006710   0.005640 [error]
 Peak      0.027870   0.056204   0.080536   0.022308
           0.007449   0.008580   0.008336   0.007198 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 8.22e-09 2.37e-08 5.57e-08 3.56e-07 1.50e-07 4.44e-07   erg/cm2
              Error 1.82e-09 3.11e-09 6.18e-09 9.38e-08 1.71e-08 9.66e-08   erg/cm2
Peak flux Power-law 2.87e-01 4.16e-01 4.49e-01 9.03e-01 1.43e+00 2.06e+00   ph/cm2/s
              Error 8.23e-02 7.30e-02 6.50e-02 2.84e-01 1.99e-01 3.20e-01   ph/cm2/s

Fluence   Cutoff-PL 7.23e-09 2.42e-08 5.87e-08 2.13e-07 1.48e-07 3.03e-07   erg/cm2
              Error 2.43e-09 3.37e-09 8.05e-09 1.46e-07 1.78e-08 1.45e-07   erg/cm2
Peak flux Cutoff-PL 2.06e-01 4.25e-01 5.06e-01 3.98e-01 1.37e+00 1.54e+00   ph/cm2/s
              Error 1.12e-01 8.46e-02 9.06e-02 2.50e-01 2.14e-01 4.52e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band 2.15e-01 4.24e-01 5.01e-01 4.29e-01 1.38e+00 1.58e+00   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.770    0.184    -      -           3.45e-02 3.65e-03   60.980 57
CPL   0.330    0.733     233.7    0.0      5.25e-02 0.00e+00   60.000 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.891    0.237    -      -           1.25e-02 1.73e-03   58.370 57
CPL  -0.187    1.357     122.5  -41.7      3.51e-02 7.23e-02   55.730 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.320000 sec.
T50 in the 50-300 keV band: 0.128000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.368   -0.036    0.332
T90     0.296   -0.016    0.280
T50     0.152    0.020    0.172
Peak    1.000   -0.350    0.650

Click here for the BAT GCN circular template

Special notes of this burst

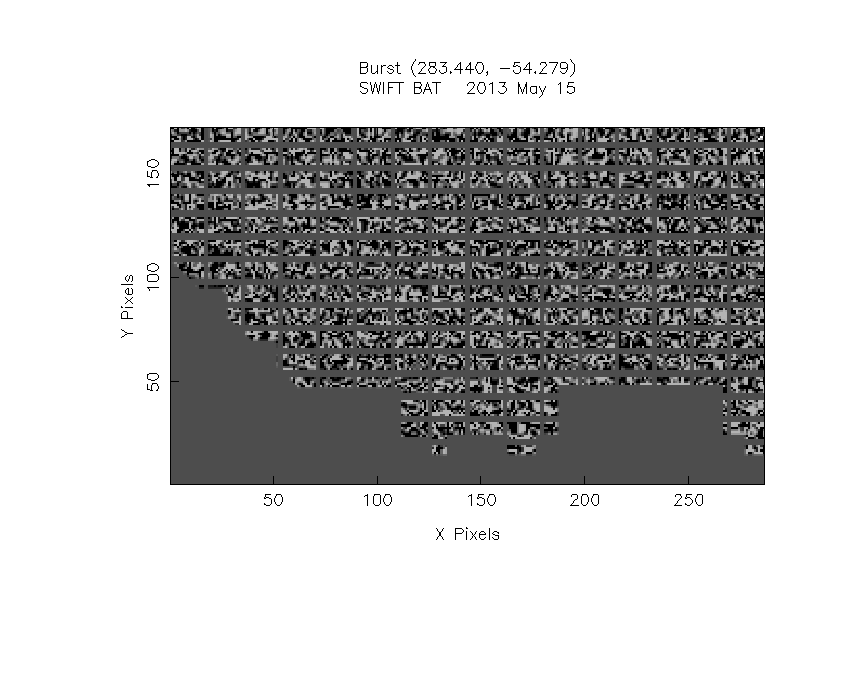

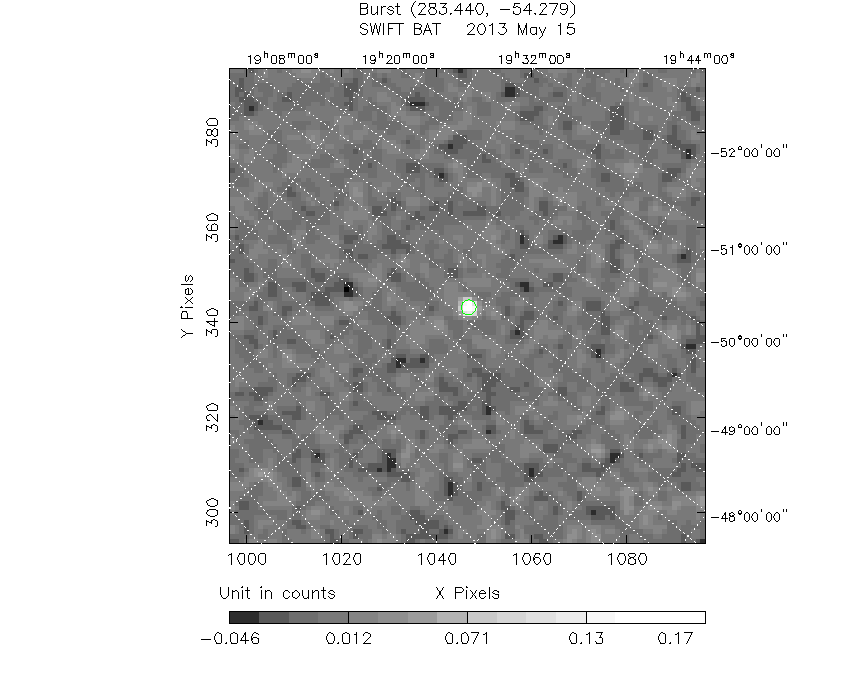

Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  283.4361   -54.2823   0.0121    24.1920   141.3940         0.1966767     15.800 TRIG_00555880

Foreground time interval of the image:
 -0.036   0.332 (delta_t =   0.368 [sec])
Background time interval of the image:
-147.895  -0.036 (delta_t = 147.859 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

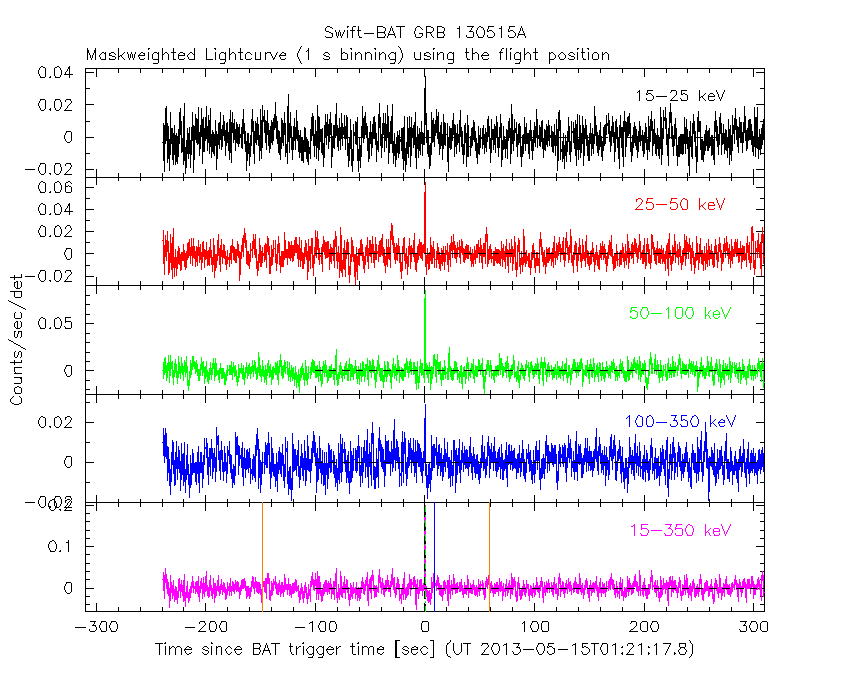

From T0-310 s to T0+310 s

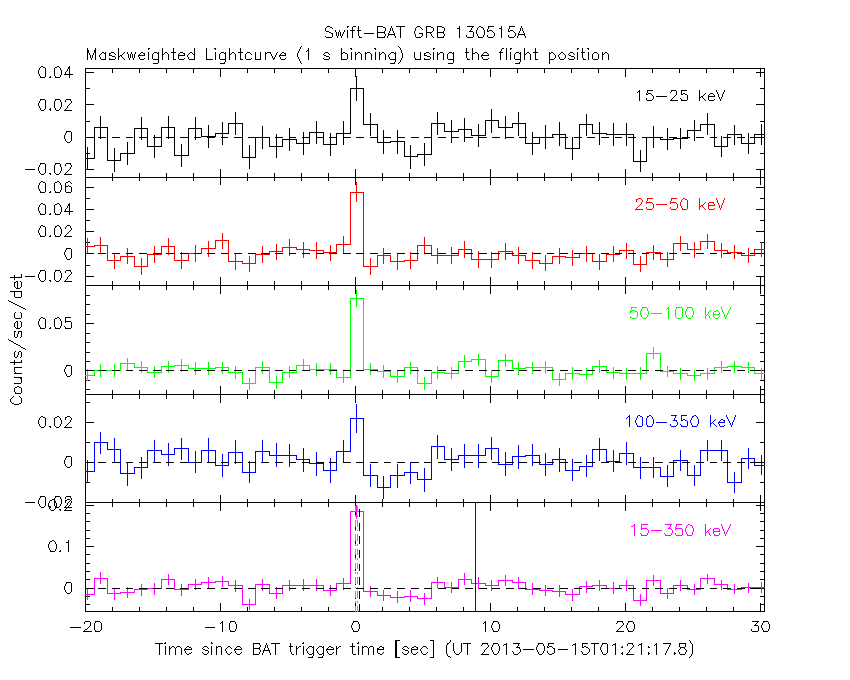

From T100_start - 20 s to T100_end + 30 s

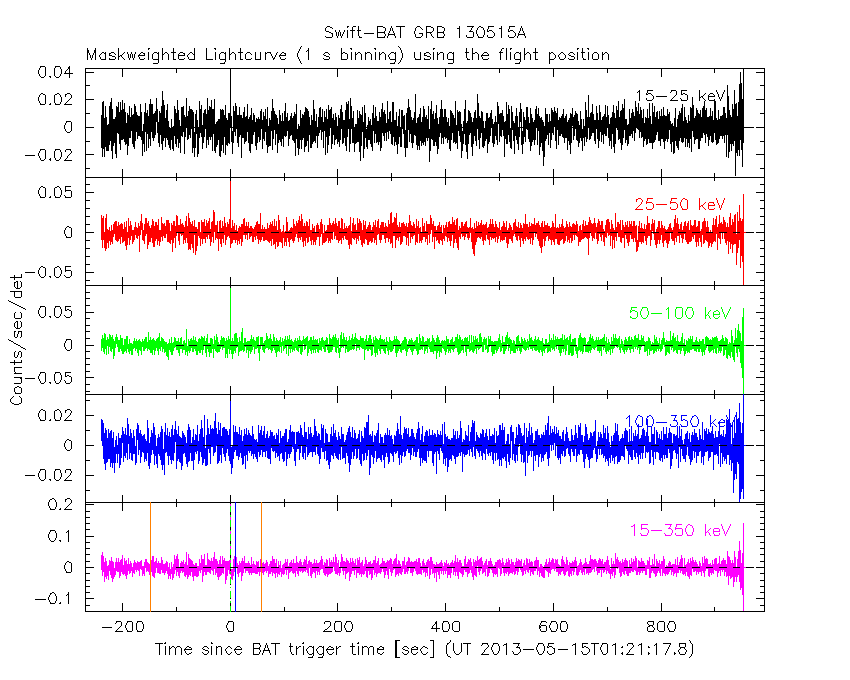

Full time interval

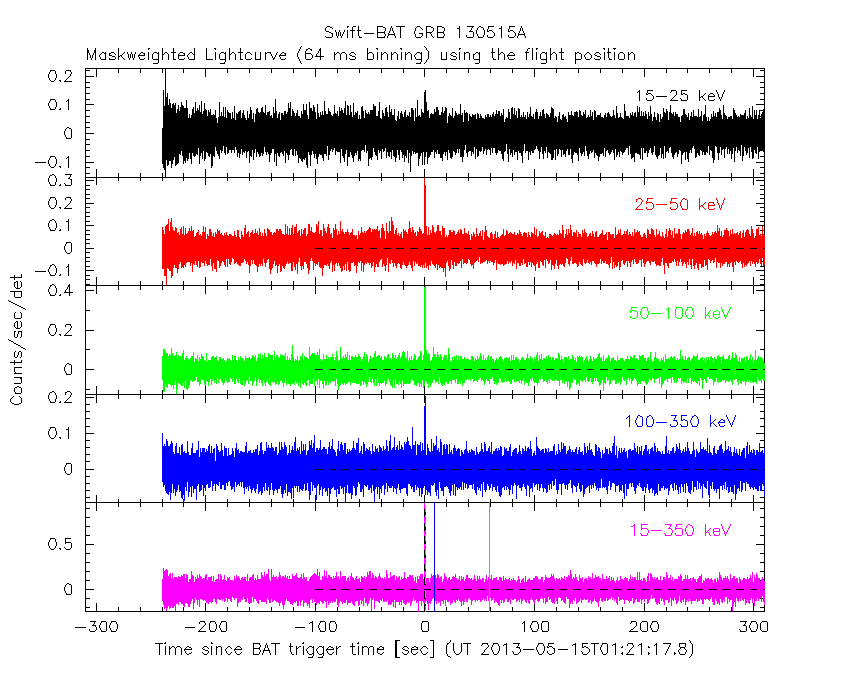

64 ms binning

Full time interval

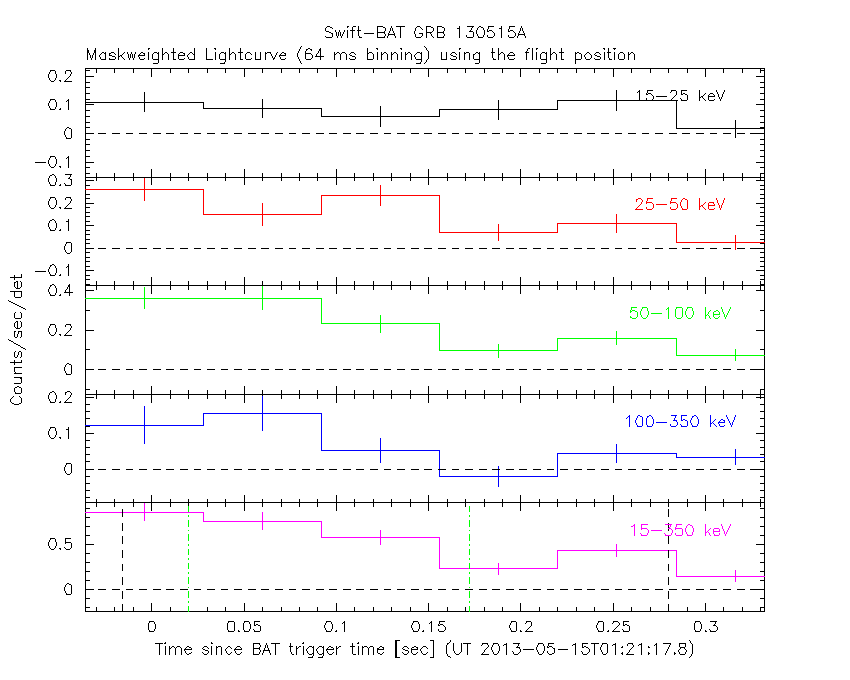

From T100_start to T100_end

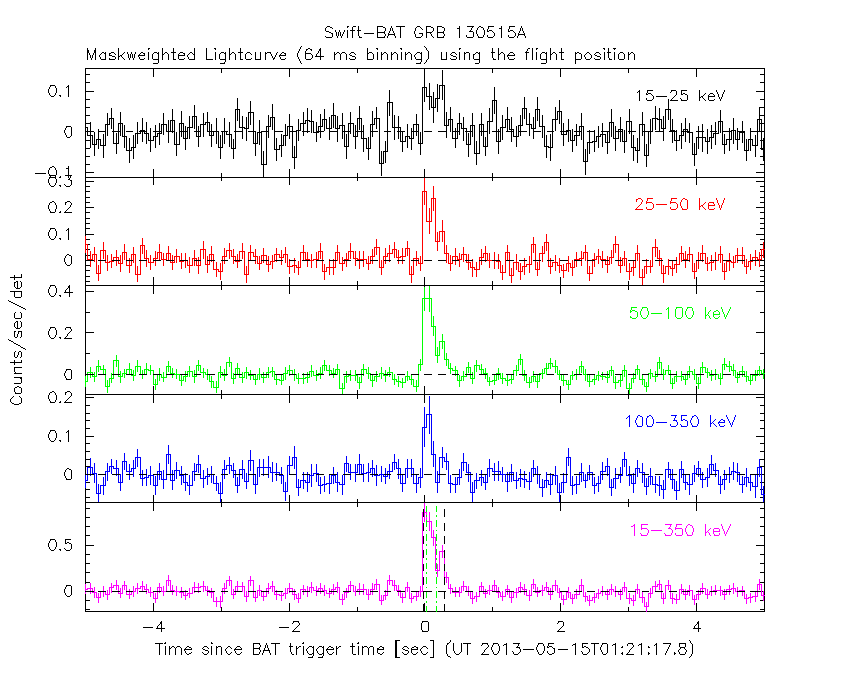

From T0-5 sec to T0+5 sec

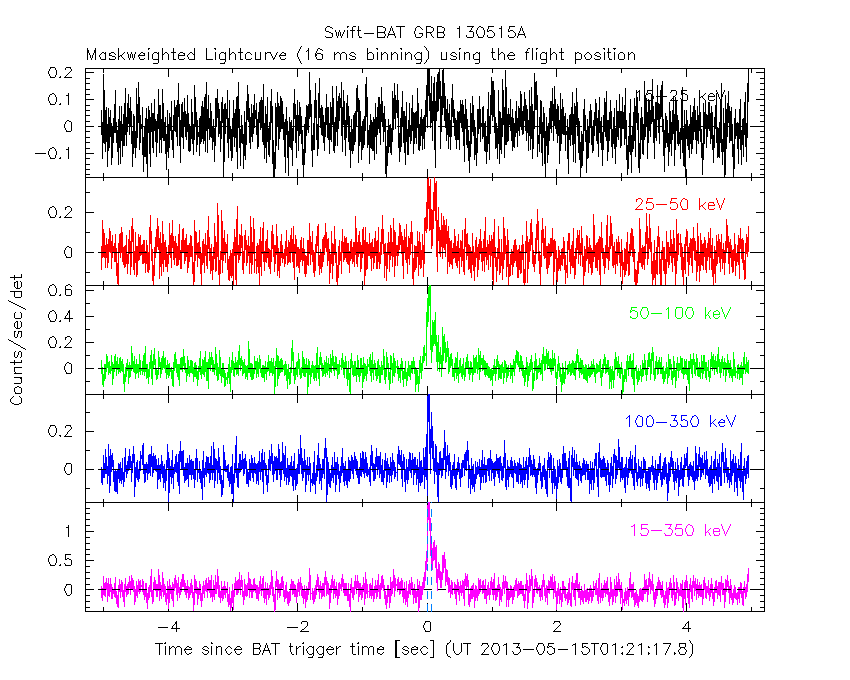

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

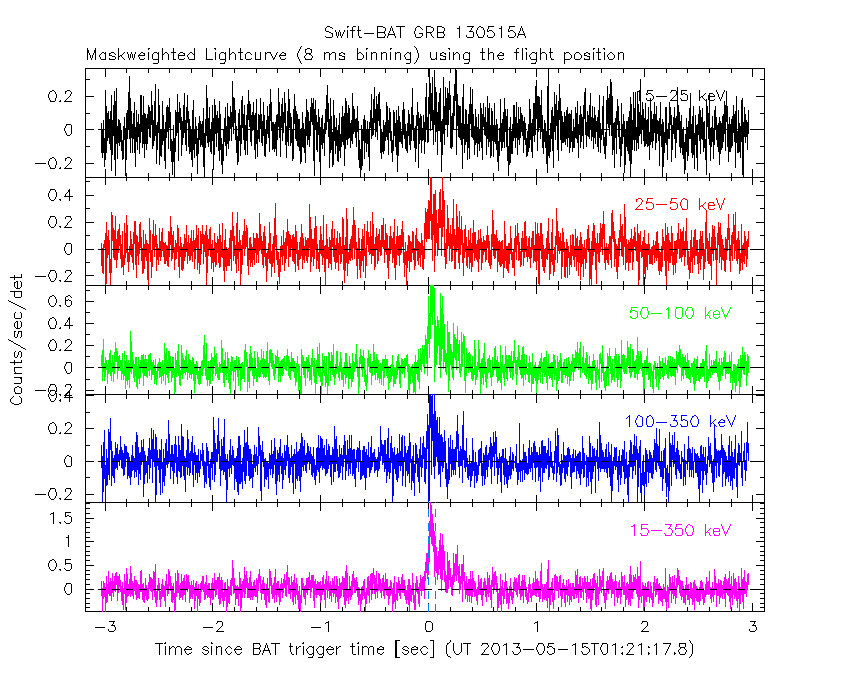

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

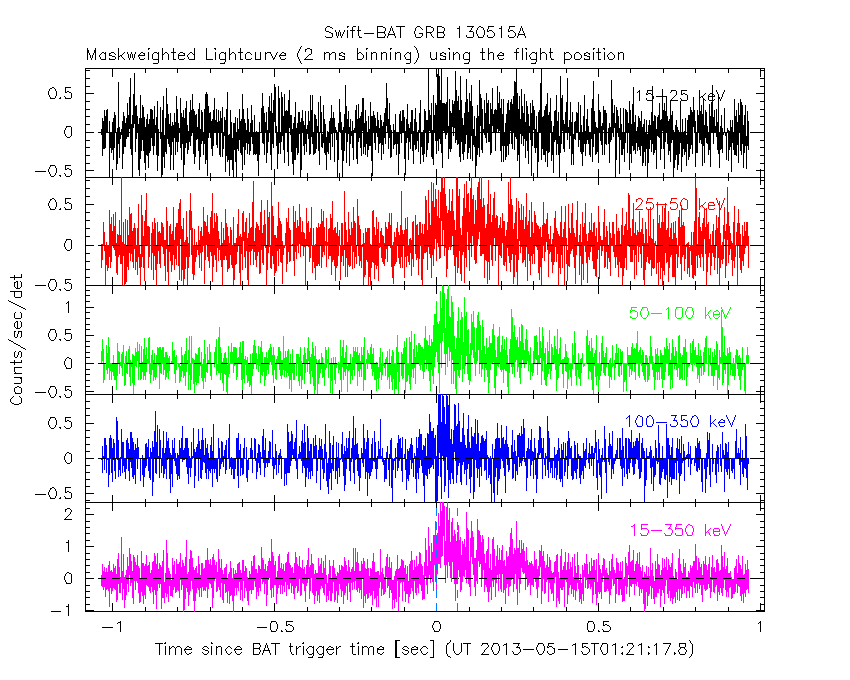

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

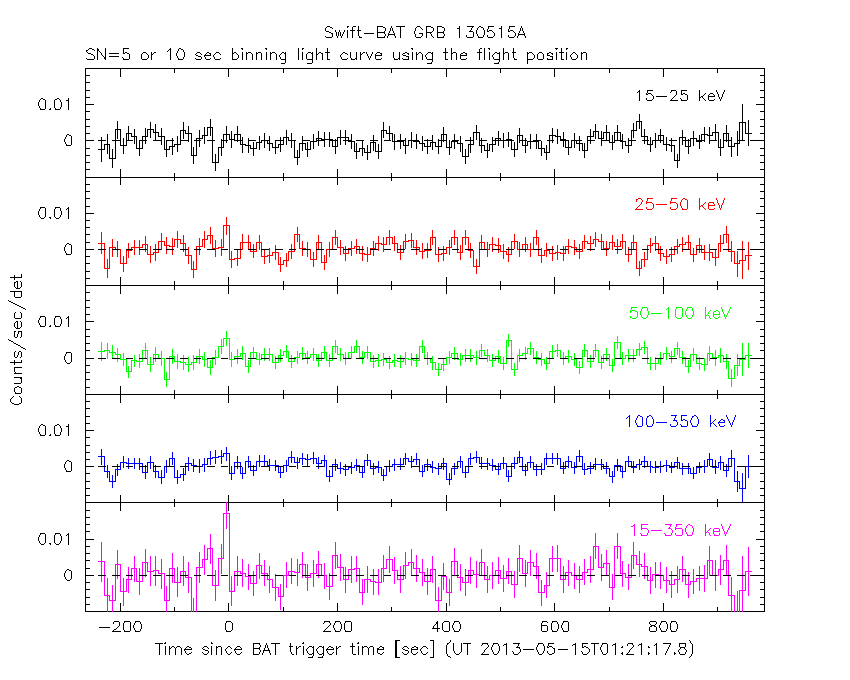

SN=5 or 10 sec. binning (whichever binning is satisfied first)

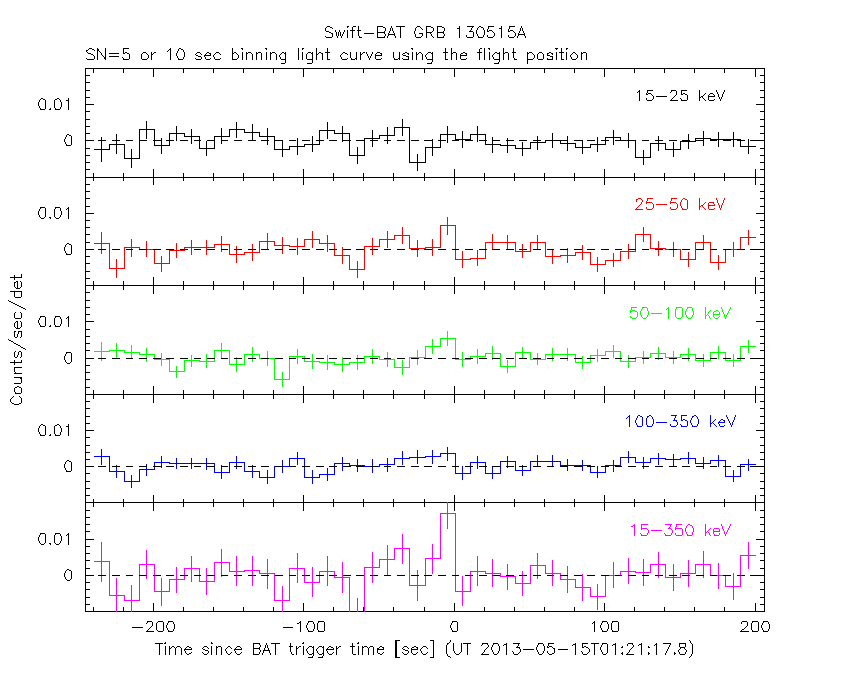

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

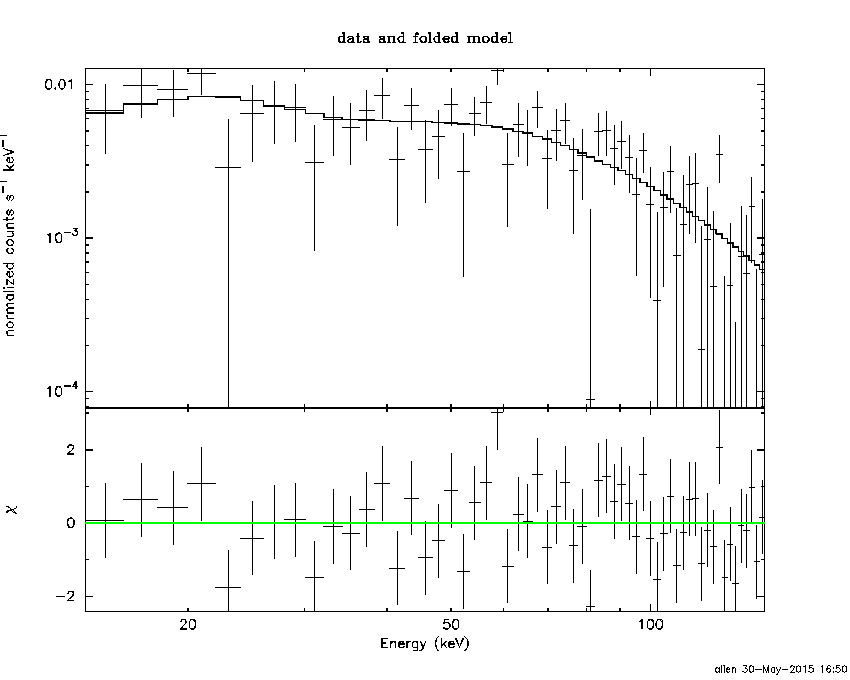

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -0.036 sec. to    0.332 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.769505     ( -0.186431   0.180604 )
Norm@50keV  : 3.45164E-02    ( -0.00366744   0.00363866 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.98 using 59 PHA bins.
# Reduced chi-squared =          1.070 for     57 degrees of freedom
# Null hypothesis probability =   3.347632e-01

Photon flux (15-150 keV)    in 0.368 sec: 3.97214 ( -0.411815  0.412224 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.50369e-07 ( -1.7025e-08  1.71261e-08 ) ergs/cm2

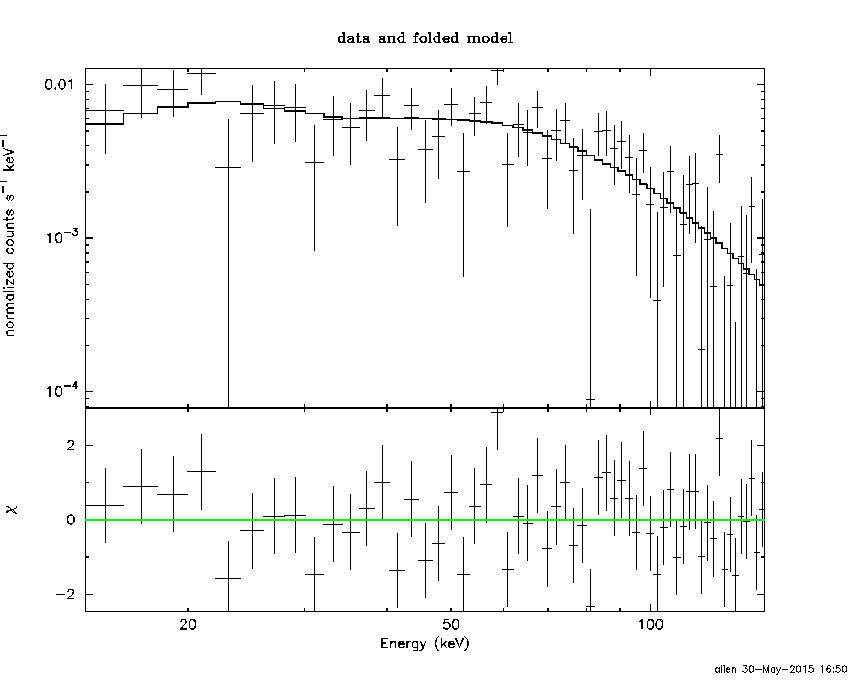

Cutoff power-law model

Time interval is from   -0.036 sec. to    0.332 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.330394     ( -0.903696   0.561598 )
Epeak [keV] : 233.671      ( -233.591 -233.591 )
Norm@50keV  : 5.24673E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.00 using 59 PHA bins.
# Reduced chi-squared =          1.071 for     56 degrees of freedom
# Null hypothesis probability =   3.329590e-01

Photon flux (15-150 keV)    in 0.368 sec: 3.91073 ( -0.42795  0.42584 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.48332e-07 ( -1.78292e-08  1.76953e-08 ) ergs/cm2

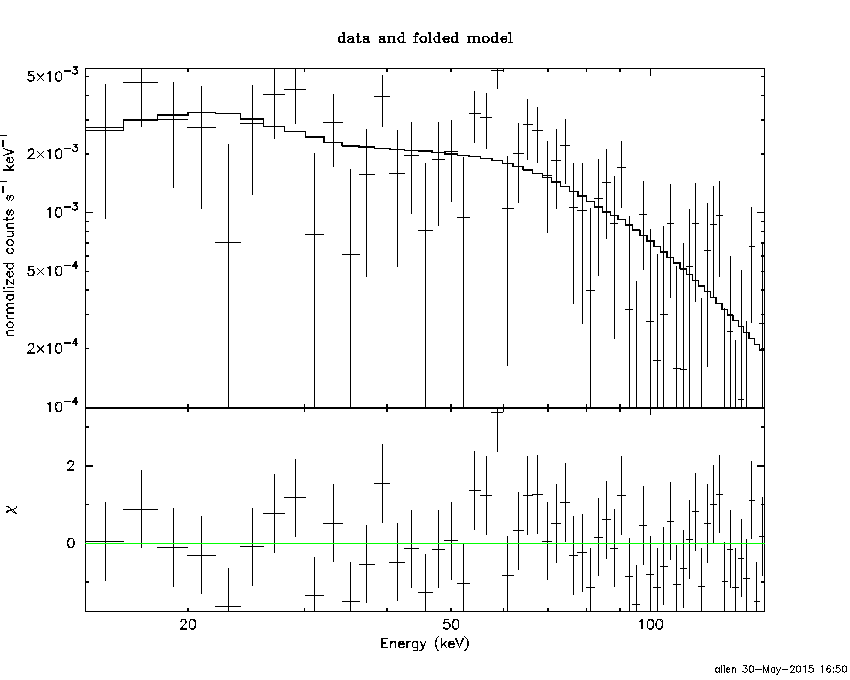

Band function

Time interval is from   -0.036 sec. to    0.332 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.00918   ( 1.00897   1.00897 )
beta        : -0.769506    ( -0.180552   0.186731 )
Epeak [keV] : 16.6116      ( -16.6157 -16.6157 )
Norm@50keV   : 4.62665E-02    ( -0.0153323   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.98 using 59 PHA bins.
# Reduced chi-squared =          1.109 for     55 degrees of freedom
# Null hypothesis probability =   2.695988e-01

Photon flux (15-150 keV)    in 0.368 sec: 3.93659 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 26.2797  (-3.45838  4.34702)
R^2/D10^2   : 8.88661E-02  (-0.0317177   0.0458792)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.08 using 59 PHA bins.
# Reduced chi-squared =          1.177 for     57 degrees of freedom
# Null hypothesis probability =   1.697780e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.819e-09   7.579e-10
25- 50  2.221e-08   4.002e-09
50-150  1.127e-07   1.967e-08
15-150  1.387e-07   2.123e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 14.8602       (-1.67197     1.67193)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         107.61 using 59 PHA bins.
# Reduced chi-squared =         1.8879 for     57 degrees of freedom
# Null hypothesis probability =   5.856546e-05

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.362e-08   7.625e-09
25- 50  2.620e-08   1.445e-08
50-150  5.746e-08   3.148e-08
15-150  9.727e-08   5.376e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 3.92992        (-1.76676      3.78909)
R1^2/D10^2  : 18.3893        (-17.2309      525.959)
kT2 [keV]   : 29.7090        (-4.59053      7.00624)
R2^2/D10^2  : 5.97975E-02    (-0.0277578   0.0415501)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.70 using 59 PHA bins.
# Reduced chi-squared =          1.031 for     55 degrees of freedom
# Null hypothesis probability =   4.112678e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.703e-09   4.201e-09
25- 50  2.072e-08   4.869e-09
50-150  1.176e-07   2.565e-08
15-150  1.470e-07   2.828e-08

Peak spectrum fit

Power-law model

Time interval is from   -0.350 sec. to    0.650 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.890949     ( -0.241533   0.232596 )
Norm@50keV  : 1.24751E-02    ( -0.00173902   0.0017273 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.37 using 59 PHA bins.
# Reduced chi-squared =          1.024 for     57 degrees of freedom
# Null hypothesis probability =   4.247819e-01

Photon flux (15-150 keV)    in 1 sec: 1.43180 ( -0.198831  0.19933 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.40504e-07 ( -2.07297e-08  2.0881e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.350 sec. to    0.650 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.187105     ( -1.62994   1.08327 )
Epeak [keV] : 122.529      ( -38.9219 -122.412 )
Norm@50keV  : 3.50532E-02    ( -0.0351439   0.109365 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.73 using 59 PHA bins.
# Reduced chi-squared =         0.9952 for     56 degrees of freedom
# Null hypothesis probability =   4.850949e-01

Photon flux (15-150 keV)    in 1 sec: 1.36704 ( -0.21567  0.21237 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.34737e-07 ( -2.2379e-08  2.2243e-08 ) ergs/cm2

Band function

Time interval is from   -0.350 sec. to    0.650 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.875008   ( 0.875088   0.875088 )
beta        : -0.906585    ( -0.23262   0.241314 )
Epeak [keV] : 10000.00      ( -10000 -10000 )
Norm@50keV   : 1.25435E-02    ( -0.00173621   0.00169606 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.34 using 59 PHA bins.
# Reduced chi-squared =          1.061 for     55 degrees of freedom
# Null hypothesis probability =   3.537715e-01

Photon flux (15-150 keV)    in 1 sec: 1.37886 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 23.5775  (-3.54994  4.62488)
R^2/D10^2   : 4.36107E-02  (-0.0183593   0.028752)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.05 using 59 PHA bins.
# Reduced chi-squared =          1.001 for     57 degrees of freedom
# Null hypothesis probability =   4.733785e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.340e-09   1.225e-09
25- 50  2.387e-08   5.670e-09
50-150  9.901e-08   2.321e-08
15-150  1.272e-07   2.453e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 5.65417       (-0.822749     0.822731)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          78.47 using 59 PHA bins.
# Reduced chi-squared =          1.377 for     57 degrees of freedom
# Null hypothesis probability =   3.121313e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.407e-08   7.975e-09
25- 50  2.707e-08   1.551e-08
50-150  5.938e-08   3.332e-08
15-150  1.005e-07   5.620e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 3.15037        (-2.41238      6.14191)
R1^2/D10^2  : 18.6426        (-18.5077      393.168)
kT2 [keV]   : 25.2842        (-4.22367      5.14281)
R2^2/D10^2  : 3.42302E-02    (-0.0174678   0.0183116)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.13 using 59 PHA bins.
# Reduced chi-squared =         0.9660 for     55 degrees of freedom
# Null hypothesis probability =   5.464368e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.471e-09   3.571e-09
25- 50  2.237e-08   7.175e-09
50-150  1.020e-07   3.117e-08
15-150  1.329e-07   3.375e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.769505     ( -0.186431   0.180604 )
Norm@50keV  : 3.45164E-02    ( -0.00366744   0.00363866 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.98 using 59 PHA bins.
# Reduced chi-squared =          1.070 for     57 degrees of freedom
# Null hypothesis probability =   3.347632e-01

Photon flux (15-150 keV)    in 0.368 sec: 3.97214 ( -0.411815  0.412224 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.50369e-07 ( -1.7025e-08  1.71261e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.330394     ( -0.903696   0.561598 )
Epeak [keV] : 233.671      ( -233.591 -233.591 )
Norm@50keV  : 5.24673E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.00 using 59 PHA bins.
# Reduced chi-squared =          1.071 for     56 degrees of freedom
# Null hypothesis probability =   3.329590e-01

Photon flux (15-150 keV)    in 0.368 sec: 3.91073 ( -0.42795  0.42584 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.48332e-07 ( -1.78292e-08  1.76953e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.00918   ( 1.00897   1.00897 )
beta        : -0.769506    ( -0.180552   0.186731 )
Epeak [keV] : 16.6116      ( -16.6157 -16.6157 )
Norm@50keV   : 4.62665E-02    ( -0.0153323   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.98 using 59 PHA bins.
# Reduced chi-squared =          1.109 for     55 degrees of freedom
# Null hypothesis probability =   2.695988e-01

Photon flux (15-150 keV)    in 0.368 sec: 3.93659 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.37e-08
S(50-100 keV) = 5.57e-08

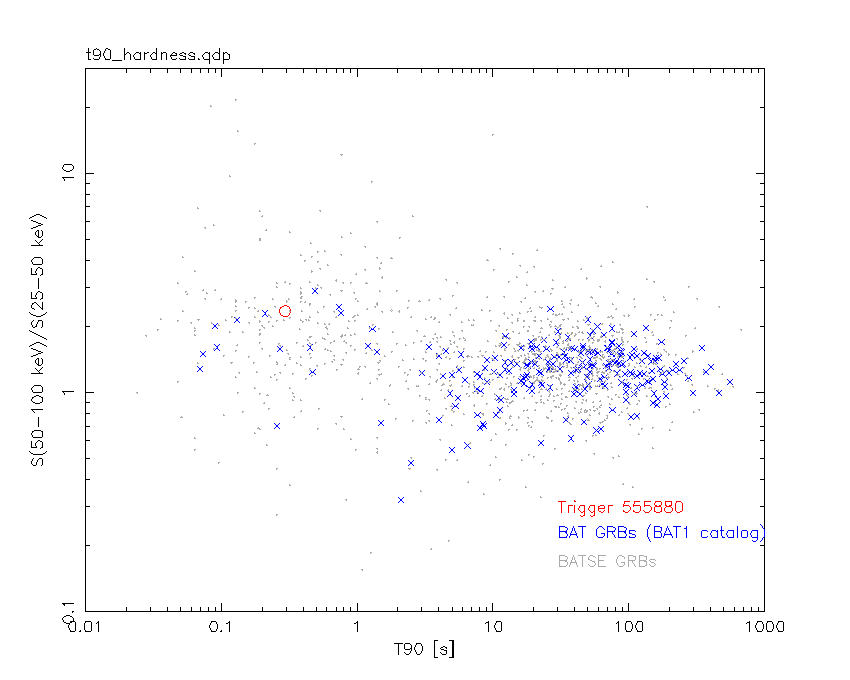

T90 vs. Hardness ratio plot

T90                                   = 0.295999944210052 sec.
Hardness ratio (energy fluence ratio) = 2.35021

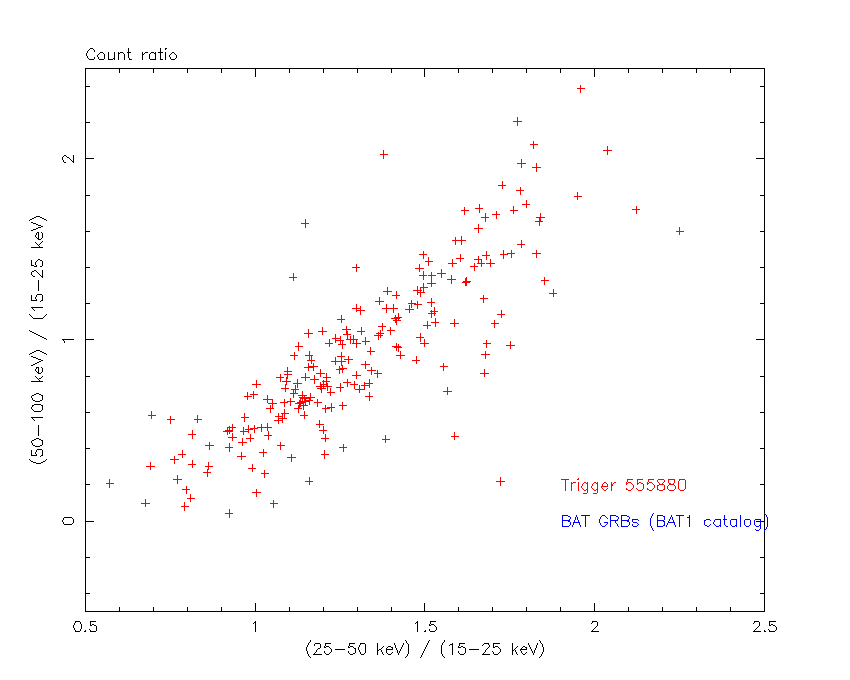

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.80089
Count Ratio (50-100 keV) / (15-25 keV) = 2.78941

Mask shadow pattern

IMX = -3.510695361386565E-01, IMY = -2.803151470316865E-01

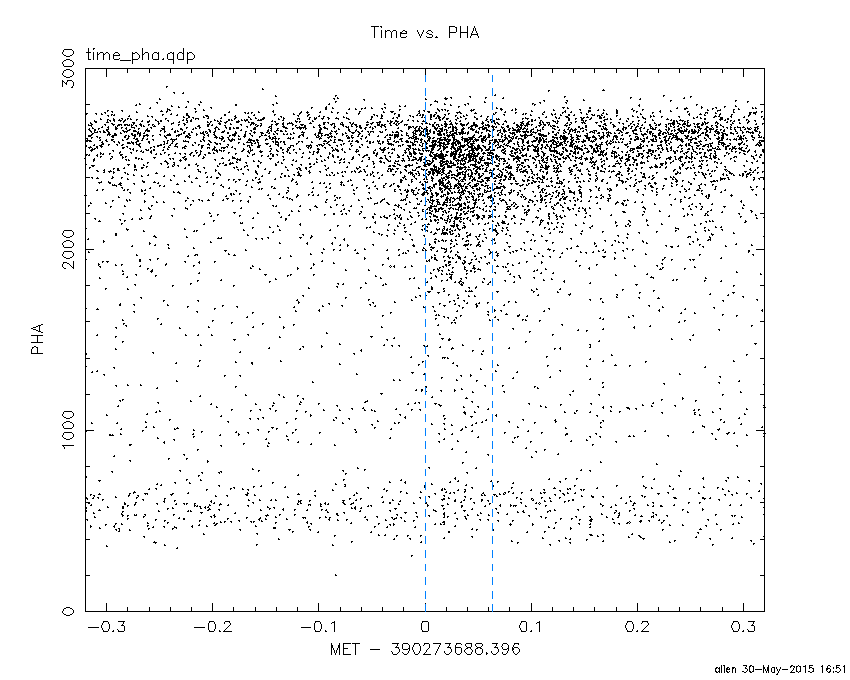

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

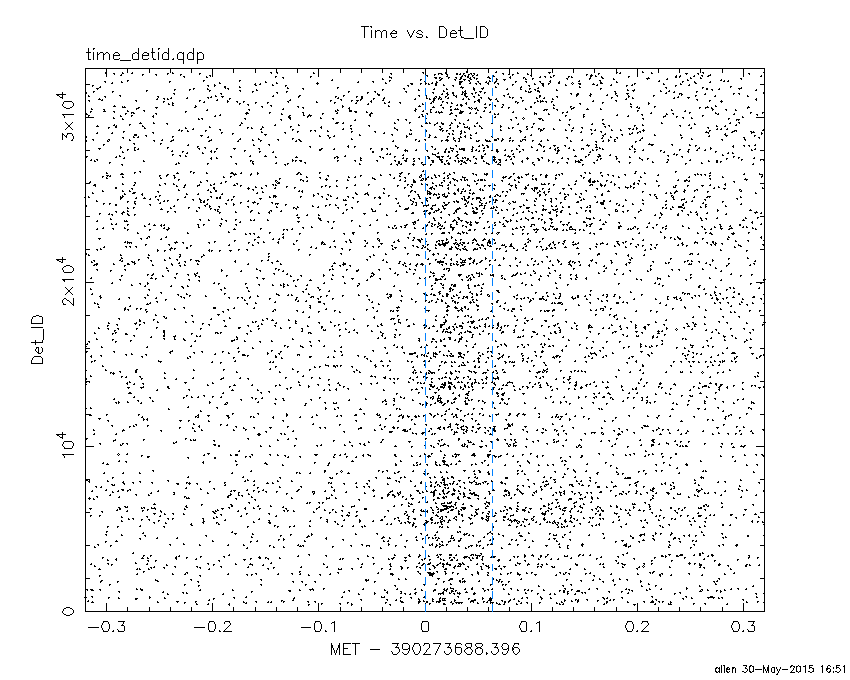

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

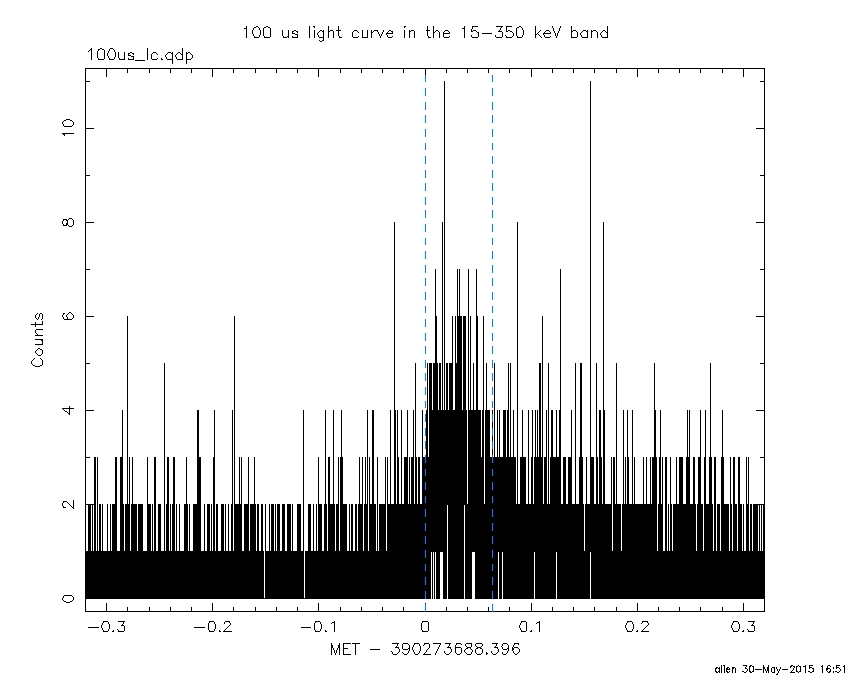

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-147.895410 -0.036000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.2245 -60.6206    4.2  35.5   13.0   0.5910   2.8    2.7	Cen X-3
187.1008 -62.7699  105.7  30.7   25.3   0.0223   0.1   12.2	GX 301-2
264.7253 -44.2902   74.2  35.0  117.9   0.0568   0.2    9.6	4U 1735-44
232.6834 -44.7627    2.4  38.9   80.2   2.8965   4.8 ------	UNKNOWN
166.2416 -66.7983    2.3  30.3    6.2   0.8911   5.0 ------	UNKNOWN
315.5066 -58.7336    2.6  22.2 -171.9   0.6599   4.4 ------	UNKNOWN
338.8428 -72.5978    2.1  14.2 -122.5   0.7934   5.4 ------	UNKNOWN
337.3728 -24.7549    3.5  58.7 -159.2   3.5815   3.3 ------	UNKNOWN
119.6331 -42.0796    2.3  59.1  -24.2   5.8691   4.9 ------	UNKNOWN
 98.4815 -49.3963    3.0  52.1  -42.2   3.5108   3.8 ------	UNKNOWN
357.3110 -36.4895    2.5  51.0 -135.6   4.0220   4.6 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.036000 0.332000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.0834 -60.6190    5.7  35.5   12.9  -0.0285  -2.0    6.8	Cen X-3
186.8417 -62.6680    3.8  30.8   25.2   0.0415   3.0    8.0	GX 301-2
264.9090 -44.4620    6.3  34.8  118.1  -0.0433  -1.8    7.1	4U 1735-44
238.0437 -43.7620    1.8  39.0   86.5   0.2745   6.3 ------	UNKNOWN
283.4361 -54.2823    0.7  24.2  141.4   0.1967  15.8 ------	UNKNOWN
237.6035 -79.4410    2.7   8.7   23.8   0.0395   4.2 ------	UNKNOWN
  8.3272 -70.8473    2.5  21.2 -102.0   0.0521   4.7 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
58.904590 836.504620

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
170.5294 -60.6066    6.4  53.4   13.0   4.7473   1.8    6.4	Cen X-3
186.6576 -62.8815    4.9  46.3   17.6   3.4227   2.3    6.7	GX 301-2
255.9598 -37.8425    0.8  24.9   98.8  13.5304  14.3    1.3	4U 1700-377
256.4871 -36.6004    4.4  25.6  101.4  -2.7227  -2.6   10.9	GX 349+2
263.0018 -24.7288   81.3  33.2  123.4   0.1856   0.1    1.1	GX 1+4
264.8364 -44.4072    6.7  15.6  100.6   1.1786   1.7    4.8	4U 1735-44
270.3372 -25.2573    0.0  30.6  135.0   2.2305   2.2   11.1	GX 5-1
270.4024 -25.7804    5.3  30.1  134.9   2.2066   2.2    5.8	GRS 1758-258
273.8748 -14.0202    3.9  41.0  144.5   5.8329   3.0    7.7	GX 17+2
275.9858 -30.4683    2.7  24.4  143.1   3.2102   4.2    6.8	H1820-303
284.9477 -24.7683    5.6  29.6  161.6   1.7677   2.0   10.3	HT1900.1-2455
262.9936 -33.8316   53.8  25.0  115.4   0.1885   0.2    0.3	GX 354-0
250.3512 -53.9766    4.0  19.2   56.2   1.9760   2.9 ------	UNKNOWN
261.2157 -75.3598    4.2  22.7   -6.9   1.8803   2.8 ------	UNKNOWN
316.8314  -1.3767    4.5  59.6 -161.6  17.5692   2.6 ------	UNKNOWN
318.3351  -2.8770    4.3  58.7 -159.3  15.5179   2.7 ------	UNKNOWN
 28.8530 -66.4081    3.6  47.0  -53.1  13.5089   3.2 ------	UNKNOWN
333.8151 -23.2566    3.4  48.5 -130.3  12.7065   3.4 ------	UNKNOWN
339.3170 -33.4424    3.4  43.9 -116.1  13.4095   3.4 ------	UNKNOWN
347.1049 -44.1975    5.6  41.3  -98.2  10.1865   2.1 ------	UNKNOWN

Plot creation:
Sat May 30 16:51:32 EDT 2015
