batgrbproduct analysis for trigger=557845

batgrbproduct Analysis for Trigger=557845

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Wed Sep 10 18:52:12 EDT 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger557845
======================================================================

  Trigger: 00557845      Segment: 000

  BAT Trigger Time: 392526744   [s; MET]
      Trigger Stop: 392526808   [s; MET]
               UTC: 2013-06-10T03:12:13.343620    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 224.415905357673   Dec: 28.1911682712337  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    19.34
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    19.34

  Flight Position:   [ source = BAT ]
    RA: 224.415905357673   Dec: 28.1911682712337  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 224.408062834987   Dec: 28.190439711407  [deg; J2000]
        { 14h 57m 37.9s , +28d 11' 25.6" }
         +/- 2.5037821965006 [arcmin] (estimated 90% radius based on SNR)
         +/- 1.4812221833555 [arcmin] (formal 1-sigma fit error)
    SNR: 8.1977513507944

  Angular difference between Flight and Ground position is 0.417032 arcmin

  Partial Coding Fraction: 0.96875    [ including projection effects ]

  Duration
     T90: 47.7239999175072 +/- 10.7398658831923
        Measured from: -3.96399998664856
                   to: 43.7599999308586     [s; relative to TRIGTIME]
     T50: 13.4799999594688 +/- 2.21979819147243
        Measured from: 1.53200000524521
                   to: 15.0119999647141     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 4.53200000524521
                   to: 5.53200000524521     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -7.04000002145767
                   to: 62.4399999976158     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.860801   1.382702   1.181716   0.301173
           0.050651   0.053172   0.048566   0.042188 [error]
 Peak      0.039184   0.085940   0.075236   0.006305
           0.006811   0.007331   0.007059   0.005734 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.63e-07 5.55e-07 9.19e-07 3.45e-06 2.53e-06 5.19e-06   erg/cm2
              Error 2.17e-08 2.70e-08 4.75e-08 4.05e-07 1.19e-07 4.32e-07   erg/cm2
Peak flux Power-law 4.51e-01 5.45e-01 4.77e-01 7.16e-01 1.72e+00 2.19e+00   ph/cm2/s
              Error 7.97e-02 6.02e-02 5.47e-02 1.69e-01 1.71e-01 2.31e-01   ph/cm2/s

Fluence   Cutoff-PL 2.49e-07 5.68e-07 9.40e-07 2.37e-06 2.49e-06 4.12e-06   erg/cm2
              Error 2.63e-08 3.04e-08 5.29e-08 8.65e-07 1.30e-07 8.71e-07   erg/cm2
Peak flux Cutoff-PL 3.72e-01 5.92e-01 5.18e-01 2.76e-01 1.66e+00 1.76e+00   ph/cm2/s
              Error 9.57e-02 7.36e-02 6.57e-02 1.98e-01 1.78e-01 2.61e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band 3.45e-01 6.20e-01 4.95e-01 4.54e-01 1.65e+00 1.91e+00   ph/cm2/s
              Error 1.08e-01 7.83e-02 -------- -------- 1.78e-01 --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.272    0.077    -      -           3.67e-03 1.56e-04   59.610 57
CPL   1.010    0.294     202.0  -60.7      4.88e-03 1.50e-03   57.120 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.192    0.162    -      -           1.47e-02 1.44e-03   75.220 57
CPL   0.206    0.797      93.8   65.8      4.49e-02 4.87e-02   69.390 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 27.200000 sec.
T50 in the 50-300 keV band: 9.664000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   69.480   -7.040   62.440
T90    47.724   -3.964   43.760
T50    13.480    1.532   15.012
Peak    1.000    4.532    5.532

Click here for the BAT GCN circular template

Special notes of this burst


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  224.4081    28.1904   0.0235    21.8715  -167.1336         2.8993747      8.198 TRIG_00557845

Foreground time interval of the image:
 -7.040  62.440 (delta_t =  69.480 [sec])
Background time interval of the image:
-12.099  -7.040 (delta_t =   5.059 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

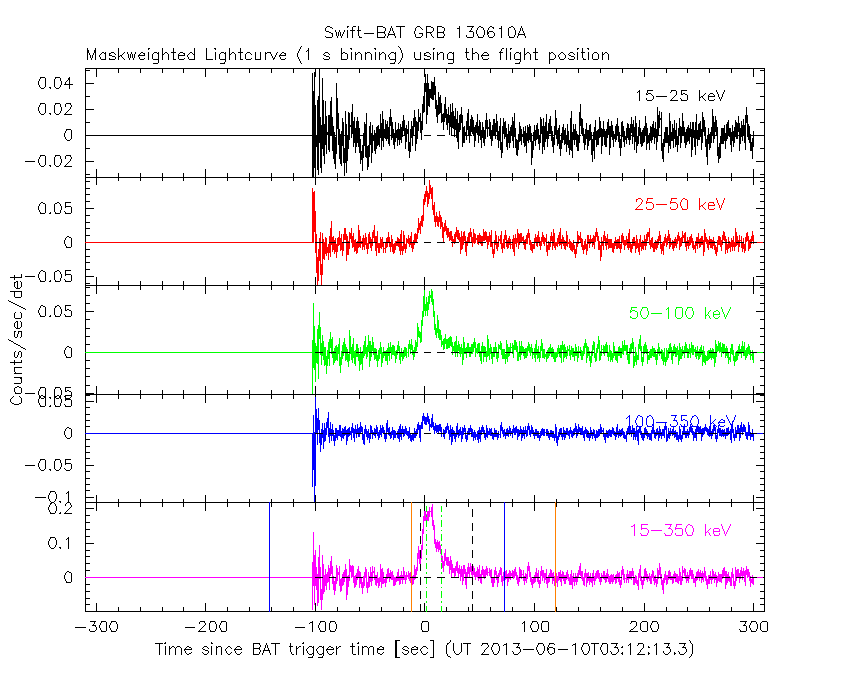

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

8 ms binning

From T100_start-3 s to T100_start+3 s

2 ms binning

From T100_start-1 s to T100_start+1 s

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -7.040 sec. to   62.440 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.27243     ( -0.0770147   0.076613 )
Norm@50keV  : 3.66508E-03    ( -0.000155595   0.000155594 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.61 using 59 PHA bins.
# Reduced chi-squared =          1.046 for     57 degrees of freedom
# Null hypothesis probability =   3.809974e-01

Photon flux (15-150 keV)    in 69.48 sec: 0.435110 ( -0.0192579  0.0192867 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.53376e-06 ( -1.188e-07  1.19225e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from   -7.040 sec. to   62.440 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00996     ( -0.305325   0.283087 )
Epeak [keV] : 201.993      ( -80.6298 -201.993 )
Norm@50keV  : 4.88108E-03    ( -0.00113392   0.00185981 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.12 using 59 PHA bins.
# Reduced chi-squared =          1.020 for     56 degrees of freedom
# Null hypothesis probability =   4.331853e-01

Photon flux (15-150 keV)    in 69.48 sec: 0.429053 ( -0.0203  0.020303 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.48761e-06 ( -1.30685e-07  1.30004e-07 ) ergs/cm2

Band function

Time interval is from   -7.040 sec. to   62.440 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.98582   ( -14.6108   -4.98582 )
beta        : -1.34666    ( -0.0883163   0.0867872 )
Epeak [keV] : 26.6905      ( -3.9019 3.01204 )
Norm@50keV   : 208.858    ( -8.84486   348.196 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.45 using 59 PHA bins.
# Reduced chi-squared =         0.9536 for     55 degrees of freedom
# Null hypothesis probability =   5.726515e-01

Photon flux (15-150 keV)    in 69.48 sec: 0.427601 ( 6.5724  -0.020242 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 18.0098  (  )
R^2/D10^2   : 2.72583E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         162.21 using 59 PHA bins.
# Reduced chi-squared =         2.8458 for     57 degrees of freedom
# Null hypothesis probability =   4.931159e-12

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.230e-07   1.049e-08
25- 50  5.689e-07   3.411e-08
50-150  1.340e-06   1.136e-07
15-150  2.032e-06   1.153e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 1.81366       (-0.0779261     0.0779085)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          94.32 using 59 PHA bins.
# Reduced chi-squared =          1.655 for     57 degrees of freedom
# Null hypothesis probability =   1.375806e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.137e-07   1.577e-08
25- 50  6.035e-07   3.078e-08
50-150  1.324e-06   6.635e-08
15-150  2.241e-06   1.122e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.32418        (-1.21207      1.33003)
R1^2/D10^2  : 0.224167        (-0.0812204      0.144919)
kT2 [keV]   : 32.8909        (-5.11187      8.27277)
R2^2/D10^2  : 3.03544E-03    (-0.00153963   0.00234276)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.13 using 59 PHA bins.
# Reduced chi-squared =         0.9659 for     55 degrees of freedom
# Null hypothesis probability =   5.465435e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.343e-07   3.960e-08
25- 50  5.912e-07   7.181e-08
50-150  1.690e-06   3.474e-07
15-150  2.516e-06   4.235e-07

Peak spectrum fit

Power-law model

Time interval is from    4.532 sec. to    5.532 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.19219     ( -0.162329   0.160961 )
Norm@50keV  : 1.46995E-02    ( -0.00143963   0.00143909 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          75.22 using 59 PHA bins.
# Reduced chi-squared =          1.320 for     57 degrees of freedom
# Null hypothesis probability =   5.329731e-02

Photon flux (15-150 keV)    in 1 sec: 1.72355 ( -0.170769  0.170932 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.49462e-07 ( -1.6433e-08  1.65845e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from    4.532 sec. to    5.532 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.205581     ( -0.8767   0.718093 )
Epeak [keV] : 93.7834      ( -23.2859 108.394 )
Norm@50keV  : 4.48588E-02    ( -0.0245607   0.0729327 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          69.39 using 59 PHA bins.
# Reduced chi-squared =          1.239 for     56 degrees of freedom
# Null hypothesis probability =   1.078284e-01

Photon flux (15-150 keV)    in 1 sec: 1.66005 ( -0.17812  0.17761 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.39166e-07 ( -1.8433e-08  1.8482e-08 ) ergs/cm2

Band function

Time interval is from    4.532 sec. to    5.532 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.380712   ( -1.16335   -0.399176 )
beta        : -1.72864    ( 1.72844   0.446329 )
Epeak [keV] : 68.5772      ( -31.6043 84.4986 )
Norm@50keV   : 0.100050    ( -0.108468   73.3631 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          68.38 using 59 PHA bins.
# Reduced chi-squared =          1.243 for     55 degrees of freedom
# Null hypothesis probability =   1.062015e-01

Photon flux (15-150 keV)    in 1 sec: 1.65324 ( 5.34676  -0.17769 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.40471e-07 ( -1.40464e-07  -1.776e-08 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 17.3581  (-1.96857  2.30332)
R^2/D10^2   : 0.129992  (-0.0441903   0.0643225)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          77.67 using 59 PHA bins.
# Reduced chi-squared =          1.363 for     57 degrees of freedom
# Null hypothesis probability =   3.576060e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.930e-09   1.428e-09
25- 50  3.567e-08   5.295e-09
50-150  7.723e-08   1.393e-08
15-150  1.208e-07   1.671e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 7.04906       (-0.701456     0.701434)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          85.00 using 59 PHA bins.
# Reduced chi-squared =          1.491 for     57 degrees of freedom
# Null hypothesis probability =   9.504974e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.756e-08   9.715e-09
25- 50  3.377e-08   1.830e-08
50-150  7.406e-08   4.032e-08
15-150  1.254e-07   6.307e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 10.9322        (-4.37675      4.25864)
R1^2/D10^2  : 0.373935        (-0.190793      0.841384)
kT2 [keV]   : 33.6732        (-28.7778      -35.3908)
R2^2/D10^2  : 9.53462E-03    (-0.00732976   0.0532516)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          68.29 using 59 PHA bins.
# Reduced chi-squared =          1.242 for     55 degrees of freedom
# Null hypothesis probability =   1.075590e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.090e-08   6.175e-09
25- 50  3.629e-08   2.017e-08
50-150  9.445e-08   4.844e-08
15-150  1.416e-07   6.978e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.27243     ( -0.0770147   0.076613 )
Norm@50keV  : 3.66508E-03    ( -0.000155595   0.000155594 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.61 using 59 PHA bins.
# Reduced chi-squared =          1.046 for     57 degrees of freedom
# Null hypothesis probability =   3.809974e-01

Photon flux (15-150 keV)    in 69.48 sec: 0.435110 ( -0.0192579  0.0192867 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.53376e-06 ( -1.188e-07  1.19225e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00996     ( -0.305325   0.283087 )
Epeak [keV] : 201.993      ( -80.6298 -201.993 )
Norm@50keV  : 4.88108E-03    ( -0.00113392   0.00185981 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.12 using 59 PHA bins.
# Reduced chi-squared =          1.020 for     56 degrees of freedom
# Null hypothesis probability =   4.331853e-01

Photon flux (15-150 keV)    in 69.48 sec: 0.429053 ( -0.0203  0.020303 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.48761e-06 ( -1.30685e-07  1.30004e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.98582   ( -5.18805   -4.98582 )
beta        : -1.34666    ( -0.0883163   0.0867872 )
Epeak [keV] : 26.6905      ( -3.9019 3.01204 )
Norm@50keV   : 208.858    ( -8.84486   348.196 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.45 using 59 PHA bins.
# Reduced chi-squared =         0.9536 for     55 degrees of freedom
# Null hypothesis probability =   5.726515e-01

Photon flux (15-150 keV)    in 69.48 sec: 0.427601 ( 6.5724  -0.020242 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 5.55e-07
S(50-100 keV) = 9.19e-07

T90 vs. Hardness ratio plot

T90                                   = 47.7239999175072 sec.
Hardness ratio (energy fluence ratio) = 1.65586

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.6063
Count Ratio (50-100 keV) / (15-25 keV) = 1.37281

Mask shadow pattern

IMX = -3.913418130255893E-01, IMY = 8.938769030632743E-02

TIME vs. PHA plot around the trigger time

TIME vs. DetID plot around the trigger time

100 us light curve (15-350 keV)

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-12.099400 -7.040000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.2499  35.4702    0.0   7.0  -45.2  -0.0449  -1.9   12.7	Her X-1
268.4542  -1.2895    5.8  36.0   66.9   0.1226   2.0   11.1	SW J1753.5-0127
288.7745  10.8340    5.3  41.2   29.5   0.1155   2.2    6.8	GRS 1915+105
299.7528  35.1221   11.1  42.4  -10.3  -0.0403  -1.0    9.3	Cyg X-1
307.9882  40.9332    5.9  48.2  -19.5   0.0956   1.9    5.7	Cyg X-3
202.6865  24.3084    2.1  41.7 -165.3   0.2005   5.6 ------	UNKNOWN
317.3350  30.8327    1.9  57.7   -9.1   0.7994   6.0 ------	UNKNOWN
193.3322  37.5615    2.7  46.6 -144.1   0.2317   4.3 ------	UNKNOWN
319.2811  46.9144    2.3  55.5  -28.3   0.5200   5.0 ------	UNKNOWN
195.6775  53.3195    2.1  45.2 -122.1   0.5540   5.6 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-7.040000 62.440000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.6505  35.2972 1776.7   7.1  -42.2  -0.0021  -0.0    9.8	Her X-1
268.3024  -1.5007   32.6  36.1   67.3   0.3204   0.4    4.9	SW J1753.5-0127
288.7356  10.8183   11.1  41.2   29.6  -0.7991  -1.0    8.5	GRS 1915+105
299.7636  35.1549   14.2  42.4  -10.3   0.4426   0.8    8.9	Cyg X-1
308.0131  40.9610    4.6  48.2  -19.5  -1.7246  -2.5    4.4	Cyg X-3
209.8808   2.5001    2.3  46.3  162.2   4.8224   5.1 ------	UNKNOWN
314.8740  24.5758    2.6  57.7   -1.2   9.5361   4.5 ------	UNKNOWN
224.4081  28.1905    1.4  21.9 -167.1   2.8991   8.2 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
119.100590 603.050000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4511  35.3801    6.2  26.4   13.0   0.3531   1.9    2.3	Her X-1
209.2014   4.0736    2.4  28.1  160.1   1.0396   4.8 ------	UNKNOWN
183.7669  -4.9342    2.5  51.3 -177.3   2.1944   4.7 ------	UNKNOWN
167.1730   4.2496    3.8  59.3 -156.3   4.1489   3.3 ------	UNKNOWN
167.0527   4.1923    4.1  59.4 -156.3   4.5403   3.5 ------	UNKNOWN

Plot creation:
Sat May 30 16:24:58 EDT 2015
