batgrbproduct analysis for trigger=559075

batgrbproduct Analysis for Trigger=559075

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sun Jan 12 01:08:36 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger559075
======================================================================

  Trigger: 00559075      Segment: 000

  BAT Trigger Time: 393936674.496   [s; MET]
      Trigger Stop: 393936674.56   [s; MET]
               UTC: 2013-06-26T10:51:03.776680    [includes UTCF correction]
       Where From?: (*SHORT BURST*) TDRSS scaled map message

  BAT
    RA: 273.130048097431   Dec: -9.5308586993301  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    9.33
     Image Trigger?:     NO
     Rate S/N Ratio:     26  [ if not an image trigger ]
     Image S/N Ratio:    9.33

  Flight Position:   [ source = BAT ]
    RA: 273.130048097431   Dec: -9.5308586993301  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 273.123307314123   Dec: -9.52486458167223  [deg; J2000]
        { 18h 12m 29.6s , -09d 31' 29.5" }
         +/- 1.7698993951083 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.605065131020687 [arcmin] (formal 1-sigma fit error)
    SNR: 13.4556946045909

  Angular difference between Flight and Ground position is 0.537067 arcmin

  Partial Coding Fraction: 1.015625    [ including projection effects ]

  Duration
     T90: 0.159999966621399 +/- 0.0288443860018143
        Measured from: 0
                   to: 0.159999966621399     [s; relative to TRIGTIME]
     T50: 0.0879999995231628 +/- 0.0291204412600908
        Measured from: 0.0199999809265137
                   to: 0.107999980449677     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.413999974727631
                   to: 0.586000025272369     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.0119999647140503
                   to: 0.180000007152557     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.022713   0.028869   0.035994   0.004563
           0.003958   0.003970   0.003671   0.002666 [error]
 Peak      0.028768   0.035706   0.043656   0.009066
           0.007640   0.007119   0.005978   0.004847 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 5.87e-09 1.28e-08 2.20e-08 8.70e-08 6.02e-08 1.28e-07   erg/cm2
              Error 1.33e-09 1.78e-09 3.27e-09 2.84e-08 8.31e-09 3.05e-08   erg/cm2
Peak flux Power-law 2.29e-01 2.76e-01 2.41e-01 3.61e-01 8.73e-01 1.11e+00   ph/cm2/s
              Error 8.17e-02 5.96e-02 4.70e-02 1.55e-01 1.61e-01 2.00e-01   ph/cm2/s

Fluence   Cutoff-PL 4.61e-09 1.38e-08 2.42e-08 2.78e-08 5.71e-08 7.04e-08   erg/cm2
              Error 1.71e-09 2.13e-09 4.04e-09 3.22e-08 8.81e-09 3.28e-08   erg/cm2
Peak flux Cutoff-PL 2.01e-01 2.81e-01 2.54e-01 2.40e-01 8.51e-01 9.76e-01   ph/cm2/s
              Error 1.54e-01 6.44e-02 5.85e-02 2.13e-01 1.71e-01 2.78e-01   ph/cm2/s

Fluence        Band 4.62e-09 1.37e-08 2.41e-08 3.04e-08 5.76e-08 7.31e-08   erg/cm2
              Error -------- -------- 3.91e-09 -------- -------- --------   erg/cm2
Peak flux      Band 2.11e-01 2.80e-01 2.50e-01 2.75e-01 8.55e-01 1.01e+00   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.221    0.209    -      -           3.11e-02 3.86e-03   64.320 57
CPL   0.166    1.089      95.8  160.9      9.51e-02 1.42e-01   60.690 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.196    0.316    -      -           7.44e-03 1.30e-03   57.250 57
CPL   0.736    1.434     160.5    0.0      1.18e-02 2.07e-02   56.820 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.128000 sec.
T50 in the 50-300 keV band: 0.064000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100    0.192   -0.012    0.180
T90     0.160    0.000    0.160
T50     0.088    0.020    0.108
Peak    1.000   -0.414    0.586

Click here for the BAT GCN circular template

Special notes of this burst


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  273.1233    -9.5249   0.0144    14.5632  -147.7568         0.0962465     13.456 TRIG_00559075

Foreground time interval of the image:
 -0.012   0.180 (delta_t =   0.192 [sec])
Background time interval of the image:
-239.496  -0.012 (delta_t = 239.484 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

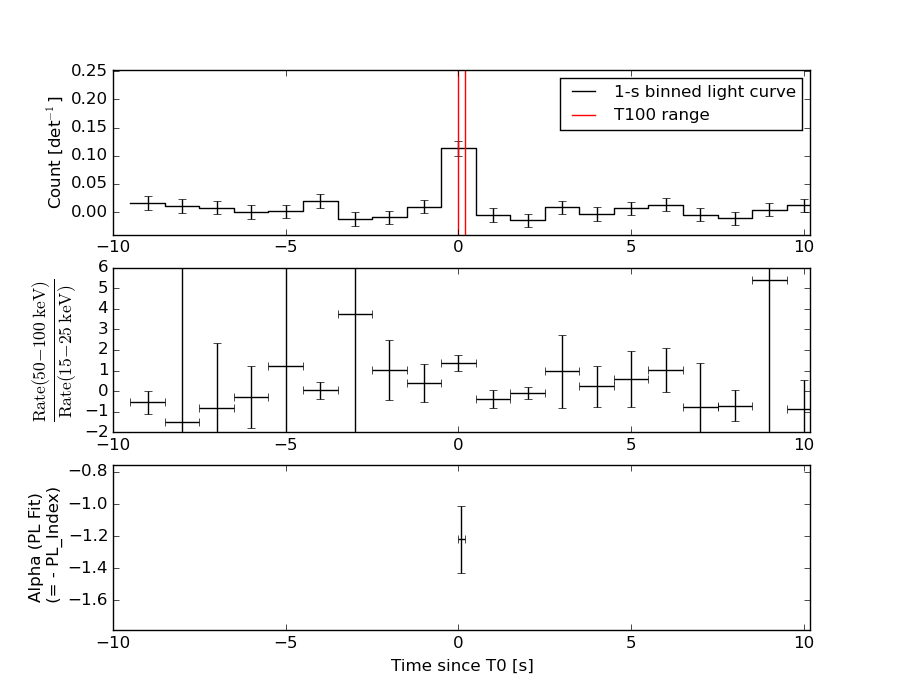

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -0.012 sec. to    0.180 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.22102     ( -0.210179   0.208808 )
Norm@50keV  : 3.10696E-02    ( -0.00385959   0.00385865 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          64.32 using 59 PHA bins.
# Reduced chi-squared =          1.128 for     57 degrees of freedom
# Null hypothesis probability =   2.358127e-01

Photon flux (15-150 keV)    in 0.192 sec: 3.65809 ( -0.464584  0.465561 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.01676e-08 ( -8.27142e-09  8.34956e-09 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.012 sec. to    0.180 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.165606     ( -1.22638   0.951531 )
Epeak [keV] : 95.8004      ( -25.0447 296.844 )
Norm@50keV  : 9.50661E-02    ( -0.059596   0.223602 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.69 using 59 PHA bins.
# Reduced chi-squared =          1.084 for     56 degrees of freedom
# Null hypothesis probability =   3.105638e-01

Photon flux (15-150 keV)    in 0.192 sec: 3.49717 ( -0.49306  0.48998 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.70818e-08 ( -8.74234e-09  8.87424e-09 ) ergs/cm2

Band function

Time interval is from   -0.012 sec. to    0.180 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.165296   ( -0.967616   0.813357 )
beta        : -10.0000    ( 10   1.06581e-14 )
Epeak [keV] : 95.8028      ( -20.0444 344.744 )
Norm@50keV   : 9.50720E-02    ( -0.0596023   0.223779 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.69 using 59 PHA bins.
# Reduced chi-squared =          1.104 for     55 degrees of freedom
# Null hypothesis probability =   2.781854e-01

Photon flux (15-150 keV)    in 0.192 sec: 3.54161 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.75562e-08 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 18.9625  (-2.47833  2.96299)
R^2/D10^2   : 0.207606  (-0.0796908   0.123297)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          64.55 using 59 PHA bins.
# Reduced chi-squared =          1.132 for     57 degrees of freedom
# Null hypothesis probability =   2.296893e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.819e-09   6.413e-10
25- 50  1.354e-08   2.635e-09
50-150  3.577e-08   8.506e-09
15-150  5.213e-08   9.571e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 15.1209       (-1.90747     1.90729)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          69.68 using 59 PHA bins.
# Reduced chi-squared =          1.223 for     57 degrees of freedom
# Null hypothesis probability =   1.207840e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.232e-09   4.063e-09
25- 50  1.391e-08   7.559e-09
50-150  3.051e-08   1.678e-08
15-150  5.166e-08   2.888e-08

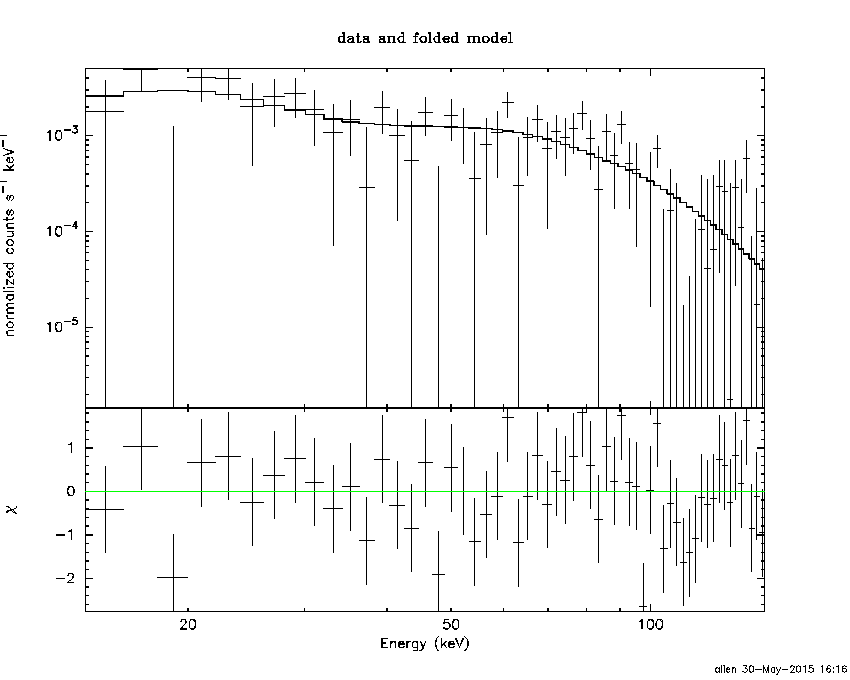

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.17422        (-2.21736      4.48401)
R1^2/D10^2  : 15.0633        (-14.2275      197.128)
kT2 [keV]   : 21.3250        (-3.34911      5.28537)
R2^2/D10^2  : 0.132227    (-0.0737075   0.0625383)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          58.30 using 59 PHA bins.
# Reduced chi-squared =          1.060 for     55 degrees of freedom
# Null hypothesis probability =   3.550673e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.388e-09   2.532e-09
25- 50  1.256e-08   3.647e-09
50-150  3.817e-08   1.212e-08
15-150  5.612e-08   1.384e-08

Peak spectrum fit

Power-law model

Time interval is from   -0.414 sec. to    0.586 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.19586     ( -0.320881   0.310849 )
Norm@50keV  : 7.44362E-03    ( -0.00130088   0.0012983 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          57.25 using 59 PHA bins.
# Reduced chi-squared =          1.004 for     57 degrees of freedom
# Null hypothesis probability =   4.659014e-01

Photon flux (15-150 keV)    in 1 sec: 0.873236 ( -0.15991  0.161105 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.56072e-08 ( -1.41135e-08  1.42467e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.414 sec. to    0.586 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.735949     ( -1.5721   1.29655 )
Epeak [keV] : 160.536      ( -160.655 -160.655 )
Norm@50keV  : 1.17911E-02    ( -0.00547419   0.0360215 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.82 using 59 PHA bins.
# Reduced chi-squared =          1.015 for     56 degrees of freedom
# Null hypothesis probability =   4.442068e-01

Photon flux (15-150 keV)    in 1 sec: 0.850951 ( -0.1721  0.169019 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.41205e-08 ( -1.47417e-08  1.48086e-08 ) ergs/cm2

Band function

Time interval is from   -0.414 sec. to    0.586 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.668048   ( -0.671814   1.50801 )
beta        : -9.37155    ( 9.37164   19.3716 )
Epeak [keV] : 147.316      ( -67.7086 -147.644 )
Norm@50keV   : 1.26143E-02    ( -0.00628214   0.012084 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.83 using 59 PHA bins.
# Reduced chi-squared =          1.033 for     55 degrees of freedom
# Null hypothesis probability =   4.066759e-01

Photon flux (15-150 keV)    in 1 sec: 0.860068 0.855253 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 21.7392  (-4.18024  5.60249)
R^2/D10^2   : 3.08166E-02  (-0.0161124   0.0312844)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.80 using 59 PHA bins.
# Reduced chi-squared =          1.067 for     57 degrees of freedom
# Null hypothesis probability =   3.408895e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.710e-09   1.058e-09
25- 50  1.423e-08   4.210e-09
50-150  5.022e-08   1.762e-08
15-150  6.716e-08   1.910e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 3.67460       (-0.652149     0.652035)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.92 using 59 PHA bins.
# Reduced chi-squared =          1.069 for     57 degrees of freedom
# Null hypothesis probability =   3.368419e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  9.156e-09   5.240e-09
25- 50  1.761e-08   1.011e-08
50-150  3.863e-08   2.194e-08
15-150  6.539e-08   3.721e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.20091        (-2.34017      3.51049)
R1^2/D10^2  : 2.08464        (-1.86082      32.0588)
kT2 [keV]   : 26.3307        (-5.97004      10.7701)
R2^2/D10^2  : 1.51861E-02    (-0.0101218   0.0208401)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.96 using 59 PHA bins.
# Reduced chi-squared =         0.9811 for     55 degrees of freedom
# Null hypothesis probability =   5.142761e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.698e-09   4.452e-09
25- 50  1.461e-08   7.780e-09
50-150  5.293e-08   3.079e-08
15-150  7.524e-08   4.029e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

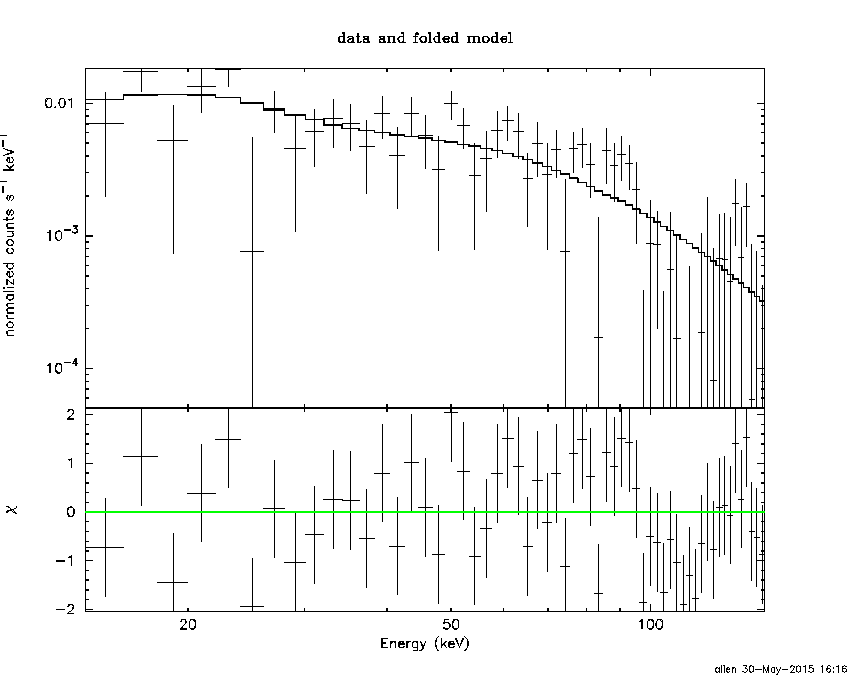

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.22102     ( -0.210179   0.208808 )
Norm@50keV  : 3.10696E-02    ( -0.00385959   0.00385865 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          64.32 using 59 PHA bins.
# Reduced chi-squared =          1.128 for     57 degrees of freedom
# Null hypothesis probability =   2.358127e-01

Photon flux (15-150 keV)    in 0.192 sec: 3.65809 ( -0.464584  0.465561 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.01676e-08 ( -8.27142e-09  8.34956e-09 ) ergs/cm2

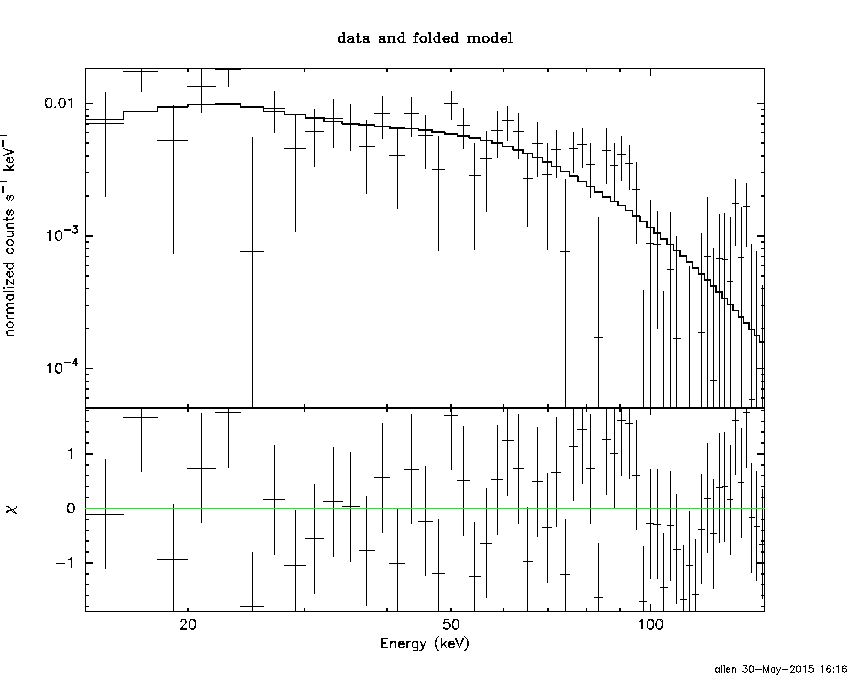

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.165606     ( -1.22638   0.951531 )
Epeak [keV] : 95.8004      ( -25.0447 296.844 )
Norm@50keV  : 9.50661E-02    ( -0.059596   0.223602 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.69 using 59 PHA bins.
# Reduced chi-squared =          1.084 for     56 degrees of freedom
# Null hypothesis probability =   3.105638e-01

Photon flux (15-150 keV)    in 0.192 sec: 3.49717 ( -0.49306  0.48998 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.70818e-08 ( -8.74234e-09  8.87424e-09 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.165296   ( -0.967616   0.813357 )
beta        : -10.0000    ( 10   7.10543e-15 )
Epeak [keV] : 95.8028      ( -20.0444 344.744 )
Norm@50keV   : 9.50720E-02    ( -0.0596023   0.223779 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          60.69 using 59 PHA bins.
# Reduced chi-squared =          1.104 for     55 degrees of freedom
# Null hypothesis probability =   2.781854e-01

Photon flux (15-150 keV)    in 0.192 sec: 3.54161 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.75562e-08 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.28e-08
S(50-100 keV) = 2.20e-08

T90 vs. Hardness ratio plot

T90                                   = 0.159999966621399 sec.
Hardness ratio (energy fluence ratio) = 1.71875

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.27103
Count Ratio (50-100 keV) / (15-25 keV) = 1.58473

Mask shadow pattern

IMX = -2.197313037189493E-01, IMY = 1.386037145445926E-01

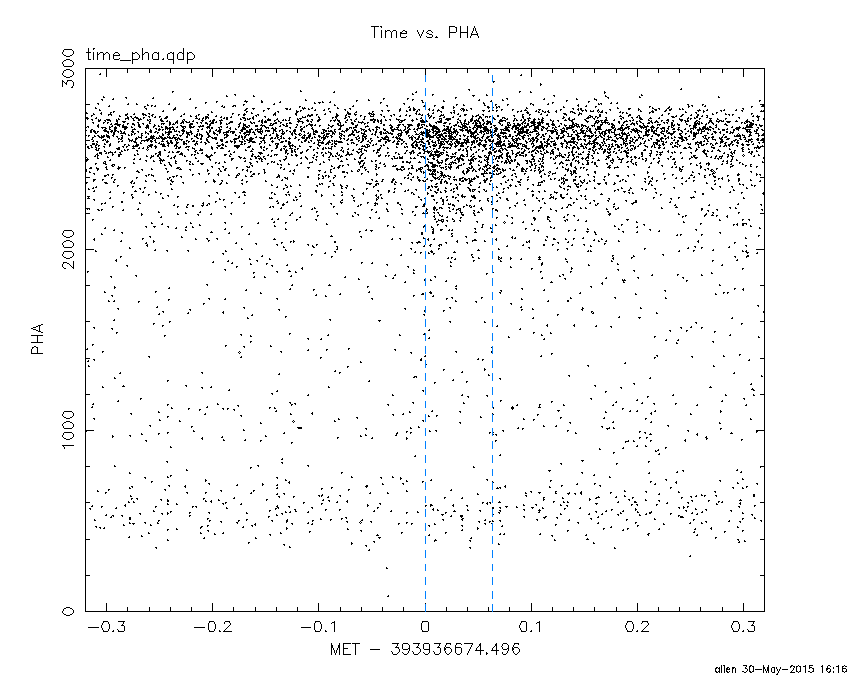

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 0.064000

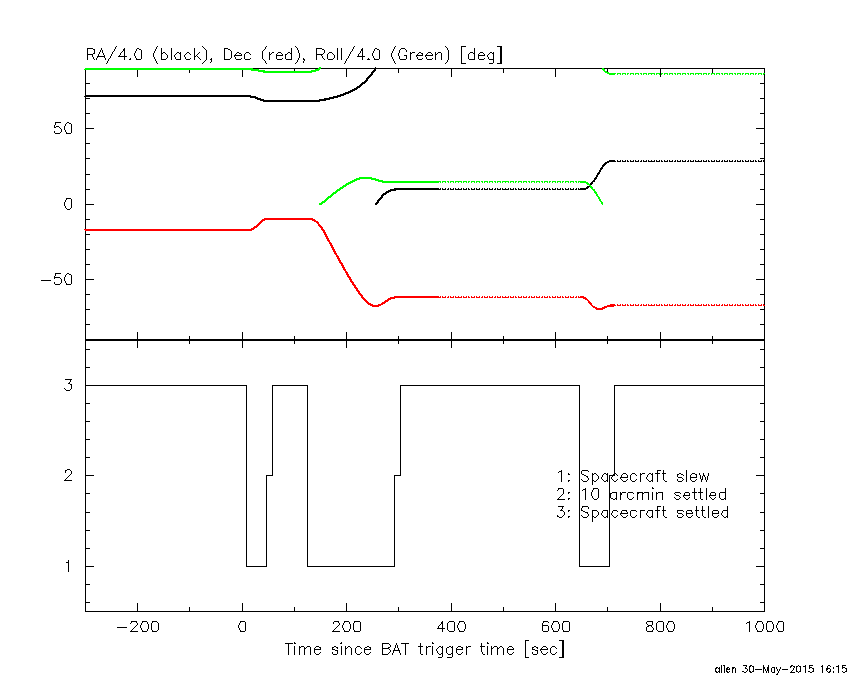

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.496000 -0.012000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9777 -15.6421    0.3  39.3  178.7  18.4231  42.2    0.2	Sco X-1
255.9962 -37.8669    0.9  33.5  138.3   6.3692  12.5    1.4	4U 1700-377
256.4217 -36.5619    5.6  32.6  140.1   1.0239   2.1    8.4	GX 349+2
263.0593 -24.8203   10.0  22.7  158.9   0.3374   1.1    5.3	GX 1+4
264.5682 -44.4433    4.0  32.8  121.5  -1.5557  -2.9    7.5	4U 1735-44
268.2217  -1.4884    7.5  23.4 -137.4   0.4533   1.5    9.0	SW J1753.5-0127
270.3154 -25.2267   10.5  16.7  150.8   0.3217   1.1    9.0	GX 5-1
270.2880 -25.8877    4.3  17.0  148.8   0.7889   2.7    8.7	GRS 1758-258
274.0422 -14.0510    2.1  11.9 -164.2   1.6120   5.4    2.3	GX 17+2
275.9112 -30.2455   36.0  16.1  125.7  -0.1031  -0.3    7.3	H1820-303
285.1678 -24.7655    7.1   7.7   98.0   0.4669   1.6   11.7	HT1900.1-2455
288.7708  10.9855    1.3  28.2  -81.4   3.5912   9.0    2.9	GRS 1915+105
263.1258 -33.9918    4.1  26.5  138.8  -1.0451  -2.8   11.6	GX 354-0

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.012000 0.180000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.8807 -15.7418    9.2  39.3  178.5  -0.0133  -1.3    8.3	Sco X-1
255.9717 -37.9661   15.1  33.6  138.2  -0.0099  -0.8    7.3	4U 1700-377
256.3631 -36.5485   40.5  32.6  140.2  -0.0035  -0.3    8.3	GX 349+2
262.9056 -24.7624    5.6  22.8  159.1   0.0167   2.1    5.7	GX 1+4
264.5609 -44.4010    3.8  32.7  121.5   0.0472   3.0    8.3	4U 1735-44
268.3798  -1.5426    5.0  23.2 -137.2   0.0179   2.3    5.4	SW J1753.5-0127
270.4532 -24.9441    0.0  16.5  151.5  -0.0176  -2.2   12.3	GX 5-1
270.4669 -25.7517    4.8  16.8  149.0   0.0189   2.4    8.9	GRS 1758-258
273.9895 -13.8893    7.0  11.9 -163.6   0.0112   1.6    8.9	GX 17+2
275.8459 -30.3629   11.9  16.2  125.6   0.0074   1.0    4.1	H1820-303
284.9246 -24.7745   12.2   7.8   99.6   0.0070   0.9   10.7	HT1900.1-2455
288.9444  10.8005    0.0  28.0  -81.0  -0.0130  -1.3   12.2	GRS 1915+105
263.1498 -33.9773    3.5  26.5  138.8  -0.0305  -3.3   11.7	GX 354-0
305.0306 -10.2034    2.5  19.8  -15.1   0.0342   4.7 ------	UNKNOWN
273.1233  -9.5249    0.9  14.6 -147.8   0.0962  13.5 ------	UNKNOWN
262.6846  14.1606    1.9  38.7 -125.0   0.0853   6.0 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
47.004600 125.004600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9947 -15.6486    0.5  28.1  173.6   6.8005  22.7    1.0	Sco X-1
255.9869 -37.8286    2.4  32.2  125.0   2.0692   4.7    0.9	4U 1700-377
256.3847 -36.4652    4.2  30.9  125.9   1.0921   2.7    3.5	GX 349+2
262.8697 -24.6099    3.5  18.0  130.8   0.8822   3.3   11.1	GX 1+4
264.9529 -44.5928    0.0  35.8  109.1  -1.2207  -2.1   12.4	4U 1735-44
268.3659  -1.3849    7.7   9.4 -111.5   0.4001   1.5    4.1	SW J1753.5-0127
270.4490 -25.0961    3.6  15.8  108.1   0.8692   3.4    9.0	GX 5-1
270.4414 -25.6090    7.4  16.3  107.8   0.4840   1.9   11.0	GRS 1758-258
273.8710 -13.9885    7.1   4.5   90.1   0.4267   1.6    8.4	GX 17+2
276.1157 -30.4905    0.0  21.1   92.0   0.0751   0.2   12.3	H1820-303
285.2087 -24.9727   86.3  19.2   64.0   0.0402   0.1    9.9	HT1900.1-2455
288.7414  10.8593    3.0  25.6  -43.3   1.0359   3.8    6.2	GRS 1915+105
262.8709 -33.7007    9.3  25.9  118.9  -0.4178  -1.2   10.0	GX 354-0
285.6184 -15.7470    2.6  13.7   37.4   1.1409   4.4 ------	UNKNOWN
241.4300 -16.0389    2.7  31.6  173.9   1.2530   4.3 ------	UNKNOWN
220.9873 -10.8284    2.4  51.3 -177.2   3.5841   4.9 ------	UNKNOWN
223.5146  -7.3207    2.4  49.1 -172.4   2.7442   4.9 ------	UNKNOWN
321.0381  20.6972    2.7  55.9  -24.0   4.3673   4.2 ------	UNKNOWN

Plot creation:
Sat May 30 16:17:00 EDT 2015
