batgrbproduct analysis for trigger=566561

batgrbproduct Analysis for Trigger=566561

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sat Jan 11 23:45:47 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger566561
======================================================================

  Trigger: 00566561      Segment: 000

  BAT Trigger Time: 398321629.504   [s; MET]
      Trigger Stop: 398321630.528   [s; MET]
               UTC: 2013-08-16T04:53:38.587620    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 170.092535443697   Dec: -57.5581832376266  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    10.39
     Image Trigger?:     NO
     Rate S/N Ratio:     16.062378404209  [ if not an image trigger ]
     Image S/N Ratio:    10.39

  Flight Position:   [ source = BAT ]
    RA: 170.092535443697   Dec: -57.5581832376266  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 170.047101745408   Dec: -57.5377683993217  [deg; J2000]
        { 11h 20m 11.3s , -57d 32' 16.0" }
         +/- 1.59443637830679 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.555378595485049 [arcmin] (formal 1-sigma fit error)
    SNR: 15.619946088531

  Angular difference between Flight and Ground position is 1.907888 arcmin

  Partial Coding Fraction: 0.984375    [ including projection effects ]

  Duration
     T90: 8.67599999904633 +/- 2.34176005165807
        Measured from: -3.16400003433228
                   to: 5.51199996471405     [s; relative to TRIGTIME]
     T50: 2.60399997234344 +/- 0.66971335751184
        Measured from: -1.39200001955032
                   to: 1.21199995279312     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 0.167999982833862
                   to: 1.16799998283386     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -3.73600000143051
                   to: 7.66799998283386     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.178608   0.236588   0.105671   0.008653
           0.017589   0.018012   0.015598   0.013595 [error]
 Peak      0.041756   0.056238   0.031595   0.001000
           0.005556   0.005804   0.004957   0.004268 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 5.41e-08 8.16e-08 9.19e-08 1.97e-07 2.87e-07 4.25e-07   erg/cm2
              Error 7.47e-09 7.88e-09 1.43e-08 6.06e-08 3.35e-08 7.58e-08   erg/cm2
Peak flux Power-law 3.70e-01 3.38e-01 2.13e-01 2.05e-01 1.01e+00 1.13e+00   ph/cm2/s
              Error 6.79e-02 4.32e-02 3.83e-02 6.95e-02 1.28e-01 1.48e-01   ph/cm2/s

Fluence   Cutoff-PL 4.75e-08 9.62e-08 8.44e-08 2.54e-08 2.48e-07 2.54e-07   erg/cm2
              Error 8.59e-09 1.17e-08 1.89e-08 -------- 3.61e-08 4.88e-08   erg/cm2
Peak flux Cutoff-PL 3.12e-01 4.19e-01 2.04e-01 2.68e-02 9.60e-01 9.63e-01   ph/cm2/s
              Error 7.72e-02 6.36e-02 5.18e-02 3.89e-02 1.28e-01 1.31e-01   ph/cm2/s

Fluence        Band 4.69e-08 9.62e-08 8.28e-08 4.61e-08 2.51e-07 2.72e-07   erg/cm2
              Error 9.54e-09 1.29e-08 -------- 7.50e-08 -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.827    0.171    -      -           2.73e-03 3.14e-04   66.250 57
CPL   0.343    0.989      46.2    9.8      1.96e-02 4.35e-02   56.660 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.667    0.204    -      -           7.66e-03 1.09e-03   51.140 57
CPL  -0.225    1.216      48.9   11.4      9.52e-02 3.07e-01   40.210 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 5.696000 sec.
T50 in the 50-300 keV band: 3.072000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   11.404   -3.736    7.668
T90     8.676   -3.164    5.512
T50     2.604   -1.392    1.212
Peak    1.000    0.168    1.168

Click here for the BAT GCN circular template

Special notes of this burst

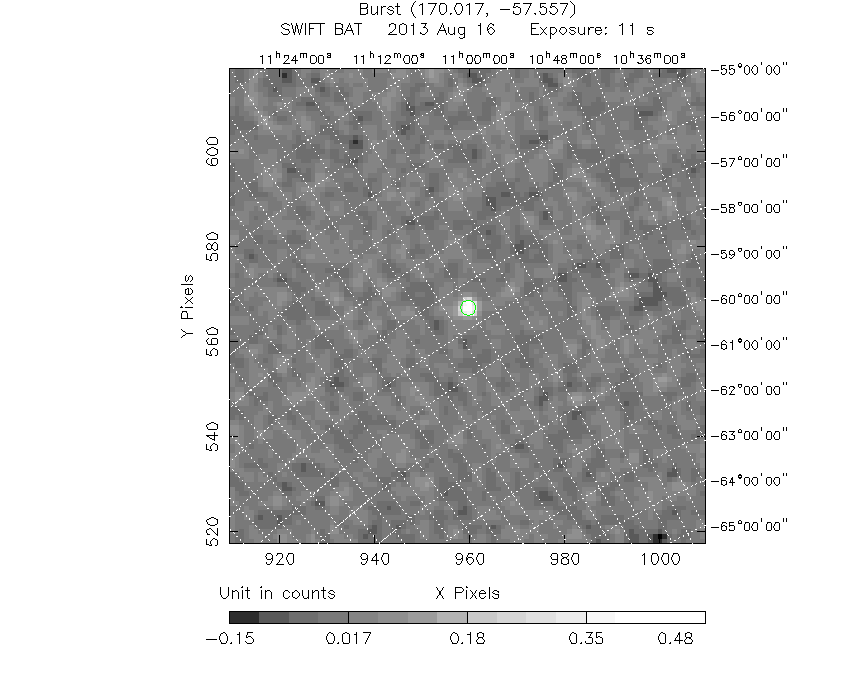

Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  170.0471   -57.5378   0.0123    14.2408  -131.4742         0.5193268     15.620 TRIG_00566561

Foreground time interval of the image:
 -3.736   7.668 (delta_t =  11.404 [sec])
Background time interval of the image:
-191.403  -3.736 (delta_t = 187.667 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

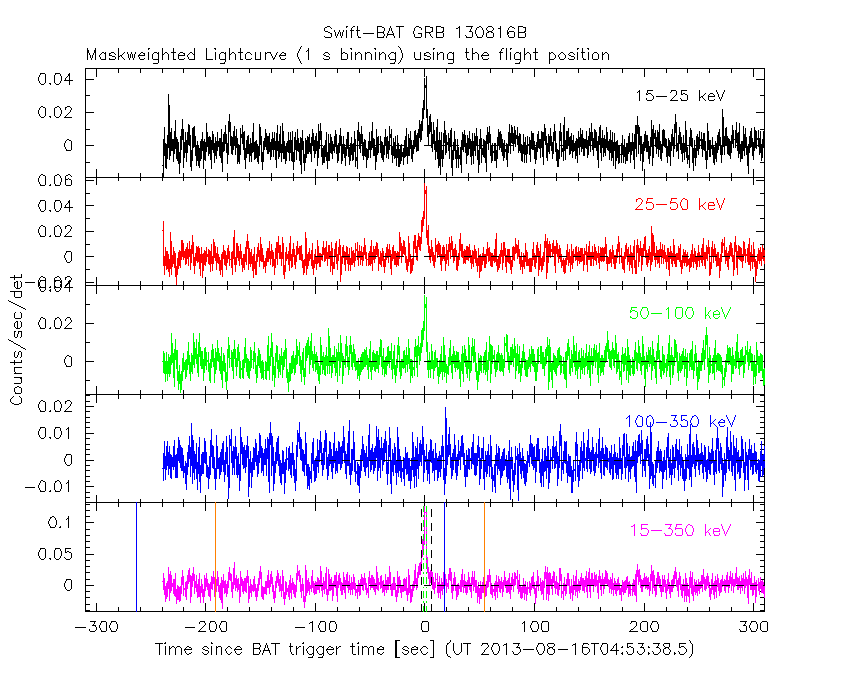

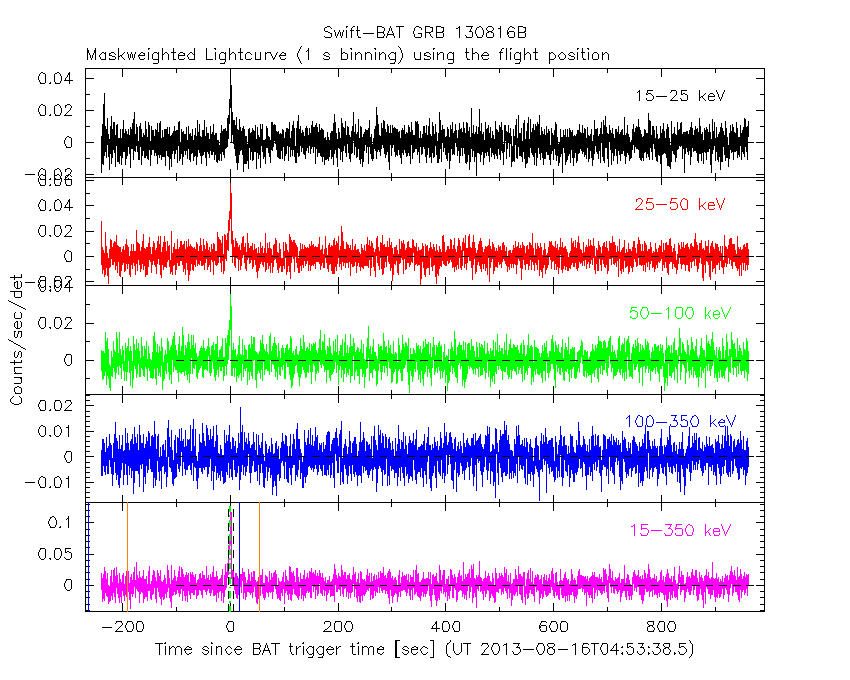

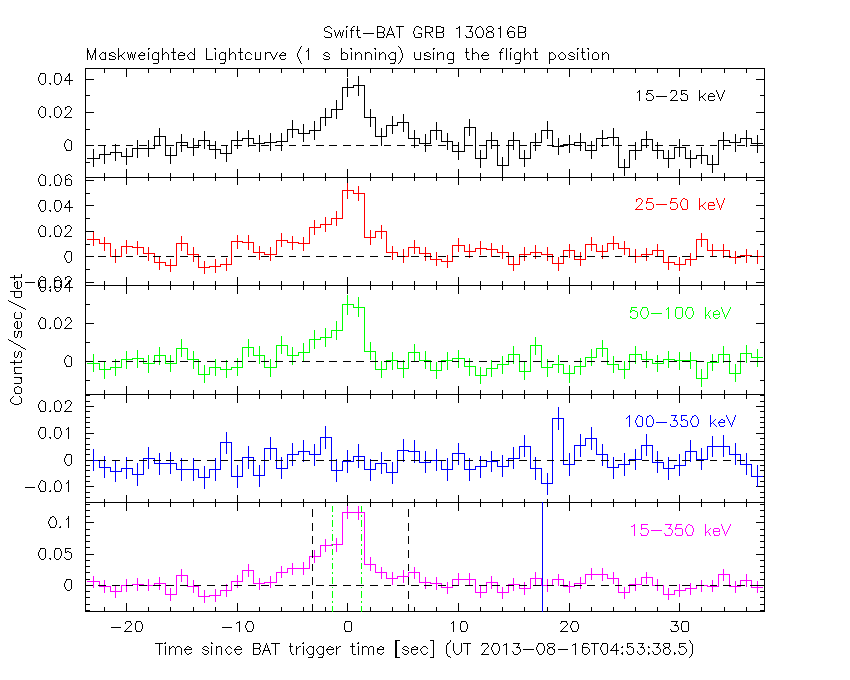

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

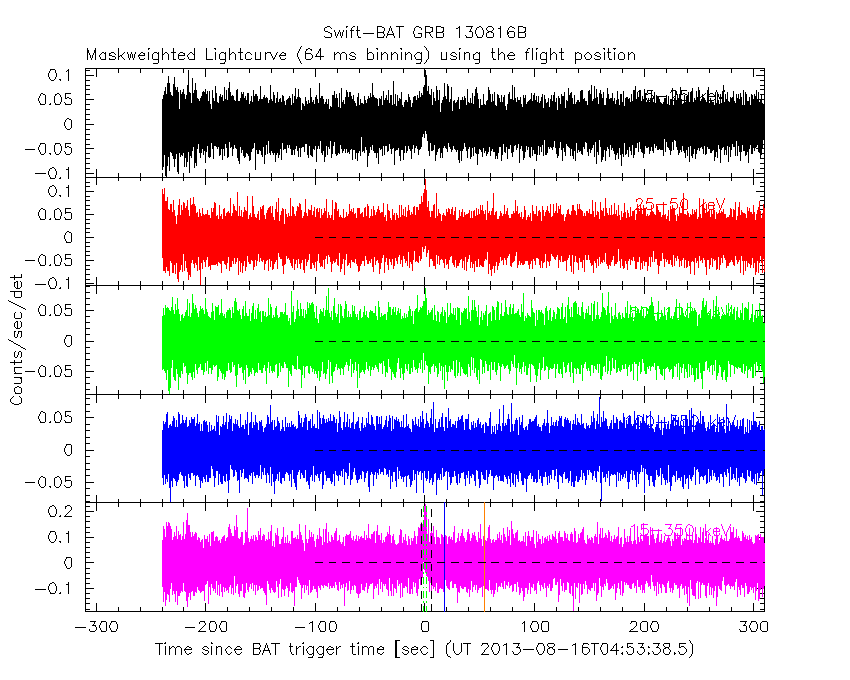

64 ms binning

Full time interval

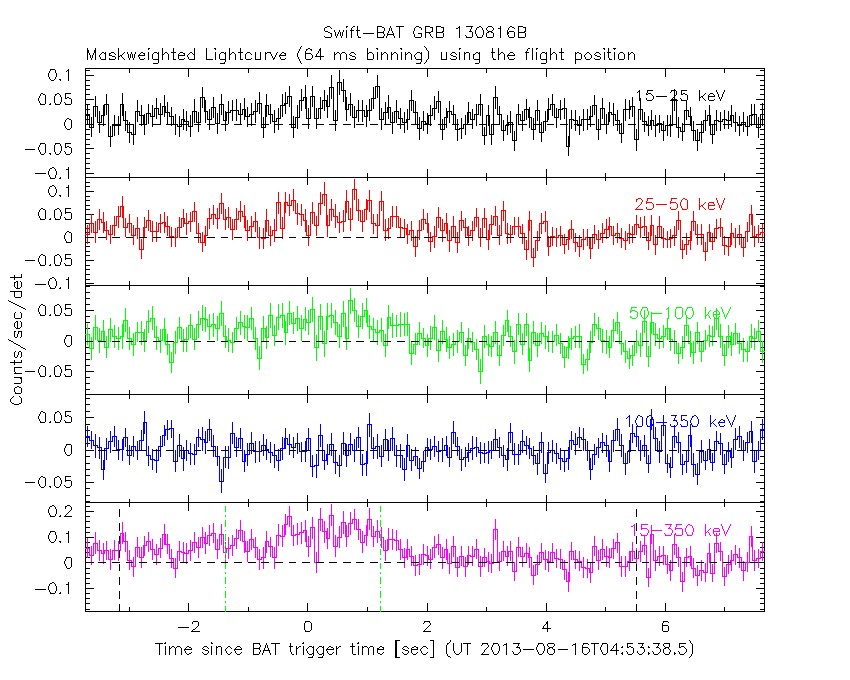

From T100_start to T100_end

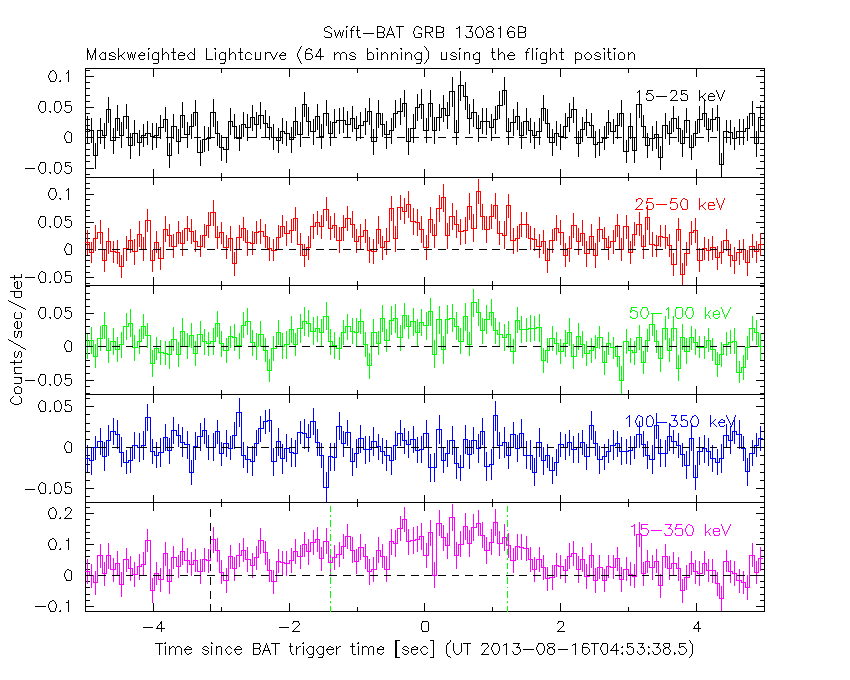

From T0-5 sec to T0+5 sec

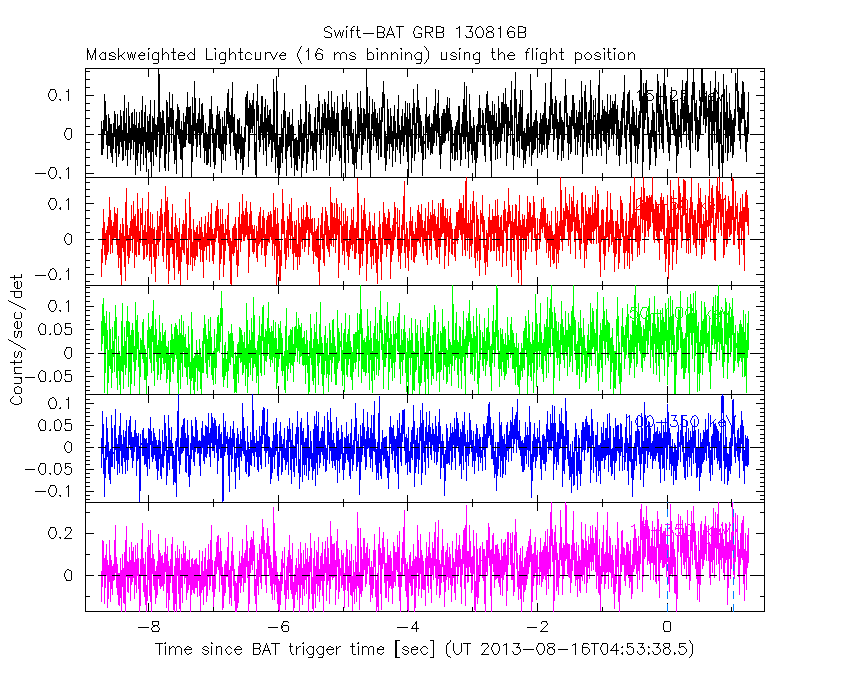

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

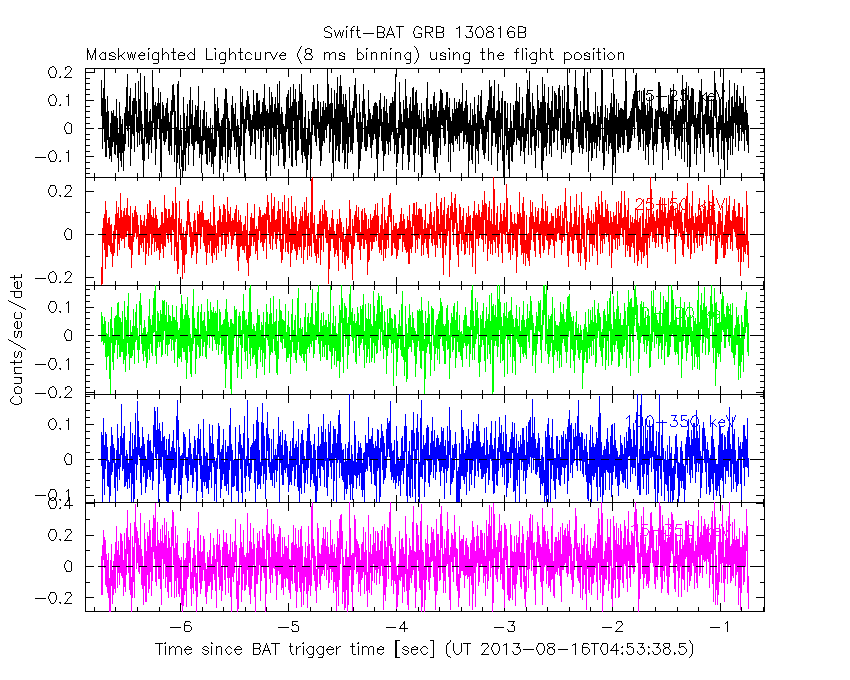

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

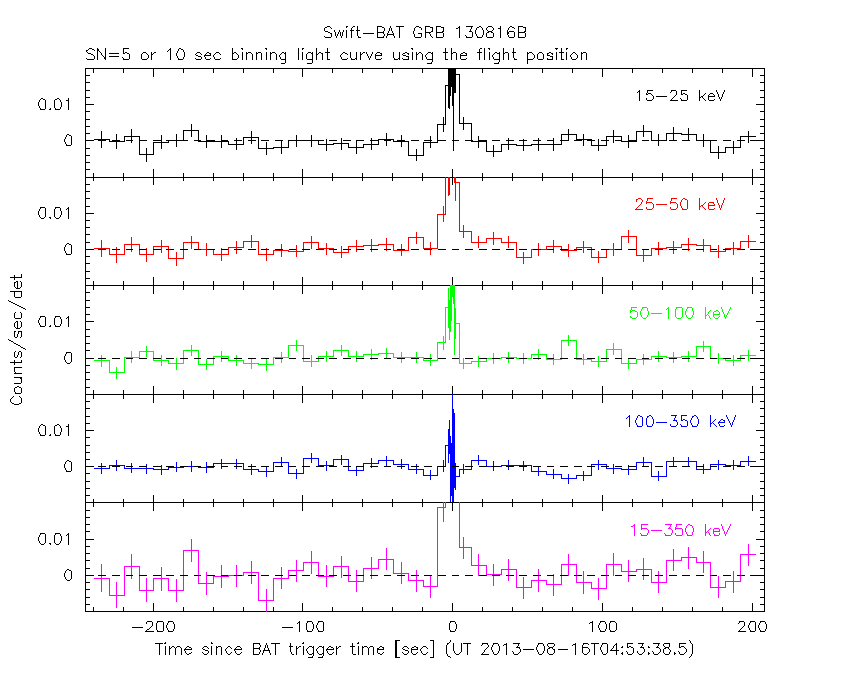

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

The mask-weighted light curves based on cleaned DPHs

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

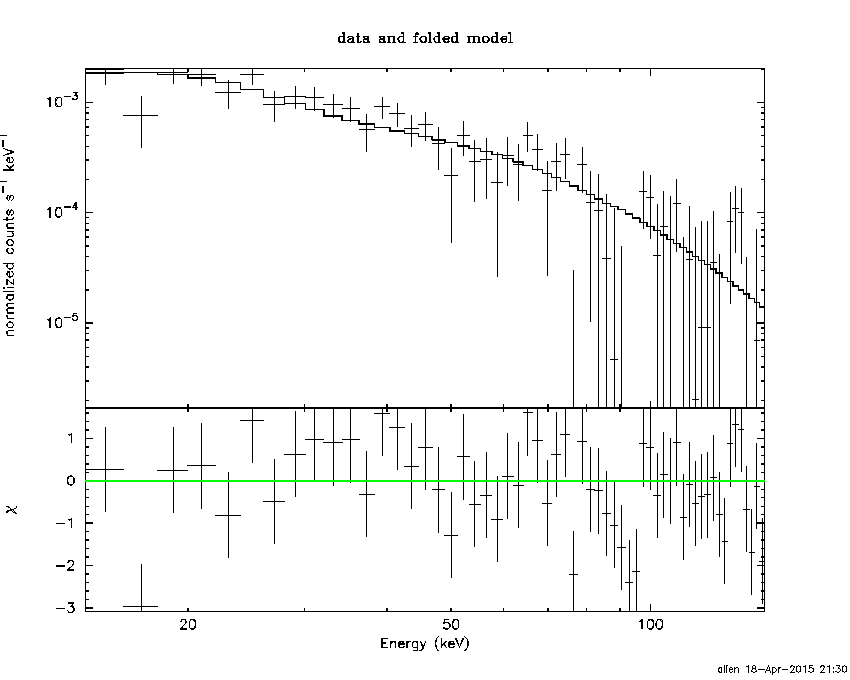

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -3.736 sec. to    7.668 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.82701     ( -0.167631   0.174613 )
Norm@50keV  : 2.73453E-03    ( -0.00031649   0.000311746 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.25 using 59 PHA bins.
# Reduced chi-squared =          1.162 for     57 degrees of freedom
# Null hypothesis probability =   1.879386e-01

Photon flux (15-150 keV)    in 11.4 sec: 0.380830 ( -0.0368098  0.0368161 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.86765e-07 ( -3.31912e-08  3.38867e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -3.736 sec. to    7.668 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.343086     ( -1.10254   0.875273 )
Epeak [keV] : 46.2423      ( -6.87586 12.818 )
Norm@50keV  : 1.95787E-02    ( -0.0196853   0.0674142 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.66 using 59 PHA bins.
# Reduced chi-squared =          1.012 for     56 degrees of freedom
# Null hypothesis probability =   4.501904e-01

Photon flux (15-150 keV)    in 11.4 sec: 0.360854 ( -0.037927  0.038214 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.48283e-07 ( -3.42912e-08  3.78799e-08 ) ergs/cm2

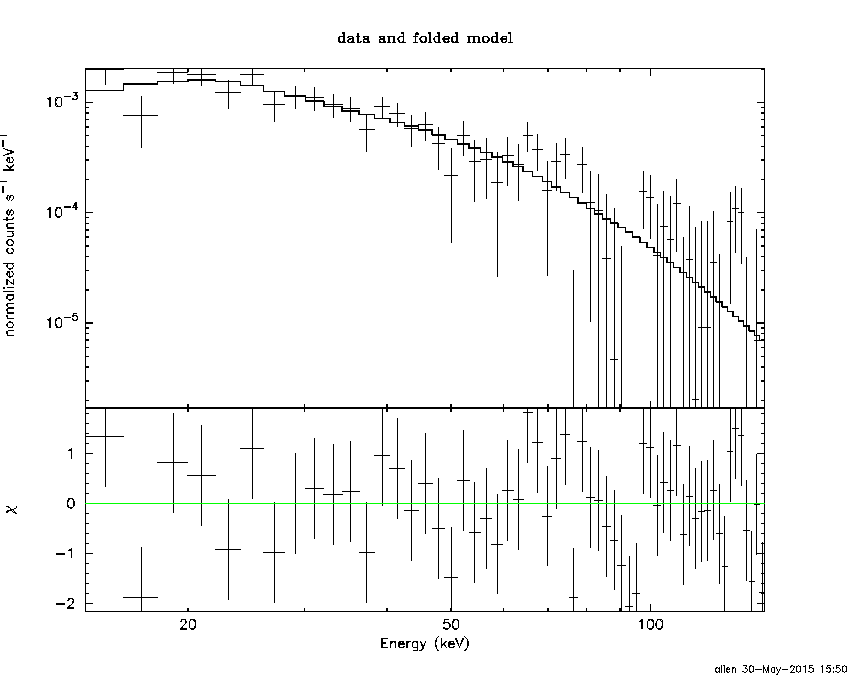

Band function

Time interval is from   -3.736 sec. to    7.668 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.345455   ( -0.839601   0.948498 )
beta        : -2.53262    ( 9.37167   19.3717 )
Epeak [keV] : 39.7987      ( -7.10174 12.1587 )
Norm@50keV   : 5.81996E-02    ( -0.0598238   57.4207 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.30 using 59 PHA bins.
# Reduced chi-squared =          1.024 for     55 degrees of freedom
# Null hypothesis probability =   4.259971e-01

Photon flux (15-150 keV)    in 11.4 sec: 0.364017 ( 6.63598  -0.037752 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.50898e-07 ( 0  0 ) ergs/cm2

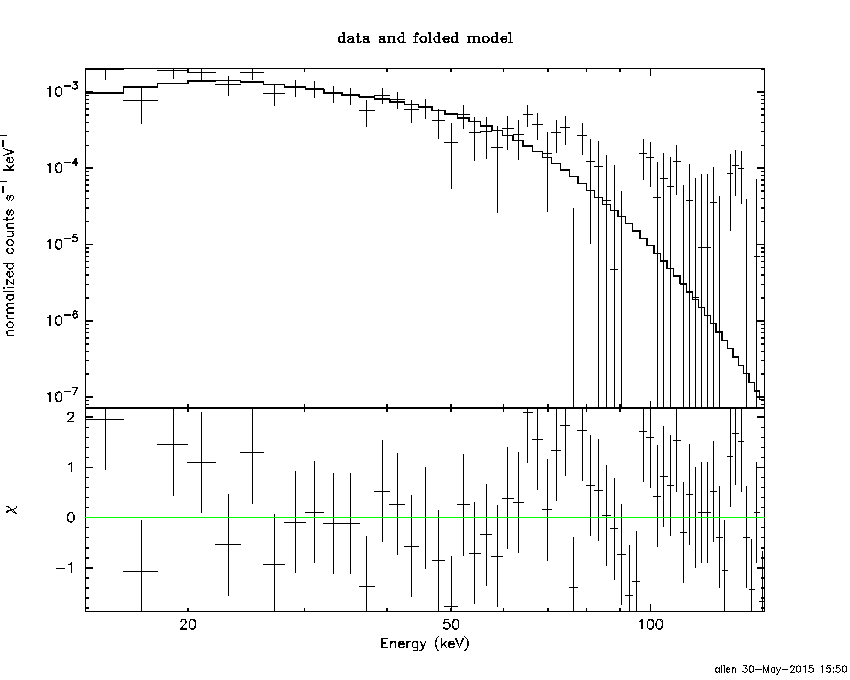

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 10.7551  (-1.07444  1.2134)
R^2/D10^2   : 0.141574  (-0.0469065   0.0685468)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          63.77 using 59 PHA bins.
# Reduced chi-squared =          1.119 for     57 degrees of freedom
# Null hypothesis probability =   2.507246e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.882e-08   5.951e-09
25- 50  1.066e-07   1.313e-08
50-150  6.843e-08   1.739e-08
15-150  2.139e-07   2.673e-08

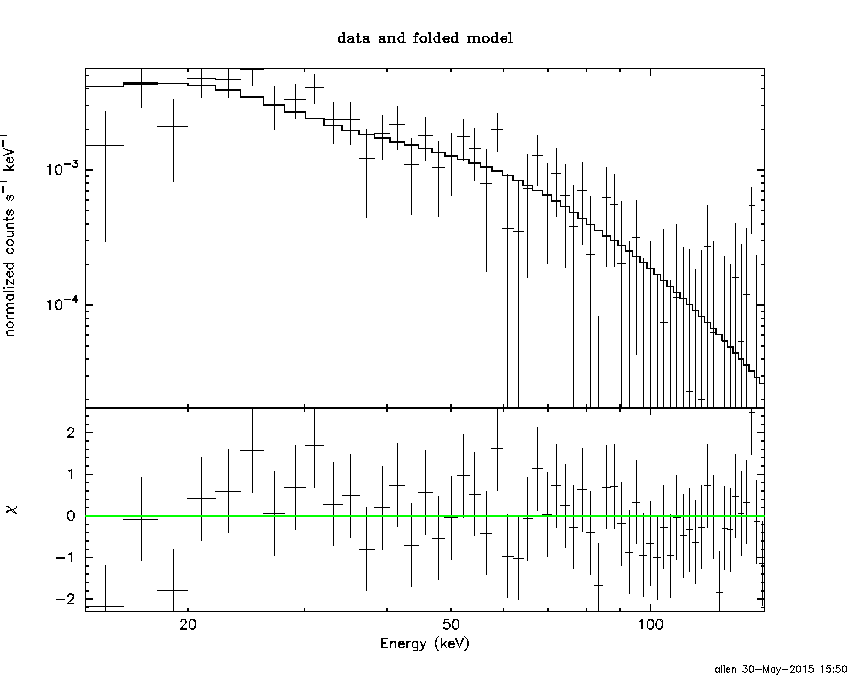

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 83.6302       (-22.7547      39.2561)
Norm        : 1.78230       (-0.229784     0.28015)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          59.94 using 59 PHA bins.
# Reduced chi-squared =          1.052 for     57 degrees of freedom
# Null hypothesis probability =   3.696325e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.286e-08   7.741e-09
25- 50  8.793e-08   1.016e-08
50-150  1.278e-07   5.983e-08
15-150  2.686e-07   5.523e-08

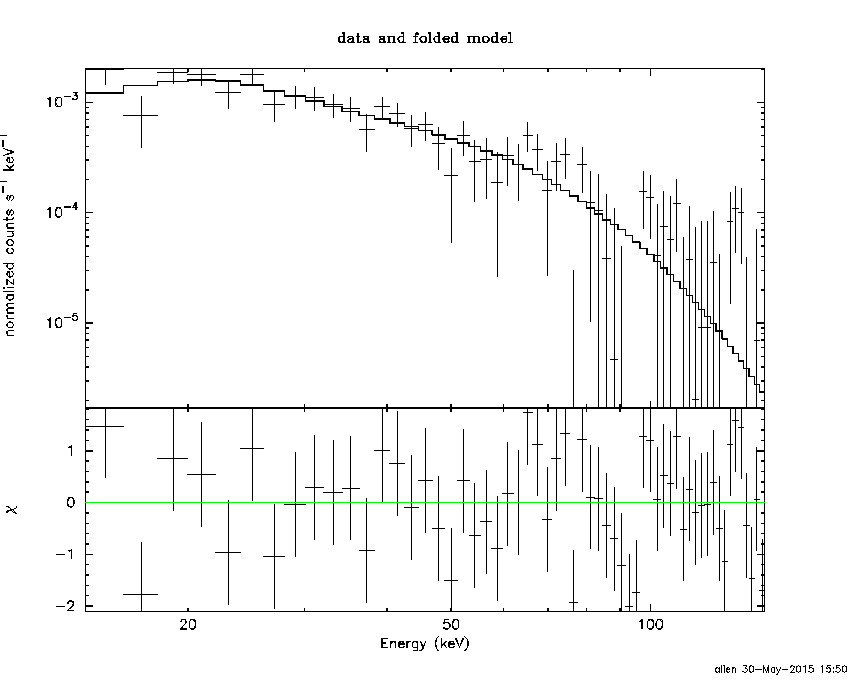

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.35948        (-3.1868      2.5971)
R1^2/D10^2  : 0.367255        (-0.201424      1.43352)
kT2 [keV]   : 18.3801        (-14.2103      38.1619)
R2^2/D10^2  : 1.10121E-02    (-0.0108117   0.0657994)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.06 using 59 PHA bins.
# Reduced chi-squared =          1.019 for     55 degrees of freedom
# Null hypothesis probability =   4.349257e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.669e-08   2.336e-08
25- 50  9.724e-08   4.929e-08
50-150  1.090e-07   6.276e-08
15-150  2.530e-07   1.240e-07

Peak spectrum fit

Power-law model

Time interval is from    0.168 sec. to    1.168 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.66713     ( -0.201261   0.207387 )
Norm@50keV  : 7.66239E-03    ( -0.00109494   0.00108163 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.14 using 59 PHA bins.
# Reduced chi-squared =         0.8972 for     57 degrees of freedom
# Null hypothesis probability =   6.934386e-01

Photon flux (15-150 keV)    in 1 sec: 1.00624 ( -0.128143  0.12816 ) ph/cm2/s
Energy fluence (15-150 keV)             : 7.11559e-08 ( -1.06307e-08  1.08701e-08 ) ergs/cm2

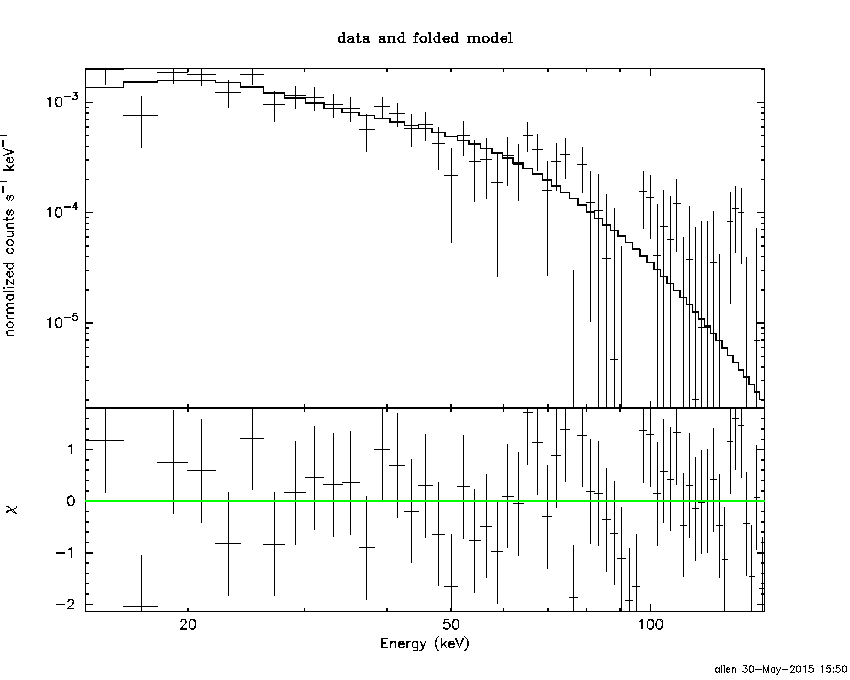

Cutoff power-law model

Time interval is from    0.168 sec. to    1.168 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.225291     ( -1.37127   1.06016 )
Epeak [keV] : 48.8742      ( -7.91196 14.8457 )
Norm@50keV  : 9.52060E-02    ( -0.0952072   0.518325 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          40.21 using 59 PHA bins.
# Reduced chi-squared =         0.7181 for     56 degrees of freedom
# Null hypothesis probability =   9.447822e-01

Photon flux (15-150 keV)    in 1 sec: 0.959794 ( -0.127671  0.128626 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.00595e-08 ( -1.01353e-08  1.13729e-08 ) ergs/cm2

Band function

Time interval is from    0.168 sec. to    1.168 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.225419   ( -0.597555   1.10564 )
beta        : -10.00000    ( 10   4.10193e-06 )
Epeak [keV] : 48.8638      ( -7.49676 14.8415 )
Norm@50keV   : 9.52434E-02    ( -0.0117421   0.520188 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          40.21 using 59 PHA bins.
# Reduced chi-squared =         0.7311 for     55 degrees of freedom
# Null hypothesis probability =   9.326422e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 11.5579  (-1.46234  1.71042)
R^2/D10^2   : 0.302418  (-0.121109   0.19513)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          43.08 using 59 PHA bins.
# Reduced chi-squared =         0.7557 for     57 degrees of freedom
# Null hypothesis probability =   9.138413e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.510e-09   1.930e-09
25- 50  2.560e-08   4.300e-09
50-150  2.004e-08   6.035e-09
15-150  5.415e-08   9.175e-09

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 114.632       (-42.0308      -113.041)
Norm        : 4.37510       (-0.644878     0.809553)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.21 using 59 PHA bins.
# Reduced chi-squared =         0.8107 for     57 degrees of freedom
# Null hypothesis probability =   8.458521e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.141e-08   2.049e-09
25- 50  2.025e-08   4.610e-09
50-150  3.533e-08   1.965e-08
15-150  6.700e-08   2.821e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 7.56588        (-3.36866      -7.6669)
R1^2/D10^2  : 0.777377        (-0.550263      2.32332)
kT2 [keV]   : 17.5564        (-17.7863      -17.7871)
R2^2/D10^2  : 4.06019E-02    (-0.0386086   0.205968)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          39.06 using 59 PHA bins.
# Reduced chi-squared =         0.7102 for     55 degrees of freedom
# Null hypothesis probability =   9.486897e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.022e-08   6.105e-09
25- 50  2.365e-08   1.265e-08
50-150  2.812e-08   1.554e-08
15-150  6.200e-08   3.216e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.82701     ( -0.167631   0.174613 )
Norm@50keV  : 2.73453E-03    ( -0.00031649   0.000311746 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          66.25 using 59 PHA bins.
# Reduced chi-squared =          1.162 for     57 degrees of freedom
# Null hypothesis probability =   1.879386e-01

Photon flux (15-150 keV)    in 11.4 sec: 0.380830 ( -0.0368098  0.0368161 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.86765e-07 ( -3.31912e-08  3.38867e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.343086     ( -1.10254   0.875273 )
Epeak [keV] : 46.2423      ( -6.87586 12.818 )
Norm@50keV  : 1.95787E-02    ( -0.0196853   0.0674142 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.66 using 59 PHA bins.
# Reduced chi-squared =          1.012 for     56 degrees of freedom
# Null hypothesis probability =   4.501904e-01

Photon flux (15-150 keV)    in 11.4 sec: 0.360854 ( -0.037927  0.038214 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.48283e-07 ( -3.42912e-08  3.78799e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 0.345455   ( -0.839601   0.948498 )
beta        : -2.53262    ( 9.37167   19.3717 )
Epeak [keV] : 39.7987      ( -7.10174 12.1587 )
Norm@50keV   : 5.81996E-02    ( -0.0598238   57.3992 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          56.30 using 59 PHA bins.
# Reduced chi-squared =          1.024 for     55 degrees of freedom
# Null hypothesis probability =   4.259971e-01

Photon flux (15-150 keV)    in 11.4 sec: 0.364017 ( 6.63598  -0.037752 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.50898e-07 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 8.16e-08
S(50-100 keV) = 9.19e-08

T90 vs. Hardness ratio plot

T90                                   = 8.67599999904633 sec.
Hardness ratio (energy fluence ratio) = 1.12623

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.32462
Count Ratio (50-100 keV) / (15-25 keV) = 0.591636

Mask shadow pattern

IMX = -1.680850985297974E-01, IMY = 1.901583252465348E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-191.403390 -3.736000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5254 -40.5341    1.9  42.0 -127.6   2.2358   6.2    1.2	Vela X-1
170.2179 -60.6388    2.4  13.6 -144.1   0.7673   4.8    3.0	Cen X-3
186.5698 -62.8960    6.3   6.5 -167.5   0.3044   1.8    7.9	GX 301-2
256.1112 -37.7130    0.0  42.7   51.8   0.8673   1.3    9.8	4U 1700-377
256.6072 -36.4086   22.8  44.0   51.0   0.3597   0.5    8.3	GX 349+2
 96.0356 -43.5905    3.1  58.8 -159.2   4.2809   3.7 ------	UNKNOWN
108.9182 -45.5759    2.6  51.5 -152.0   2.0840   4.5 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-3.736000 7.668000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.6201 -40.5451    4.4  42.0 -127.5   0.2204   2.6    4.2	Vela X-1
170.3843 -60.4617   10.1  13.5 -143.3   0.0375   1.1    9.9	Cen X-3
186.6589 -62.9820    0.0   6.5 -168.3  -0.0300  -1.0   12.7	GX 301-2
255.7519 -37.7242    0.0  42.5   51.5  -0.2371  -1.9   13.3	4U 1700-377
256.4225 -36.4049   13.3  43.9   50.8  -0.1272  -0.9    1.3	GX 349+2
165.2777 -66.2933    2.3  16.2 -165.7   0.1750   5.0 ------	UNKNOWN
170.0471 -57.5378    0.7  14.2 -131.5   0.5191  15.6 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
53.996600 962.628600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5295 -40.5580    0.5  27.8 -132.7  14.8977  21.4    0.2	Vela X-1
170.2891 -60.6877    1.4   3.1  113.3   3.7119   7.9    4.0	Cen X-3
186.7922 -62.9132    7.4   9.8   64.7   0.7420   1.6    9.3	GX 301-2
246.8755 -43.8441    2.6  47.7   43.1   8.4492   4.5 ------	UNKNOWN
206.5598 -32.6169    3.1  35.1   -4.7   2.3620   3.8 ------	UNKNOWN
212.0151 -18.2934    3.6  49.9   -9.3   3.3059   3.2 ------	UNKNOWN
 90.9949 -32.4284    2.8  57.5 -165.7   9.4005   4.1 ------	UNKNOWN
202.5565 -15.0719    2.8  49.0  -21.9   4.3918   4.2 ------	UNKNOWN
186.3102  -8.3914    4.3  50.8  -44.4   7.1456   2.7 ------	UNKNOWN
179.1753 -11.0877    3.1  47.0  -53.0  10.4079   3.8 ------	UNKNOWN
147.4923 -19.8866    4.9  41.2  -98.6   6.9112   2.4 ------	UNKNOWN

Plot creation:
Sat May 30 15:51:29 EDT 2015
