batgrbproduct analysis for trigger=570402

batgrbproduct Analysis for Trigger=570402

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Thu Sep 12 17:41:31 EDT 2013
             Host Name: gcn5
   Current Working Dir: /local/data/raid16/prebascript_archive/trigger570402/GCN5_download_cron
======================================================================

  Trigger: 00570402      Segment: 000

  BAT Trigger Time: 400608000   [s; MET]
      Trigger Stop: 400608064   [s; MET]
               UTC: 2013-09-11T15:59:48.980000    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 268.6018644145   Dec: -26.3501770526858  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    13.78
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    13.78

  Flight Position:   [ source = BAT ]
    RA: 268.6018644145   Dec: -26.3501770526858  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 268.610394301243   Dec: -26.3347961928046  [deg; J2000]
        { 17h 54m 26.5s , -26d 20' 05.3" }
         +/- 1.60890965270732 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.496514815229577 [arcmin] (formal 1-sigma fit error)
    SNR: 15.4196016869606

  Angular difference between Flight and Ground position is 1.030540 arcmin

  Partial Coding Fraction: 1    [ including projection effects ]

  Duration
     T90: 549.491999924183 +/- 33.8532467936228
        Measured from: -61.0239998698235
                   to: 488.468000054359     [s; relative to TRIGTIME]
     T50: 279.587999939919 +/- 37.0105690703654
        Measured from: 32.0000001192093
                   to: 311.588000059128     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -68.3799999952316
                   to: -67.3799999952316     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -78.6320000290871
                   to: 528.124000012875     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     6.114389   2.330106   0.115156   0.141224
           0.146097   0.133811   0.112655   0.099878 [error]
 Peak      0.027433   0.015357   0.011930   0.005096
           0.008595   0.007902   0.006555   0.005918 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.93e-06 9.18e-07 2.66e-07 9.69e-08 3.17e-06 3.21e-06   erg/cm2
              Error 1.42e-07 7.54e-08 4.97e-08 3.20e-08 1.92e-07 1.98e-07   erg/cm2
Peak flux Power-law 1.93e-01 1.49e-01 7.74e-02 5.79e-02 4.46e-01 4.77e-01   ph/cm2/s
              Error 1.59e-01 6.07e-02 6.75e-02 1.00e-01 1.79e-01 1.96e-01   ph/cm2/s

Fluence   Cutoff-PL 1.83e-06 8.79e-07 1.85e-08 1.47e-12 2.72e-06 2.72e-06   erg/cm2
              Error 1.61e-07 9.59e-08 1.86e-08 2.26e-11 1.94e-07 1.94e-07   erg/cm2
Peak flux Cutoff-PL 1.94e-01 1.49e-01 7.69e-02 4.51e-08 4.46e-01 4.76e-01   ph/cm2/s
              Error 1.19e-01 6.16e-02 4.10e-06 1.79e-01 1.93e-01 0.00e+00   ph/cm2/s

Fluence        Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    3.788    0.174    -      -           2.75e-04 3.91e-05   96.700 57
CPL   1.000    0.000      50.0    0.0      1.49e-03 0.00e+00  465.220 56

The chi2 of BB fit is 54.28 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.947    1.006    -      -           3.05e-03 2.30e-03   72.560 57
CPL   2.796    0.000     251.4    0.0      1.18e-03 0.00e+00   71.870 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  606.756  -78.632  528.124
T90   549.492  -61.024  488.468
T50   279.588   32.000  311.588
Peak    1.000  -68.380  -67.380

Click here for the BAT GCN circular template


Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  268.6104 -26.3348 0.0124    6.2 -100.7       1.6269    15.4  TRIG_00570402
------------------------------------------

Foreground time interval of the image:
-17.799  73.201 (delta_t =  91.000 [sec])
Background time interval of the image:

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

The mask-weighted light curves based on cleaned DPHs

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

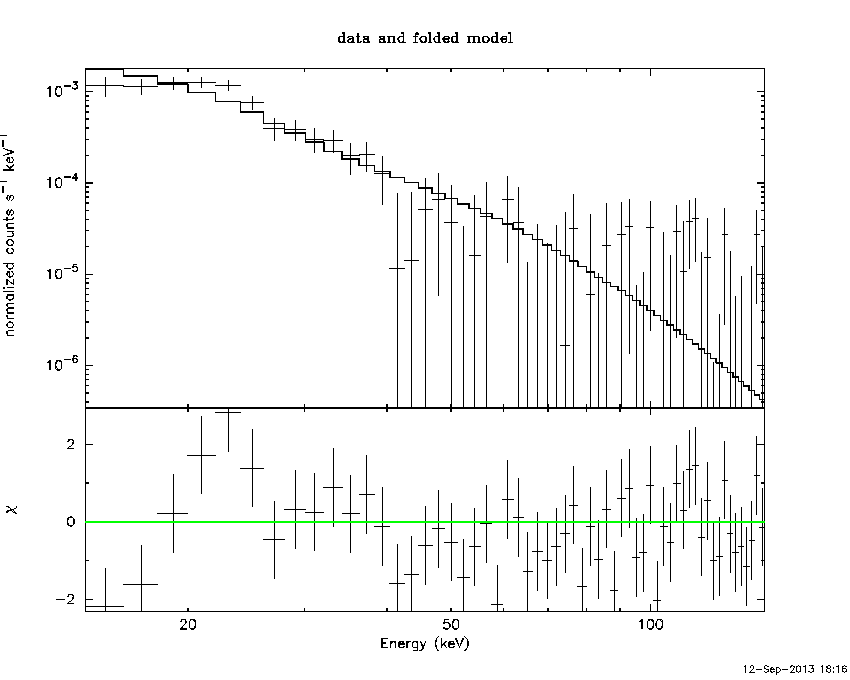

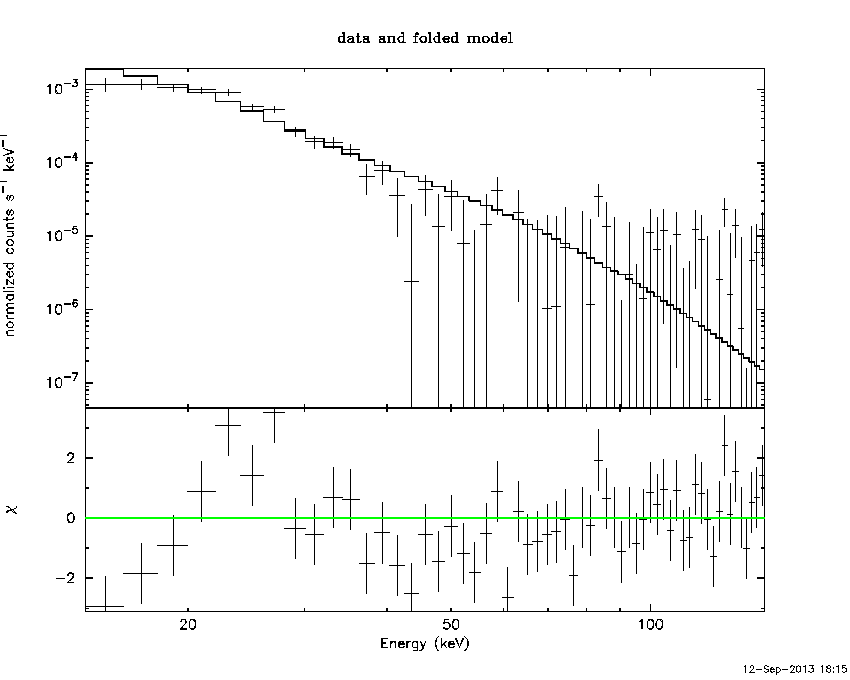

Time averaged spectrum fit using the pre-slew DRM

Power-law model

Time interval is from  -78.632 sec. to  528.124 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.78783     ( -0.171518   0.176933 )
Norm@50keV  : 2.75250E-04    ( -3.78909e-05   4.0221e-05 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          96.70 using 59 PHA bins.
# Reduced chi-squared =          1.697 for     57 degrees of freedom
# Null hypothesis probability =   8.067640e-04

Photon flux (15-150 keV)    in 606.8 sec: 0.141391 ( -0.00885182  0.00888119 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.16759e-06 ( -1.91785e-07  1.92208e-07 ) ergs/cm2

Cutoff power-law model

Time interval is from  -78.632 sec. to  528.124 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.49457E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         465.22 using 59 PHA bins.
# Reduced chi-squared =         8.3075 for     56 degrees of freedom
# Null hypothesis probability =   7.831508e-66

Photon flux (15-150 keV)    in 606.8 sec: 0.128599 ( -0.009855  0.009792 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.72299e-06 ( -1.93205e-07  1.94012e-07 ) ergs/cm2

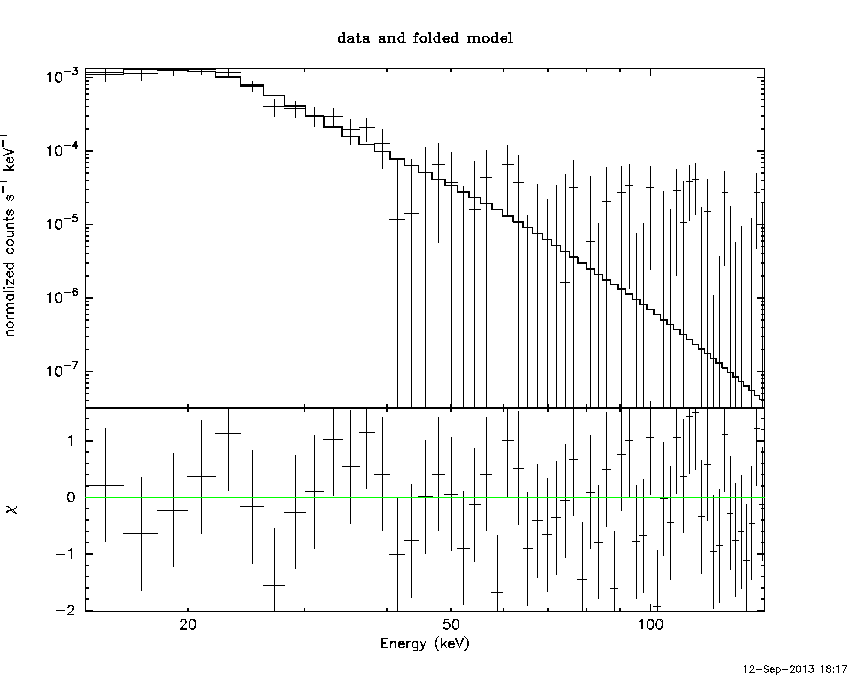

Band function

Time interval is from  -78.632 sec. to  528.124 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.34407   (     )
beta        : -8.91643    (     )
Epeak [keV] : 47.7158      (   )
Norm@50keV   : 1.08452E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         439.12 using 59 PHA bins.
# Reduced chi-squared =         7.9840 for     55 degrees of freedom
# Null hypothesis probability =   2.712769e-61

Photon flux (15-150 keV)    in 606.8 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

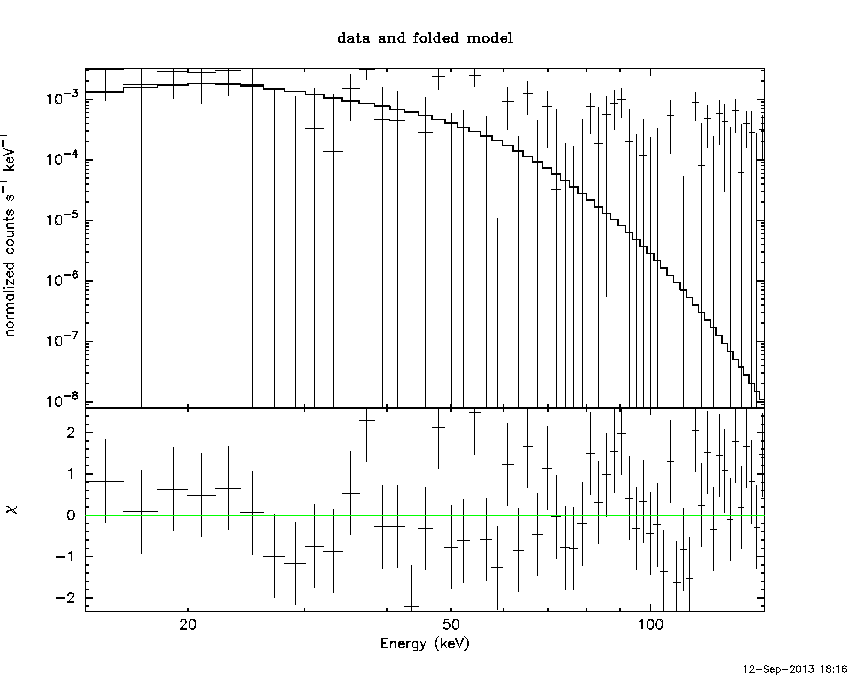

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 4.44470  (-0.226979  0.242683)
R^2/D10^2   : 2.03426  (-0.524289   0.70801)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.28 using 59 PHA bins.
# Reduced chi-squared =         0.9523 for     57 degrees of freedom
# Null hypothesis probability =   5.776413e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.829e-06   1.690e-07
25- 50  8.833e-07   9.466e-08
50-150  1.964e-08   6.578e-09
15-150  2.732e-06   1.893e-07

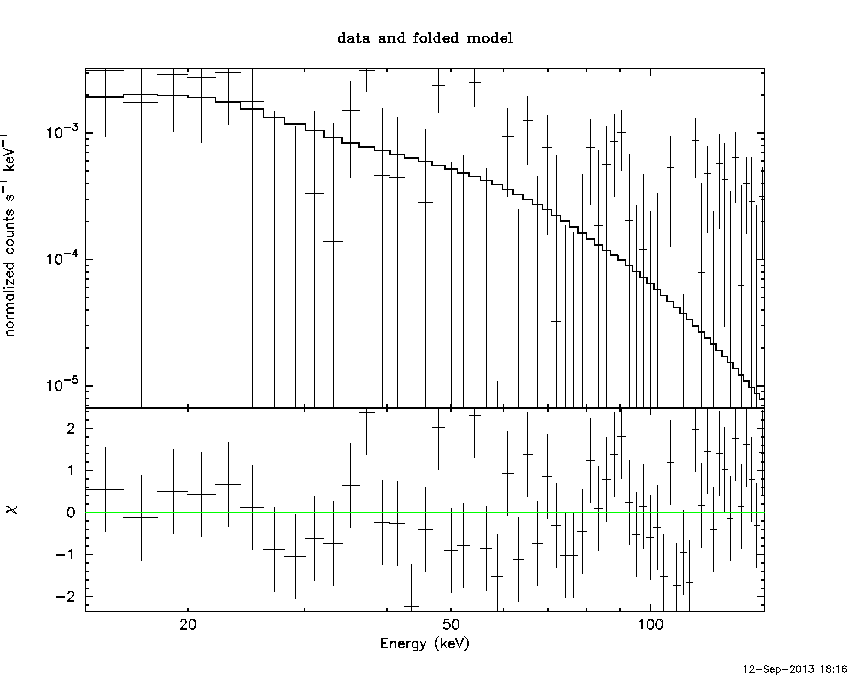

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 10.8956       (-0.971901      1.11166)
Norm        : 4.06604       (-0.765847     0.954377)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          64.70 using 59 PHA bins.
# Reduced chi-squared =          1.135 for     57 degrees of freedom
# Null hypothesis probability =   2.256520e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.917e-06   1.614e-07
25- 50  9.223e-07   9.284e-08
50-150  7.929e-08   2.576e-08
15-150  2.918e-06   1.930e-07

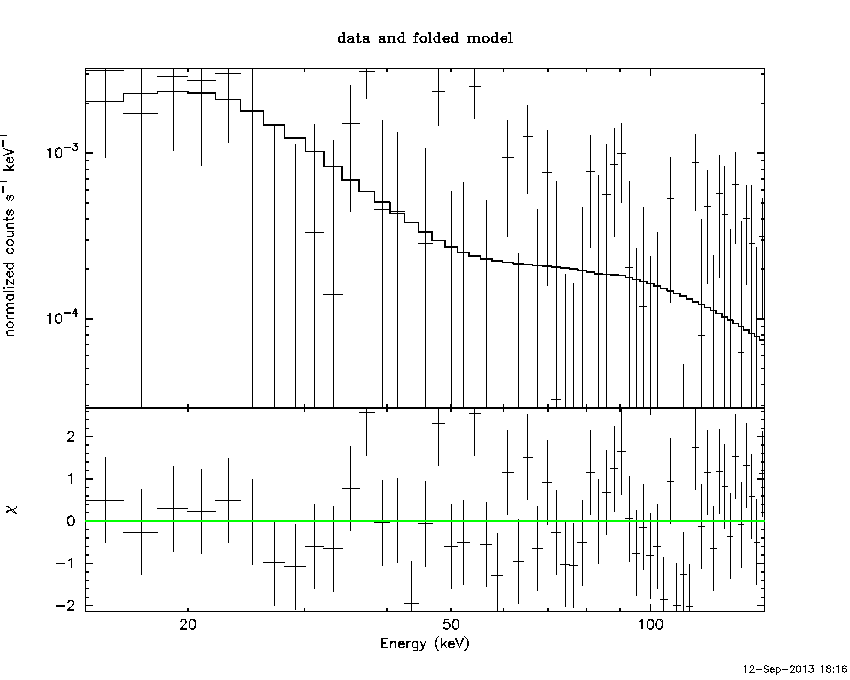

Double BB

------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.41149        (-0.249896      0.219584)
R1^2/D10^2  : 2.11021        (-0.444039      0.784448)
kT2 [keV]   : 200.000        (      )
R2^2/D10^2  : 1.84699E-06    (-1.6759e-06   1.43808e-05)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.09 using 59 PHA bins.
#Fit statistic : Chi-Squared =          51.06 using 59 PHA bins.
# Reduced chi-squared =         0.9289 for     55 degrees of freedom
# Reduced chi-squared =         0.9283 for     55 degrees of freedom
# Null hypothesis probability =   6.247698e-01
# Null hypothesis probability =   6.260217e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.825e-06   1.705e-07
25- 50  8.872e-07   8.799e-08
50-150  3.029e-07   3.285e-08
15-150  3.015e-06   2.279e-07

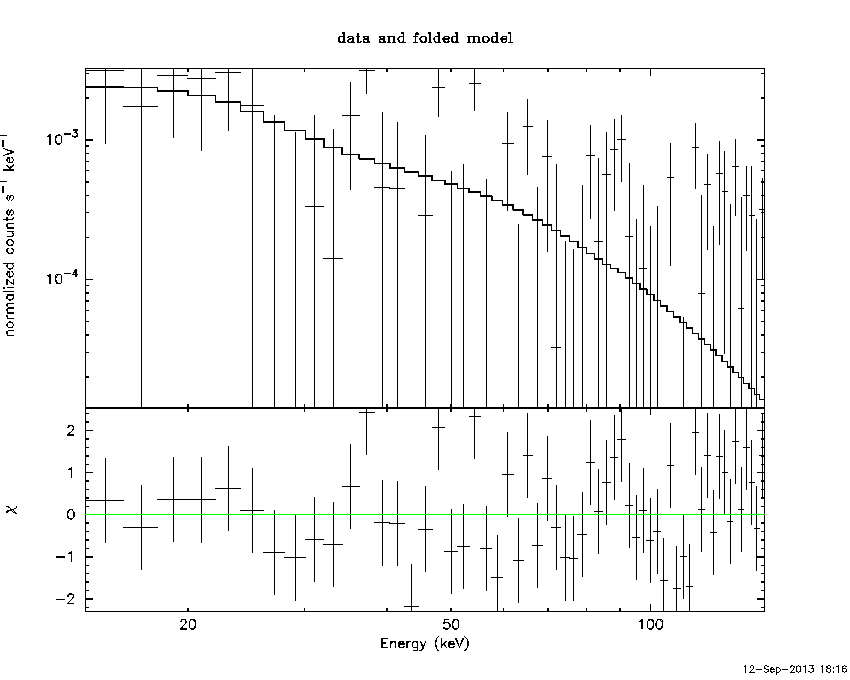

Peak spectrum fit

Power-law model

Time interval is from  -68.380 sec. to  -67.380 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.94739     ( -0.899158   1.11353 )
Norm@50keV  : 3.04528E-03    ( -0.00304486   0.00154959 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.56 using 59 PHA bins.
# Reduced chi-squared =          1.273 for     57 degrees of freedom
# Null hypothesis probability =   8.021624e-02

Photon flux (15-150 keV)    in 1 sec: 0.446094 ( -0.179299  0.179326 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.80181e-08 ( -1.38589e-08  1.52678e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from  -68.380 sec. to  -67.380 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 2.79582     (     )
Epeak [keV] : 251.407      (   )
Norm@50keV  : 1.17616E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.87 using 59 PHA bins.
# Reduced chi-squared =          1.283 for     56 degrees of freedom
# Null hypothesis probability =   7.503440e-02

Photon flux (15-150 keV)    in 1 sec: 0.445963 ( -0.179002  0.179194 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.36808e-09 ( -6.4638e-10  6.7443e-10 ) ergs/cm2

Band function

Time interval is from  -68.380 sec. to  -67.380 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -1.52187   ( 1.52307   1.52307 )
beta        : -1.94728    ( 1.9476   0.898011 )
Epeak [keV] : 13.4508      ( -13.1832 -13.1832 )
Norm@50keV   : 8.56122E-03    ( -0.00859756   10161.5 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          72.56 using 59 PHA bins.
# Reduced chi-squared =          1.319 for     55 degrees of freedom
# Null hypothesis probability =   5.644383e-02

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 8.78999  (-4.83257  11.4278)
R^2/D10^2   : 0.313752  (-0.302263   8.06758)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          75.96 using 59 PHA bins.
# Reduced chi-squared =          1.333 for     57 degrees of freedom
# Null hypothesis probability =   4.738163e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.660e-09   3.127e-09
25- 50  9.542e-09   6.435e-09
50-150  3.385e-09   2.560e-09
15-150  1.759e-08   1.196e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 83.0068       (-83.866      -83.866)
Norm        : 2.01832       (-0.969162     3.73329)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          73.28 using 59 PHA bins.
# Reduced chi-squared =          1.286 for     57 degrees of freedom
# Null hypothesis probability =   7.206259e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.249e-09   3.493e-09
25- 50  8.716e-09   5.980e-09
50-150  1.261e-08   1.087e-08
15-150  2.657e-08   1.920e-08

Double BB

------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.04480        (-4.49575      5.19161)
R1^2/D10^2  : 1.27207        (      )
kT2 [keV]   : 199.023        (-199.053      -199.053)
R2^2/D10^2  : 7.73342E-05    (-5.76614e-05   0.226184)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.88 using 59 PHA bins.
#Fit statistic : Chi-Squared =          71.86 using 59 PHA bins.
# Reduced chi-squared =          1.307 for     55 degrees of freedom
# Reduced chi-squared =          1.307 for     55 degrees of freedom
# Null hypothesis probability =   6.287084e-02
# Null hypothesis probability =   6.299827e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.545e-09   4.434e-09
25- 50  6.836e-09   4.279e-09
50-150  2.103e-08   2.389e-09
15-150  3.442e-08   1.185e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 3.31756     ( -0.240812   0.25963 )
Norm@50keV  : 4.50074E-04    ( -9.56988e-05   0.000102915 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.84 using 59 PHA bins.
# Reduced chi-squared =          1.155 for     57 degrees of freedom
# Null hypothesis probability =   1.974716e-01

Photon flux (15-150 keV)    in 91 sec: 0.157373 ( -0.015019  0.0150223 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.79015e-07 ( -6.41245e-08  6.61918e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 2.38841E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         186.04 using 59 PHA bins.
# Reduced chi-squared =         3.3222 for     56 degrees of freedom
# Null hypothesis probability =   7.290168e-16

Photon flux (15-150 keV)    in 91 sec: 0.151225 ( -0.014842  0.014823 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.9784e-07 ( -5.15369e-08  5.32951e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.95970   ( -1.9269   -4.9597 )
beta        : -4.79266    ( 4.79266   0.795613 )
Epeak [keV] : 20.1079      ( -1.39218 1.77644 )
Norm@50keV   : 1079.99    ( -99.1555   1117.95 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          42.38 using 59 PHA bins.
# Reduced chi-squared =         0.7706 for     55 degrees of freedom
# Null hypothesis probability =   8.933673e-01

Photon flux (15-150 keV)    in 91 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 9.17773e-07
S(50-100 keV) = 2.65822e-07

T90 vs. Hardness ratio plot

T90                                   = 549.491999924183 sec.
Hardness ratio (energy fluence ratio) = 0.289638

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.381086
Count Ratio (50-100 keV) / (15-25 keV) = 0.0188336

Mask shadow pattern

IMX = -1.994671495079161E-02, IMY = 1.059948513492607E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-17.799400 73.200600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9741 -15.6079    0.8  29.7  -71.6   2.3081  13.8    2.0	Sco X-1
255.9724 -37.7862    2.4  20.9 -126.9   0.5250   4.7    3.5	4U 1700-377
256.2582 -36.2663    0.0  19.9 -123.6   0.1285   1.1   12.7	GX 349+2
262.9838 -24.8082    4.0  11.1  -86.9   0.3228   2.9    4.0	GX 1+4
264.6079 -44.5897   11.5  21.7 -152.9  -0.1110  -1.0   10.2	4U 1735-44
268.4954  -1.3008   25.6  24.2  -10.1   0.0527   0.4   11.9	SW J1753.5-0127
270.2203 -25.1164    4.0   4.5  -90.3   0.3111   2.9    4.1	GX 5-1
270.3667 -25.7275    5.3   4.5  -98.2   0.2431   2.3    3.6	GRS 1758-258
274.1340 -13.9903    5.6  10.7    0.9   0.2163   2.1    8.0	GX 17+2
276.0410 -30.2449    4.7   5.6  178.8   0.2590   2.4    9.5	H1820-303
284.9942 -24.9547    2.6   8.9  100.3   0.4632   4.4    3.1	HT1900.1-2455
288.8289  10.9849    1.9  38.1   28.5   1.2332   6.0    3.0	GRS 1915+105
263.0285 -33.8090    2.6  14.0 -127.2   0.4667   4.4    2.5	GX 354-0
296.0208  21.9181    2.6  50.8   31.6   2.5742   4.4 ------	UNKNOWN
290.8396   8.7836    3.2  36.8   32.9   0.6883   3.7 ------	UNKNOWN
268.6104 -26.3348    0.7   6.2 -100.7   1.6270  15.6 ------	UNKNOWN
255.2437 -41.6302    1.9  23.7 -134.2   0.6952   5.9 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
98.000590 963.084300

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9865 -15.6353    0.3  24.5  -68.6  25.5957  34.8    0.5	Sco X-1
256.0337 -37.8293    3.7  15.6 -140.2   1.8174   3.1    2.4	4U 1700-377
256.4349 -36.4398    4.2  14.5 -137.1   1.5839   2.7    1.0	GX 349+2
263.0354 -24.7356    2.6   5.3  -73.4   2.2414   4.4    1.6	GX 1+4
264.7511 -44.4524    4.2  18.4 -171.1   1.3194   2.8    0.4	4U 1735-44
268.4038  -1.4560    3.6  24.9   -0.3   1.7363   3.2    2.2	SW J1753.5-0127
270.3397 -25.0294    1.4   2.0   50.4   4.5414   8.3    4.2	GX 5-1
270.3820 -25.7577    2.4   1.7   70.4   2.5859   4.8    4.4	GRS 1758-258
273.9834 -14.0543    4.3  13.3   23.4   1.4406   2.6    1.7	GX 17+2
275.9232 -30.3869    2.3   7.6  124.1   2.5252   5.0    1.2	H1820-303
285.1508 -25.0157    4.7  14.9   88.7   1.4271   2.4    8.5	HT1900.1-2455
288.7852  10.9496    1.1  42.1   30.5  11.0998  10.3    0.8	GRS 1915+105
262.9671 -33.8381    2.0   8.9 -148.1   3.0774   5.7    1.1	GX 354-0
307.5688 -11.3298    3.5  39.6   75.4   6.6928   3.3 ------	UNKNOWN
284.7894  -0.8460    4.2  29.9   34.2   1.7632   2.8 ------	UNKNOWN
277.3835 -23.7746    2.0   8.3   74.2   2.9609   5.7 ------	UNKNOWN
277.3088 -83.1920    4.5  56.9  178.9  10.9706   2.6 ------	UNKNOWN
268.6069 -26.3339    0.7   0.0  -67.5   8.6538  15.6 ------	UNKNOWN
265.7631  28.2757    3.3  54.7   -2.9   5.8377   3.5 ------	UNKNOWN
255.7752 -48.8093    0.9  24.6 -159.2   6.5493  12.5 ------	UNKNOWN
255.2041 -41.6282    1.2  18.9 -147.4   4.9968   9.3 ------	UNKNOWN
	UNKNOWN
	UNKNOWN
	UNKNOWN
	UNKNOWN

Plot creation:
Thu Sep 12 18:17:49 EDT 2013
