TDRSS scaled map for 585149
GCN BAT Position Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Wed 29 Jan 14 12:51:25 UT
NOTICE_TYPE: Swift-BAT GRB Position
TRIGGER_NUM: 585149, Seg_Num: 0
GRB_RA: 326.763d {+21h 47m 03s} (J2000),
326.922d {+21h 47m 41s} (current),
326.198d {+21h 44m 48s} (1950)
GRB_DEC: +26.207d {+26d 12' 24"} (J2000),
+26.272d {+26d 16' 20"} (current),
+25.974d {+25d 58' 28"} (1950)
GRB_ERROR: 3.00 [arcmin radius, statistical only]
GRB_INTEN: 3768 [cnts] Image_Peak=180 [image_cnts]
TRIGGER_DUR: 1.024 [sec]
TRIGGER_INDEX: 137 E_range: 15-50 keV
BKG_INTEN: 23605 [cnts]
BKG_TIME: 46252.42 SOD {12:50:52.42} UT
BKG_DUR: 8 [sec]
GRB_DATE: 16686 TJD; 29 DOY; 14/01/29
GRB_TIME: 46269.44 SOD {12:51:09.44} UT
GRB_PHI: -167.79 [deg]
GRB_THETA: 13.77 [deg]
SOLN_STATUS: 0x3
RATE_SIGNIF: 12.72 [sigma]
IMAGE_SIGNIF: 7.65 [sigma]
MERIT_PARAMS: +1 +0 +0 +0 +1 -2 +0 +0 -69 +0
SUN_POSTN: 311.98d {+20h 47m 54s} -17.86d {-17d 51' 48"}
SUN_DIST: 46.46 [deg] Sun_angle= -1.0 [hr] (East of Sun)
MOON_POSTN: 291.09d {+19h 24m 21s} -17.10d {-17d 06' 06"}
MOON_DIST: 55.62 [deg]
MOON_ILLUM: 3 [%]
GAL_COORDS: 79.24,-20.63 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS: 339.84, 36.93 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS: SWIFT-BAT GRB Coordinates.
COMMENTS: This is a rate trigger.
COMMENTS: A point_source was found.
COMMENTS: This does not match any source in the on-board catalog.
COMMENTS: This does not match any source in the ground catalog.
COMMENTS: This is a GRB.
COMMENTS: This trigger occurred at longitude,latitude = 6.12,-15.95 [deg].
GCN BAT Scaled Map Notice
TITLE: GCN/SWIFT NOTICE
NOTICE_DATE: Wed 29 Jan 14 13:06:25 UT
NOTICE_TYPE: Swift-BAT Scaled Map
TRIGGER_NUM: 585149, Seg_Num: 0
POINT_RA: 311.754d {+20h 47m 01s} (J2000)
POINT_DEC: +30.030d {+30d 01' 47"} (J2000)
MAP_DATE: 16686 TJD; 29 DOY; 14/01/29
MAP_TIME: 46269.44 SOD {12:51:09.44} UT
TRIGGER_DUR: 1.024 [sec]
SOLN_STATUS: 0x3
RATE_SIGNIF: 12.72 [sigma]
IMAGE_SIGNIF: 7.65 [sigma]
MAP_URL: sw00585149000msbsm.fits
SUN_POSTN: 311.99d {+20h 47m 57s} -17.86d {-17d 51' 38"}
MOON_POSTN: 291.25d {+19h 25m 00s} -17.08d {-17d 04' 35"}
MOON_ILLUM: 3 [%]
GAL_COORDS: 72.94, -8.29 [deg] galactic lon,lat of the pointing direction
ECL_COORDS: 325.69, 45.73 [deg] ecliptic lon,lat of the pointing direction
COMMENTS: SWIFT-BAT Scaled Map.
COMMENTS:
COMMENTS: The next comments were copied from the BAT_POS Notice:

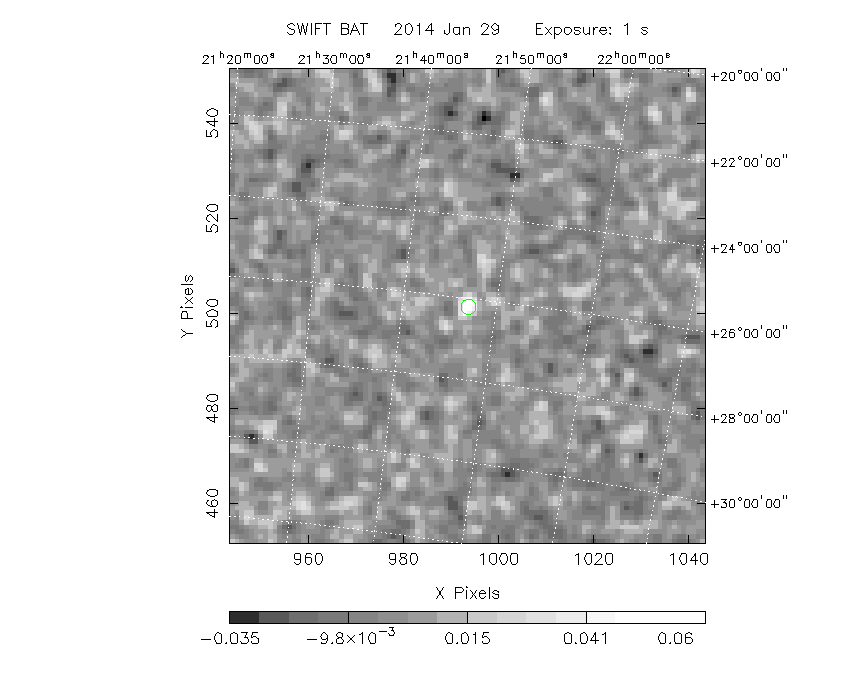

Scaled map image
The green circle (6 arcmin radius) is the BAT position (RA, Dec) = (326.763, +26.207).
Search BAT source with the INTEGRAL catalog
known_source_INTEGRAL.sh 326.763 +26.207 1.0
No source found
Results of batcelldetect
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
254.4576 35.3425 0.0 47.8 22.0 0.0392 1.4 0.0 Her X-1
278.7590 32.6973 0.0 28.2 13.8 0.0126 1.1 0.0 3C 382
279.9896 5.0358 0.0 39.0 -33.8 -0.0150 -0.9 0.0 Ser X-1
283.8804 -2.6067 0.0 42.1 -46.1 0.0060 0.3 0.0 XTE J1855-026
287.4138 9.8292 0.0 30.4 -36.8 -0.0106 -0.9 0.0 4U 1907+09
287.7208 7.6667 0.0 31.7 -40.2 0.0089 0.7 0.0 4U 1909+07
287.9565 4.9827 0.0 33.6 -43.7 0.0039 0.3 0.0 SS 433
288.5083 9.8883 0.0 29.6 -38.3 -0.0130 -1.1 0.0 IGR J19140+0951
288.7983 10.9456 0.0 28.6 -37.2 0.0171 1.4 0.0 GRS 1915+105
297.3771 30.2067 0.0 12.4 4.2 0.0172 1.7 0.0 KS 1947+300
298.9292 32.1000 0.0 11.2 13.7 0.0113 1.1 0.0 4U 1954+31
299.5903 35.2016 0.0 11.5 29.8 0.0019 0.2 0.0 Cyg X-1
299.8682 40.7339 0.0 14.4 51.0 0.0162 1.6 0.0 Cyg A
308.0633 37.6375 0.0 8.2 68.9 -0.0113 -1.1 0.0 EXO 2030+375
308.1103 40.9526 0.0 11.3 75.6 0.0023 0.2 0.0 Cyg X-3
314.6979 41.7770 0.0 12.0 100.4 0.0012 0.1 0.0 GRO J2058+42
321.1638 50.9739 0.0 22.1 105.7 -0.0139 -1.1 0.0 IGR J21247+5058
322.4929 12.1674 0.0 20.5 -121.7 0.0217 1.9 0.0 4U 2129+12
323.4320 51.1236 0.0 22.8 108.9 0.0211 1.6 0.0 RX J2133.7+5107
326.1717 38.3217 0.0 14.5 141.1 -0.0036 -0.4 0.0 Cyg X-2
331.9808 54.5197 0.0 28.5 114.7 -0.0110 -0.7 0.0 4U 2206+54
343.4906 16.1482 0.0 32.2 -161.9 -0.0001 -0.0 0.0 3C 454.3
350.9671 42.1830 0.0 33.6 147.6 -0.0104 -0.7 0.0 1ES 2321+419
326.7475 26.1863 1.4 13.8 -167.7 0.0763 8.2 ------ UNKNOWN
263.9336 -7.1403 1.6 59.0 -31.2 0.8940 6.9 ------ UNKNOWN
Search for the BAT bright source catalog
# RAcent DECcent POSerr Theta Phi PeakCts SNR AngSep Name
# [deg] [deg] ['] [deg] [deg] [']
254.4576 35.3425 0.0 47.8 22.0 0.0392 1.4 0.0 Her X-1
268.3680 -1.4526 0.0 51.9 -29.6 -0.0659 -2.1 0.0 SW J1753.5-0127
288.7983 10.9456 0.0 28.6 -37.2 0.0171 1.4 0.0 GRS 1915+105
299.5903 35.2016 0.0 11.5 29.8 0.0019 0.2 0.0 Cyg X-1
308.1103 40.9526 0.0 11.3 75.6 0.0023 0.2 0.0 Cyg X-3
326.1717 38.3217 0.0 14.5 141.1 -0.0036 -0.4 0.0 Cyg X-2
326.7475 26.1863 1.4 13.8 -167.7 0.0763 8.2 ------ UNKNOWN
263.9336 -7.1403 1.6 59.0 -31.2 0.8940 6.9 ------ UNKNOWN
Search for UNKNOWN source R.A. = 263.9336 Dec. = -7.1403 (search radius of 3 degrees)
No bright source found.
Search for UNKNOWN source R.A. = 326.7475 Dec. = +26.1863 (search radius of 3 degrees)
No bright source found.
DPI of the combined detector enable/disable map (archived enable/disable map + downloaded data)
DPI of the scaled map
Pixel vs. Counts plot
The data/results are in /local/data/raid2/prebascript/trigger585149/tdrss_ql/
bat_scaledmap.fits : TDRSS FITS scaled map from GCN
source.img : Sky FITS image of the scaled map (batfftimage)
source.list : FITS list of the detected sources (batcelldetect)
scaledmap.log : Ascii output of the analysis log
bat_pos.reg : region file for ds9
source.gif : GIF sky image
Processed time:
Wed Jan 29 08:08:20 EST 2014
