batgrbproduct Analysis for Trigger=586363

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Tue Mar  4 01:01:54 EST 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger586363
======================================================================

  Trigger: 00586363      Segment: 000

  BAT Trigger Time: 413850300.736   [s; MET]
      Trigger Stop: 413850301.76   [s; MET]
               UTC: 2014-02-11T22:24:49.102520    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 266.182552885277   Dec: -28.7436872428809  [deg; J2000]

     Catalogged Source?: YES
     Point Source?:      YES
     GRB Indicated?:     NO    [ by BAT flight software ]
     Image S/N Ratio:    9.99
     Image Trigger?:     NO
     Rate S/N Ratio:     13.3790881602597  [ if not an image trigger ]
     Image S/N Ratio:    9.99

  Flight Position:   [ source = BAT ]
    RA: 266.182552885277   Dec: -28.7436872428809  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 266.051214513857   Dec: -28.6848854138691  [deg; J2000]
        { 17h 44m 12.3s , -28d 41' 05.6" }
         +/- 7.14793263626681 [arcmin] (estimated 90% radius based on SNR)
         +/- 5.49368211820299 [arcmin] (formal 1-sigma fit error)
    SNR: 1.83172634984192

  Angular difference between Flight and Ground position is 7.759684 arcmin

  Partial Coding Fraction: 0.9453125    [ including projection effects ]

  Duration
     T90: 777 +/- 801.356662167352
        Measured from: -66.7360000014305
                   to: 710.263999998569     [s; relative to TRIGTIME]
     T50: 275 +/- 798.684073961664
        Measured from: 239.263999998569
                   to: 514.263999998569     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 0.263999998569489
                   to: 1.26399999856949     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -143.736000001431
                   to: 907.263999998569     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     6.263944   3.365447   0.284877  -0.168311
           0.241064   0.217091   0.176896   0.151500 [error]
 Peak      0.066114   0.044472  -0.000146  -0.003452
           0.008280   0.007262   0.005628   0.004765 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.01e-06 1.29e-06 5.37e-07 3.04e-07 3.99e-06 4.14e-06   erg/cm2
              Error 1.68e-07 1.17e-07 1.03e-07 1.04e-07 3.06e-07 3.42e-07   erg/cm2
Peak flux Power-law 5.83e-01 2.79e-01 8.16e-02 3.00e-02 9.61e-01 9.74e-01   ph/cm2/s
              Error 1.20e-01 5.99e-02 3.26e-02 2.09e-02 1.77e-01 1.80e-01   ph/cm2/s

Fluence   Cutoff-PL 1.94e-06 1.37e-06 7.27e-08 4.91e-11 3.38e-06 3.38e-06   erg/cm2
              Error 1.90e-07 1.60e-07 7.28e-08 6.82e-10 2.81e-07 2.81e-07   erg/cm2
Peak flux Cutoff-PL 6.02e-01 3.59e-01 5.72e-03 9.01e-08 9.67e-01 9.67e-01   ph/cm2/s
              Error 1.42e-01 9.33e-02 1.53e-02 4.96e-05 1.71e-01 1.71e-01   ph/cm2/s

Fluence        Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   erg/cm2
Peak flux      Band 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s
              Error 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00 0.00e+00   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.000    0.000    -      -           0.00e+00 0.00e+00    0.000  0
CPL   1.000    0.000      50.0    0.0      1.31e-03 0.00e+00  282.320 56

The chi2 of BB fit is 54.20 which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.000    0.000    -      -           0.00e+00 0.00e+00    0.000  0
CPL  -4.943   -0.355      24.3    3.0      1.76e+03 0.00e+00   46.490 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100 1051.000 -143.736  907.264
T90   777.000  -66.736  710.264
T50   275.000  239.264  514.264
Peak    1.000    0.264    1.264

Click here for the BAT GCN circular template

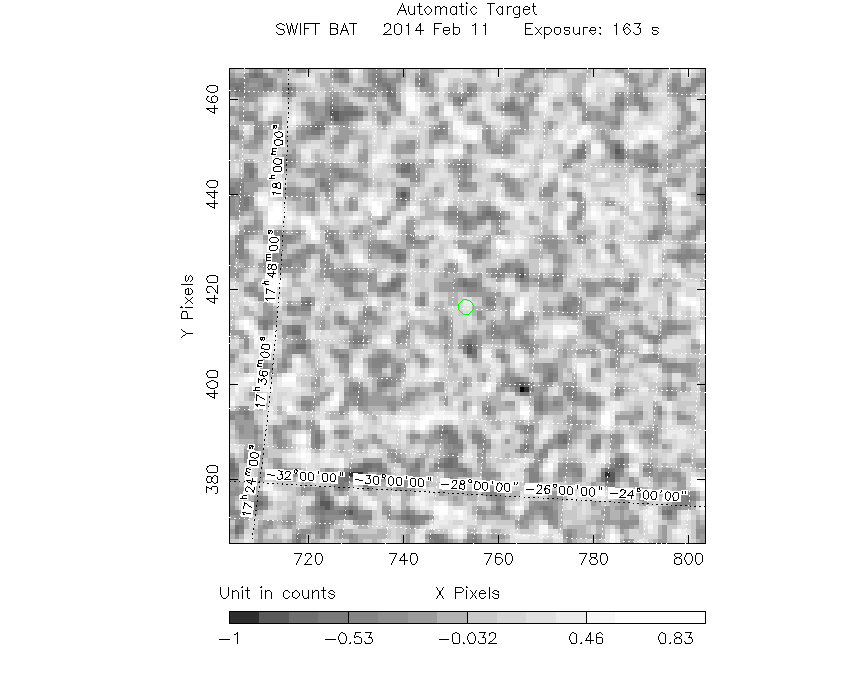

Pre-slew 15-350 keV image (Event data; bkg subtracted)

#   RAcent  DECcent POSerr  Theta    Phi     Peak Cts     SNR  Name
  266.0512 -28.6849 0.1049   16.4   25.5       0.4843     1.8  TRIG_00586363
------------------------------------------

Foreground time interval of the image:
-143.736 -113.381 (delta_t =  30.355 [sec])
-112.736  19.965 (delta_t = 132.701 [sec])
Background time interval of the image:
-239.736 -143.736 (delta_t =  96.000 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

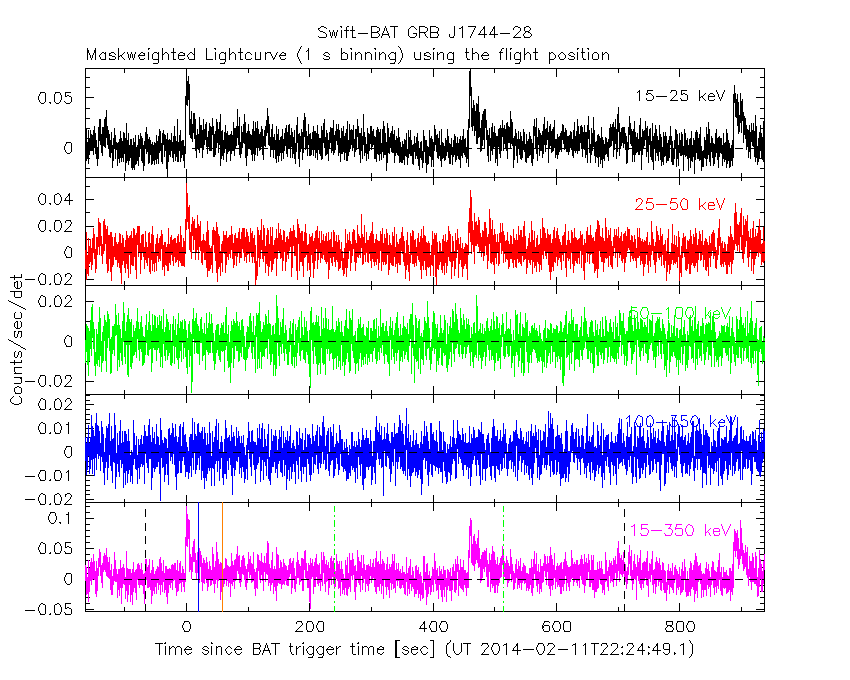

From T100_start - 20 s to T100_end + 30 s

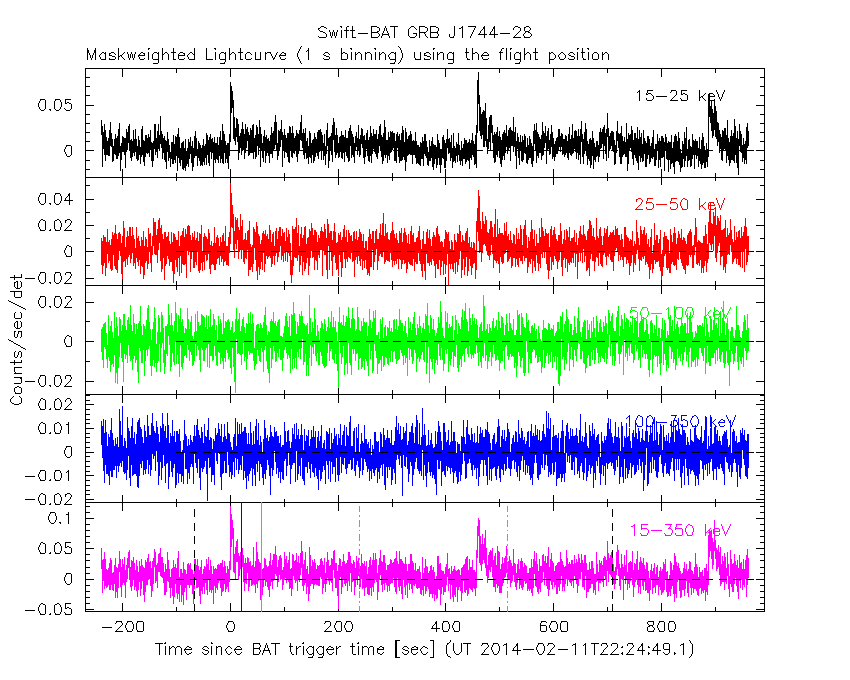

Full time interval

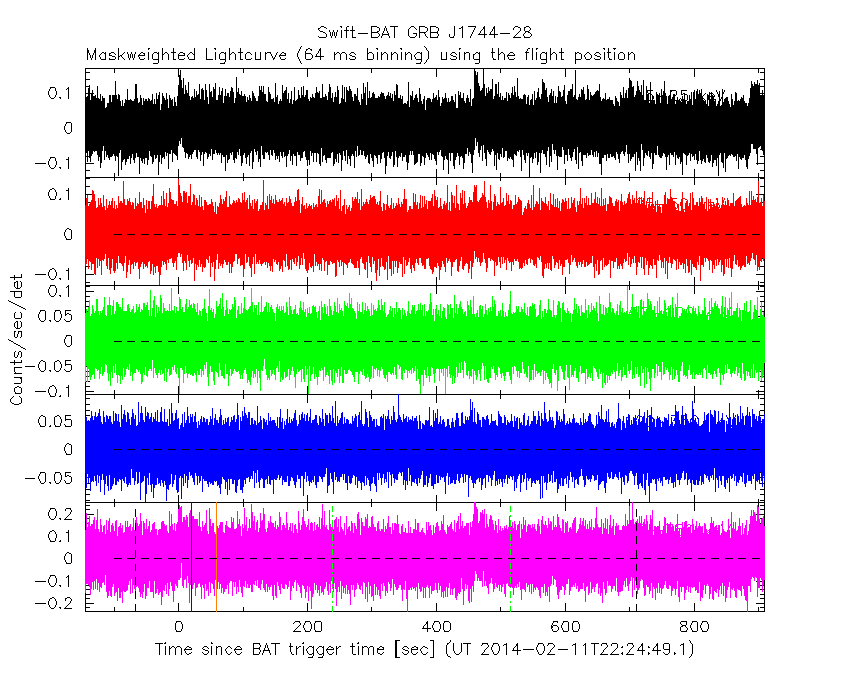

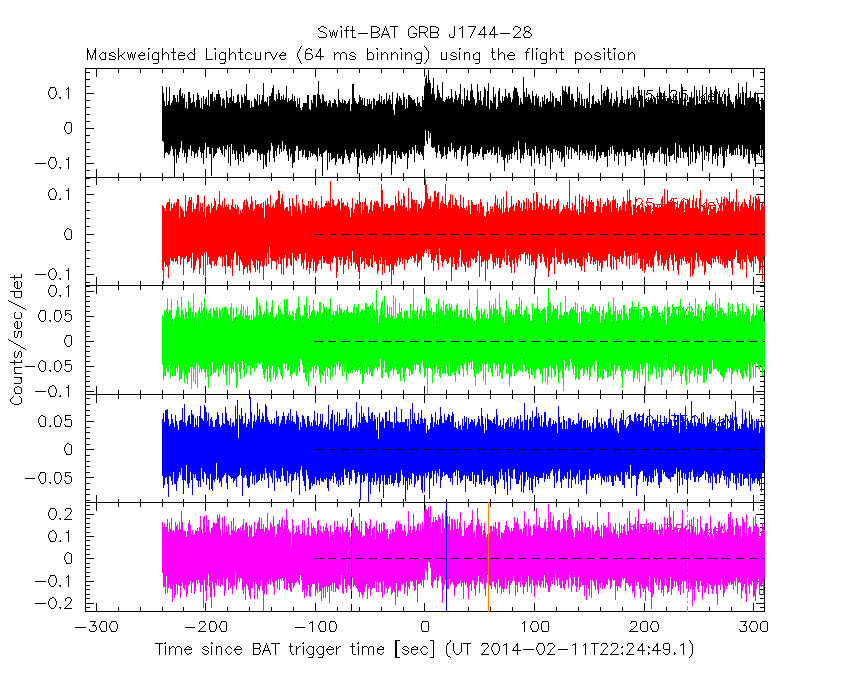

64 ms binning

Full time interval

From T100_start to T100_end

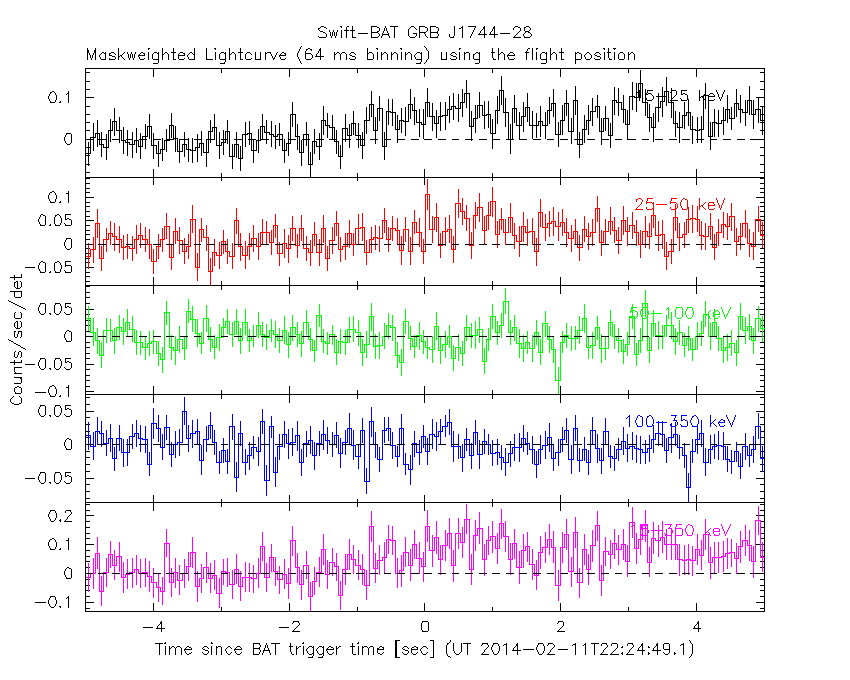

From T0-5 sec to T0+5 sec

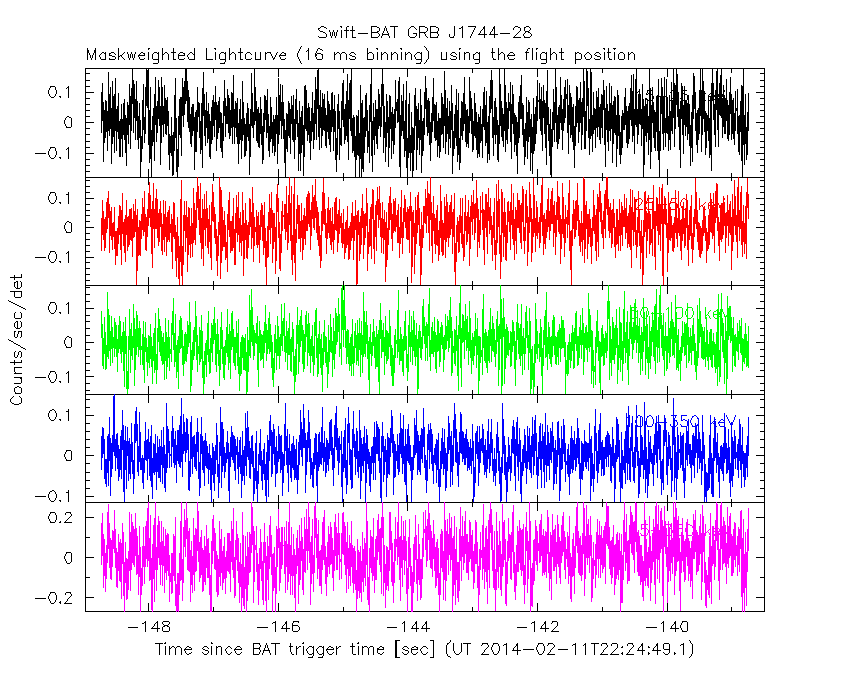

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

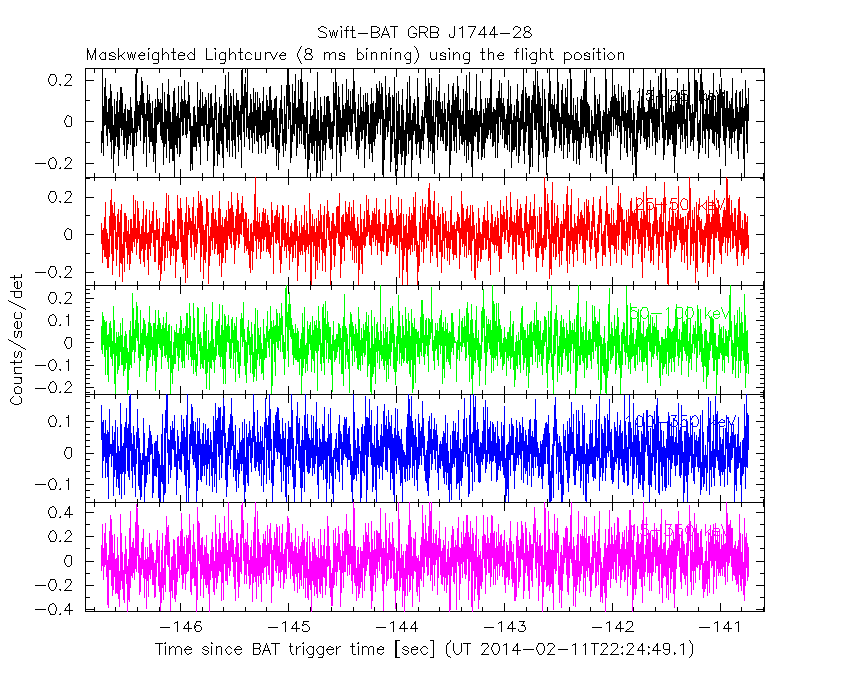

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

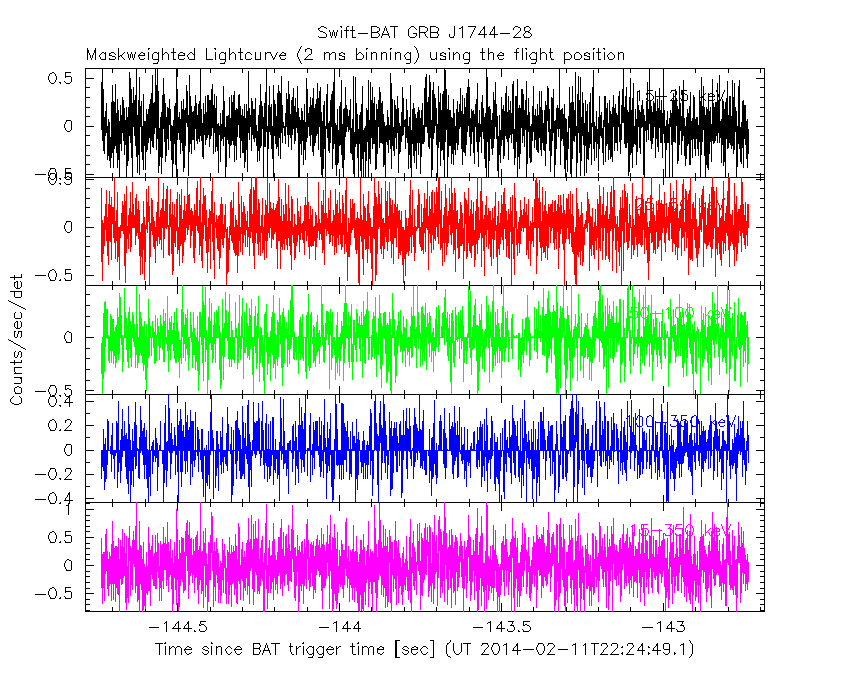

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

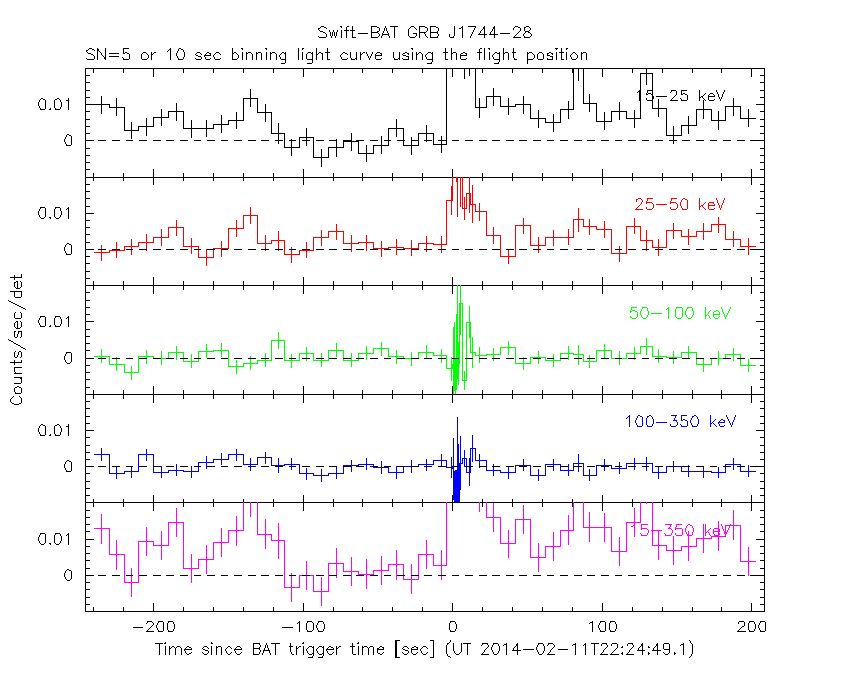

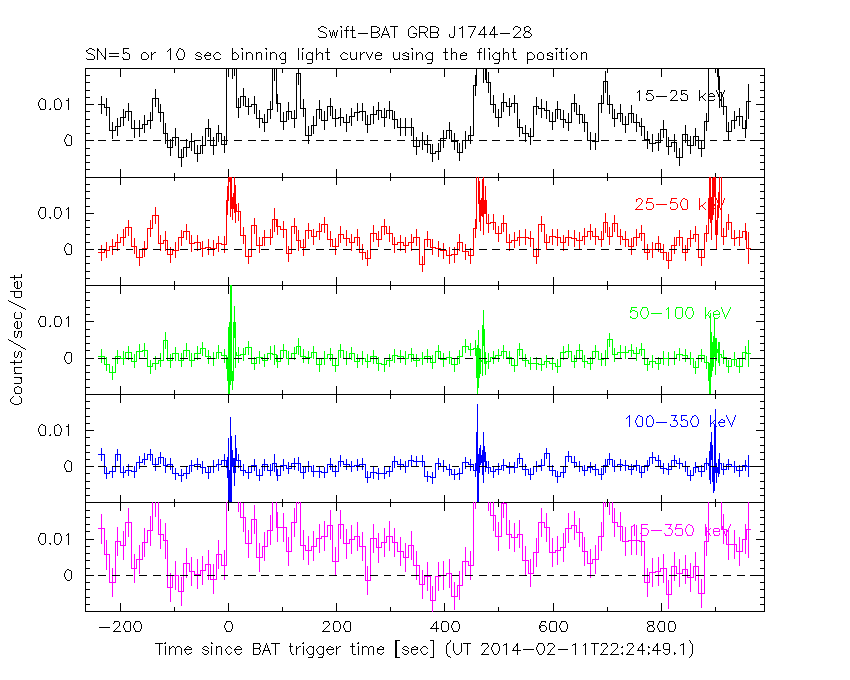

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

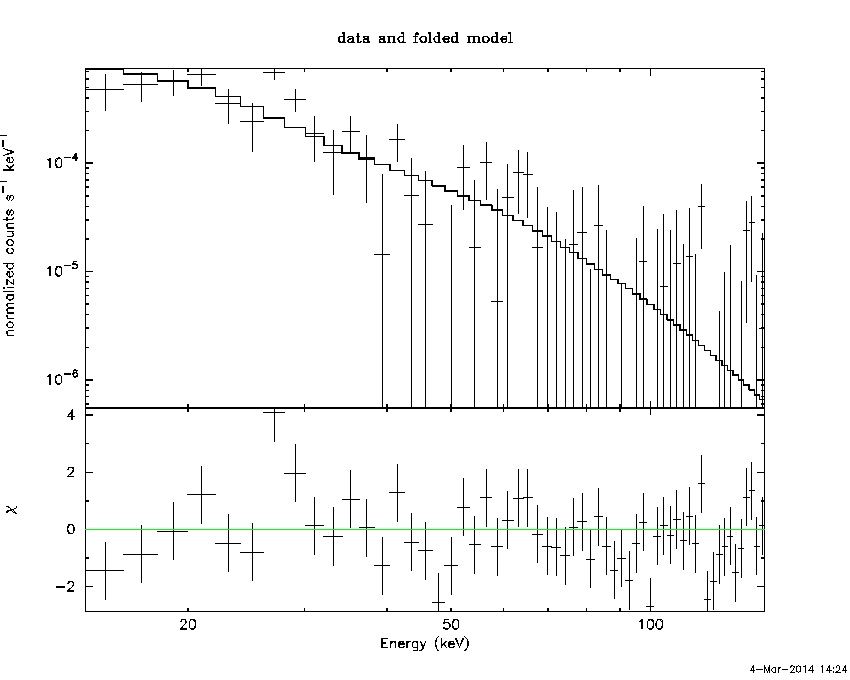

Time averaged spectrum fit using the pre-slew DRM

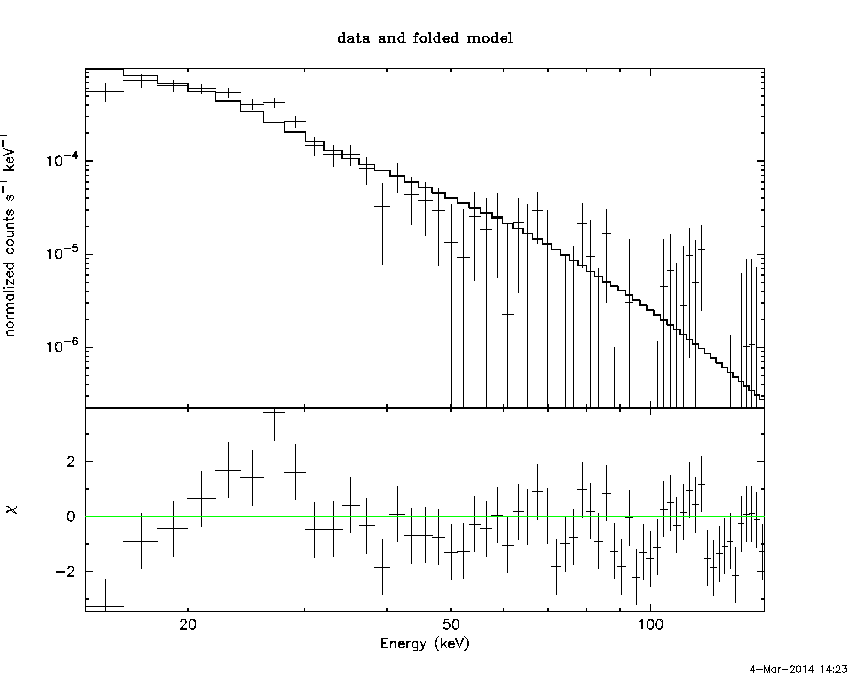

Power-law model

Multiple GTIs in the spectrum
tstart tstop
-143.736000 -113.380600
-112.736000 907.264000
XSPEC12>exit
 XSPEC: quit


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index:      (     )
Norm@50keV  :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in 1050 sec: 9.30200E-02 ( -0.00660758  0.00661246 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.99417e-06 ( -3.04177e-07  3.08084e-07 ) ergs/cm2

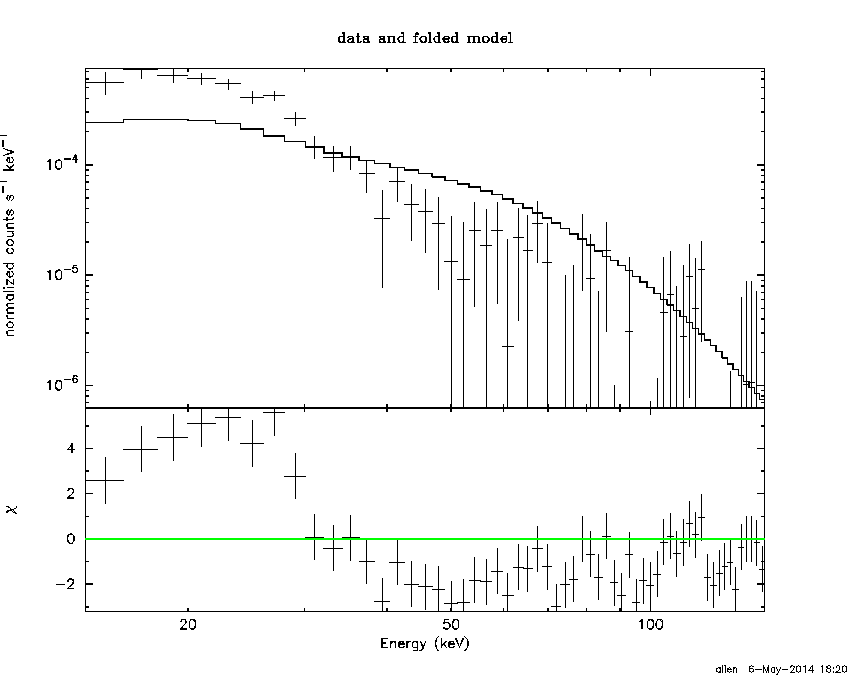

Cutoff power-law model

Multiple GTIs in the spectrum
tstart tstop
-143.736000 -113.380600
-112.736000 907.264000
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.00000     (     )
Epeak [keV] : 50.0000      (   )
Norm@50keV  : 1.30537E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         282.32 using 59 PHA bins.
# Reduced chi-squared =         5.0414 for     56 degrees of freedom
# Null hypothesis probability =   6.188557e-32

Photon flux (15-150 keV)    in 1050 sec: 8.64933E-02 ( -0.0069909  0.0069478 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.37836e-06 ( -2.76517e-07  2.85432e-07 ) ergs/cm2

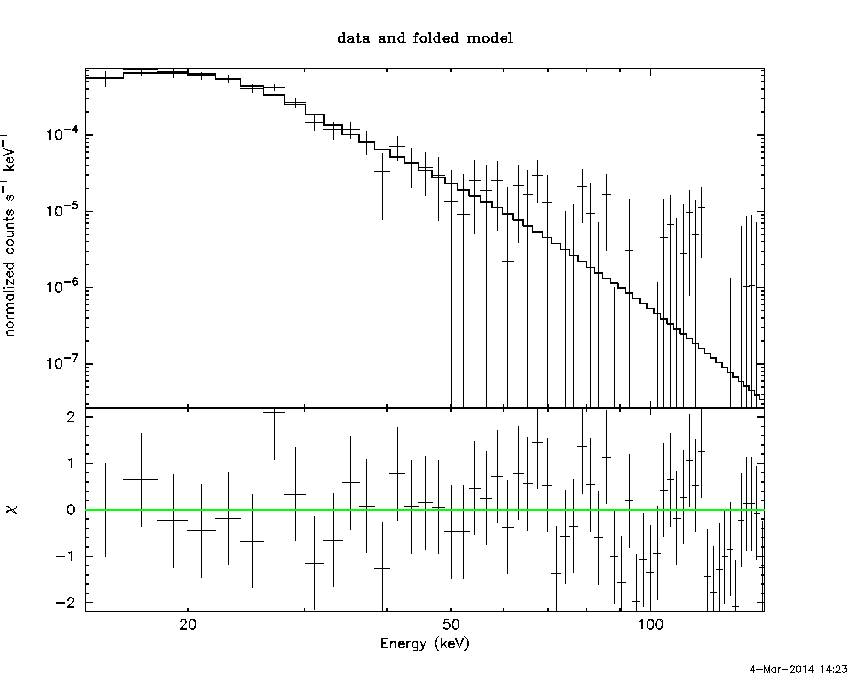

Band function

Multiple GTIs in the spectrum
tstart tstop
-143.736000 -113.380600
-112.736000 907.264000
XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in 1050 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

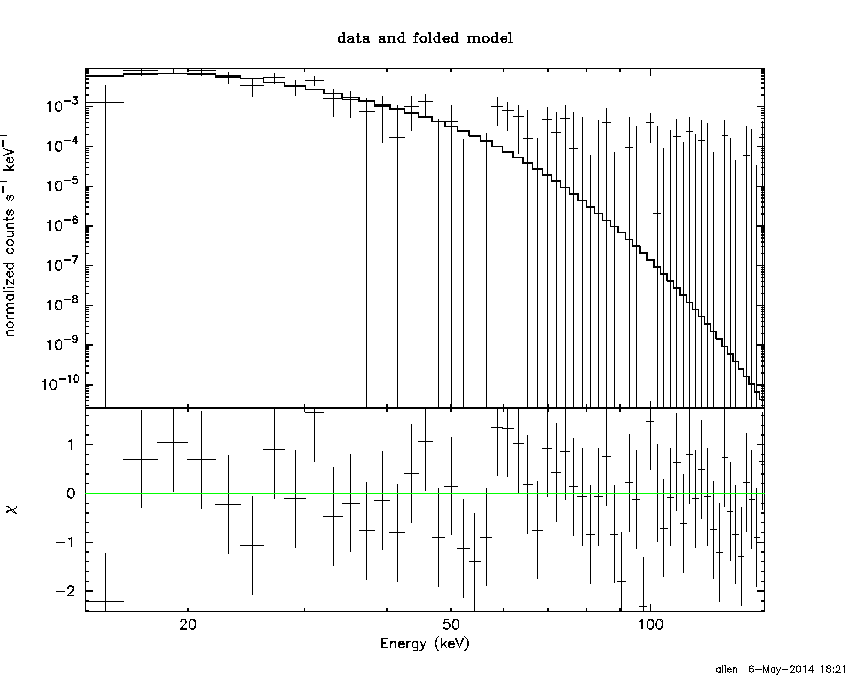

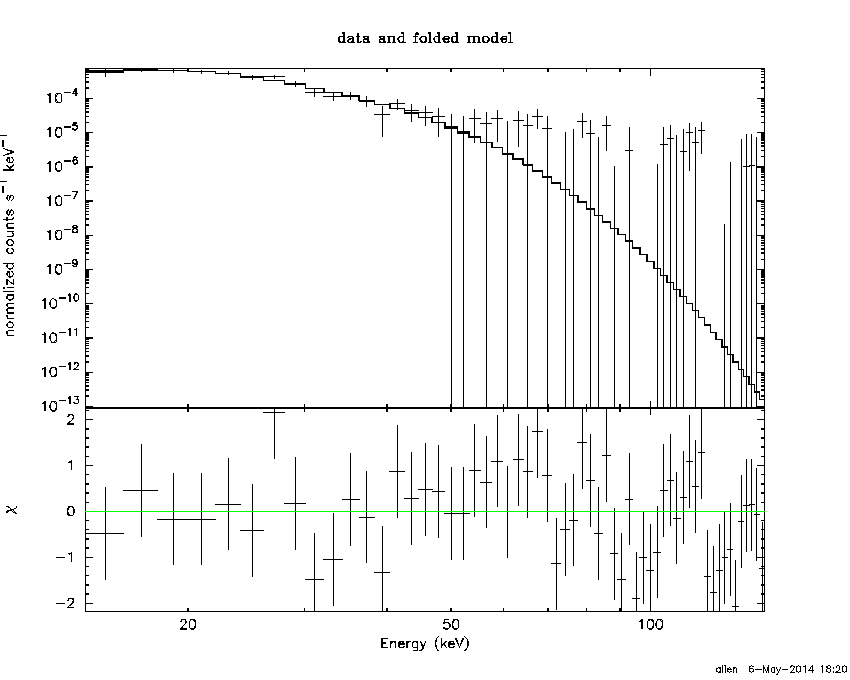

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 5.15454  (-0.319838  0.344327)
R^2/D10^2   : 0.671243  (-0.185765   0.258103)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.20 using 59 PHA bins.
# Reduced chi-squared =         0.9509 for     57 degrees of freedom
# Null hypothesis probability =   5.807363e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.933e-06   1.911e-07
25- 50  1.360e-06   1.486e-07
50-150  6.394e-08   2.230e-08
15-150  3.357e-06   2.824e-07

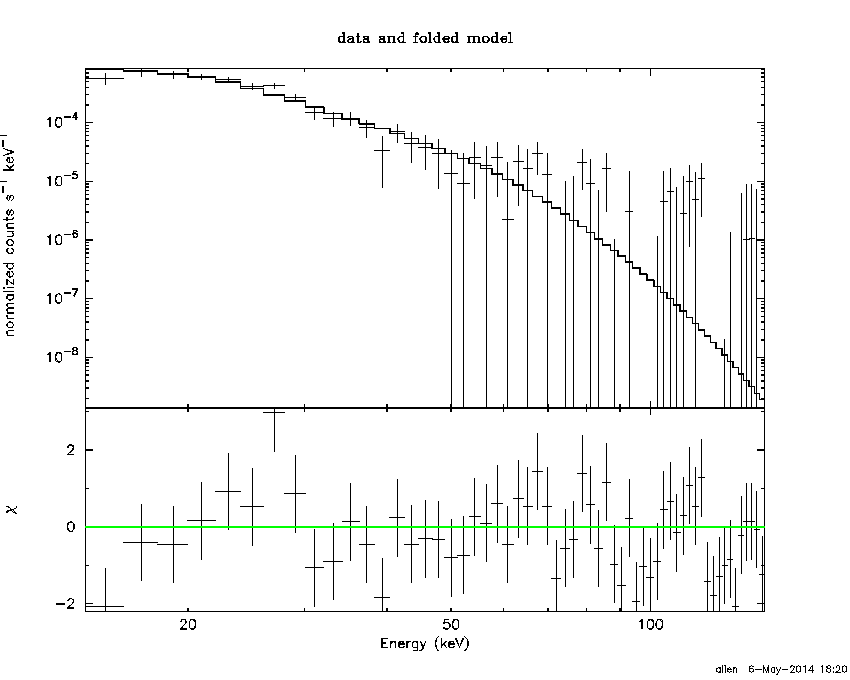

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 15.1519       (-1.85813      2.09657)
Norm        : 1.62505       (-0.307205     0.375805)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          61.55 using 59 PHA bins.
# Reduced chi-squared =          1.080 for     57 degrees of freedom
# Null hypothesis probability =   3.166077e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.006e-06   1.943e-07
25- 50  1.381e-06   1.381e-07
50-150  2.483e-07   7.523e-08
15-150  3.635e-06   2.782e-07

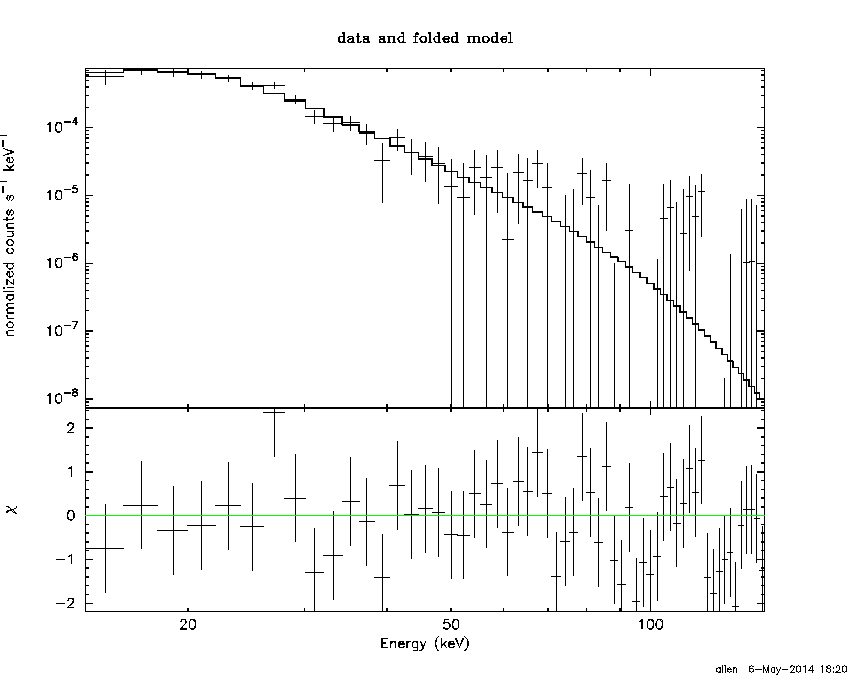

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 4.79624        (-4.82626      0.50619)
R1^2/D10^2  : 0.879015        (-0.283903      -0.839104)
kT2 [keV]   : 11.7653        (-12.4937      -12.4937)
R2^2/D10^2  : 2.56098E-03    (-0.00161254   0.760687)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.94 using 59 PHA bins.
# Reduced chi-squared =         0.9444 for     55 degrees of freedom
# Null hypothesis probability =   5.922593e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.973e-06   5.082e-07
25- 50  1.357e-06   5.230e-07
50-150  2.353e-07   1.361e-07
15-150  3.565e-06   1.004e-06

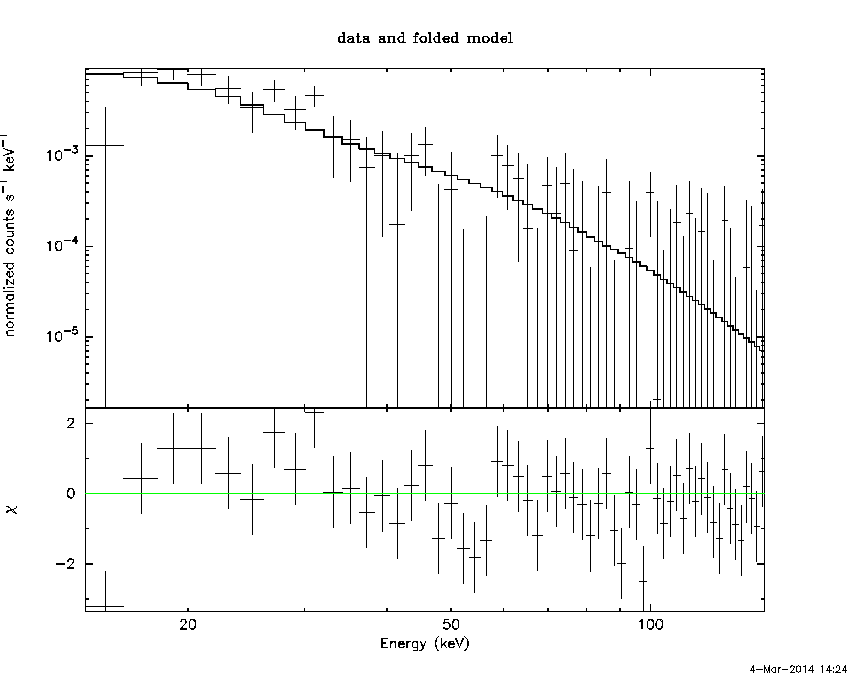

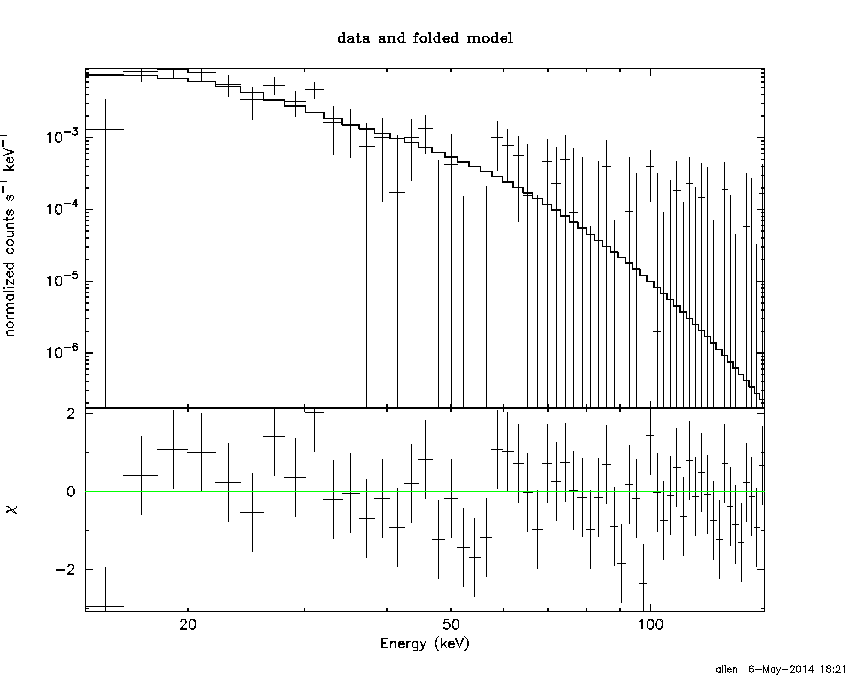

Peak spectrum fit

Power-law model

Time interval is from    0.264 sec. to    1.264 sec.
XSPEC12>exit
 XSPEC: quit


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index:      (     )
Norm@50keV  :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in 1 sec: 0.961481 ( -0.176767  0.17711 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.47724e-08 ( -9.64465e-09  1.0147e-08 ) ergs/cm2

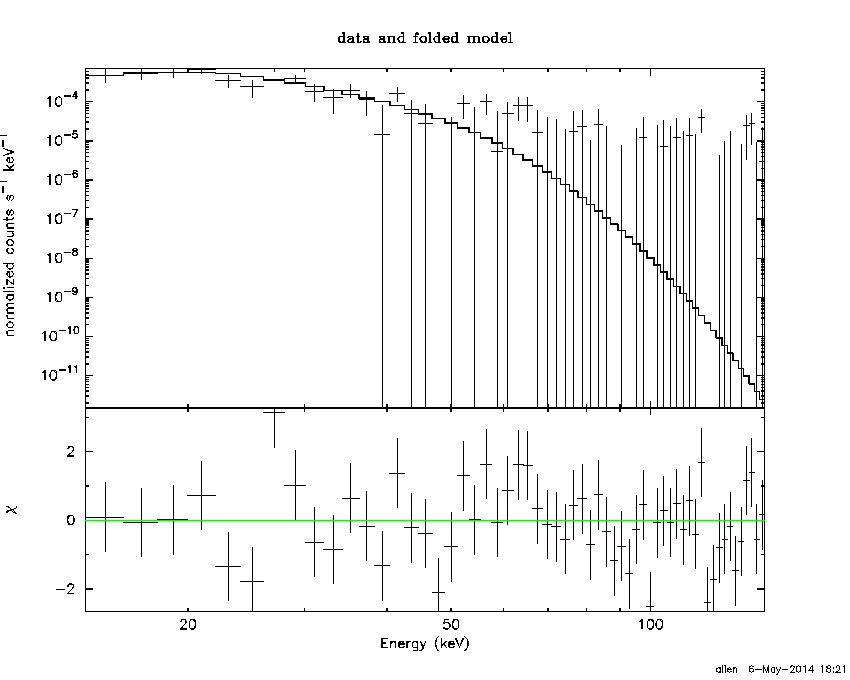

Cutoff power-law model

Time interval is from    0.264 sec. to    1.264 sec.

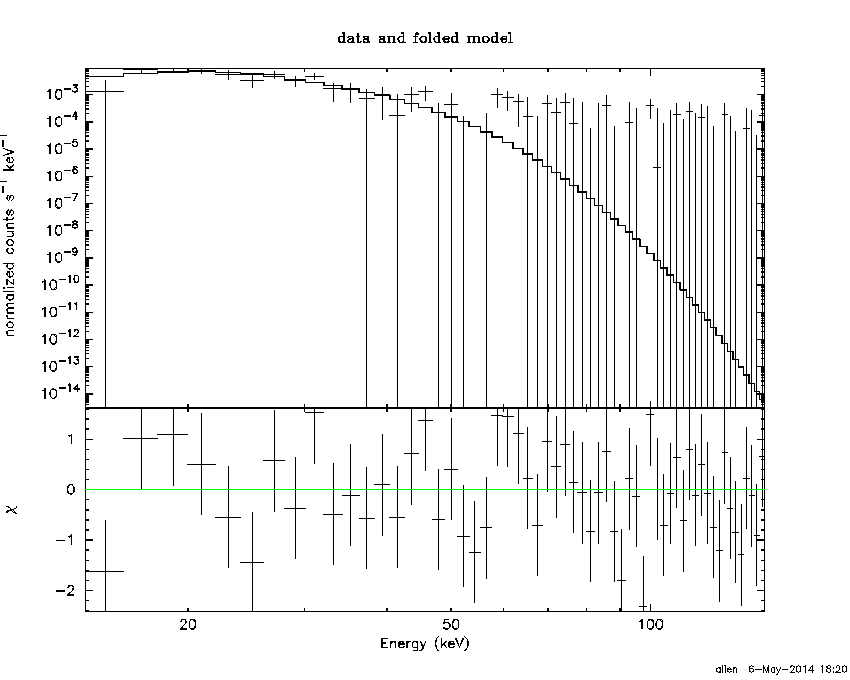

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -4.94321     ( 3.74671   3.03708 )
Epeak [keV] : 24.3398      ( -3.00215 2.90971 )
Norm@50keV  : 1756.54    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          46.49 using 59 PHA bins.
# Reduced chi-squared =         0.8302 for     56 degrees of freedom
# Null hypothesis probability =   8.135064e-01

Photon flux (15-150 keV)    in 1 sec: 0.967192 ( -0.170487  0.170688 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.76301e-08 ( -6.9248e-09  7.2614e-09 ) ergs/cm2

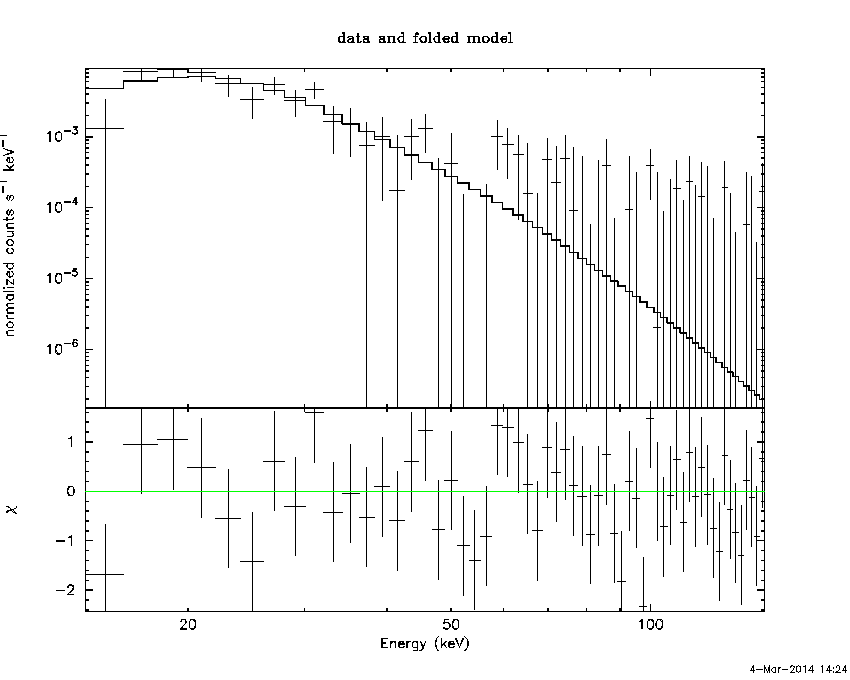

Band function

Time interval is from    0.264 sec. to    1.264 sec.
XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 5.95033  (-0.793854  0.921846)
R^2/D10^2   : 4.09460  (-1.96121   3.68937)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.11 using 59 PHA bins.
# Reduced chi-squared =         0.8441 for     57 degrees of freedom
# Null hypothesis probability =   7.928843e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.903e-08   5.678e-09
25- 50  1.864e-08   5.720e-09
50-150  1.649e-09   1.019e-09
15-150  3.932e-08   1.181e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 21.2433       (-5.65002      8.50477)
Norm        : 11.4319       (-3.7049     5.61723)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.44 using 59 PHA bins.
# Reduced chi-squared =         0.9551 for     57 degrees of freedom
# Null hypothesis probability =   5.717412e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.863e-08   4.965e-09
25- 50  1.707e-08   5.403e-09
50-150  5.648e-09   3.597e-09
15-150  4.135e-08   1.170e-08

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 5.95046        (-5.95056      32.4049)
R1^2/D10^2  : 3.91059        (-3.91099      -3.91099)
kT2 [keV]   : 5.95692        (-5.94794      -5.94794)
R2^2/D10^2  : 0.182852    (-0.183305   -0.183305)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          48.11 using 59 PHA bins.
# Reduced chi-squared =         0.8748 for     55 degrees of freedom
# Null hypothesis probability =   7.329430e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.903e-08   1.264e+00
25- 50  1.864e-08   9.690e+00
50-150  1.650e-09   2.008e+02
15-150  3.932e-08   2.861e+02

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model

XSPEC12>exit
 XSPEC: quit


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index:      (     )
Norm@50keV  :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in 163.1 sec: 8.78529E-02 ( -0.0129427  0.0129591 ) ph/cm2/s
Energy fluence (15-150 keV)             : 6.68606e-07 ( -1.20398e-07  1.26941e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -2.25410     ( -6.18978   2.28404 )
Epeak [keV] : 24.2750      ( -4.20464 3.85449 )
Norm@50keV  : 1.34545    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          70.02 using 59 PHA bins.
# Reduced chi-squared =          1.250 for     56 degrees of freedom
# Null hypothesis probability =   9.850117e-02

Photon flux (15-150 keV)    in 163.1 sec: 8.43754E-02 ( -0.0127754  0.0127923 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.53343e-07 ( -9.14094e-08  1.07028e-07 ) ergs/cm2

Band function

XSPEC12>exit
 XSPEC: quit


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       :    (     )
beta        :     (     )
Epeak [keV] :       (   )
Norm@50keV   :     (     )
------------------------------------------------------------

Photon flux (15-150 keV)    in 163.1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 1.29199e-06
S(50-100 keV) = 5.3692e-07

T90 vs. Hardness ratio plot

T90                                   = 777 sec.
Hardness ratio (energy fluence ratio) = 0.415576

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 0.537273
Count Ratio (50-100 keV) / (15-25 keV) = 0.0454789

Mask shadow pattern

IMX = 2.657340828426120E-01, IMY = -1.268181373003355E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.736000 -143.736000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9786 -15.6542    0.8  28.1   83.0   3.4681  14.5    0.8	Sco X-1
254.3709  35.3210   13.9  52.7  159.9   0.6468   0.8    4.4	Her X-1
255.9768 -37.8343   64.1  28.7   30.7   0.0314   0.2    0.7	4U 1700-377
256.4927 -36.4158    4.9  27.3   31.9   0.4152   2.3    2.8	GX 349+2
263.0114 -24.7745    1.8  14.9   42.3   0.9649   6.4    1.7	GX 1+4
264.7841 -44.4525    5.1  31.4   12.7   0.3976   2.3    1.8	4U 1735-44
268.4156  -1.6019    4.3  13.6  155.7   0.3600   2.6    9.4	SW J1753.5-0127
270.2452 -25.0615    4.1  11.6   17.3   0.3980   2.8    2.4	GX 5-1
270.1759 -25.6601  154.1  12.2   16.6   0.0117   0.1    8.5	GRS 1758-258
273.9149 -13.9086    3.8   0.1  145.9   0.3917   3.1    9.3	GX 17+2
276.0181 -30.3941    7.3  16.5   -6.1   0.2255   1.6    5.1	H1820-303
285.1385 -25.0383   75.3  15.2  -41.8   0.0226   0.2    9.0	HT1900.1-2455
288.7960  10.9712    1.3  29.0 -148.8   1.4694   8.6    1.5	GRS 1915+105
299.7086  35.0295    5.6  54.8 -154.1  -1.1972  -2.1   11.8	Cyg X-1
262.8288 -33.6715    0.0  22.1   25.5   0.3670   2.4   12.6	GX 354-0
255.2053   0.7272    2.6  23.7  127.0   0.8444   4.4 ------	UNKNOWN
266.2181 -28.8123    2.3  16.5   24.8   0.7177   5.0 ------	UNKNOWN
299.4609 -44.4516    2.6  37.3  -30.3   0.9103   4.5 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-143.736000 -113.380600
-112.736000 19.964600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0723 -15.5679    5.5  28.0   83.2   0.9184   2.1    6.9	Sco X-1
254.3365  35.3547    5.8  52.8  159.9  -2.8692  -2.0    6.0	Her X-1
256.0056 -37.8460    4.4  28.7   30.6   0.8746   2.6    0.9	4U 1700-377
256.4672 -36.2799    6.2  27.2   32.1  -0.6202  -1.9    8.7	GX 349+2
262.9230 -24.8601   62.3  15.0   42.3  -0.0476  -0.2    8.3	GX 1+4
264.6059 -44.4513    6.0  31.5   13.0  -0.6036  -1.9    5.9	4U 1735-44
268.2767  -1.6017    6.2  13.7  155.1  -0.4575  -1.8   10.5	SW J1753.5-0127
270.3845 -25.2313    3.2  11.7   16.4  -0.8770  -3.7   10.6	GX 5-1
270.4294 -25.7313    5.2  12.2   15.5   0.6344   2.6    6.9	GRS 1758-258
274.1394 -14.0811    6.4   0.1  -68.4   0.4646   1.8    8.2	GX 17+2
276.0549 -30.3502   90.4  16.4   -6.2  -0.0328  -0.1    6.8	H1820-303
284.9158 -24.9565    4.8  15.0  -41.5  -0.5956  -2.4    6.9	HT1900.1-2455
288.8961  10.7955    7.5  28.9 -148.4   0.4715   1.5   10.7	GRS 1915+105
299.6075  35.1823    4.2  54.9 -154.3   2.5800   2.7    1.4	Cyg X-1
263.1507 -33.9799    3.9  22.2   24.4   0.8201   3.0   11.9	GX 354-0
230.9196 -37.2241    2.2  44.7   50.7   5.9441   5.2 ------	UNKNOWN
243.2491  -3.1731    2.2  32.2  106.9   2.7145   5.3 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
58.164600 962.365900

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9801 -15.6497    0.3  23.5  121.5  37.0982  37.6    0.6	Sco X-1
255.9803 -37.8323    0.7  12.4   42.7  13.6779  17.3    0.8	4U 1700-377
256.2428 -36.5590    6.3  11.4   46.6   1.4308   1.8   12.4	GX 349+2
263.0032 -24.7317    1.1   4.9  146.1   7.5313  10.2    0.9	GX 1+4
264.7718 -44.3946   13.3  15.7    6.0   0.6971   0.9    3.6	4U 1735-44
268.2741  -1.3328    4.6  27.5 -173.3   2.0542   2.5    9.1	SW J1753.5-0127
270.1742 -25.1368   10.9   5.1 -132.4   0.7502   1.1    6.9	GX 5-1
270.2088 -25.7872    5.4   4.6 -126.6   1.5674   2.2    5.7	GRS 1758-258
274.0431 -14.0386    2.1  16.4 -149.8   4.7571   5.6    2.2	GX 17+2
275.9462 -30.3181    2.6   8.6  -75.0   3.4078   4.4    3.1	H1820-303
284.9058 -25.0075   10.0  17.1  -96.1  -0.8993  -1.1    8.8	HT1900.1-2455
288.7657  10.9365    2.0  45.3 -145.8  11.1175   5.7    2.0	GRS 1915+105
262.9415 -33.7584    3.2   5.7   30.4   2.6268   3.6    5.2	GX 354-0
230.2952 -17.8195    3.0  34.6  102.6   6.5340   3.8 ------	UNKNOWN
249.9401 -69.6267    4.2  41.9   10.6   3.2920   2.8 ------	UNKNOWN
258.2960  17.8182    2.6  47.2  171.9   7.8503   4.5 ------	UNKNOWN
263.8589 -23.0916    2.6   6.0  161.3   2.9805   4.4 ------	UNKNOWN
266.1416 -28.7180    1.0   0.1  128.2   8.6312  11.2 ------	UNKNOWN

Plot creation:
Tue May  6 18:21:16 EDT 2014
