batgrbproduct analysis for trigger=589685

batgrbproduct Analysis for Trigger=589685

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sun Oct  5 00:36:43 EDT 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger589685
======================================================================

  Trigger: 00589685      Segment: 000

  BAT Trigger Time: 415440790.528   [s; MET]
      Trigger Stop: 415440791.552   [s; MET]
               UTC: 2014-03-02T08:12:58.819460    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 253.841655755428   Dec: -12.8649539240131  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    14.66
     Image Trigger?:     NO
     Rate S/N Ratio:     32.2024843762092  [ if not an image trigger ]
     Image S/N Ratio:    14.66

  Flight Position:   [ source = BAT ]
    RA: 253.841655755428   Dec: -12.8649539240131  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 253.858168976711   Dec: -12.8743966577811  [deg; J2000]
        { 16h 55m 26.0s , -12d 52' 27.8" }
         +/- 1.04063645361274 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.345653839354717 [arcmin] (formal 1-sigma fit error)
    SNR: 28.7346209492355

  Angular difference between Flight and Ground position is 1.119806 arcmin

  Partial Coding Fraction: 0.8203125    [ including projection effects ]

  Duration
     T90: 98.7239999771118 +/- 11.404047887859
        Measured from: 0.639999985694885
                   to: 99.3639999628067     [s; relative to TRIGTIME]
     T50: 40.6999999880791 +/- 6.24129728260065
        Measured from: 12.1719999909401
                   to: 52.8719999790192     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: -0.0979999899864197
                   to: 0.90200001001358     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -0.0879999995231628
                   to: 116.10799998045     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.920585   1.275366   1.335997   0.464596
           0.071070   0.064931   0.054756   0.046908 [error]
 Peak      0.028233   0.083460   0.089109   0.030332
           0.007385   0.007456   0.007003   0.005572 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 2.25e-07 5.36e-07 1.02e-06 4.69e-06 2.75e-06 6.47e-06   erg/cm2
              Error 2.48e-08 3.39e-08 5.31e-08 6.10e-07 1.38e-07 6.26e-07   erg/cm2
Peak flux Power-law 3.53e-01 5.10e-01 5.46e-01 1.09e+00 1.75e+00 2.50e+00   ph/cm2/s
              Error 7.09e-02 6.29e-02 5.37e-02 2.30e-01 1.70e-01 2.62e-01   ph/cm2/s

Fluence   Cutoff-PL 2.25e-07 5.37e-07 1.02e-06 4.64e-06 2.75e-06 6.42e-06   erg/cm2
              Error 2.78e-08 2.52e-08 5.32e-08 8.25e-07 1.37e-07 8.24e-07   erg/cm2
Peak flux Cutoff-PL 2.65e-01 5.35e-01 6.09e-01 4.33e-01 1.67e+00 1.84e+00   ph/cm2/s
              Error 8.43e-02 7.26e-02 6.83e-02 2.61e-01 1.77e-01 3.10e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.076    0.094    -      -           2.25e-03 1.10e-04   52.430 57
CPL   1.073    0.094    9999.4    0.0      2.26e-03 3.70e-04   52.460 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    0.899    0.161    -      -           1.52e-02 1.47e-03   51.990 57
CPL  -0.188    0.798     114.5   68.2      4.62e-02 4.35e-02   44.730 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 95.040000 sec.
T50 in the 50-300 keV band: 32.256000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  116.196   -0.088  116.108
T90    98.724    0.640   99.364
T50    40.700   12.172   52.872
Peak    1.000   -0.098    0.902

Click here for the BAT GCN circular template

Special notes of this burst

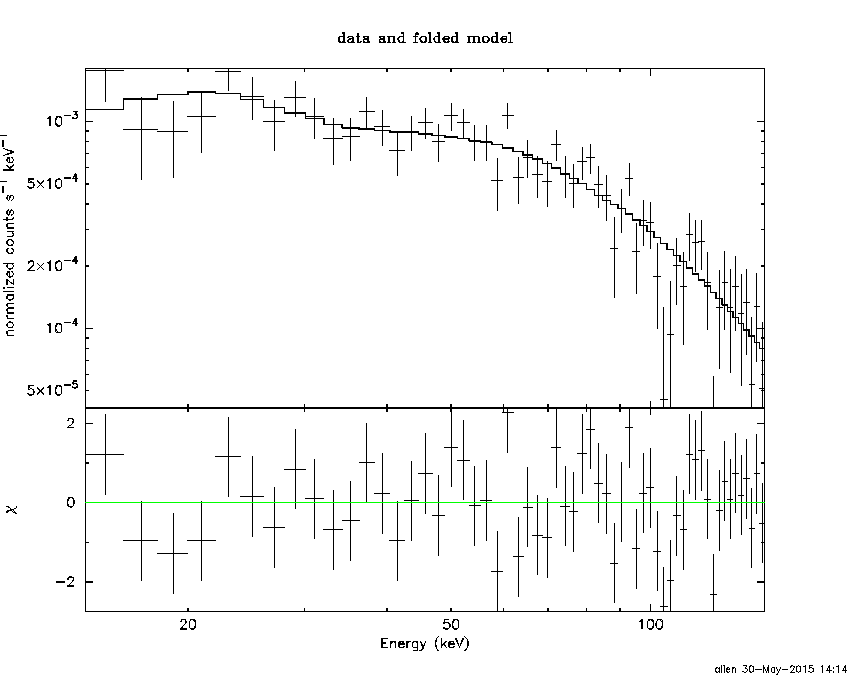

Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  253.8582   -12.8744   0.0067    18.3602    40.9842         1.7073659     28.735 TRIG_00589685

Foreground time interval of the image:
 -0.088  20.773 (delta_t =  20.861 [sec])
Background time interval of the image:
-239.528  -0.088 (delta_t = 239.440 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

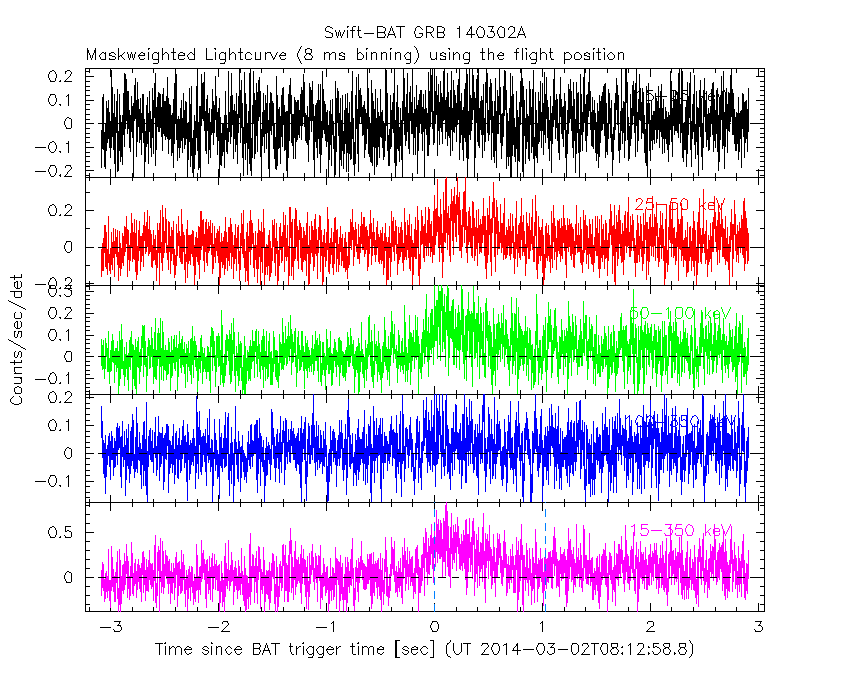

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

The mask-weighted light curves based on cleaned DPHs

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from   -0.088 sec. to  116.108 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.07642     ( -0.0942696   0.0928321 )
Norm@50keV  : 2.24966E-03    ( -0.000110418   0.000109964 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.43 using 59 PHA bins.
# Reduced chi-squared =         0.9198 for     57 degrees of freedom
# Null hypothesis probability =   6.470707e-01

Photon flux (15-150 keV)    in 116.2 sec: 0.260382 ( -0.0134463  0.0135027 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.75403e-06 ( -1.37921e-07  1.38587e-07 ) ergs/cm2

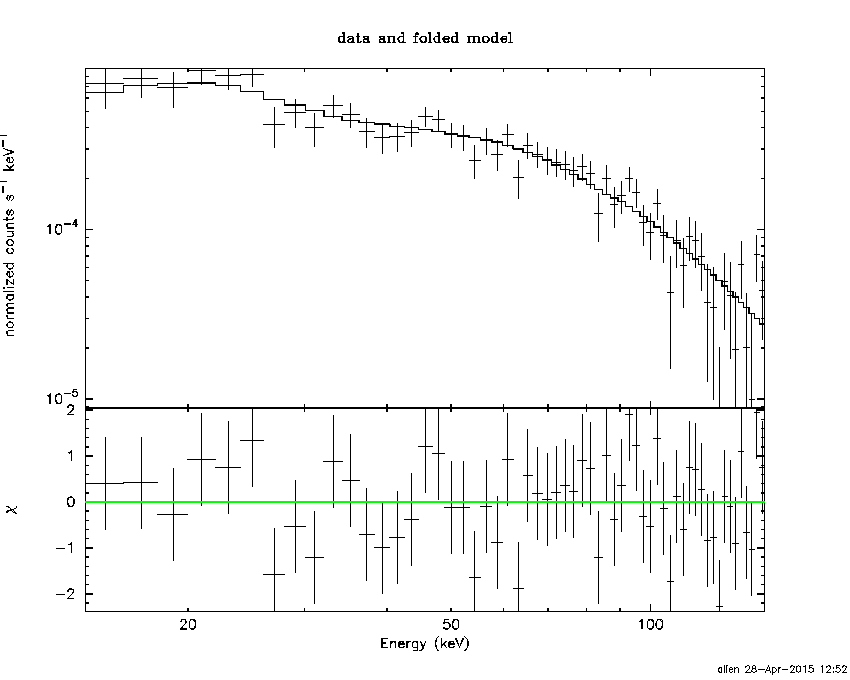

Cutoff power-law model

Time interval is from   -0.088 sec. to  116.108 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.07347     ( -0.0970691   0.0915125 )
Epeak [keV] : 9999.36      ( -9999.36 -9999.36 )
Norm@50keV  : 2.26140E-03    ( -0.000111178   0.000629006 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.46 using 59 PHA bins.
# Reduced chi-squared =         0.9367 for     56 degrees of freedom
# Null hypothesis probability =   6.097662e-01

Photon flux (15-150 keV)    in 116.2 sec: 0.260526 ( -0.006894  0.013241 ) ph/cm2/s
Energy fluence (15-150 keV)             : 2.75395e-06 ( -1.37186e-07  1.37104e-07 ) ergs/cm2

Band function

Time interval is from   -0.088 sec. to  116.108 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.852930   ( 0.85293   0.85293 )
beta        : -1.07641    ( -0.0928106   0.0943123 )
Epeak [keV] : 57.6013      ( -57.6013 -57.6013 )
Norm@50keV   : 3.92816E-03    ( -0.00141687   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.43 using 59 PHA bins.
# Reduced chi-squared =         0.9532 for     55 degrees of freedom
# Null hypothesis probability =   5.735459e-01

Photon flux (15-150 keV)    in 116.2 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

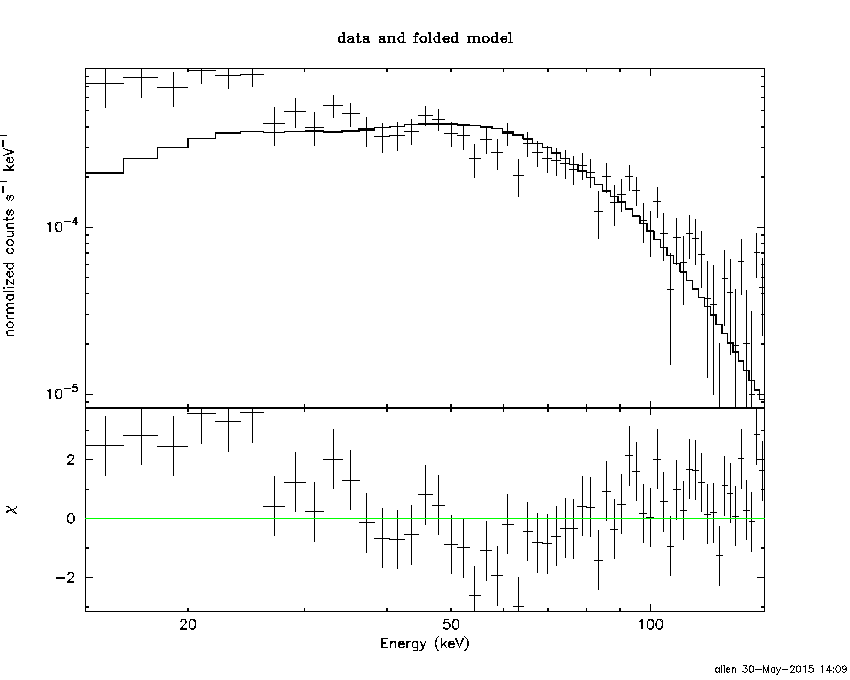

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 23.3630  (  )
R^2/D10^2   : 7.30152E-03  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         133.77 using 59 PHA bins.
# Reduced chi-squared =         2.3468 for     57 degrees of freedom
# Null hypothesis probability =   4.108501e-08

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  8.329e-08   9.011e-09
25- 50  4.558e-07   3.730e-08
50-150  1.857e-06   1.360e-07
15-150  2.396e-06   1.394e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (      )
Norm        : 1.11714       (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =         135.08 using 59 PHA bins.
# Reduced chi-squared =         2.3698 for     57 degrees of freedom
# Null hypothesis probability =   2.771262e-08

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.232e-07   1.807e-08
25- 50  6.218e-07   3.591e-08
50-150  1.364e-06   2.520e-07
15-150  2.309e-06   2.795e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.58462        (-1.2953      1.5992)
R1^2/D10^2  : 0.257540        (-0.13828      0.346913)
kT2 [keV]   : 32.4593        (-3.95344      5.93041)
R2^2/D10^2  : 2.39515E-03    (-0.000964357   0.0012216)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.69 using 59 PHA bins.
# Reduced chi-squared =         0.9398 for     55 degrees of freedom
# Null hypothesis probability =   6.020169e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.384e-07   6.751e-08
25- 50  5.139e-07   8.703e-08
50-150  2.027e-06   2.138e-07
15-150  2.779e-06   3.056e-07

Peak spectrum fit

Power-law model

Time interval is from   -0.098 sec. to    0.902 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.899131     ( -0.164133   0.158447 )
Norm@50keV  : 1.52232E-02    ( -0.00147894   0.00147094 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.99 using 59 PHA bins.
# Reduced chi-squared =         0.9121 for     57 degrees of freedom
# Null hypothesis probability =   6.630506e-01

Photon flux (15-150 keV)    in 1 sec: 1.74728 ( -0.169545  0.170092 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.70905e-07 ( -1.70902e-08  1.71842e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   -0.098 sec. to    0.902 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.187969     ( -0.877655   0.719018 )
Epeak [keV] : 114.459      ( -28.593 107.891 )
Norm@50keV  : 4.62132E-02    ( -0.0236368   0.0634357 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          44.73 using 59 PHA bins.
# Reduced chi-squared =         0.7987 for     56 degrees of freedom
# Null hypothesis probability =   8.604670e-01

Photon flux (15-150 keV)    in 1 sec: 1.66906 ( -0.17675  0.17719 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.60438e-07 ( -1.9469e-08  1.9144e-08 ) ergs/cm2

Band function

Time interval is from   -0.098 sec. to    0.902 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.857615   ( 0.857616   0.857616 )
beta        : -0.899097    ( -0.158372   0.163849 )
Epeak [keV] : 13.8131      (   )
Norm@50keV   : 2.28525E-02    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.99 using 59 PHA bins.
# Reduced chi-squared =         0.9453 for     55 degrees of freedom
# Null hypothesis probability =   5.903802e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 21.9128  (-2.57407  3.10863)
R^2/D10^2   : 6.54766E-02  (-0.0221693   0.0317848)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.04 using 59 PHA bins.
# Reduced chi-squared =         0.8779 for     57 degrees of freedom
# Null hypothesis probability =   7.314831e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.829e-09   1.069e-09
25- 50  3.075e-08   4.430e-09
50-150  1.103e-07   1.915e-08
15-150  1.469e-07   1.915e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (      )
Norm        : 7.07863       (-0.709904     0.709834)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          93.13 using 59 PHA bins.
# Reduced chi-squared =          1.634 for     57 degrees of freedom
# Null hypothesis probability =   1.784682e-03

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.763e-08   9.765e-09
25- 50  3.392e-08   1.805e-08
50-150  7.438e-08   4.021e-08
15-150  1.259e-07   6.144e-08

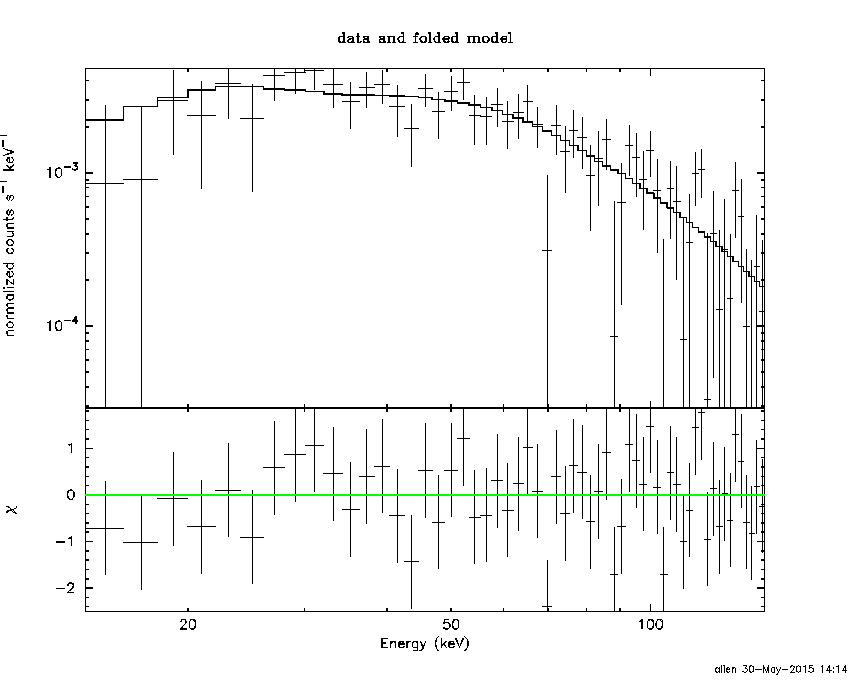

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 14.4671        (-5.3129      4.77109)
R1^2/D10^2  : 0.162709        (-0.0810856      0.241225)
kT2 [keV]   : 55.5374        (-28.704      -55.4983)
R2^2/D10^2  : 2.67190E-03    (-0.00235196   0.0267019)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          41.89 using 59 PHA bins.
# Reduced chi-squared =         0.7617 for     55 degrees of freedom
# Null hypothesis probability =   9.033344e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.996e-09   4.143e-09
25- 50  3.365e-08   1.769e-08
50-150  1.210e-07   6.085e-08
15-150  1.626e-07   7.838e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.870110     ( -0.105837   0.103255 )
Norm@50keV  : 5.06061E-03    ( -0.00029582   0.000293341 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.16 using 59 PHA bins.
# Reduced chi-squared =          1.143 for     57 degrees of freedom
# Null hypothesis probability =   2.141645e-01

Photon flux (15-150 keV)    in 20.86 sec: 0.580814 ( -0.0336189  0.0337507 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.19872e-06 ( -6.79779e-08  6.81467e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.666901     ( -0.446503   0.297543 )
Epeak [keV] : 404.486      ( -404.486 -404.486 )
Norm@50keV  : 6.12334E-03    ( -0.00127506   0.00303089 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          64.45 using 59 PHA bins.
# Reduced chi-squared =          1.151 for     56 degrees of freedom
# Null hypothesis probability =   2.051391e-01

Photon flux (15-150 keV)    in 20.86 sec: 0.574253 ( -0.035978  0.036044 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.18855e-06 ( -7.23383e-08  7.16854e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.774173   ( 0.774174   0.774174 )
beta        : -0.870114    ( -0.103169   0.105975 )
Epeak [keV] : 22.8902      (   )
Norm@50keV   : 7.66615E-03    (     )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.16 using 59 PHA bins.
# Reduced chi-squared =          1.185 for     55 degrees of freedom
# Null hypothesis probability =   1.642382e-01

Photon flux (15-150 keV)    in 20.86 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 5.36e-07
S(50-100 keV) = 1.02e-06

T90 vs. Hardness ratio plot

T90                                   = 98.7239999771118 sec.
Hardness ratio (energy fluence ratio) = 1.90299

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.38539
Count Ratio (50-100 keV) / (15-25 keV) = 1.45125

Mask shadow pattern

IMX = 2.505370543007930E-01, IMY = -2.176673394470010E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

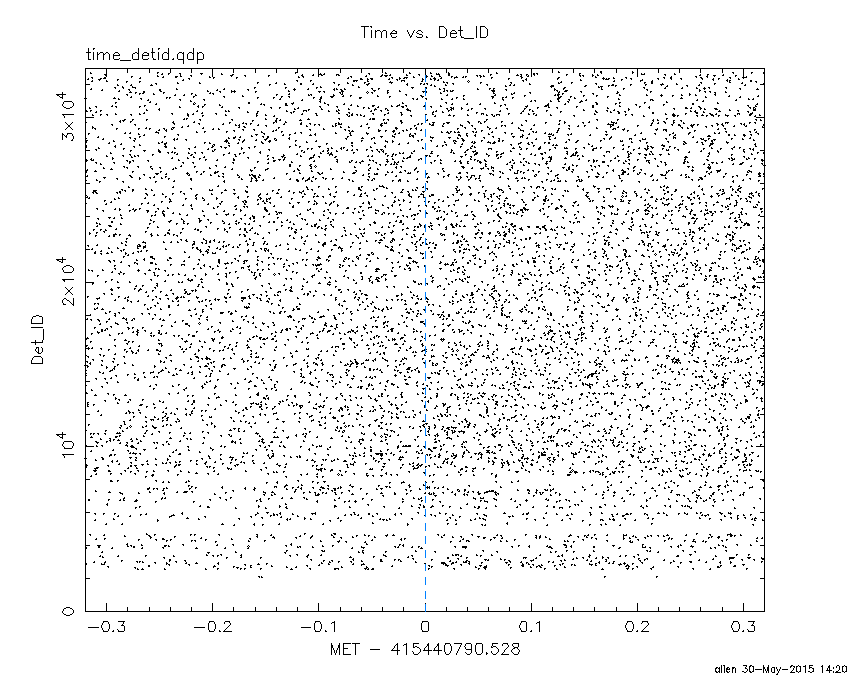

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 1.024000

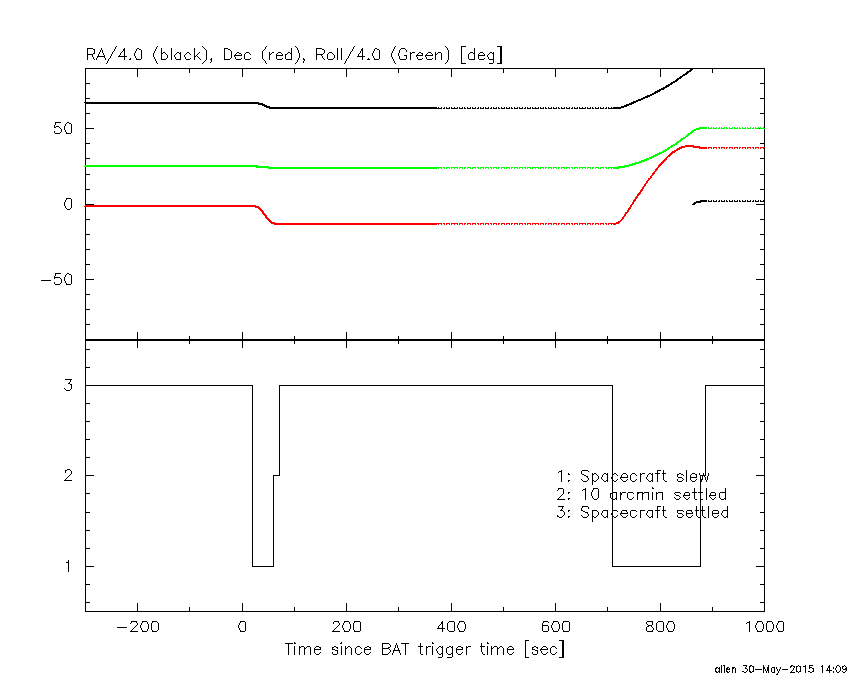

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.528000 -0.088000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9849 -15.6384    0.4  27.1   47.2   8.9700  28.3    0.3	Sco X-1
254.6512  35.4858    0.0  39.1  152.3   0.1526   0.3   12.8	Her X-1
256.0073 -37.8492    1.5  38.1    6.0   2.7147   7.8    1.0	4U 1700-377
256.5610 -36.5252    6.0  36.7    6.1  -0.6627  -1.9    8.6	GX 349+2
262.9537 -24.6679    4.1  23.8    2.4   0.7002   2.8    5.5	GX 1+4
264.7620 -44.4113    5.8  43.1   -6.1  -0.7691  -2.0    2.5	4U 1735-44
268.3822  -1.5286    6.5   0.1  -18.2   0.3690   1.8    4.6	SW J1753.5-0127
270.1441 -25.0066    3.9  23.6  -13.9   0.7348   3.0    8.8	GX 5-1
270.2921 -25.6421    4.8  24.3  -14.1   0.6052   2.4    6.1	GRS 1758-258
273.9583 -14.0645    3.2  13.8  -33.2   0.8630   3.6    3.2	GX 17+2
275.7379 -30.5006    0.0  29.9  -22.7   0.5573   2.1   12.6	H1820-303
284.9945 -24.8244    8.2  28.4  -43.0   0.3705   1.4    6.2	HT1900.1-2455
288.7945  10.9312    0.8  23.8 -131.7   3.6428  14.4    0.9	GRS 1915+105
299.5944  35.1648    2.5  46.8 -154.3   2.3762   4.6    2.2	Cyg X-1
307.9803  40.9756    7.0  55.6 -154.2   1.9381   1.6    6.0	Cyg X-3
262.8646 -33.7136    5.9  32.7   -1.4   0.5874   2.0    9.6	GX 354-0
229.1247  -0.8282    2.5  39.2   80.6   4.5986   4.6 ------	UNKNOWN
237.7684  36.8937    2.6  47.7  136.7   4.2453   4.4 ------	UNKNOWN
237.5862 -18.9163    2.5  34.9   48.0   2.1543   4.7 ------	UNKNOWN
265.9252   4.5639    2.5   6.5  148.0   0.9892   4.7 ------	UNKNOWN
266.1468 -28.7481    0.4  27.4   -5.6   7.1310  26.7 ------	UNKNOWN
	UNKNOWN
	UNKNOWN
	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-0.088000 20.772580

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
245.0466 -15.5651    5.1  27.0   47.3  -0.1819  -2.3    5.9	Sco X-1
254.3142  35.3920    4.1  39.1  151.8  -0.2777  -2.8    7.6	Her X-1
256.1178 -37.9227    3.6  38.2    5.8   0.2720   3.2    7.8	4U 1700-377
256.4145 -36.3856    3.1  36.6    6.4   0.3025   3.7    2.5	GX 349+2
262.8758 -24.7682    5.2  23.9    2.5   0.1327   2.2    7.4	GX 1+4
264.7497 -44.4526  316.6  43.1   -6.1   0.0035   0.0    0.3	4U 1735-44
268.5109  -1.5068    5.4   0.2  -78.1   0.1153   2.1    9.2	SW J1753.5-0127
270.3290 -24.9343    8.9  23.6  -14.3   0.0721   1.3    9.0	GX 5-1
270.2200 -25.5815    3.7  24.2  -13.9  -0.1780  -3.1   10.7	GRS 1758-258
273.8295 -14.1615    0.0  13.8  -32.6  -0.1011  -1.8   12.7	GX 17+2
276.0884 -30.3399    9.2  29.8  -23.4   0.0737   1.3    8.6	H1820-303
285.1573 -25.0668    5.4  28.6  -43.0  -0.1317  -2.2   11.0	HT1900.1-2455
288.6440  10.9130   11.1  23.7 -131.9   0.0655   1.0    9.3	GRS 1915+105
299.4624  35.2590    6.0  46.8 -154.5  -0.2046  -1.9    7.2	Cyg X-1
308.1058  40.9533  375.0  55.7 -154.1   0.0068   0.0    0.2	Cyg X-3
263.0216 -33.9333    4.4  32.9   -1.7   0.1899   2.6    6.1	GX 354-0
243.6314 -10.6199    2.3  26.2   58.7   0.4092   5.0 ------	UNKNOWN
253.8582 -12.8744    0.4  18.4   41.0   1.7070  28.7 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
60.772610 708.572600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
244.9720 -15.6407    0.2   9.0   64.5  24.7916  51.0    0.4	Sco X-1
254.5243  35.4176    2.9  48.3  174.1   4.3427   4.0    5.6	Her X-1
255.9903 -37.8292    0.8  25.0  -10.6   6.8194  13.7    0.9	4U 1700-377
256.2947 -36.4662  933.7  23.7  -11.5   0.0059   0.0    7.3	GX 349+2
262.9210 -24.7276    2.1  14.6  -41.2   2.4941   5.6    4.9	GX 1+4
264.5617 -44.6014   19.0  33.0  -20.7  -0.3466  -0.6   11.9	4U 1735-44
268.5046  -1.6132   78.1  18.4 -133.3  -0.0709  -0.1   12.6	SW J1753.5-0127
270.2700 -25.1129    1.7  19.7  -55.9   3.2680   6.9    2.2	GX 5-1
270.2933 -25.7289    3.1  20.1  -54.5   1.8064   3.8    1.0	GRS 1758-258
274.0344 -14.0474    2.2  19.6  -90.9   2.7495   5.2    1.8	GX 17+2
276.0101 -30.3226    5.9  26.9  -52.7   1.0751   1.9    5.2	H1820-303
285.0326 -24.7895  405.3  31.7  -70.0   0.0204   0.0    7.9	HT1900.1-2455
288.7899  10.9377    1.2  42.1 -129.6  10.2111   9.9    0.7	GRS 1915+105
263.0064 -33.7126    3.3  22.4  -26.9   1.6494   3.5    7.4	GX 354-0
266.1296 -28.7556    0.3  19.6  -40.5  14.4142  33.0 ------	UNKNOWN
274.8275 -12.6857    4.0  20.4  -94.8   1.3790   2.9 ------	UNKNOWN

Plot creation:
Sat May 30 14:20:33 EDT 2015
