batgrbproduct analysis for trigger=595616

batgrbproduct Analysis for Trigger=595616

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done of the amount of data for this trigger downloaded to date.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.
4) This page will be updated for up to 10 downlinks after the trigger.

Special note: Due to the low partial coding fraction, the refined position can only be found using the DETECTION mask. Therefore, the refined position and the mask shadow pattern shown here are from analyses with DETECTION mask, everything else uses the FLUX mask.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Fri Dec 18 18:37:15 EST 2015
             Host Name: bat1
   Current Working Dir: /local/data/bat1/alien/Swift_3rdBATcatalog/event/batevent_reproc/trigger595616
======================================================================

  Trigger: 00595616      Segment: 000

  BAT Trigger Time: 419040592   [s; MET]
      Trigger Stop: 419040656   [s; MET]
               UTC: 2014-04-13T00:09:40.120580    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 65.4492072468499   Dec: -51.2050253508241  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    12.49
     Image Trigger?:     YES
     Rate S/N Ratio:     0  [ if not an image trigger ]
     Image S/N Ratio:    12.49

  Flight Position:   [ source = BAT ]
    RA: 65.4492072468499   Dec: -51.2050253508241  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 65.439222331188   Dec: -51.1867986746492  [deg; J2000]
        { 04h 21m 45.4s , -51d 11' 12.5" }
         +/- 1.67646641840009 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.710472959583765 [arcmin] (formal 1-sigma fit error)
    SNR: 14.5396615254725
    Note: The refined position is found by using the DETECTION mask.

  Angular difference between Flight and Ground position is 1.156248 arcmin

  Partial Coding Fraction: 0.06103516    [ including projection effects ]

  Duration
     T90: 132.976000010967 +/- 14.3671135780925
        Measured from: -29.1919999718666
                   to: 103.784000039101     [s; relative to TRIGTIME]
     T50: 61.1200000047684 +/- 6.69989371629822
        Measured from: 19.7360000014305
                   to: 80.8560000061989     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 77.9480000138283
                   to: 78.9480000138283     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -49.688000023365
                   to: 114.39200001955     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     4.262959   6.465389   5.007518   1.677108
           0.287261   0.305895   0.276780   0.243914 [error]
 Peak      0.089898   0.121625   0.144845   0.031350
           0.023169   0.026923   0.026634   0.019408 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 1.48e-06 2.77e-06 3.99e-06 1.22e-05 1.14e-05 2.05e-05   erg/cm2
              Error 1.46e-07 1.62e-07 2.71e-07 1.83e-06 6.61e-07 2.01e-06   erg/cm2
Peak flux Power-law 1.10e+00 9.67e-01 5.85e-01 5.34e-01 2.88e+00 3.18e+00   ph/cm2/s
              Error 3.48e-01 2.13e-01 1.76e-01 3.01e-01 6.31e-01 7.04e-01   ph/cm2/s

Fluence   Cutoff-PL 1.42e-06 2.82e-06 4.07e-06 9.06e-06 1.12e-05 1.74e-05   erg/cm2
              Error 1.78e-07 1.87e-07 3.00e-07 3.78e-06 7.17e-07 3.84e-06   erg/cm2
Peak flux Cutoff-PL 9.11e-01 1.08e+00 6.78e-01 2.53e-01 2.84e+00 2.92e+00   ph/cm2/s
              Error 4.26e-01 2.70e-01 2.33e-01 3.73e-01 6.30e-01 7.07e-01   ph/cm2/s

Fluence        Band -------- -------- -------- -------- -------- --------   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band 9.45e-01 1.06e+00 6.66e-01 2.87e-01 2.86e+00 2.96e+00   ph/cm2/s
              Error -------- -------- -------- -------- 6.34e-01 --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.470    0.096    -      -           7.26e-03 3.90e-04   69.050 57
CPL   1.261    0.326     186.0  -48.4      9.16e-03 3.54e-03   68.100 56

The chi2 of BB fit is -------- which shows a significant improvement in the fit over a PL.
Check the BB fit.

=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.726    0.353    -      -           2.15e-02 5.17e-03   53.350 57
CPL   0.703    1.705      67.6  -21.3      6.88e-02 2.76e-01   51.800 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 107.200000 sec.
T50 in the 50-300 keV band: 37.248000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100  164.080  -49.688  114.392
T90   132.976  -29.192  103.784
T50    61.120   19.736   80.856
Peak    1.000   77.948   78.948

Click here for the BAT GCN circular template

Special notes of this burst


Pre-slew 15.0-350.0 keV image (Event data; DETECTION mask)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
   65.4392   -51.1868   0.0132    40.7900   -81.0817        16.7521506     14.540 TRIG_00595616

Foreground time interval of the image:
-57.560 281.701 (delta_t = 339.261 [sec])
Background time interval of the image:
-239.000 -57.560 (delta_t = 181.440 [sec])

Lightcurves

Notes:

1) All plots contain as much data as has been downloaded to date.
2) The mask-weighted light curves are using the flight position.
3) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
4) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
5) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
6) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

The mask-weighted light curves based on cleaned DPHs

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) For long bursts, a spectral fit of the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.
4) For short bursts (T90<1sec), the specrtum is also fit with Blackbody, OTTB, and Double Blackbody.

Time averaged spectrum fit using the pre-slew DRM

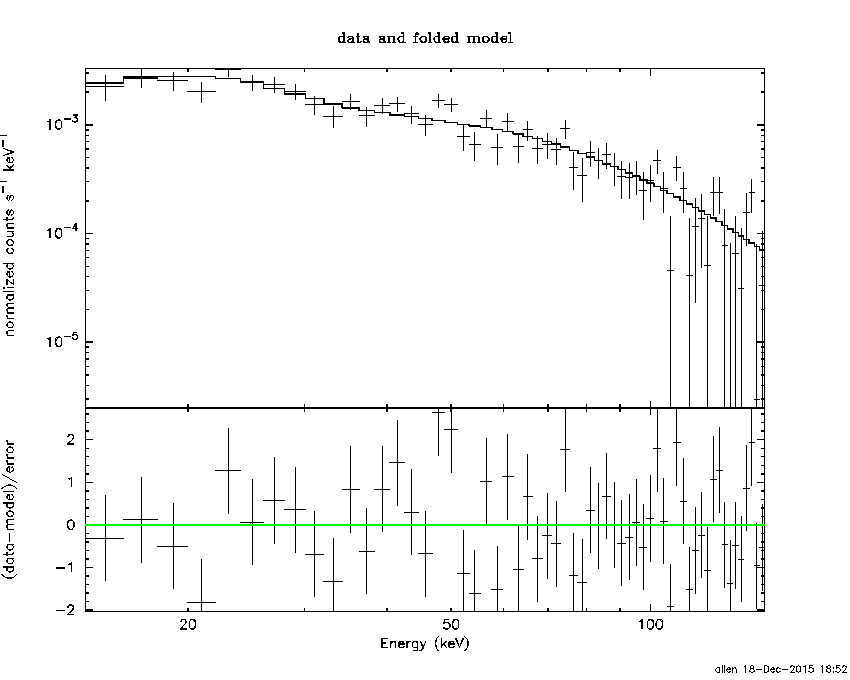

Power-law model

Time interval is from  -49.688 sec. to  114.392 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.47035     ( -0.0959201   0.0961198 )
Norm@50keV  : 7.25621E-03    ( -0.000390158   0.000389598 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          69.05 using 59 PHA bins.
# Reduced chi-squared =          1.211 for     57 degrees of freedom
# Null hypothesis probability =   1.316289e-01

Photon flux (15-150 keV)    in 164.1 sec: 0.898837 ( -0.0505103  0.05061 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.13528e-05 ( -6.59864e-07  6.62404e-07 ) ergs/cm2

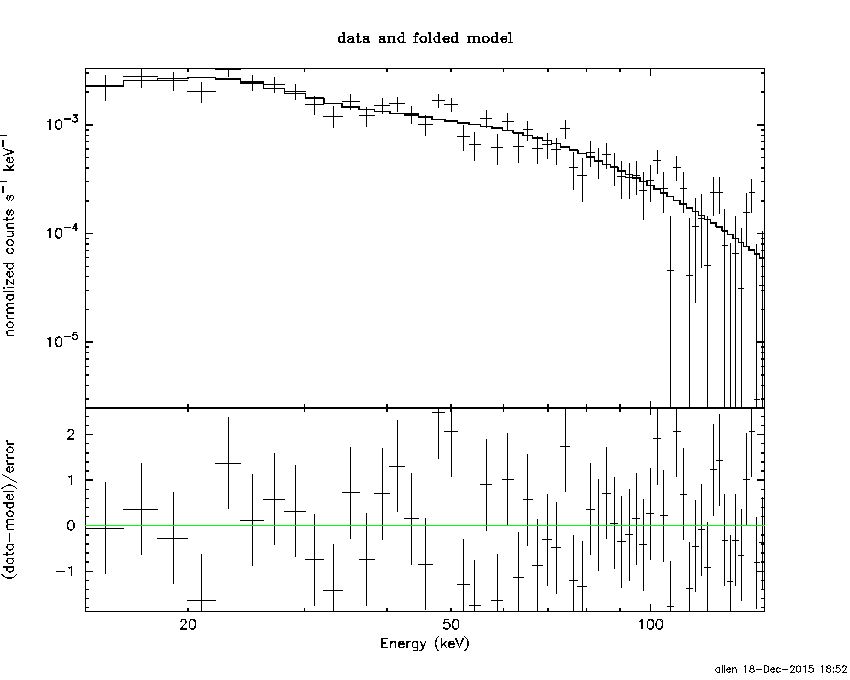

Cutoff power-law model

Time interval is from  -49.688 sec. to  114.392 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.26120     ( -0.394139   0.257335 )
Epeak [keV] : 186.048      ( -89.2219 -186.048 )
Norm@50keV  : 9.15710E-03    ( -0.00218545   0.00488485 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          68.10 using 59 PHA bins.
# Reduced chi-squared =          1.216 for     56 degrees of freedom
# Null hypothesis probability =   1.288011e-01

Photon flux (15-150 keV)    in 164.1 sec: 0.888845 ( -0.05328  0.053323 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.12046e-05 ( -7.20071e-07  7.14442e-07 ) ergs/cm2

Band function

Time interval is from  -49.688 sec. to  114.392 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.936387   ( 0.936449   0.936449 )
beta        : -1.59182    ( 1.59199   0.183661 )
Epeak [keV] : 83.8096      ( -83.8644 -83.8644 )
Norm@50keV   : 1.43190E-02    ( -0.00730349   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.47 using 59 PHA bins.
# Reduced chi-squared =          1.227 for     55 degrees of freedom
# Null hypothesis probability =   1.206287e-01

Photon flux (15-150 keV)    in 164.1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 15.9174  (  )
R^2/D10^2   : 8.21707E-02  (   )
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =         143.86 using 59 PHA bins.
# Reduced chi-squared =         2.5239 for     57 degrees of freedom
# Null hypothesis probability =   1.865861e-09

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  7.072e-07   7.869e-08
25- 50  2.963e-06   2.117e-07
50-150  5.236e-06   5.218e-07
15-150  8.906e-06   6.113e-07

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 200.000       (-24.0747      -200)
Norm        : 3.70252       (-0.197569     0.197569)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          71.11 using 59 PHA bins.
# Reduced chi-squared =          1.248 for     57 degrees of freedom
# Null hypothesis probability =   9.899761e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.513e-06   9.977e-08
25- 50  2.910e-06   1.846e-07
50-150  6.383e-06   5.809e-07
15-150  1.081e-05   8.591e-07

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 8.15278        (-1.58364      1.66685)
R1^2/D10^2  : 0.553783        (-0.238504      0.558334)
kT2 [keV]   : 30.9566        (-6.34849      12.4472)
R2^2/D10^2  : 6.38762E-03    (-0.00421892   0.00822998)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          70.82 using 59 PHA bins.
# Reduced chi-squared =          1.288 for     55 degrees of freedom
# Null hypothesis probability =   7.399900e-02

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.261e-06   2.279e-07
25- 50  2.965e-06   4.808e-07
50-150  6.993e-06   2.063e-06
15-150  1.122e-05   2.469e-06

Peak spectrum fit

Power-law model

Time interval is from   77.948 sec. to   78.948 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.72620     ( -0.329787   0.376896 )
Norm@50keV  : 2.14661E-02    ( -0.00526091   0.0050797 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.35 using 59 PHA bins.
# Reduced chi-squared =         0.9360 for     57 degrees of freedom
# Null hypothesis probability =   6.127287e-01

Photon flux (15-150 keV)    in 1 sec: 2.87754 ( -0.630552  0.630841 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.9837e-07 ( -4.92735e-08  4.9748e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from   77.948 sec. to   78.948 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.703344     ( -1.87796   1.53236 )
Epeak [keV] : 67.6149      ( -25.0526 -67.6152 )
Norm@50keV  : 6.87841E-02    ( -0.0687857   0.482711 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.80 using 59 PHA bins.
# Reduced chi-squared =         0.9250 for     56 degrees of freedom
# Null hypothesis probability =   6.344558e-01

Photon flux (15-150 keV)    in 1 sec: 2.84460 ( -0.62497  0.63415 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.9893e-07 ( -5.0204e-08  5.0784e-08 ) ergs/cm2

Band function

Time interval is from   77.948 sec. to   78.948 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.708722   ( -1.31431   1.88457 )
beta        : -10.0000    ( 10   3.55271e-15 )
Epeak [keV] : 67.8418      ( -24.5182 409.617 )
Norm@50keV   : 6.82352E-02    ( -0.0682359   0.483884 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          51.80 using 59 PHA bins.
# Reduced chi-squared =         0.9418 for     55 degrees of freedom
# Null hypothesis probability =   5.976086e-01

Photon flux (15-150 keV)    in 1 sec: 2.86216 ( 4.13784  -0.65088 ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 14.7668  (-3.3357  3.95788)
R^2/D10^2   : 0.368259  (-0.211733   0.520057)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.18 using 59 PHA bins.
# Reduced chi-squared =         0.9681 for     57 degrees of freedom
# Null hypothesis probability =   5.435344e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  1.685e-08   7.031e-09
25- 50  6.600e-08   2.268e-08
50-150  9.725e-08   4.712e-08
15-150  1.801e-07   6.676e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 134.252       (-68.6203      -132.345)
Norm        : 12.2159       (-2.89003     3.73202)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.28 using 59 PHA bins.
# Reduced chi-squared =         0.9171 for     57 degrees of freedom
# Null hypothesis probability =   6.525710e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  3.163e-08   1.846e-08
25- 50  5.766e-08   3.323e-08
50-150  1.085e-07   7.075e-08
15-150  1.978e-07   1.178e-07

Double BB

------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 1.74057        (-1.98502      7.02222)
R1^2/D10^2  : 5142.22        (-5240.38      -5241.42)
kT2 [keV]   : 16.2644        (-3.74037      9.10034)
R2^2/D10^2  : 0.248579    (-0.213655   0.25019)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          50.26 using 59 PHA bins.
#Fit statistic : Chi-Squared =          50.23 using 59 PHA bins.
# Reduced chi-squared =         0.9137 for     55 degrees of freedom
# Reduced chi-squared =         0.9133 for     55 degrees of freedom
# Null hypothesis probability =   6.561639e-01
# Null hypothesis probability =   6.569801e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.886e-08   1.375e-08
25- 50  5.633e-08   2.727e-08
50-150  1.095e-07   5.912e-08
15-150  1.947e-07   7.914e-08

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.47035     ( -0.0959201   0.0961198 )
Norm@50keV  : 7.25621E-03    ( -0.000390158   0.000389598 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          69.05 using 59 PHA bins.
# Reduced chi-squared =          1.211 for     57 degrees of freedom
# Null hypothesis probability =   1.316289e-01

Photon flux (15-150 keV)    in 164.1 sec: 0.898837 ( -0.0505103  0.05061 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.13528e-05 ( -6.59864e-07  6.62404e-07 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.26120     ( -0.394139   0.257335 )
Epeak [keV] : 186.048      ( -89.2219 -186.048 )
Norm@50keV  : 9.15710E-03    ( -0.00218545   0.00488485 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          68.10 using 59 PHA bins.
# Reduced chi-squared =          1.216 for     56 degrees of freedom
# Null hypothesis probability =   1.288011e-01

Photon flux (15-150 keV)    in 164.1 sec: 0.888845 ( -0.05328  0.053323 ) ph/cm2/s
Energy fluence (15-150 keV)             : 1.12046e-05 ( -7.20071e-07  7.14442e-07 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.936387   ( 0.936449   0.936449 )
beta        : -1.59182    ( 1.59199   0.183661 )
Epeak [keV] : 83.8096      ( -83.8644 -83.8644 )
Norm@50keV   : 1.43190E-02    ( -0.00730349   0 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.47 using 59 PHA bins.
# Reduced chi-squared =          1.227 for     55 degrees of freedom
# Null hypothesis probability =   1.206287e-01

Photon flux (15-150 keV)    in 164.1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 0 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 2.77e-06
S(50-100 keV) = 3.99e-06

T90 vs. Hardness ratio plot

T90                                   = 132.976000010967 sec.
Hardness ratio (energy fluence ratio) = 1.44043

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.51664
Count Ratio (50-100 keV) / (15-25 keV) = 1.17466

Mask shadow pattern (with DETECTION mask)

IMX = 1.337672409638843E-01, IMY = 8.524394179970561E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 64.000000

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.000000 -49.688000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.5052 -40.5438    1.2  25.8   11.5   1.8019   9.4    1.2	Vela X-1
170.2840 -60.6621    2.3  12.4  105.8   0.8822   5.1    2.5	Cen X-3
186.5924 -62.7536    2.0  18.0  128.1   1.1241   5.9    2.0	GX 301-2
337.8324 -67.7433    3.0  46.2 -145.0   1.6882   3.8 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-49.688000 114.392000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
135.3318 -40.4487    9.1  25.9   11.2  -0.2495  -1.3   11.0	Vela X-1
170.6783 -60.5751    6.7  12.6  106.0   0.3266   1.7   11.1	Cen X-3
186.6254 -62.8696    2.2  17.9  128.5   0.9950   5.1    6.0	GX 301-2
102.3880 -32.5870    2.8  41.8  -30.6   1.2916   4.1 ------	UNKNOWN
 65.4550 -51.1784    0.5  40.8  -81.1  18.6431  21.2 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
386.900600 839.044100
841.000000 848.700600

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
186.6410 -62.7591    2.9  50.1    8.4   4.5756   4.0    0.8	GX 301-2
244.9750 -15.6390    0.1  14.3  151.2  35.1117  84.5    0.3	Sco X-1
255.9859 -37.8535    2.7  11.2  -64.6   1.8160   4.3    0.6	4U 1700-377
256.3268 -36.2805    6.3  10.4  -72.1   0.7817   1.8   10.0	GX 349+2
263.0233 -24.6723    3.7  15.5 -128.3   1.3613   3.1    4.5	GX 1+4
264.7240 -44.5249   10.4  20.5  -62.1   0.5306   1.1    4.6	4U 1735-44
268.4504  -1.5959 2518.2  35.1 -162.3   0.0020   0.0    9.9	SW J1753.5-0127
270.1540 -25.0292    2.0  21.5 -120.0   2.7074   5.8    7.7	GX 5-1
270.3157 -25.7501    2.7  21.4 -118.0   2.0405   4.4    0.8	GRS 1758-258
274.0598 -14.0762    3.4  29.9 -138.6   1.7683   3.4    3.9	GX 17+2
275.8679 -30.3147    5.4  25.3 -104.2   1.0794   2.1    4.3	H1820-303
285.0337 -24.9219   12.8  34.4 -111.5   0.7545   0.9    0.2	HT1900.1-2455
288.8175  10.9702    3.6  57.6 -151.3   8.9408   3.2    1.9	GRS 1915+105
262.8561 -33.6572    0.0  14.4  -93.2   0.7166   1.6   12.5	GX 354-0
231.8657 -35.7625    3.4  13.6   38.0   1.4918   3.4 ------	UNKNOWN
252.7172 -25.3095    2.6   7.1 -151.1   1.8055   4.4 ------	UNKNOWN
265.6713 -27.7749    1.7  16.9 -115.1   3.0341   6.7 ------	UNKNOWN
266.1171 -28.7252    0.6  17.1 -111.7   8.3432  18.6 ------	UNKNOWN

Plot creation:
Fri Dec 18 18:53:27 EST 2015
