batgrbproduct analysis for trigger=597519

batgrbproduct Analysis for Trigger=597519

Analysis Summary

Notes:

1) No attempt has been made to eliminate the non-significant decimal places.
2) This batgrbproduct analysis is done using the HEASARC data.
3) This batgrbproduct analysis is using the flight position for the mask-weighting calculation.

======================================================================
                  BAT GRB EVENT DATA PROCESSING REPORT
    Process Script Ver: batgrbproduct v2.46
    Process Start Time (local time): Sat Oct  4 23:18:25 EDT 2014
             Host Name: batevent1
   Current Working Dir: /local/data/batevent/batevent_reproc/trigger597519
======================================================================

  Trigger: 00597519      Segment: 000

  BAT Trigger Time: 420417661.952   [s; MET]
      Trigger Stop: 420417666.048   [s; MET]
               UTC: 2014-04-28T22:40:50.007020    [includes UTCF correction]
       Where From?: TDRSS position message

  BAT
    RA: 194.30789595948   Dec: 28.3219605402312  [deg; J2000]

     Catalogged Source?: NO
     Point Source?:      YES
     GRB Indicated?:     YES    [ by BAT flight software ]
     Image S/N Ratio:    8.54
     Image Trigger?:     NO
     Rate S/N Ratio:     12.369316876853  [ if not an image trigger ]
     Image S/N Ratio:    8.54

  Flight Position:   [ source = BAT ]
    RA: 194.30789595948   Dec: 28.3219605402312  [deg; J2000]

  Ground Position:   [ source = BAT pre-slew burst ]
    RA: 194.364281560349   Dec: 28.3314910846362  [deg; J2000]
        { 12h 57m 27.4s , +28d 19' 53.4" }
         +/- 2.17011165891163 [arcmin] (estimated 90% radius based on SNR)
         +/- 0.894640840435795 [arcmin] (formal 1-sigma fit error)
    SNR: 10.056102559974

  Angular difference between Flight and Ground position is 3.032430 arcmin

  Partial Coding Fraction: 0.703125    [ including projection effects ]

  Duration
     T90: 17.4240000247955 +/- 5.89714506804888
        Measured from: -13.2800000309944
                   to: 4.14399999380112     [s; relative to TRIGTIME]
     T50: 8.17599999904633 +/- 2.67454972917641
        Measured from: -5.96799999475479
                   to: 2.20800000429153     [s; relative to TRIGTIME]



  Fluence
     Peak Flux  (peak 1 second)
        Measured from: 1.29999995231628
                   to: 2.29999995231628     [s; relative to TRIGTIME]
     Total Fluence
        Measured from: -14.1920000314713
                   to: 5.82400000095367     [s; relative to TRIGTIME]

             Band 1     Band 2     Band 3     Band 4
              15-25      25-50     50-100    100-350     keV
 Total     0.141206   0.217306   0.156995   0.007239
           0.028104   0.029377   0.026471   0.025380 [error]
 Peak      0.016388   0.036290   0.021709   0.001207
           0.006651   0.007005   0.006211   0.005683 [error]

     [ fluence units of on-axis counts / fully illuminated detector ]

======================================================================

=== Fluence/Peak Flux Summary ===

              Model    Band1    Band2    Band3    Band4    Band5    Total
                       15-25    25-50   50-100  100-350   15-150   15-350   keV
Fluence   Power-law 4.79e-08 8.58e-08 1.18e-07 3.36e-07 3.40e-07 5.88e-07   erg/cm2
              Error 1.12e-08 1.32e-08 2.54e-08 1.49e-07 6.13e-08 1.72e-07   erg/cm2
Peak flux Power-law 2.02e-01 2.12e-01 1.57e-01 1.89e-01 6.44e-01 7.60e-01   ph/cm2/s
              Error 8.15e-02 5.57e-02 5.00e-02 1.21e-01 1.62e-01 1.98e-01   ph/cm2/s

Fluence   Cutoff-PL 4.15e-08 9.76e-08 1.20e-07 7.33e-08 3.07e-07 3.32e-07   erg/cm2
              Error 1.29e-08 1.78e-08 3.00e-08 1.49e-07 6.57e-08 1.56e-07   erg/cm2
Peak flux Cutoff-PL 1.68e-01 2.53e-01 1.60e-01 3.44e-02 6.08e-01 6.14e-01   ph/cm2/s
              Error 9.39e-02 8.37e-02 7.07e-02 8.31e-02 1.69e-01 2.21e-01   ph/cm2/s

Fluence        Band 4.12e-08 9.73e-08 1.19e-07 7.32e-08 3.07e-07 3.32e-07   erg/cm2
              Error -------- -------- -------- -------- -------- --------   erg/cm2
Peak flux      Band -------- -------- -------- -------- -------- --------   ph/cm2/s
              Error -------- -------- -------- -------- -------- --------   ph/cm2/s


=== Time-averaged spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.541    0.257    -      -           1.80e-03 2.95e-04   65.980 57
CPL   0.403    1.233      64.4  106.5      7.39e-03 2.07e-02   62.620 56


=== 1-s peak spectral analysis ===

Model Ph_index Ph_90err Epeak  Epeak_90err Norm     Nomr_90err chi2   dof
PL    1.431    0.415    -      -           5.25e-03 1.36e-03   55.410 57
CPL  -0.159    3.202      60.0  -22.6      3.98e-02 6.55e+00   53.750 56

Model      : spectral model: simple power-law (PL) and cutoff power-law (CPL)
Ph_index   : photon index: E^-{Ph_index} (minus sign is not included in the index)
Ph_90err   : 90% error of the photon index
Epeak      : Epeak in keV
Epeak_90err: 90% error of Epeak
Norm       : normalization at 50 keV in PL model and at 1 keV in CPL model
Nomr_90err : 90% error of the normalization
chi2       : Chi-Squared
dof        : degree of freedom


=== T90/T50 calculation in the 50-300 keV band (BATSE band) using 64 ms lc ===

T90 in the 50-300 keV band: 0.000000 sec.
T50 in the 50-300 keV band: 0.000000 sec.


=== Table of the duration information ==

        Value   tstart    tstop
T100   20.016  -14.192    5.824
T90    17.424  -13.280    4.144
T50     8.176   -5.968    2.208
Peak    1.000    1.300    2.300

Click here for the BAT GCN circular template


Pre-slew 15.0-350.0 keV image (Event data)

#   RAcent    DECcent   POSerr    Theta     Phi              Peak Cts       SNR   Name
  194.3643    28.3315   0.0192    21.5944   126.9027         0.5854731     10.056 TRIG_00597519

Foreground time interval of the image:
-14.192   5.824 (delta_t =  20.016 [sec])
Background time interval of the image:
-239.952 -14.192 (delta_t = 225.760 [sec])

Lightcurves

Notes:

1) The mask-weighted light curves are using the flight position.
2) Multiple plots of different time binning/intervals are shown to cover all scenarios of short/long GRBs, rate/image triggers, and real/false positives.
3) For all the mask-weighted lightcurves, the y-axis units are counts/sec/det where a det is 0.4 x 0.4 = 0.16 sq cm.
4) The verticle lines correspond to following: green dotted lines are T50 interval, black dotted lines are T90 interval, blue solid line(s) is a spacecraft slew start time, and orange solid line(s) is a spacecraft slew end time.
5) Time of each bin is in the middle of the bin.

1 s binning

From T0-310 s to T0+310 s

From T100_start - 20 s to T100_end + 30 s

Full time interval

64 ms binning

Full time interval

From T100_start to T100_end

From T0-5 sec to T0+5 sec

16 ms binning

From T100_start-5 s to T100_start+5 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

8 ms binning

From T100_start-3 s to T100_start+3 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

2 ms binning

From T100_start-1 s to T100_start+1 s

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

SN=5 or 10 sec. binning (whichever binning is satisfied first)

SN=5 or 10 sec. binning (T < 200 sec)

Quad-rate summed light curves (from T0-300s to T0+1000s)

The mask-weighted light curves based on cleaned DPHs

Spectral Evolution

Spectra

Notes:

1) The fitting includes the systematic errors.
2) When the burst includes telescope slew time periods, the fitting uses an average response file made from multiple 5-s response files through out the slew time plus single time preiod for the non-slew times, and weighted by the total counts in the corresponding time period using addrmf. An average response file is needed becuase a spectral fit using the pre-slew DRM will introduce some errors in both a spectral shape and a normalization if the PHA file contains a lot of the slew/post-slew time interval.
3) For fits to more complicated models (e.g. a power-law over a cutoff power-law), the BAT team has decided to require a chi-square improvement of more than 6 for each extra dof.

Time averaged spectrum fit using the average DRM

Power-law model

Time interval is from  -14.192 sec. to    5.824 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.54063     ( -0.253466   0.260353 )
Norm@50keV  : 1.80206E-03    ( -0.000296823   0.000292541 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.98 using 59 PHA bins.
# Reduced chi-squared =          1.157 for     57 degrees of freedom
# Null hypothesis probability =   1.943536e-01

Photon flux (15-150 keV)    in 20.02 sec: 0.227517 ( -0.0346032  0.0346153 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.4009e-07 ( -6.0501e-08  6.2091e-08 ) ergs/cm2

Cutoff power-law model

Time interval is from  -14.192 sec. to    5.824 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.402625     ( -1.397   1.06912 )
Epeak [keV] : 64.4220      ( -16.7556 196.201 )
Norm@50keV  : 7.39445E-03    ( -0.00739445   0.0339624 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.62 using 59 PHA bins.
# Reduced chi-squared =          1.118 for     56 degrees of freedom
# Null hypothesis probability =   2.529433e-01

Photon flux (15-150 keV)    in 20.02 sec: 0.217965 ( -0.035504  0.035642 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.06813e-07 ( -6.31451e-08  6.83062e-08 ) ergs/cm2

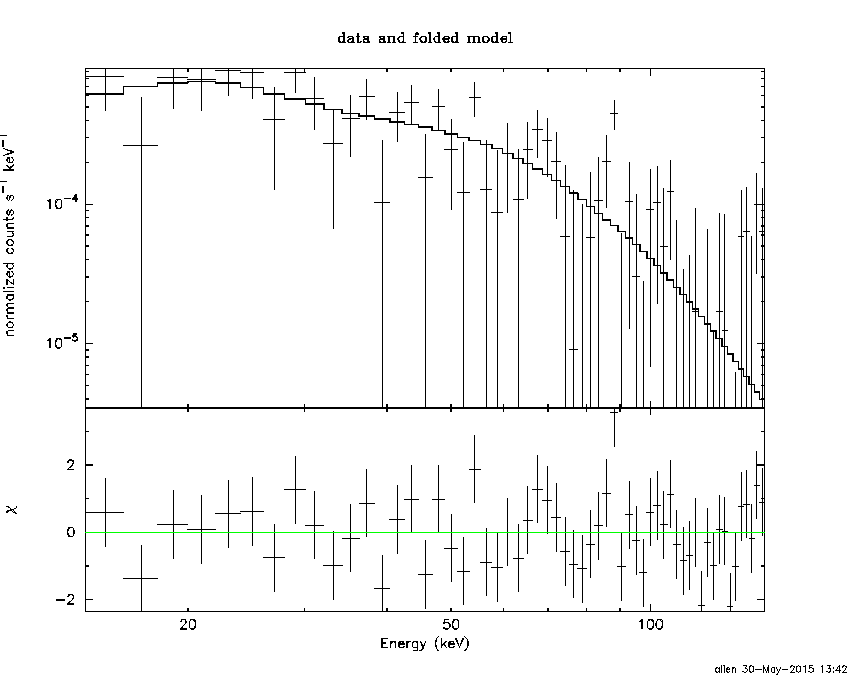

Band function

Time interval is from  -14.192 sec. to    5.824 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.402648   ( -0.971718   1.19596 )
beta        : -9.37167    ( 9.37167   19.3717 )
Epeak [keV] : 64.4136      ( -15.8523 166.794 )
Norm@50keV   : 7.39429E-03    ( -0.00739429   0.00649175 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.62 using 59 PHA bins.
# Reduced chi-squared =          1.139 for     55 degrees of freedom
# Null hypothesis probability =   2.240064e-01

Photon flux (15-150 keV)    in 20.02 sec: 0.217948 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.0659e-07 ( 0  0 ) ergs/cm2

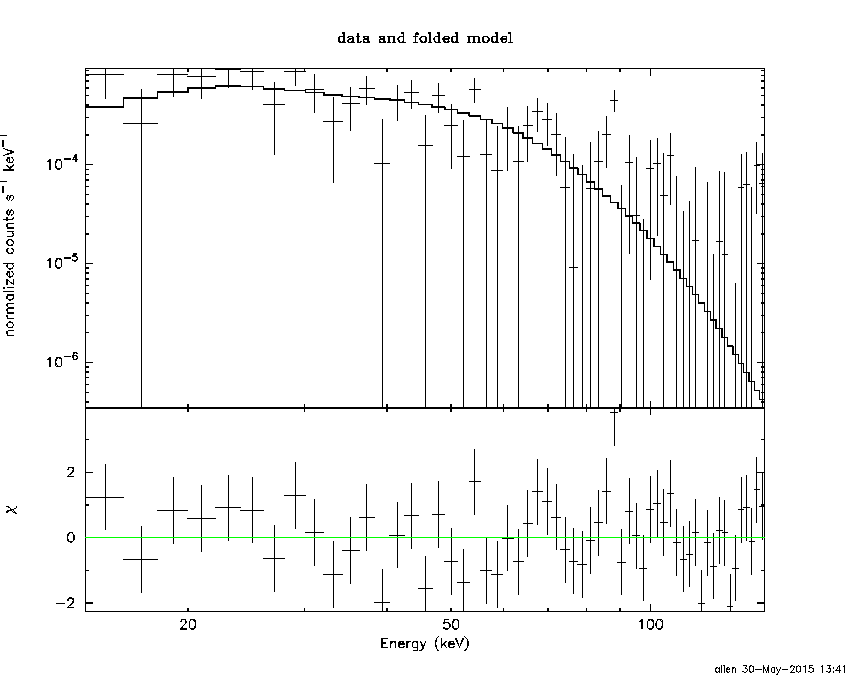

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 13.4695  (-2.25085  2.76942)
R^2/D10^2   : 3.85458E-02  (-0.0186997   0.0351826)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          67.24 using 59 PHA bins.
# Reduced chi-squared =          1.180 for     57 degrees of freedom
# Null hypothesis probability =   1.664232e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  2.966e-08   8.920e-09
25- 50  1.061e-07   2.337e-08
50-150  1.241e-07   3.973e-08
15-150  2.598e-07   6.223e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 174.341       (-85.9481      -174.27)
Norm        : 0.939735       (-0.1456     0.169973)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          64.31 using 59 PHA bins.
# Reduced chi-squared =          1.128 for     57 degrees of freedom
# Null hypothesis probability =   2.360764e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.762e-08   2.667e-08
25- 50  9.010e-08   4.994e-08
50-150  1.886e-07   1.069e-07
15-150  3.263e-07   1.829e-07

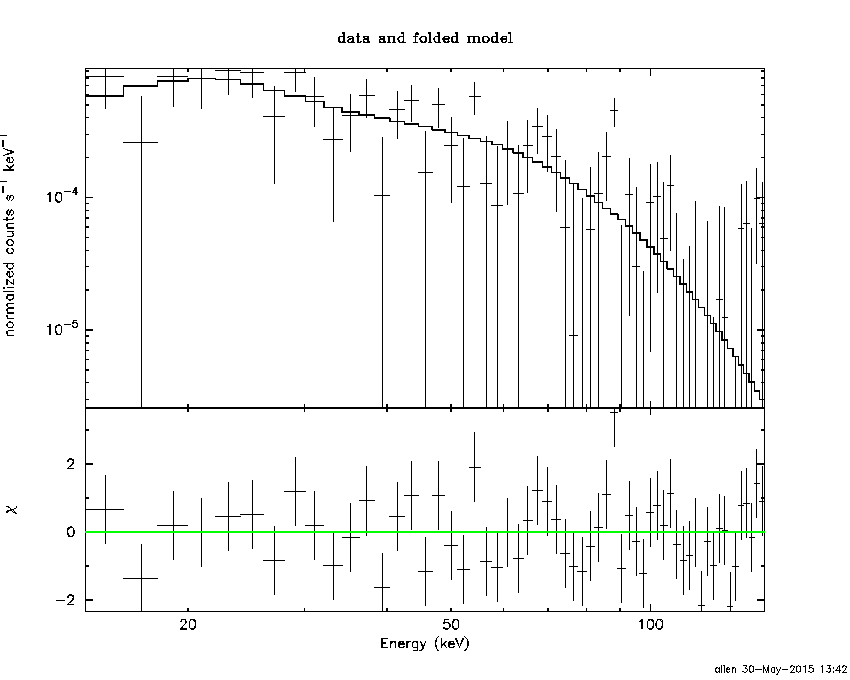

Double BB



Spectral model: bbodyrad<1> + bbodyrad<2>
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT1 [keV]   : 6.79089        (-3.63058      4.70455)
R1^2/D10^2  : 0.217251        (-0.169201      3.25179)
kT2 [keV]   : 19.8567        (-16.6979      25.9287)
R2^2/D10^2  : 7.42088E-03    (-0.00715319   0.0168463)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.04 using 59 PHA bins.
# Reduced chi-squared =          1.128 for     55 degrees of freedom
# Null hypothesis probability =   2.396925e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.251e-08   2.526e-08
25- 50  9.639e-08   4.932e-08
50-150  1.699e-07   9.373e-08
15-150  3.088e-07   1.645e-07

Peak spectrum fit

Power-law model

Time interval is from    1.300 sec. to    2.300 sec.

Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.43081     ( -0.413228   0.415848 )
Norm@50keV  : 5.25272E-03    ( -0.00136553   0.00134933 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          55.41 using 59 PHA bins.
# Reduced chi-squared =         0.9720 for     57 degrees of freedom
# Null hypothesis probability =   5.350976e-01

Photon flux (15-150 keV)    in 1 sec: 0.644295 ( -0.161747  0.161982 ) ph/cm2/s
Energy fluence (15-150 keV)             : 5.04491e-08 ( -1.42134e-08  1.47153e-08 ) ergs/cm2

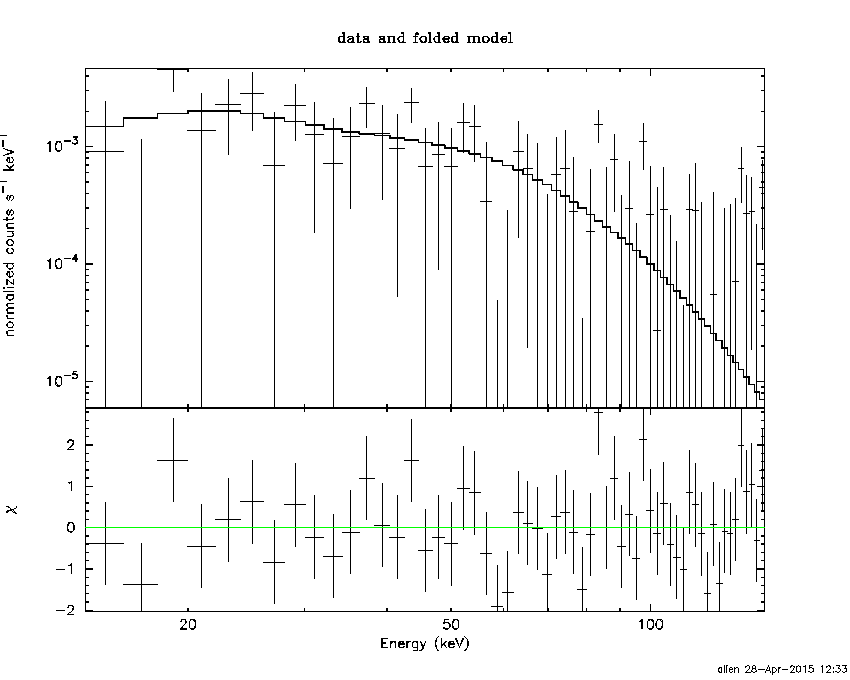

Cutoff power-law model

Time interval is from    1.300 sec. to    2.300 sec.
Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: -0.159128     ( -4.36613   2.03831 )
Epeak [keV] : 59.9611      ( -14.5094 -59.7924 )
Norm@50keV  : 3.98203E-02    ( -0.0405418   13.0637 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.75 using 59 PHA bins.
# Reduced chi-squared =         0.9598 for     56 degrees of freedom
# Null hypothesis probability =   5.604739e-01

Photon flux (15-150 keV)    in 1 sec: 0.608256 ( -0.168852  0.169409 ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.26835e-08 ( -1.51252e-08  1.78747e-08 ) ergs/cm2

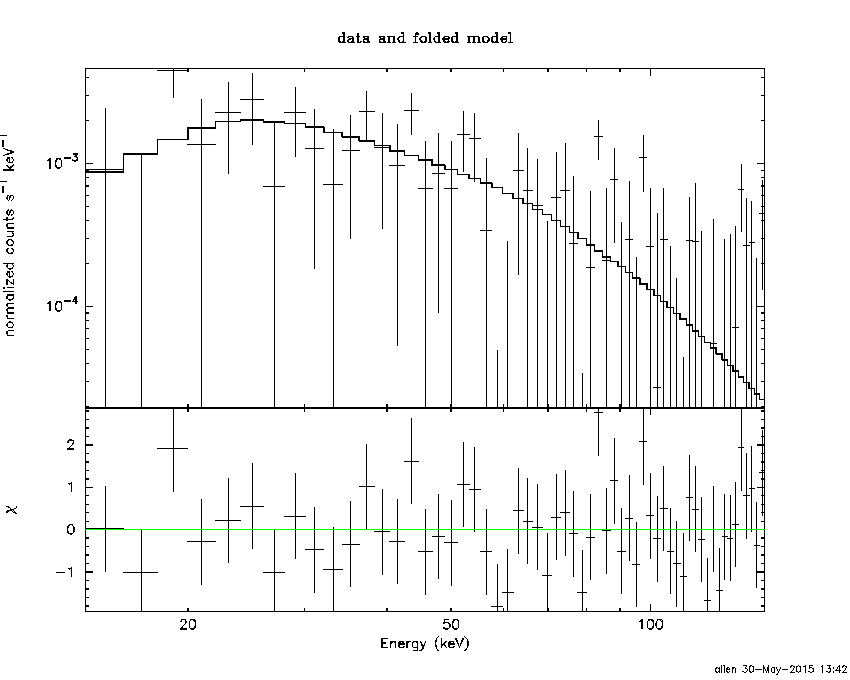

Band function

Time interval is from    1.300 sec. to    2.300 sec.

Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : 4.58298   ( -4.58298   -4.58298 )
beta        : -2.13476    ( -1.59456   0.763444 )
Epeak [keV] : 37.7780      ( -37.778 11.5977 )
Norm@50keV   : 29.0382    ( -7.04936   2.25376e+06 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          53.00 using 59 PHA bins.
# Reduced chi-squared =         0.9637 for     55 degrees of freedom
# Null hypothesis probability =   5.513809e-01

Photon flux (15-150 keV)    in 1 sec:  (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 4.51819e-08 ( 0  0 ) ergs/cm2

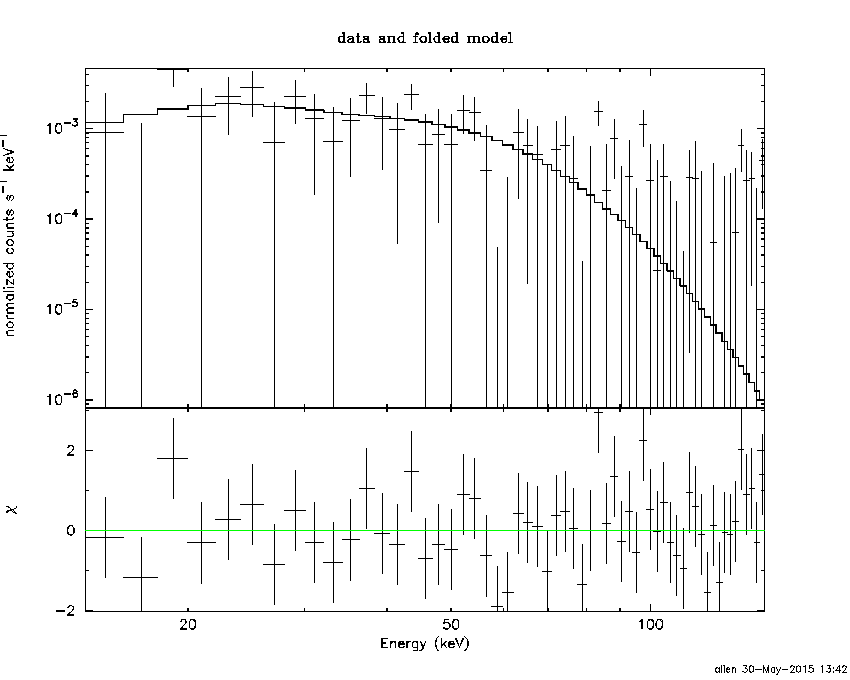

Single BB


Spectral model blackbody:
------------------------------------------------------------
Parameters  : value    Lower 90%  Upper 90%
kT [keV]    : 13.1286  (-3.0683  4.53099)
R^2/D10^2   : 0.123394  (-0.080727   0.194598)
(R is the radius in km and D10 is the distance to the source in units of 10 kpc)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.37 using 59 PHA bins.
# Reduced chi-squared =         0.9538 for     57 degrees of freedom
# Null hypothesis probability =   5.744092e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  4.510e-09   2.215e-09
25- 50  1.570e-08   7.795e-09
50-150  1.720e-08   1.009e-08
15-150  3.741e-08   1.593e-08

Thermal bremsstrahlung (OTTB)



Spectral model: thermal bremsstrahlung
------------------------------------------------------------
Parameters  : value         Lower 90%    Upper 90%
kT [keV]    : 199.363       (-123.724      -199.363)
Norm        : 2.65937       (-0.659823     0.659922)
------------------------------------------------------------
#Fit statistic : Chi-Squared =          54.95 using 59 PHA bins.
# Reduced chi-squared =         0.9641 for     57 degrees of freedom
# Null hypothesis probability =   5.522732e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  6.622e-09   4.015e-09
25- 50  1.274e-08   7.655e-09
50-150  2.794e-08   1.643e-08
15-150  4.730e-08   2.821e-08

Double BB

------------------------------------------------------------
#Fit statistic : Chi-Squared =          52.71 using 59 PHA bins.
#Fit statistic : Chi-Squared =          52.59 using 59 PHA bins.
#Fit statistic : Chi-Squared =          52.57 using 59 PHA bins.
#Fit statistic : Chi-Squared =          52.55 using 59 PHA bins.
# Reduced chi-squared =         0.9584 for     55 degrees of freedom
# Reduced chi-squared =         0.9561 for     55 degrees of freedom
# Reduced chi-squared =         0.9559 for     55 degrees of freedom
# Reduced chi-squared =         0.9554 for     55 degrees of freedom
# Null hypothesis probability =   5.624983e-01
# Null hypothesis probability =   5.673930e-01
# Null hypothesis probability =   5.679498e-01
# Null hypothesis probability =   5.689731e-01

Energy  Fluence     90% Error
[keV]   [erg/cm2]   [erg/cm2]
15- 25  5.361e-09   3.510e-09
25- 50  1.515e-08   1.023e-08
50-150  2.683e-08   1.334e-08
15-150  4.734e-08   2.484e-08

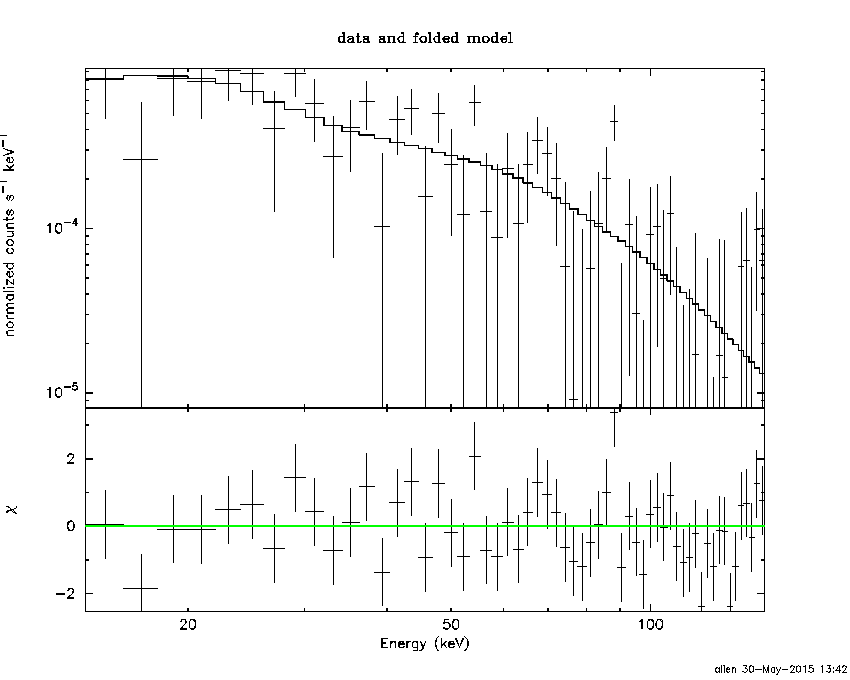

Pre-slew spectrum (Pre-slew PHA with pre-slew DRM)

Power-law model


Spectral model in power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 1.54063     ( -0.253466   0.260353 )
Norm@50keV  : 1.80206E-03    ( -0.000296823   0.000292541 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          65.98 using 59 PHA bins.
# Reduced chi-squared =          1.157 for     57 degrees of freedom
# Null hypothesis probability =   1.943536e-01

Photon flux (15-150 keV)    in 20.02 sec: 0.227517 ( -0.0346032  0.0346153 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.4009e-07 ( -6.0501e-08  6.2091e-08 ) ergs/cm2

Cutoff power-law model

Spectral model in the cutoff power-law:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
Photon index: 0.402625     ( -1.397   1.06912 )
Epeak [keV] : 64.4220      ( -16.7556 196.201 )
Norm@50keV  : 7.39445E-03    ( -0.00739445   0.0339624 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.62 using 59 PHA bins.
# Reduced chi-squared =          1.118 for     56 degrees of freedom
# Null hypothesis probability =   2.529433e-01

Photon flux (15-150 keV)    in 20.02 sec: 0.217965 ( -0.035504  0.035642 ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.06813e-07 ( -6.31451e-08  6.83062e-08 ) ergs/cm2

Band function


Spectral model in the Band function:
------------------------------------------------------------
Parameters  : value       lower 90%   higher 90%
alpha       : -0.402648   ( -0.971718   1.19596 )
beta        : -9.37167    ( 9.37167   19.3717 )
Epeak [keV] : 64.4136      ( -15.8523 165.656 )
Norm@50keV   : 7.39429E-03    ( -0.00739429   0.00649175 )
------------------------------------------------------------
#Fit statistic : Chi-Squared =          62.62 using 59 PHA bins.
# Reduced chi-squared =          1.139 for     55 degrees of freedom
# Null hypothesis probability =   2.240064e-01

Photon flux (15-150 keV)    in 20.02 sec: 0.217948 (    ) ph/cm2/s
Energy fluence (15-150 keV)             : 3.0659e-07 ( 0  0 ) ergs/cm2

S(25-50 keV) vs. S(50-100 keV) plot

S(25-50 keV)  = 8.58e-08
S(50-100 keV) = 1.18e-07

T90 vs. Hardness ratio plot

T90                                   = 17.4240000247955 sec.
Hardness ratio (energy fluence ratio) = 1.37529

Color vs. Color plot

Count Ratio  (25-50 keV) / (15-25 keV) = 1.53893
Count Ratio (50-100 keV) / (15-25 keV) = 1.11182

Mask shadow pattern

IMX = -2.376703540841296E-01, IMY = -3.165160131851645E-01

TIME vs. PHA plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

TIME vs. DetID plot around the trigger time

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

100 us light curve (15-350 keV)

Blue+Cyan dotted lines: Time interval of the scaled map
From 0.000000 to 4.096000

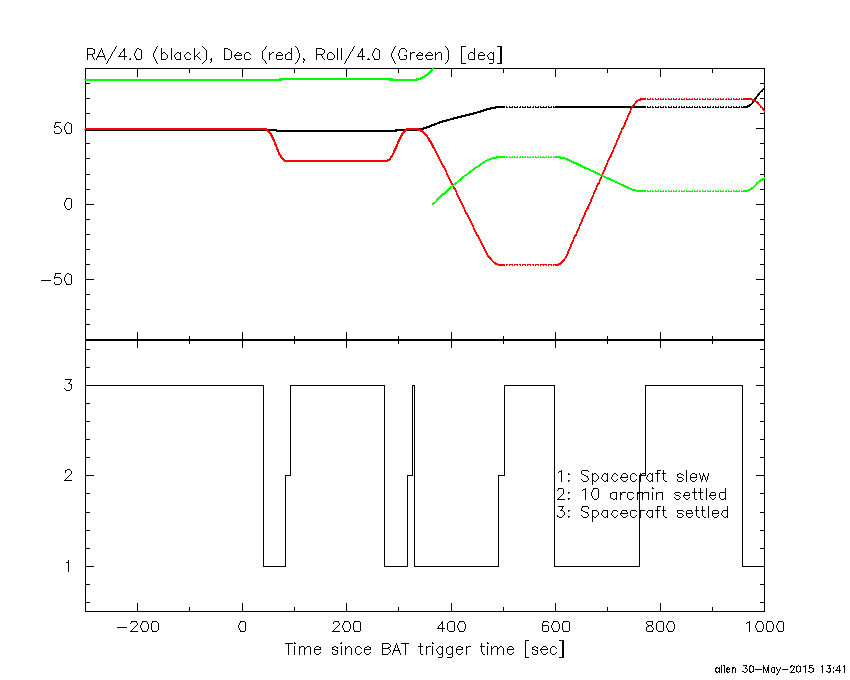

Spacecraft aspect plot

Bright source in the pre-burst/pre-slew/post-slew images

Pre-burst image of 15-350 keV band

Time interval of the image:
-239.952000 -14.192000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.5897  35.3312    6.2  43.4   26.9   0.7309   1.9    6.5	Her X-1
174.0863   4.9040    2.2  49.0  151.3   4.0115   5.3 ------	UNKNOWN
146.0869   9.4860    2.6  58.3 -175.5   5.2515   4.5 ------	UNKNOWN
219.4775  84.9582    3.2  35.6  -56.8   1.0836   3.7 ------	UNKNOWN

Pre-slew background subtracted image of 15-350 keV band

Time interval of the image:
-14.192000 5.824000

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.5765  35.4562    5.1  43.4   26.7  -0.2429  -2.3    9.0	Her X-1
194.3642  28.3315    1.1  21.6  126.9   0.5854  10.1 ------	UNKNOWN
124.6339  48.5901    2.7  45.5 -122.2   0.9024   4.3 ------	UNKNOWN

Post-slew image of 15-350 keV band

Time interval of the image:
83.148590 271.748610

# RAcent  DECcent POSerr Theta    Phi  PeakCts   SNR AngSep     Name
#  [deg]    [deg]    ['] [deg]  [deg]                   [']
254.4450  35.4280   19.5  50.8    5.3   0.2514   0.6    5.2	Her X-1
250.7046  41.9357    2.4  47.2   -2.9   1.4817   4.8 ------	UNKNOWN
138.5426   2.4078    3.3  59.0 -166.1   3.9658   3.5 ------	UNKNOWN
133.8892  19.8263   11.2  55.3 -145.1   1.1857   1.0 ------	UNKNOWN

Plot creation:
Sat May 30 13:43:09 EDT 2015
